Propulsion QDR. Scott Bird Mike Downes Kelby Haase Grant Hile Cyrus Sigari Sarah Umberger Jen Watson. Preview. Choice of Engine Redesigning of Propeller Manufactured Choice Cruise Conditions. Preliminary Choice for Engine. BME-50 Power = 5.0 hp RPM: 1200-9800 Weight = 3.25 lbs.

leal
Download Presentation

Propulsion QDR

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

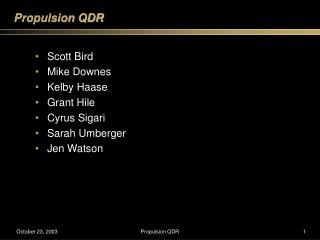

  1. Propulsion QDR • Scott Bird • Mike Downes • Kelby Haase • Grant Hile • Cyrus Sigari • Sarah Umberger • Jen Watson Propulsion QDR

  2. Preview • Choice of Engine • Redesigning of Propeller • Manufactured Choice • Cruise Conditions Propulsion QDR

  3. Preliminary Choice for Engine • BME-50 • Power = 5.0 hp • RPM: 1200-9800 • Weight = 3.25 lbs. Propulsion QDR

  4. Propeller Sizing – Sizing for Take-Off • Take-Off Velocity • CLTO C http://www.danspropshop.com/pitch.html Propulsion QDR

  5. Propeller Sizing – Sizing for Take-Off • Lift and Drag @ .7*VTO • Thrust at Take-Off (Brandt et al p. 176) C http://www.danspropshop.com/pitch.html Propulsion QDR

  6. Propeller Sizing – Sizing for Take-Off • Used modified gold.m code • Varied Pitch and Propeller Diameter • Max RPM = 9800 • Velocity Ranged from 5 ft/s to 55 ft/s in 10 ft/s intervals http://www.danspropshop.com/pitch.html Propulsion QDR

  7. Propeller Sizing – Efficiency vs. Power Propulsion QDR

  8. Propeller Sizing – Sizing for Take-Off • With D=18 in., P=6 in. and VTO = 37.72 ft/s • Efficiency = 40 % C http://www.danspropshop.com/pitch.html Propulsion QDR

  9. Propeller Sizing – Manufactured Choice • Menz "Standard" 2-Blade Wood Props • 18X6 Propeller • $16.00 Propulsion QDR

  10. Propeller Sizing – Cruise Conditions • Used second modification of gold.m code • Held Pitch constant at 6 inches and Diameter constant at 18 inches • Assume Velocity = 50 ft/s • Varied RPM Propulsion QDR

  11. Cruise Conditions • Prop=18X6 • Max Efficiency at approx. 4200 RPM • J = .475/rev • CT = .0155 • CP = .01 • Efficiency = 75% Propulsion QDR

  12. Questions? • Questions?? Propulsion QDR
