  1. Heat Engines A Brief Review of Thermodynamics

  2. Thermodynamics • The science of thermodynamics deals with the relationship between heat and work. • It is governed by two laws, neither of which have ever been proved. • On the other hand no violations of either law have ever been observed.

  3. First Law of Thermodynamics • The energy that can be extracted from a process can never be more than the energy put into the process • In other words • Energy out = Energy in • This is essentially the law of conservation of energy, i.e. • Energy can be neither created nor destroyed, it can only be converted from one form to another

  4. The second law of thermodynamics • The first law is concerned with the totality of energy in a process • The second law tells us how much work we can extract from a given amount of heat. • Carnot’s statement was to the effect that we cannot convert all the the available heat into work. • The second law is also concerned with whether a process can occur at all. For example, • Heat will always flow from a high to a low temperature • A gas under pressure will expand; compression does not occur naturally

  5. Heat Engines • A heat engine is a device for extracting work from a hot fluid. For example • A car engine extracts power from the combustion of fuel with air • A steam steam turbine extracts power from steam • Both of these function by allowing a hot fluid to expand so as to cause motion in a critical component of the engine. • In the process, high grade energy is said to be degraded to lower grade energy.

  6. An ideal heat engine • The diagram on the right represents an ideal heat engine • Heat is added at constant temperature to the fluid at the high temperature source • The fluid flows through an expansion device where work is done, and the temperature of the fluid falls from TH to TL • Heat is then rejected at constant temperature at the low temperature source.

  7. Closed Cycle Heat Engine • The cycle in the previous slide is known as an open cycle. • The closed cycle here has four stages • Isothermal heat addition • Adiabatic expansion • Isothermal heat removal • Adiabatic compression • Isothermal = const. Temp • Adiabatic = perfectly insulated

  8. The Carnot Engine • The cycles above are examples of the Carnot engine. • In the Carnot cycle all processes are reversible. • In a Carnot engine, the maximum work that can be done, and hence the efficiency of the ideal engine depends on the temperatures TH and TL • The efficiency of a Carnot engine is given by • The temperature is in the Kelvin or absolute scale • This efficiency is called the Carnot efficiency

  9. Practical heat engines (1) • The Carnot engine represents the theoretical limit and is not a practical engine. • The main limitations of the Carnot engine are: • The processes in all four stages are reversible. For this to be the case they must all take place infinitely slowly • The work extracted on expansion is equal to the work required for compression, so no net work is extracted. • A practical heat engine has a lower efficiency than a Carnot engine, but can make more effective use of the energy in the hot fluid.

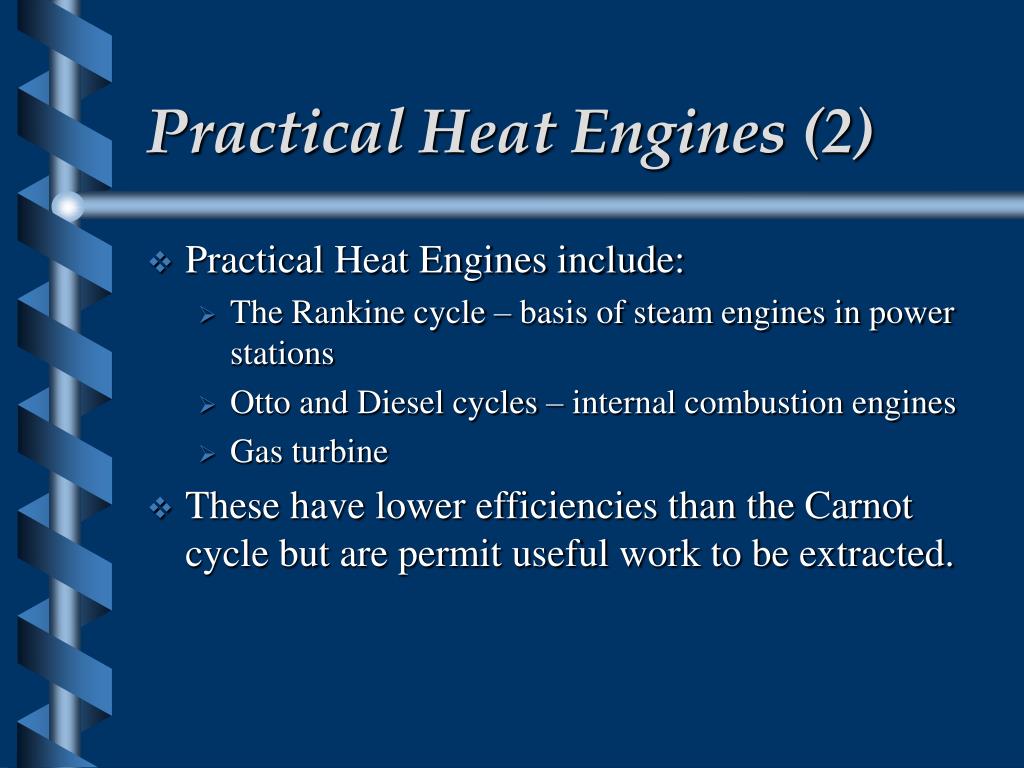

  10. Practical Heat Engines (2) • Practical Heat Engines include: • The Rankine cycle – basis of steam engines in power stations • Otto and Diesel cycles – internal combustion engines • Gas turbine • These have lower efficiencies than the Carnot cycle but are permit useful work to be extracted.

  11. The Rankine cycle • This has two differences to the Carnot cycle • There must be reasonable temperature differences in the boiler and condenser to ensure that heat addition and rejection occurs at an acceptable rate • The turbine exhaust is completely condensed and returned to the boiler by a pump. This uses very much less energy than a compressor. • These result in lower efficiencies than the Carnot cycle but permit useful work to be done.

  12. Other cycles • Otto, Diesel and Gas turbines all involve an initial compression stage, but are otherwise open cycle processes. • Combined cycle gas turbine: • This combines a gas turbine with a Rankine steam cycle to maximise the work extracted from the fuel. • Efficiencies are much closer to Carnot efficiencies than in other practical cycle used to date.

  13. Example • Steam from a geothermal well is expanded in a Carnot engine from a temperature of 150C to 50C. How much work is extracted from 1kg of steam? • If the steam is heated to 250C before expansion, how much work is now extracted in relation to the extra heat added • Heat capacity of steam = 1.9 kJ kg-1 K-1 • 0C = 273 K

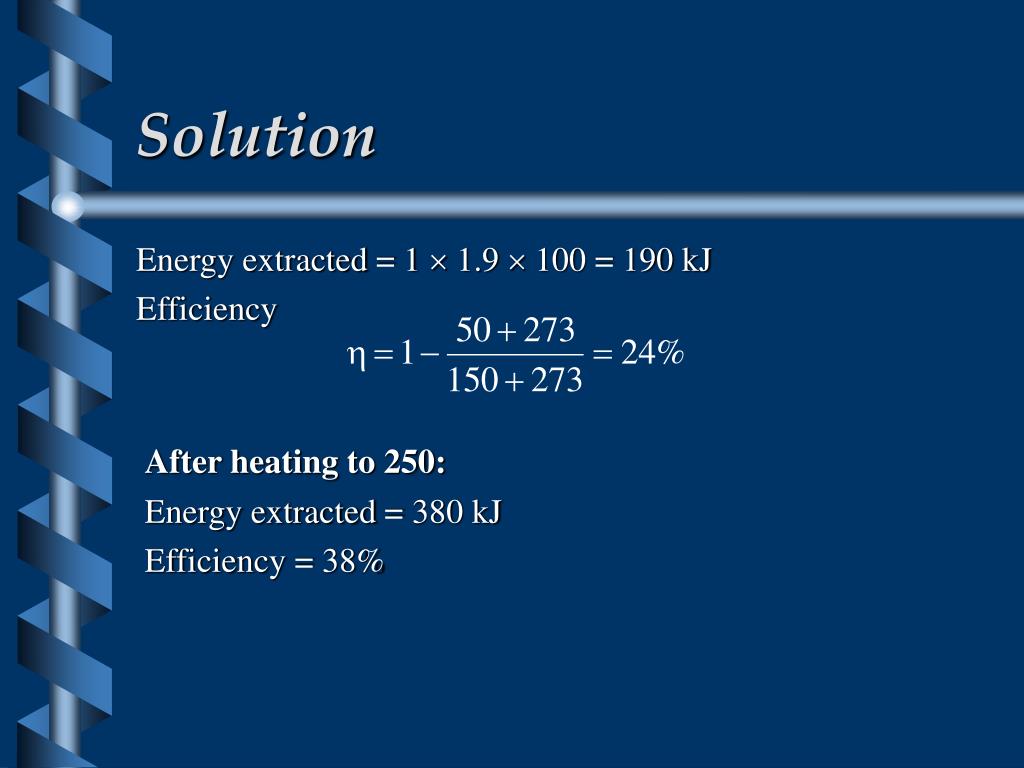

  14. Solution Energy extracted = 1  1.9  100 = 190 kJ Efficiency After heating to 250: Energy extracted = 380 kJ Efficiency = 38%

  15. And Finally... Work is heat and heat is work and all the heat in the universe is gonna coooool down! Yeh! That’s entropy man. Michael Flanders and Donald Swann
