Spoiler warning

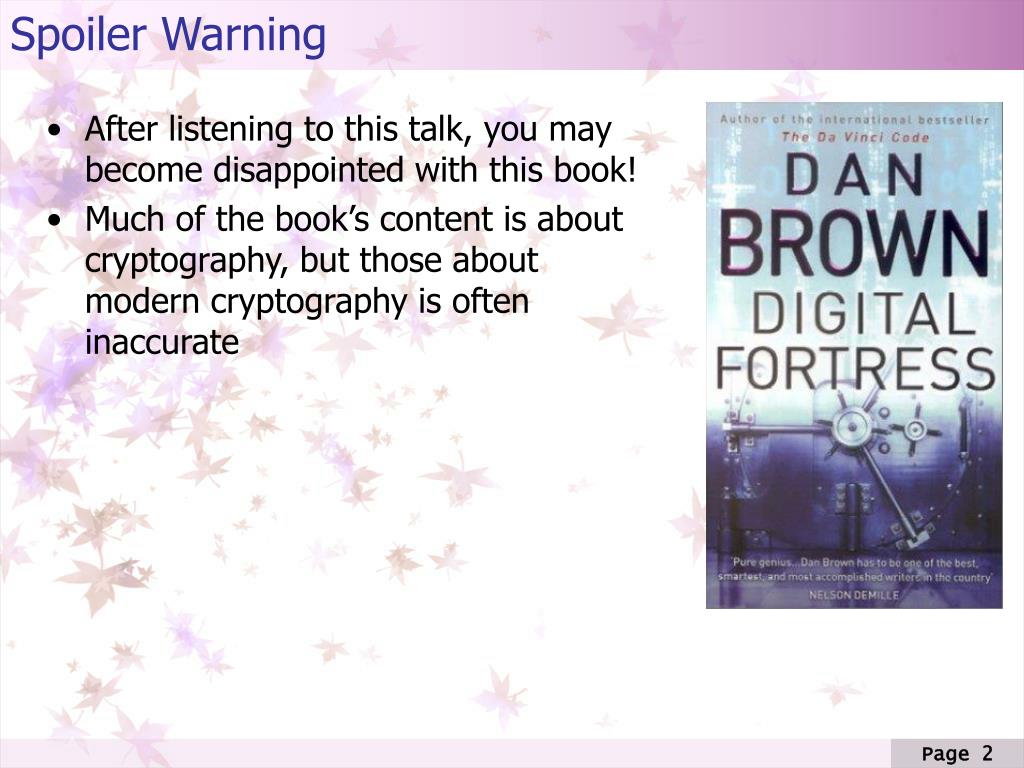

Spoiler Warning

  • After listening to this talk, you may become disappointed with this book!

  • Much of the book’s content is about cryptography, but those about modern cryptography is often inaccurate

Build your own cryptosystem

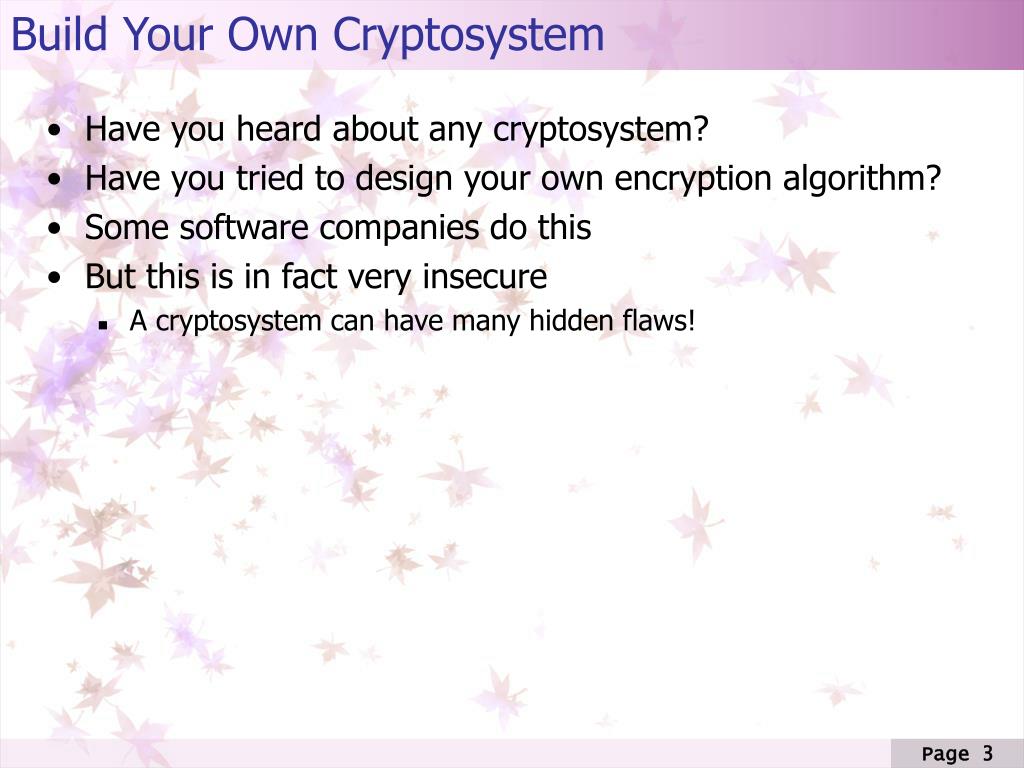

Build Your Own Cryptosystem

  • Have you heard about any cryptosystem?

  • Have you tried to design your own encryption algorithm?

  • Some software companies do this

  • But this is in fact very insecure

    • A cryptosystem can have many hidden flaws!

A simple cryptosystem i used in f 1

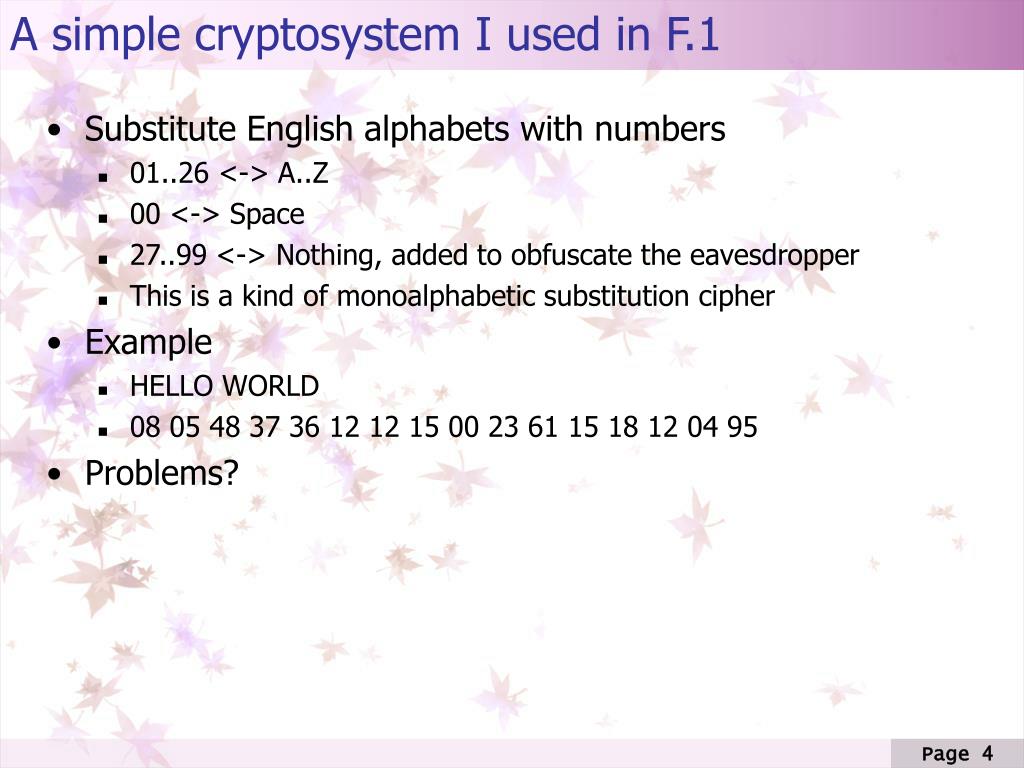

A simple cryptosystem I used in F.1

  • Substitute English alphabets with numbers

    • 01..26 <-> A..Z

    • 00 <-> Space

    • 27..99 <-> Nothing, added to obfuscate the eavesdropper

    • This is a kind of monoalphabetic substitution cipher

  • Example


    • 08 05 48 37 36 12 12 15 00 23 61 15 18 12 04 95

  • Problems?

Classical ciphers

Classical Ciphers

  • Monoalphabetic Substitution Cipher

    • Example : Caesar, simple substitution

  • Substitutes every letter with a fixed letter

  • Very vulnerable to frequency analysis

Classical ciphers1

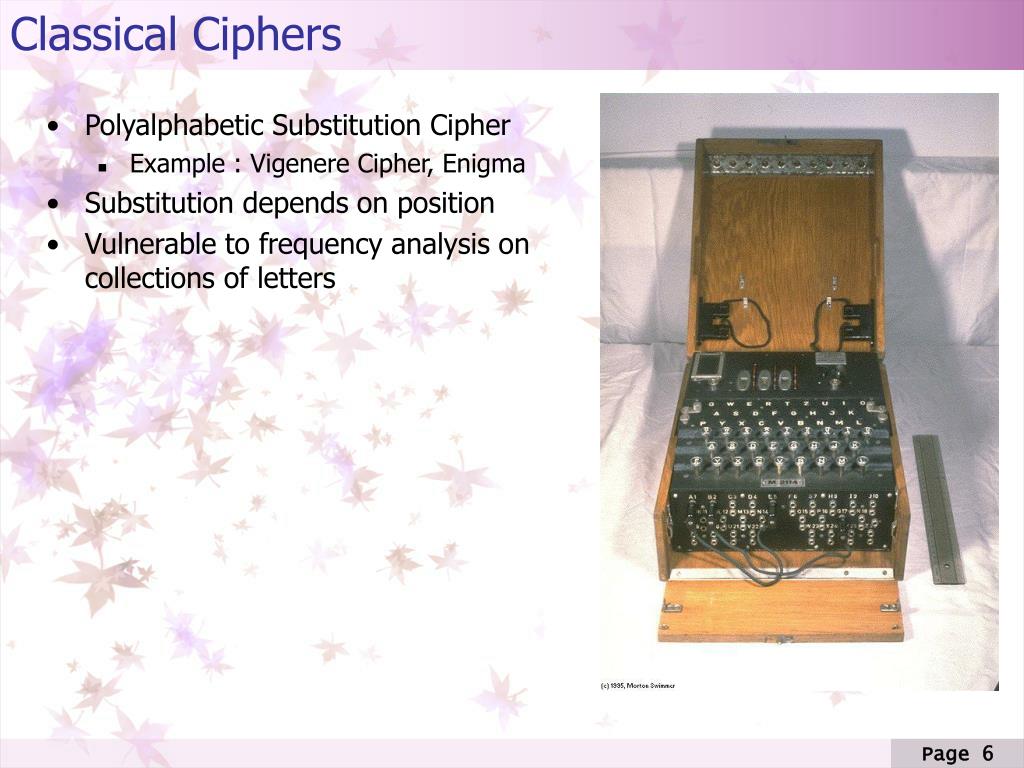

Classical Ciphers

  • Polyalphabetic Substitution Cipher

    • Example : Vigenere Cipher, Enigma

  • Substitution depends on position

  • Vulnerable to frequency analysis on collections of letters

Classical ciphers2

Classical Ciphers

  • Transposition Cipher

    • Example : Columnar transposition

  • Moves the position of letters around

  • Again vulnerable to frequency analysis

Classical ciphers3

Classical Ciphers

  • Hill Cipher

  • Based on matrix multiplication

  • Vulnerable to known plaintext attack

Modern cryptography

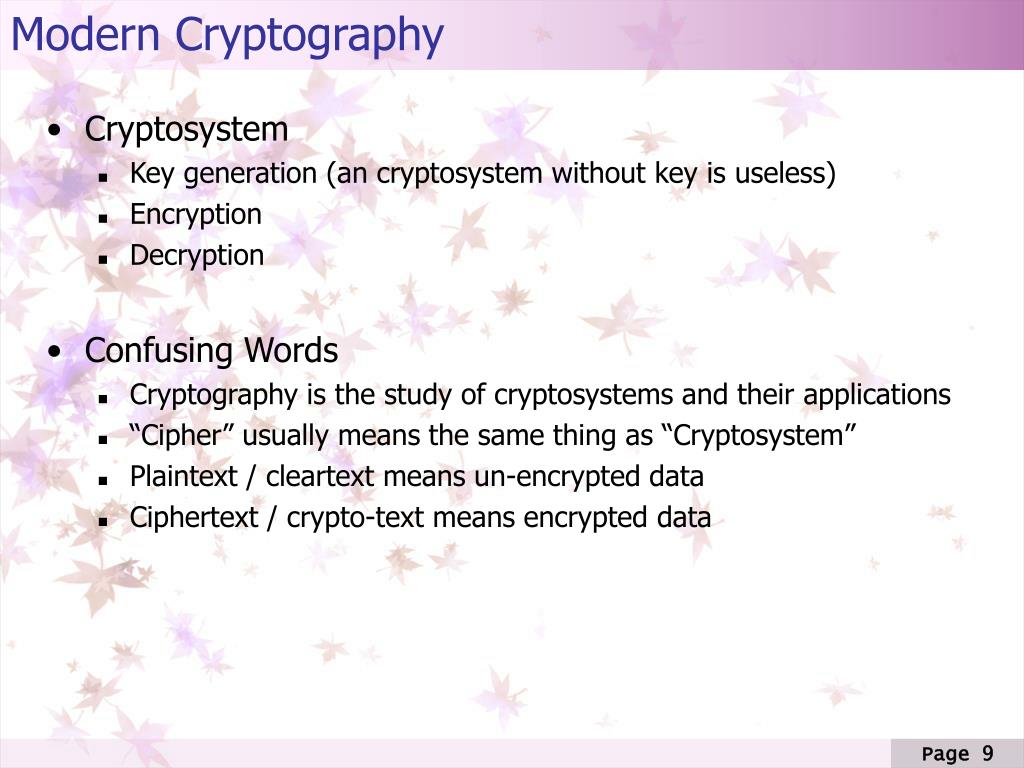

Modern Cryptography

  • Cryptosystem

    • Key generation (an cryptosystem without key is useless)

    • Encryption

    • Decryption

  • Confusing Words

    • Cryptography is the study of cryptosystems and their applications

    • “Cipher” usually means the same thing as “Cryptosystem”

    • Plaintext / cleartext means un-encrypted data

    • Ciphertext / crypto-text means encrypted data

Symmetric ciphers private key cryptosystems

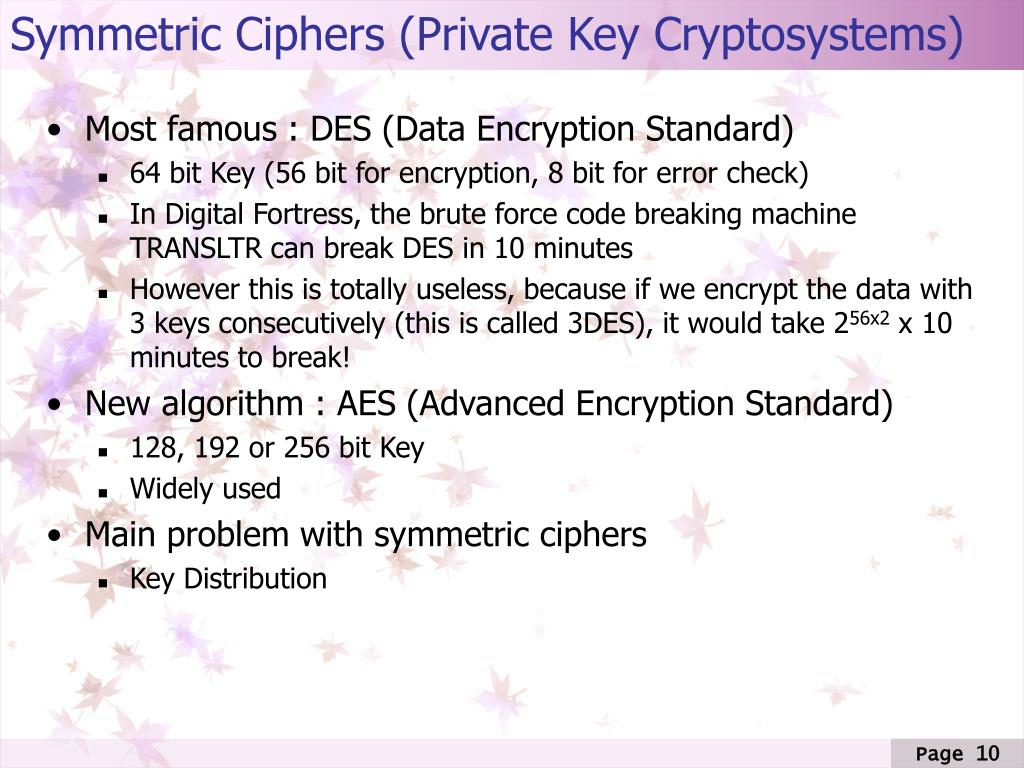

Symmetric Ciphers (Private Key Cryptosystems)

  • Most famous : DES (Data Encryption Standard)

    • 64 bit Key (56 bit for encryption, 8 bit for error check)

    • In Digital Fortress, the brute force code breaking machine TRANSLTR can break DES in 10 minutes

    • However this is totally useless, because if we encrypt the data with 3 keys consecutively (this is called 3DES), it would take 256x2 x 10 minutes to break!

  • New algorithm : AES (Advanced Encryption Standard)

    • 128, 192 or 256 bit Key

    • Widely used

  • Main problem with symmetric ciphers

    • Key Distribution

Asymmetric cipher public key cryptosystem

Asymmetric Cipher (Public Key Cryptosystem)

  • Most famous : RSA

  • A little number theory

    • n = p*q (p and q are large primes)

    • Choose e, d such that e*d = 1 (mod f(n))

  • Encryption and Decryption

    • Public key is (n,e)

    • Private key is (n,d)

    • C = Me

    • M = Cd

  • To break RSA we need to factorize n

    • Current fastest algorithm : Number Field Sieve

Why still use symmetric ciphers

Why still use symmetric ciphers?

  • Symmetric ciphers are much faster than asymmetric ones

    • At least 100x

  • Key length of symmetric ciphers can be much shorter than asymmetric ciphers

    • AES key of 128 bit is roughly as strong as a RSA key of 2048 bit

  • Use asymmetric cipher to encrypt the keys of symmetric cipher!

  • Other well known algorithms

    • Symmetric : RC5, IDEA, BlowFish, …

    • Asymmetric : El-Gamal, Elliptic Curve Cryptography (ECC), XTR, …

The one time pad

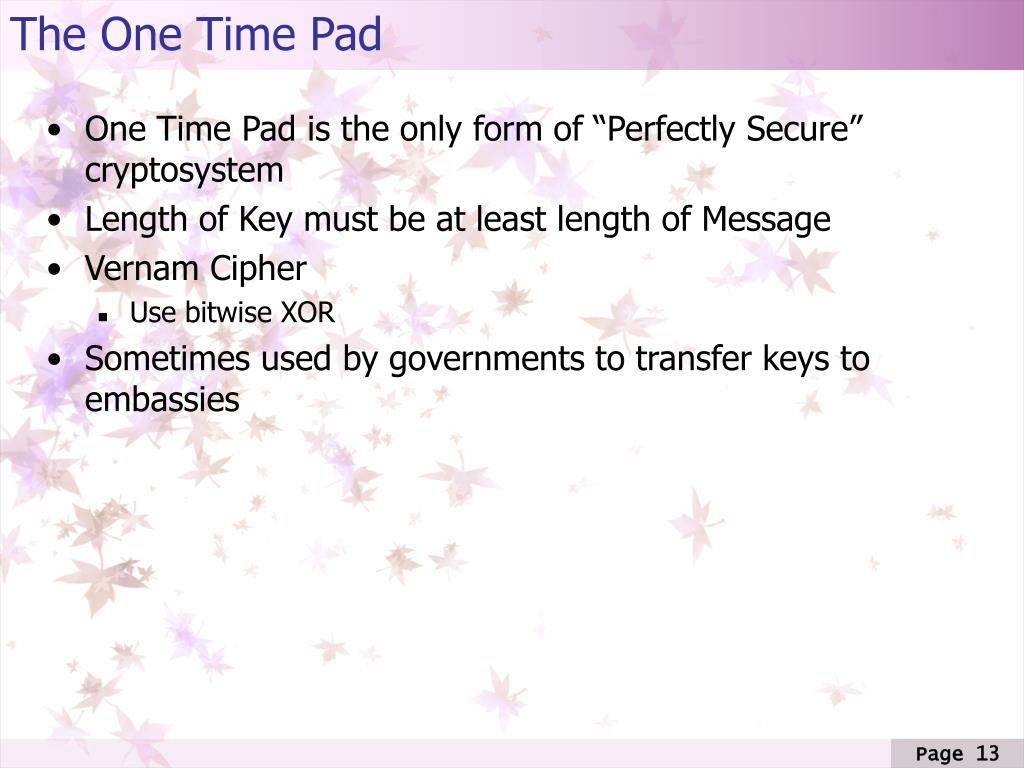

The One Time Pad

  • One Time Pad is the only form of “Perfectly Secure” cryptosystem

  • Length of Key must be at least length of Message

  • Vernam Cipher

    • Use bitwise XOR

  • Sometimes used by governments to transfer keys to embassies

Digital signatures

Digital Signatures

  • Many asymmetric encryption/decryption schemes are just mathematical functions, we can reverse the order

    • Dec(Enc(X)) = Enc(Dec(X)) = X

  • Therefore we can use them for “digital signature”

    • Example : RSA

    • If we send M to somebody, we also send s=Md

    • The other party can check M has not been altered by verifying se=M

Public key infrastructure

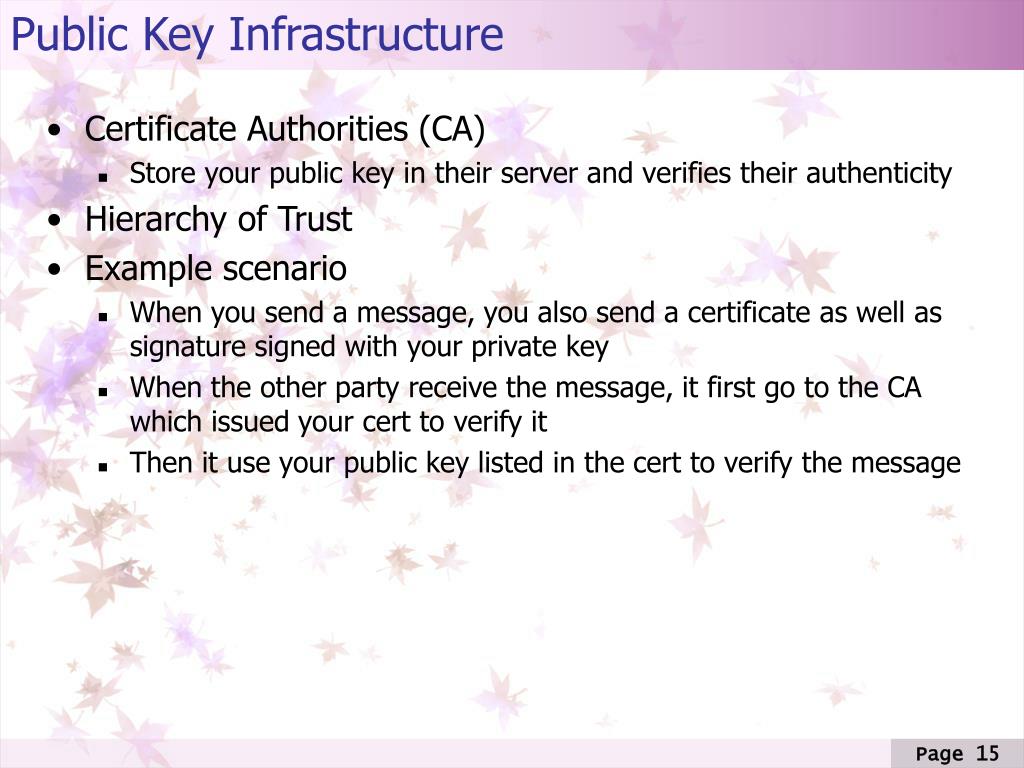

Public Key Infrastructure

  • Certificate Authorities (CA)

    • Store your public key in their server and verifies their authenticity

  • Hierarchy of Trust

  • Example scenario

    • When you send a message, you also send a certificate as well as signature signed with your private key

    • When the other party receive the message, it first go to the CA which issued your cert to verify it

    • Then it use your public key listed in the cert to verify the message

The real world

The Real World

  • What I told you is INSECURE !

  • Dolev-Yao Threat Model

    • Attackers control the whole network

    • Attackers can intercept, duplicate, replay, modify, or forge any message, but

    • Attackers cannot find the plaintext from a ciphertext without the key, and

    • Attackers cannot find the private key from a public key

  • Recall the BT incident

    • 90% of what the Customs did (mainly eavesdropping) can be done by everyone on the Internet

Attack on rsa

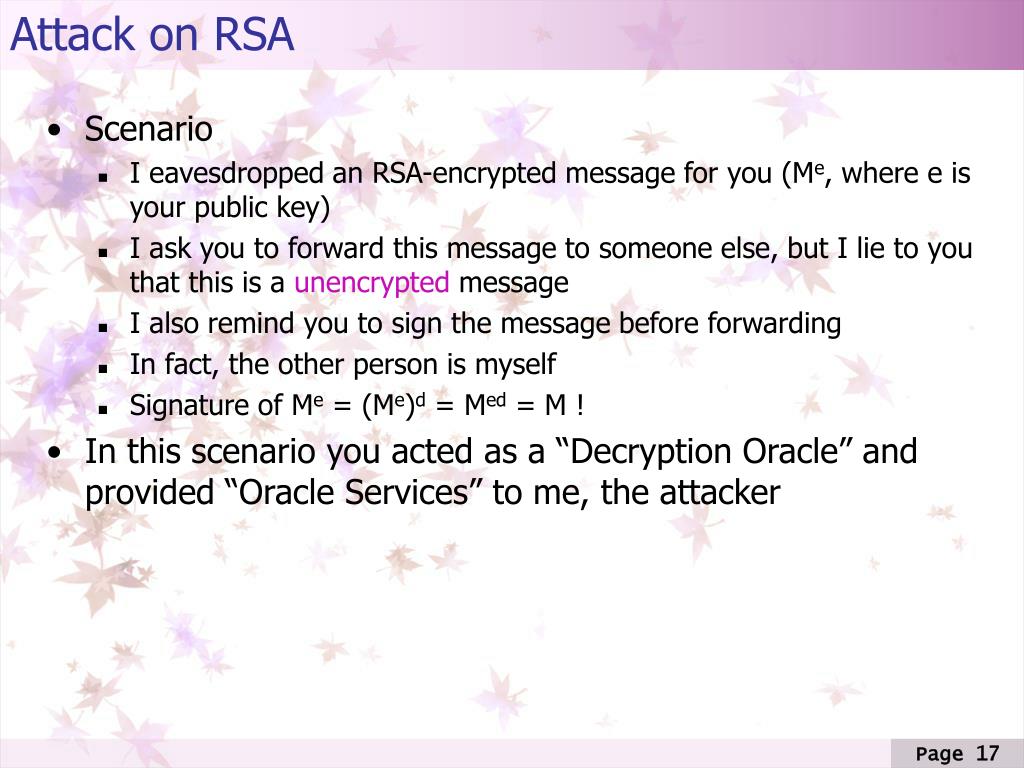

Attack on RSA

  • Scenario

    • I eavesdropped an RSA-encrypted message for you (Me, where e is your public key)

    • I ask you to forward this message to someone else, but I lie to you that this is a unencrypted message

    • I also remind you to sign the message before forwarding

    • In fact, the other person is myself

    • Signature of Me = (Me)d = Med = M !

  • In this scenario you acted as a “Decryption Oracle” and provided “Oracle Services” to me, the attacker

Attack on rsa1

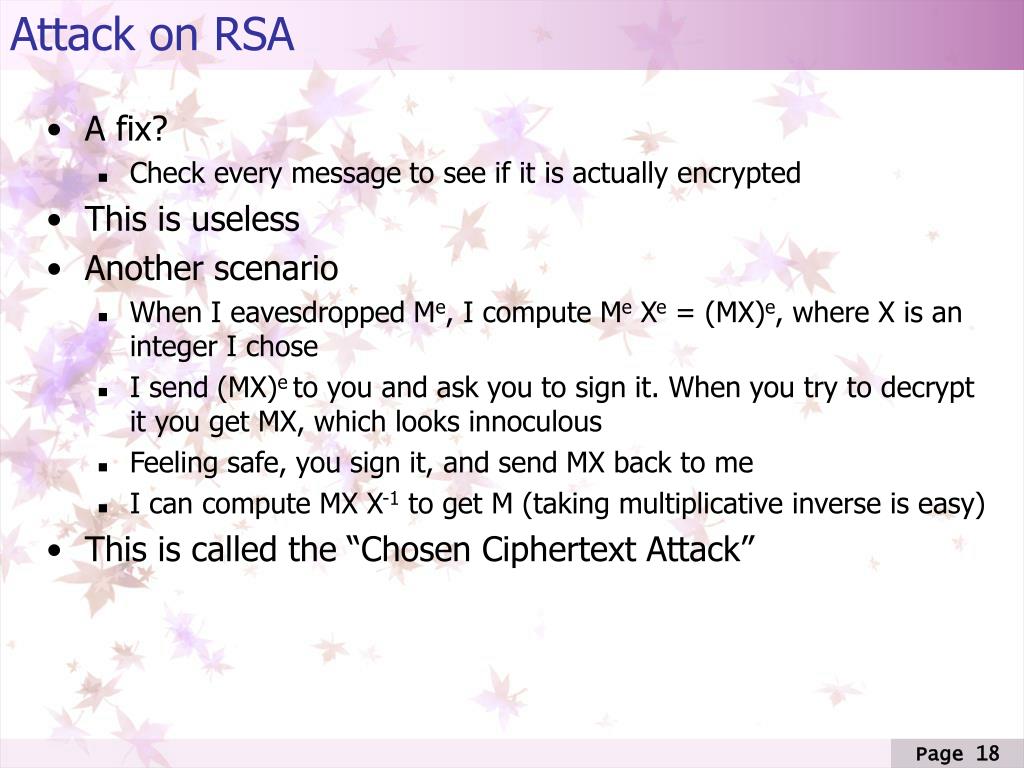

Attack on RSA

  • A fix?

    • Check every message to see if it is actually encrypted

  • This is useless

  • Another scenario

    • When I eavesdropped Me, I compute Me Xe = (MX)e, where X is an integer I chose

    • I send (MX)e to you and ask you to sign it. When you try to decrypt it you get MX, which looks innoculous

    • Feeling safe, you sign it, and send MX back to me

    • I can compute MX X-1 to get M (taking multiplicative inverse is easy)

  • This is called the “Chosen Ciphertext Attack”

Attack on rsa2

Attack on RSA

  • A real solution is to apply cryptographic hash function before signing

  • Properties of cryptographic hash function

    • One way

    • Non-linear

    • Collision free

  • However, many other attacks are possible

    • Now, formal methods are used to model the attacks

    • A “really secure” version of RSA is the RSA-OAEP

    • Many research are ongoing
