1. What are the characteristics of DSP algorithms? M. Smith and S. Daeninck

2. Tackled today • What are the basic characteristics of a DSP algorithm? • Information on the TigerSHARC arithmetic, multiplier and shifter units • Practice examples of C++ to assembly code conversion DSP Introduction, M. Smith, ECE, University of Calgary, Canada

3. IEEE Micro Magazine Article • How RISCy is DSP?Smith, M.R.; IEEE Micro, Volume: 12, Issue: 6, Dec. 1992, Pages:10 - 23 • Available on line via the library “Electronic web links” • Copy placed on ENCM515 Web site. • Make sure you read it before midterm 1 DSP Introduction, M. Smith, ECE, University of Calgary, Canada

4. Characteristics of an FIR algorithm • Involves one of the three basic types of DSP algorithms • FIR (Type 1), IIR (Type 2) and FFT (Type 3) • Representative of DSP equations found in filtering, convolution and modeling • Multiplication / addition intensive • Simple format within a (long) loop • Many memory fetches of fixed and changing data • Handle “infinite amount of input data” – need FIFO buffer when handling ON-LINE data • All calculations “MUST” be completed in the time interval between samples DSP Introduction, M. Smith, ECE, University of Calgary, Canada

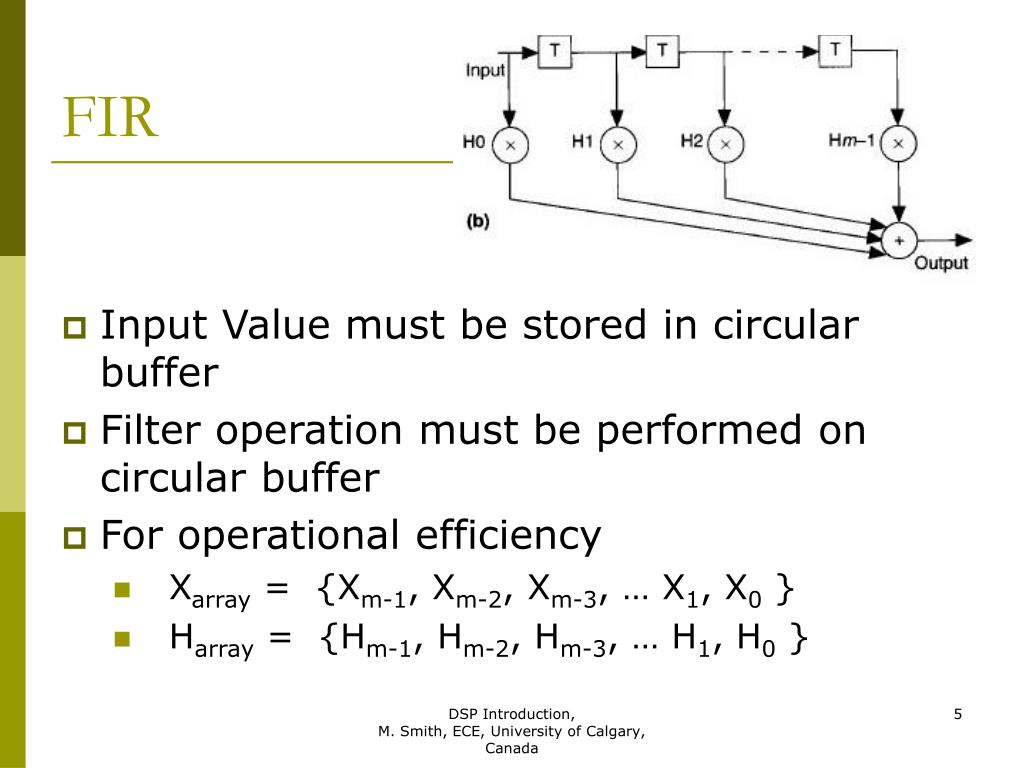

5. FIR • Input Value must be stored in circular buffer • Filter operation must be performed on circular buffer • For operational efficiency • Xarray = {Xm-1, Xm-2, Xm-3, … X1, X0 } • Harray = {Hm-1, Hm-2, Hm-3, … H1, H0 } DSP Introduction, M. Smith, ECE, University of Calgary, Canada

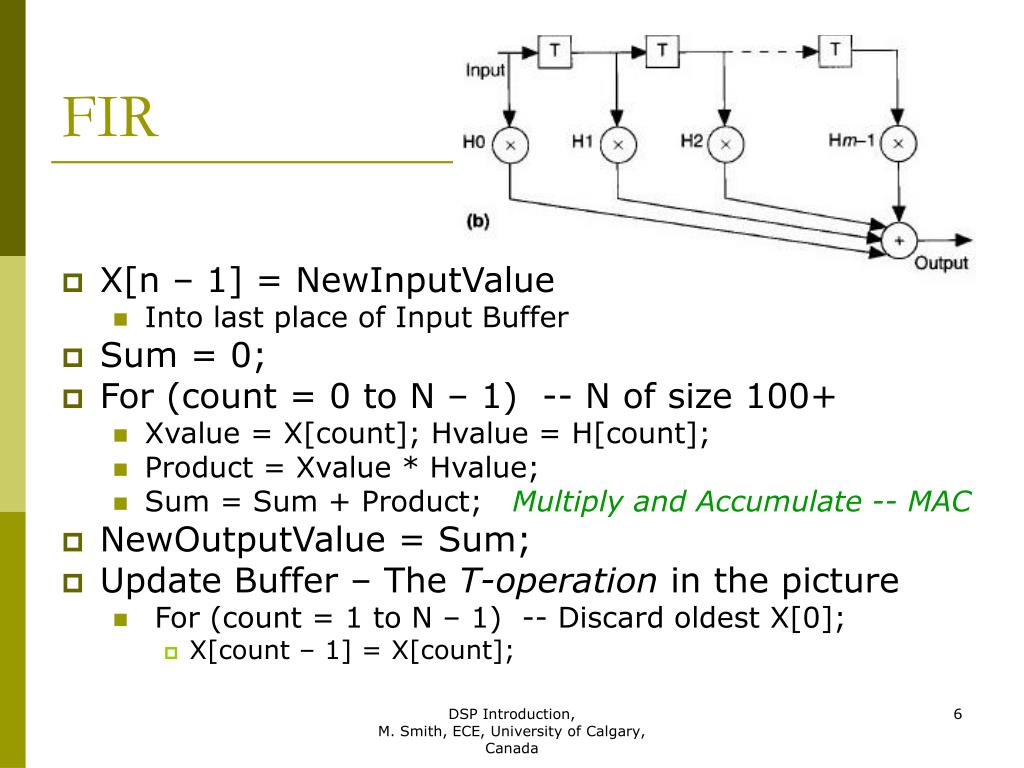

6. FIR • X[n – 1] = NewInputValue • Into last place of Input Buffer • Sum = 0; • For (count = 0 to N – 1) -- N of size 100+ • Xvalue = X[count]; Hvalue = H[count]; • Product = Xvalue * Hvalue; • Sum = Sum + Product; Multiply and Accumulate -- MAC • NewOutputValue = Sum; • Update Buffer – The T-operation in the picture • For (count = 1 to N – 1) -- Discard oldest X[0]; • X[count – 1] = X[count]; DSP Introduction, M. Smith, ECE, University of Calgary, Canada

7. Comparing IIR and FIR filters Infinite Impulse Responsefilters – few operations to produce output frominput for each IIR stage 3 – 7 stages Finite Impulse Responsefilters – many operations to produce output frominput. Long FIFO buffer whichmay require as many operations As FIR calculation itself. Easy to optimize DSP Introduction, M. Smith, ECE, University of Calgary, Canada

8. S0 S1 S2 IIR -- Biquad • For (Stages = 0 to 3) Do • S0 = Xin * H5 + S2 * H3 + S1 * H4 • Yout = S0 * H0 + S1 * H1 + S2 * H2 • S2 = S1 • S1 = S0 • This second solution gives different result. The difference depends on how frequently samples are taken relative to how rapidly the signal changes • CALCULATION SPEED IS DIFFEREBR • Yout = S0 * H0 + S1 * H1 + S2 * H2 • S2 = S1 • S1 = S0 • S0 = Xin * H5 + S2 * H3 + S1 * H4 DSP Introduction, M. Smith, ECE, University of Calgary, Canada

9. We need to know how the processor architecture affects speed of calculation • Register File and Compute Block • Volatile registers • Data • Summation • Multiply and Accumulate (MAC) DSP Introduction, M. Smith, ECE, University of Calgary, Canada

10. Register File and COMPUTE Units • Key Points • DAB – Data Alignment Buffer (special for quad fetches NOT writes) • Each block can load/store 4x32bit registers in a cycle. • 4 inputs to Compute block, but only 3 Outputs to Register Block. • Highly parallel operations UNDER THE RIGHT CONDITIONS DSP Introduction, M. Smith, ECE, University of Calgary, Canada

11. NOTE – DATA PATH ISSUES OF THE X-REGISTER FILE • 1 output path (128 bit) TO memory • 2 input paths FROM memory • 4 output (64-bit) paths TO ALU, multiplier, shifter • 3 input paths (64-bit) FROM ALU, multiplier, shifter • NUMBER OF PATHS HAS IMPLICATIONS ON WHAT THINGS CAN HAPPEN IN PARALLEL DSP Introduction, M. Smith, ECE, University of Calgary, Canada

12. XR7 -> 1x32 bit word XLR7:6 -> 1x64 bit word XFR1:0 -> 1x40 bit float XSR3:2 -> 4x16 bit words Multipleof 2 XBR3:0 -> 16x8 bit words Multiple of 4 Register File - Syntax • Key Points • Each Block has 32x32 bit Data registers • Each register can store 4x8 bit, 2x16 bit or 1x32 bit words. • Registers can be combined into dual or quad groups. These groups can store 8, 16, 32, 40 or 64 bit words. Register Syntax DSP Introduction, M. Smith, ECE, University of Calgary, Canada

13. Register File – BIT STORAGEBoth 32 bit and 64 bit registers DSP Introduction, M. Smith, ECE, University of Calgary, Canada

14. Volatile Data RegistersNon-preserved during a function call • Volatile registers – no need to save • 24 Volatile DATA registers in each block • XR0 – XR23 • YR0 – YR23 • 2 ALU SUMMATION registers in each block • XPR0, XPR1, YPR0, YPR1 • 5 MAC ACCUMULATE registers in each block • XMR0 – XMR3, YMR0 – YMR3 • XMR4, YMR4 – Overflow registers DSP Introduction, M. Smith, ECE, University of Calgary, Canada

15. Arithmetic Logic Unit (ALU) • 2x64 bit input paths • 2x64 bit output paths • 8, 16, 32, or 64 bit addition/subtraction - Fixed-point • 32 or 64 bit logical operations - fixed-point • 32 or 40 bit floating-point operations • Can do the same on Y ALU AT THE SAME TIME DSP Introduction, M. Smith, ECE, University of Calgary, Canada

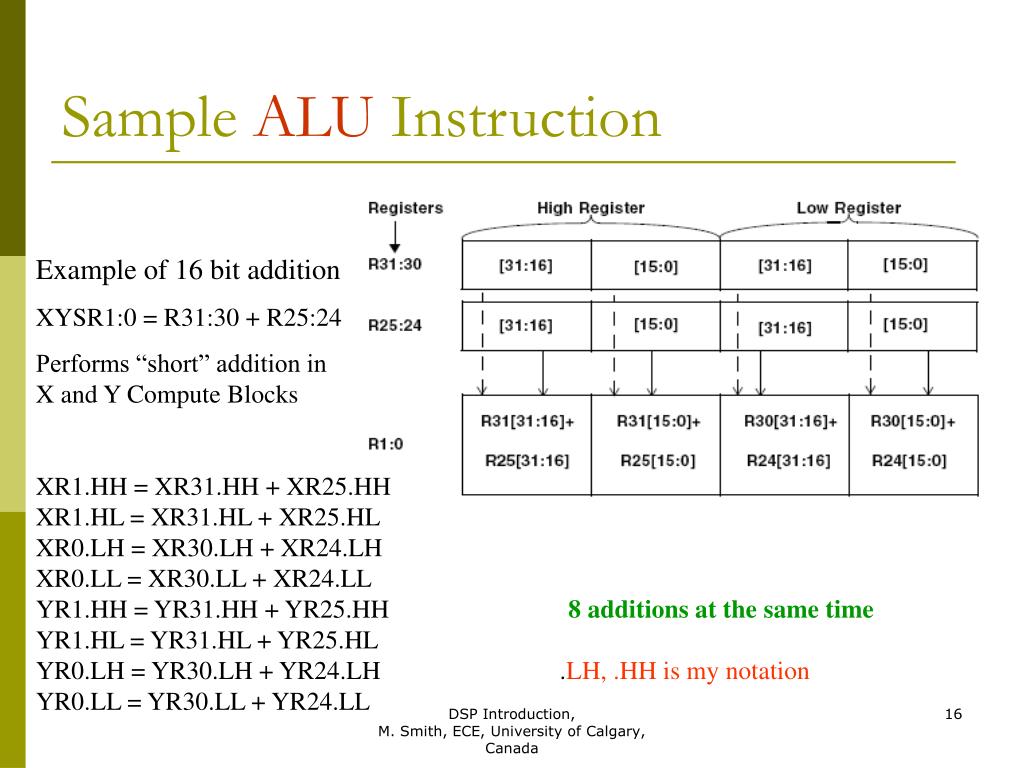

16. Sample ALU Instruction Example of 16 bit addition XYSR1:0 = R31:30 + R25:24 Performs “short” addition in X and Y Compute Blocks XR1.HH = XR31.HH + XR25.HHXR1.HL = XR31.HL + XR25.HLXR0.LH = XR30.LH + XR24.LHXR0.LL = XR30.LL + XR24.LL YR1.HH = YR31.HH + YR25.HH 8 additions at the same timeYR1.HL = YR31.HL + YR25.HL YR0.LH = YR30.LH + YR24.LH .LH, .HH is my notationYR0.LL = YR30.LL + YR24.LL DSP Introduction, M. Smith, ECE, University of Calgary, Canada

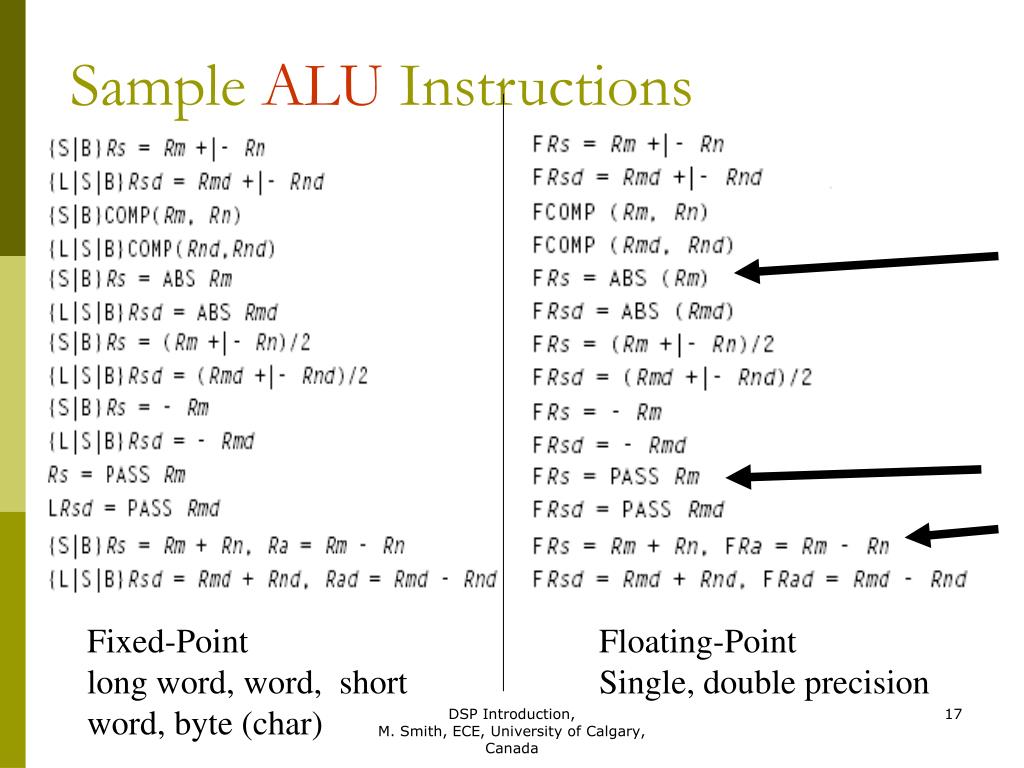

17. Sample ALU Instructions Fixed-Pointlong word, word, short word, byte (char) Floating-PointSingle, double precision DSP Introduction, M. Smith, ECE, University of Calgary, Canada

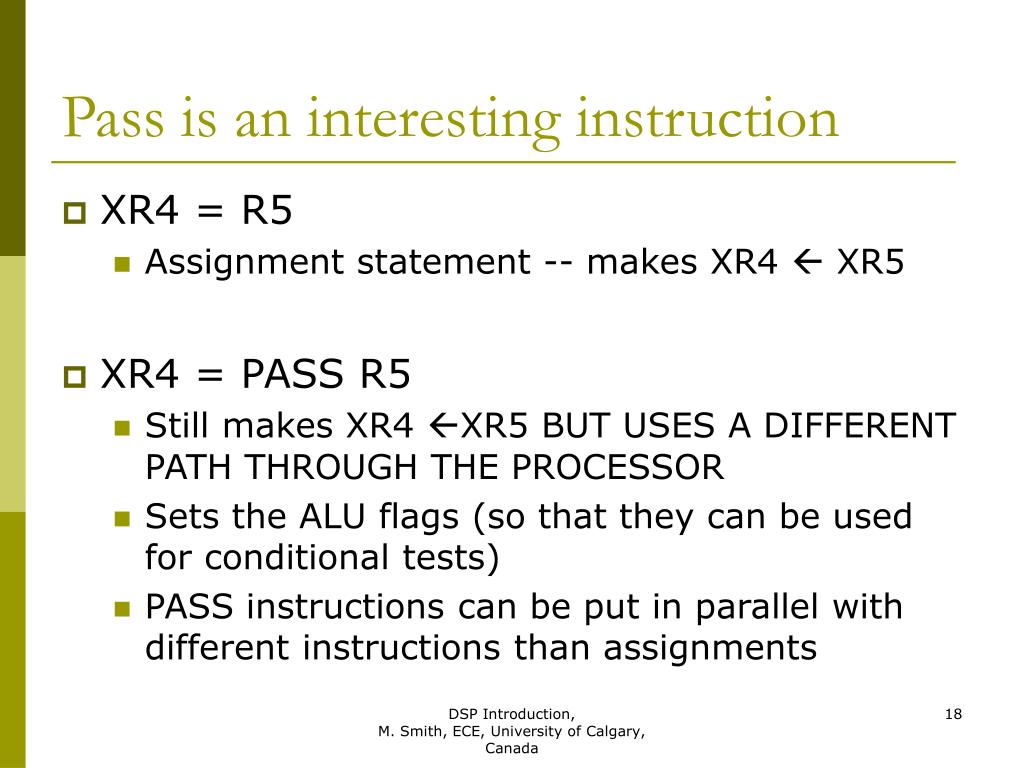

18. Pass is an interesting instruction • XR4 = R5 • Assignment statement -- makes XR4  XR5 • XR4 = PASS R5 • Still makes XR4 XR5 BUT USES A DIFFERENT PATH THROUGH THE PROCESSOR • Sets the ALU flags (so that they can be used for conditional tests) • PASS instructions can be put in parallel with different instructions than assignments DSP Introduction, M. Smith, ECE, University of Calgary, Canada

19. int x_two = 64, y_two = 16; int x_three = 128, y_three = 8; int x_four = 128, y_four = 8; int x_five = 64, y_five = 16; int x_odd = 0, y_odd = 0; int x_even = 0, y_even = 0; x_odd = x_five + x_three; x_even = x_four + x_two; y_odd = y_five + y_three; y_even = y_four + y_two; XR2 = 64;; XR3 = 128;; XR4 = 128;; XR5 = 64;; YR2 = 16;; YR3 = 8;; YR4 = 8;; YR5 = 16;; XYR1:0 = R5:4 + R3:2;; //XR1 = x_odd, XR0 = x_even //YR1 = y_odd, YR1 = y_even Example DSP Introduction, M. Smith, ECE, University of Calgary, Canada

20. Multiplier • Operates on fixed, floating and complex numbers. • Fixed-Point numbers • 32x32 bit with 32 or 64 bit results • 4 (16x16 bit) with 4x16 or 4x32 bit results • Data compaction inputs – 16, 32, 64 bits, outputs 16, 32 bit results • Floating-Point numbers • 32x32 bit with 32 bit result • 40x40 bit with 40 bit result • COMPLEX Numbers • 32x32 bit with results stored in MR register • FIXED-POINT ONLY DSP Introduction, M. Smith, ECE, University of Calgary, Canada

21. XR0 = R1*R2;; XR1:0 = R3*R5;; XMR1:0 = R3*R5;; //uses XMR4 overflow XR2 = MR3:2, XMR3:2 = R3*R5;; XR3:2 = MR1:0, XMR1:0 = R3*R5;; XFR0 = R1*R2;; // 32 bit mult – 24 bit mantissa XFR1:0 = R3:2*R5:4;; //40 bit MULTIPLY //32 bit mantissa // high precision float Multiplier DSP Introduction, M. Smith, ECE, University of Calgary, Canada

22. Multiplier --- with 32 or 16 bit resultsNote minor changes in syntax XR5:4 = R1:0*R3:2;;(16 bit results) XR7:4 = R3:2*R5:4;; (32 bit results) XMR1:0 += R3:2*R5:4;;(16 bit results) XMR3:0 += R3:2*R5:4;; (32 bit results) XR3:2 = MR3:2, XMR3:2 = R1:0*R5:4;;(16 bit results)  one instruction XR3:0 = MR3:0, XMR3:0 = R1:0*R5:4;; (32 bit results) DSP Introduction, M. Smith, ECE, University of Calgary, Canada

23. Convert from “C” into assembly code – use volatile registers long int value = 6; long int number = 7; long int temp = 8; value = number * temp; BAD DESIGN OF FLOATING PT CODE WILL INTRODUCE MANY ERRORS RE-WRITE CODE TO FIX float value = 6; float number = 7; long int temp = 8; value = number * temp; Practice Examples DSP Introduction, M. Smith, ECE, University of Calgary, Canada

24. Convert from “C” into assembly code – use volatile registers float value = 6.0; (XFR12) float number = 7.0;(XFR13) long int temp = 8;(XR18) value = number * temp; // Treat as value = number * (float) temp; Avoiding common design errors XR12 = 6.0;; //valueF12// Sets XFR12  6.0 XR13 = 7.0;;//numberF13 XR18 = 8;; //tempR18 //(float) tempR18 XFR18 = FLOAT R18;; //valueF12 = numberF13 * tempF18 XFR12 = R13 * R18;; DSP Introduction, M. Smith, ECE, University of Calgary, Canada

25. Shifter Instructions • 2x64 bit input paths and 2x64 bit output paths • 32, or 64 bit shifting operations • 32 or 64 bit manipulation operations DSP Introduction, M. Smith, ECE, University of Calgary, Canada

26. long int value = 128; long int high, low; low = value >> 2; high = value << 2; POSITIVE VALUE – LEFT SHIFT NEGATIVE VALUE – RIGHT SHIFT XR0 = 2;; XR1 = -XR2;; XR2 = 128;; //low = value >> 2; XR23 = ASHIFT XR2 BY –2;; Or XR23 = ASHIFT XR2 BY XR1;; //high = value << 2; XR22 = ASHIFT XR2 BY 2;; Or XR22 = ASHIFT XR2 BY XR0;; Examples --- shift only integersThere is a FSCALE for floats (not shifter) DSP Introduction, M. Smith, ECE, University of Calgary, Canada

27. ALU instructions • Under the RIGHT conditions can do multiple operations in a single instruction. • Instruction line has 4x32 bit instruction slots. • Can do 2 Compute and 2 memory operations. • This is actually 4 Compute operations counting both compute blocks. • One instruction per unit of a compute block, ie. ALU. • Since there are only 3 result buses, only one unit (ALU or Multiplier) can use 2 result buses. • Not all instructions can be used in parallel. DSP Introduction, M. Smith, ECE, University of Calgary, Canada

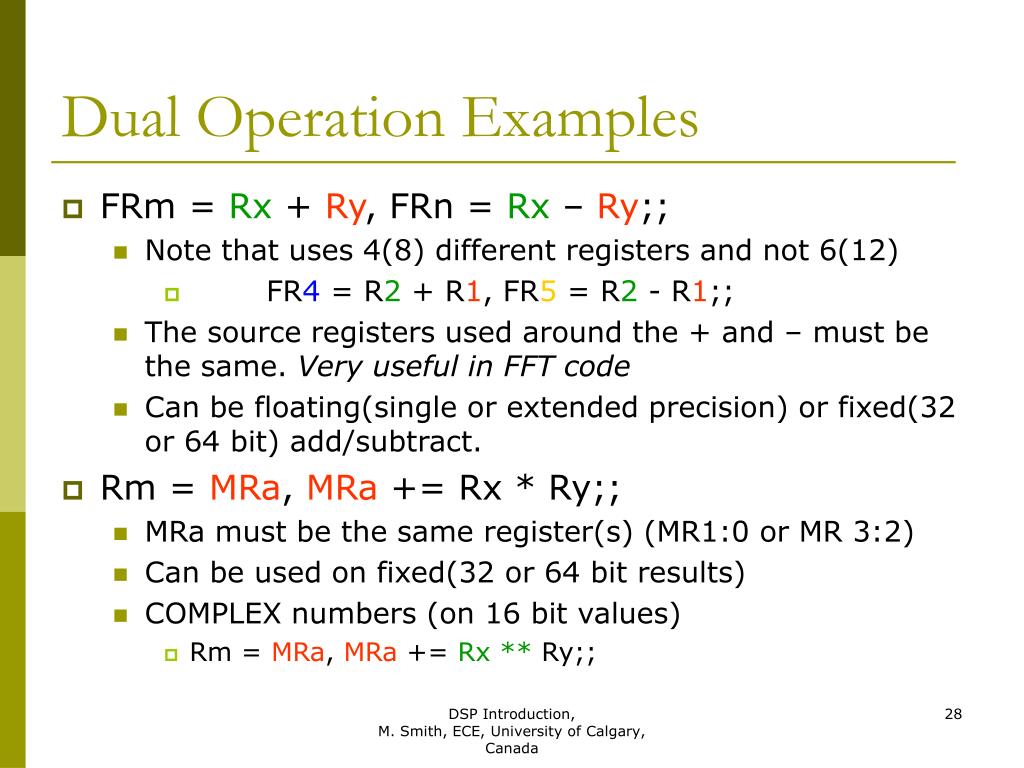

28. Dual Operation Examples • FRm = Rx + Ry, FRn = Rx – Ry;; • Note that uses 4(8) different registers and not 6(12) • FR4 = R2 + R1, FR5 = R2 - R1;; • The source registers used around the + and – must be the same. Very useful in FFT code • Can be floating(single or extended precision) or fixed(32 or 64 bit) add/subtract. • Rm = MRa, MRa += Rx * Ry;; • MRa must be the same register(s) (MR1:0 or MR 3:2) • Can be used on fixed(32 or 64 bit results) • COMPLEX numbers (on 16 bit values) • Rm = MRa, MRa += Rx ** Ry;; DSP Introduction, M. Smith, ECE, University of Calgary, Canada

29. Convert from “C” into assembly code – use volatile registers long int value = 6; long int number = 7; long int temp = 8; value = number * temp; #define value_XR12 XR12 Assignment operation value_XR12 = 6;; Multiply operations value_XR12 = R5 * R6; Practice Examples Convert to assembly code DSP Introduction, M. Smith, ECE, University of Calgary, Canada

30. float value = 6.0; float number = 7.0; long int temp = 8; value = value + 1; number = number + 2; temp = value + number; Avoiding common design errorsConvert to assembly code DSP Introduction, M. Smith, ECE, University of Calgary, Canada

31. Tackled today • What are the basic characteristics of a DSP algorithm? • Information on the TigerSHARC arithmetic, multiplier and shifter units • Practice examples of C++ to assembly code conversion DSP Introduction, M. Smith, ECE, University of Calgary, Canada
