Double-Beam-Balance

Double Beam Balance LDBB-A10 by labtron is a mechanical double beam balance scale system with a 2000g capacity and a robust aluminium alloy construction.

labtrondigital
Download Presentation

Double-Beam-Balance

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Double Beam Balance LDBB-A10 www.labtron.com info@labtron.com

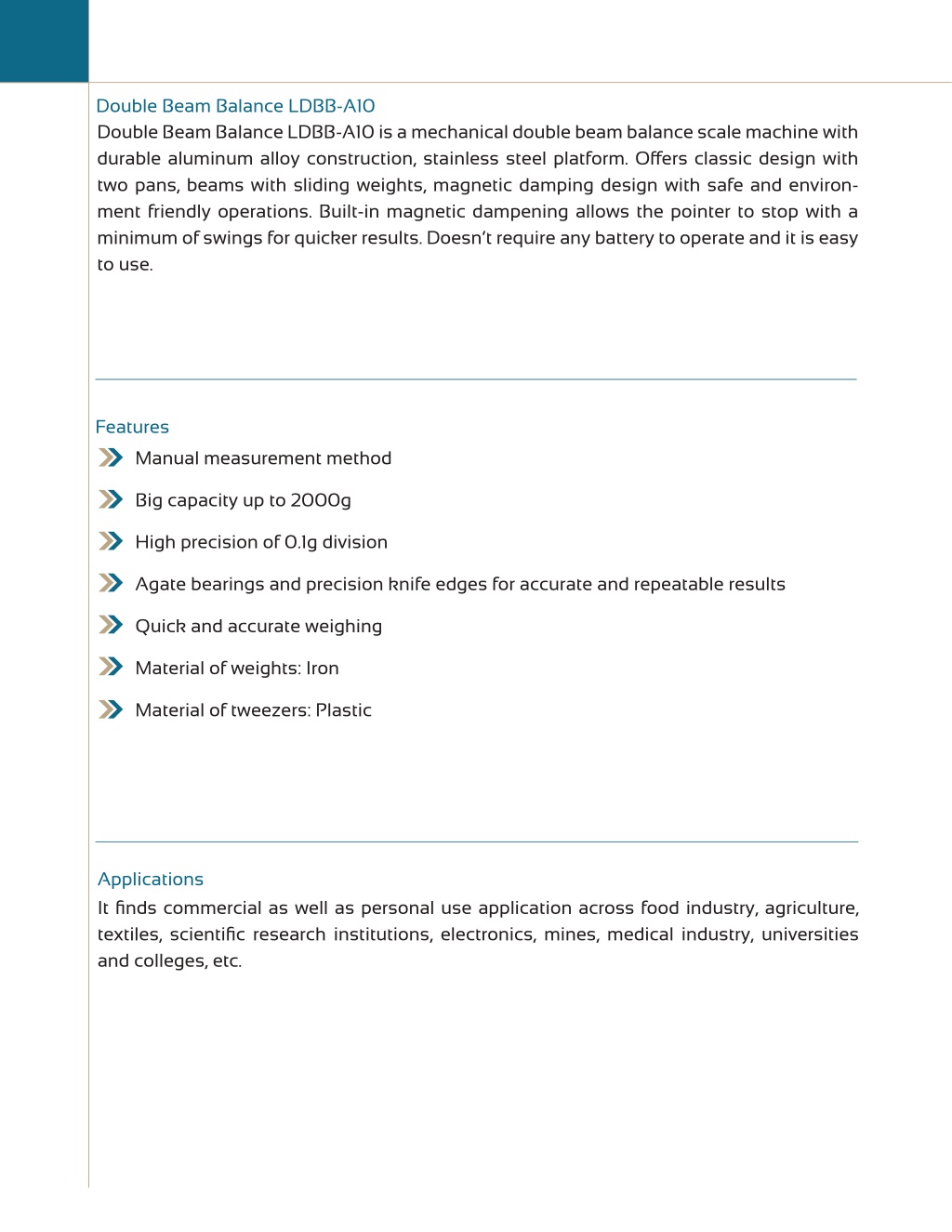

  2. Double Beam Balance LDBB-A10 Double Beam Balance LDBB-A10 is a mechanical double beam balance scale machine with durable aluminum alloy construction, stainless steel platform. Offers classic design with two pans, beams with sliding weights, magnetic damping design with safe and environ- ment friendly operations. Built-in magnetic dampening allows the pointer to stop with a minimum of swings for quicker results. Doesn’t require any battery to operate and it is easy to use. Features Manual measurement method Big capacity up to 2000g High precision of 0.1g division Agate bearings and precision knife edges for accurate and repeatable results Quick and accurate weighing Material of weights: Iron Material of tweezers: Plastic Applications It finds commercial as well as personal use application across food industry, agriculture, textiles, scientific research institutions, electronics, mines, medical industry, universities and colleges, etc.

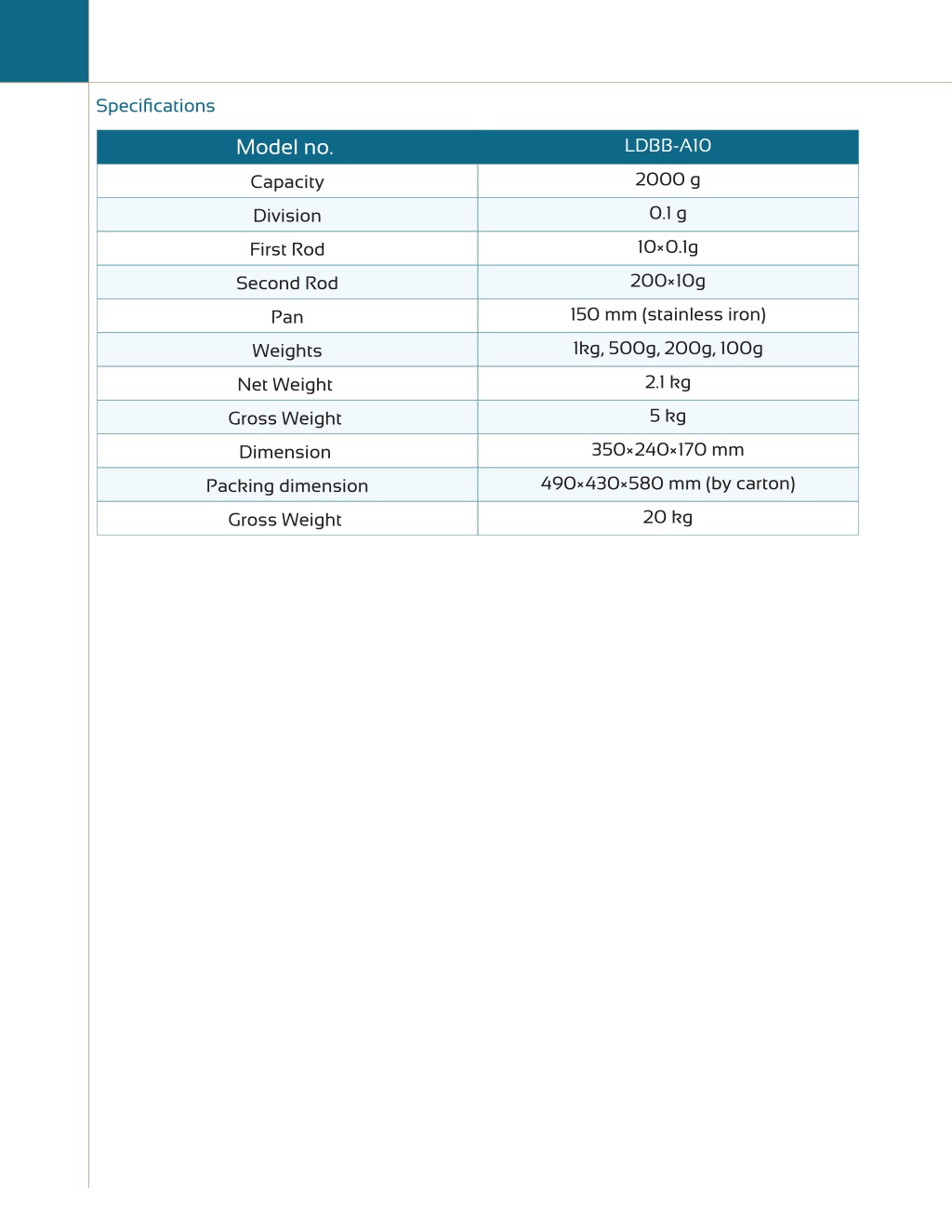

  3. Specifications Model no. LDBB-A10 2000 g Capacity 0.1 g Division 10×0.1g First Rod 200×10g Second Rod 150 mm (stainless iron) Pan 1kg, 500g, 200g, 100g Weights 2.1 kg Net Weight 5 kg Gross Weight 350×240×170 mm Dimension 490×430×580 mm (by carton) Packing dimension 20 kg Gross Weight
