Cone-Plate-Viscometer-

We produce cone plate viscometer LCPV-A10 with a PT100 temperature probe, a shear rate of 13.3 N, a sample volume of 67u00b5L, an accuracy of 2%, a temperature range of -1C to 150C, etc.

labtrondigital
Download Presentation

Cone-Plate-Viscometer-

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

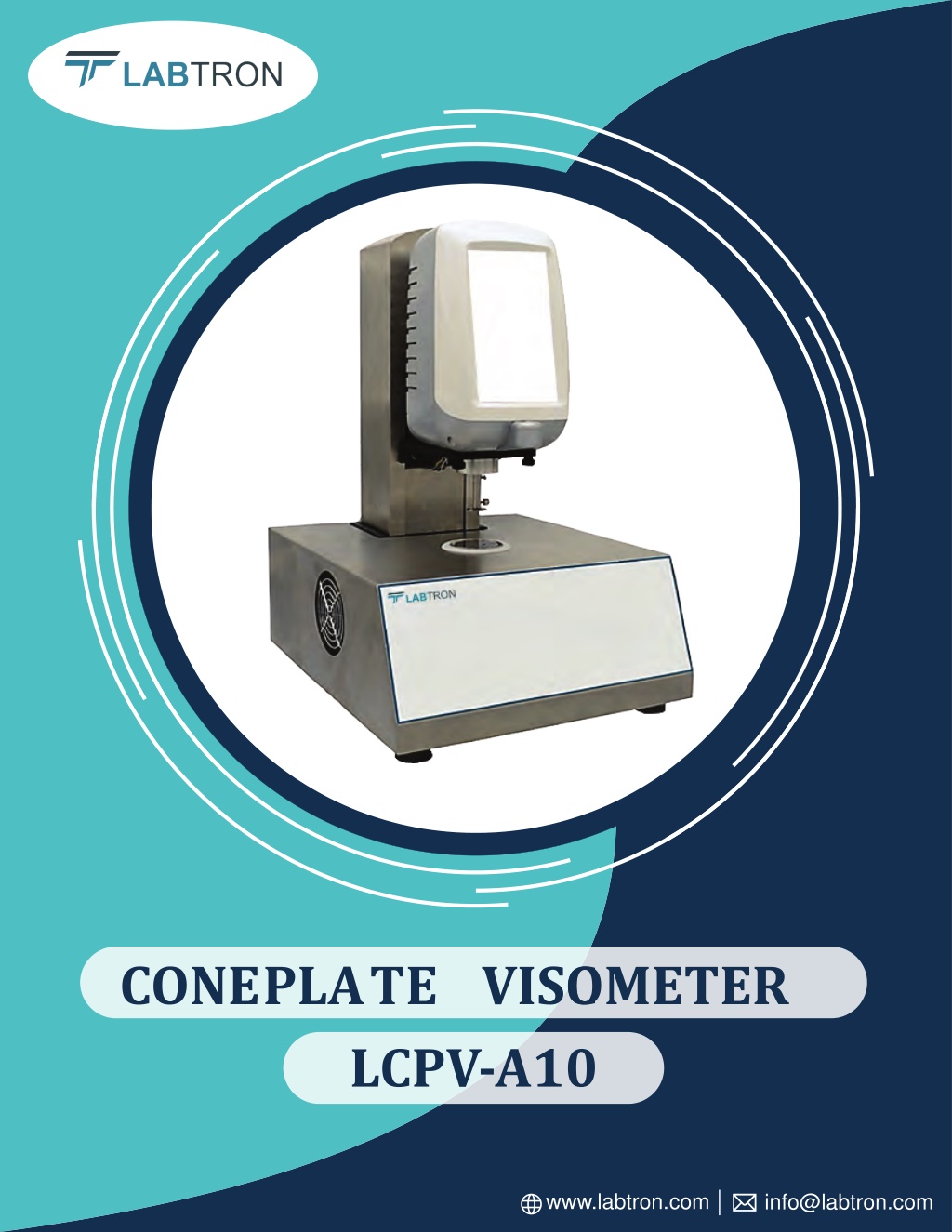

  1. CONE PLATE VISC OMETER LCPV-A10 www.labtron.com info@labtron.com

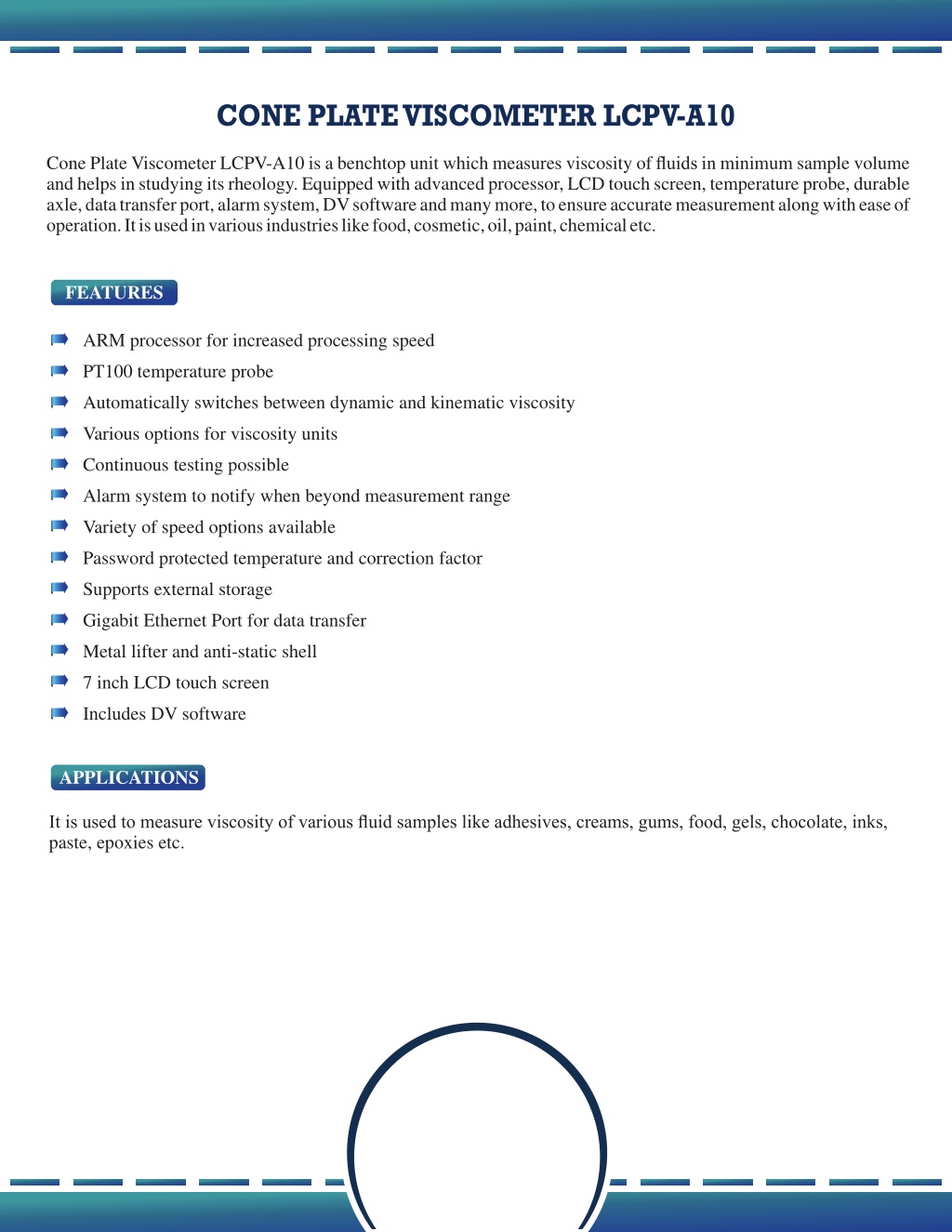

  2. CONE PLATE VISCOMETER LCPV-A10 Cone Plate Viscometer LCPV-A10 is a benchtop unit which measures viscosity of fluids in minimum sample volume and helps in studying its rheology. Equipped with advanced processor, LCD touch screen, temperature probe, durable axle, data transfer port, alarm system, DV software and many more, to ensure accurate measurement along with ease of operation. It is used in various industries like food, cosmetic, oil, paint, chemical etc. FEATURES ARM processor for increased processing speed PT100 temperature probe Automatically switches between dynamic and kinematic viscosity Various options for viscosity units Continuous testing possible Alarm system to notify when beyond measurement range Variety of speed options available Password protected temperature and correction factor Supports external storage Gigabit Ethernet Port for data transfer Metal lifter and anti-static shell 7 inch LCD touch screen Includes DV software APPLICATIONS It is used to measure viscosity of various fluid samples like adhesives, creams, gums, food, gels, chocolate, inks, paste, epoxies etc.

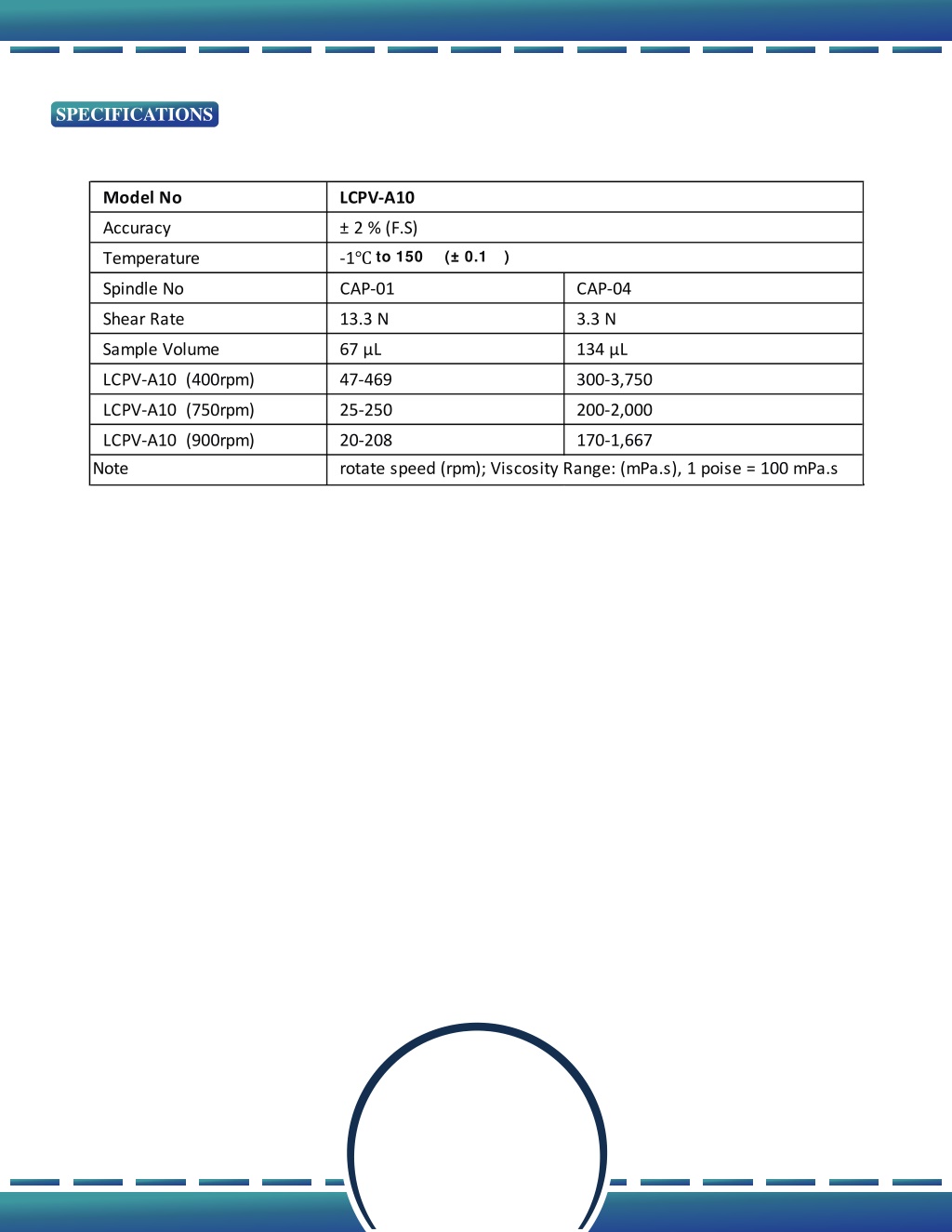

  3. SPECIFICATIONS Model No LCPV-A10 Accuracy ± 2 % (F.S) -1℃ to 150 (± 0.1 ) Temperature Spindle No CAP-01 CAP-04 Shear Rate 13.3 N 3.3 N Sample Volume 67 μL 134 μL LCPV-A10 (400rpm) 47-469 300-3,750 LCPV-A10 (750rpm) 25-250 200-2,000 LCPV-A10 (900rpm) Note 20-208 rotate speed (rpm); Viscosity Range: (mPa.s), 1 poise = 100 mPa.s 170-1,667
