Cell-Washing-Centrifuge-LCW

Cell Washing Centrifuge LCW-A10 is a high-performance serofuge that can be used to perform cell-washing procedures safely and reliably. Steps are easy to monitor and easy-to-read digital LED display enables simple, user friendly operation. It gives reproducible blood cell washing results up to 12 tubes per run.

labtrondigital
Download Presentation

Cell-Washing-Centrifuge-LCW

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. CELL WASHING CENTRIFUGE LCW-A10 www.labtron.com info@labtron.com

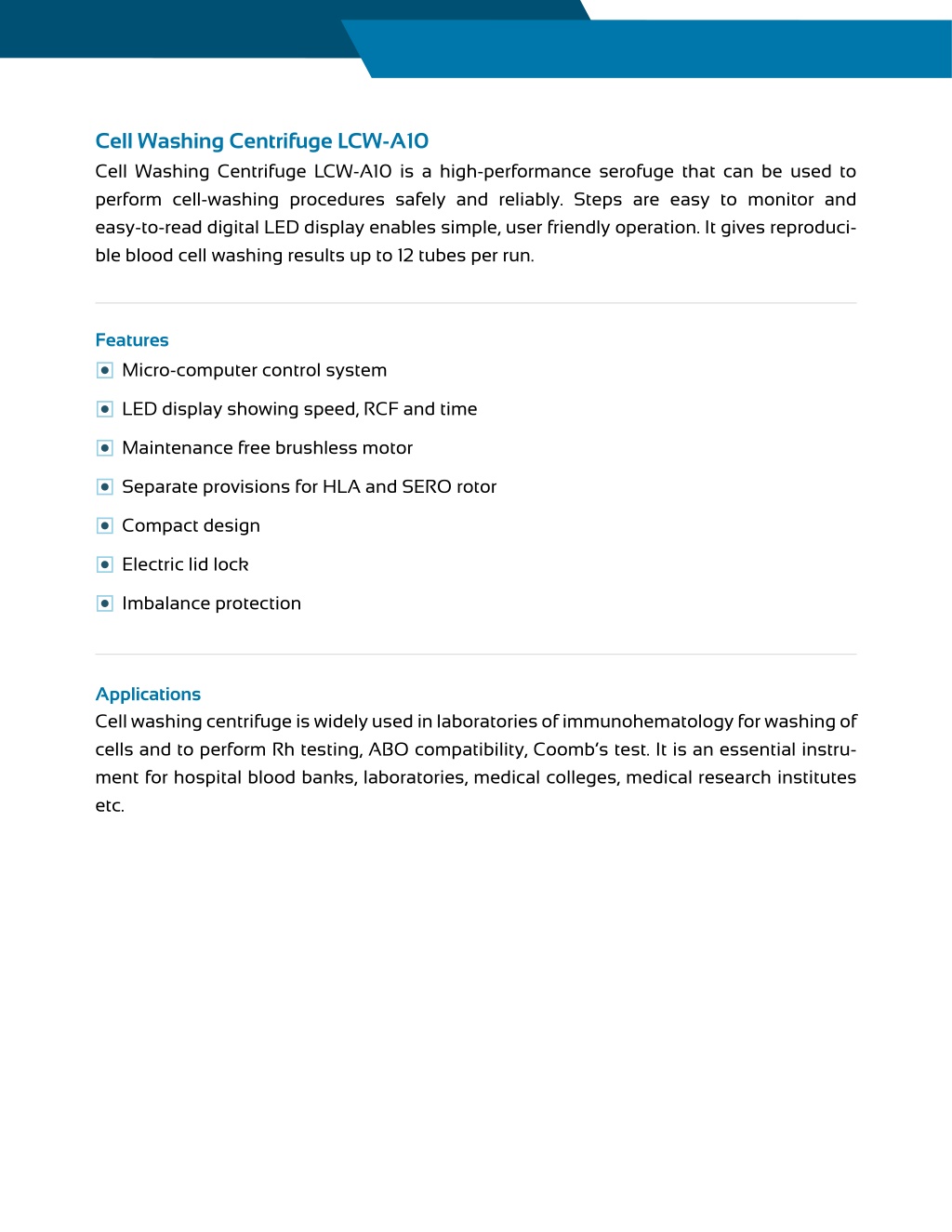

  2. Cell Washing Centrifuge LCW-A10 Cell Washing Centrifuge LCW-A10 is a high-performance serofuge that can be used to perform cell-washing procedures safely and reliably. Steps are easy to monitor and easy-to-read digital LED display enables simple, user friendly operation. It gives reproduci- ble blood cell washing results up to 12 tubes per run. Features Micro-computer control system LED display showing speed, RCF and time Maintenance free brushless motor Separate provisions for HLA and SERO rotor Compact design Electric lid lock Imbalance protection Applications Cell washing centrifuge is widely used in laboratories of immunohematology for washing of cells and to perform Rh testing, ABO compatibility, Coomb’s test. It is an essential instru- ment for hospital blood banks, laboratories, medical colleges, medical research institutes etc.

  3. Specifications Model No. LCW-A10 4000 rpm Max. Speed 2000 ×g Max. RCF 12×7 ml Max. Capacity 0~99 min Time Setting Range ±20 rpm Speed Accuracy ≤ 55 dB Noise 10 Acc/Dec AC 220 V/ 110 V, 50 Hz /60 Hz Power Supply 485×320×255 mm Dimension (W×D× H) 24 kg Net Weight Optional accessories Max. RCF(× g) Rotor Name Max. Speed (rpm) Max. Capacity (ml) HLA Rotor 4000 12×2/1.5/0.5 ml 1000 12×7/5 ml (10-13×60-100mm) SERO Rotor 3000 2000
