3. IMEI Program

3. IMEI Program. SGH-A800. IMEI Writing Program. We need to write IMEI to the phone . When OGM is broken of some reasons and so on. Equipments for IMEI Program. PC JIG Converter RS232 cable 9 pin RS232 cable (connect PC with JIG)

kynan
Download Presentation

3. IMEI Program

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

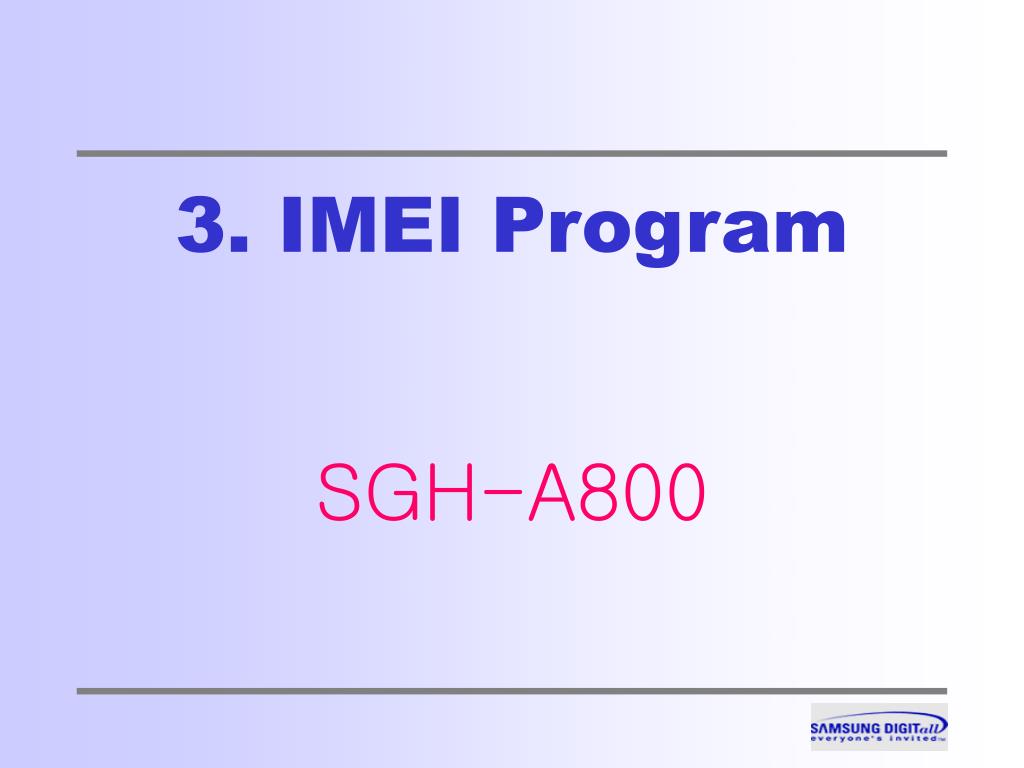

  1. 3. IMEI Program SGH-A800

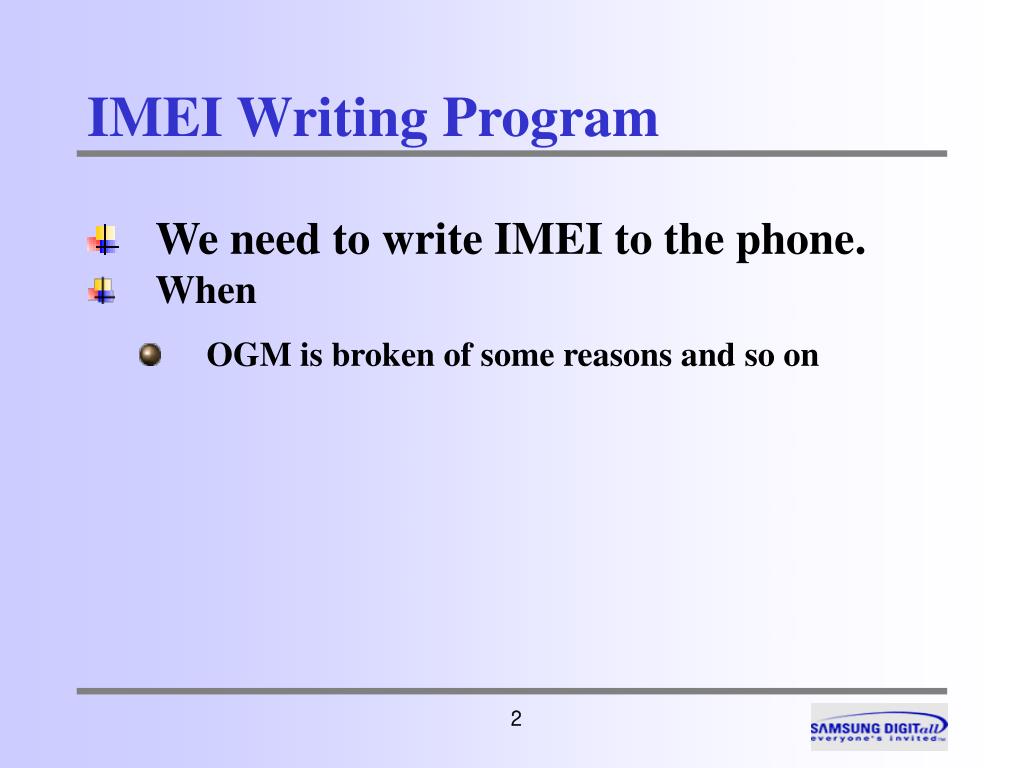

  2. IMEI Writing Program • We need to write IMEI to the phone. • When • OGM is broken of some reasons and so on

  3. Equipments for IMEI Program • PC • JIG Converter • RS232 cable • 9 pin RS232 cable (connect PC with JIG) • 25 pin RS232 cable (connect Mobile with JIG)

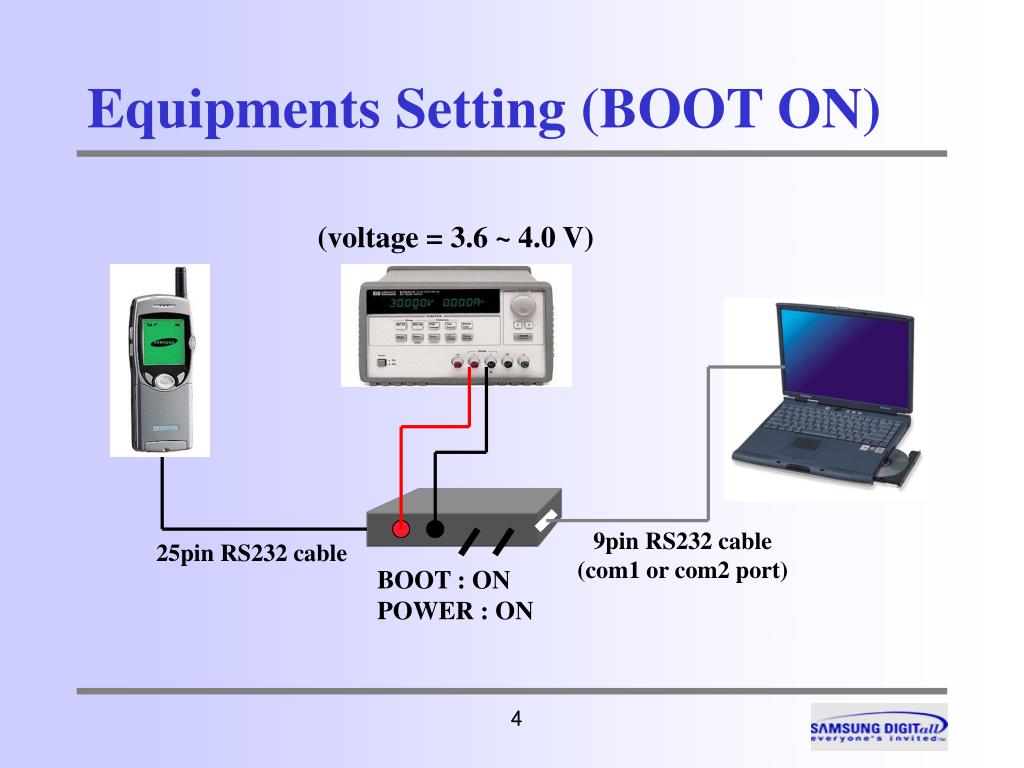

  4. (voltage = 3.6 ~ 4.0 V) 9pin RS232 cable(com1 or com2 port) 25pin RS232 cable BOOT : ON POWER : ON Equipments Setting (BOOT ON)

  5. IMEI Program Execution 1.Select Country only. Rest of them is for factory. 2.Click the Write IMEI button The EXIT button is for quitting IMEI PGM

  6. IMEI Program ( Settings ) Confirm the MMI DATA Confirm the WAP DATA 1.Click OK button Cancel button go back

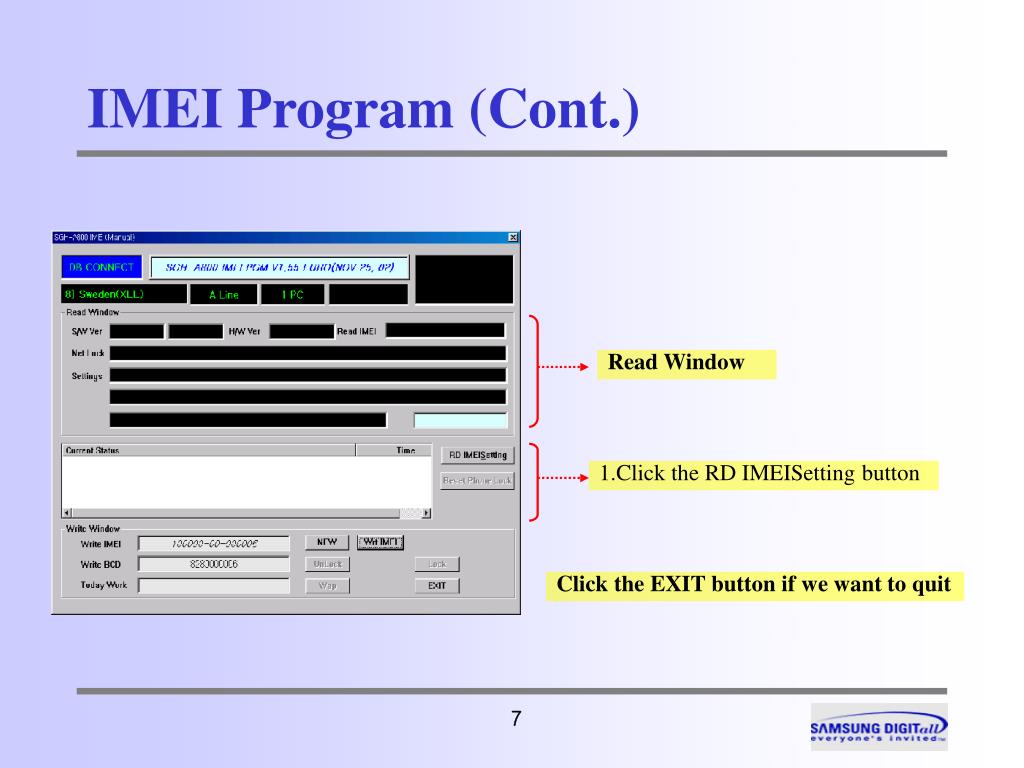

  7. IMEI Program (Cont.) Read Window 1.Click the RD IMEISetting button Click the EXIT button if we want to quit

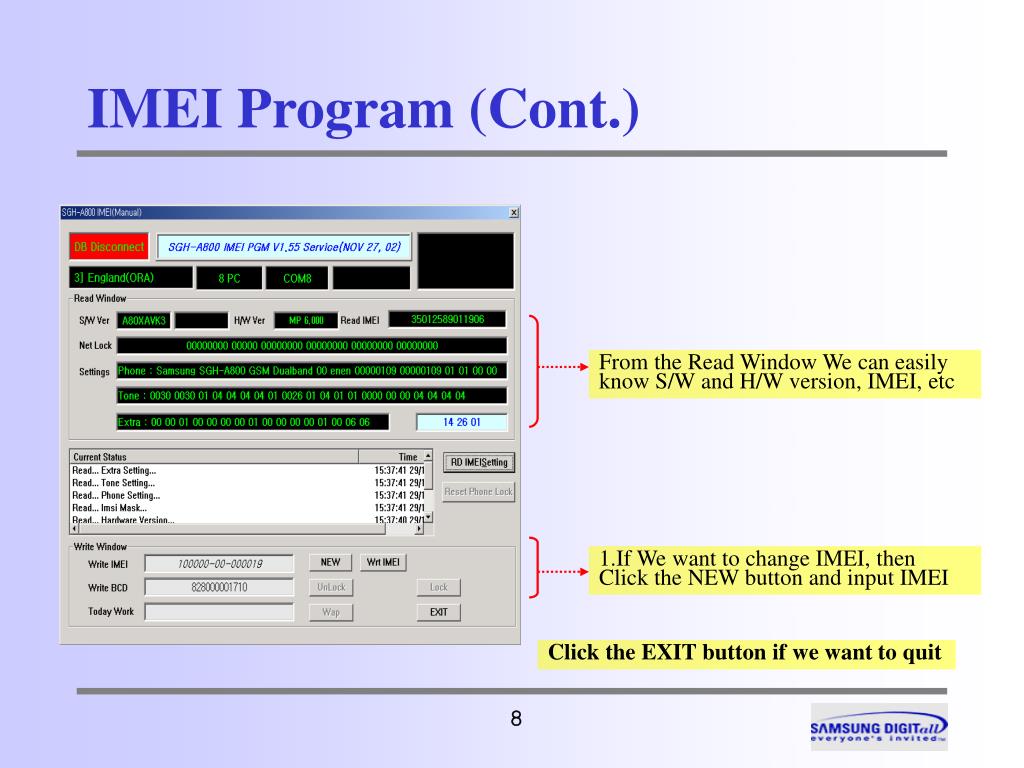

  8. IMEI Program (Cont.) From the Read Window We can easily know S/W and H/W version, IMEI, etc 1.If We want to change IMEI, then Click the NEW button and input IMEI Click the EXIT button if we want to quit

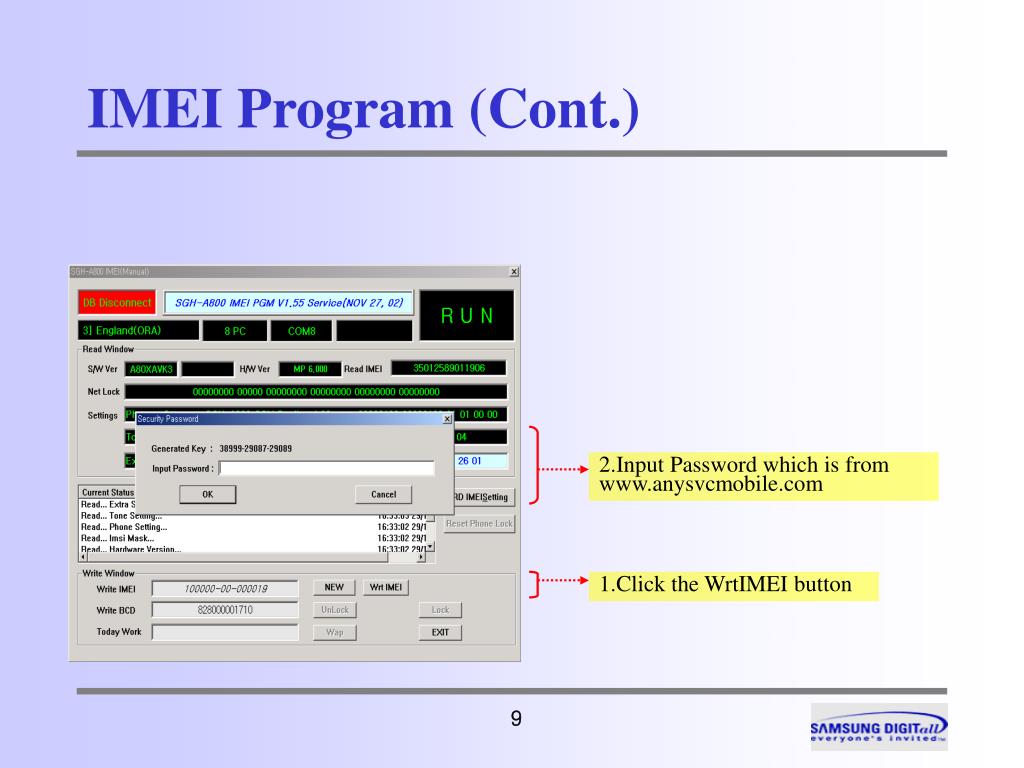

  9. IMEI Program (Cont.) 2.Input Password which is from www.anysvcmobile.com 1.Click the WrtIMEI button

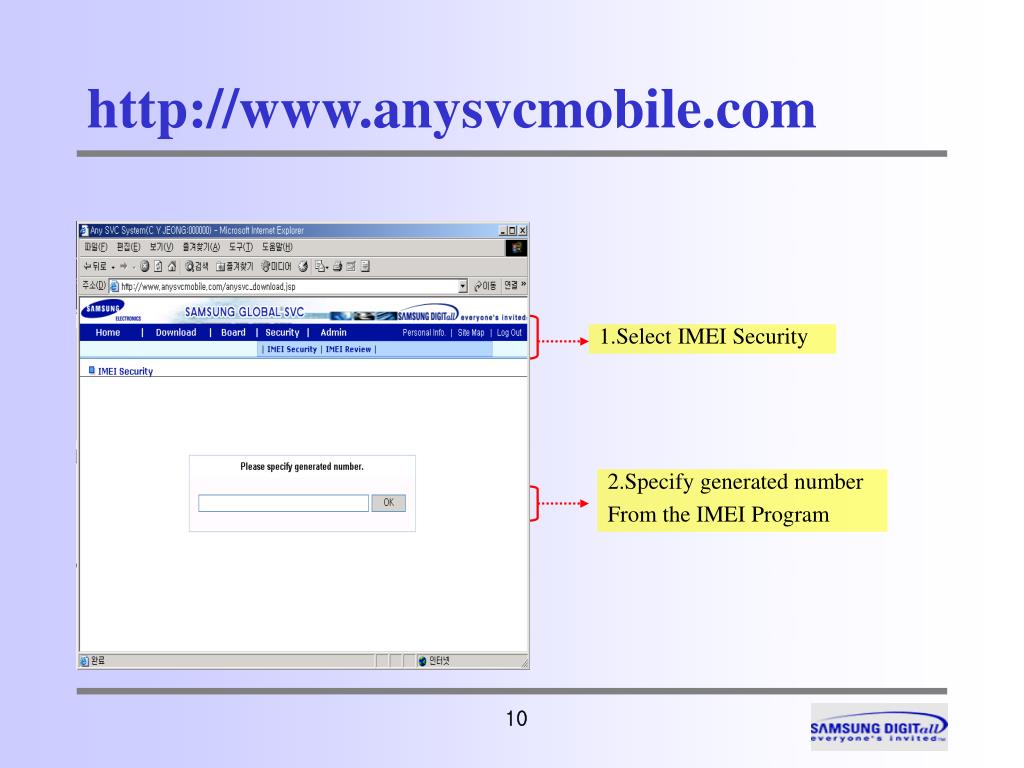

  10. http://www.anysvcmobile.com 1.Select IMEI Security 2.Specify generated number From the IMEI Program

  11. http://www.anysvcmobile.com Check the key

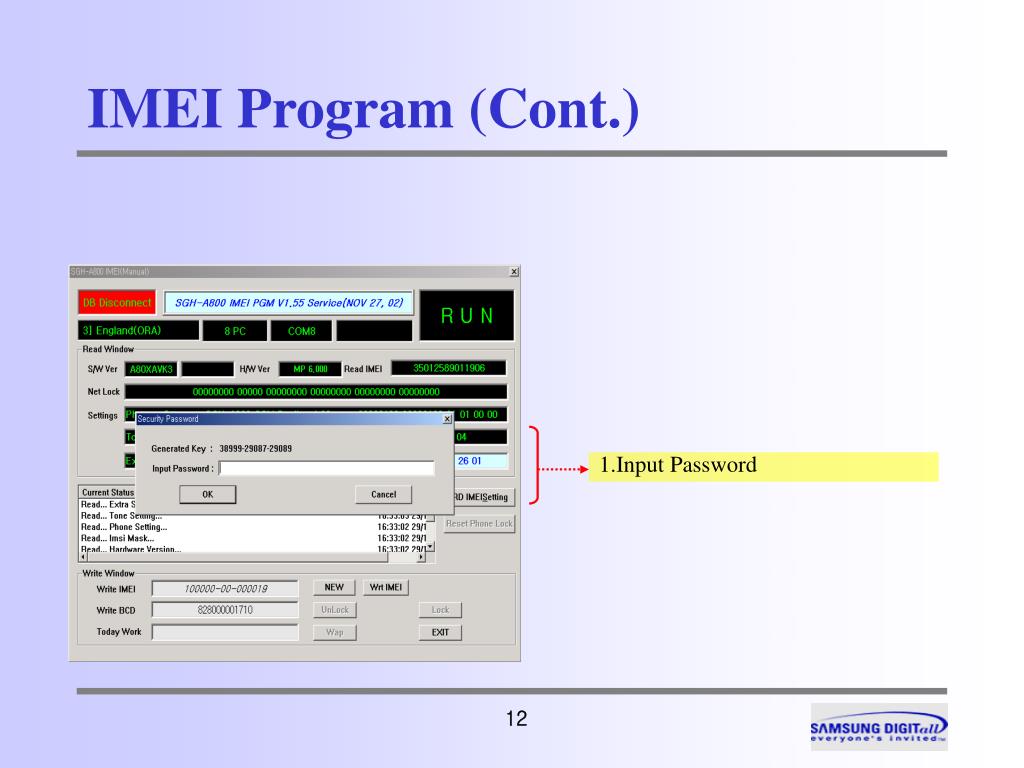

  12. IMEI Program (Cont.) 1.Input Password

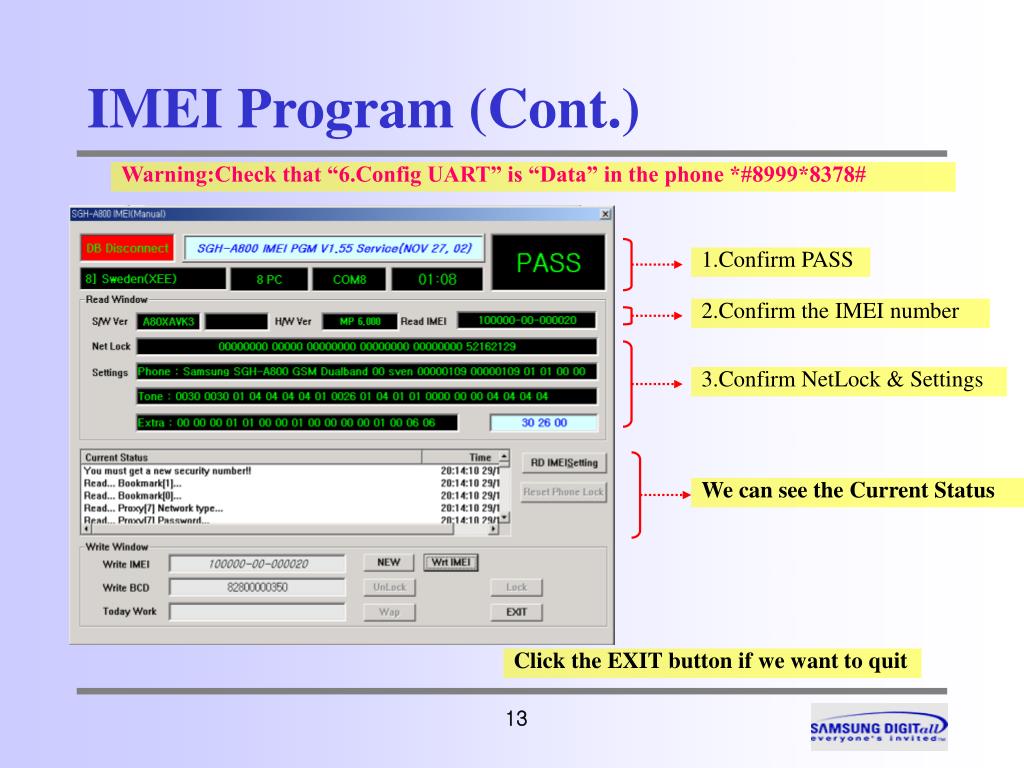

  13. IMEI Program (Cont.) Warning:Check that “6.Config UART” is “Data” in the phone *#8999*8378# 1.Confirm PASS 2.Confirm the IMEI number 3.Confirm NetLock & Settings We can see the Current Status Click the EXIT button if we want to quit

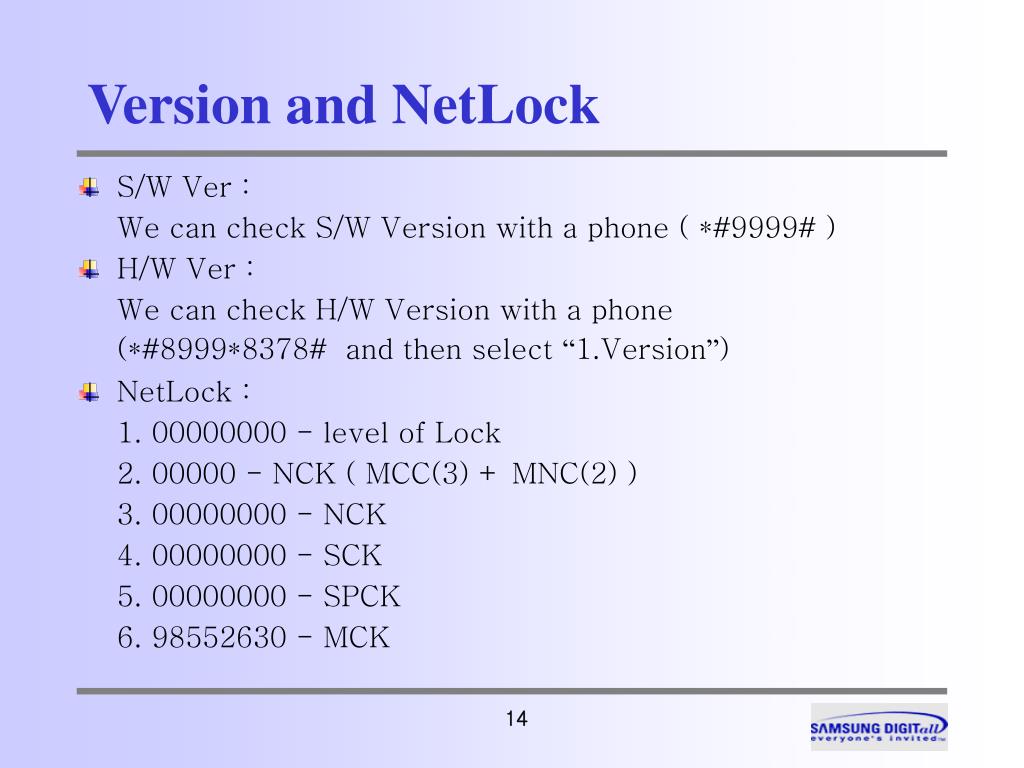

  14. Version and NetLock • S/W Ver : We can check S/W Version with a phone ( *#9999# ) • H/W Ver : We can check H/W Version with a phone (*#8999*8378# and then select “1.Version”) • NetLock : 1. 00000000 - level of Lock 2. 00000 - NCK ( MCC(3) + MNC(2) ) 3. 00000000 - NCK 4. 00000000 - SCK 5. 00000000 - SPCK 6. 98552630 - MCK

  15. Settings • 1. Phone : Samsung SGH-A800 GSM Dualband( Greeting Message ) / 00 (Language) / fren(TextLanguage(2)+VoiceLanguage(2)) / 00000109(T9Language) / 00000109(InputMode) / 01(BackLight) / 01(ServiceLight) / 00(ActiveFlip) / 00(SideKey) • 2. Tone : 0030(RingTone) / 0030(RingTone2) / 01(RingType) / 04(RingLevel) / 04(SpkLevel) / 04(KeyLevel) / 04(OgmLevel) / 01(MsgAlertType) / 0026(MsgTone) / 01(MsgAlertRepetition) / 04(KeyTone) / 01(ErrTone) / 01(CallConnTone) / 0000(AlarmTone) / 00(MinuteMinder) / 00(QuietMode) / 04(HFKRingLevel) / 04(HFKSpkLevel) / 04(HFKKeyLevel) / 04(HFKOgmLevel) • 3. Extra : 00(AutoAntenna) / 00(AutoFlip) / 00(SetAnsp) / 01(AnykeyAnswer) / 00(AutoRedial) / 00(AutoAnswer) / 00(SetCallerID) / 01(ActLine) / 00(ScrMode) / 00(ExtScrMode) / 00(Bmp) / 00(IdleModeNo) / 01(ImageNo) / 00(ClockImageNo) / 06(LcdContrast) / 06(ExtLcdContrast)
