  1. LDP Multipoint Opaque Value Element Types Sandeep Bishnoi Pranjal Kumar Dutta Alcatel-Lucent IJsbrand Wijnands Cisco Systems, Inc

  2. LDP Multipoint Opaque Value Element Types • Presented at IETF 75 • Multiple Generic Identifier : • “Type 0” is recommended for manual/static config • “Type 1” [mLDP-draft] for dynamic • “Type 2” static P2MP for MVPN • [encoding based on RFC2685]

  3. Issues with single mLDP FEC identifier • Migration • Root node reserved FEC space MAY not match across vendors. Migration between vendors would require changing configuration on all leaf nodes. • Security • Traffic leaking from VPN to public (static) tree due to misconfiguration or during network convergence. • Provisioning • Operator has to check availability of allocated ID. No control over availability of ID till a tree not provisioned on root node.

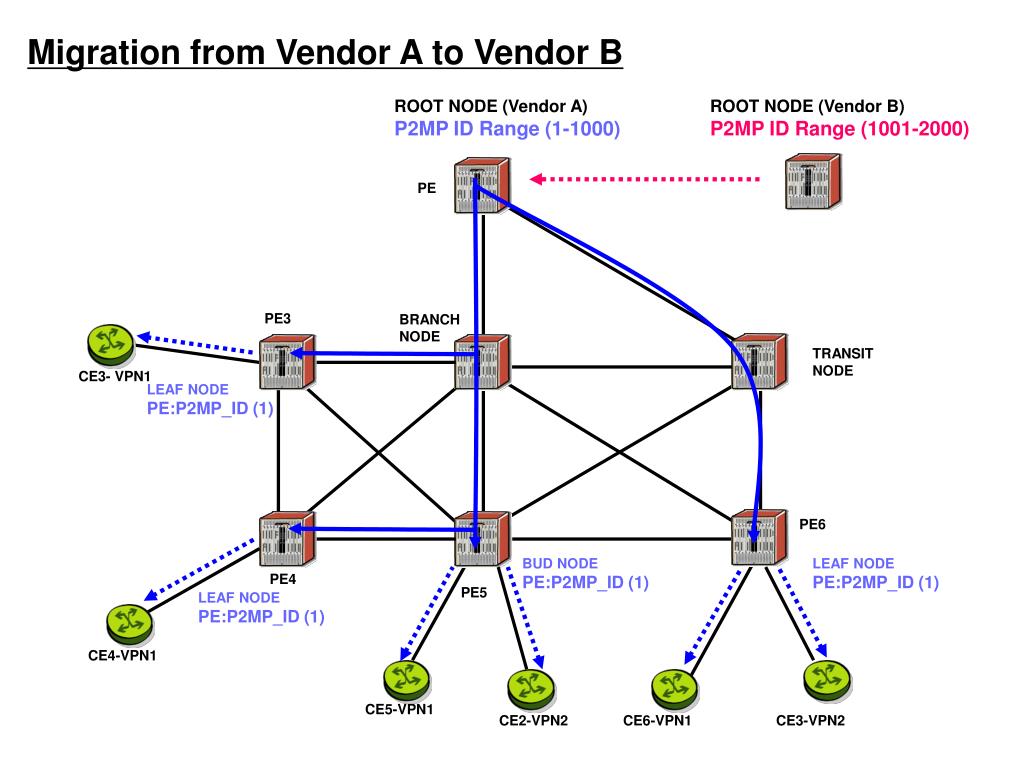

  4. Migration from Vendor A to Vendor B ROOT NODE (Vendor A) P2MP ID Range (1-1000) ROOT NODE (Vendor B) P2MP ID Range (1001-2000) PE PE3 BRANCH NODE TRANSIT NODE CE3- VPN1 LEAF NODE PE:P2MP_ID (1) PE6 BUD NODE PE:P2MP_ID (1) LEAF NODE PE:P2MP_ID (1) PE4 PE5 LEAF NODE PE:P2MP_ID (1) CE4-VPN1 CE5-VPN1 CE2-VPN2 CE6-VPN1 CE3-VPN2

  5. Type 0 – Manual/static P2MP mLDP LSP for Global instance 0 1 2 3 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+ | Type= 00 | Length |LSP Identifier | +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+ | LSP Identifier (contd.) | +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+ AII Type = 0x00 Length = length of value field in octets. The length is set to 4. LSP Identifier = A 4-octet field containing a value that is unique at a root node.

  6. Type 2 – Manual/static P2MP mLDP LSP for MVPN   0                   1                   2                   3    0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1  +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+   | Type= 2       | Length                        |       OUI     |   +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+   |              OUI (contd.)       |           VPN Index         |   +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+   |       VPN Index (contd.)        |        PMSI ID              |   +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+   |       PMSI ID (contd.)          | +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+ AII Type = 0x02 Length = length of value field in octets. The length is set to 11. OUI = Organization Unique Identifier. The length is set to 3 bytes. VPN Index = Identifying the VPN according to the OUI. The length is set to 4 bytes. PMSI ID = Mi-PMSI or S-PMSI identifier. The length is set to 4 bytes.
