Linear Regression

A student wonders if tall women tend to date taller men than do short women. She measures herself, her dormitory roommate, and the women in the adjoining rooms. Then she measures the next man each woman date. Draw & discuss the scatterplot and calculate the correlation coefficient.

kyle
Download Presentation

Linear Regression

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. A student wonders if tall women tend to date taller men than do short women. She measures herself, her dormitory roommate, and the women in the adjoining rooms. Then she measures the next man each woman date. Draw & discuss the scatterplot and calculate the correlation coefficient.

  2. Linear Regression

  3. Guess the correlation coefficient • http://istics.net/stat/Correlations/

  4. Can we make a Line of Best Fit

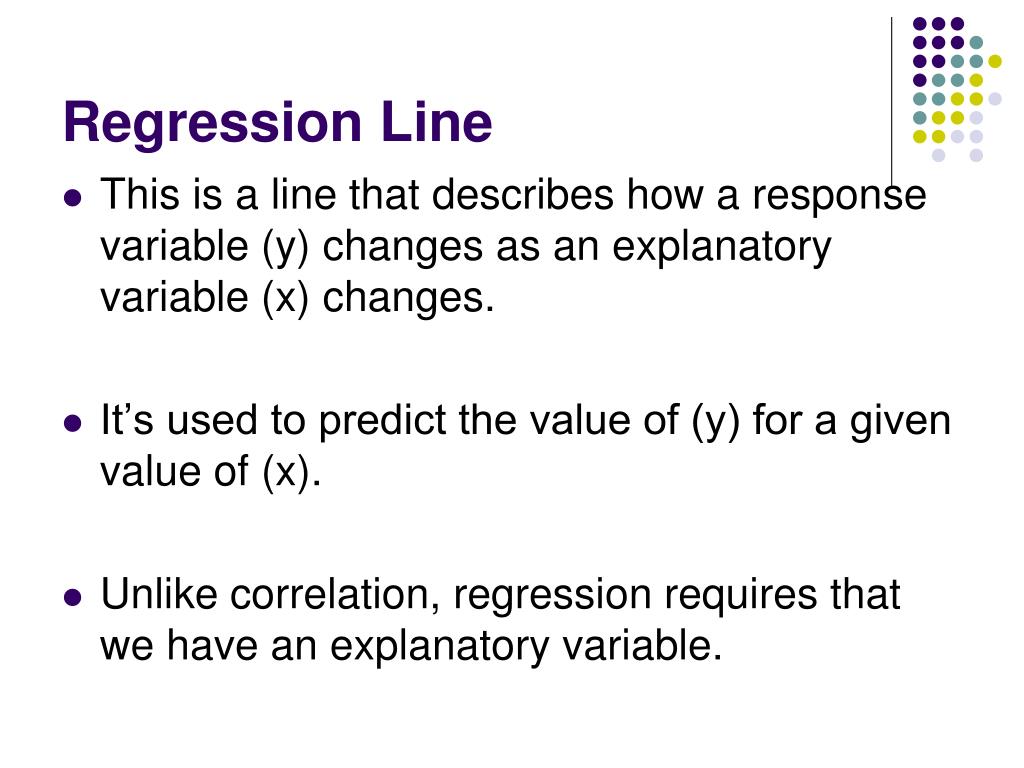

  5. Regression Line • This is a line that describes how a response variable (y) changes as an explanatory variable (x) changes. • It’s used to predict the value of (y) for a given value of (x). • Unlike correlation, regression requires that we have an explanatory variable.

  6. Let’s try some! • http://illuminations.nctm.org/ActivityDetail.aspx?ID=146

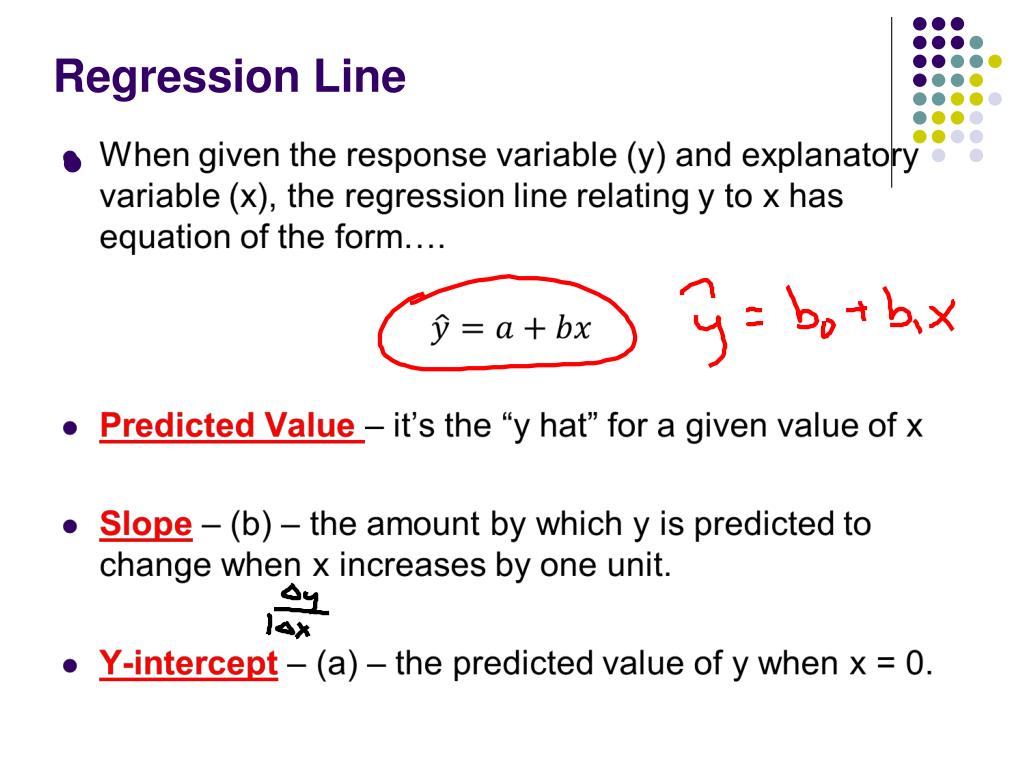

  7. Regression Line

  8. The following data shows the number of miles driven and advertised price for 11 used Honda CR-Vs from the 2002-2006 model years (prices found at www.carmax.com). The scatterplot below shows a strong, negative linear association between number of miles and advertised cost. The correlation is -0.874. The line on the plot is the regression line for predicting advertised price based on number of miles.

  9. The regression line is shown below…. Use it to answer the following. Slope: Y-intercept:

  10. Predict the price for a Honda with 50,000 miles.

  11. Extrapolation • This refers to using a regression line for prediction far outside the interval of values of the explanatory variable x used to obtain the line. • They are not usually very accurate predictions.

  12. Slope: • Y-int: • Predict weight after 16 wk • Predict weight at 2 years:

  13. Residual

  14. The equation of the least-squares regression line for the sprint time and long-jump distance data is predicted long-jump distance = 304.56 – 27.3 (sprint time). Find and interpret the residual for the student who had a sprint time of 8.09 seconds.

  15. Regression • Let’s see how a regression line is calculated.

  16. Fat vs Calories in Burgers

  17. Let’s standardize the variables The line must contain the point and pass through the origin.

  18. Let’s clarify a little. (Just watch & listen) The equation for a line that passes through the origin can be written with just a slope & no intercept: y = mx. But, we’re using z-scores so our equation should reflect this and thus it’s Many lines with different slope pass through the origin. Which one fits our data the best? That is which slope determines the line that minimizes the sum of the squared residuals.

  19. Line of Best Fit –Least Squares Regression Line It’s the line for which the sum of the squared residuals is smallest. We want to find the mean squared residual. Residual = Observed - Predicted Focus on the vertical deviations from the line.

  20. Let’s find it. (just watch & soak it in) St. Dev of z scores is 1 so variance is 1 also. This is r!

  21. Continue…… Since this is a parabola – it reaches it’s minimum at This gives us Hence – the slope of the best fit line for z-scores is the correlation coefficient → r.

  22. Slope – rise over run A slope of r for z-scores means that for every increase of 1 standard deviation in , there is an increase of r standard deviations in . “Over 1 and up r” Translate back to x & y values – “over one standard deviation in x, up r standard deviations in y. Slope of the regression line is:

  23. Why is correlation “r” • Because it was calculated from the regression of y on x after standardizing the variables – just like we have just done – thus he used r to stand for (standardized) regression.

  24. The number of miles (in thousands) for the 11 used Hondas have a mean of 50.5 and a standard deviation of 19.3. The asking prices had a mean of $14,425 and a standard deviation of $1,899. The correlation for these variables is r = -0.874. Find the equation of the least-squares regression line and explain what change in price we would expect for each additional 19.3 thousand miles.

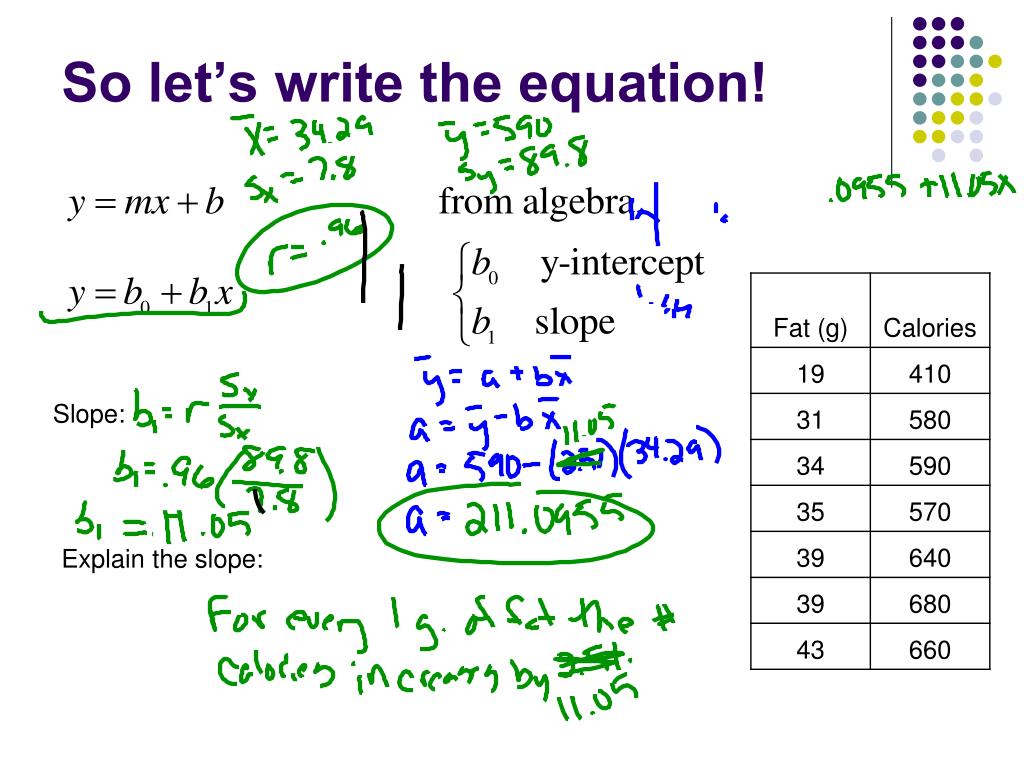

  25. So let’s write the equation! Slope: Explain the slope:

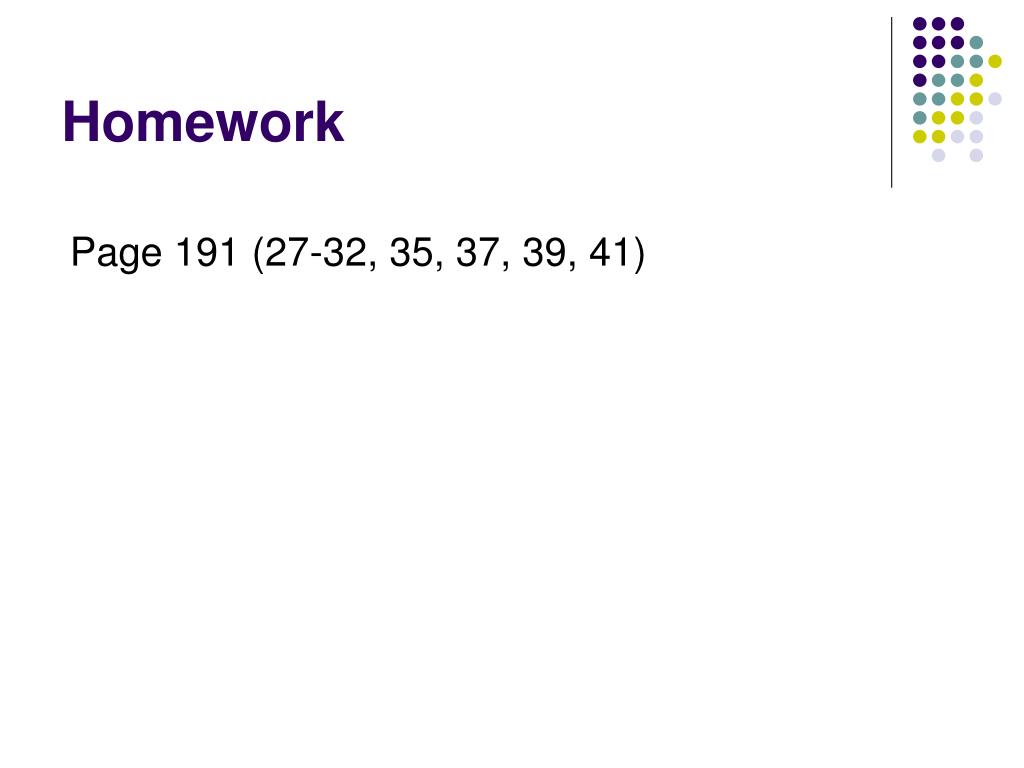

  26. Homework Page 191 (27-32, 35, 37, 39, 41)
