Presentation Transcript


  1. Brain magnetic resonance imaging with contrast dependent on blood oxygenation • S. Ogawa, T. M. Lee, A. R. Kay, and D. W. Tank • Presented by Patrick Wu and Amanda Mok • December 2, 2010 • Department of Biological Engineering, MIT

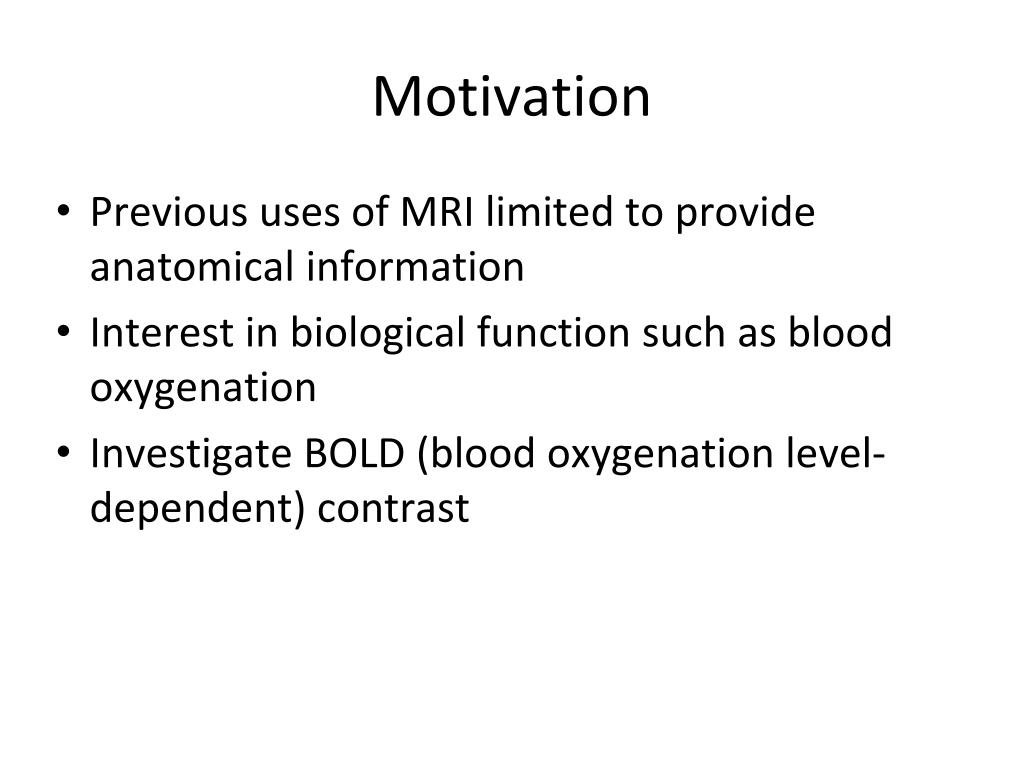

  2. Motivation • Previous uses of MRI limited to provide anatomical information • Interest in biological function such as blood oxygenation • Investigate BOLD (blood oxygenation level-dependent) contrast

  3. local magnetic field changes decrease T2 relaxation time gradient echo MRI TAKE HOME MESSAGE: Deoxyhemoglobin = DARKER! oxyhemoglobin (diamagnetic) artery deoxyhemoglobin (paramagnetic) vein decrease in signal intensity Background

  4. Methods • vary blood [CO2] • vary blood [glucose] • vary brain activity

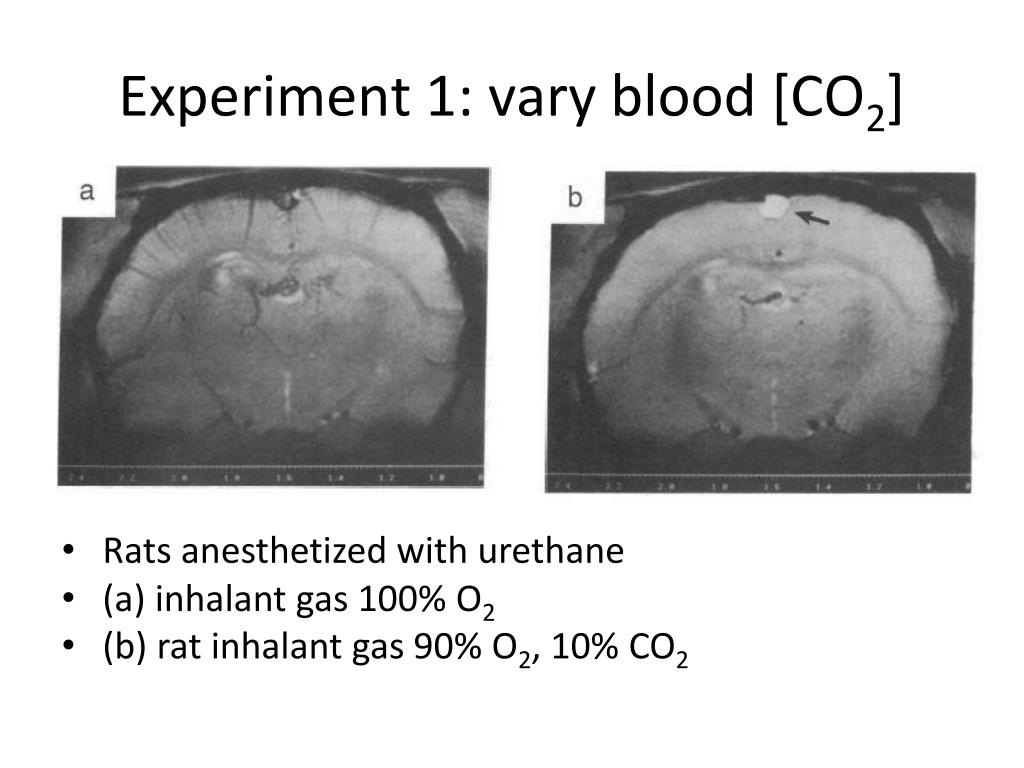

  5. Experiment 1: vary blood [CO2] • Rats anesthetized with urethane • (a) inhalant gas 100% O2 • (b) rat inhalant gas 90% O2, 10% CO2

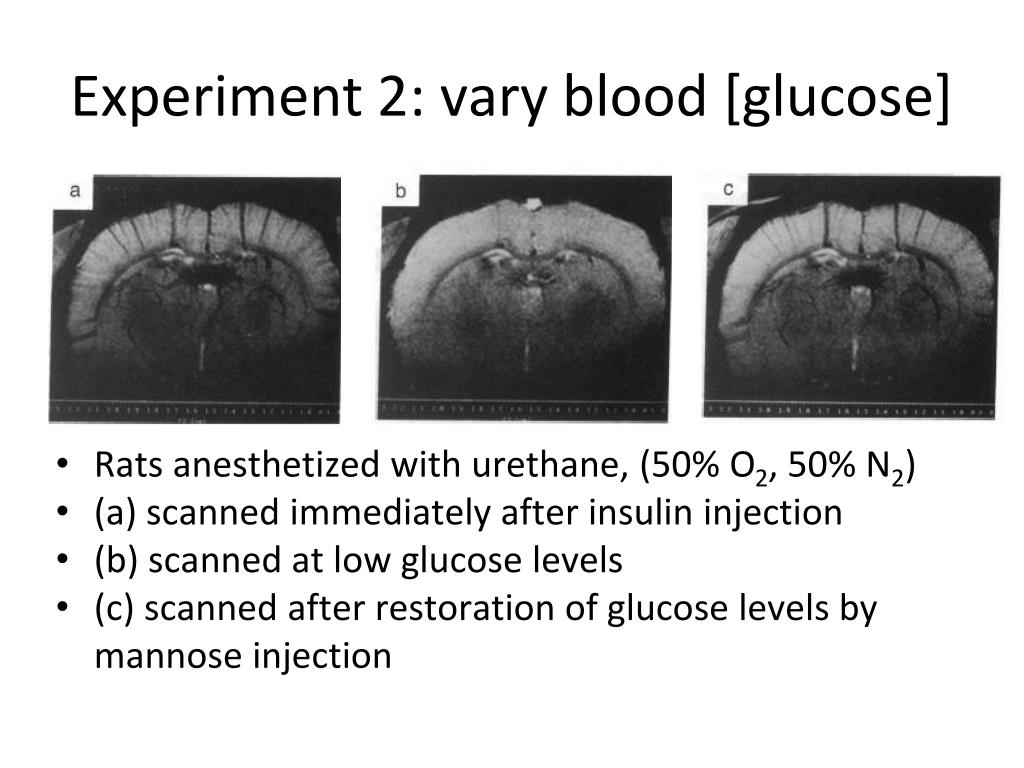

  6. Experiment 2: vary blood [glucose] • Rats anesthetized with urethane, (50% O2, 50% N2) • (a) scanned immediately after insulin injection • (b) scanned at low glucose levels • (c) scanned after restoration of glucose levels by mannose injection

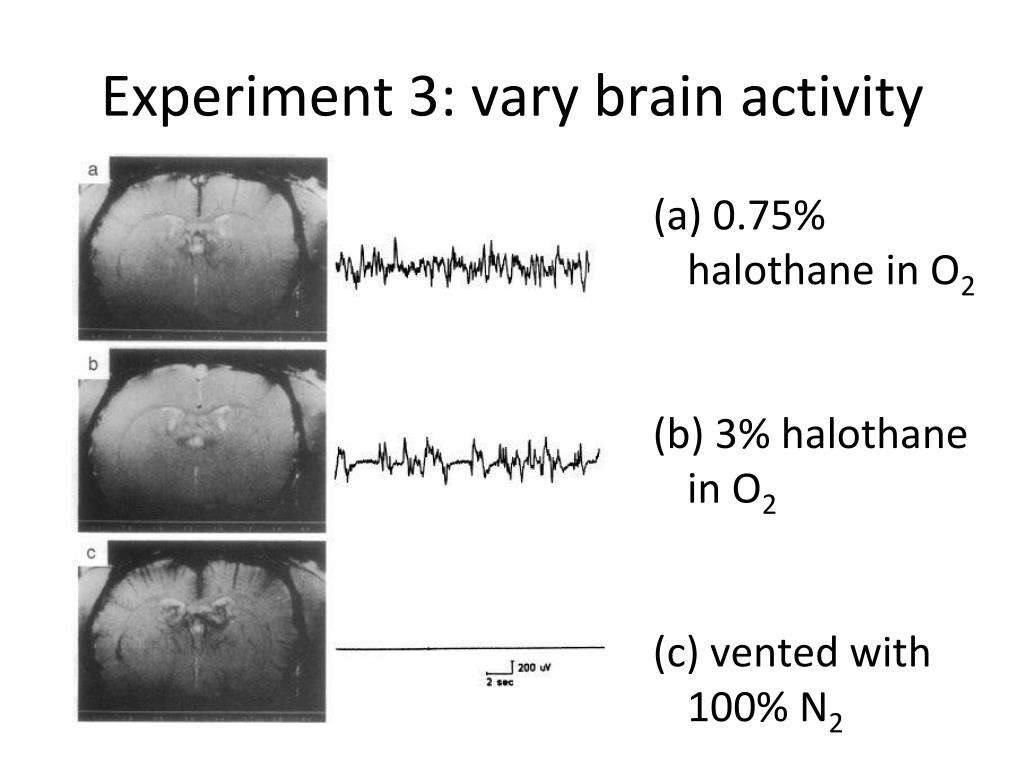

  7. Experiment 3: vary brain activity (a) 0.75% halothane in O2 (b) 3% halothane in O2 (c) vented with 100% N2

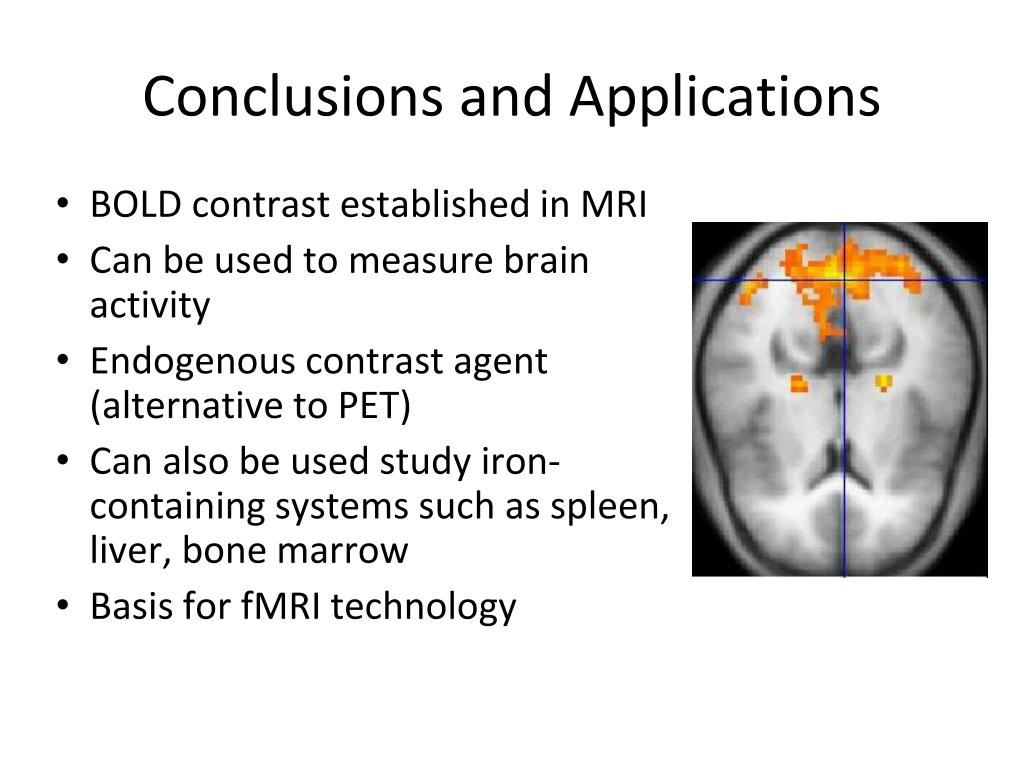

  8. Conclusions and Applications • BOLD contrast established in MRI • Can be used to measure brain activity • Endogenous contrast agent (alternative to PET) • Can also be used study iron-containing systems such as spleen, liver, bone marrow • Basis for fMRI technology

  9. References • Ogawa et al. “Brain magnetic resonance imaging with contrast dependent on blood oxygenation.” Proc Natl Acad Sci USA. 87 (1990): 9868-9872.
