GENERAL INTRODUCTION TO THE PETROLEUM POTENTIAL OF THE ECONOMIC EXCLUSIVE ZONE OF CUBA IN THE GULF OF MEXICO


ECONOMIC EXCLUSIVE ZONE OF CUBA IN THE GULF OF MEXICO ECONOMIC EXCLUSIVE ZONE OF CUBA IN THE GULF OF MEXICO

USA

- CUBA

MARINE BOUNDARY

MEXICO - CUBA MARINE BOUNDARY

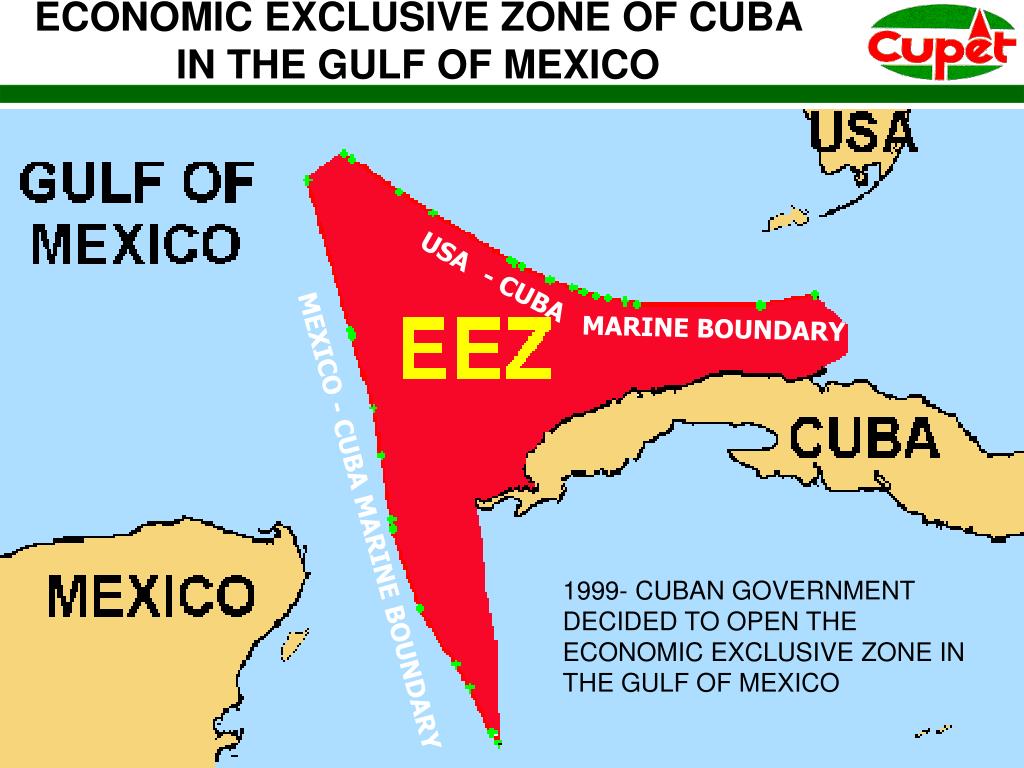

1999- CUBAN GOVERNMENT DECIDED TO OPEN THE ECONOMIC EXCLUSIVE ZONE IN THE GULF OF MEXICO


PHISIOGRAPHYC SEA BOTTOM DEPTHS MAP ECONOMIC EXCLUSIVE ZONE OF CUBA IN THE GULF OF MEXICO


Previous to 1999 geological and geophysical studies

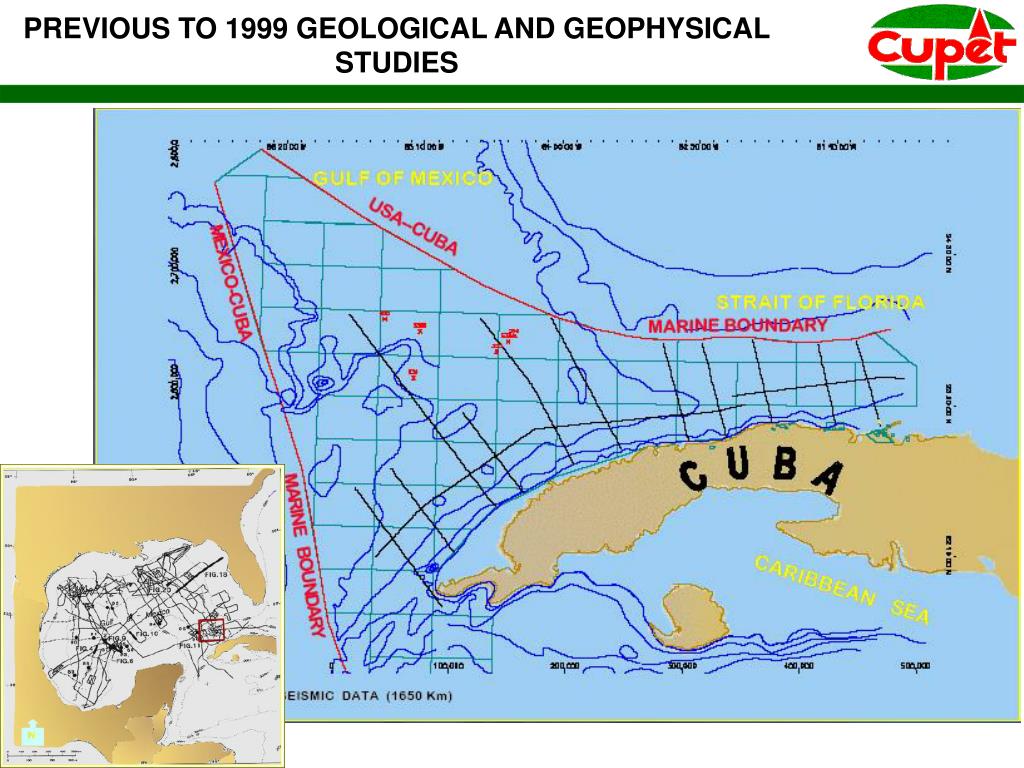

PREVIOUS TO 1999 GEOLOGICAL AND GEOPHYSICAL STUDIES ECONOMIC EXCLUSIVE ZONE OF CUBA IN THE GULF OF MEXICO

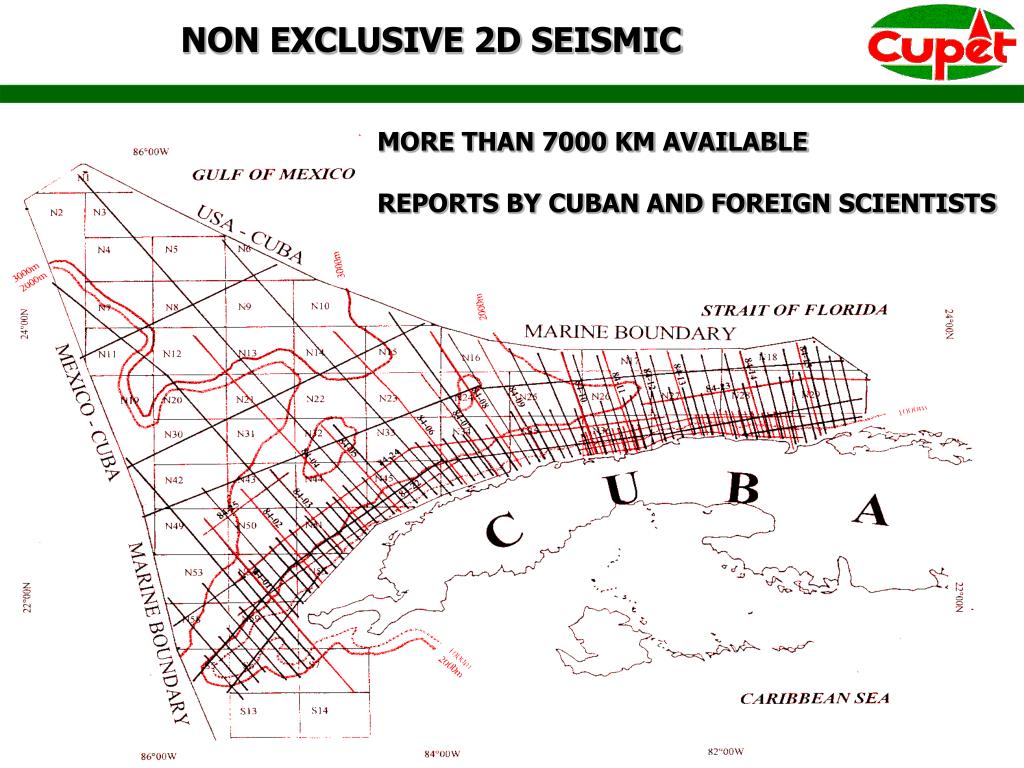

NON EXCLUSIVE 2D SEISMIC ECONOMIC EXCLUSIVE ZONE OF CUBA IN THE GULF OF MEXICO

MORE THAN 7000 KM AVAILABLE

REPORTS BY CUBAN AND FOREIGN SCIENTISTS


GEOLOGICAL FRAMEWORK ECONOMIC EXCLUSIVE ZONE OF CUBA IN THE GULF OF MEXICO

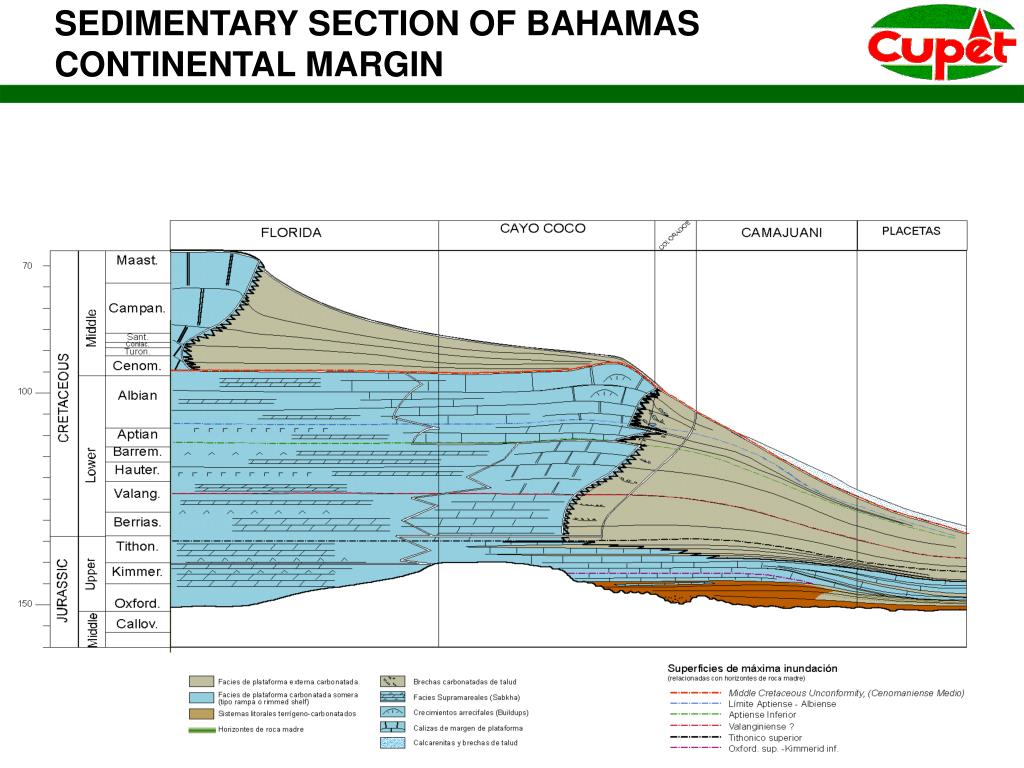

SEDIMENTARY SECTION OF BAHAMAS ECONOMIC EXCLUSIVE ZONE OF CUBA IN THE GULF OF MEXICO

CONTINENTAL MARGIN

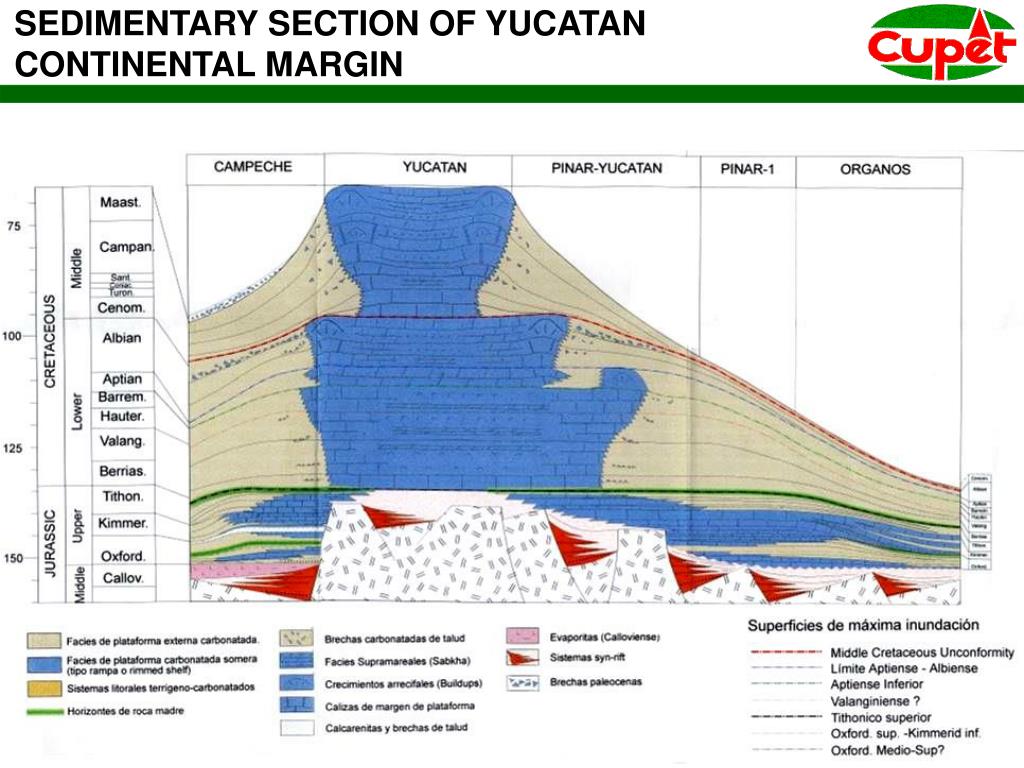

SEDIMENTARY SECTION OF YUCATAN ECONOMIC EXCLUSIVE ZONE OF CUBA IN THE GULF OF MEXICO

CONTINENTAL MARGIN


Golden lane analogs

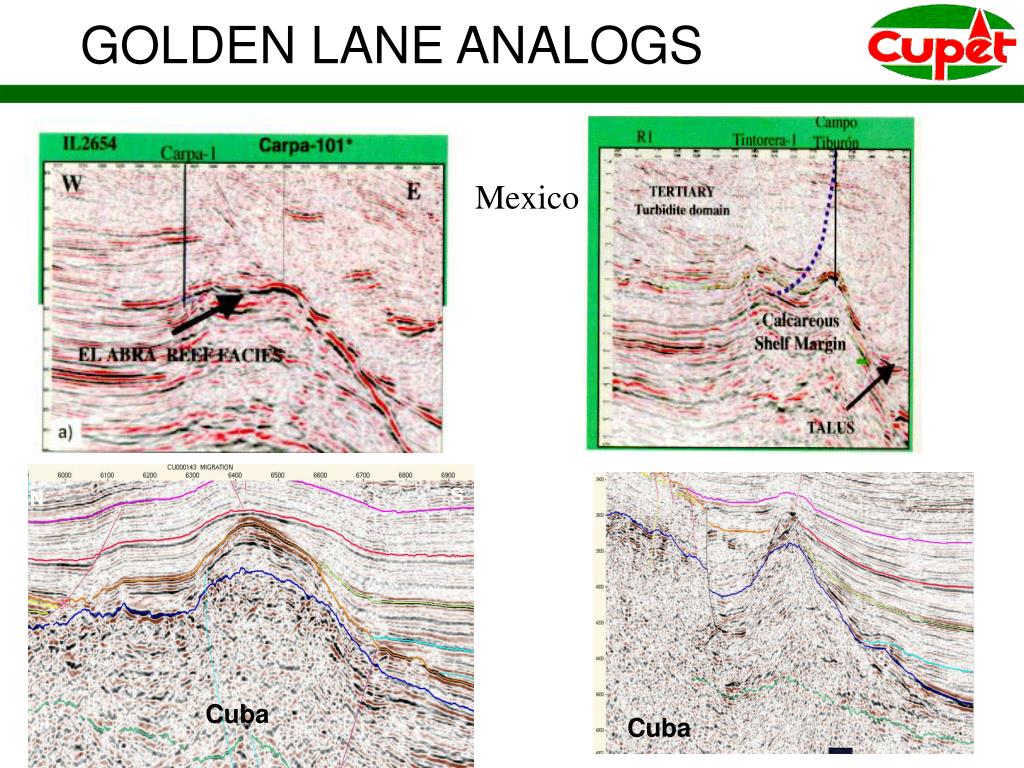

GOLDEN LANE ANALOGS ECONOMIC EXCLUSIVE ZONE OF CUBA IN THE GULF OF MEXICO

Mexico

S

N

S

N

Cuba

Cuba


Deep karst and carbonate reservoirs
DEEP KARST AND CARBONATE RESERVOIRS ECONOMIC EXCLUSIVE ZONE OF CUBA IN THE GULF OF MEXICO

Late diagenesis

of roll front fluids corrosion


Corrosion chimney

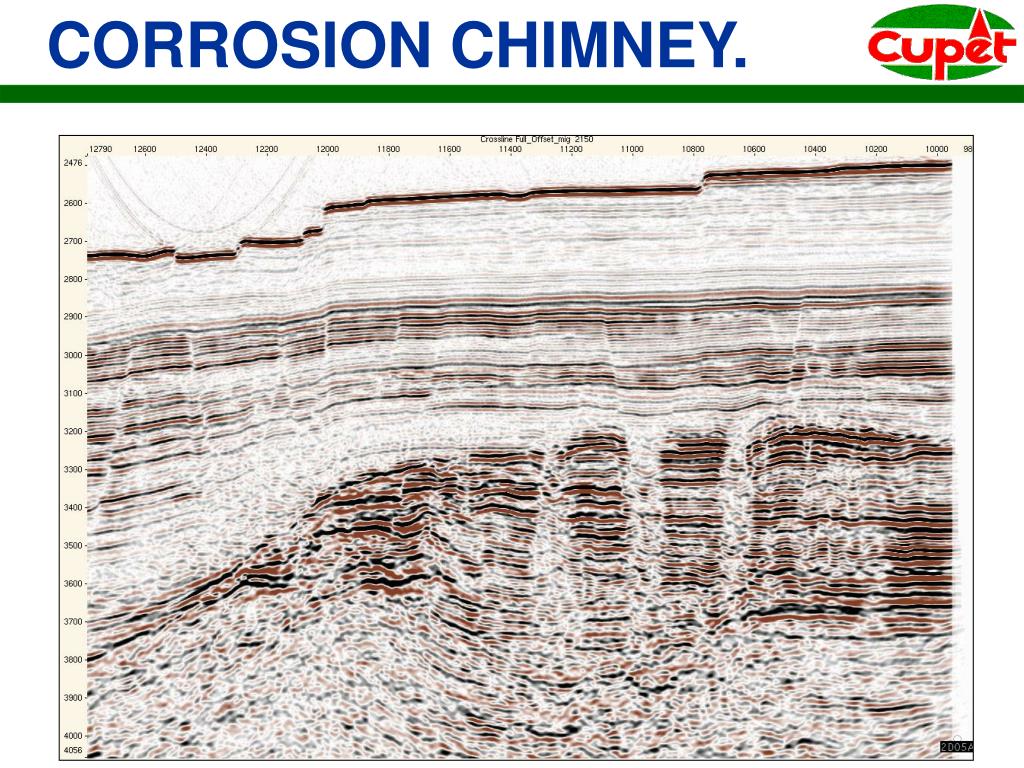

CORROSION CHIMNEY. ECONOMIC EXCLUSIVE ZONE OF CUBA IN THE GULF OF MEXICO


Corrosion chimneys in 3d seismic

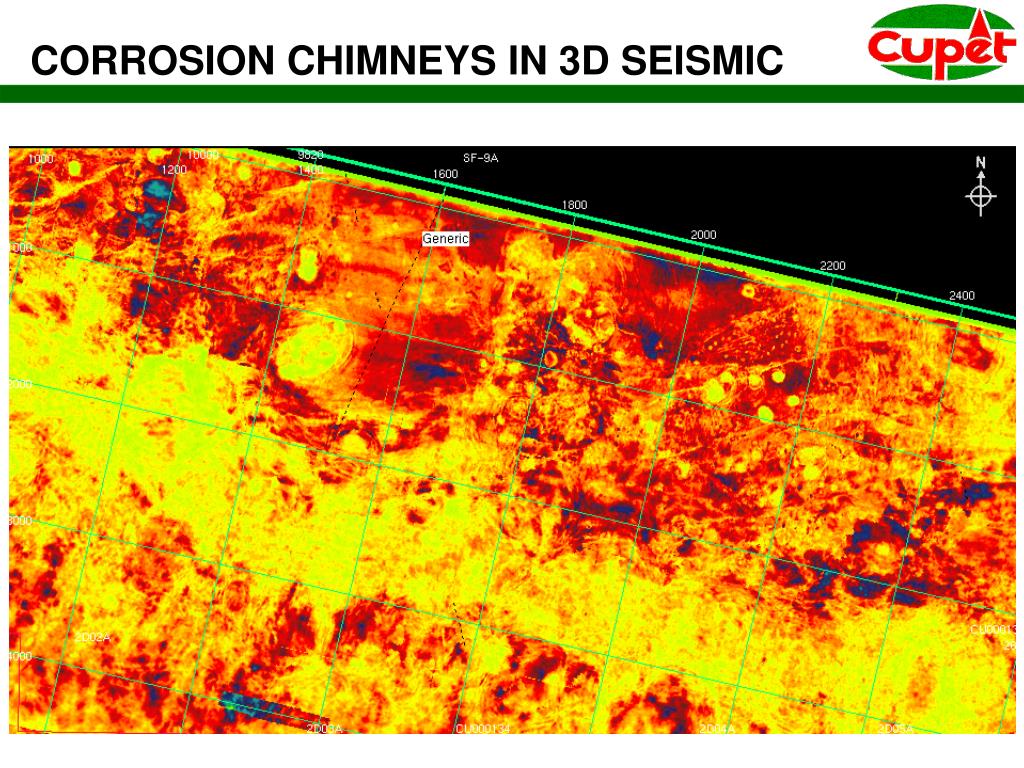

CORROSION CHIMNEYS IN 3D SEISMIC ECONOMIC EXCLUSIVE ZONE OF CUBA IN THE GULF OF MEXICO


Reservoir types
RESERVOIR TYPES ECONOMIC EXCLUSIVE ZONE OF CUBA IN THE GULF OF MEXICO


SITES 535 and 540 ECONOMIC EXCLUSIVE ZONE OF CUBA IN THE GULF OF MEXICO

*Average values

SOURCE ROCKS

CENTRAL CUBA

*Maximum values

WESTERN CUBA


Up K to Middle Eocene ECONOMIC EXCLUSIVE ZONE OF CUBA IN THE GULF OF MEXICO

Neogene

Middle K

Up. Eocene

Neocomian

Varadero Oil Field

6,9 Billion OIP

Jurassic

Cretaceous & Jurassic

Deep water facies reservoirs

Highly productive due to corrosion

0

10 km

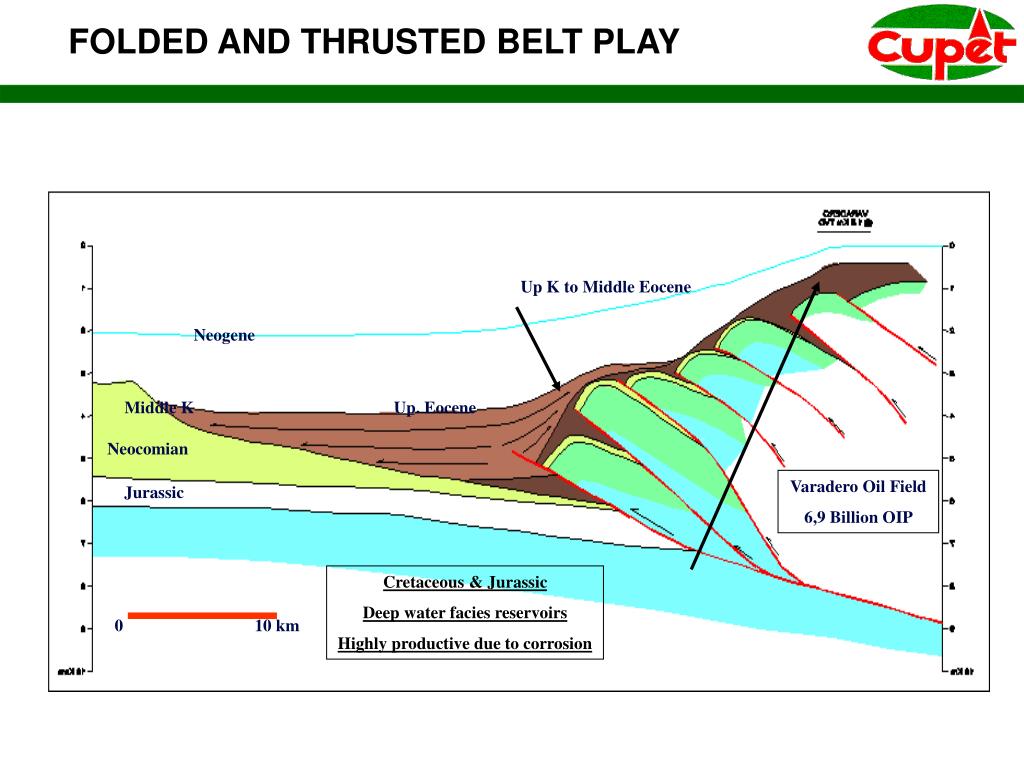

FOLDED AND THRUSTED BELT PLAY


Florida platform margin play concept

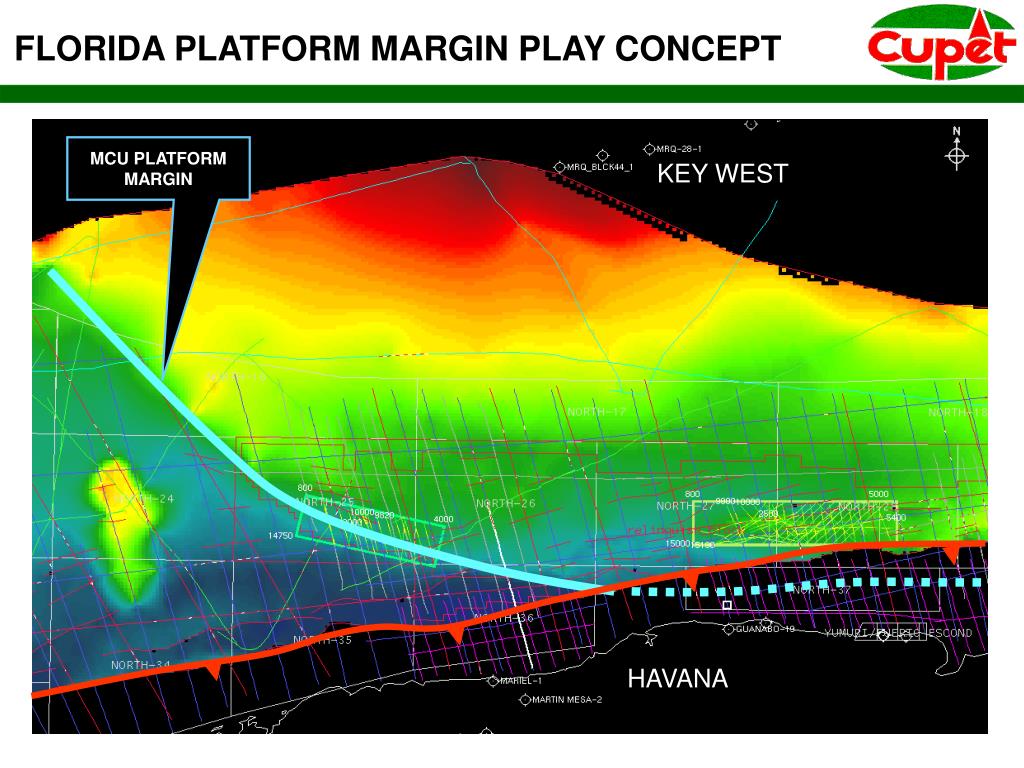

FLORIDA PLATFORM MARGIN PLAY CONCEPT ECONOMIC EXCLUSIVE ZONE OF CUBA IN THE GULF OF MEXICO

MCU PLATFORM MARGIN

KEY WEST

HAVANA


Platform margin play concept
PLATFORM MARGIN PLAY CONCEPT ECONOMIC EXCLUSIVE ZONE OF CUBA IN THE GULF OF MEXICO

CU-143

Compresive structure

CU-143

CU-138

Platform margin involved in thrusting

CU-138

Platform margin undeformed

Sedimentary structure


Platform margin structural style
PLATFORM MARGIN STRUCTURAL STYLE ECONOMIC EXCLUSIVE ZONE OF CUBA IN THE GULF OF MEXICO

Oeste: Fallas normales no afectadas por el frente cubano

Este: Fallas invertidas

CU-134


Three dimensional view of anticline structure

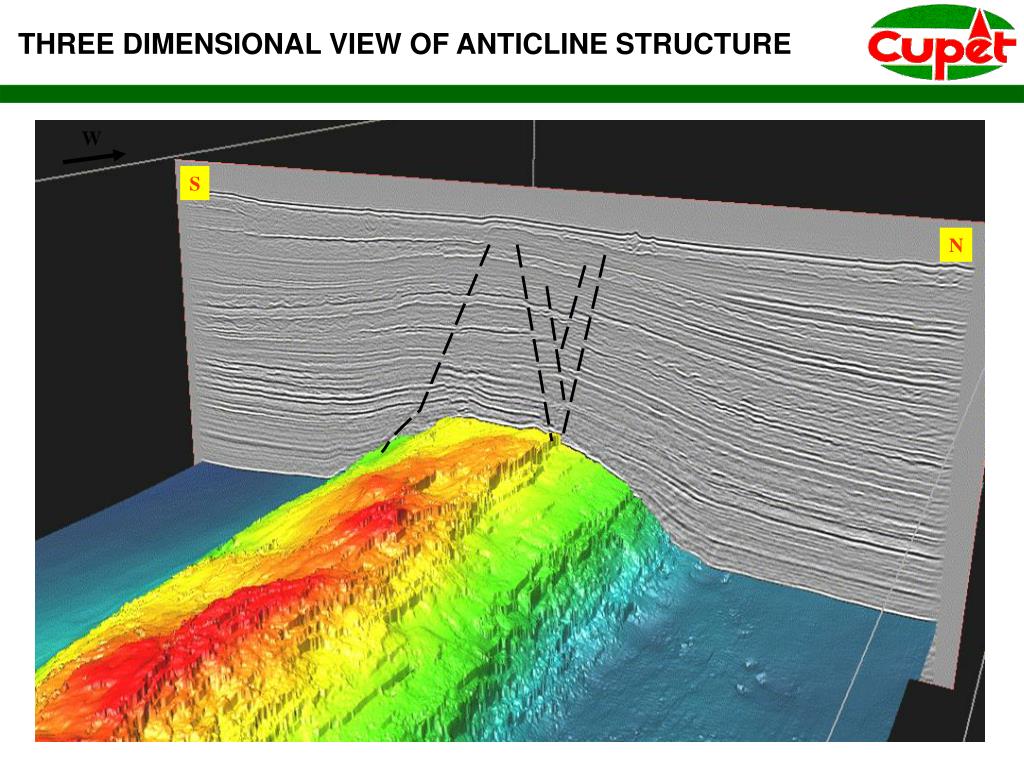

THREE DIMENSIONAL VIEW OF ANTICLINE STRUCTURE ECONOMIC EXCLUSIVE ZONE OF CUBA IN THE GULF OF MEXICO

W

S

N

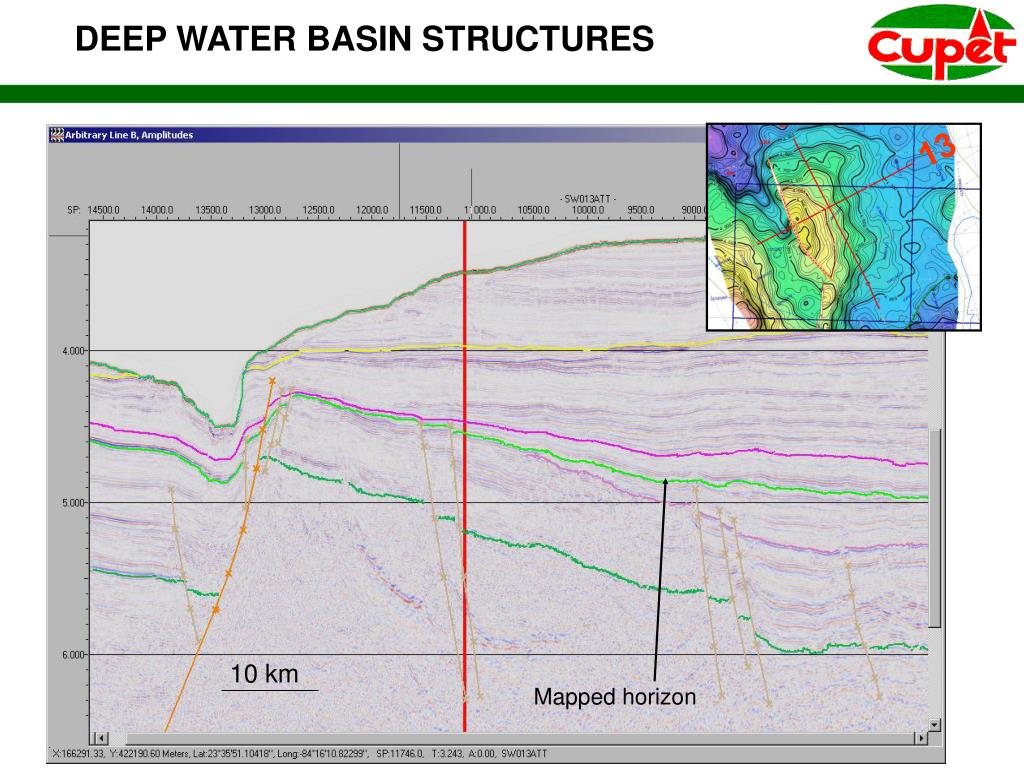

DEEP WATER BASIN STRUCTURES ECONOMIC EXCLUSIVE ZONE OF CUBA IN THE GULF OF MEXICO

13

10 km

Mapped horizon


04 ECONOMIC EXCLUSIVE ZONE OF CUBA IN THE GULF OF MEXICO

Mapped horizon

DEEP WATER BASIN STRUCTURES

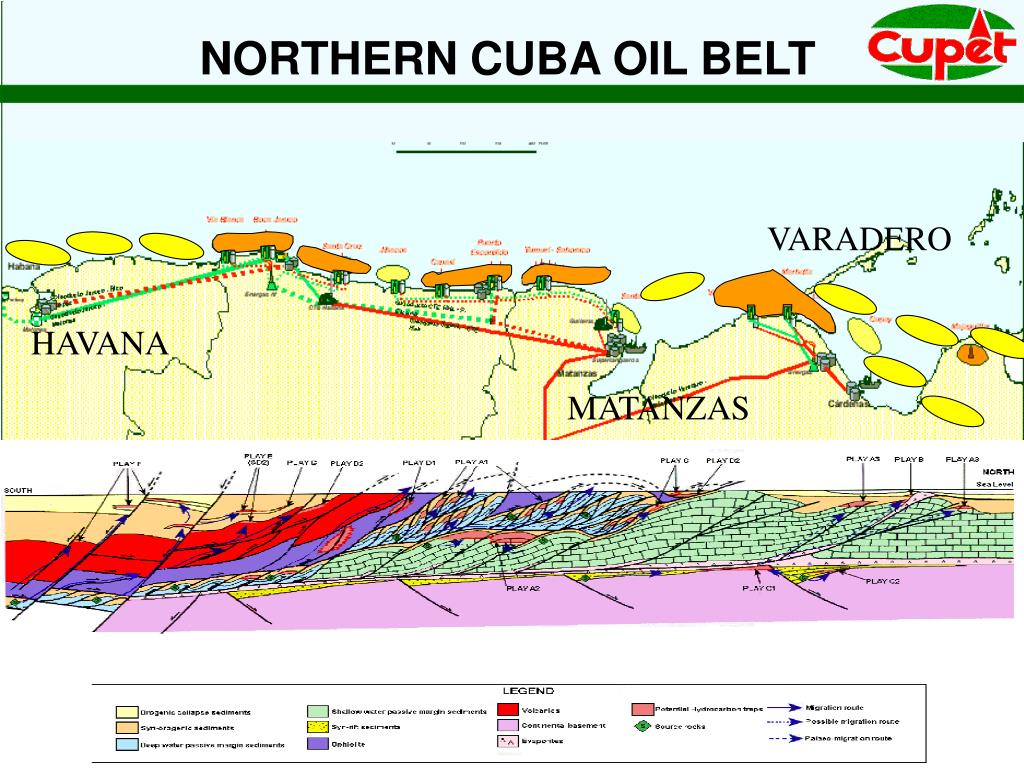

NORTHERN CUBA OIL BELT ECONOMIC EXCLUSIVE ZONE OF CUBA IN THE GULF OF MEXICO

VARADERO

HAVANA

MATANZAS

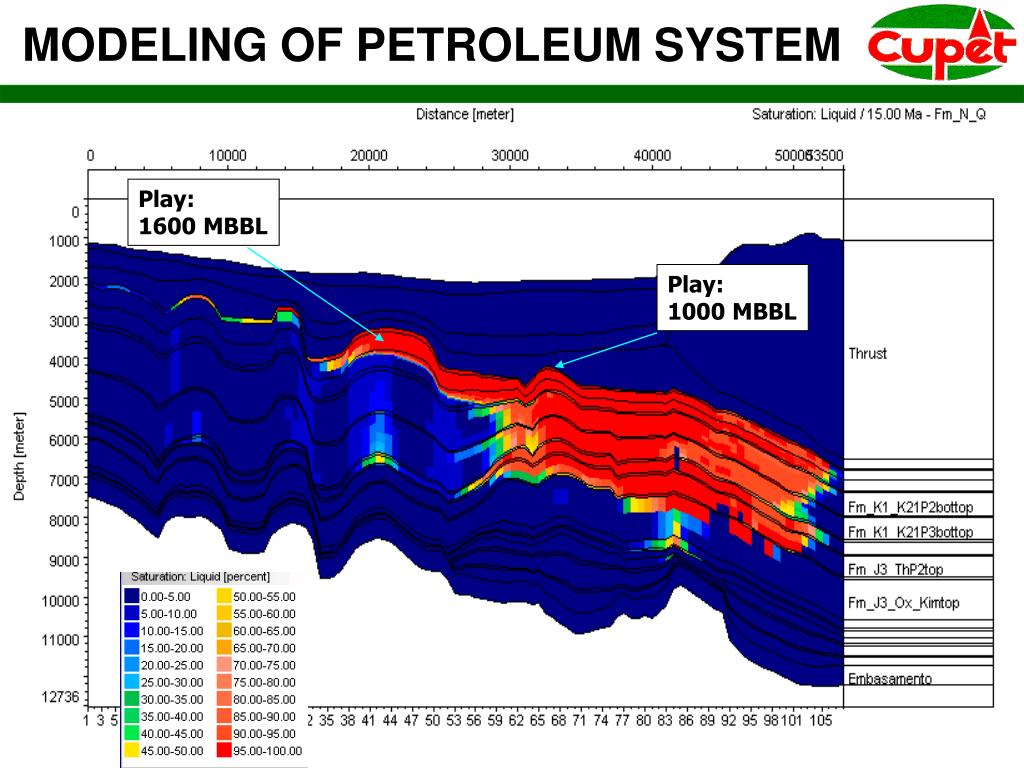

MODELING OF PETROLEUM SYSTEM ECONOMIC EXCLUSIVE ZONE OF CUBA IN THE GULF OF MEXICO

Play:

1600 MBBL

Play:

1000 MBBL


Exploration play concept
EXPLORATION PLAY CONCEPT ECONOMIC EXCLUSIVE ZONE OF CUBA IN THE GULF OF MEXICO


OIL AND GAS POTENTIAL ECONOMIC EXCLUSIVE ZONE OF CUBA IN THE GULF OF MEXICO

  • Demonstrated source rocks levels

  • Large structures for giant oil fields

  • Regionally extended seals associated mainly to marginal basins

  • Carbonate reservoirs similar to those present in analogous neighboring areas

  • Oil and gas production in oilfields offshore northern coast of Cuba and oil gas seeps

ALL INFORMATION SUPPORT THE HYPOTHESIS OF THE EXISTENCE OF A NEW LARGE PETROLEUM PROVINCE AND WITH SERVERAL GIANT OIL OR GAS FIELDS.


US OIL AND SERVICE COMPANIES ARE WELLCOME TO PARTICIPATE IN THIS QUEST DEVELOPING DEEPWATER OFFSHORE PETROLEUM INDUSTRY IN CUBA
