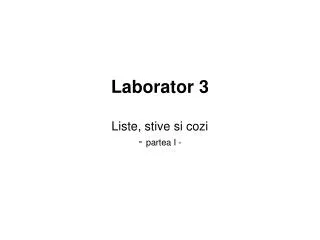

  1. Laborator 3Liste, stive si cozi- partea I -

  2. Stive si cozi implementate cu vectori Stiva- Stuctura LIFO- varful stivei – top- is_empty, is_full- push, popCoada- Stuctura FIFO- inceput, sfarsit coada – front si rear- is_empty, is_full- insert, remove

  3. Stive si cozi implementate cu vectori Stiva (principiu) + -> pop() -> pop() -> push(10) ->10 ->5 Stiva transpusa in vectori • isEmpty() • isFull() • - stackArrary[maxSize] • push[++top] • return pop[top--] • peek[top]

  4. Stive si cozi implementate cu vectori

  5. Stive si cozi implementate cu vectori Cozi (principiu) + -> remove() -> insert(10) ->1 remove() -> ->5 Coada transpusa in vectori • isEmpty() • isFull() • - queArray [maxSize] • insert[++rear] • return remove[front++] • peekFront[front]

  6. Stive si cozi implementate cu vectori

  7. Stive si cozi implementate cu vectori De facut:1. De implementat clasa Stack, cu constructorul Stack(n), unde n este dimensiunea maxima. De adaugat valorile 5, 10, 20, 15, 0, 50. De scos pas cu pas aceste valori. De afisat elementul din varful stivei2. De implementat clasa Coada, De adaugat valorile 5, 10, 20, 15, 0, 50. De scos pas cu pas aceste valori.3. De realizat un program care verifica consistenta unei expresii Exemplu: - c[d] // corect - a{b[c]d}e // corect - a{b(c]d}e // incorect; ] nu se potriveste cu ( - a[b{c}d]e} // incorect, nimic nu se potriveste cu } finalaIndicatii: Se testeaza caracter cu caracter, parantezele deschise se introduc intr-o stiva; cand intalnesc paranteze deschise efectuez un pop pe stiva si compar cele doua paranteze.

  8. Stive si cozi implementate cu vectori Exemple utile: - constructor Stiva: public StackX(int s) // constructor { maxSize = s; // set array size stackArray = new double[maxSize]; // create array top = ??????; // no items yet. Cat trebuie sa fie top initial?}- constructor Coada:public Queue(int s) // constructor { maxSize = s; queArray = new int[maxSize]; front = 0; rear = -1; nItems = 0;}- metoda pop:public int pop() // take item from top of stack{return stackArray[top--];}
