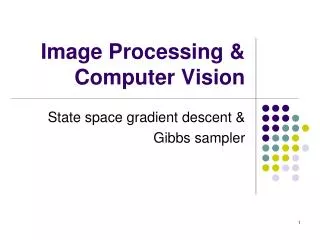

  1. Image Processing &Computer Vision State space gradient descent & Gibbs sampler

  2. Optimization (Finding best solution-หาวิธีที่ดีที่สุด) • Hough Transform • หาตำแหน่งของรูปทรงต่าง ๆ เช่น เส้นตรง, วงกลม, รูปทรงอื่น ๆ โดยการ voting (ให้คะแนน) • State space gradient descent • การแทนค่าที่เป็นไปได้ในแต่ละ state เพื่อทำการหา Stable Energy เพื่อเป็นการตัดสินว่าเป็นค่าที่ดีที่สุด • Gibbs sampler • การแทนค่าที่เป็นไปได้ในแต่ละ state เพื่อทำการหา Energy และ Probability Distribution Function (PDF) เพื่อเป็นการตัดสินว่าเป็นค่าที่ดีที่สุด

  3. Computer vision problem • Computing optical flow motion การคำนวณการเคลื่อนที่ของวัตถุโดยการหาค่าเวกเตอร์ u และ v • Stereo disparity depth ค่าความลึกขององค์ประกอบหรือวัตถุต่าง ๆ ภายในภาพ โดยใช้ภาพจำลองของตาซ้ายและตาขวา • Shape from Texture  การหารูปร่างของวัตถุโดยดูจากลวดลาย • Shape from Contour  การหารูปร่างของวัตถุโดยดูจากเส้นแสดงขอบเขตของวัตถุ

  4. State space gradient descent E = xy[(Fxy – Ixy)2 + (Fx+1,y – Fxy)2 + (Fx,y+1 – Fxy)2] Algorithm Initial F0(x,y) = Random 0….255 For each pixel x,y For each possible state S if F(x,y) = 0, E0 = ………… if F(x,y) = 1, E1 = ………… .............. if F(x,y) = 255, E255 = ……….. Select state with minimum E Let’s F(x,y) = S Repeat until no change in E Noise 50% Restore

  5. State space gradient descent E = xy [(Fxy – Ixy)2 + (Fx+1,y – Fxy)2 + (Fx,y+1 – Fxy)2] Data Constraint Smoothness Constraint F(x,y) คือ ค่าที่เป็นไปได้ ที่จะต้องมีการ update ในแต่ละรอบในรอบแรกจะทำการ Random ค่าขึ้นมาก่อน ซึ่งค่าที่จะ Random มีค่าตั้งแต่ 0 - 255 E คือ Energy คือพลังงานที่ใช้ไปในแต่ละรอบ Ixy คือ Image Intensity ของภาพจริง  คือ weight ของเพื่อนบ้าน (Neighbor)

  6. Energy (Global Energy) การเปลี่ยนค่าที่ตำแหน่ง x,y มีผลกระทบต่อค่า Energy ของ (x,y) (x-1,y)และ (x,y-1) Clique คือ การเปลี่ยนค่าที่ทำให้เพื่อนบ้านที่มองดูตัว x,y อยู่ มีผลกระทบด้วย ดังนั้นการเปลี่ยนค่าในตำแหน่ง x,y ใด ๆ นั้นจะต้องมีการคำนวณค่า Energy ใหม่ด้วยสูตรด้านล่างนี้

  7. Energy (Global Energy) กรณีที่ดูเพื่อนบ้าน 3 ตัวคือ (x+1,y) (x+1,y+1) (x,y+1) E = xy [(Fxy – Ixy)2 + (Fx+1,y – Fxy)2 + (Fx+1,y+1 – Fxy)2 + (Fx,y+1 – Fxy)2]

  8. State space gradient descent State space gradient descent เป็นการหาค่าที่ดีที่สุดแบบ Greedy ซึ่งก็คือการหาค่าโดยที่เมื่อเจอค่าที่คิดว่าดีที่สุดเมื่อไหร่ก็จะนำเอาค่านั้นมาเป็นคำตอบ ซึ่งบาง ครั้งค่าที่ได้อาจจะเป็น Energy ที่ local minimum ซึ่งไม่ใช่ค่า ที่เป็น Global minimum ที่แท้จริงก็ได้

  9. Gradient descent Algorithm • Initial F0(x,y) = Random 0…255 • For each Pixel(x,y For each state S = 0…255 if F(x,y) = 0, E0 = ……. if F(x,y) = 1, E1 = ……. ………. if F(x,y) = 255, E255 = ……. Choose state with minimum E F(x,y) = S • Repeat step 2 until E is stable (not decrease)

  10. Example (state space gradient) 1 2 3 4 1 2 3 4 0 0 0 0 1 1 2 2 3 3 4 4 I(x,y) F(x,y) E = xy [(Fxy – Ixy)2 + (Fx+1,y – Fxy)2 + (Fx,y+1 – Fxy)2] Data Constraint Smoothness Constraint

  11. Gibbs Sampler • เนื่องจาก state space gradient descent เป็นวิธีแบบ Greedy ซึ่งอาจจะทำให้ผลลัพธ์ที่ออกมาไม่ดีเท่าที่ควร • Gibbs Sampler คือ Algorithm อีกแบบหนึ่งซึ่งนำเข้าช่วยทำให้วิธีการ state space gradient descent มีผลลัพธ์ที่ดีขึ้นโดยหลักการที่ใช้ก็คือ จะใช้ค่า Probability Distribution Function ร่วมด้วยในการตัดสินใจหาผลลัพธ์ที่ดีที่สุด

  12. Gibbs Sampler 1. Start temperature T is high 2. Initial F0(x,y) = Random 0…255 3. For each Pixel(x,y) For each state S = 0…255 if F(x,y) = 0; E0 = …..; P0 = …..;Prob0=…. if F(x,y) = 1; E1 = …..; P1 = …..;Prob1=…. ……………………. if F(x,y) = 255; E255 = …..; P255 = …..;Prob255= For each Probi = Pi / sum(Pi) 4. Sample for state S from pdf Probi F(x,y) = S 5. Reduce T = T * 0.9 6. Repeat step 3-4 until E is stable

  13. Gibbs Sampler • จากค่า E ทำอย่างไรจะได้ค่า Pi ออกมา • จะทำการหาค่า Probability Distribution Function (PDF) ได้อย่างไร • เพราะอะไรจึงต้องทำการลดค่า T(reduce T) และ T มีไว้สำหรับทำอะไร

  14. Gibbs Sampler • สูตรในการหาค่า Pi • Pi = exp(-Ei/T) Z = sum(Pi) Probi = Pi Z เมื่อ E = Energy exp = exponential มีค่าเท่ากับ 2.718 Z = ผลรวมทั้งหมดของ Pi

  15. Gibbs Sampler • ความหมายของค่า T (Temperature) (เดินแบบสุ่ม) • Probi = exp(-Ei/T) • Z (เข้าใกล้ 0 และเมื่อ Tมีค่า น้อยมากๆ นั่นหมายถึงเข้าสู่ Gradient Descent)

  16. Gibbs Sampler • การหาค่า Probability Distribution Function (PDF) pdf ให้ Random ค่า probality ตั้งแต่ 0…1 แล้วดูว่าค่าที่ Random มานั้น ตกอยู่ในช่วงของ pdf ใดให้ทำการเลือก state นั้นมา ดังตัวอย่าง สมมติให้ค่าที่ Random = 0.43 ดังนั้นจะได้ F(x,y) ตกอยู่ใน state ที่ 3 คือ F(x,y) = 3

  17. Gibbs Sampler ตัวอย่าง 3state0,1,2 P1=exp(-3/T) P2=exp(-4/T) P0=exp(-2/T) 0.1

  18. Example (gibbs sampler) 1 2 3 4 1 2 3 4 0 0 0 0 1 1 2 2 3 3 4 4 I(x,y) F(x,y) E = xy [(Fxy – Ixy)2 + (Fx+1,y – Fxy)2 + (Fx,y+1 – Fxy)2] Data Constraint Smoothness Constraint

  19. Noise removal using Gibbs Sampler randomnoise 50% ของภาพ ภาพที่ได้จากการทำ Gibbs sampler ภาพจะกลับคืน มาได้ดีระดับหนึ่ง ซึ่งทำให้เห็นราย ละเอียดต่าง ๆ ได้มากขึ้น ภาพจริงที่ไม่มี noise

  20. Noise removal using Gibbs Sampler E = xy [(Fxy – Ixy)2 + (Fx+1,y – Fxy)2 + (Fx,y+1 – Fxy)2] Data Constraint Smoothness Constraint เราจะให้ค่า  มีค่าสูงถ้าภายในภาพมี noise เยอะ ซึ่งก็จะทำให้ weight ของเพื่อนบ้าน(neighbor) มีความสำคัญ (เช่น 10,20) ค่า  จะมีค่าต่ำถ้าภายในภาพมี noise น้อย ซึ่งก็จะทำให้ weight ของเพื่อนบ้านไม่มีความสำคัญหรือมีน้อย ทำให้ E มีค่าแปรผันตาม data จริง(เช่น 0.001,0.0001) หรือถ้าจะให้ weight ของทั้ง data และ neighbor มีค่าเท่ากัน จะ set ให้ค่า  มีค่าเท่ากับ 1

  21. Noise removal with missing data E = xy [(Fxy – Ixy)2Axy+ (Fx+1,y – Fxy)2 + (Fx,y+1 – Fxy)2] Axy เป็น 0 ถ้า no data เป็น 1 ถ้า has data
