Presentation Transcript
chapter 4 network layer
4. 1 Introduction

4.2 Virtual circuit and datagram networks

4.3 What’s inside a router

4.4 IP: Internet Protocol

Datagram format

IPv4 addressing

ICMP

IPv6

4.5 Routing algorithms

Link state

Distance Vector

Hierarchical routing

4.6 Routing in the Internet

RIP

OSPF

BGP

4.7 Broadcast and multicast routing

Chapter 4: Network Layer
recall subnets
Recall: Subnets

223.1.1.2

223.1.1.1

223.1.1.4

223.1.1.3

223.1.7.0

223.1.9.2

223.1.9.1

223.1.7.1

223.1.8.1

223.1.8.0

223.1.2.6

223.1.3.27

223.1.2.1

223.1.2.2

223.1.3.1

223.1.3.2

ip addressing cidr
IP addressing: CIDR

CIDR:Classless InterDomain Routing

  • subnet portion of address of arbitrary length
  • address format: a.b.c.d/x, where x is # bits in subnet portion of address

Subnet part or CIDR-block

host

part

11001000 0001011100010000 00000000

200.23.16.0/23

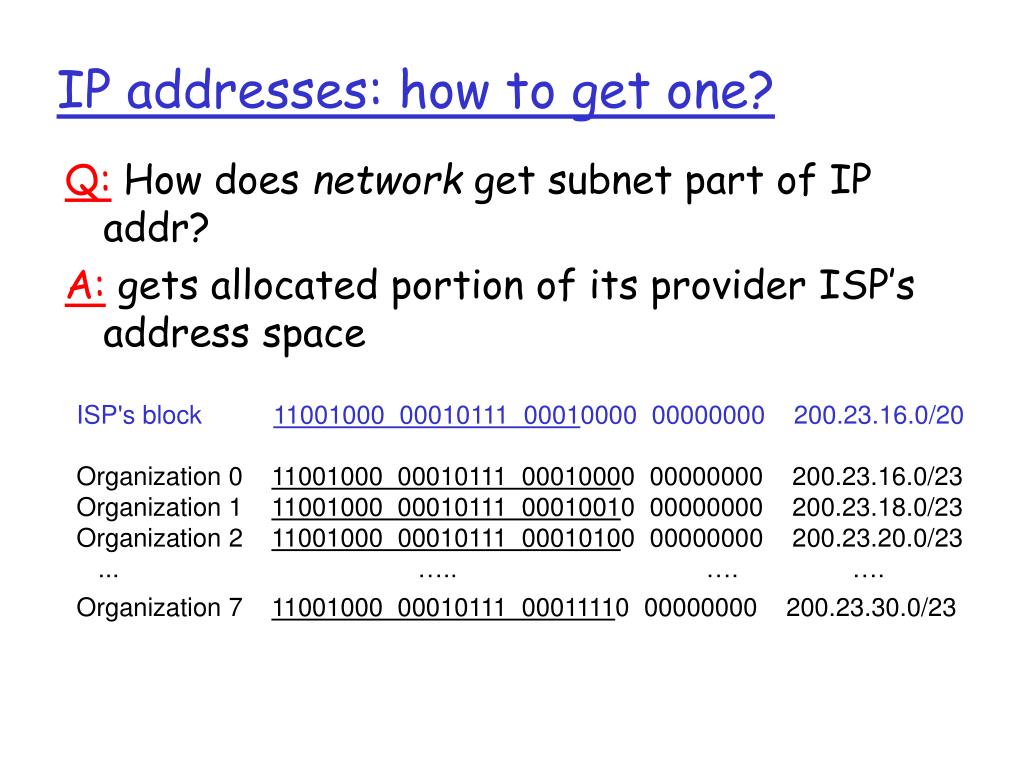

ip addresses how to get one
IP addresses: how to get one?

Q: How does network get subnet part of IP addr?

A: gets allocated portion of its provider ISP’s address space

ISP\'s block 11001000 00010111 00010000 00000000 200.23.16.0/20

Organization 0 11001000 00010111 00010000 00000000 200.23.16.0/23

Organization 1 11001000 00010111 00010010 00000000 200.23.18.0/23

Organization 2 11001000 00010111 00010100 00000000 200.23.20.0/23

... ….. …. ….

Organization 7 11001000 00010111 00011110 00000000 200.23.30.0/23

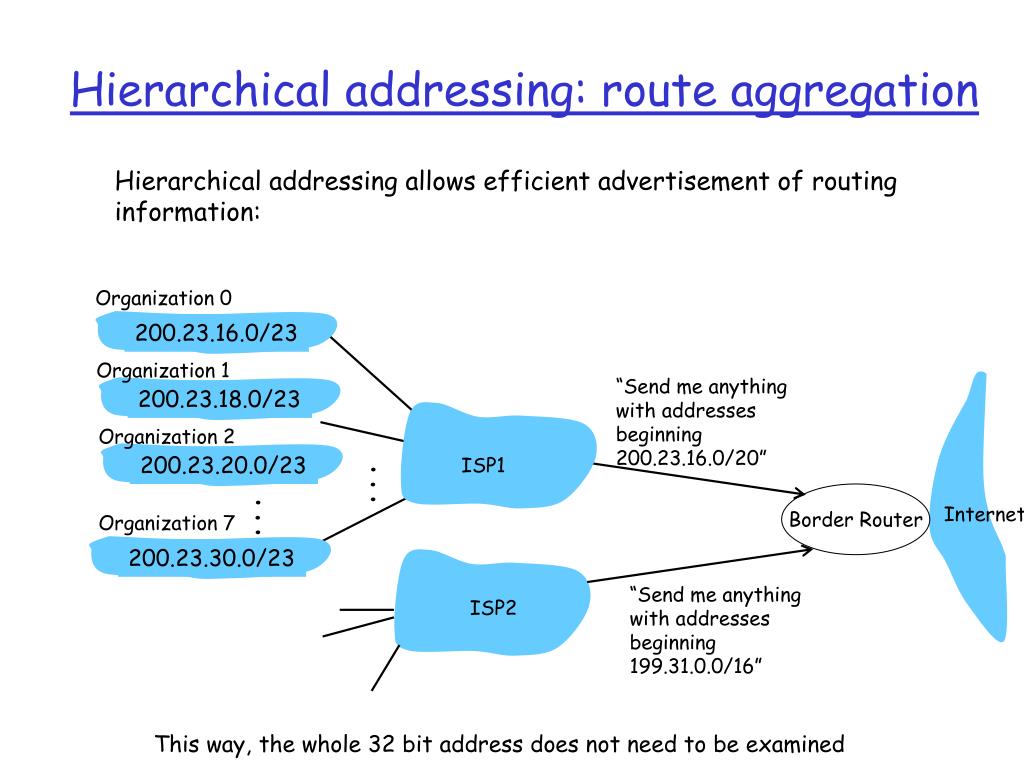

hierarchical addressing route aggregation

200.23.16.0/23

200.23.18.0/23

200.23.30.0/23

200.23.20.0/23

.

.

.

.

.

.

Hierarchical addressing: route aggregation

Hierarchical addressing allows efficient advertisement of routing

information:

Organization 0

Organization 1

“Send me anything

with addresses

beginning

200.23.16.0/20”

Organization 2

ISP1

Border Router

Internet

Organization 7

“Send me anything

with addresses

beginning

199.31.0.0/16”

ISP2

This way, the whole 32 bit address does not need to be examined

hierarchical addressing more specific routes

200.23.16.0/23

200.23.18.0/23

200.23.30.0/23

200.23.20.0/23

.

.

.

.

.

.

Hierarchical addressing: more specific routes

ISP2 has a more specific route to Organization 1

Organization 0

“Send me anything

with addresses

beginning

200.23.16.0/20”

Organization 2

ISP1

Border Router

Internet

Organization 7

“Send me anything

with addresses

beginning 199.31.0.0/16

or 200.23.18.0/23”

ISP2

Organization 1

longest prefix matching
Longest prefix matching

Border Router Forwarding Table

Prefix MatchLink Interface

200.23.16.0/20 0

200.23.18.0/23 1

199.31.0.0/16 1

otherwise 2

If a packet with destination address 200.23.18.12 arrives at the boarder router, then is it forwarding to interface 0 or 1?

Since interface 1 has a longer match, it goes to interface 1

a problem with longest match and subnetting

200.23.16.0/23

200.23.18.0/23

200.23.30.0/23

200.23.20.0/23

.

.

.

.

.

.

A Problem with Longest Match and subnetting

In order to improve reliability, organization 7 has a backup link with ISP1.

This way, if ISP1 has problems or ISP1’s provider has problems, then organization 7 is still reachable.

Will this work?

Organization 0

Organization 1

“Send me anything

with addresses

beginning

……”

Organization 2

ISP1

Border Router

Internet

Organization 7

“Send me anything

with addresses

beginning

…..

ISP2

hierarchical routing
scale: with 200 million destinations:

can’t store all dest’s in routing tables!

Memory for address table must be very fast

How fast? How long can an address lookup take on a 10GBit interface?

routing table exchange would swamp links!

There are ~ 1 million links

If link state was exchanged every 10 seconds and each link state is 20B, then each router receives and processes 160Mbps in link announcements

But, perhaps, only changes in link state could be distributed.

administrative autonomy

internet = network of networks

each network admin wants to control routing in its own network

ATT does not want sprint to know what their topology is

Trade secret

Improves security

ATT wants to select a routing protocol and parameters without getting sprints permission

Hierarchical Routing

Our routing study thus far - idealization

  • all routers identical
  • network “flat”

… not true in practice

hierarchical routing1
aggregate routers into regions, “autonomous systems” (AS)

Single administrative domain

Routers in the same AS run same routing protocol

“intra-AS” routing protocol

routers in different AS can run different intra-AS routing protocol

An ISP may be made of 1 or more ASs

ATT-USA = 1 AS and ATT-Europe is another

Some stub networks are an AS

UD is an AS

Some companies have routers but are not Ass

ASs have their own number, assigned by ICANN

There are ~50K ASs

Gateway router

Direct link to router in another AS

Gateway routers run a common inter-networking routing protocol

For inter-AS routing, the destinations are always ASs

Actually, destinations are always ASs. But for inter-AS routing, it does not make much sense for a destination to be a single end-host.

Hierarchical Routing
slide11

Simple example

Connections to other ASs and the rest of the Internet

AS2

Service provider of AS1 (e.g., AS1=UD and AS2=cogent)

E

(Recall that ASs (ISPs) sometiems meet at NAPs. E.g., google: MAE-East)

An AS could also meet its provider at a POP.

The rest of the internet

Stub network (at the edge of the network)

These tables are made with RIP, OSPF, ISIS, etc

Forwarding table

B

Prefix

Next hop

10.1.1.0/23

C

Forwarding table

Prefix

A

10.1.2.0/22

Next hop

10.1.1.0/23

C

AS1

A

10.1.2.0/22

C

10.1.1.0/24

Forwarding table

Prefix

Next hop

10.1.1.0/23

A

C

10.1.1.1/24

A

10.1.2.0/22

10.1.4.0/22

slide12

Q: How can routers in AS1 know where to send pkts with destination not in AS1?

A: Easy, if a pkt is for an “unknown” address, send it to B.

Specifically, B advertises a link to prefix 0.0.0.0/0

This is called a default route, and it can be statically set (no need for any routing protocol beside OSPF)

AS2

Service provider of AS1 (e.g., AS1=UD and AS2=cogent)

E

The rest of the internet

Stub network (at the edge of the network)

These tables are made with RIP, OSPF, ISIS, etc

Forwarding table

B

Prefix

Next hop

10.1.1.0/23

C

Forwarding table

Prefix

A

10.1.2.0/22

Next hop

10.1.1.0/23

C

0.0.0.0/32

E

AS1

A

10.1.2.0/22

A

0.0.0.0/32

C

10.1.1.0/24

Forwarding table

Prefix

Next hop

10.1.1.0/23

A

C

10.1.1.1/24

A

10.1.2.0/22

10.1.4.0/22

0.0.0.0/32

A

slide13

We need to put prefixes 1.1.0.0/16, 1.2.0.0/16, 2.2.0.0/16 in the forwarding tables

Specifically, B should announce to A that is can reach 1.1.0.0/16 and 1.2.0.0/16, and D should announce it can reach 2.2.0.0/16

  • How to get there?
  • B must learn from E that 1.1.0.0/16 and 1.2.0.0/16 are reachable through E
  • A must learn that 2.2.0.0/16 is reachable through D
  • B and A must distribute this information throughout AS1

But 1 and 2 need a exterior inter-networking routing protocol

3 need interior inter-networking routing protocol

EBGP and IBGP – border gateway routing protocol can accomplish this

1.2.0.0/16

AS2

1.1.0.0/16

E

These tables are made with RIP, OSPF, ISIS, etc

Forwarding table

B

Prefix

Next hop

10.1.1.0/23

C

Forwarding table

Prefix

A

10.1.2.0/22

Next hop

10.1.1.0/23

C

AS1

A

10.1.2.0/22

C

10.1.1.0/24

Forwarding table

Prefix

Next hop

10.1.1.0/23

A

C

10.1.1.1/24

A

10.1.2.0/22

10.1.4.0/22

AS3

D

2.2.0.0/16

interconnected ases
forwarding table configured by both intra- and inter-AS routing algorithm

intra-AS sets entries for internal dests

inter-AS & intra-As sets entries for external dests

3a

3b

2a

AS3

AS2

1a

2c

AS1

2b

3c

1b

1d

1c

Inter-AS

Routing

algorithm

Intra-AS

Routing

algorithm

Forwarding

table

Interconnected ASes
example setting forwarding table in router 1d

2c

2b

3c

1b

1d

1c

Example: Setting forwarding table in router 1d
  • suppose AS1 learns (via inter-AS protocol) that subnet x reachable via AS3 (gateway 1c) but not via AS2.
  • inter-AS protocol propagates reachability info to all internal routers.
  • router 1d determines from intra-AS routing info that its interface I is on the least cost path to 1c.
    • installs forwarding table entry (x,I)

x

3a

3b

2a

AS3

AS2

1a

AS1

example choosing among multiple ases

3a

3b

2a

AS3

AS2

1a

AS1

2c

2b

3c

1b

1d

1c

Example: Choosing among multiple ASes
  • now suppose AS1 learns from inter-AS protocol that subnet x is reachable from AS3 and from AS2.
  • to configure forwarding table, router 1d must determine towards which gateway it should forward packets for dest x.
    • this is also job of inter-AS routing protocol!
    • If both gateways are equivalent, then the intra-AS routing protocol will route packets to the best gateway
      • This is called hot potato routing: send packet towards closest of two routers.

x

hot potato routing
Hot Potato Routing

128.4.0.0/16

AS1

A

B

AS2

Pkt arrives with dest in 124.4.0.0/16

AS2 could give send the pkt to gateway B – hot potato routing.

But AS1 would prefer AS2 to carry its own traffic.

So AS1 might require that AS2 gives higher priority to gateway A.

In which case, AS1 could inject traffic into AS2 with destination in 128.4.0.0/16 at gateway B

example choosing among multiple ases1

Determine from

forwarding table the

interface I that leads

to least-cost gateway.

Enter (x,I) in

forwarding table

Use routing info

from intra-AS

protocol to determine

costs of least-cost

paths to each

of the gateways

Learn from inter-AS

protocol that subnet

x is reachable via

multiple gateways

Hot potato routing:

Choose the gateway

that has the

smallest least cost

Example: Choosing among multiple ASes
  • now suppose AS1 learns from inter-AS protocol that subnet x is reachable from AS3 and from AS2.
  • to configure forwarding table, router 1d must determine towards which gateway it should forward packets for dest x.
    • this is also job of inter-AS routing protocol!
  • hot potato routing: send packet towards closest of two routers.
internet inter as routing bgp
Internet inter-AS routing: BGP
  • BGP (Border Gateway Protocol):the de facto standard
  • BGP provides each AS a means to:
    • Obtain subnet reachability information from neighboring ASs.
    • Propagate reachability information to all AS-internal routers.
    • Determine “good” routes to subnets based on reachability information and policy.
  • allows subnet to advertise its existence to rest of Internet: “I am here”
bgp basics

2c

2b

3c

1b

1d

1c

BGP basics
  • pairs of routers (BGP peers) exchange routing info over semi-permanent TCP connections: BGP sessions
    • BGP sessions need not correspond to physical links.
  • when AS2 advertises a prefix to AS1:
    • AS2 promises it will forward datagrams towards that prefix.
    • AS2 can aggregate prefixes in its advertisement
      • But this can cause problems when some prefixes have backup links

eBGP session

iBGP session

3a

3b

2a

AS3

AS2

1a

AS1

distributing reachability info

2c

2b

3c

1b

1d

1c

Distributing reachability info
  • using eBGP session between 3a and 1c, AS3 sends prefix reachability info to AS1.
    • 1c can then use iBGP do distribute new prefix info to all routers in AS1
    • 1b can then re-advertise new reachability info to AS2 over 1b-to-2a eBGP session
  • when router learns of new prefix, it creates entry for prefix in its forwarding table.

eBGP session

iBGP session

3a

3b

2a

AS3

AS2

1a

AS1

path attributes bgp routes
Path attributes & BGP routes
  • advertised prefix includes BGP attributes.
    • prefix + attributes = “route”
  • two important attributes:
    • AS-PATH: contains ASs through which prefix advertisement has passed: e.g, AS 67, AS 17
    • NEXT-HOP: indicates specific internal-AS router to next-hop AS. (may be multiple links from current AS to next-hop-AS)
  • when gateway router receives route advertisement, uses import policy to accept/decline.
bgp route selection
BGP route selection
  • router may learn about more than 1 route to some prefix. Router must select route.
  • elimination rules:
    • local preference value attribute: policy decision
    • shortest AS-PATH
    • closest NEXT-HOP router: hot potato routing
    • additional criteria
bgp messages
BGP messages
  • BGP messages exchanged using TCP.
  • BGP messages:
    • OPEN: opens TCP connection to peer and authenticates sender
    • UPDATE: advertises new path (or withdraws old)
    • KEEPALIVE keeps connection alive in absence of UPDATES; also ACKs OPEN request
    • NOTIFICATION: reports errors in previous msg; also used to close connection
bgp routing policy

legend:

provider

B

network

X

W

A

customer

network:

C

Y

BGP routing policy
  • A,B,C are provider networks
  • X,W,Y are customer (of provider networks)
  • X is dual-homed: attached to two networks
    • X does not want to route from B via X to C
    • .. so X will not advertise to B a route to C
bgp routing policy 2

legend:

provider

B

network

X

W

A

customer

network:

C

Y

BGP routing policy (2)
  • A advertises path AW to B
  • B advertises path BAW to X
  • Should B advertise path BAW to C?
    • No way! B gets no “revenue” for routing CBAW since neither W nor C are B’s customers
    • B wants to force C to route to w via A
    • B wants to route only to/from its customers!
bgp route processing
BGP route processing
  • BGP advertises and withdraws paths with the UPDATE message
  • UPDATE has three fields
    • Router to withdraw
    • Attributes of routes to prefixes in NLRI
    • NLRI
  • The NLRI is a list of prefixes that the list of attributes applies to. If two prefixes have different attributes, then these two prefixes need to be announced with different UPDATE messages.
  • In OSPF each path is a list of routes and a total cost (two attributes). In BGP, routes have many attributes, cost (in AS hops) is but one.

configuration

configuration

routing

decision

routing

table

input

policy

engine

output

policy

engine

from

peers

to

peers

slide28

Input

Policy

engine

Input

Policy

engine

peer

Adj-rib-in

peer

Adj-rib-out

peer

Adj-rib-in

peer

Adj-rib-out

BGP

decision

Loc-RIB

peer

Adj-rib-in

peer

Adj-rib-out

peer

Adj-rib-out

peer

Adj-rib-in

RIBs
  • Routing information base (RIB) – a list of routes (attributes and all)
    • Adj-RIB-In: RIB learned from neighbor (many of these)
    • Adj-RIB-Out: RIB to be sent to neighbor (many of these)
    • Loc-RIB: RIB for local use (only one of these)
sample routing environment
Sample routing environment

AS3

  • deny 0/0 from AS1
  • Give 192.213.1.0/24 form AS1 better preference
  • Accept other routes

AS1

  • Do not propagate 0/0
  • Do not send 193.214.10.0/24 to AS4
  • Give 192.213.1.0/24 with metric = 10 to AS3
  • 193.214.10.0/24 path=(AS5, AS2)
  • 192.213.1.0/24 path=(AS5, AS1) metric=10
  • 172.16.10.0/24 path=(AS5)

192.213.1.0/24

0/0

input

policy

engine

decision

process

routes

output

policy

engine

  • 172.16.10.0/24 path=(AS5)
  • 192.213.1.0/24 path=(AS5 AS1)
  • Use 0/0 from AS2
  • Use 192.213.1.0/24 from AS1
  • Use 193.214.10.0/24 from AS2
  • Use 172.16.10.0/24 from AS5 (this AS)

AS4

AS2

192.213.1.0/24

193.214.10.0/24

0/0

fun with bgp
Fun with BGP
  • Routeviews.org collects and archives BGP announcements
  • One way to use routeviews is with dig
    • At the linux prompt
    • dig txt 4.128.aspath.routeviews.org
    • Outputs various stuff and
      • Answer section:
        • 4.128.aspath.routeviews.org 600 IN TXT “5056 1238 174 34” “128.4.0.0” “16”
      • Syntax = ASPath “Prefix” “prefix length”
  • Now use whois -h whois.arin.net "a ASXX" to learn about ASs where XX is an AS number. E.g., whois -h whois.arin.net "a AS34" gives information about AS34
  • Try with some other AS
check out a collection of path announcements
Check out a collection of path announcements
  • Open bgp030408p39.Partial
    • http://www.eecis.udel.edu/~bohacek/Classes/ELEG651Spring2008/bgp030508p39.Partial
    • An old (2003) partial list of BGP announcements received by several routers
  • Check which ASs peer with UD (ASN 34)
why different intra and inter as routing
Why different Intra- and Inter-AS routing ?

Policy:

  • Inter-AS: admin wants control over how its traffic routed, who routes through its net.
  • Intra-AS: single admin, so no policy decisions needed

Scale:

  • hierarchical routing saves table size, reduced update traffic

Performance:

  • Intra-AS: can focus on performance
  • Inter-AS: policy may dominate over performance
ad
