  1. Web Services Security Lin Yan Department of ECE University of Manitoba Manitoba, Canada

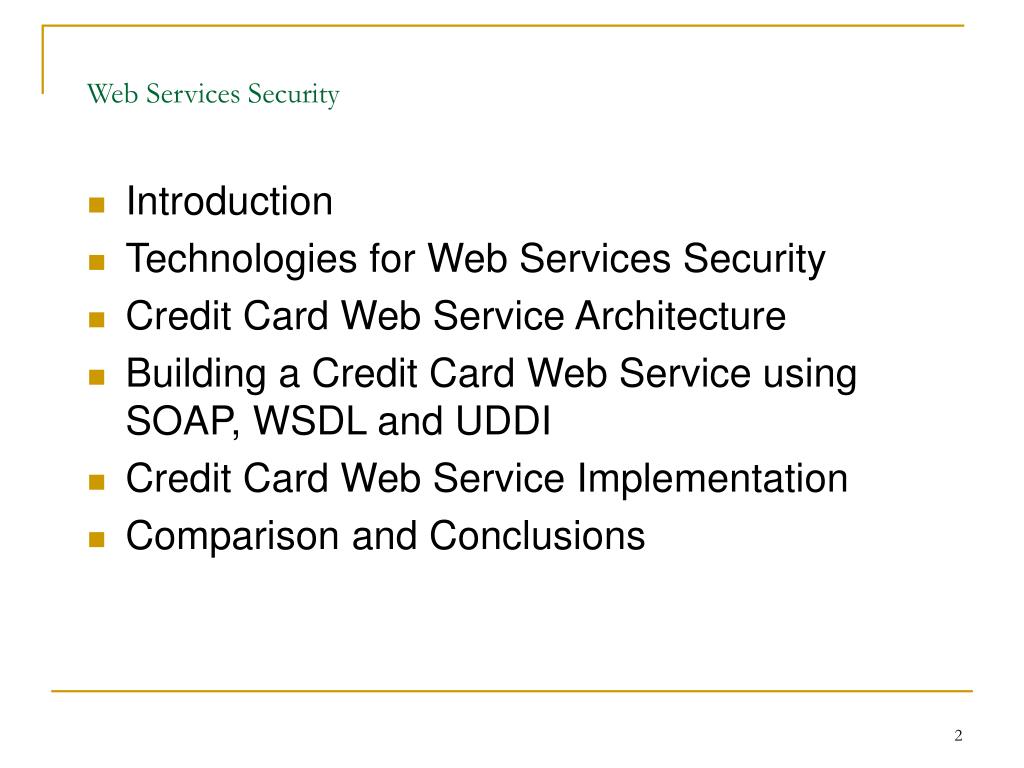

  2. Web Services Security • Introduction • Technologies for Web Services Security • Credit Card Web Service Architecture • Building a Credit Card Web Service using SOAP, WSDL and UDDI • Credit Card Web Service Implementation • Comparison and Conclusions

  3. Introduction • The Internet • Conceived in the 1960s • ARPANET went online in the 1970s • TCP/IP was created in 1980s • Changed the way business operate • Web Services • Definition • Purpose • Architecture

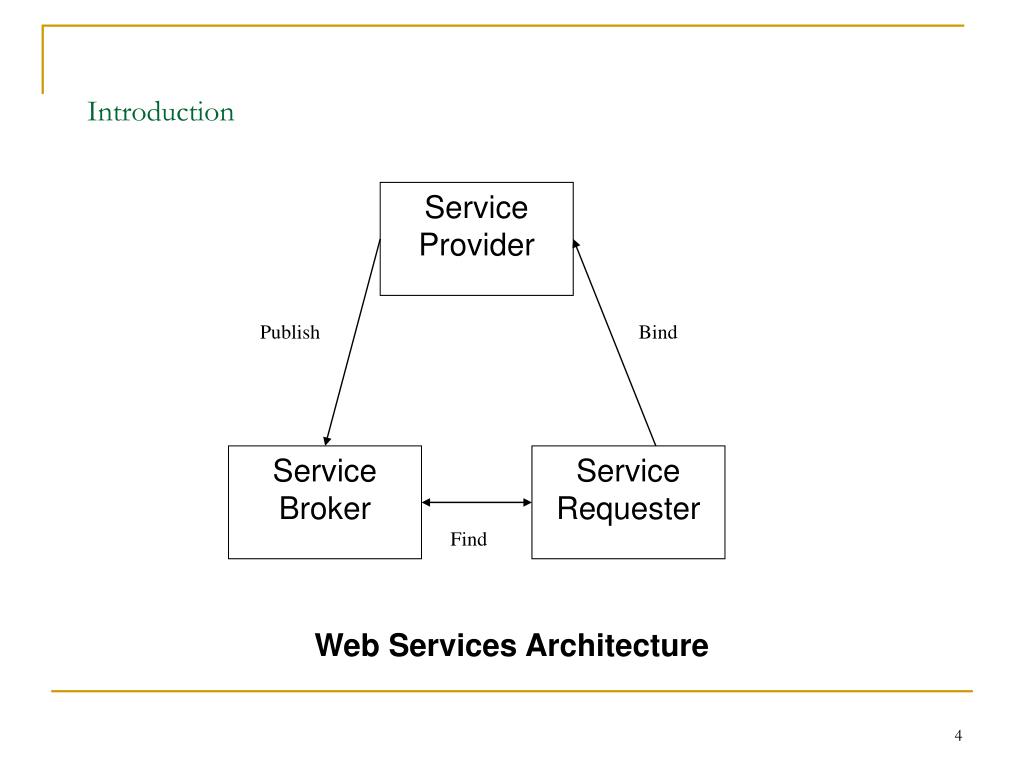

  4. Service Provider Publish Bind Service Broker Service Requester Find Introduction Web Services Architecture

  5. Introduction • Associated Web Services Standards • Extensible Markup Language - XML • A Syntax to define markup language • To structure the document in a standard way and make it machine-readable • Operating system independent • Simple Object Access Protocol - SOAP • XML based protocol for the exchange of information in a decentralized, distributed environment • Consists of three parts: envelope, encoding rules and convention for representing RPCs and responses

  6. Introduction • Associated Web Services Standards • Web Services Description Language - WSDL • Creates a standard way for specifying the details of a Web service • Clients can use Web service even they have no prior knowledge of the service • Universal Description, Discovery, Integration - UDDI • Directory service where businesses and organizations can register, deregister and look up Web services • Platform-independent framework for describing services, discovering businesses, and integrating business services

  7. Introduction • Motivations and Objectives • Provide security issues while users access Web services over the Internet • Confidentiality • Integrity • Non-repudiation • Accountability

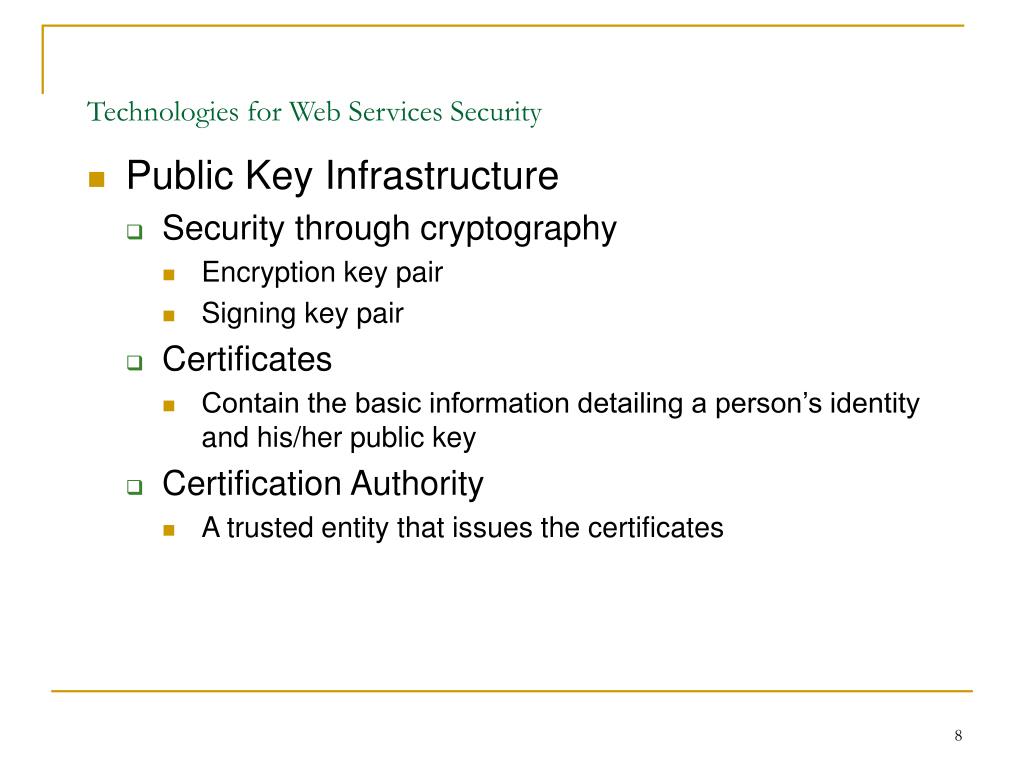

  8. Technologies for Web Services Security • Public Key Infrastructure • Security through cryptography • Encryption key pair • Signing key pair • Certificates • Contain the basic information detailing a person’s identity and his/her public key • Certification Authority • A trusted entity that issues the certificates

  9. Technologies for Web Services Security • Public Key Infrastructure • Public Key Infrastructure • Enabling trust through a Certification Authority • Certificate retrieval from a certificate repository • Certificate revocation • Key backup and recovery • Automatic update of key pairs and certificates • Non-repudiation

  10. Technologies for Web Services Security • XML Signature • A specification for encrypting data and tags within an XML document • A digital signature expressed in XML • Allows for signing part of an XML document • Example

  11. Technologies for Web Services Security <Signature Id="MyFirstSignature" xmlns="http://www.w3.org/2000/09/xmldsig#"> <SignedInfo> <CanonicalizationMethod Algorithm="http://www.w3.org/TR/2001/REC-xml-c14n-20010315"/> <SignatureMethod Algorithm="http://www.w3.org/2000/09/xmldsig#dsa-sha1"/> <Reference URI="http://www.w3.org/TR/2000/REC-xhtml1-20000126/"> <Transforms> <Transform Algorithm="http://www.w3.org/TR/2001/REC-xml-c14n-20010315"/> </Transforms> <DigestMethod Algorithm="http://www.w3.org/2000/09/xmldsig#sha1"/> <DigestValue>j6lwx3rvEPO0vKtMup4NbeVu8nk=</DigestValue> </DigestMethod> </Reference> </SignedInfo> <SignatureValue>MC0CFFrVLtRlk=...</SignatureValue> <KeyInfo> <KeyValue> <DSAKeyValue> ……. </DSAKeyValue> </KeyValue> </KeyInfo> </Signature>

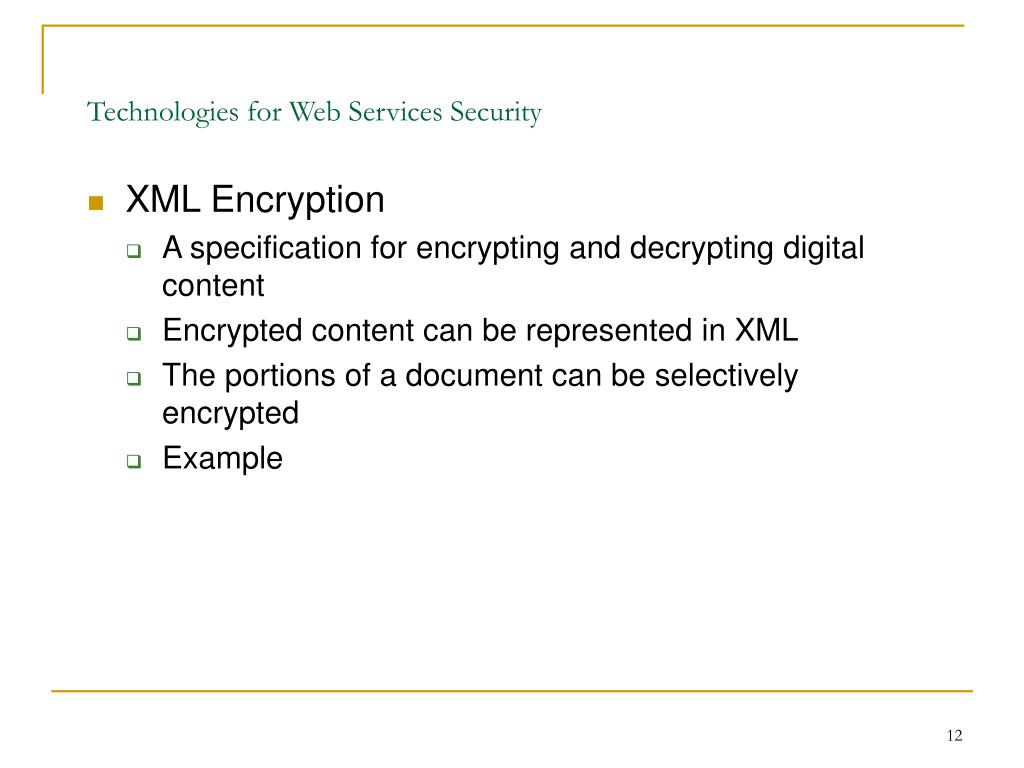

  12. Technologies for Web Services Security • XML Encryption • A specification for encrypting and decrypting digital content • Encrypted content can be represented in XML • The portions of a document can be selectively encrypted • Example

  13. Technologies for Web Services Security • Encrypting the CreditCard Element <?xml version='1.0'?> <PaymentInfo xmlns='http://UM.edu/details'> <Name>Alice</Name> <EncryptedData Type='http://www.w3.org/2001/04/xmlenc#Element' xmlns='http://www.w3.org/2001/04/xmlenc#'> <CipherData> <CipherValue>A23B45C56…</CipherValue> </CipherData> </EncryptedData> </PaymentInfo>

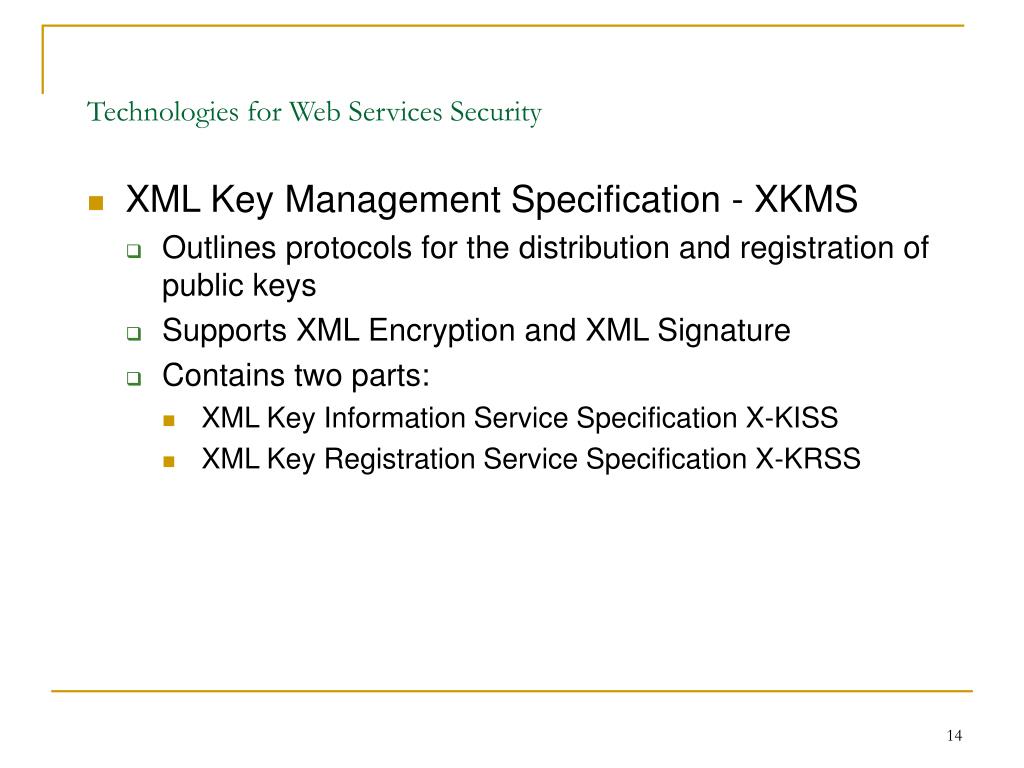

  14. Technologies for Web Services Security • XML Key Management Specification - XKMS • Outlines protocols for the distribution and registration of public keys • Supports XML Encryption and XML Signature • Contains two parts: • XML Key Information Service Specification X-KISS • XML Key Registration Service Specification X-KRSS

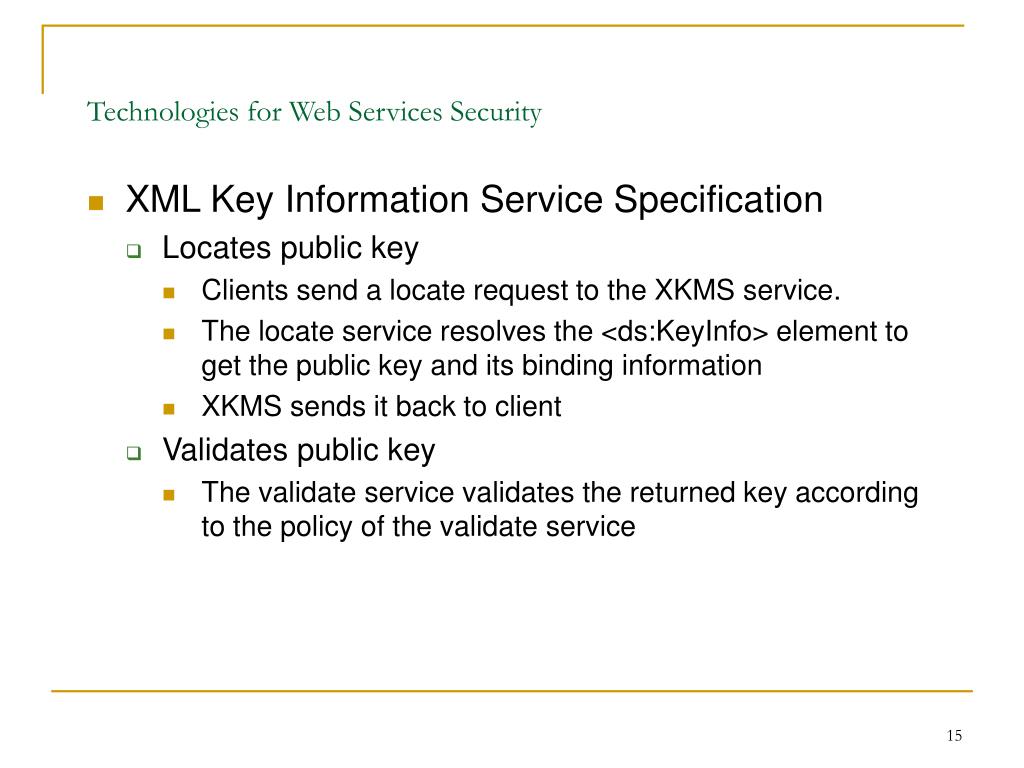

  15. Technologies for Web Services Security • XML Key Information Service Specification • Locates public key • Clients send a locate request to the XKMS service. • The locate service resolves the <ds:KeyInfo> element to get the public key and its binding information • XKMS sends it back to client • Validates public key • The validate service validates the returned key according to the policy of the validate service

  16. Technologies for Web Services Security • XML Key Registration Service Specification • Register • Enables the client to register a public key pair with an XKMS service. • Reissue • Allows the previously registered key binding to be issued again • Revoke • Recover

  17. Technologies for Web Services Security • WS-Security • A mechanism for signing and encrypting parts of a SOAP message • A standard set of SOAP extensions to be used to build secure Web services • Provides three major mechanism • Message integrity • Message confidentiality • Ability to pass around security tokens as part of a message • IBM/Microsoft Web Services Security Road Map

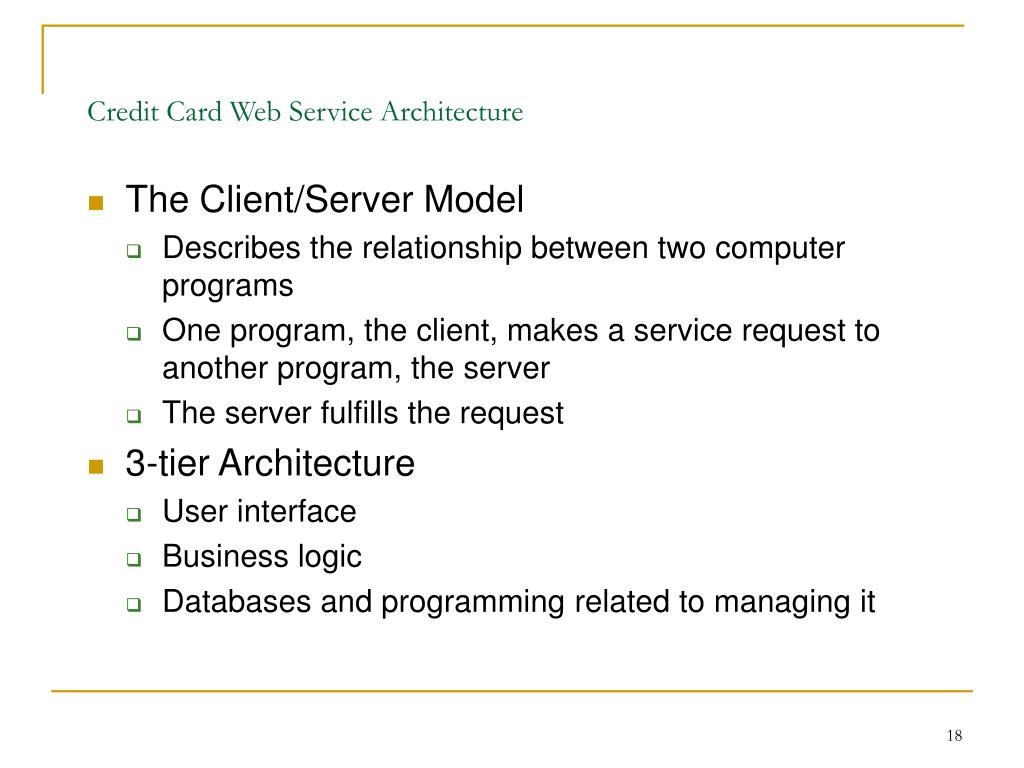

  18. Credit Card Web Service Architecture • The Client/Server Model • Describes the relationship between two computer programs • One program, the client, makes a service request to another program, the server • The server fulfills the request • 3-tier Architecture • User interface • Business logic • Databases and programming related to managing it

  19. Credit Card Web Service Architecture • 3-tier Architecture in a Credit Card Web Service • The presentation layer • Contains the presentation objects responsible for presenting information to end-users • In our application, Input.jsp, Method.jsp and Result.jsp are presentation objects to allow the user to input a credit card number and perform the get limit action and display the result • The business layer • Contains the business objects, each of which is responsible for a specific business process • In our application, CreditCardService.java was defined as a business object which is responsible for validating a credit card

  20. Credit Card Web Service Architecture • 3-tier Architecture in Credit Card Web Service • The data layer • Contains the data objects (DO) and the methods used to handle the different data components • In our application, a card DO contains the information of a credit card. It can contain attributes such as card number, card type, expiration date, etc. • A database manager controls an application’s pool of database connections

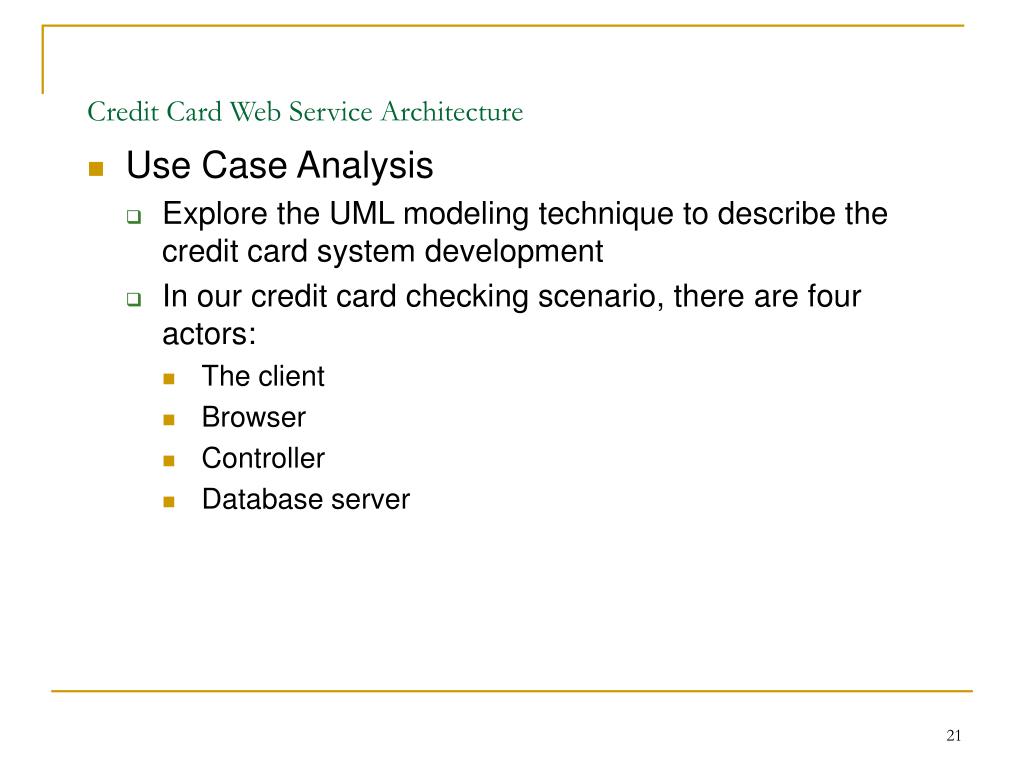

  21. Credit Card Web Service Architecture • Use Case Analysis • Explore the UML modeling technique to describe the credit card system development • In our credit card checking scenario, there are four actors: • The client • Browser • Controller • Database server

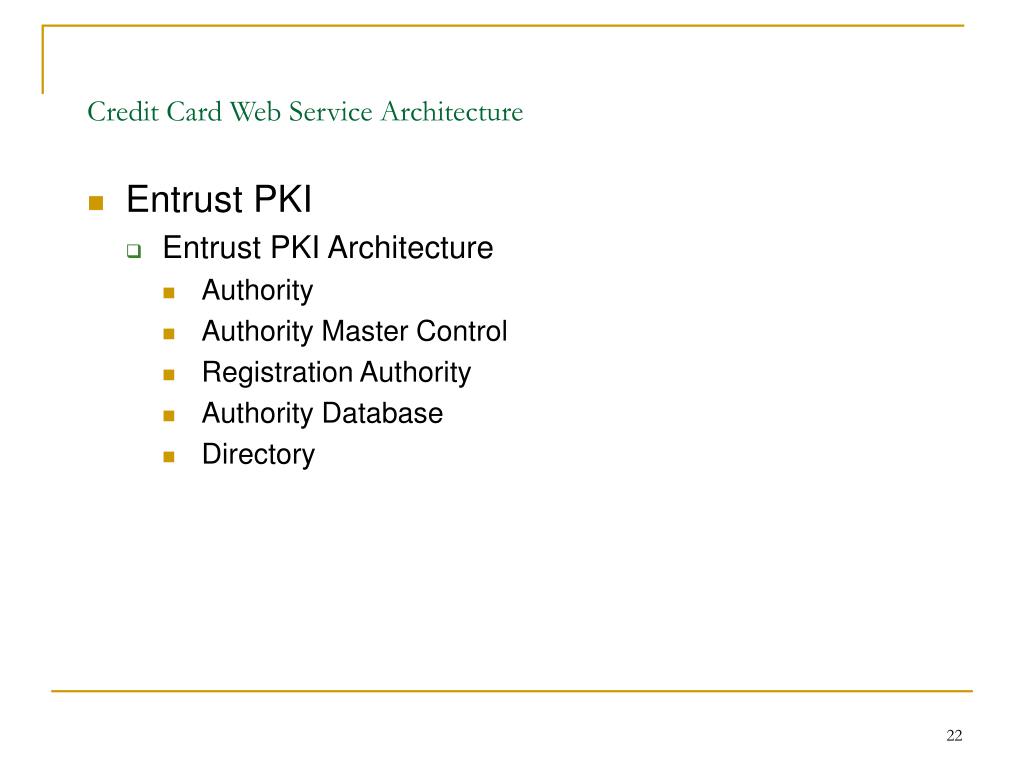

  22. Credit Card Web Service Architecture • Entrust PKI • Entrust PKI Architecture • Authority • Authority Master Control • Registration Authority • Authority Database • Directory

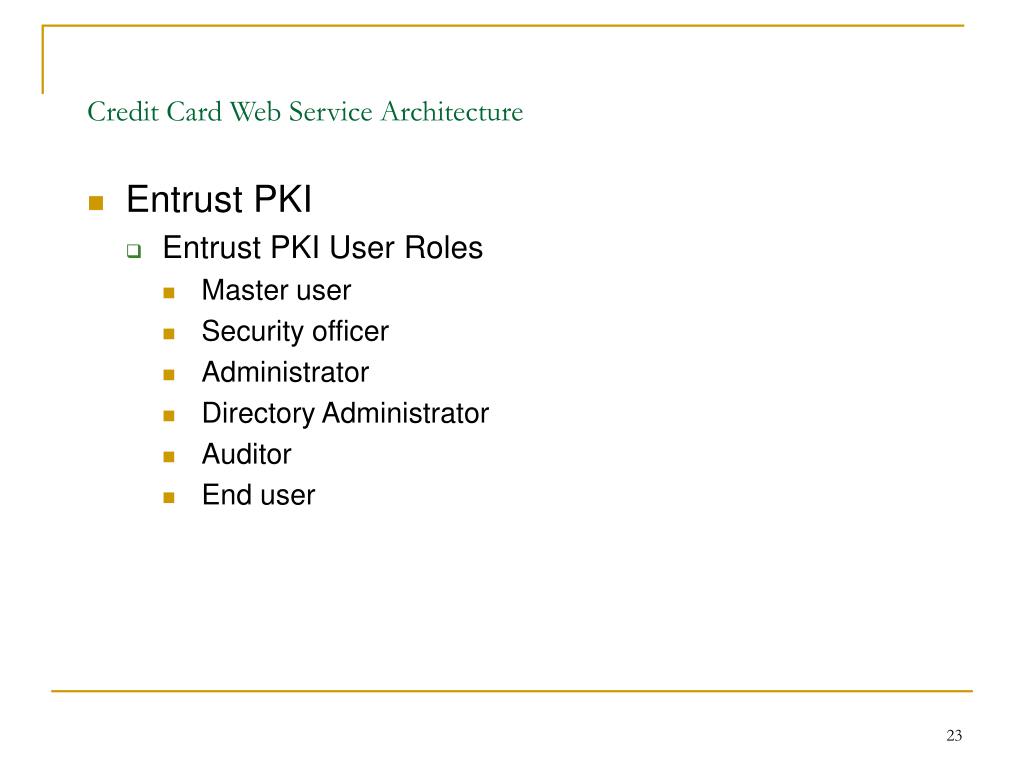

  23. Credit Card Web Service Architecture • Entrust PKI • Entrust PKI User Roles • Master user • Security officer • Administrator • Directory Administrator • Auditor • End user

  24. Credit Card Web Service Architecture • Public-Key Cryptographic Standard #7 • PKCS #7 is the Cryptographic Message Syntax standard which describes a general syntax for data that may have cryptography applied to it • Supports many different content types • PKCS #7 was used in the Credit Card Web Services application to encrypt and digitally sign the sensitive information

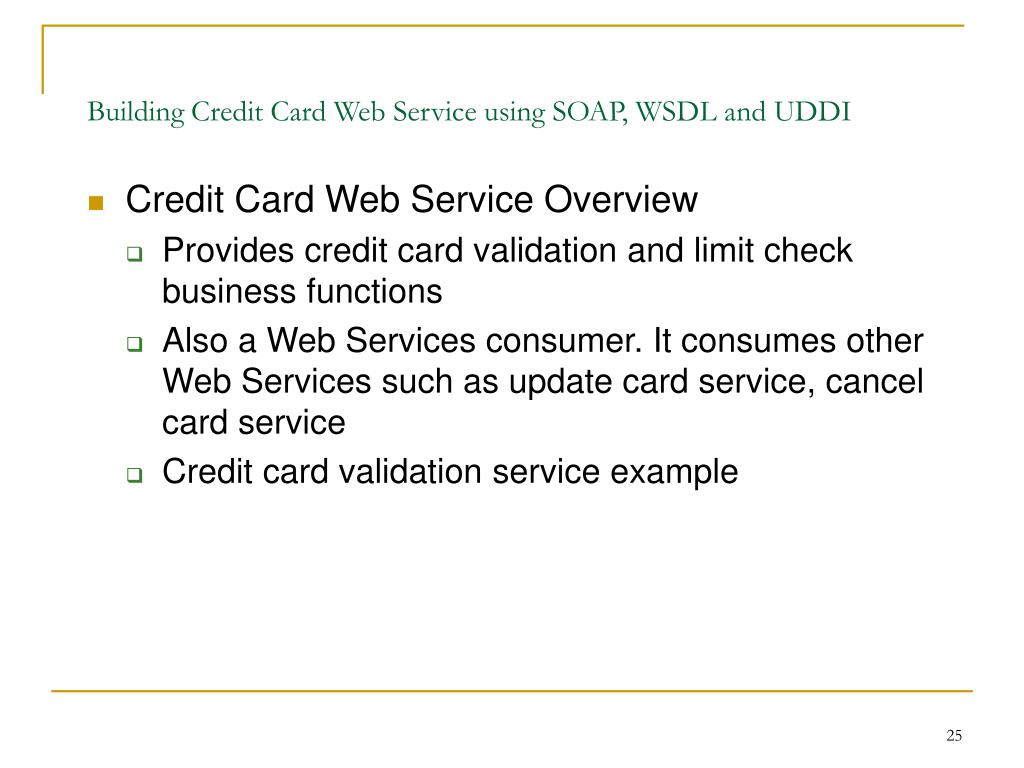

  25. Building Credit Card Web Service using SOAP, WSDL and UDDI • Credit Card Web Service Overview • Provides credit card validation and limit check business functions • Also a Web Services consumer. It consumes other Web Services such as update card service, cancel card service • Credit card validation service example

  26. Building Credit Card Web Service using SOAP, WSDL and UDDI • SOAP Message Structure • SOAP request for the getLimit service • The request takes a string parameter, an encrypted credit card number <soap:Body> <m:getLimitRequest xmlns: m=”http://tempuri.org/um.edu.CreditCardService”> <cardNo xsi:type=’xsd:string’ >ATKEKDL…</cardNo> </m:getLimitRequest> </soap:Body>

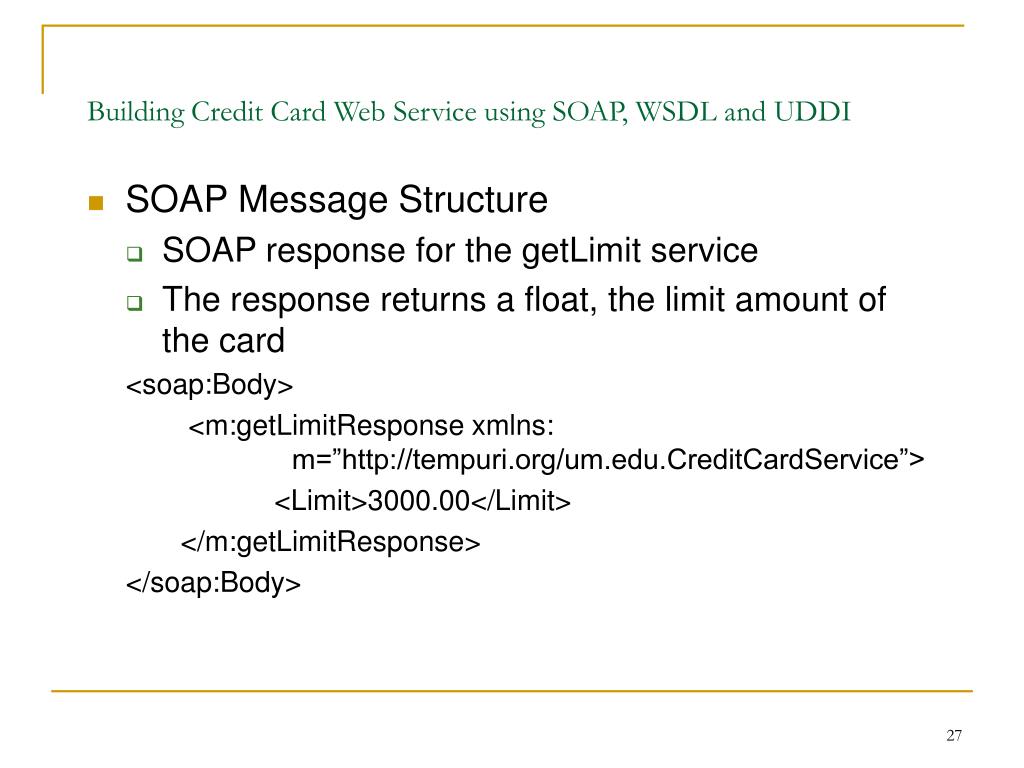

  27. Building Credit Card Web Service using SOAP, WSDL and UDDI • SOAP Message Structure • SOAP response for the getLimit service • The response returns a float, the limit amount of the card <soap:Body> <m:getLimitResponse xmlns: m=”http://tempuri.org/um.edu.CreditCardService”> <Limit>3000.00</Limit> </m:getLimitResponse> </soap:Body>

  28. Building Credit Card Web Service using SOAP, WSDL and UDDI • SOAP Message Encoding • Provides a standard data encoding scheme • Makes use of types defined in XML schema and creates the mapping for language-specific type definition to ensure interoperability • “xsd:string” indicates a mapping from Java type String t XML Schema type string

  29. Building Credit Card Web Service using SOAP, WSDL and UDDI • WSDL • A WSDL document provides the necessary details for a service requestor to contact and consume a service • Consists of a set of definitions • Definition • Types • Message • PortType • Binding • Port • Service

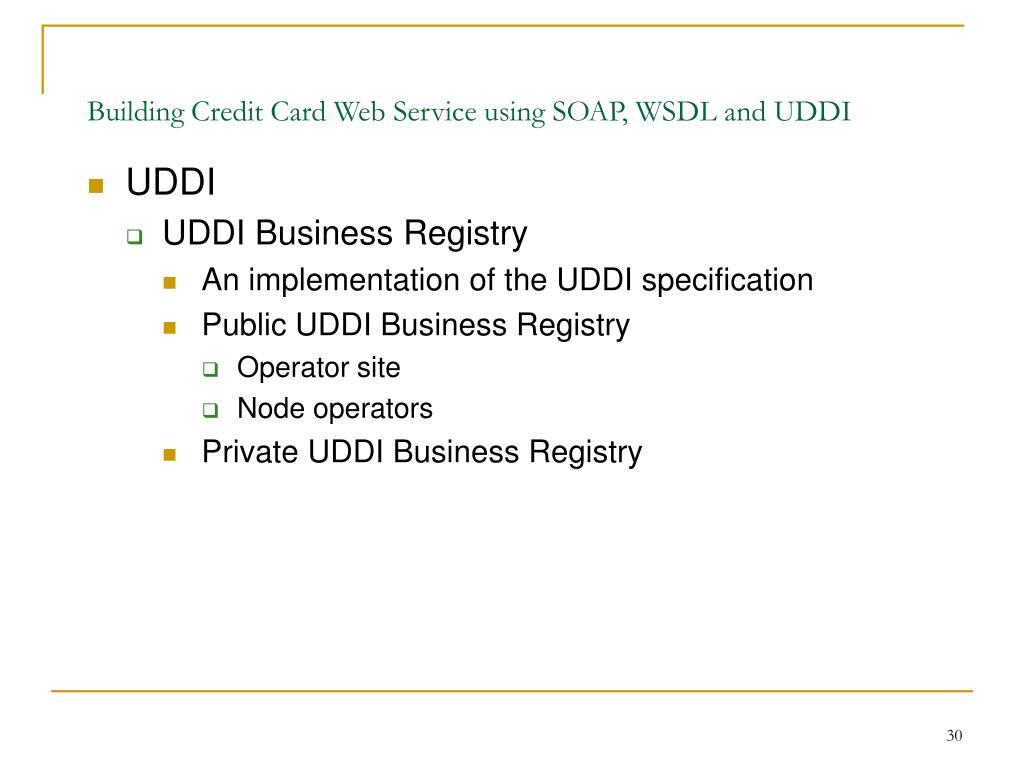

  30. Building Credit Card Web Service using SOAP, WSDL and UDDI • UDDI • UDDI Business Registry • An implementation of the UDDI specification • Public UDDI Business Registry • Operator site • Node operators • Private UDDI Business Registry

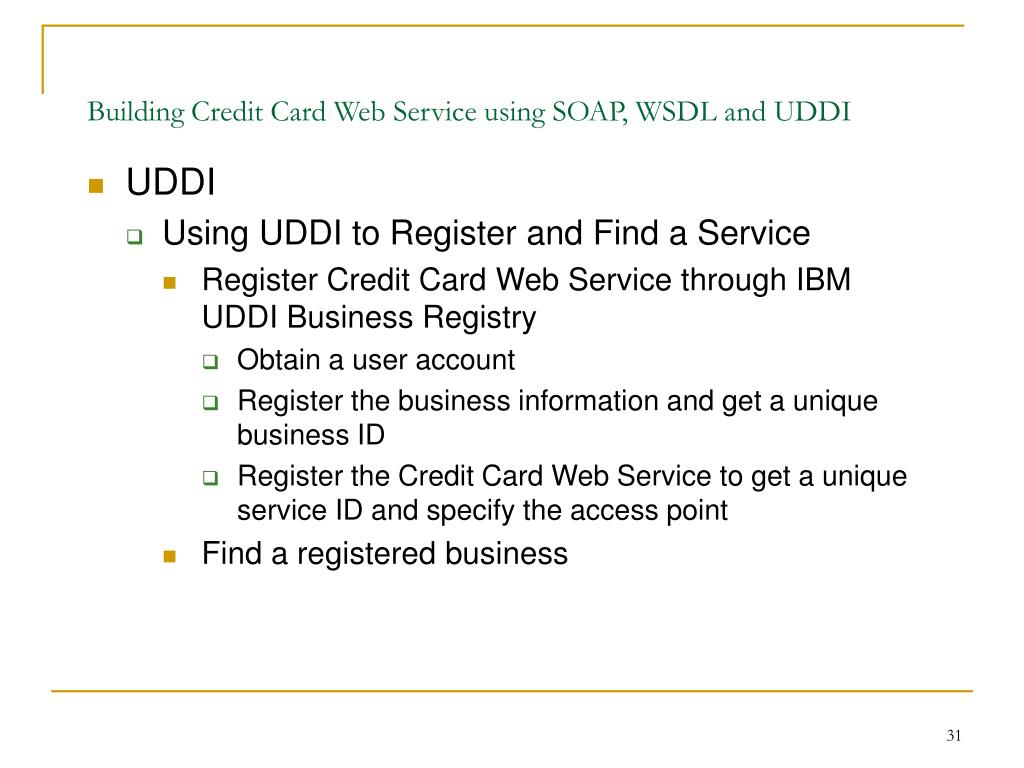

  31. Building Credit Card Web Service using SOAP, WSDL and UDDI • UDDI • Using UDDI to Register and Find a Service • Register Credit Card Web Service through IBM UDDI Business Registry • Obtain a user account • Register the business information and get a unique business ID • Register the Credit Card Web Service to get a unique service ID and specify the access point • Find a registered business

  32. Credit Card Web Service Implementation • Implementation Language • Java 1.5 • Portability • Extensibility • Cost effectiveness • Performance • Implementation Tools • Entrust Authority Security Toolkit for Java • IBM Websphere Studio

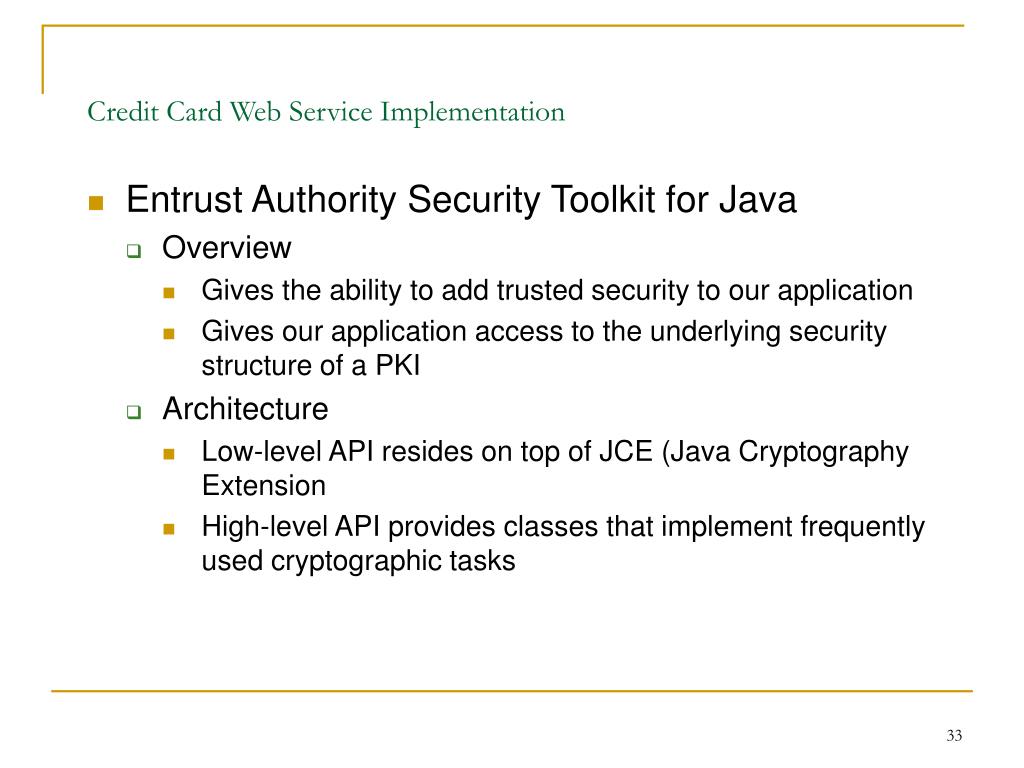

  33. Credit Card Web Service Implementation • Entrust Authority Security Toolkit for Java • Overview • Gives the ability to add trusted security to our application • Gives our application access to the underlying security structure of a PKI • Architecture • Low-level API resides on top of JCE (Java Cryptography Extension • High-level API provides classes that implement frequently used cryptographic tasks

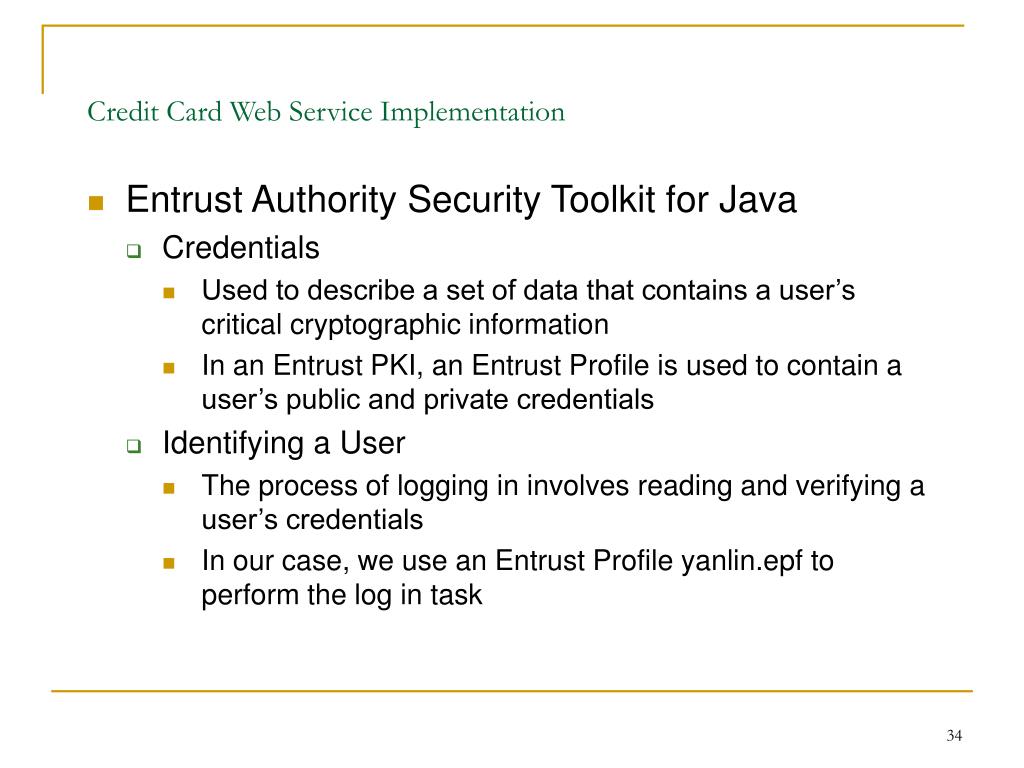

  34. Credit Card Web Service Implementation • Entrust Authority Security Toolkit for Java • Credentials • Used to describe a set of data that contains a user’s critical cryptographic information • In an Entrust PKI, an Entrust Profile is used to contain a user’s public and private credentials • Identifying a User • The process of logging in involves reading and verifying a user’s credentials • In our case, we use an Entrust Profile yanlin.epf to perform the log in task

  35. Credit Card Web Service Implementation • IBM Websphere Studio • State-of-art Java IDE • Provides development tools to enable the creation, development and deployment of Web service • Logic flow of Credit Card Web Service in WSAD • Create a Credit Card Web Service • Generate Deployment Descriptor to deploy this Web Service on the server • Generated CreditCardServiceProxy to accept the client requests • Used SOAP to encode invocation parameters and results over HTTP

  36. Credit Card Web Service Implementation • PKCS #7 Implementation with Entrust Toolkit • Encode • Instantiate, and log in, a user • Create PKCS7EncodeStream object • Specify the digest and encryption algorithms • Specify the input data and write the encrypted and signed data to the output stream • Decode • Instantiate, and log in, a user • Create PKCS7DecodeStream object • Read the decrypted and signed data

  37. Credit Card Web Service Implementation • Database Design and Implementation • IBM DB2 Universal Database was chosen as the DBMS system • Established a database with a name CCARD which stores the information of credit cards and card holders • Two tables were defined, linked by the card number attribute • JDBC is used to access the database through the business layer

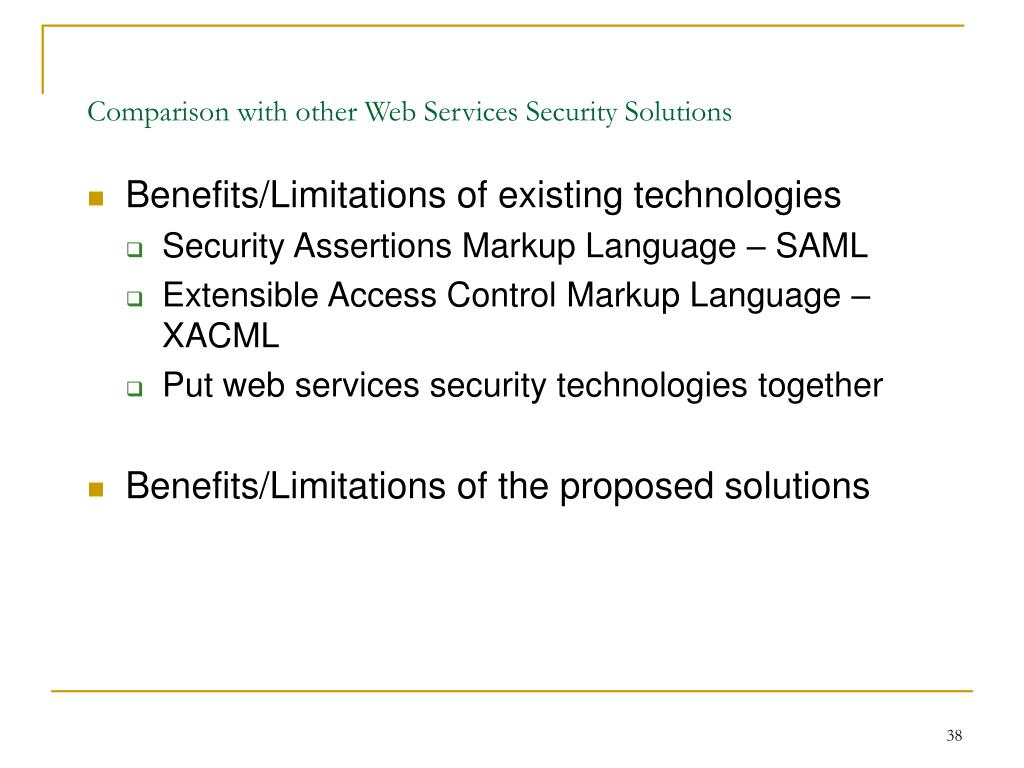

  38. Comparison with other Web Services Security Solutions • Benefits/Limitations of existing technologies • Security Assertions Markup Language – SAML • Extensible Access Control Markup Language – XACML • Put web services security technologies together • Benefits/Limitations of the proposed solutions

  39. Comparison with other Web Services Security Solutions • SAML • Includes four main components • Assertions, which are declarations of fact about a subject • Request/response protocol to exchange assertions • Bindings to transport SAML assertion messages • Profiles defines constraints and/or extensions of the core protocols and assertions • Enables cross-domain trust • Single sign-on • Distributed transaction • An authorization service

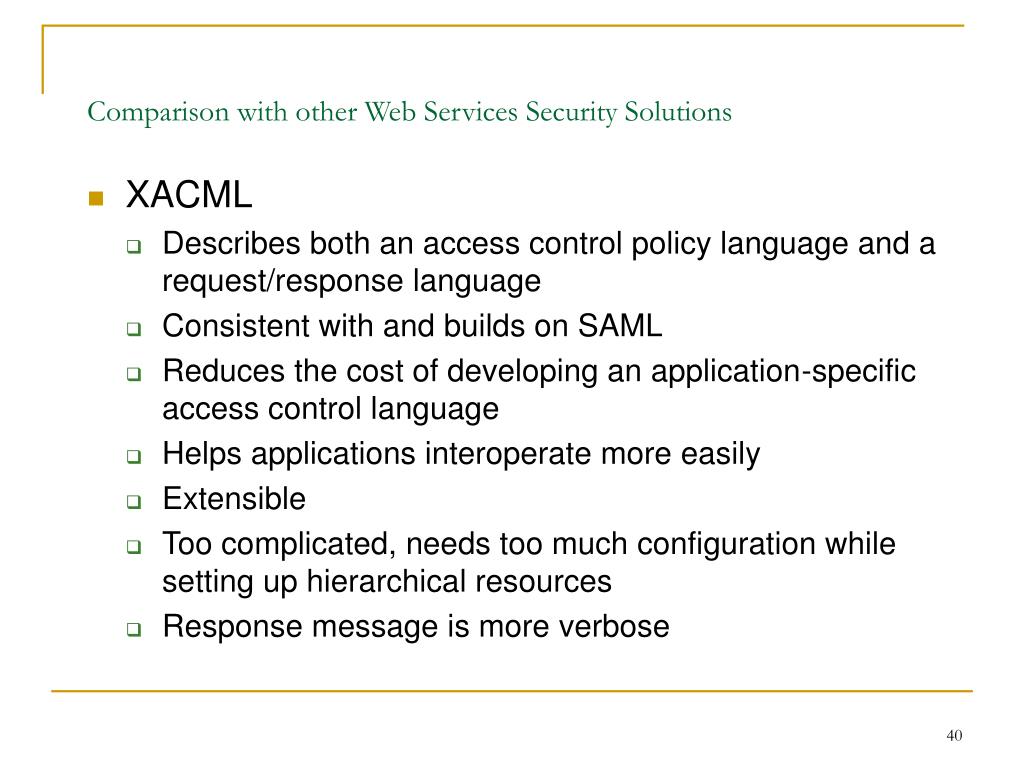

  40. Comparison with other Web Services Security Solutions • XACML • Describes both an access control policy language and a request/response language • Consistent with and builds on SAML • Reduces the cost of developing an application-specific access control language • Helps applications interoperate more easily • Extensible • Too complicated, needs too much configuration while setting up hierarchical resources • Response message is more verbose

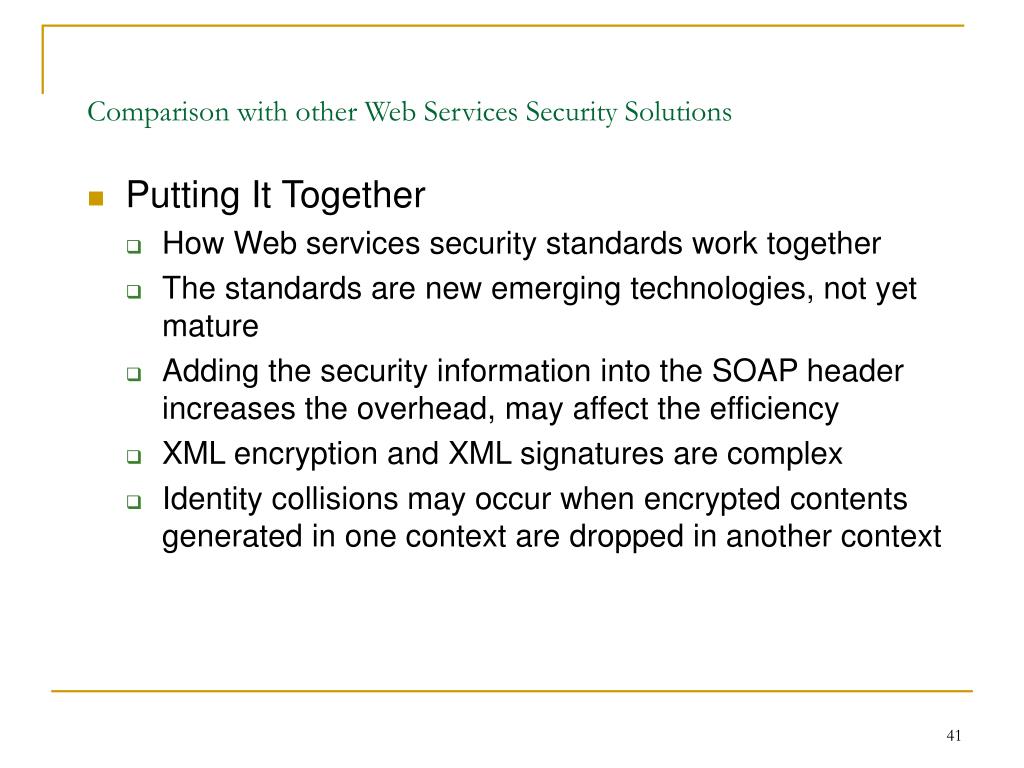

  41. Comparison with other Web Services Security Solutions • Putting It Together • How Web services security standards work together • The standards are new emerging technologies, not yet mature • Adding the security information into the SOAP header increases the overhead, may affect the efficiency • XML encryption and XML signatures are complex • Identity collisions may occur when encrypted contents generated in one context are dropped in another context

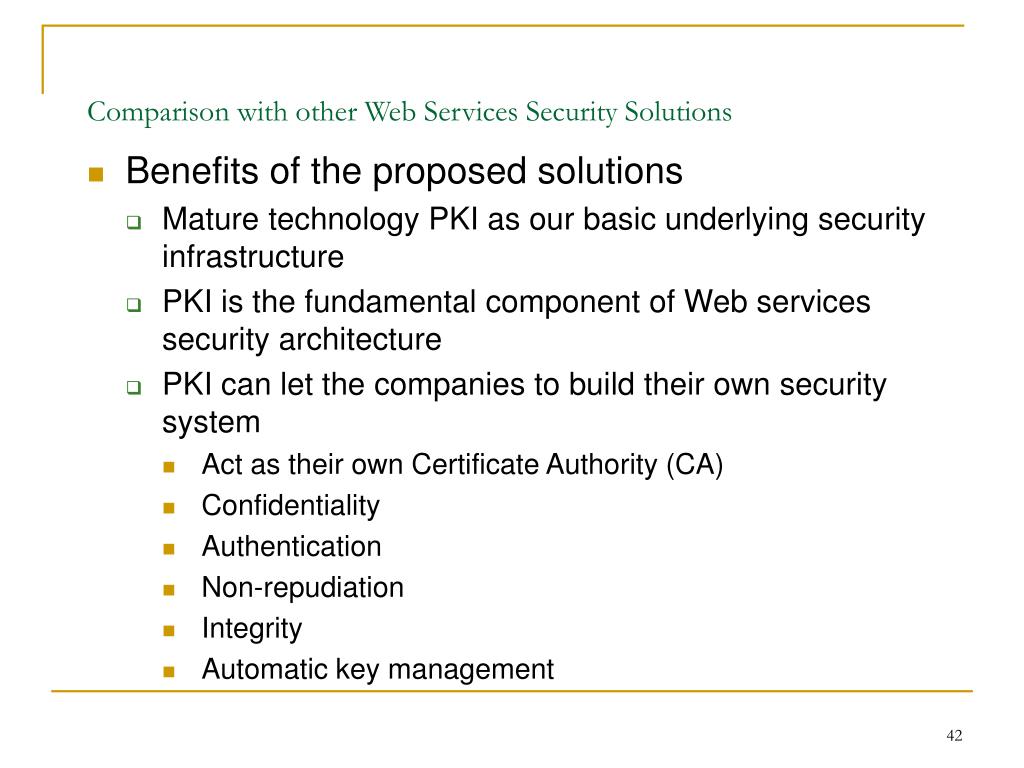

  42. Comparison with other Web Services Security Solutions • Benefits of the proposed solutions • Mature technology PKI as our basic underlying security infrastructure • PKI is the fundamental component of Web services security architecture • PKI can let the companies to build their own security system • Act as their own Certificate Authority (CA) • Confidentiality • Authentication • Non-repudiation • Integrity • Automatic key management

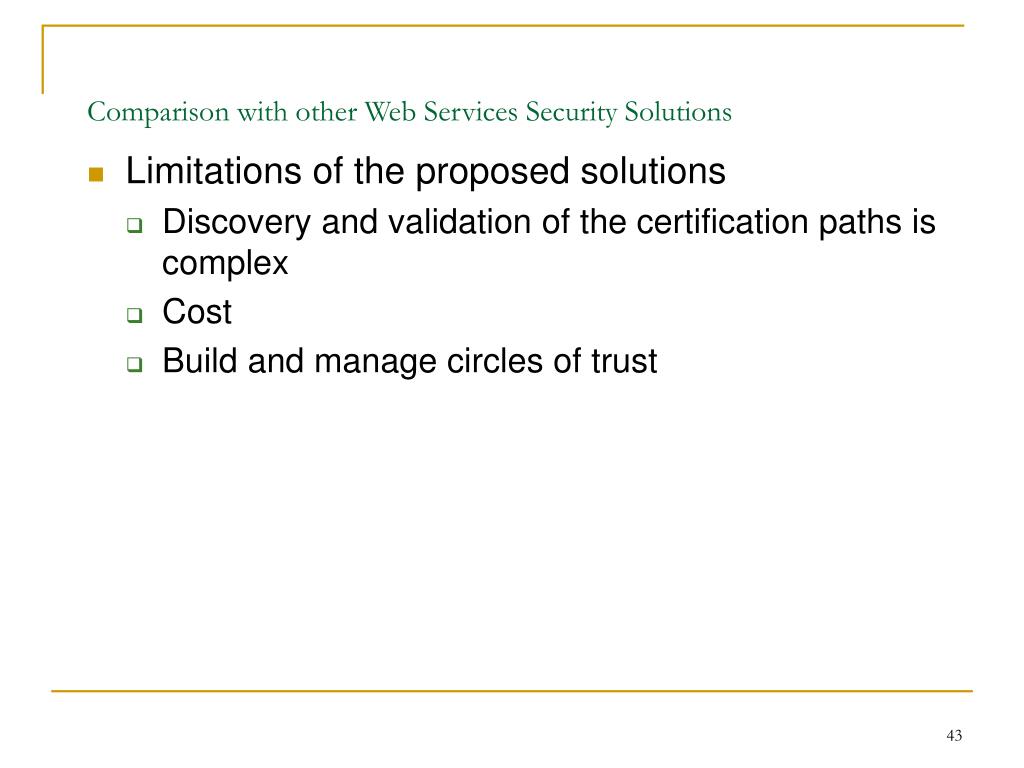

  43. Comparison with other Web Services Security Solutions • Limitations of the proposed solutions • Discovery and validation of the certification paths is complex • Cost • Build and manage circles of trust

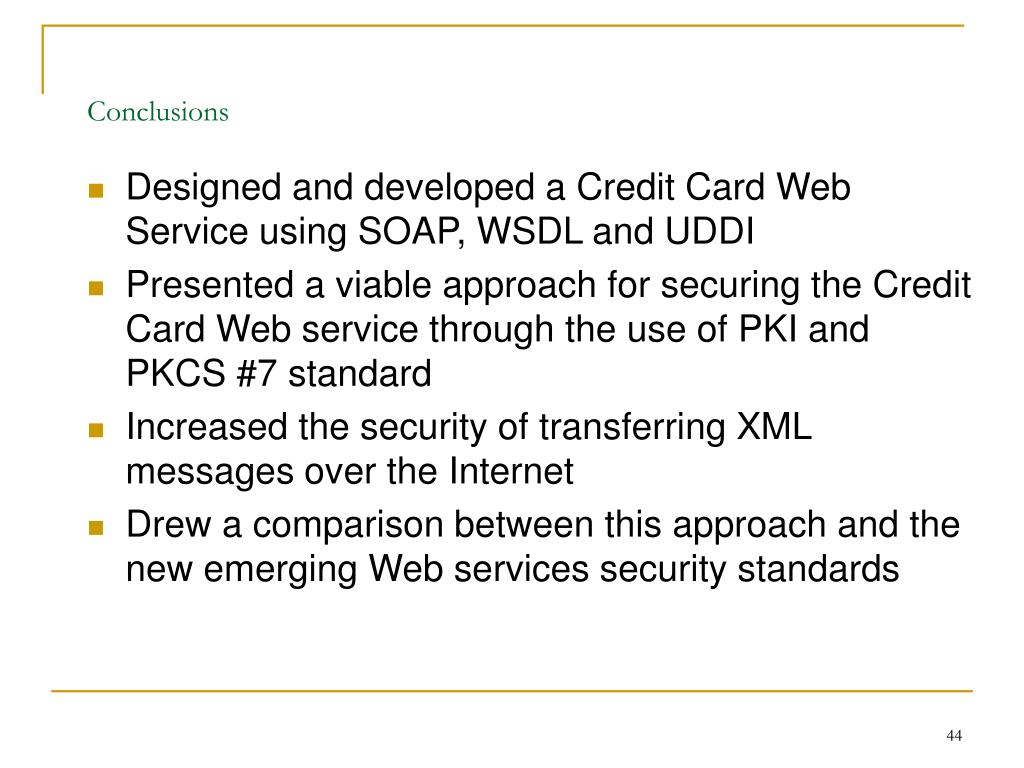

  44. Conclusions • Designed and developed a Credit Card Web Service using SOAP, WSDL and UDDI • Presented a viable approach for securing the Credit Card Web service through the use of PKI and PKCS #7 standard • Increased the security of transferring XML messages over the Internet • Drew a comparison between this approach and the new emerging Web services security standards

  45. Thanks …...
