  1. Wireless Web Services Security Christopher Lo

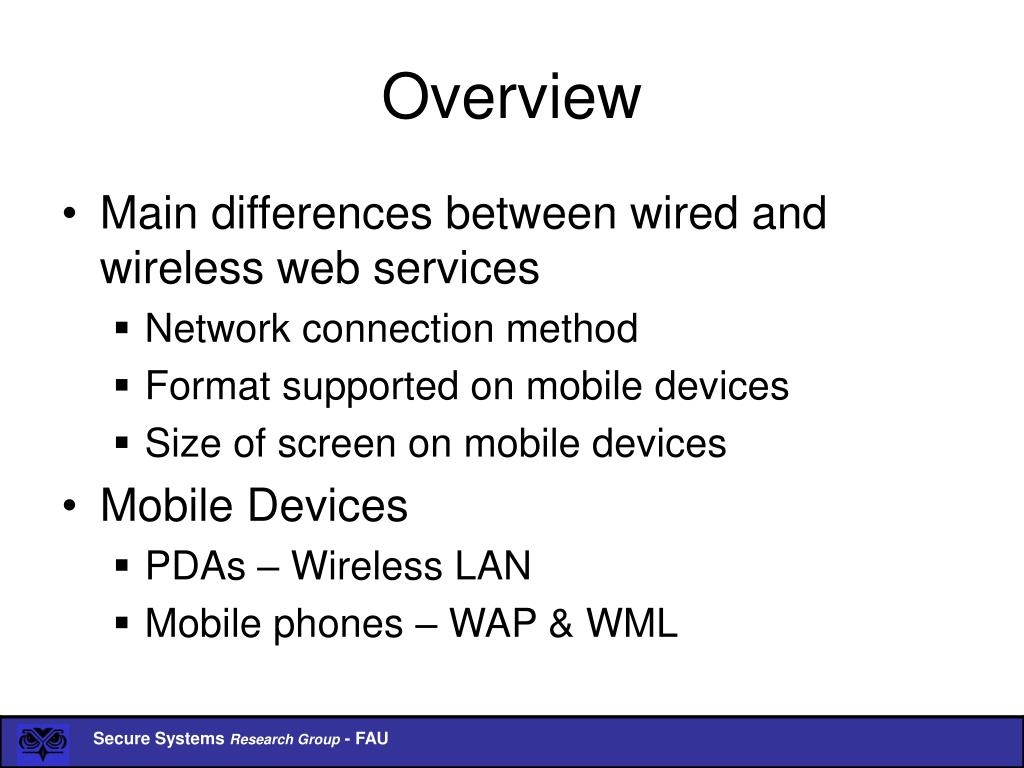

  2. Overview • Main differences between wired and wireless web services • Network connection method • Format supported on mobile devices • Size of screen on mobile devices • Mobile Devices • PDAs – Wireless LAN • Mobile phones – WAP & WML

  3. Wireless LAN • Most PDAs can handle 802.11i technology allowing them to access web services through wireless LAN • Issues with Wireless LAN • Uncontrolled range with radio signal • Exposed setup allows for drive by hacking • Constantly Changing IPs

  4. Wireless LAN Encryption Standards • WEP - Wired Equivalent Privacy • WPA - WiFi Protected Access • RSN - Robust Security Network

  5. WEP • The most problematic of the three • UC Berkley’s study has shown the RC4 stream cipher can be broken using a series of computation. • Small keys and need to manually change keys poses maintenance problems • Dictionary attacks can find keys

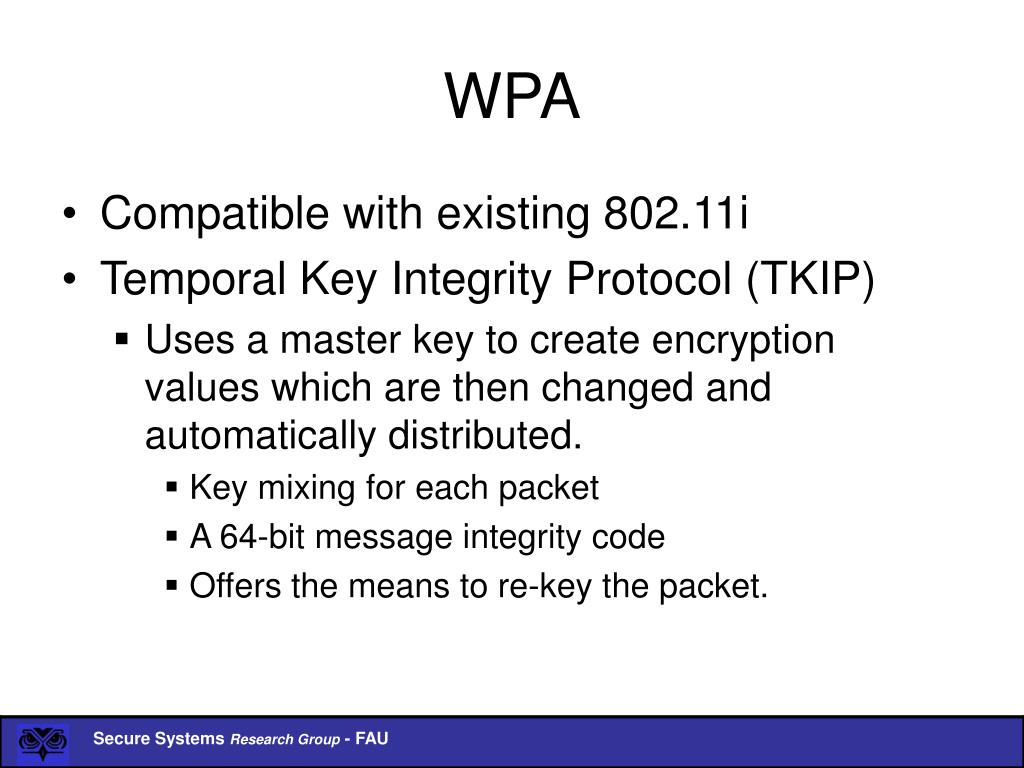

  6. WPA • Compatible with existing 802.11i • Temporal Key Integrity Protocol (TKIP) • Uses a master key to create encryption values which are then changed and automatically distributed. • Key mixing for each packet • A 64-bit message integrity code • Offers the means to re-key the packet.

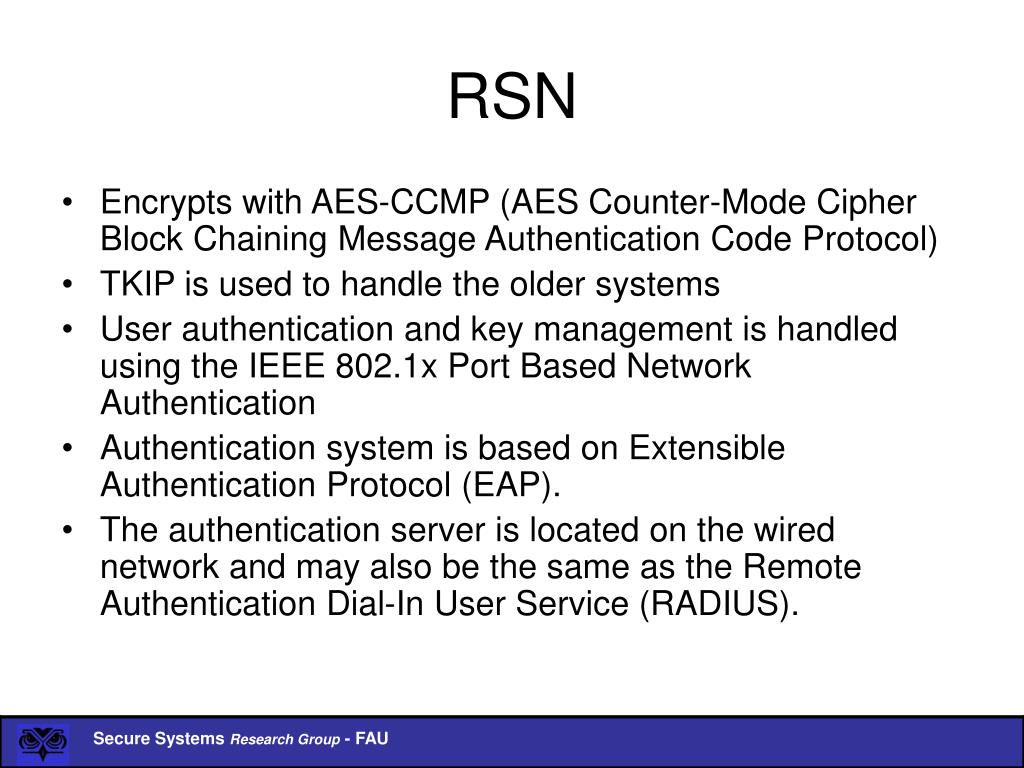

  7. RSN • Encrypts with AES-CCMP (AES Counter-Mode Cipher Block Chaining Message Authentication Code Protocol) • TKIP is used to handle the older systems • User authentication and key management is handled using the IEEE 802.1x Port Based Network Authentication • Authentication system is based on Extensible Authentication Protocol (EAP). • The authentication server is located on the wired network and may also be the same as the Remote Authentication Dial-In User Service (RADIUS).

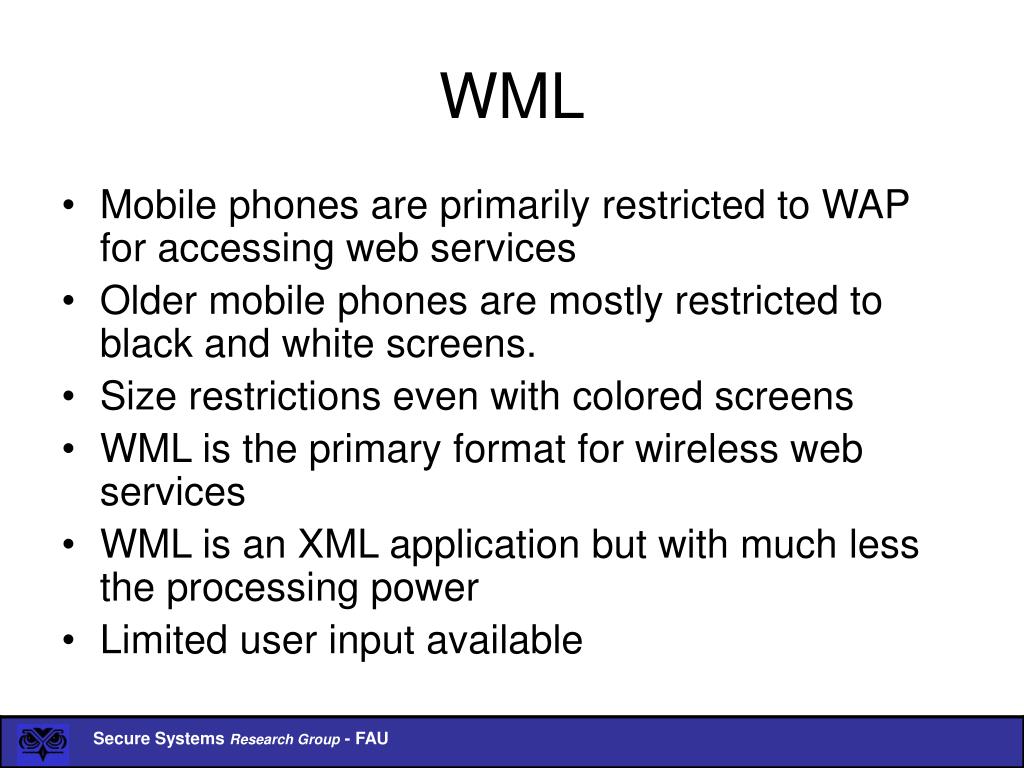

  8. WML • Mobile phones are primarily restricted to WAP for accessing web services • Older mobile phones are mostly restricted to black and white screens. • Size restrictions even with colored screens • WML is the primary format for wireless web services • WML is an XML application but with much less the processing power • Limited user input available

  9. XML to WML • Most companies write their own WML versions of the web service • Translation should be moved to the portal/web server (Phone.com, SprintPCS, etc) • IBM WebSphere currently supports translation to WML

  10. WAP • Wireless Application Protocol • WAP Gateway – translates WTLS to SSL

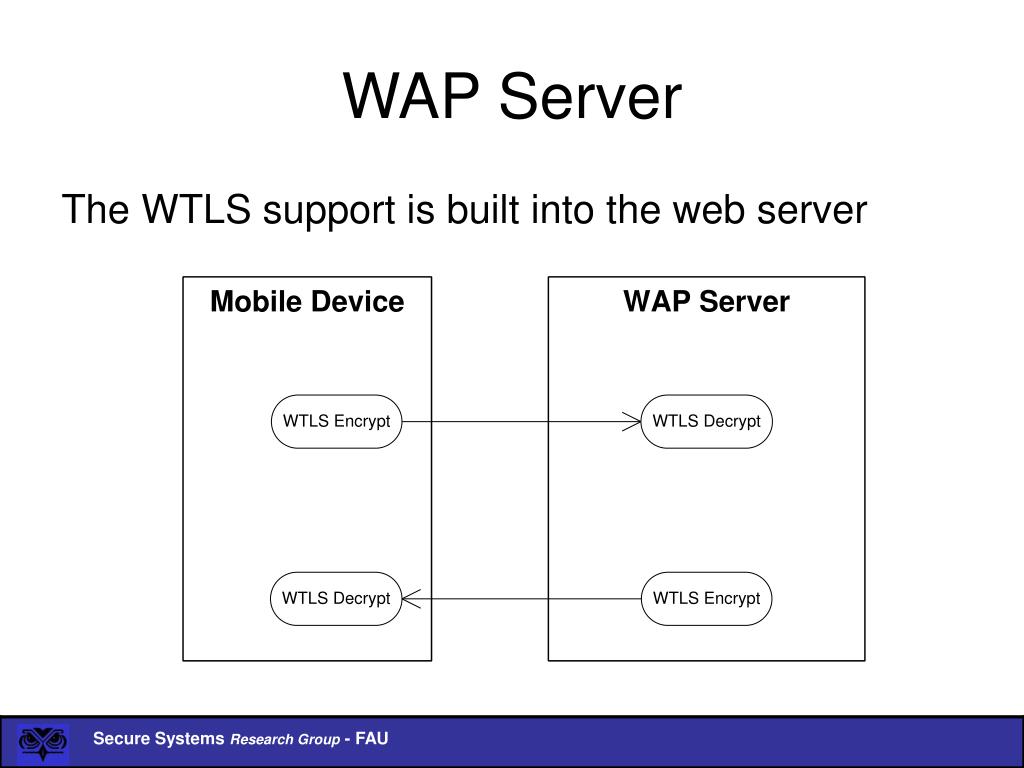

  11. WAP Server The WTLS support is built into the web server

  12. Issues with XML • Size is generally too large for mobile devices • Increased size = Increased airtime • Problem with constantly changing IPs • Need for compression before encryption

  13. Other Concerns: Tracking Web Services • FollowUs, Fleetstar-Online, & Kids OK • Rely on tracking GSM or GPS • A cell ID must first be registered with a service in order to be tracked. • GPS tracking relies on 24 civilian usable satellites that circle the earth. • Assisted GPS system (AGPS) • GSM - the SIM card is tracked instead of the actual phone. • The legal stipulations are mapped out in a set of Code of Practices.
