  1. Olive oil processing Professor Alsaed A.K. University of Jordan

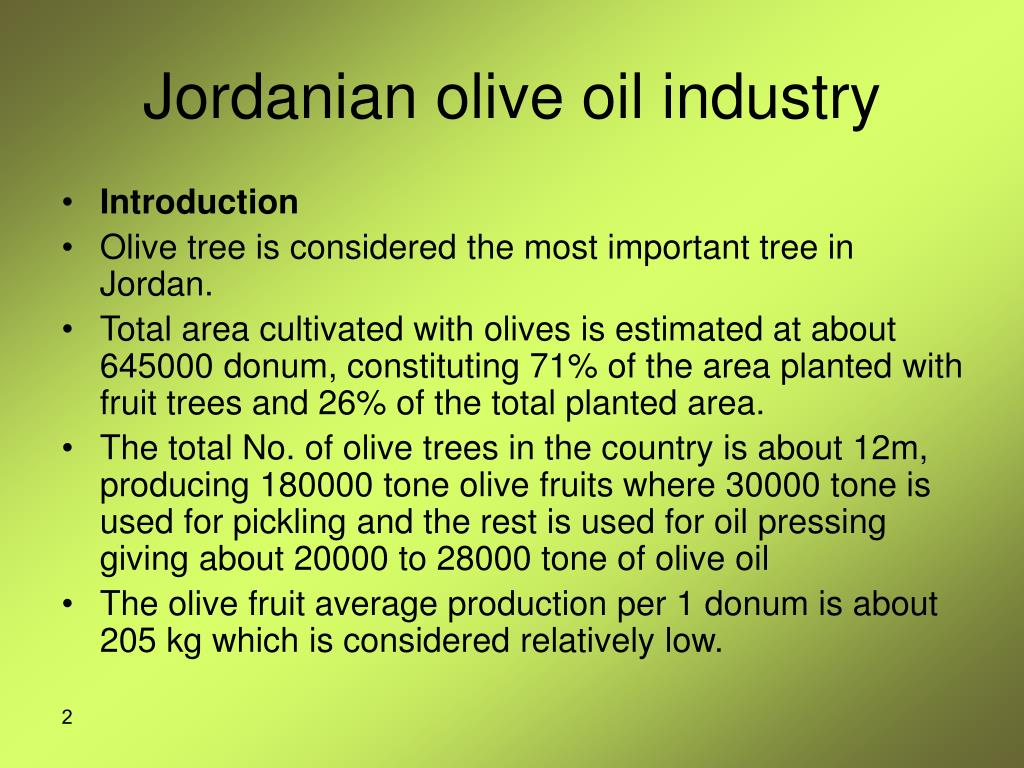

  2. Jordanian olive oil industry • Introduction • Olive tree is considered the most important tree in Jordan. • Total area cultivated with olives is estimated at about 645000 donum, constituting 71% of the area planted with fruit trees and 26% of the total planted area. • The total No. of olive trees in the country is about 12m, producing 180000 tone olive fruits where 30000 tone is used for pickling and the rest is used for oil pressing giving about 20000 to 28000 tone of olive oil • The olive fruit average production per 1 donum is about 205 kg which is considered relatively low.

  3. The country reached recently (year 2000) to self-sufficiency with regard to olive oil and a surplus of about 7000 tone/year is recorded • Due to the new planting of olives in the last 15 years(1990-2004) the olive cultivated area increased to about 177% • 77% of the olive trees take their need of water from raining fall where as the rest (23%) are being irrigated • Consumption of olive oil (per capita) in Jordan is considered low(4 kg/year) compared to 7 kg in Syria and 20 kg in Greece • zxzasAA x ccccccccccc

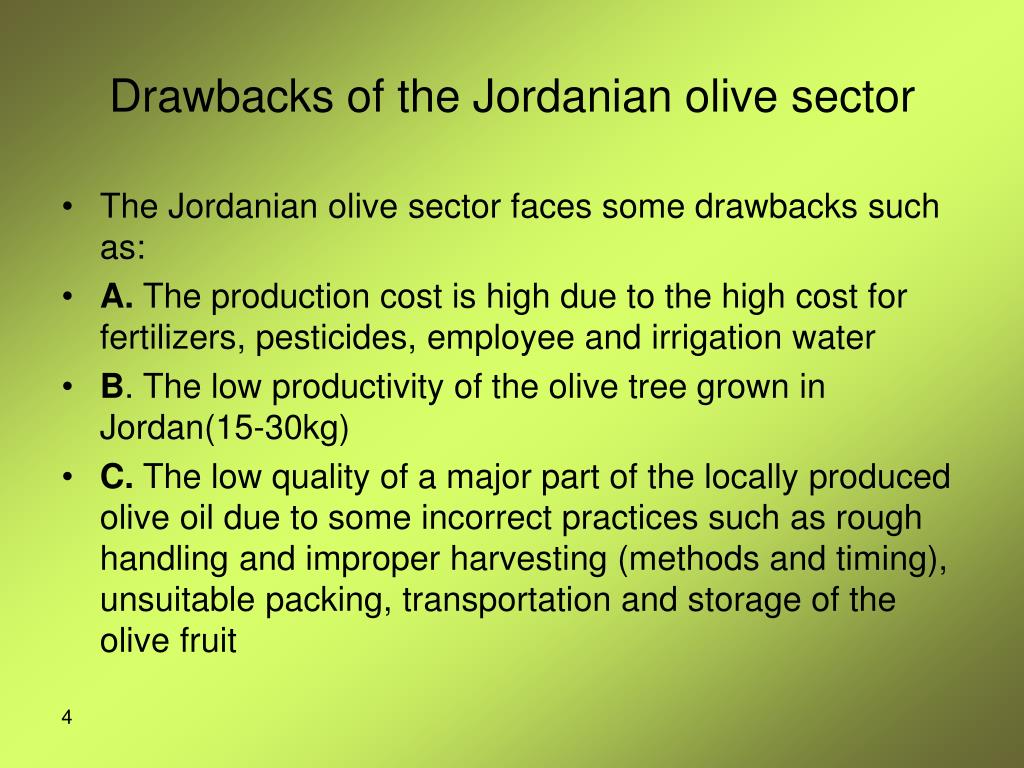

  4. Drawbacks of the Jordanian olive sector • The Jordanian olive sector faces some drawbacks such as: • A. The production cost is high due to the high cost for fertilizers, pesticides, employee and irrigation water • B. The low productivity of the olive tree grown in Jordan(15-30kg) • C. The low quality of a major part of the locally produced olive oil due to some incorrect practices such as rough handling and improper harvesting (methods and timing), unsuitable packing, transportation and storage of the olive fruit

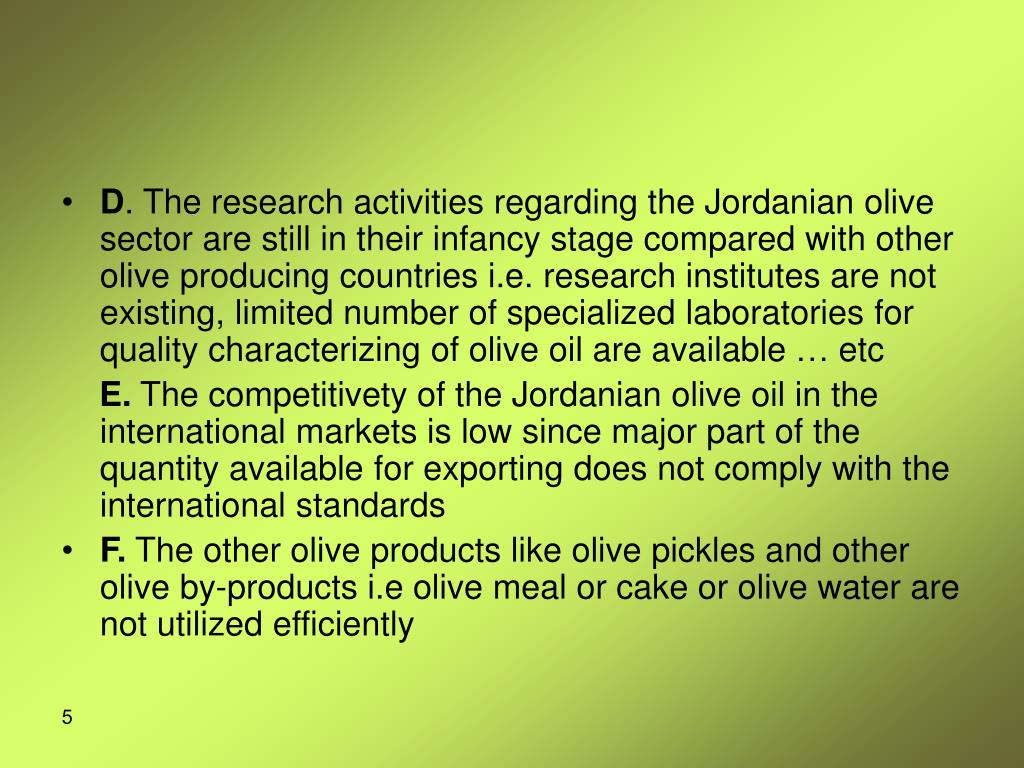

  5. D. The research activities regarding the Jordanian olive sector are still in their infancy stage compared with other olive producing countries i.e. research institutes are not existing, limited number of specialized laboratories for quality characterizing of olive oil are available … etc E. The competitivety of the Jordanian olive oil in the international markets is low since major part of the quantity available for exporting does not comply with the international standards • F. The other olive products like olive pickles and other olive by-products i.e olive meal or cake or olive water are not utilized efficiently

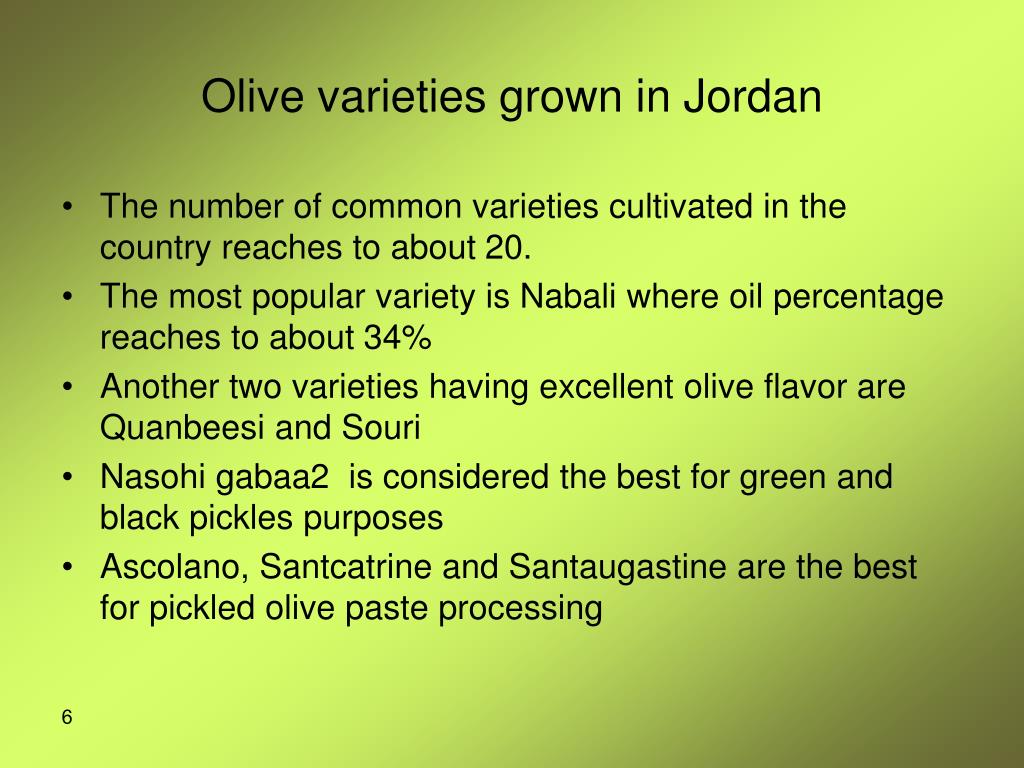

  6. Olive varieties grown in Jordan • The number of common varieties cultivated in the country reaches to about 20. • The most popular variety is Nabali where oil percentage reaches to about 34% • Another two varieties having excellent olive flavor are Quanbeesi and Souri • Nasohi gabaa2 is considered the best for green and black pickles purposes • Ascolano, Santcatrine and Santaugastine are the best for pickled olive paste processing

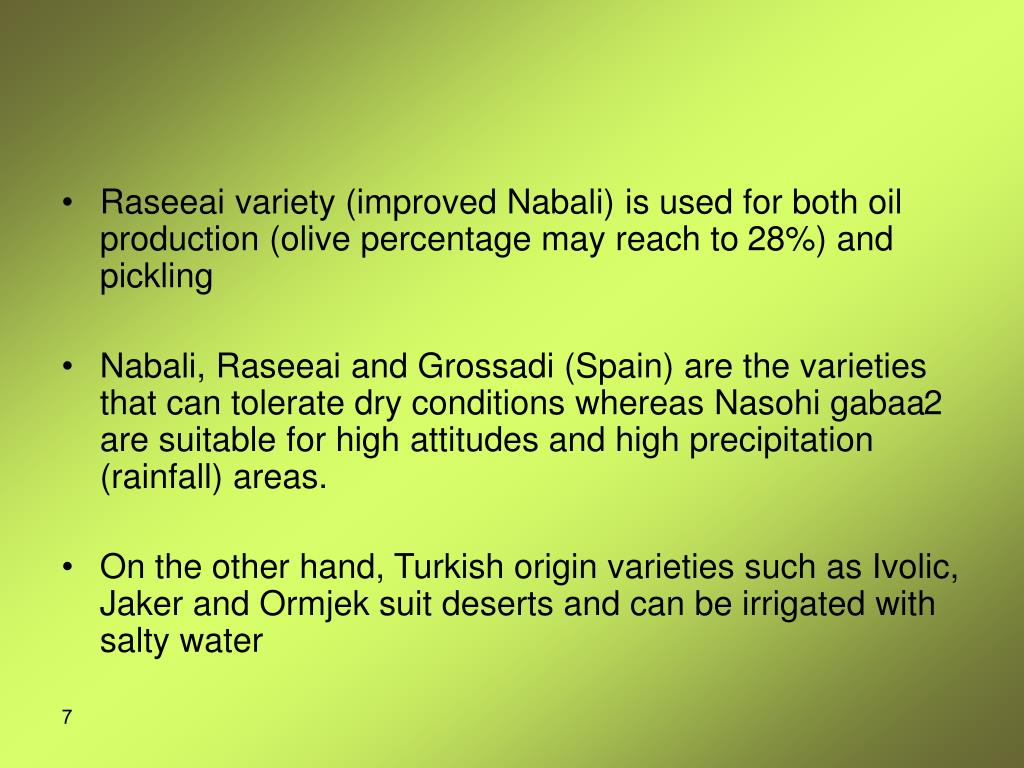

  7. Raseeai variety (improved Nabali) is used for both oil production (olive percentage may reach to 28%) and pickling • Nabali, Raseeai and Grossadi (Spain) are the varieties that can tolerate dry conditions whereas Nasohi gabaa2 are suitable for high attitudes and high precipitation (rainfall) areas. • On the other hand, Turkish origin varieties such as Ivolic, Jaker and Ormjek suit deserts and can be irrigated with salty water

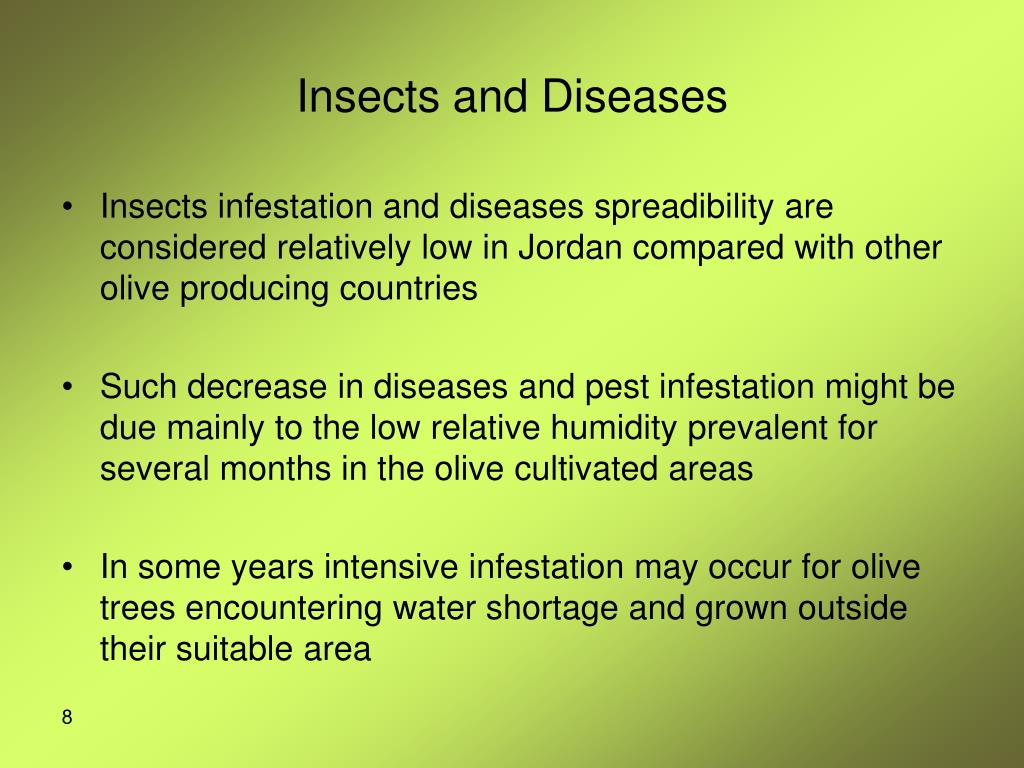

  8. Insects and Diseases • Insects infestation and diseases spreadibility are considered relatively low in Jordan compared with other olive producing countries • Such decrease in diseases and pest infestation might be due mainly to the low relative humidity prevalent for several months in the olive cultivated areas • In some years intensive infestation may occur for olive trees encountering water shortage and grown outside their suitable area

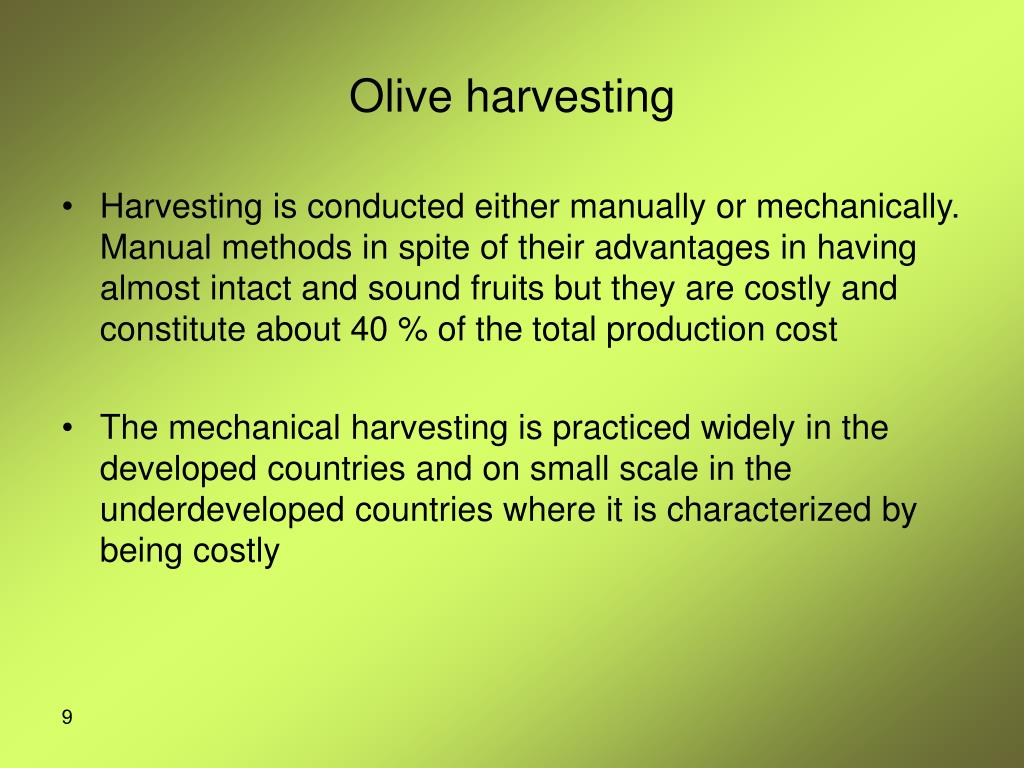

  9. Olive harvesting • Harvesting is conducted either manually or mechanically. Manual methods in spite of their advantages in having almost intact and sound fruits but they are costly and constitute about 40 % of the total production cost • The mechanical harvesting is practiced widely in the developed countries and on small scale in the underdeveloped countries where it is characterized by being costly

  10. Improper harvesting is probably the most significant problem facing the olive sector either on national or international scale • Sometimes incorrect practices are being used in olive harvesting such as using sticks or gathering and combining fallen and infested or diseased olive fruits with those harvested freshly from the trees

  11. It is well established that for olive oil production, fruits should be harvested according to the ripening equation which was developed by the Spanish olive research center • By using this equation, the proper harvesting time is determined by computing the change in color of the olive fruits. Proper harvesting time is reached when this change in color is about 60 -70% • Unfortunately, many of the Jordanian olive farmers are not familiar with this equation which affects significantly the quality of the produced olive oil

  12. Olive postharvest treatment • Packing, transportation and storage of olive fruit • The proper pack for olive fruit is the ventilated plastic box. Although it is used by some Jordanian olive farmers, major part of Jordanian farmers use the jute or plastic bag with inefficient ventilation • Due to the short period of the olive season (4-6 weeks), sometimes the olive fruits are stored under unsuitable conditions (high temperature, low relative humidity, unsuitable packs, inefficient ventilation …etc leading to inferior olive oil quality) for a relatively long time (3-10 days)

  13. Pressing • According to the international olive oil standard, virgin olive oil is defined as the oil obtained from olives using mechanical or physical methods only and under specific conditions • Pressing includes many steps such as feeding, washing, crushing and milling, paste mixing or malefaction, separation of the phases, separation of the oil from the musty and filtration, filling and storage

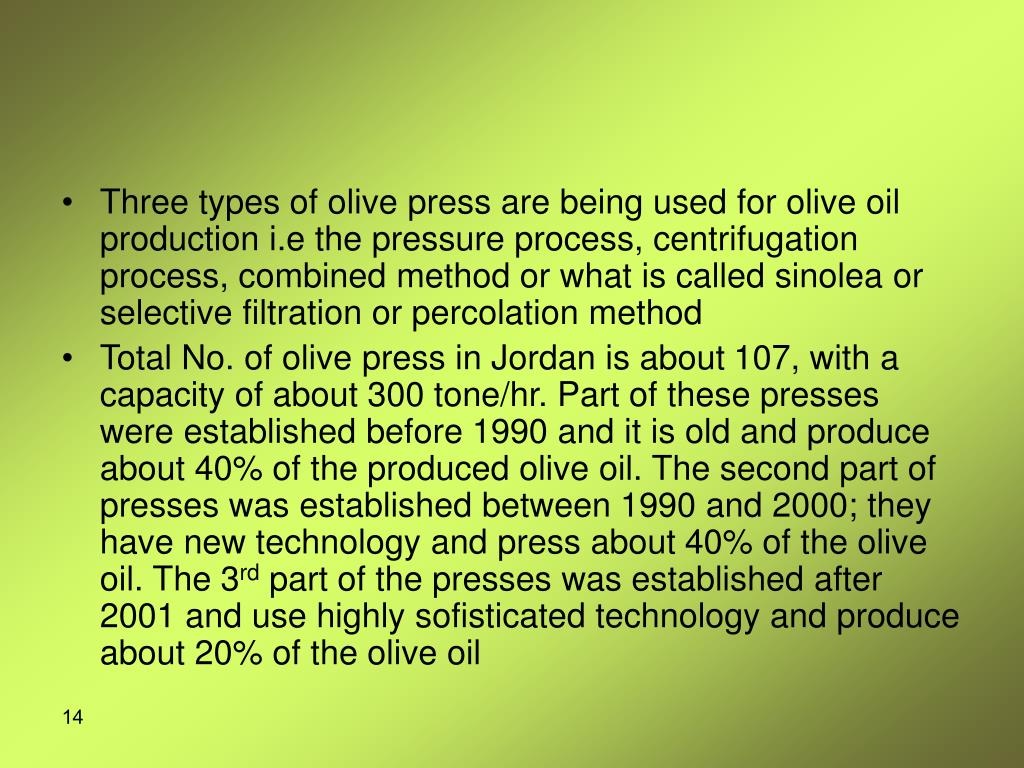

  14. Three types of olive press are being used for olive oil production i.e the pressure process, centrifugation process, combined method or what is called sinolea or selective filtration or percolation method • Total No. of olive press in Jordan is about 107, with a capacity of about 300 tone/hr. Part of these presses were established before 1990 and it is old and produce about 40% of the produced olive oil. The second part of presses was established between 1990 and 2000; they have new technology and press about 40% of the olive oil. The 3rd part of the presses was established after 2001 and use highly sofisticated technology and produce about 20% of the olive oil

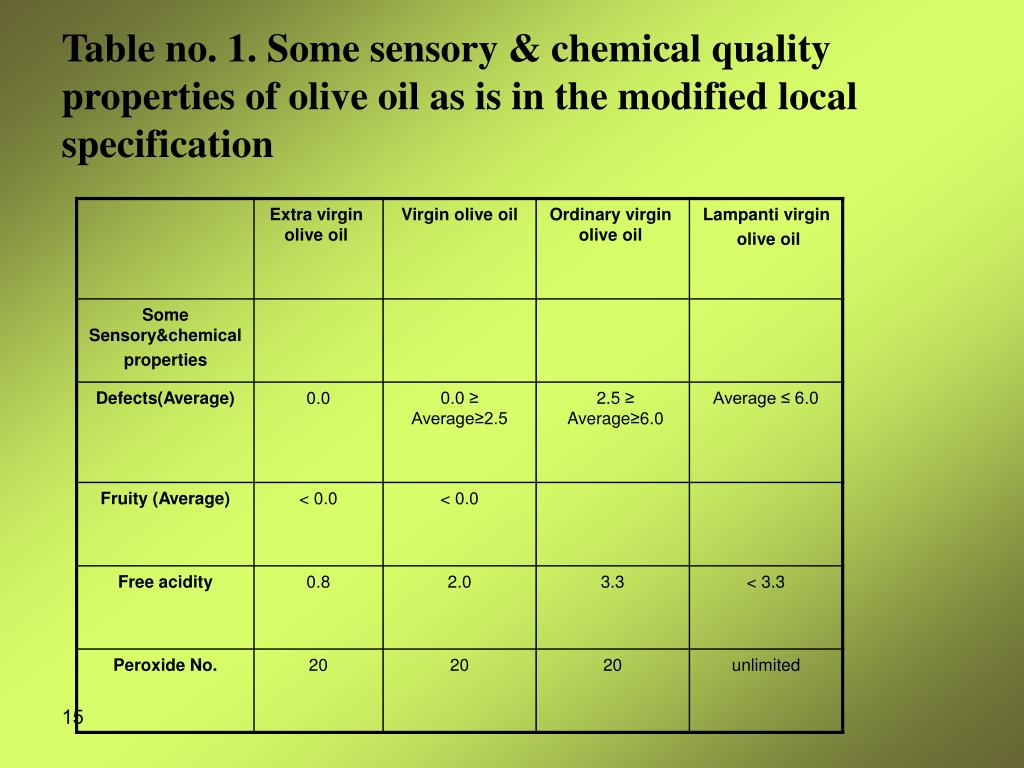

  15. Table no. 1. Some sensory & chemical quality properties of olive oil as is in the modified local specification

  16. Table No. 2.Olive oil profile form used to evaluate the sensory properties (to be filled by the taster)

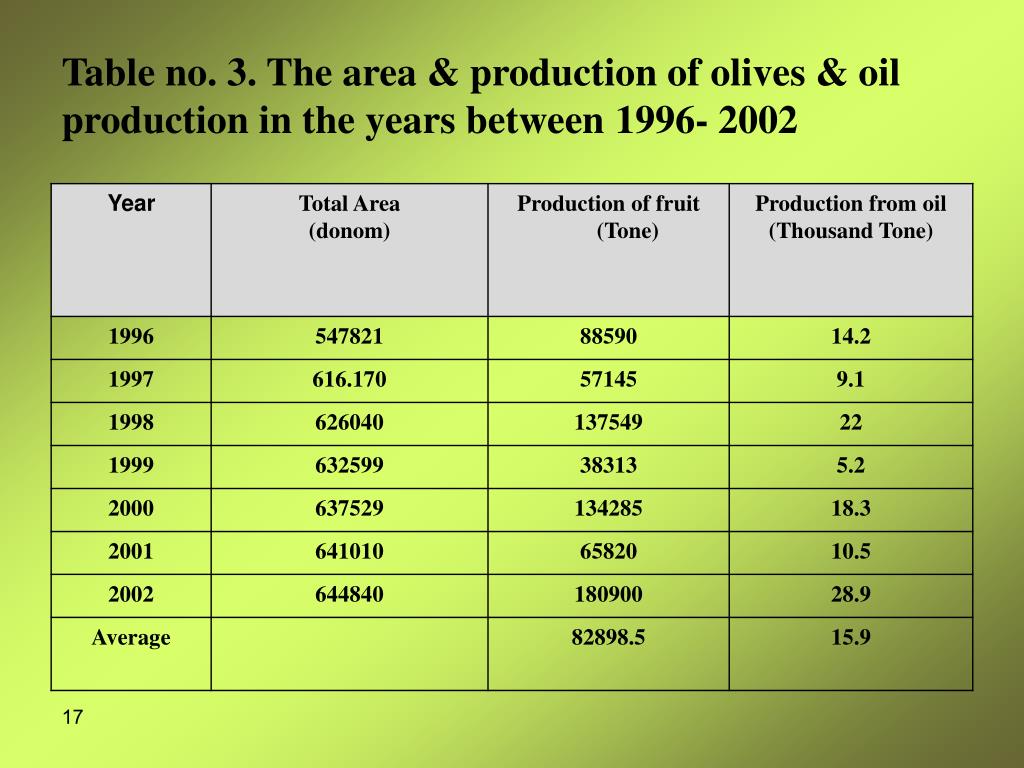

  17. Table no. 3. The area & production of olives & oil production in the years between 1996- 2002

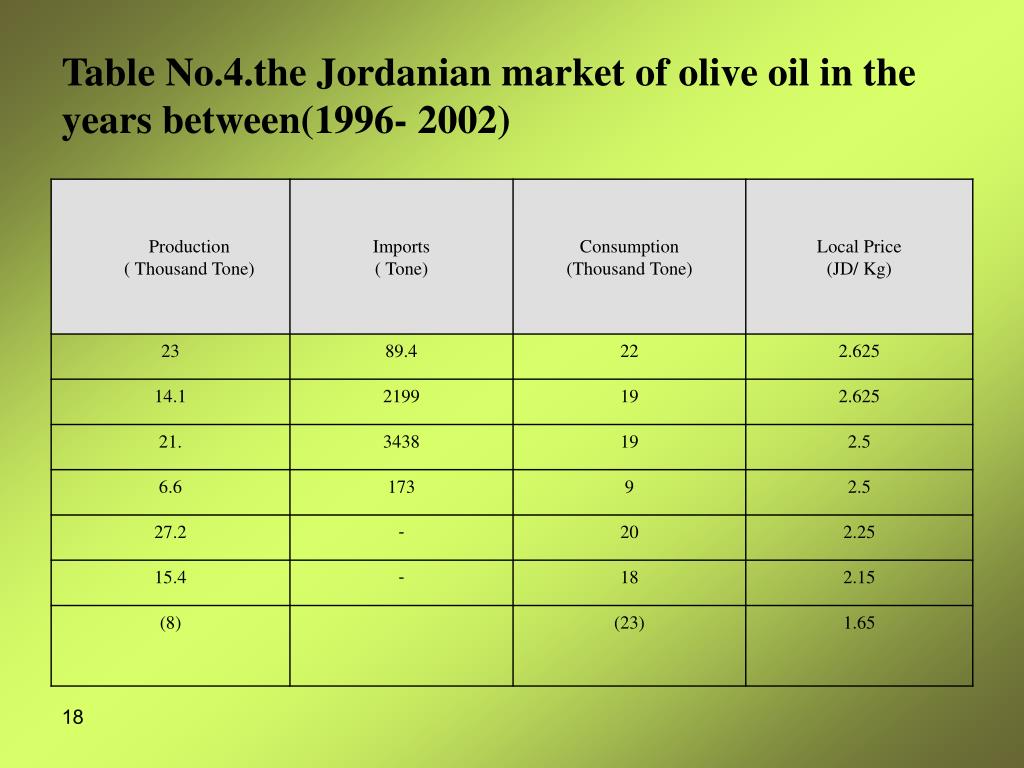

  18. Table No.4.the Jordanian market of olive oil in the years between(1996- 2002)

  19. There are more than 107 presses of olive oil in Jordan classified into three categories: • presses established before 1992 • Press about 40% of annual production. • Old, their equipments & building were not established on the national specifications. • Equipment & Building should be m modernized, converted into the cold pressing, Increase the efficiency of management & storage, for the production of fine olive oil that meet thenational specification. • presses established between 1992 - 2002 • Press about 40% of annual production. • Considered new, some developing was made to walk with the great revolution occur in this section. • A presses of great capabilities was established with the investment transform from small family into a large manufacturing. • This phase helped in the production of Jordanian olive oil of fine quality. c. presses established after 2001 • Press about 20% of annual production. • Was build & equipped to go with national requirement; production, storage, packaging. Now, these companies try to enter international markets by selling their special products. • Many local & foreign sponsors held a field studies on the state of presses and put the required recommendations to develop this section. Table No.5. Evaluation of the local olive presses

  20. Figure 1. The manual picking of olives

  21. Figure 2. The using of combs for the picking of olives

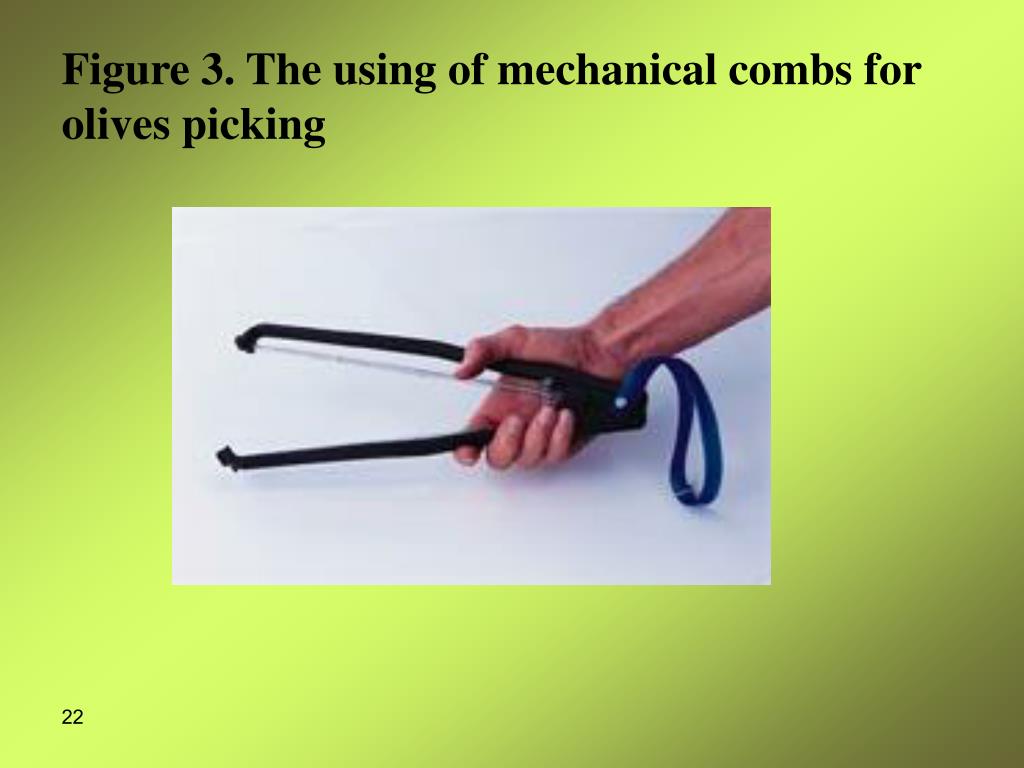

  22. Figure 3. The using of mechanical combs for olives picking

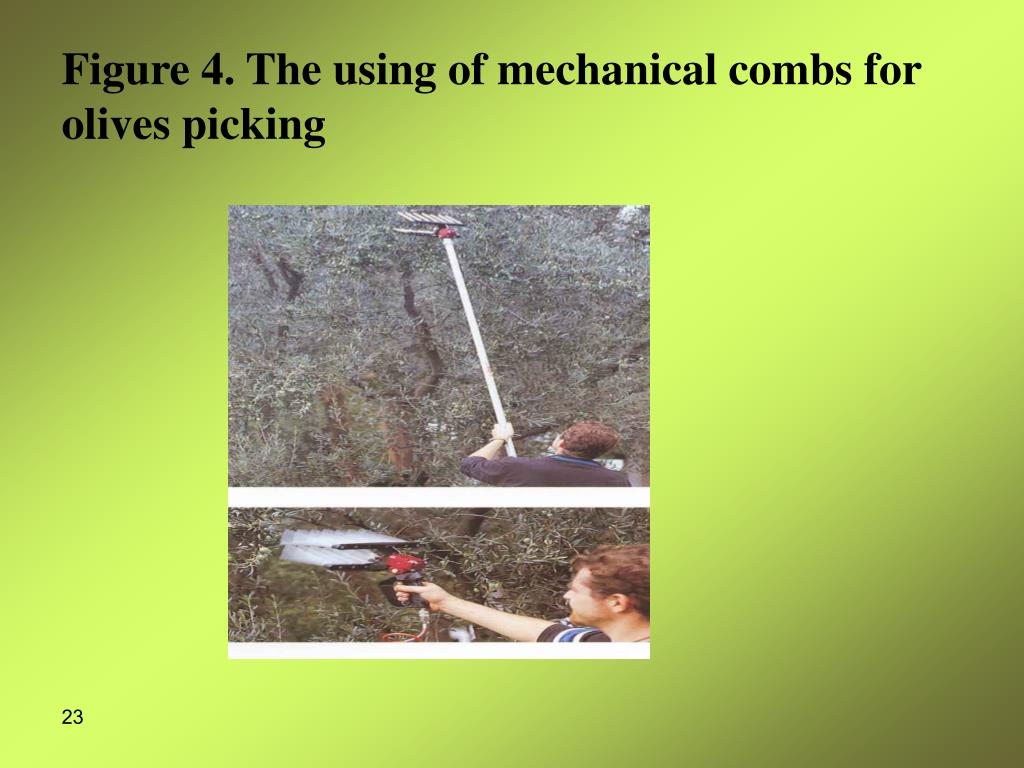

  23. Figure 4. The using of mechanical combs for olives picking

  24. Figure 5. The using of ladders for olives picking

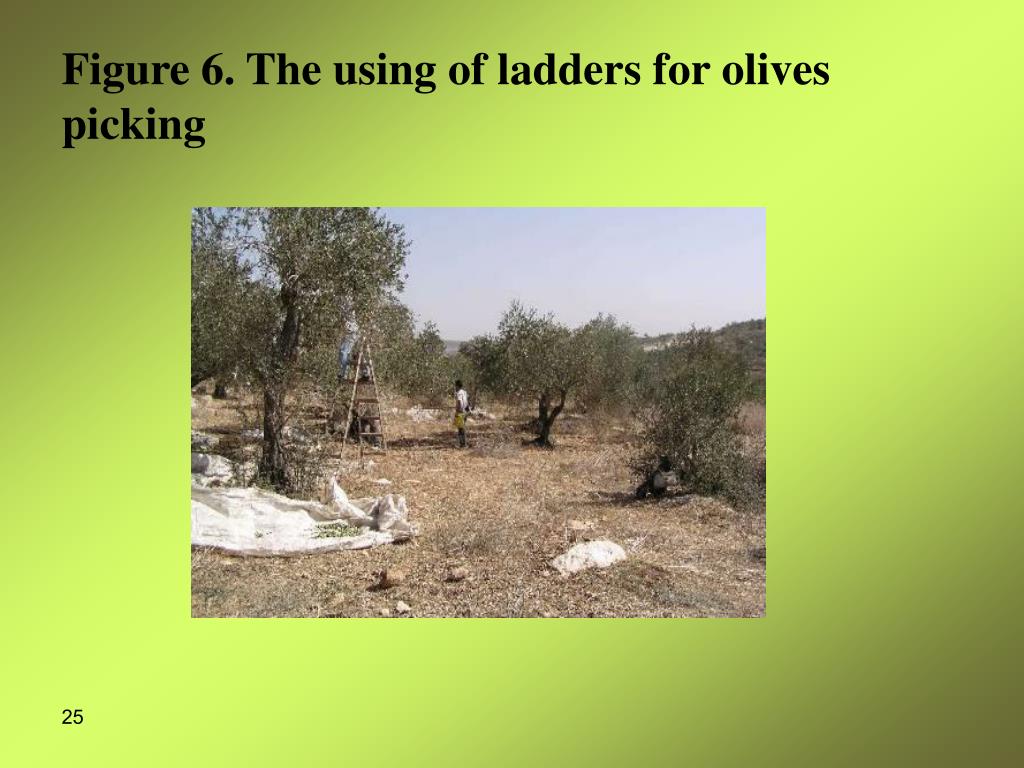

  25. Figure 6. The using of ladders for olives picking

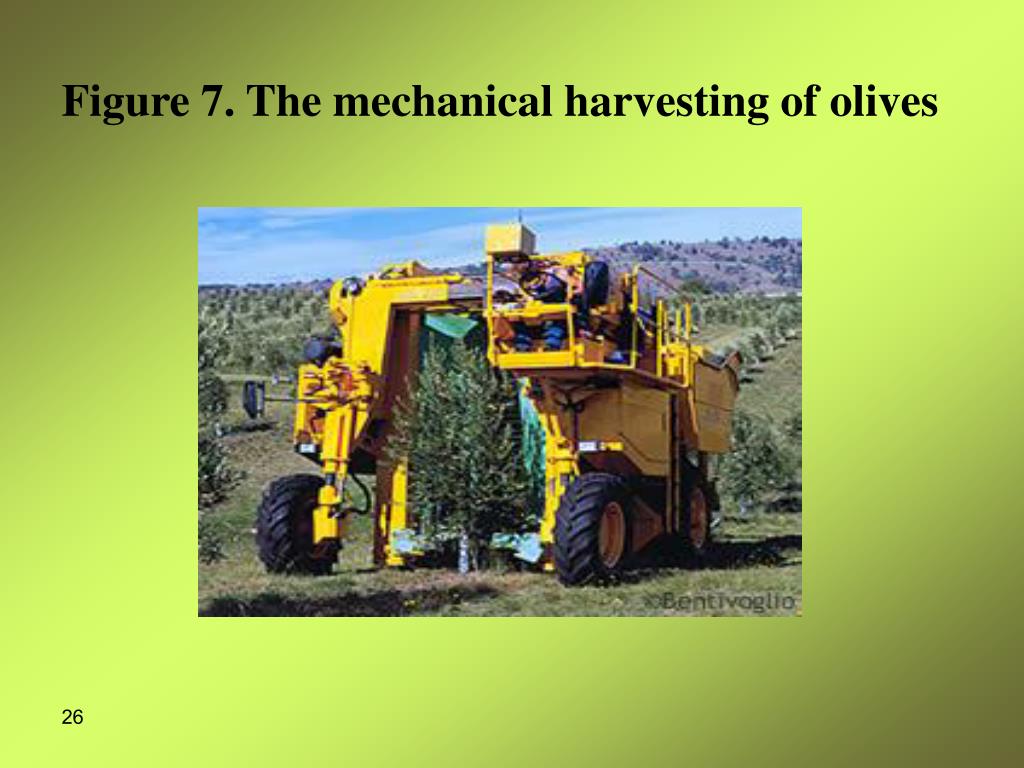

  26. Figure 7. The mechanical harvesting of olives

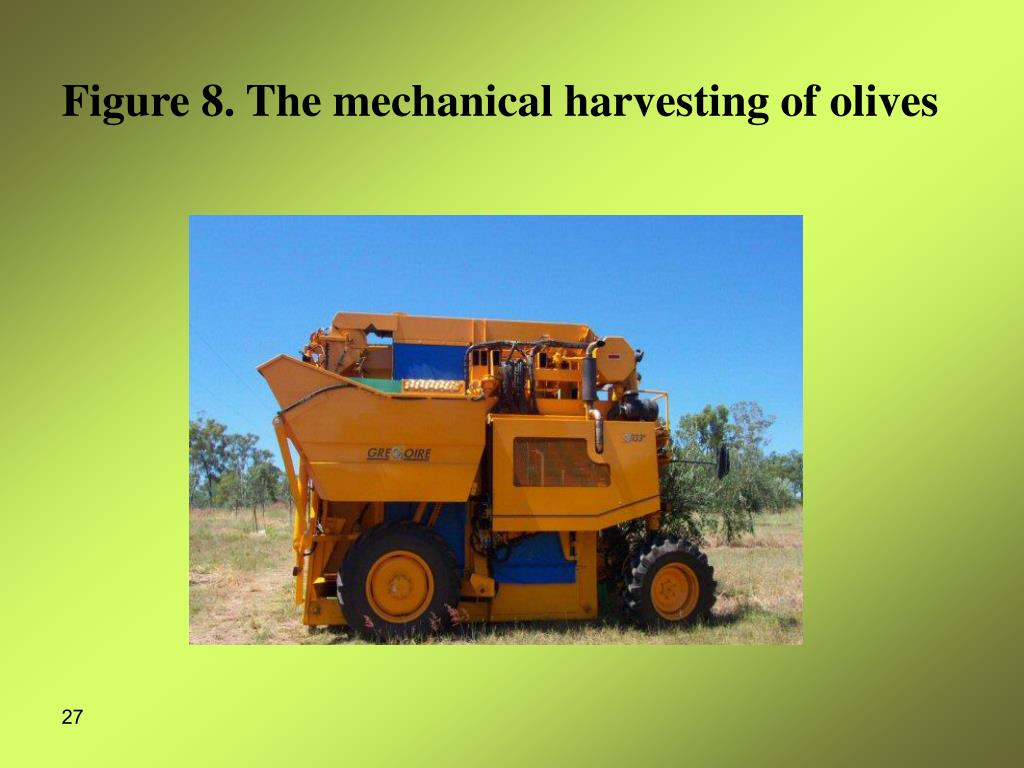

  27. Figure 8. The mechanical harvesting of olives

  28. Figure 9. The using of stick for olives picking

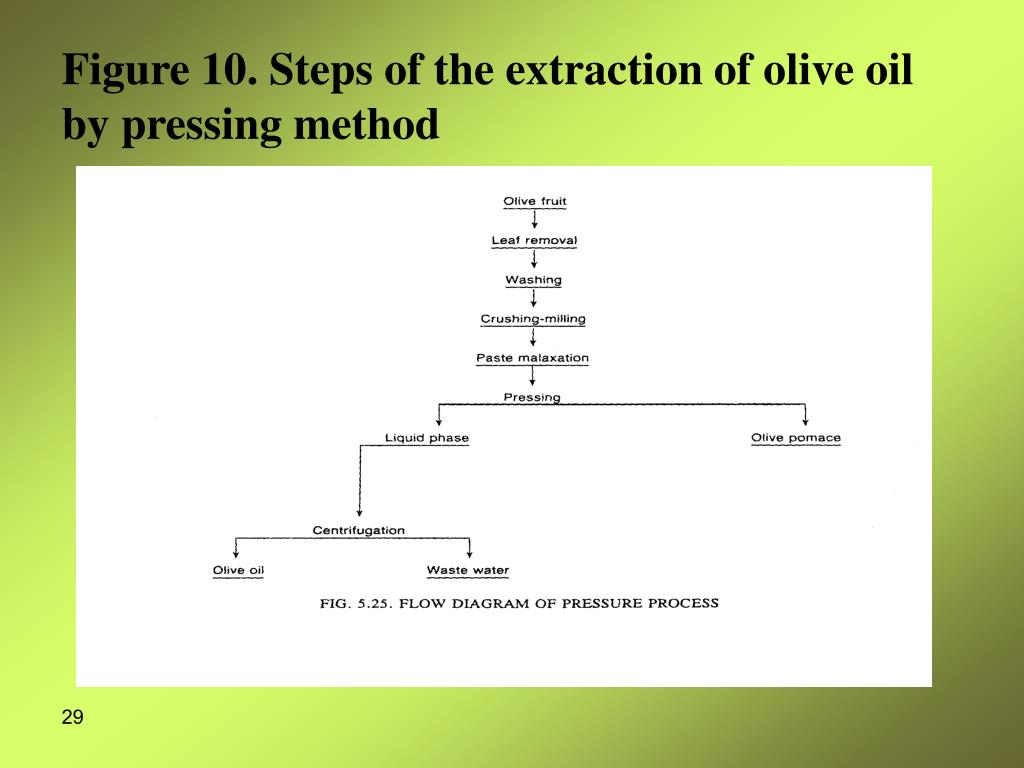

  29. Figure 10. Steps of the extraction of olive oil by pressing method

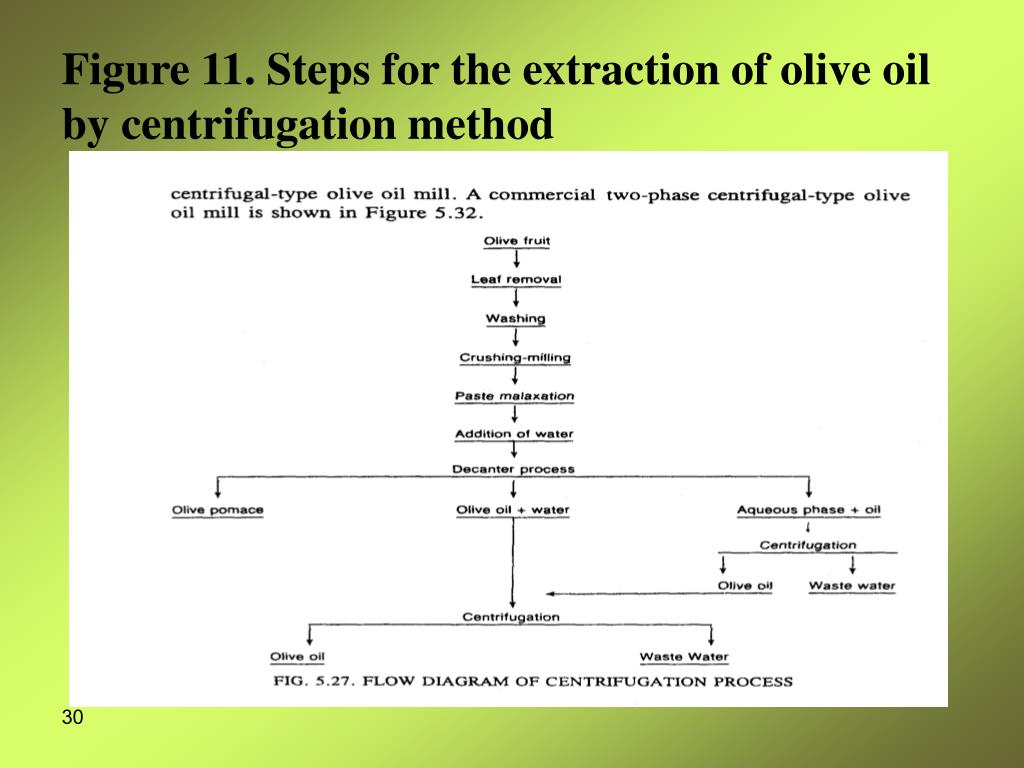

  30. Figure 11. Steps for the extraction of olive oil by centrifugation method

  31. Figure 12. Steps for the extraction of olive oil by senoila method

  32. Figure 13. The producing countries of olive oil Producer countries of olive oil 1020 1050 900 750 Thousand Ton 600 558 450 410 300 150 103 60 60 15 50 45 40 10 8 7 6 . 5 5 0 Tunisia PORTUGAL Cyprus Greece Jordan Spain Libya Syria Turkey Argentine Lebanon Morocco Argentine

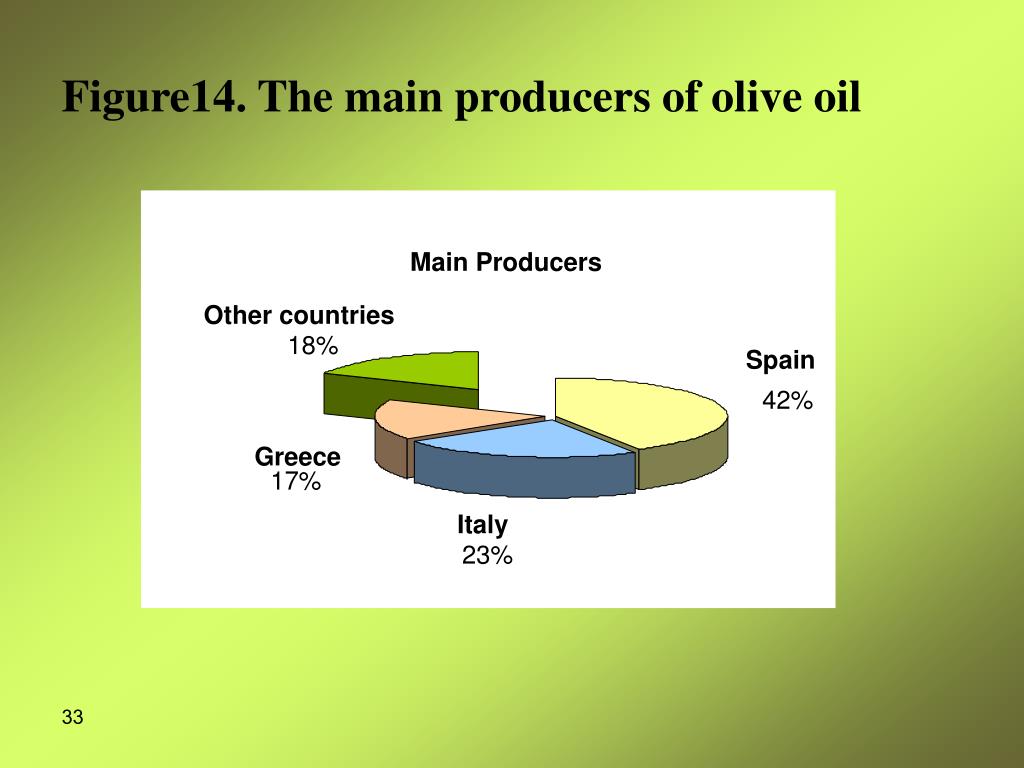

  33. Figure14. The main producers of olive oil Main Producers Other countries 18% Spain 42% Greece 17% Italy 23%

  34. The main Importers 300 200 Million Ton 100 0 USA European Union Brazil Australia Japan Canada Figure 15. The main importer countries of olive oil

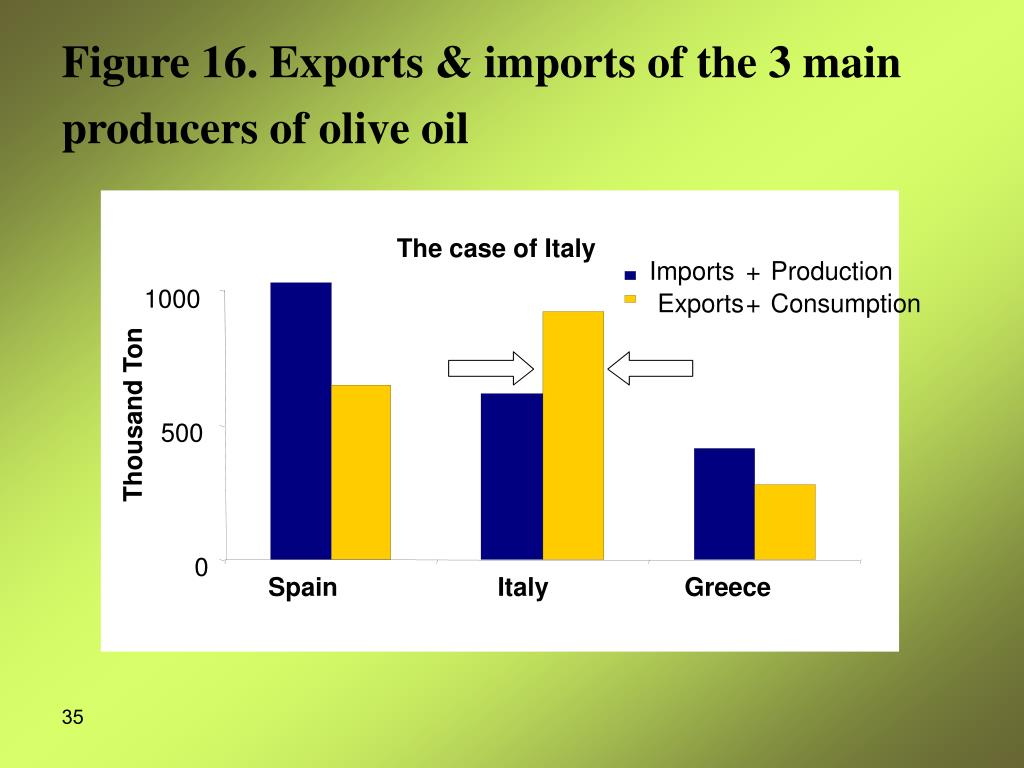

  35. The case of Italy Imports + Production 1000 Exports + Consumption Thousand Ton 500 0 Spain Italy Greece Figure 16. Exports & imports of the 3 main producers of olive oil

  36. The Main Exporters 300 200 Million Ton 100 0 European Union Tunisia Turkey Syria Figure 17. The main exporters of olive oils

  37. Global Consumption 3000 2000 Thousand Tons 1000 0 Consumption in 1991 Consumption in 2002 Figure 18. Quantities of olive oil consumed all over the world

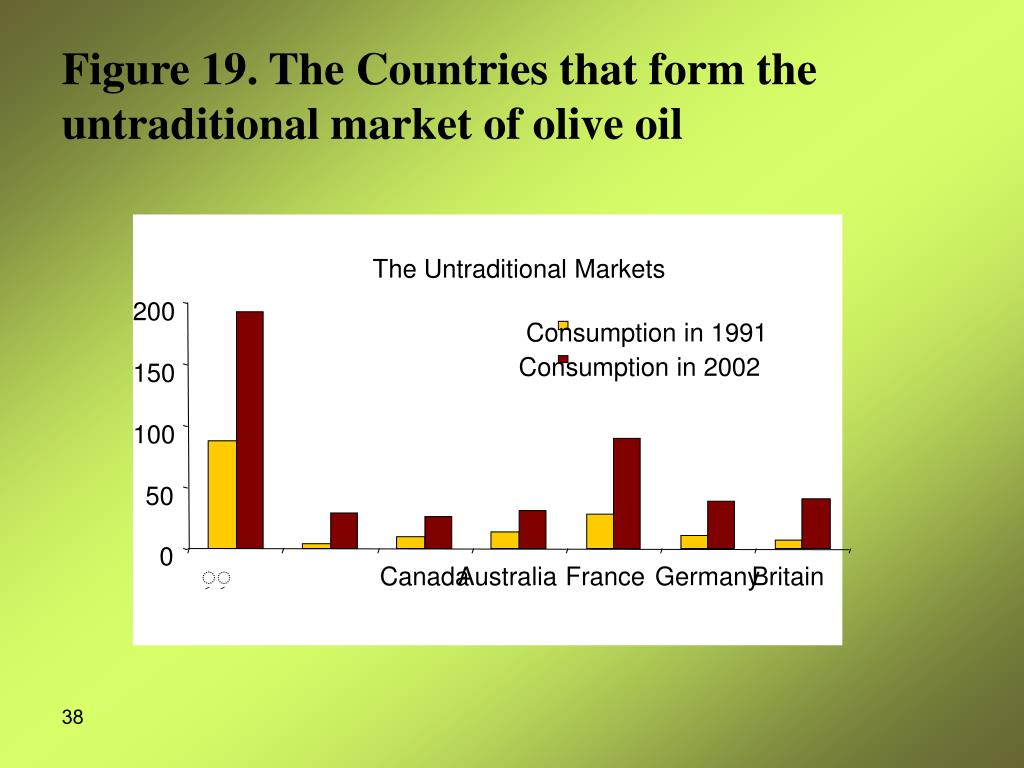

  38. 200 Consumption in 1991 Consumption in 2002 150 100 50 0 ِِ Canada Australia France Germany Britain Figure 19. The Countries that form the untraditional market of olive oil The Untraditional Markets

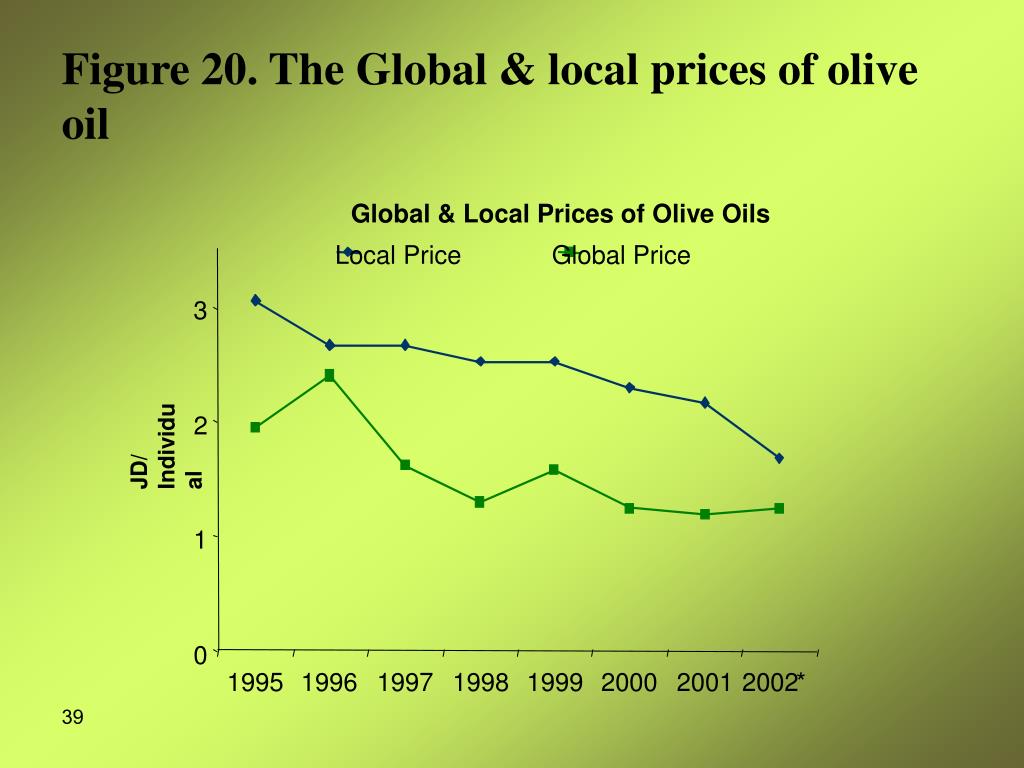

  39. Local Price Global Price 3 JD/ Individual 2 1 0 1995 1996 1997 1998 1999 2000 2001 2002 * Figure 20. The Global & local prices of olive oil Global & Local Prices of Olive Oils

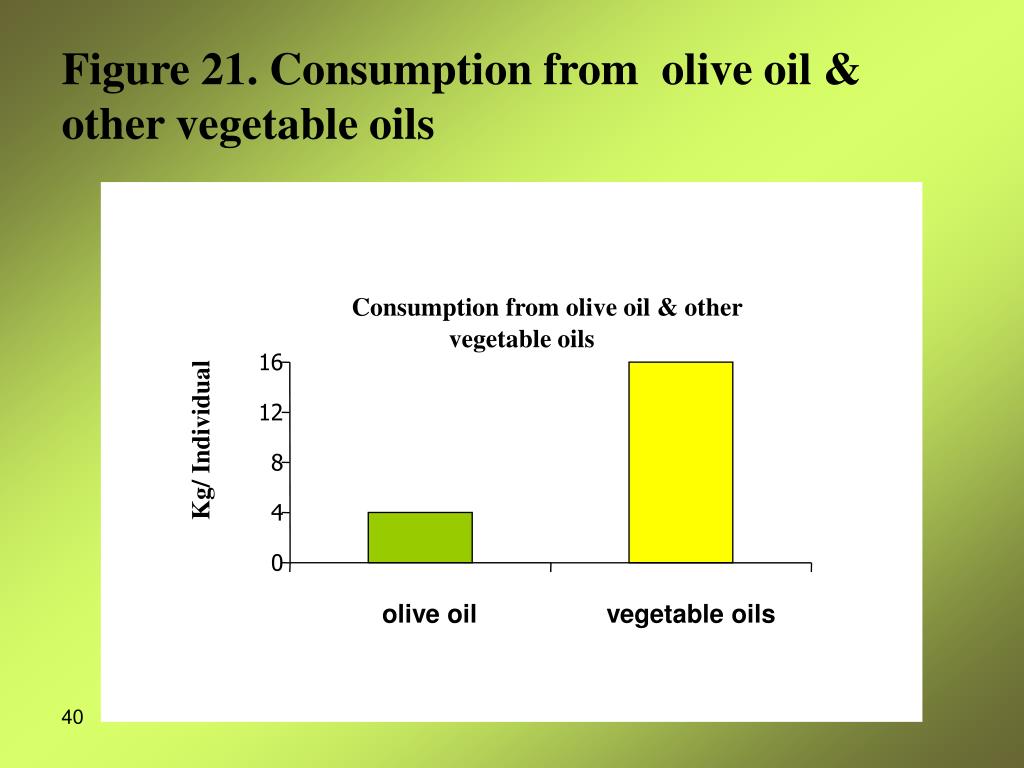

  40. Consumption from olive oil & other vegetable oils 16 12 Kg/ Individual 8 4 0 olive oil vegetable oils Figure 21. Consumption from olive oil & other vegetable oils

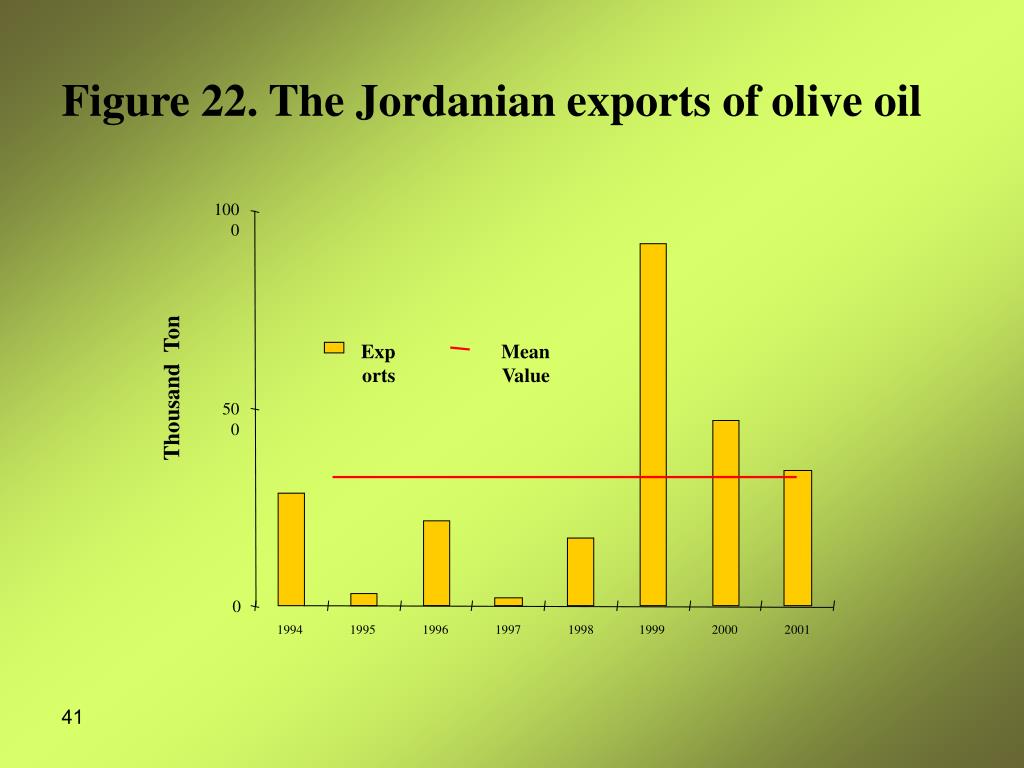

  41. 1000 Exports Mean Value Thousand Ton 500 0 1994 1995 1996 1997 1998 1999 2000 2001 Figure 22. The Jordanian exports of olive oil

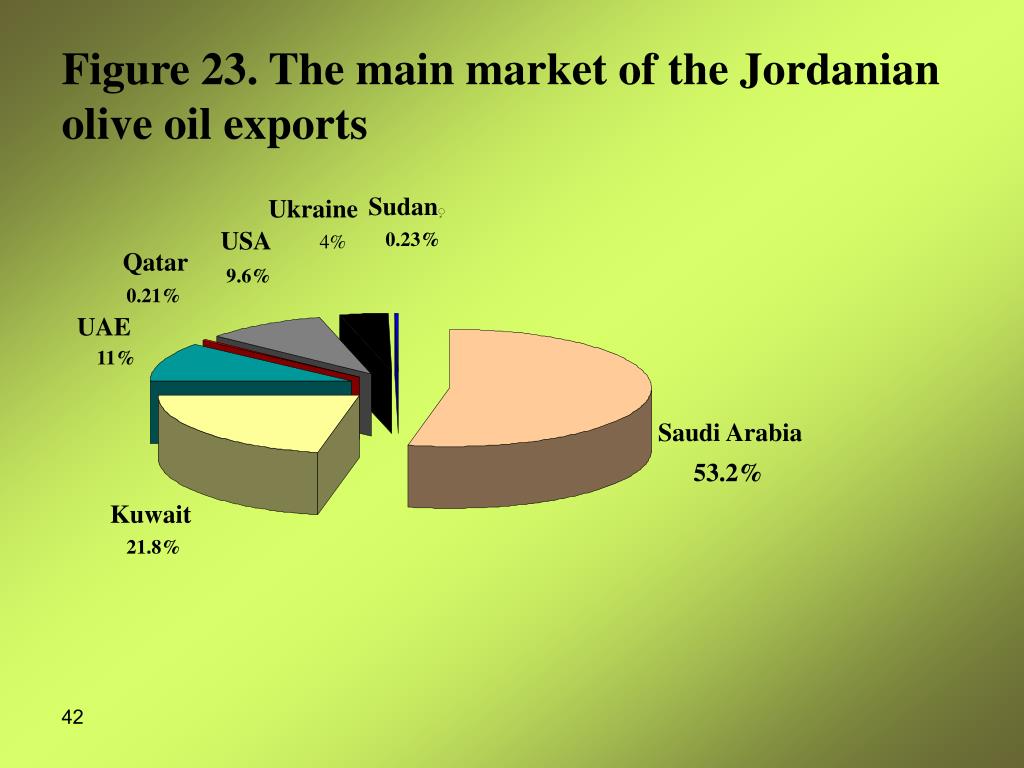

  42. ٍSudan Ukraine USA 0.23% 4% Qatar 9.6% 0.21% UAE 11% Saudi Arabia 53.2% Kuwait 21.8% Figure 23. The main market of the Jordanian olive oil exports
