  1. NCSX Trim Coil Peer Review Tom Brown Art Brooks Raki Ramakrishnan Mike Kalish NCSX Trim Coil Peer Review 11/6/07

  2. Objective • Achieve Consensus on Trim Coil Requirements • Show How Requirements Are Met Through Trim Coil Design Approach and Design Tradeoffs To Date • Establish Path Forward Design is in Development This is the Time for Feedback! NCSX Trim Coil Peer Review 11/6/07

  3. Outline • How Field Error Correction Requirements Evolved Trim Coil Configuration Requirements (Art Brooks) • Optimization of # of Turns • Power Supplies (Raki Ramakrishnan) • Cooling requirements and analysis • Structural Support Requirements • Coil Manufacturability • Schedule • Cost • Path Forward • Summary NCSX Trim Coil Peer Review 11/6/07

  4. 20 21 22 19 12 13 23 18 11 14 10 15 24 17 4 9 5 6 16 3 7 2 1 8 Evolution of Coil Set Configuration- 144 to 12 144 Coil Set Analysis provided the optimum subset of 12 coils 2 Bottom 4 Top Near Midplane Actual Enclosed Area of Coil Les than %50 of Initial Layout Forced Increase in Amp-Turns Bottom NCSX Trim Coil Peer Review 11/6/07

  5. Evolution of Coil Set Configuration- 72 to 36 • Subsets of 72 Coil Set Explored • Evolved into Final 36 Coil Set (24 Effective Coils) 72 Coil Set 36 Coil Set NCSX Trim Coil Peer Review 11/6/07

  6. Art’s Presentation Field Error Correction Requirements and Performance NCSX Trim Coil Peer Review 11/6/07

  7. Determination of the # of Turns • Original Design = 4 Turns • Minimized Coil Cost • Heat Transfer OK • Optimized Design =121 Turns (or more) • Power Supply Costs Drop • More turns – Higher Voltage Lower Current • Less than 600V incurs no penalty in power supply cost • Decreases current requirement from 5000Amp to 165Amp • allows for 11x11 build with reasonable 2mm conductor size • Four Twisted 10AWG (.109”x4) wires can be used for buss connections • Note: 121 Turns requires response time be greater than 32 ms NCSX Trim Coil Peer Review 11/6/07

  8. Coil, Bus, Power Supply Cost Comparison 4 Turns vs 121 Turns • Increases Coil Costs • Decreases Power Supply Costs • Decreases Final Bus Work Material Cost • Decreases Bus Work Installation Cost • 24 Connections Out of Cryostat and 2 Connections to Basement NCSX Trim Coil Peer Review 11/6/07

  9. POWER SUPPLIES FOR TRIM COILS • SELECTION OF POWER SUPPLIES • THERE ARE 36 COILS TO BE CONFIGURED IN 24 CIRCUITS • IN EACH CIRCUIT FOLLOWING IS NEEDED: • H BRIDGE & ASSOCIATED CONTROLS • DISCONNECT AND GROUND SWITCHES • VOLTAGE & CURRENT TRANSDUCERS • CABLING • ALL 24 H BRIDGES WILL BE FED FROM ONE DC LINK • PROPOSE TO USE EXISTING 500V 5KA(PULSED) PEI SUPPLY • FORCING VOLTAGE TO BE AS HIGH AS POSSIBLE BUT BELOW 450 VOLTS • SELECT NUMBER OF TURNS ACCORDINGLY • IF 4 TURNS ARE CHOSEN THE CABLING WILL BE 4/C 2/0- TWO CONDUCTORS IN PARALLEL IN EACH POLE. • IF 128 TURNS ARE CHOSEN THE CABLING WILL BE 4/C #12 TWO CONDUCTORS IN PARALLEL IN EACH POLE. • NOTE THAT 4/C#12 WILL BE THE MINIMUM CABLING SIZE THAT WILL BE CHOSEN INDEPENDENT OF INCREASE IN NUMBER OF TURNS Raki NCSX Trim Coil Peer Review 11/6/07

  10. POWER SUPPLIES FOR TRIM COILS • COST OF POWER SUPPLIES & ASSOCIATED EQUIPMENT • IF 4 TURNS ARE CHOSEN COST WILL BE NEARLY 2.5 MILLION DOLLARS • IF 128 TURNS ARE CHOSEN COST WILL BE NEARLY 1 MILLION DOLLARS Raki NCSX Trim Coil Peer Review 11/6/07

  11. NCSX Trim Coil Peer Review 11/6/07 Raki

  12. Raki NCSX Trim Coil Peer Review 11/6/07

  13. Coil Cooling Requirements – Comfortable Design Margins With Convection Cooling, Risk Low • Requirement • 2 second pulse every 15 minutes • 20 Kamp Turns • Fit in 1.25” square cross section • For 121 Turn Coil With 2mm Conductor (11X11) • Temperature increase per pulse is only approx.= 2.6 C • Equilibrium at Temperature Rise approx.= 9C • Equivalent Average Power of 27 watts • Margin Available • Doubling the current to 40 amp turns • Temperature increase per pulse is only approx.= 10.3 C • Equilibrium at Temperature Rise approx.= 35C • Equivalent Average Power of 107 watts NCSX Trim Coil Peer Review 11/6/07

  14. Structure- Design Margin is Questionable, Concept in Development, Risk Higher • Coils Mounted to MCWF • Coils Stepped off of Structure • Force varies linearly with #amp turns • Design Requirement = 20KAmp Turns • Highest Loading approx 75lb/in • Design Will Trade off Coil Structure For # of Supports • Coil May be Wound Into Supporting Case? • Magnetic Permeability Requirement Increases Cost NCSX Trim Coil Peer Review 11/6/07

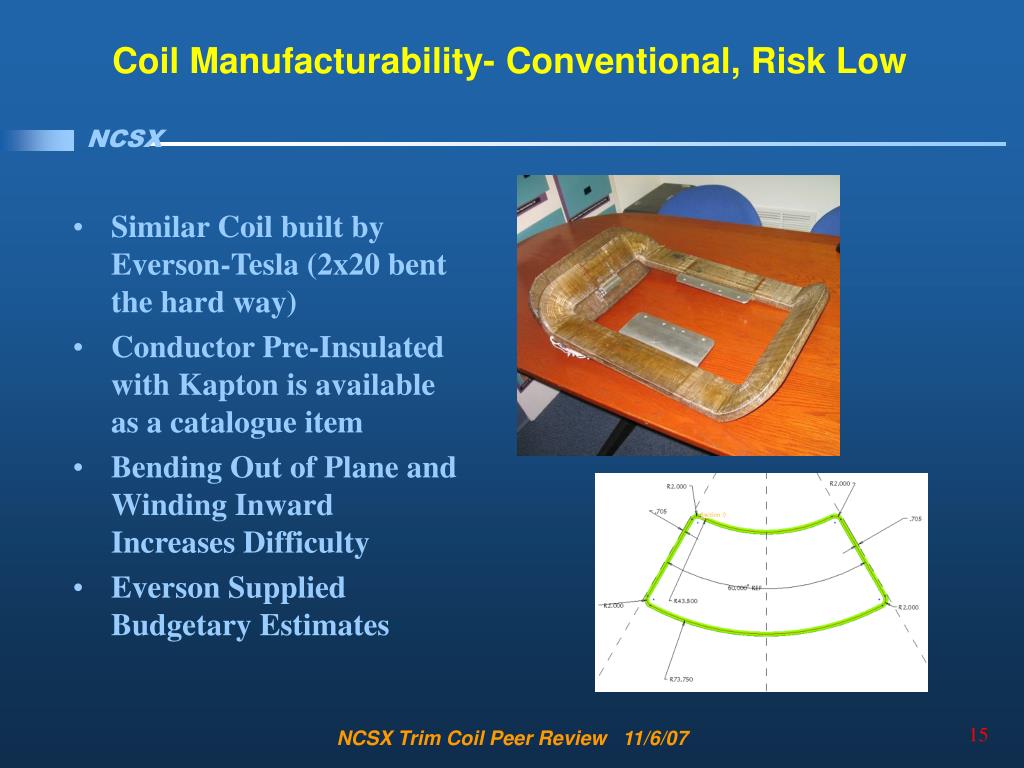

  15. Coil Manufacturability- Conventional, Risk Low • Similar Coil built by Everson-Tesla (2x20 bent the hard way) • Conductor Pre-Insulated with Kapton is available as a catalogue item • Bending Out of Plane and Winding Inward Increases Difficulty • Everson Supplied Budgetary Estimates NCSX Trim Coil Peer Review 11/6/07

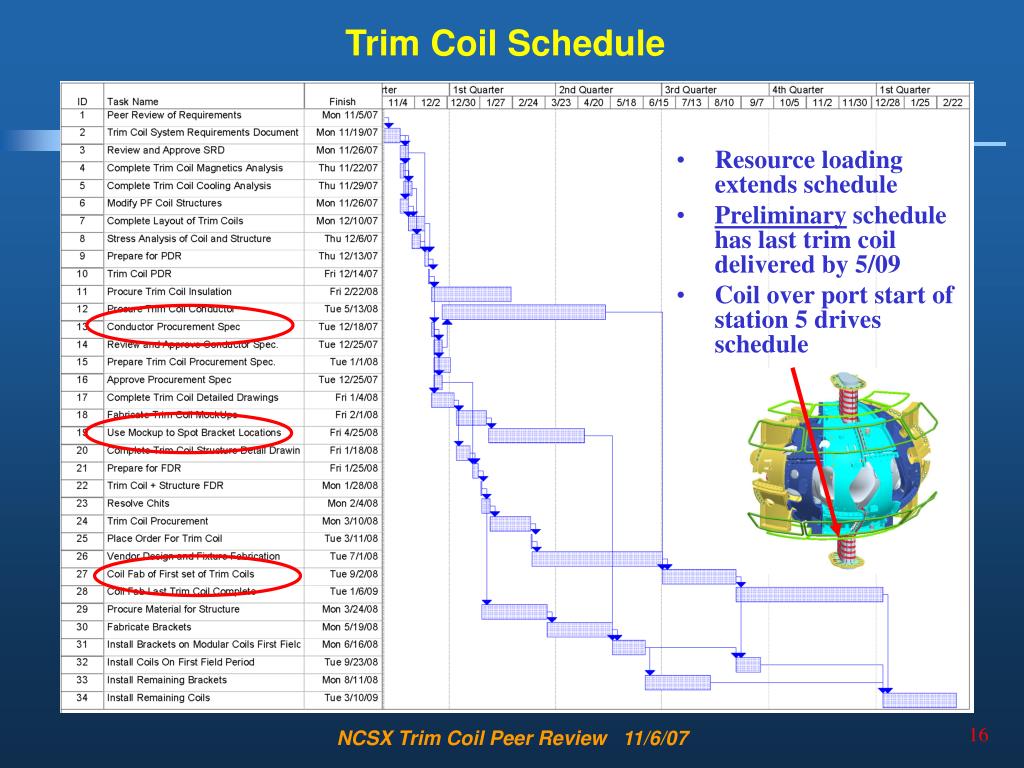

  16. Trim Coil Schedule • Resource loading extends schedule • Preliminary schedule has last trim coil delivered by 5/09 • Coil over port start of station 5 drives schedule NCSX Trim Coil Peer Review 11/6/07

  17. Coil Estimate • Materials Estimated Separately • Coil Fabrication Costs Based on Budgetary Estimate from Everson • Cost escalated due to design uncertainty • Coil Cost = $670K NCSX Trim Coil Peer Review 11/6/07

  18. Structure and Installation Estimate • Installation Hardware Estimate Based on Simple Support Scheme – Costs Will be Escalated • Installation Estimate Includes Metrology • Installation Manpower Estimate = $387K NCSX Trim Coil Peer Review 11/6/07

  19. Coil, Bus, Power Supply Estimate • Power Supply Cost Approx. 35K per Coil with Lower Current Requirement • Bus Cable is 4 Twisted 10 Gauge Wires • 24 Connections Out and 2 Connections to Basement (should change requirement?) • Total Day One Job Cost Including Engineering is now $2240K NCSX Trim Coil Peer Review 11/6/07

  20. Priorities Headed for PDR • Areas of Design Which are Low Risk • Coil Size, Shape, # of Turns, #coils, and cost • Convection Cooling OK • Bus Work simplified with increase in # of turns • Power Supply Costs Minimized • Areas of Design with lower maturity needing work up front • Finalize layout – eliminate interferences • Modify layout so that coil is wound in tension • Determine best support plan to minimize complexity and cost • Structural Analysis • Determine assembly method NCSX Trim Coil Peer Review 11/6/07

  21. Summary- Requirements • 20 KAmp Turns • 36 Coil Configuration • Mounted to Modular Coils • At least 121 Turns (and less than 169) • Response Time Greater Than 32 ms • Installation at Start of Station 5 • Small Coils Jumped in Series for effective 24 Coils • All Coils Brought to Cryostat Junction Box . Only Two Cables Brought to Basement for Day One? NCSX Trim Coil Peer Review 11/6/07
