  1. BRACE: BootstRap based Analogy Cost Estimation Automated support for an enhanced effort prediction method I. Stamelos, L. Angelis Aristotle Univ. Thessaloniki E. Sakellaris Singular International Aristotle University/Singular Int’l

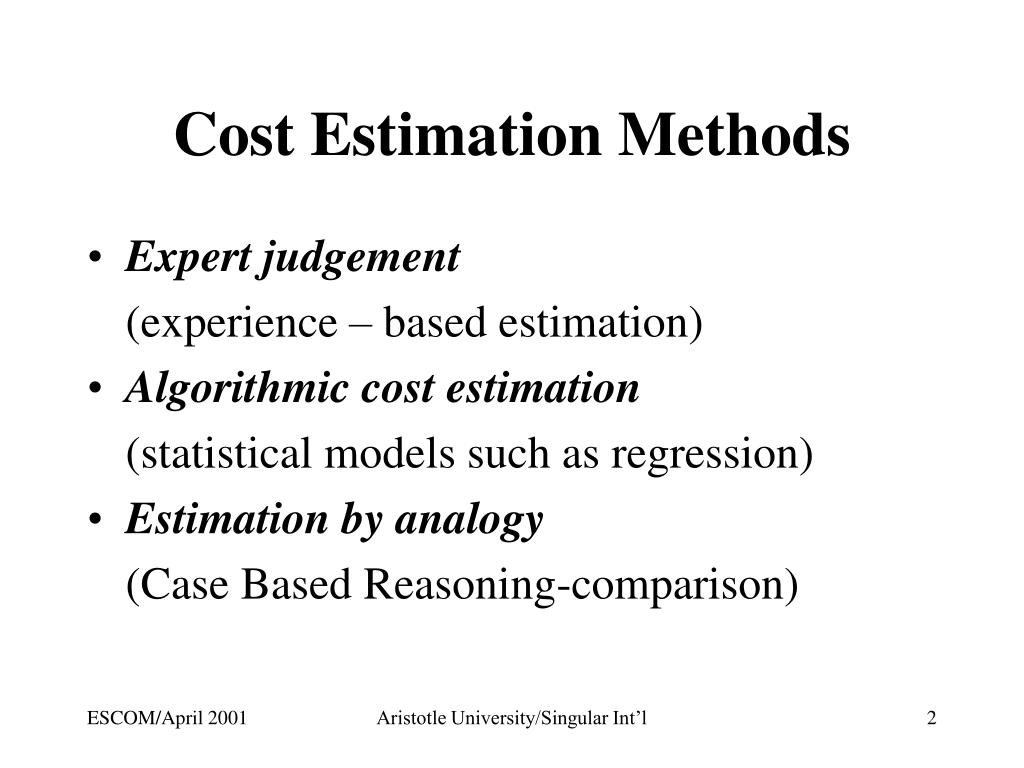

  2. Cost Estimation Methods • Expert judgement (experience – based estimation) • Algorithmic cost estimation (statistical models such as regression) • Estimation by analogy (Case Based Reasoning-comparison) Aristotle University/Singular Int’l

  3. Estimation by Analogy (EbA) • Characterise new project by certain attributes and place it into a historical data set Aristotle University/Singular Int’l

  4. Estimation by Analogy (cont’d) • Calculate distances of the new project from the completed ones and find few "neighbour" projects. • Estimate the unknown effort by a location statistic (mean, median) of the efforts of the neighbour projects Aristotle University/Singular Int’l

  5. Distance Metrics Aristotle University/Singular Int’l

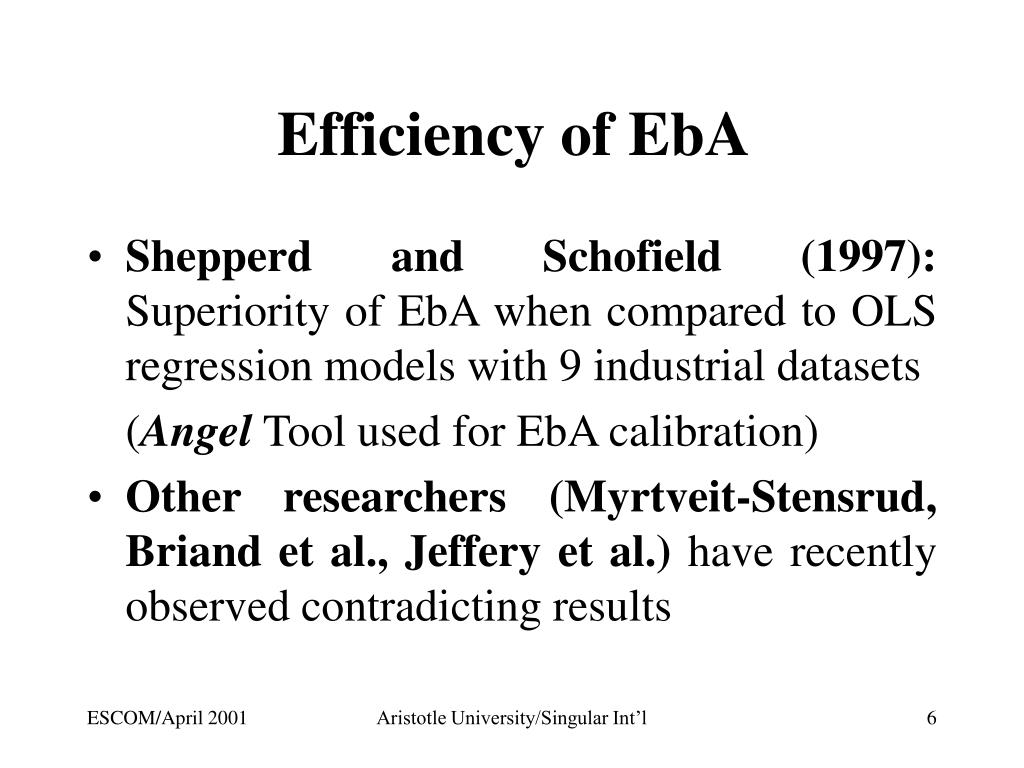

  6. Efficiency of EbA • Shepperd and Schofield (1997): Superiority of EbA when compared to OLS regression models with 9 industrial datasets (AngelTool used for EbA calibration) • Other researchers (Myrtveit-Stensrud, Briand et al., Jeffery et al.) have recently observed contradicting results Aristotle University/Singular Int’l

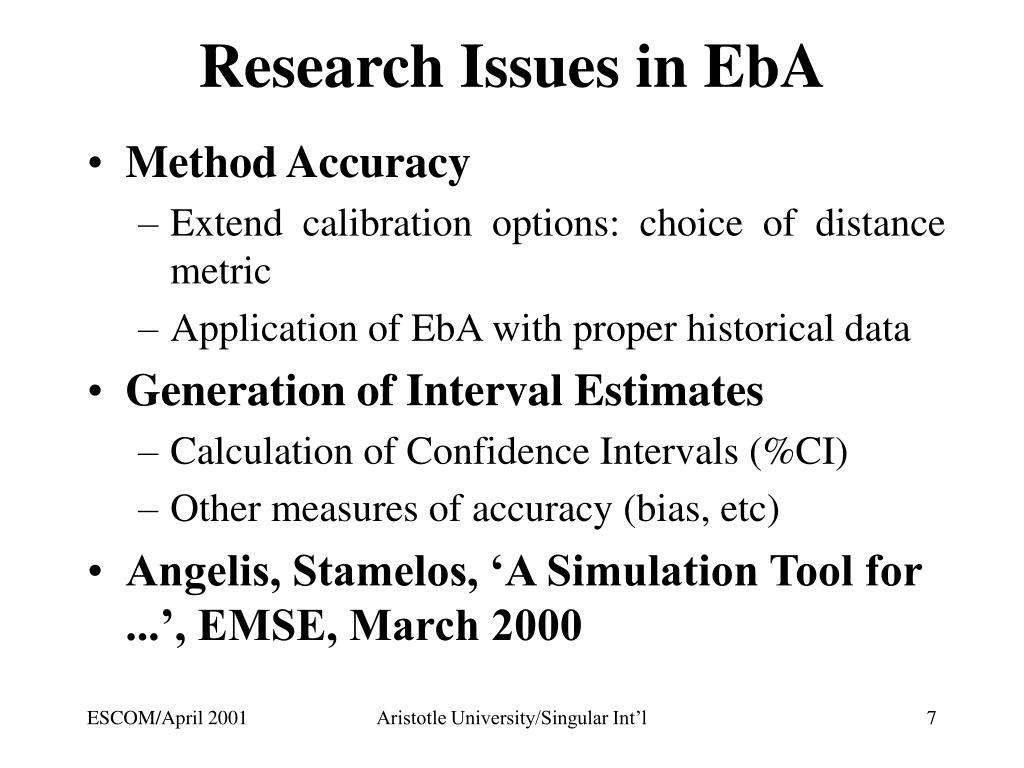

  7. Research Issues in EbA • Method Accuracy • Extend calibration options: choice of distance metric • Application of EbA with proper historical data • Generation of Interval Estimates • Calculation of Confidence Intervals (%CI) • Other measures of accuracy (bias, etc) • Angelis, Stamelos, ‘A Simulation Tool for ...’, EMSE, March 2000 Aristotle University/Singular Int’l

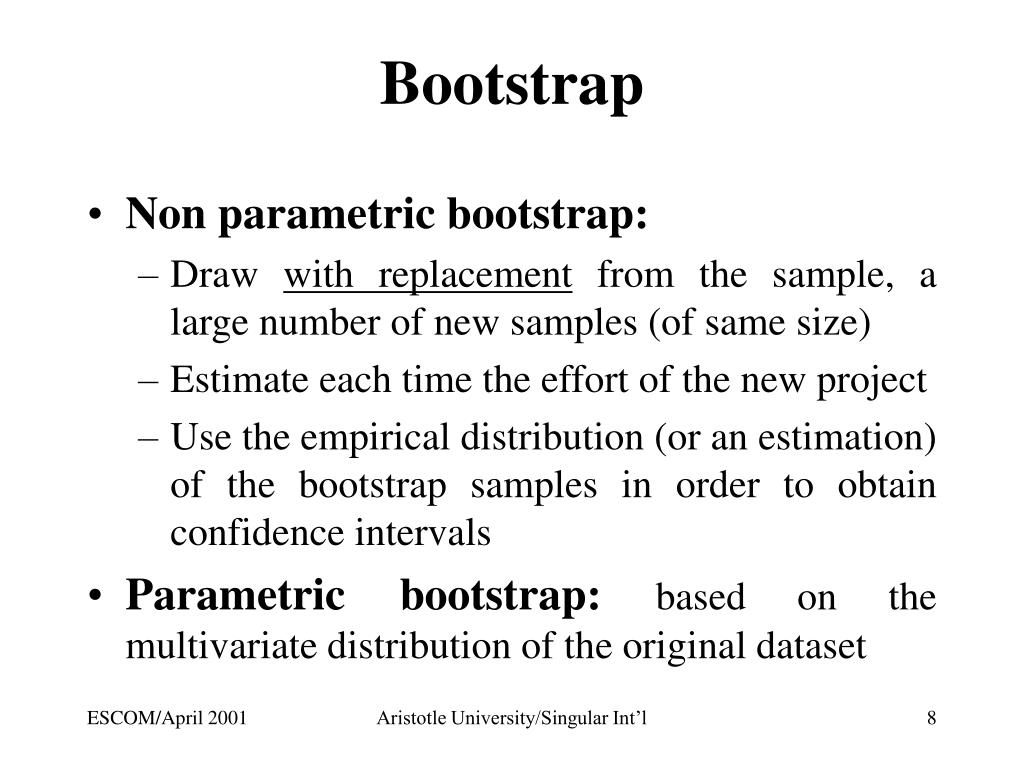

  8. Bootstrap • Non parametric bootstrap: • Draw with replacement from the sample, a large number of new samples (of same size) • Estimate each time the effort of the new project • Use the empirical distribution (or an estimation) of the bootstrap samples in order to obtain confidence intervals • Parametric bootstrap:based on the multivariate distribution of the original dataset Aristotle University/Singular Int’l

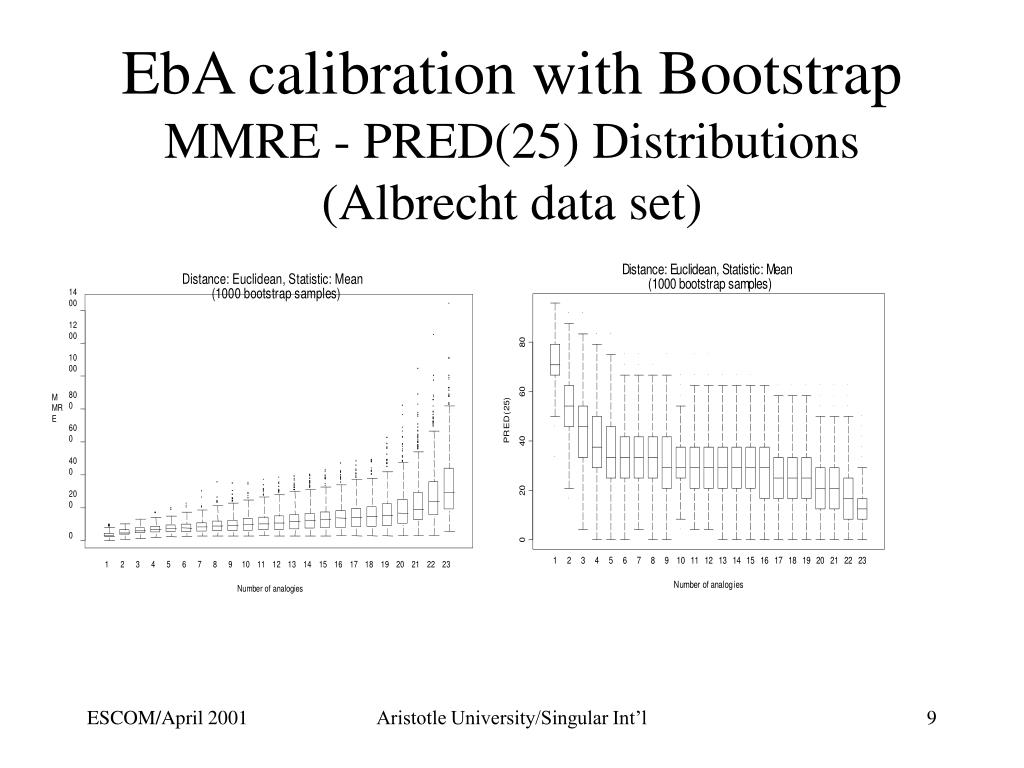

  9. EbA calibration with BootstrapMMRE - PRED(25) Distributions(Albrecht data set) Aristotle University/Singular Int’l

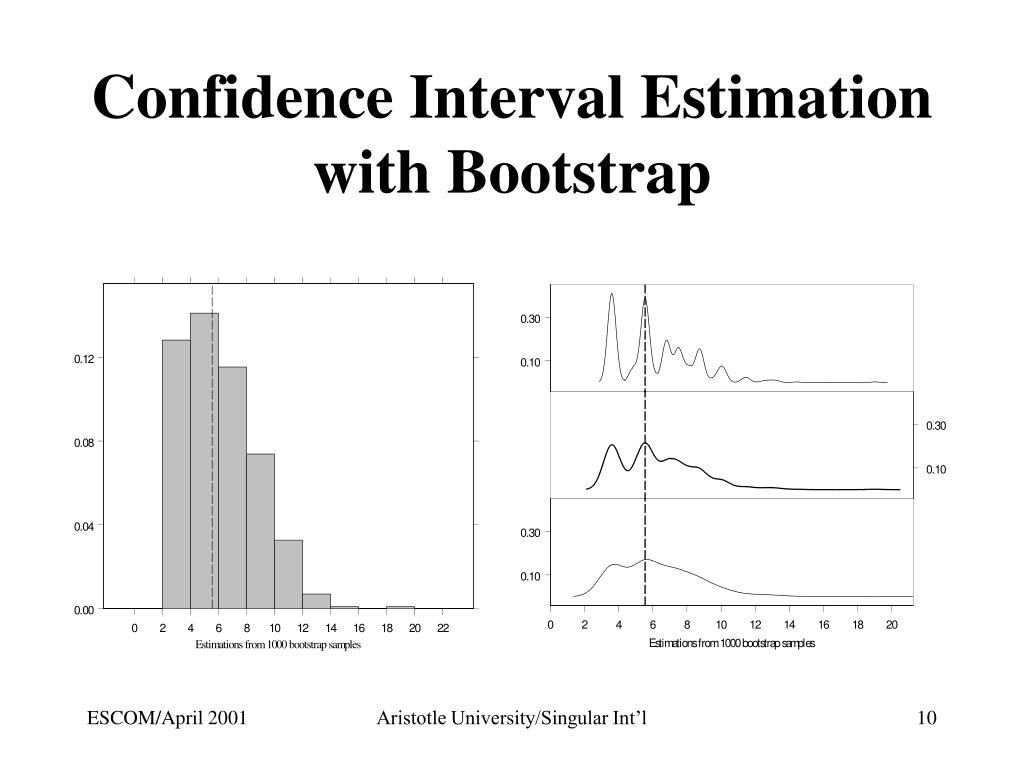

  10. Confidence Interval Estimationwith Bootstrap Aristotle University/Singular Int’l

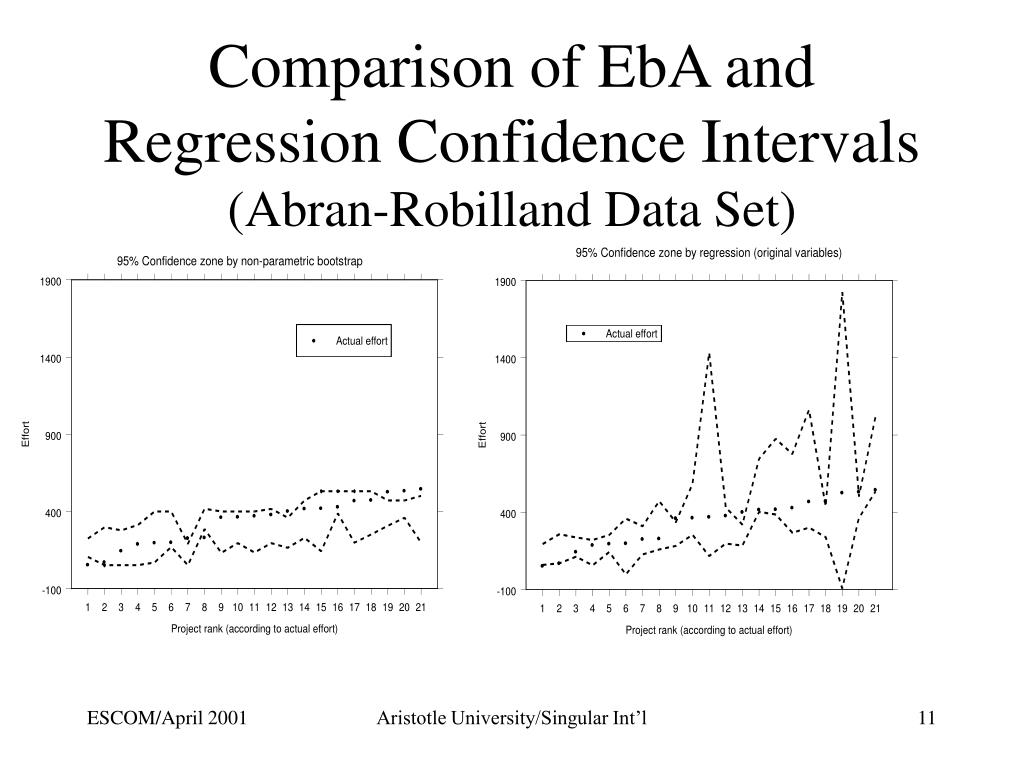

  11. Comparison of EbA and Regression Confidence Intervals(Abran-Robilland Data Set) Aristotle University/Singular Int’l

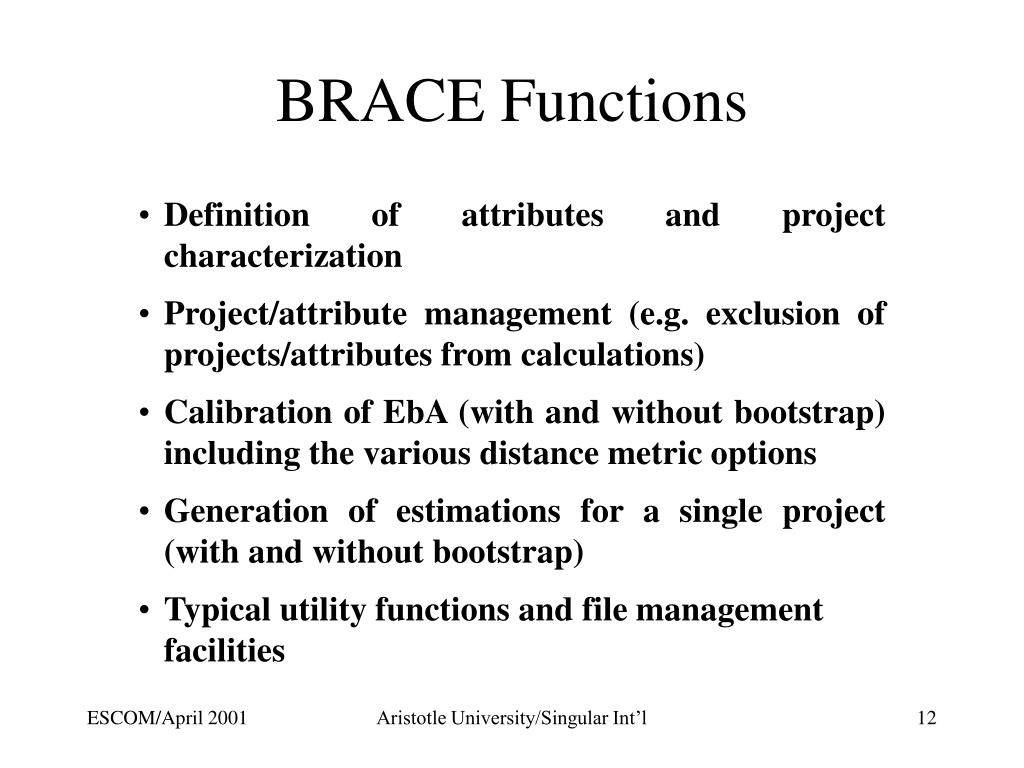

  12. BRACE Functions • Definition of attributes and project characterization • Project/attribute management (e.g. exclusion of projects/attributes from calculations) • Calibration of EbA (with and without bootstrap) including the various distance metric options • Generation of estimations for a single project (with and without bootstrap) • Typical utility functions and file management facilities Aristotle University/Singular Int’l

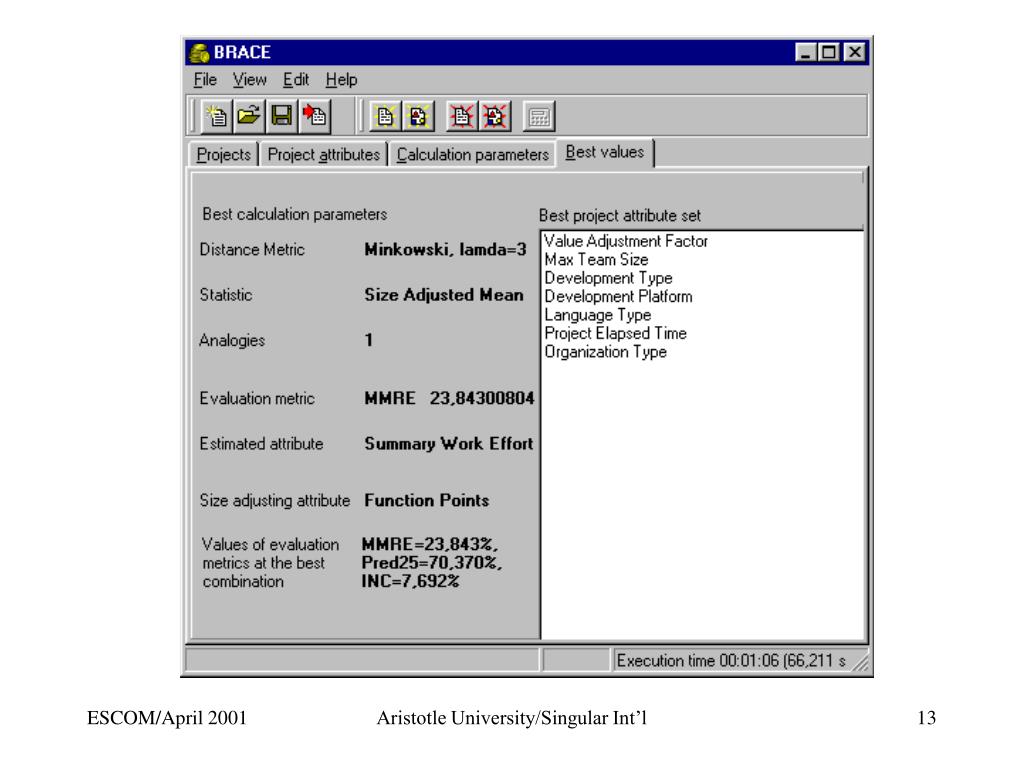

  13. Aristotle University/Singular Int’l

  14. Aristotle University/Singular Int’l

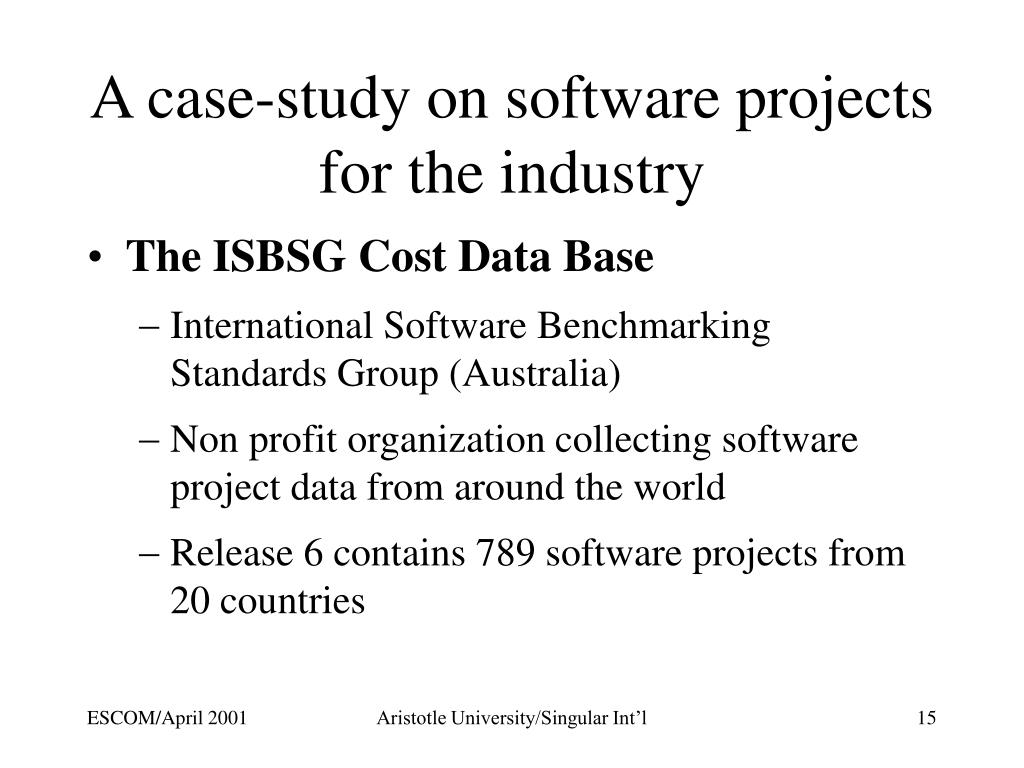

  15. A case-study on software projectsfor the industry • The ISBSG Cost Data Base • International Software Benchmarking Standards Group (Australia) • Non profit organization collecting software project data from around the world • Release 6 contains 789 software projects from 20 countries Aristotle University/Singular Int’l

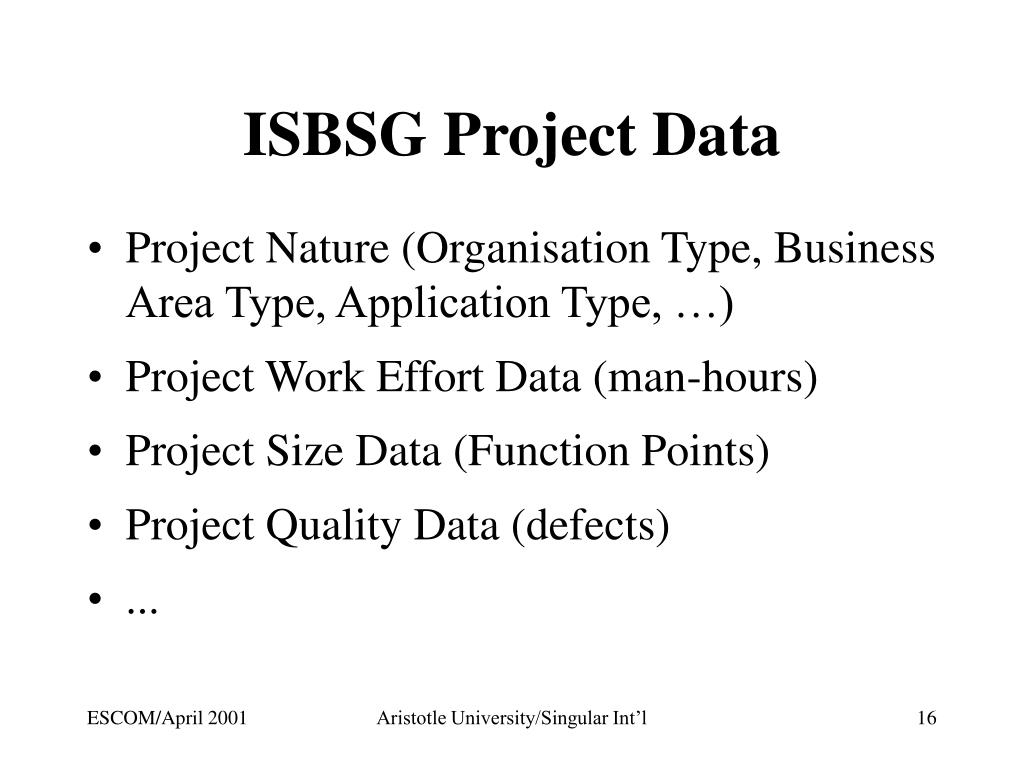

  16. ISBSG Project Data • Project Nature (Organisation Type, Business Area Type, Application Type, …) • Project Work Effort Data (man-hours) • Project Size Data (Function Points) • Project Quality Data (defects) • ... Aristotle University/Singular Int’l

  17. Supply Chain ISBSG Project Subset • 59 projects implementing information systems for manufacturing, logistics, warehouse management, … • characterized through effort, size, elapsed time, team size, project nature attributes • accurate project attribute measurement • average productivity ~ 190 FP/ 1000 mh Aristotle University/Singular Int’l

  18. BRACE Application • Various strategies were tried because of missing values in project characterisation • Best strategy pursued a trade-off between number of projects and attributes • Precision was measured through project jackniving • Different treatment for elapsed time and max team size Aristotle University/Singular Int’l

  19. EbA Precision Results • Best parameter configuration: 30 projects, Canberra distance, one analogy, size adjustment: MMRE = 28.84%, PRED(25) = 46.67% • When using elapsed time and team size Minkowski, λ=3 distance MMRE = 23.84%, PRED(25) = 70.37% Aristotle University/Singular Int’l

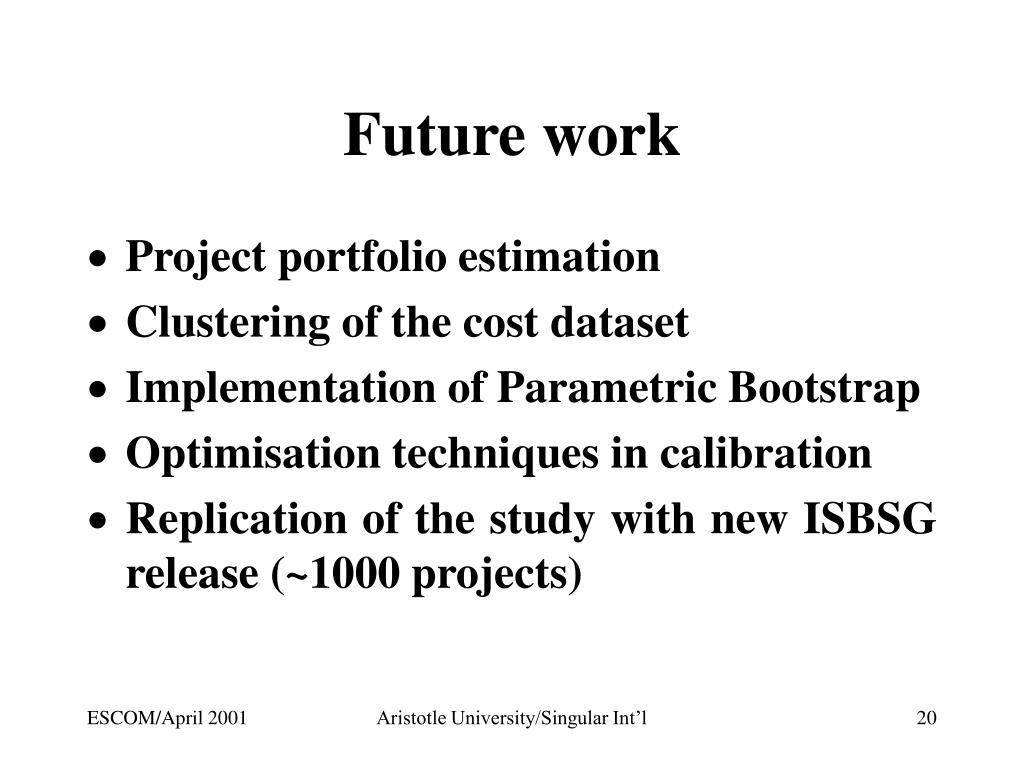

  20. Future work • Project portfolio estimation • Clustering of the cost dataset • Implementation of Parametric Bootstrap • Optimisation techniques in calibration • Replication of the study with new ISBSG release (~1000 projects) Aristotle University/Singular Int’l
