Significant Figures

Significant Figures. Rule #1: All non-zeros are significant example: 673 m = 3 sig. figs. Rule #2: Zeros between non-zeros are significant example: 309 m = 3 sig. figs. Rule #3: Trailing zeros are ONLY significant if part of the decimal example: 0.0034500 m = 5 sig. figs.

Download Presentation

Significant Figures

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

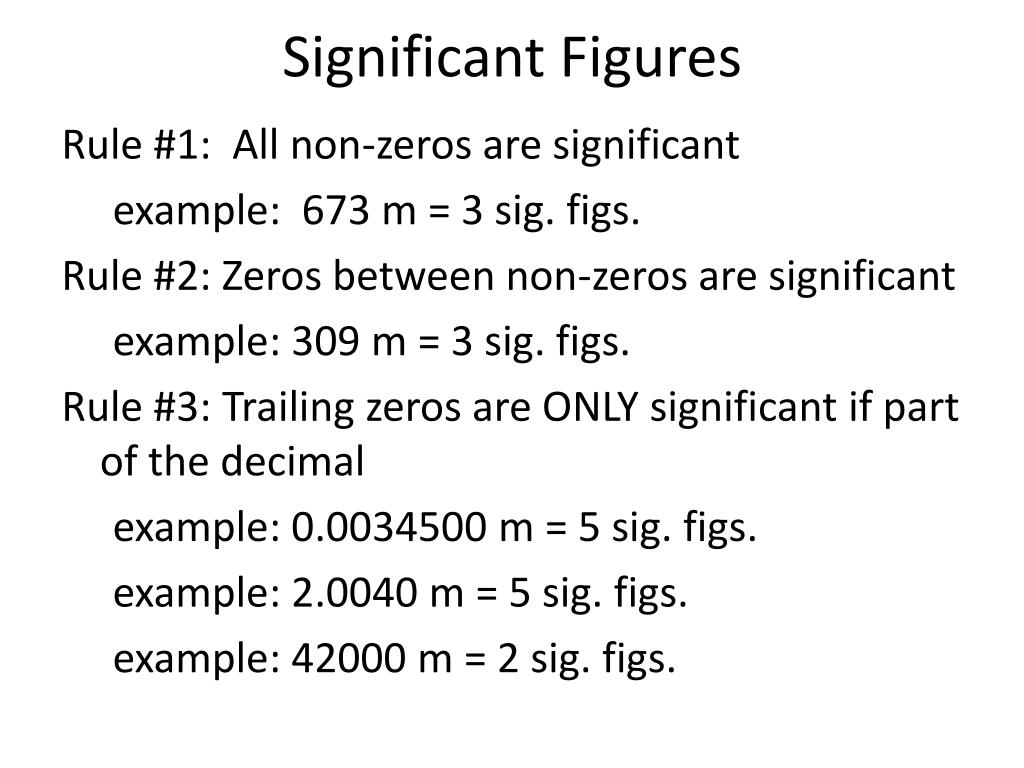

  1. Significant Figures Rule #1: All non-zeros are significant example: 673 m = 3 sig. figs. Rule #2: Zeros between non-zeros are significant example: 309 m = 3 sig. figs. Rule #3: Trailing zeros are ONLY significant if part of the decimal example: 0.0034500 m = 5 sig. figs. example: 2.0040 m = 5 sig. figs. example: 42000 m = 2 sig. figs.

  2. Rule #4: When doing math with numbers always round the answer to the number of sig. figs. of the lowest factor. • Example: 32 456 x 945 = 30 670 920 5 3 3 Answer: 30 700 000

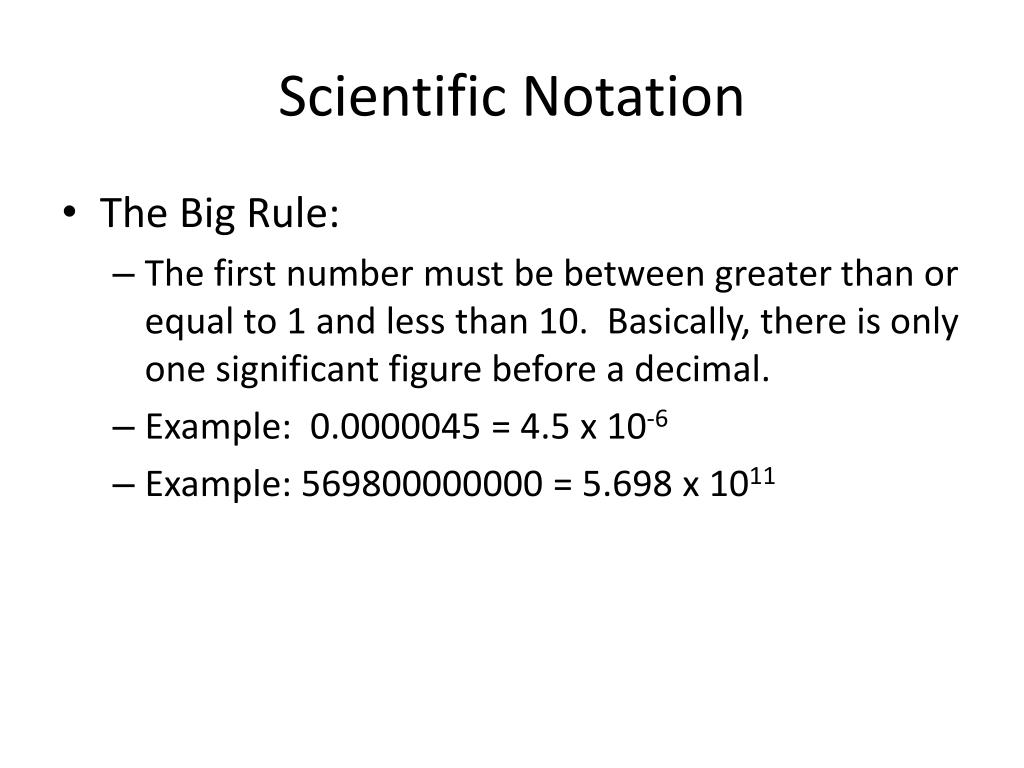

  3. Scientific Notation • The Big Rule: • The first number must be between greater than or equal to 1 and less than 10. Basically, there is only one significant figure before a decimal. • Example: 0.0000045 = 4.5 x 10-6 • Example: 569800000000 = 5.698 x 1011
