Significant Figures

Significant Figures. Start on the correct side (is decimal present or absent?) move toward the US First non-zero number and those after all are significant. P acific Decimal is P resent. A tlantic Decimal is A bsent. 3.0800 0.00418 7.09 x 10 -5 91,600 0.003005 .

slade
Download Presentation

Significant Figures

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Significant Figures • Start on the correct side (is decimal present or absent?) move toward the US • First non-zero number and those after all are significant Pacific Decimal is Present Atlantic Decimal is Absent • 3.0800 • 0.00418 • 7.09 x 10-5 • 91,600 • 0.003005 6. 3.200 x 109 7. 250 8. 750, 000, 000 9. 0.0101 10. 0.00800

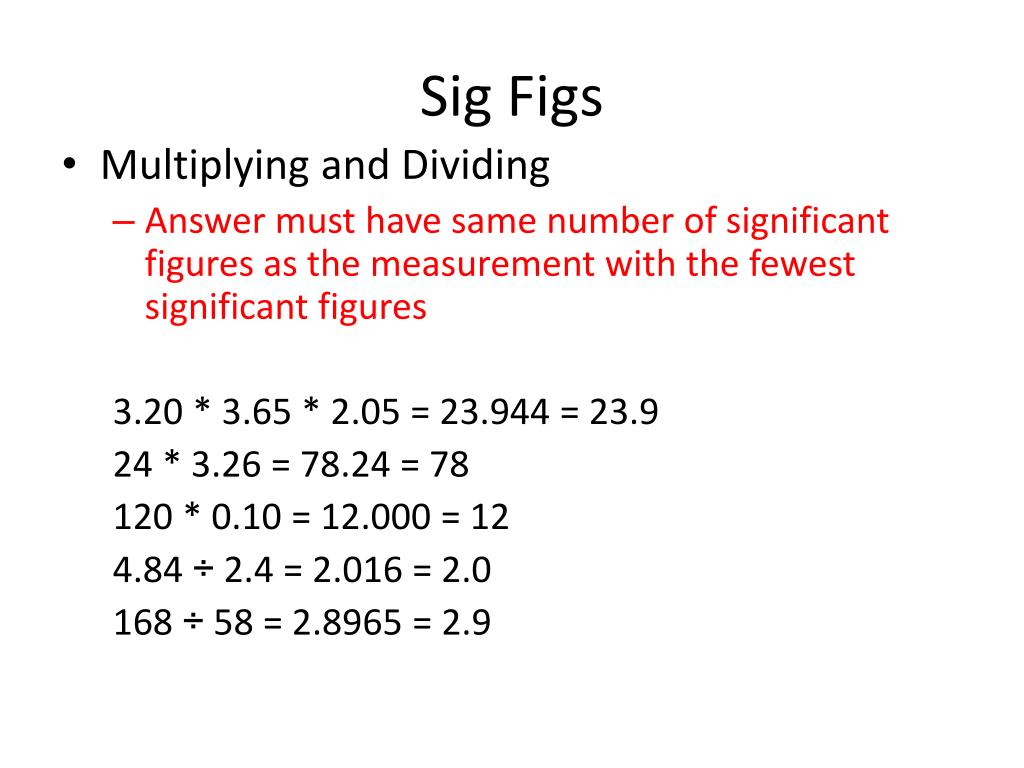

  2. Sig Figs • Multiplying and Dividing • Answer must have same number of significant figures as the measurement with the fewest significant figures 3.20 * 3.65 * 2.05 = 23.944 = 23.9 24 * 3.26 = 78.24 = 78 120 * 0.10 = 12.000 = 12 4.84 ÷ 2.4 = 2.016 = 2.0 168 ÷ 58 = 2.8965 = 2.9

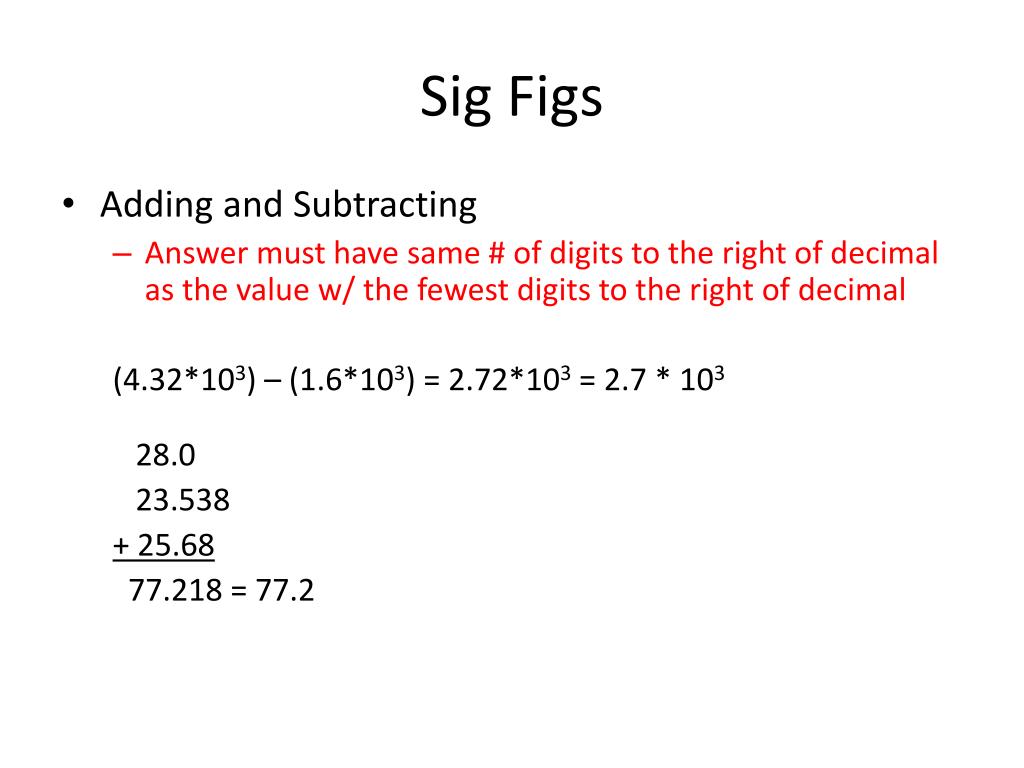

  3. Sig Figs • Adding and Subtracting • Answer must have same # of digits to the right of decimal as the value w/ the fewest digits to the right of decimal (4.32*103) – (1.6*103) = 2.72*103 = 2.7 * 103 28.0 23.538 + 25.68 77.218 = 77.2

  4. Scientific Notation • Convenient way of writing very small or large numbers • Consists of two parts • Number & ten raised to an exponent • Exponent is negative, number will be smaller than 1 • Exponent is positive, number will be bigger than 1 0.000 000 000 000 000 000 000 162 378 1.62 x 10 -22 136,392,412,792 1.36 x 1011

  5. 47,800 0.0035 573 9256 5. 26.23 6. 0.23 7. 0.00036 8. 0.0000501

  6. 9. 4.2 x 103 10 1.12 x 102 1.02 x 101 2.5 x107 2.05 x 10-3 4.5 x10-5 1.002 x 108 1.002 x 10-4

  7. Scientific Notation • Multiplying • Multiply the first factors • Add the exponents (2*103) * (3*103) = 6*106 (4*106) * (2*10-4) = 8*102 • Dividing • Divide the first factors • Subtract the exponents (6*104) ÷ (3*102) = 2*102 (9*103) ÷ (3*10-4) = 3*107 (3- (-4)) = 3+4

  8. 6.25 x10-4 / 4.1 x101 • 4.18 x10-2 / 2.4 x10-2 • 3.24 x10-4 / 4.8 x10-2 • 4.1 x103 x 5.2 x 10-4 • 5.24 x 106 x 6.76 x 102 • 2.3 x 103 x 9.8 x 10-4

  9. Scientific Notation • Adding and Subtracting • Exponents MUST BE THE SAME before doing the math! • Add the numbers and rewrite x10exponent (2.7*107) + (1.56*105) (270*105) +(1.56*105) = 271.56*105 = 2.7 * 107 (8.3*108) – (4.1*106) (830*106) – (4.1*106) = 825.9 *106 = 8.3 *108

  10. 0.0256 + 0.0032 • 4.1 x105 – 2.8 x 102 • 3.1 x105 + 5.2 x103

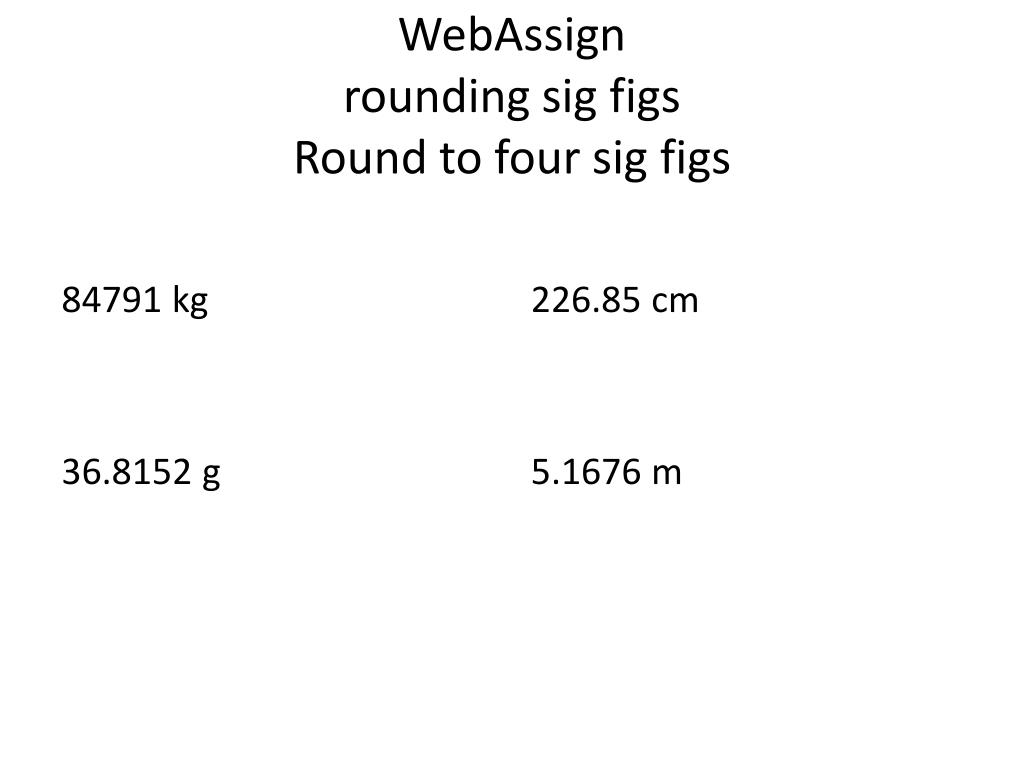

  11. 84791 kg 36.8152 g 226.85 cm 5.1676 m WebAssignrounding sig figsRound to four sig figs

  12. Graphs • Visual display of data

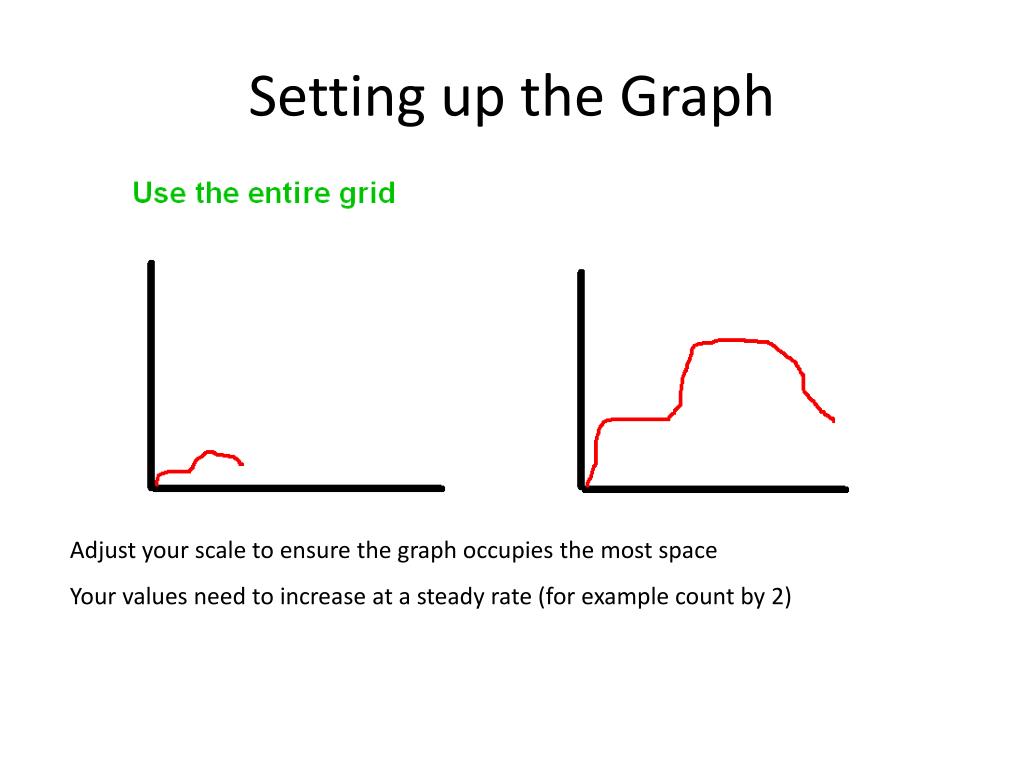

  13. Setting up the Graph Adjust your scale to ensure the graph occupies the most space Your values need to increase at a steady rate (for example count by 2)

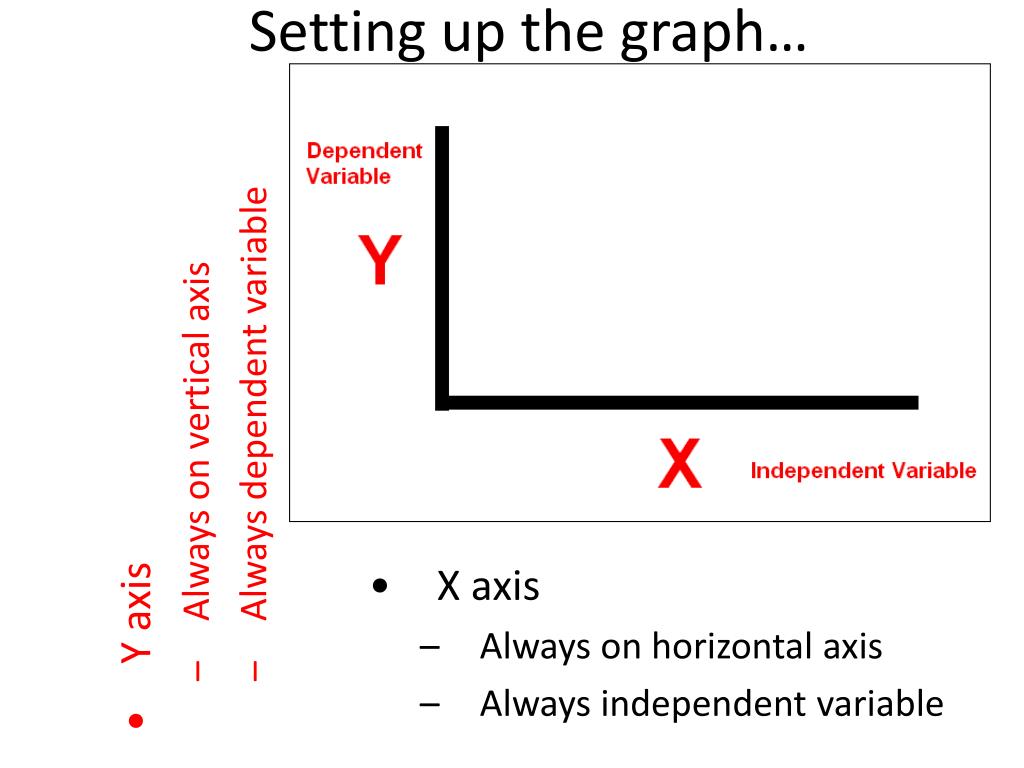

  14. Setting up the graph… • Y axis • Always on vertical axis • Always dependent variable • X axis • Always on horizontal axis • Always independent variable

  15. Which is dependent variable? • Amount of fertilizer • Growth rate of plants • Number of years • Increase in population • Inches of rain that fell • Month rainfall occurred • Amount due on cell phone bill • Minutes used

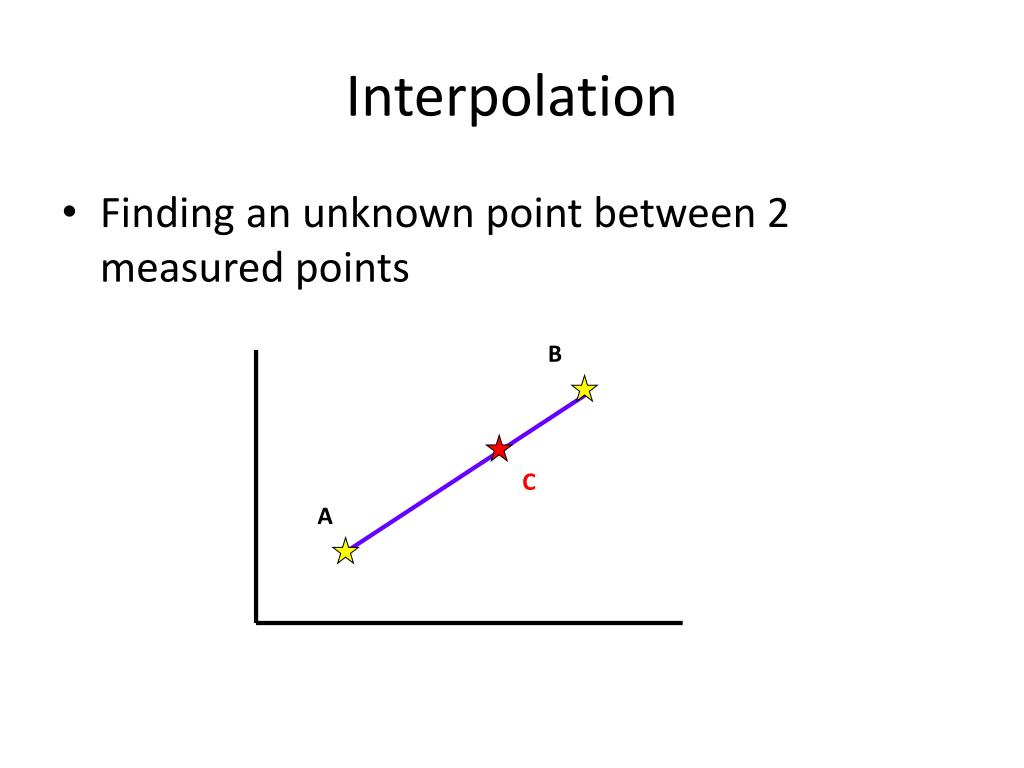

  16. Interpolation • Finding an unknown point between 2 measured points B C A

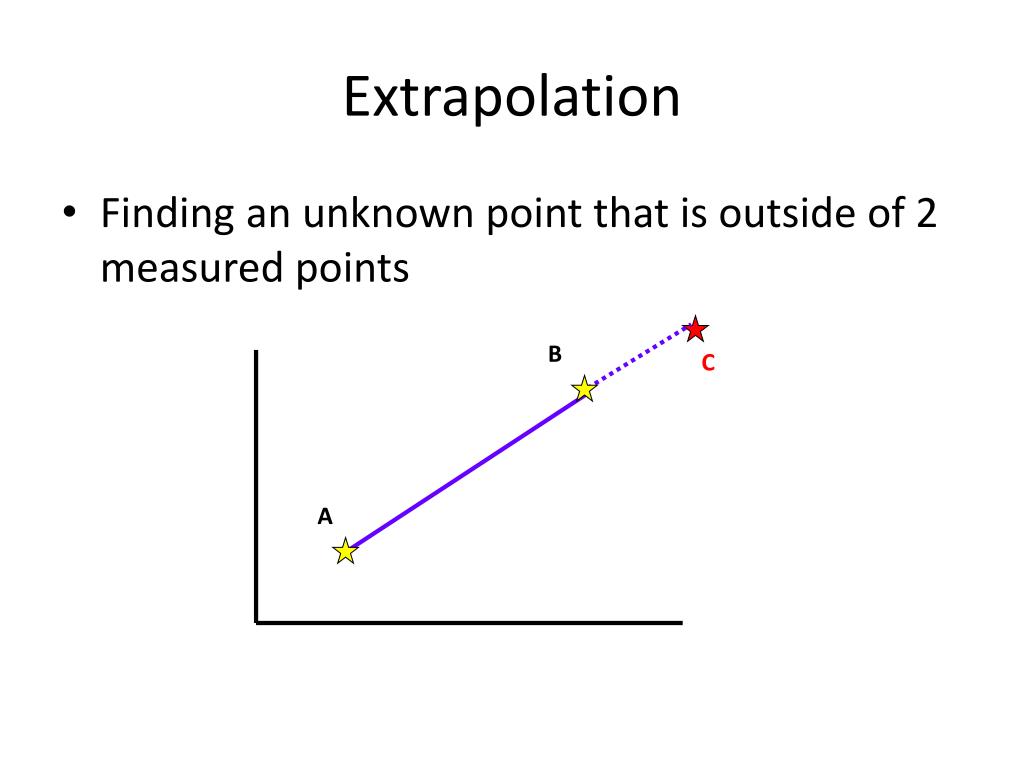

  17. Extrapolation • Finding an unknown point that is outside of 2 measured points B C A

  18. Best fit line • line that averages the data points • DOES NOT MEAN CONNECT THE POINTS
