  1. Korean Air Cargo Cargo Loading Training & SOPs Cargo Operation Management Team SEP 10, 2008

  2. Contents • Build-up • Load Planning • Loading & Unloading Procedures • Safety Reinforcement for HEA & OHG • Special Cargo Transportation Case

  3. Build-up Procedures • Each stage performed according to Safety Regulations • Laying a pallet on a work station • Lading cargo as a build-up plan • Covering a plastic sheet & Netting • Final Check & Weighing

  4. Load Planning Procedures (1) • Build-up Status Transimtted to Load Control System • Web-based Integrated New Load System : WinLoads • ULD NBR • Gross WT • Contour • SPCL Code

  5. Load Planning Procedures (2) • Ideal Load Planning for Safety

  6. Load Planning Procedures (3) • All the calcuations automatically done & finally verified • Flight Basic Information and W&B Status displayed in real-time • Balance Grid displayed • LITOW • MACTOW • LIZFW • MACTOW

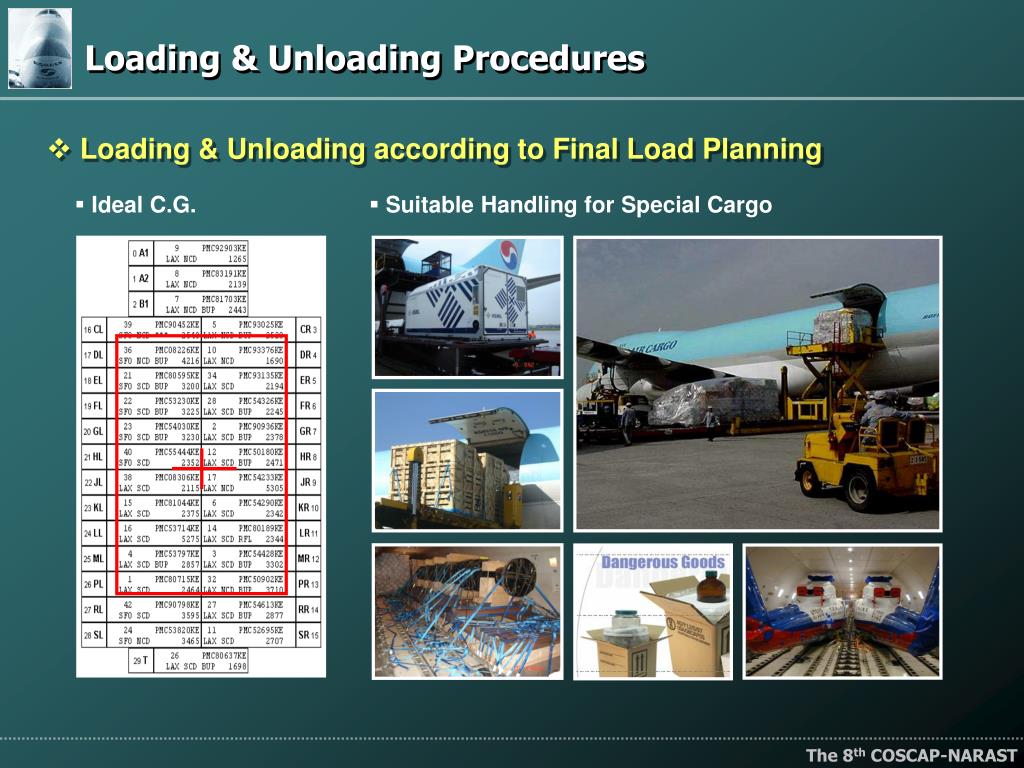

  7. Loading & Unloading Procedures • Loading & Unloading according to Final Load Planning • Ideal C.G. • Suitable Handling for Special Cargo

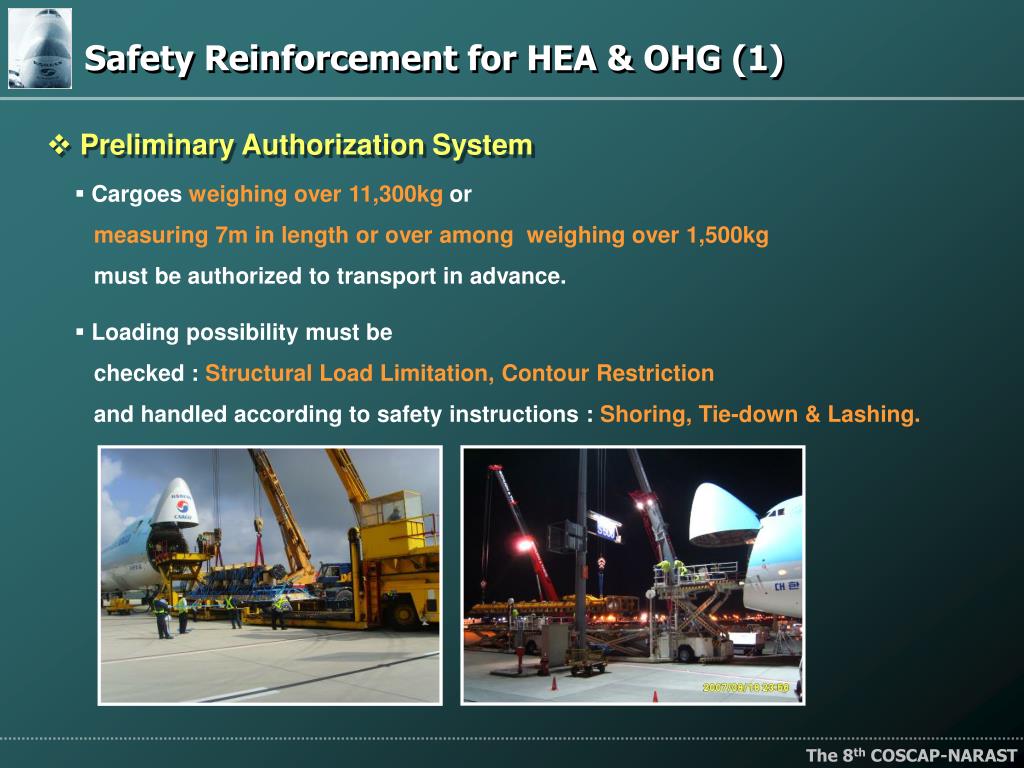

  8. Safety Reinforcement for HEA & OHG (1) • Cargoes weighing over 11,300kg or measuring 7m in length or over among weighing over 1,500kg must be authorized to transport in advance. • Preliminary Authorization System • Loading possibility must be checked : Structural Load Limitation, Contour Restriction and handled according to safety instructions : Shoring, Tie-down & Lashing.

  9. BTU Safety Reinforcement for HEA & OHG (2) • Changing BTUs to Caster Type for New Freighters • All of the new type freighters are equipped with BTUs (Ball Transfer Units). • Due to structural weakness of BTUs, those located near Nose Cargo Door are being changed to Swivel Casters. • It is expected that A/C floor parts damage will be remarkably decreased. Swivel Caster

  10. Special Cargo Transportation Case (1) 40ton Heavy Cargo from ICN to JFK

  11. Special Cargo Transportation Case (2) 18.5m Extra-sized Cargo from SIN to FRA

  12. Thank you for your attention SELFTG@koreanair.com
