Brief History of Nuclear Physics

Brief History of Nuclear Physics. 1896 - Henri Becquerel (1852-1908) discovered radioactivity. 1911 - Ernest Rutherford (1871-1937), Hanz Geiger (1882-1945) and Ernest Marsden (1888-1970) conducted scattering of alpha particles on nuclei.

keilah
Download Presentation

Brief History of Nuclear Physics

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Brief History of Nuclear Physics 1896 - Henri Becquerel (1852-1908) discovered radioactivity 1911 - Ernest Rutherford (1871-1937), Hanz Geiger (1882-1945) and Ernest Marsden (1888-1970) conducted scattering of alpha particles on nuclei 1930 - John D. Cocroft (1897-1967) and Ernest T.S. Walton (1903-1995) conducted the first artificial nuclear reaction 1932 - James Chadwick (1891-1974) discovered the neutron 1933 - Frederick Joliot (1900-1958) and Irene Joliot-Curie (1897-1956) synthesized artificial elements 1938 - discovery of nuclear fission by Otto Hahn (1879-1968) and Fritz Strassman (1902-1980) 1942 - Enrico Fermi (1901-1954) builds a fission reactor

  2. + + 4 He + 2 + + + Properties of nuclei Mass Number A - number of nuclei - number of protons (charge, element) Atomic Number Z Neutron Number N - number of neutrons A X A nucleus is represented by symbol: Z Elements with different numbers of neutrons are called isotopes.

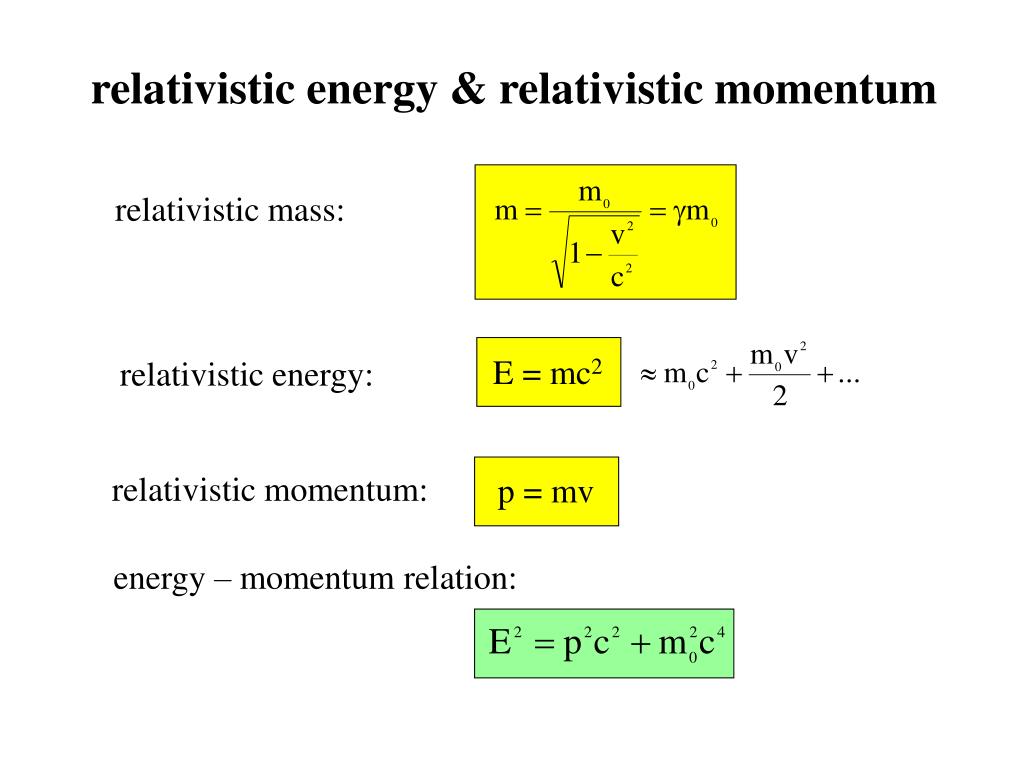

  3. E = mc2 p = mv relativistic energy & relativistic momentum relativistic mass: relativistic energy: relativistic momentum: energy – momentum relation:

  4. mass charge spin MeV/c2 kg a.u. attributes of selected particles

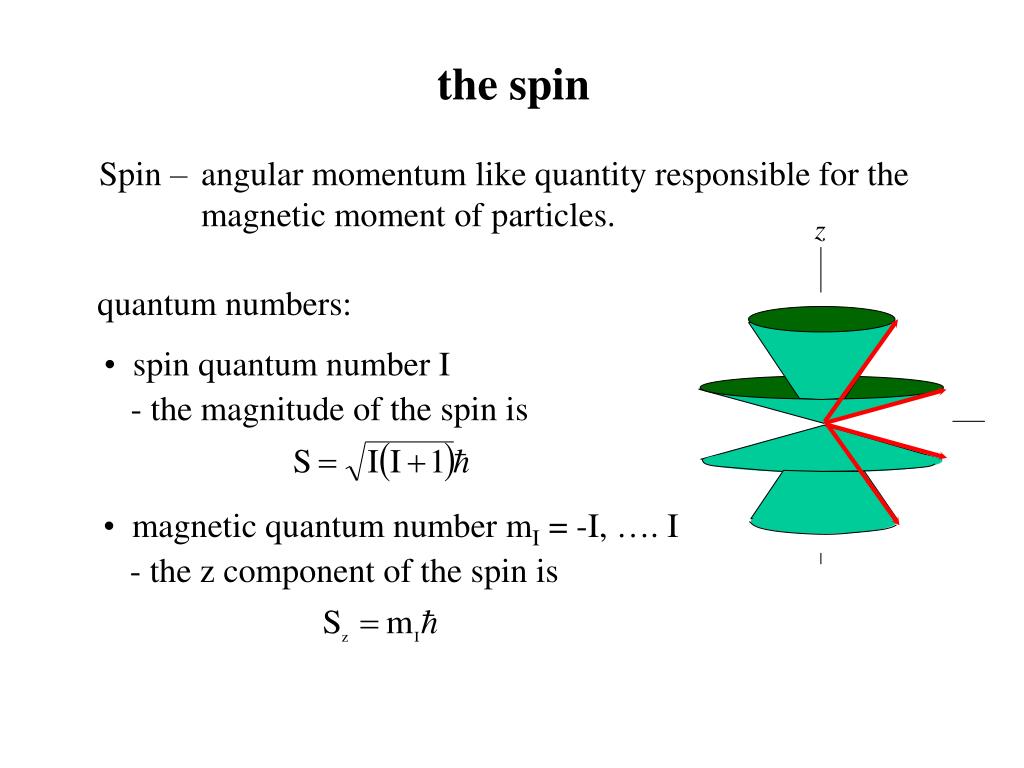

  5. the spin Spin – angular momentum like quantity responsible for the magnetic moment of particles. z quantum numbers: • spin quantum number I - the magnitude of the spin is • magnetic quantum number mI = -I, …. I - the z component of the spin is

  6. Conclusion: where r0 = 1.2 fm Nucleus size and shape Rutherford’s experiment m Ze 2e d

  7. Nuclear Stability Coulomb interaction - repulsive Nuclear interaction - attractive line of stability magic numbers (very stable nuclei): Z, N = 2, 8, 20, …

  8. Binding Energy The total (relativistic) energy of a nucleus is always less than the combined energy of the separated nucleons. The difference Eb (MeV) = ( Zmp + Zmn - MA ) · 931.491 MeV/a.u. is called the binding energy of the nucleus. Example (alpha particle): Eb= (2 · 1.0073au + 2 · 1.0087au – 4.0026au) · 931.491 MeV/au  27.4 MeV

  9. region of greatest stability 9 8 7 6 binding energy per nucleon (MeV) 5 4 3 2 1 250 0 50 100 150 200 mass number Fission and Fusion Fission – heavy nuclei (A>60) split releasing energy Fusion – light nuclei (A<60) combine releasing energy

  10. + - positrons radioactive source  - alpha particles  - high energy photons - - electrons Radioactivity - spontaneous emission of radiation resulting from disintegration (decay) of unstable nuclei. Types of radioactive decay: lead shield photographic plate

  11. (becquerel), Activity – the decay rate The number of disintegrated nuclei in a unit time is proportional to the number of radioactive nuclei in the source.  – the decay constant Hence N0 – initial number of radioactive nuclei Activity: R0 – initial activity units: 1Ci = 3.7 · 1010 Bq (curie)

  12. N N0 0 Half – life time The decay constant can be expressed in terms of time T½, in which activity (the number of radioactive nuclei) decreases by a factor of two. t
