INTEGRAL Archive at HEASARC Status and Plans

INTEGRAL Archive at HEASARC Status and Plans. Steve Drake. INTEGRAL: Mission Status, Overview of US Program & Archive. INTEGRAL is an ESA mission with NASA participation for hard X-ray/gamma-ray (15 keV-10 MeV) imaging and spectroscopy (& soft X-ray & optical instruments)

keiji
Download Presentation

INTEGRAL Archive at HEASARC Status and Plans

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. INTEGRAL Archive at HEASARC Status and Plans Steve Drake Steve Drake

  2. INTEGRAL: Mission Status, Overview of US Program & Archive • INTEGRAL is an ESA mission with NASA participation for hard X-ray/gamma-ray (15 keV-10 MeV) imaging and spectroscopy (& soft X-ray & optical instruments) • Currently in its 4th year of operations; will be supported by ESA at least through 2010 • Spacecraft and subsystems all operating nominally • 4th GO cycle starts in August 2006 • US investigators comprise ~25% of overall GO program (supported by NASA grants) • NASA GOF mirrors ESA’s ISDC archive, and provides technical and scientific support to US astronomy community (2.5 science FTEs) • Future of NASA INTEGRAL funding to be determined by 2006 MO&DA Senior Review Steve Drake

  3. INTEGRAL Archive: Milestones • July 2004: The ISDC INTEGRAL Public Data Archive opened with data up to revolution 66 (5-1-03). • September 2004: The US INTEGRAL Public Data Archive at the HEASARC opened. • January 2005: All public data was reprocessed into revision 2 format. - Rev 2 utilizes HEASARC-compatible event file formats • February 2005: The US INTEGRAL Public Data Archive at the HEASARC switches over to revision 2 format data. • February 2006: 1.8 TB of public INTEGRAL data available from the HEASARC (most of mission up to Jan/Feb 2005) Steve Drake

  4. INTEGRAL Archive: Current Status • New public data is available to the community within a few days of its release from the ISDC. • The limiting factor is the low data transfer rate from the ISDC. • ~3 spacecraft orbital revolutions = 9 days of data can be transferred per day. • All public data through the latest ISDC release (03-31-06) is currently available from the HEASARC archive. Steve Drake

  5. Accessibility • The US INTEGRAL Public Data Archive is accessible from the HEASARC via Browse or FTP. • Downloading the data as a tar file is complicated by the large size of the typical observation, 1 Rev. = 3 days of data = 7-8 GB. • The HEASARC limit for a tar file is 5 GB ==> the preferred download method is via a wget script created by Browse. • A detailed description of all the INTEGRAL catalogs available through Browse as well as a detailed cookbook describing the downloading of data : <http://heasarc.gsfc.nasa.gov/docs/integral/inthp_archive.html> Steve Drake

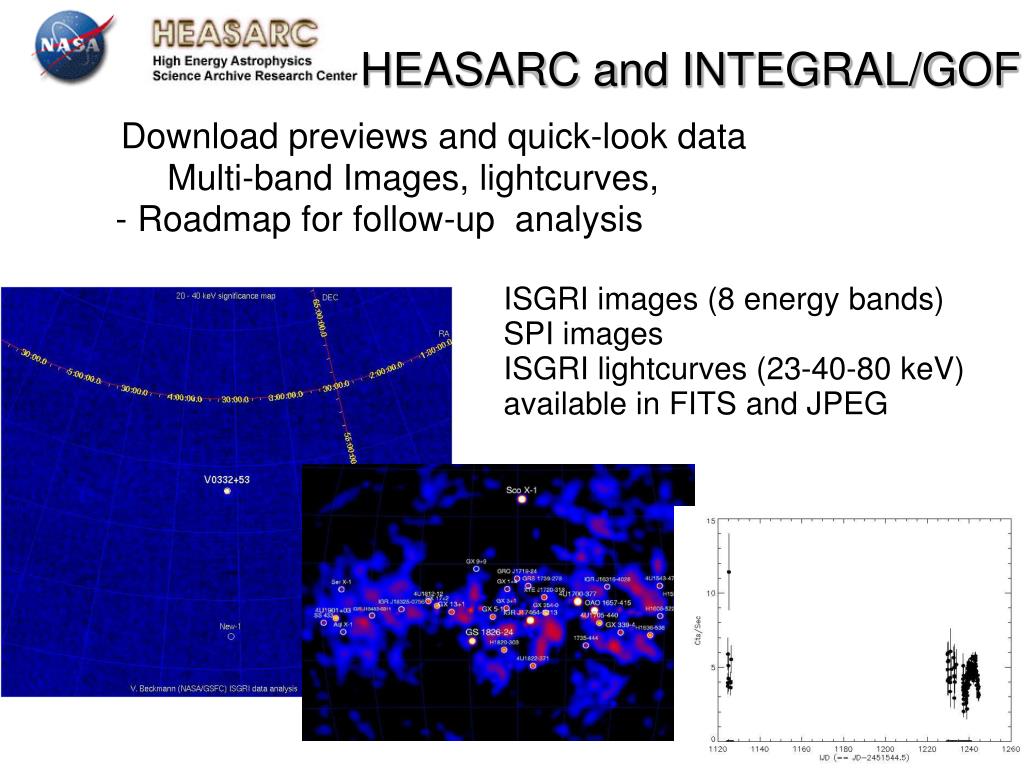

  6. ISGRI images (8 energy bands) SPI images ISGRI lightcurves (23-40-80 keV) available in FITS and JPEG HEASARC and INTEGRAL/GOF • Download previews and quick-look data • Multi-band Images, lightcurves, - Roadmap for follow-up analysis

  7. High-level INTEGRAL Products • Routine analysis of all public data • Basic analysis of 600 observations in the archive • ISGRI and SPI lightcurves for 200 bright sources: • “INTEGRAL Bright Source Catalog” • “INTEGRAL Source Results” • ISGRI fluxes in 2 energy bands (23-40, 40-80 keV) • “INTEGRAL AGN Catalog” - detailed information about 68 AGN available soon Steve Drake
