Chapter 22 the respiratory system

Chapter 22— The Respiratory System


Ch 22 respiratory sys study guide

Ch. 22 (Respiratory Sys.) Study Guide

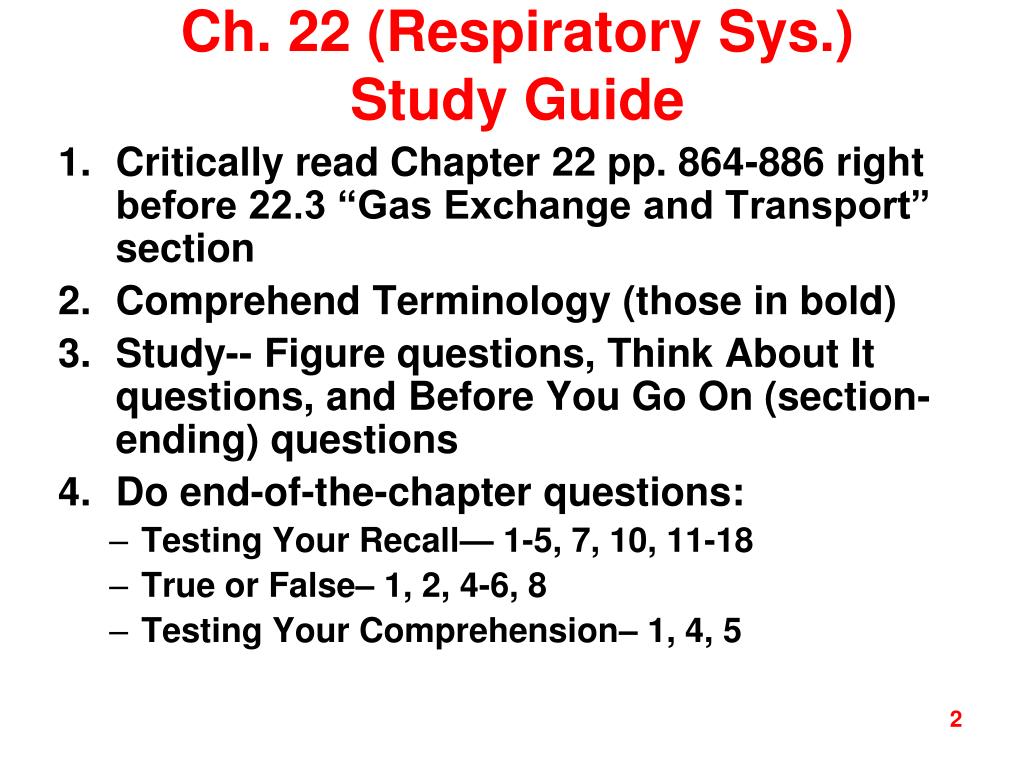

Critically read Chapter 22 pp. 864-886 right before 22.3 “Gas Exchange and Transport” section

Comprehend Terminology (those in bold)

Study-- Figure questions, Think About It questions, and Before You Go On (section-ending) questions

Do end-of-the-chapter questions:

Testing Your Recall— 1-5, 7, 10, 11-18

True or False– 1, 2, 4-6, 8

Testing Your Comprehension– 1, 4, 5

2


Breathe breath 1 or 2

Breathe/Breath (1 or 2)

Fear less, hope more;

Whine less, breathe more;

Talk less, say more;

Hate less, love more;

And all good things are yours.

--Swedish proverb


Breathe breath 2 of 2

Breathe/Breath (2 of 2)

Every day brings a chance

for you to draw in a breath,

kick off your shoes,

and dance.

--Oprah Winfrey

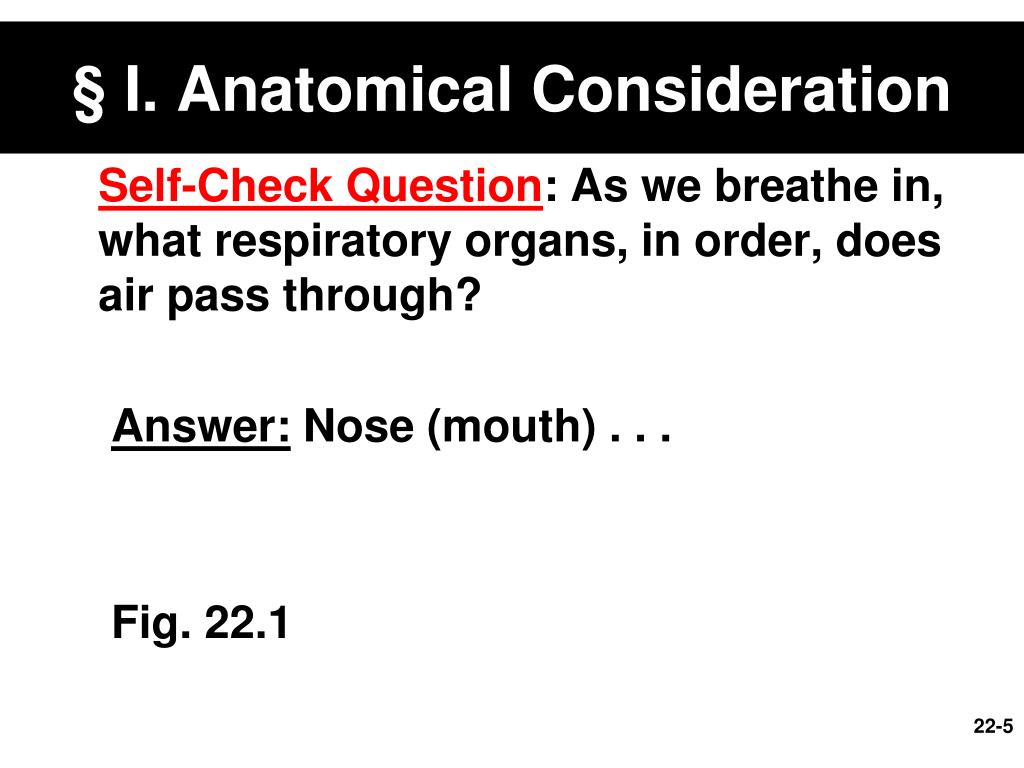

I anatomical consideration

§ I. Anatomical Consideration

Self-Check Question: As we breathe in, what respiratory organs, in order, does air pass through?

Answer: Nose (mouth) . . .

Fig. 22.1


Organs of respiratory system

§ Organs of Respiratory System

1

2

3

4

5

6


General aspects

General Aspects

  • Airflow in lungs

    • bronchi  bronchioles  alveoli

  • Conducting & Rspiratory (C/R) divisions--

    • (C) passages ONLY for airflow, nostrils to bronchioles

    • (R) distal gas-exchange regions and ________

  • Upper/lower (U/L) respiratory tracts

    • (U) organs in head and neck, nose through larynx

    • (L) organs of trachea through lungs


Chapter 22 the respiratory system

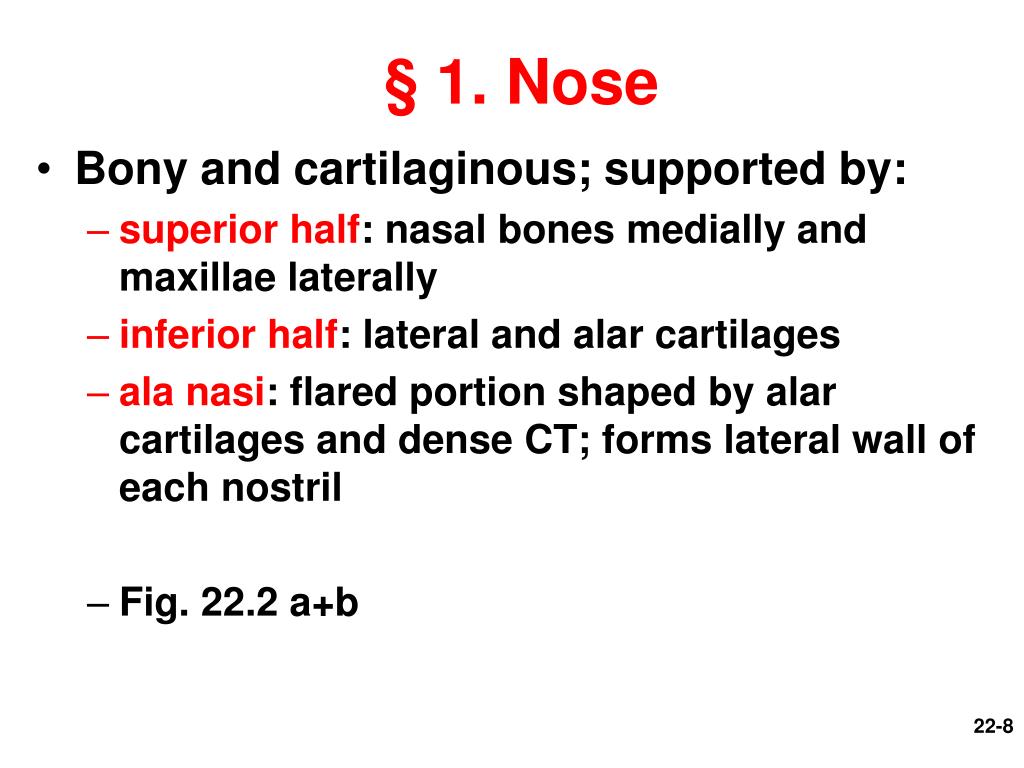

§ 1. Nose

  • Bony and cartilaginous; supported by:

    • superior half: nasal bones medially and maxillae laterally

    • inferior half: lateral and alar cartilages

    • ala nasi: flared portion shaped by alar cartilages and dense CT; forms lateral wall of each nostril

    • Fig. 22.2 a+b


Conn tissues shape the nose

Conn. tissues shape the nose

(Ala nasi)


Chapter 22 the respiratory system

External Anatomy of Nasal Region


Nasal cavity 1

Nasal Cavity (1)

  • Extends from nostrils to posterior nares

  • Vestibule: dilated chamber inside ala nasi (just inside the nostril)

    • stratified squamous epithelium and vibrissae (guard hairs)

  • Nasal septum divides cavity into right and left chambers called nasal fossae

    • Makes up of = Perpendicular plate of ethmoid bone + . . .


Nasal cavity 2 conchae and meatuses

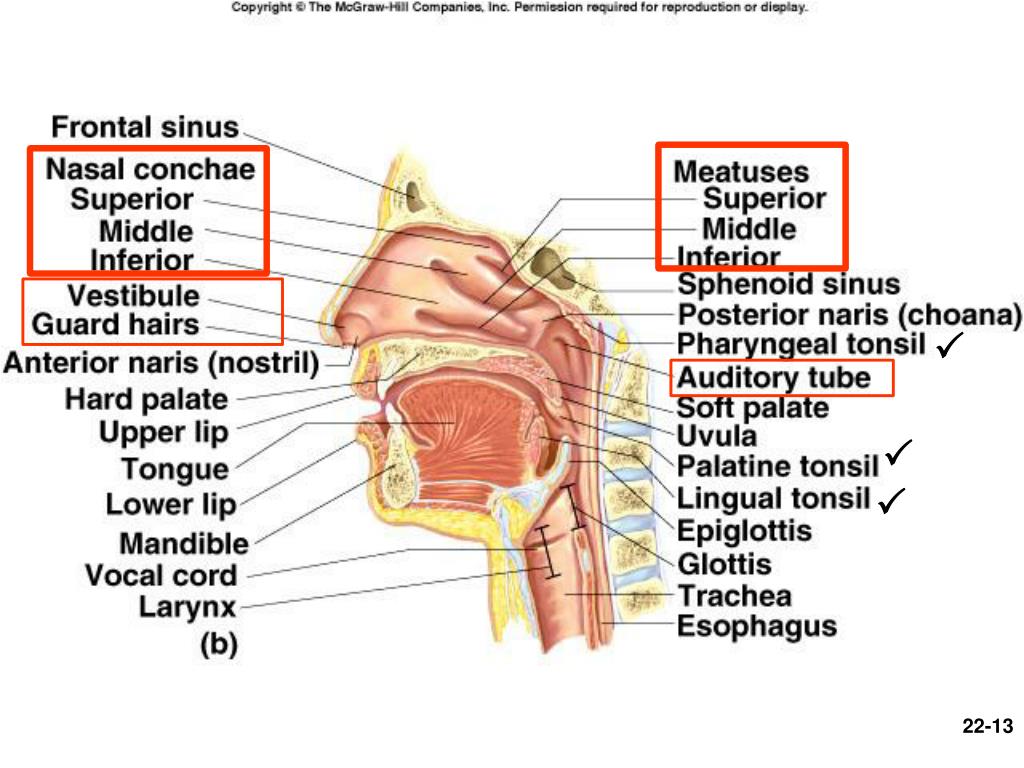

Nasal Cavity (2) - Conchae and Meatuses

  • Superior, middle and inferior nasal conchae

    • 3 folds of tissue on lateral wall of nasal fossa

    • mucous membranes lines the cavity

  • Meatuses:

    • narrow air passages beneath each conchae

    • narrowness and turbulence ensures most air contact the mucous membrane.

      Fig. 22.3


Chapter 22 the respiratory system


Figure 8 4b

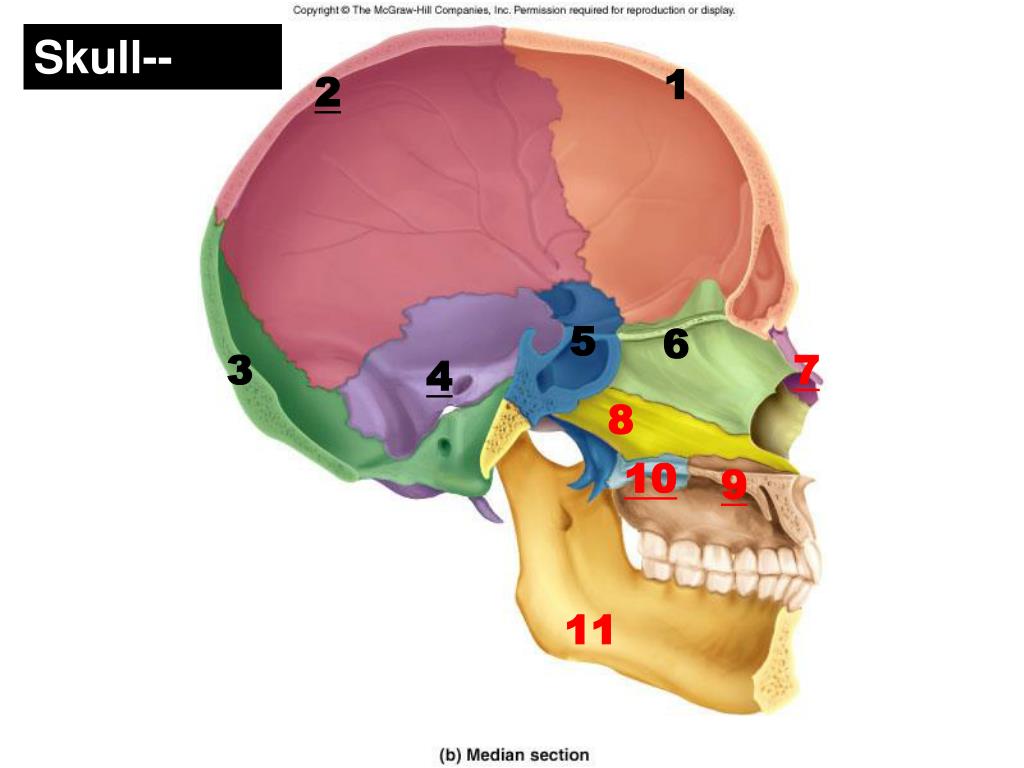

Skull--

Figure 8.4b

1

2

5

6

7

3

4

8

10

9

11


Chapter 22 the respiratory system

Palatine bones


Functions of the nose

Functions of the nose

  • Nose (mouth)—air enters the body through here

    Functions—

    • Warm and moisten air

    • Produce nasal mucus– how much each day? By epi. cells

    • Cilia– push particles toward the throat


2 pharynx throat

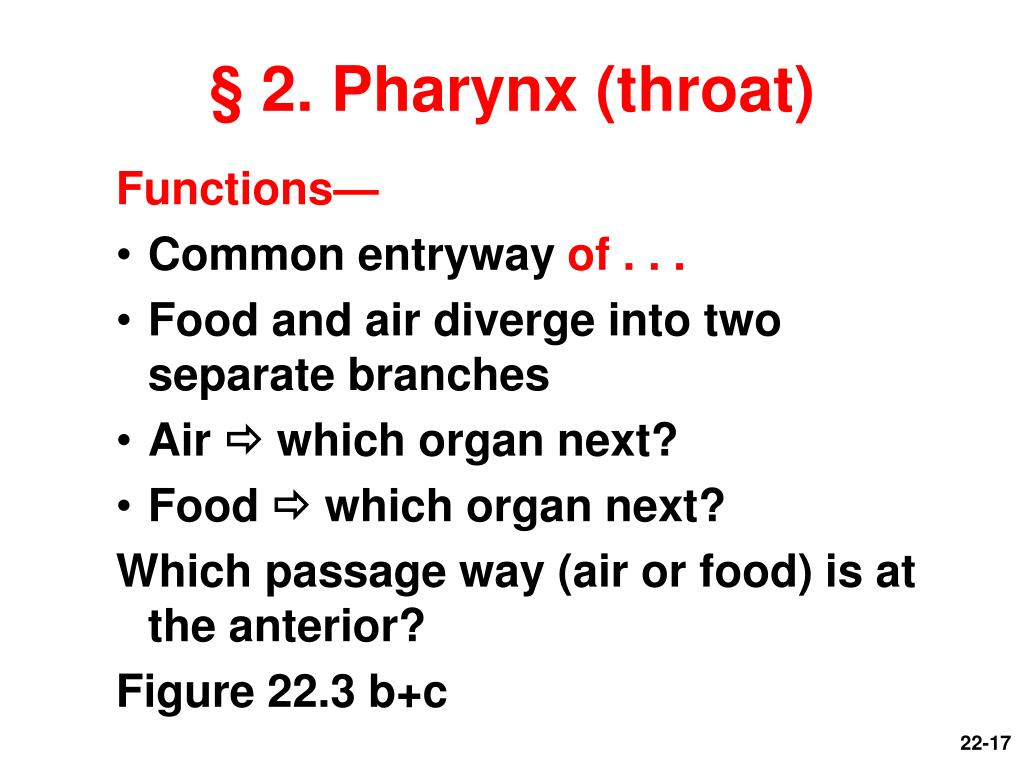

§ 2. Pharynx (throat)

Functions—

  • Common entryway of . . .

  • Food and air diverge into two separate branches

  • Air  which organ next?

  • Food  which organ next?

    Which passage way (air or food) is at the anterior?

    Figure 22.3 b+c

22-17


Chapter 22 the respiratory system

Lower respiratory tract

22-18


Three regions of pharynx

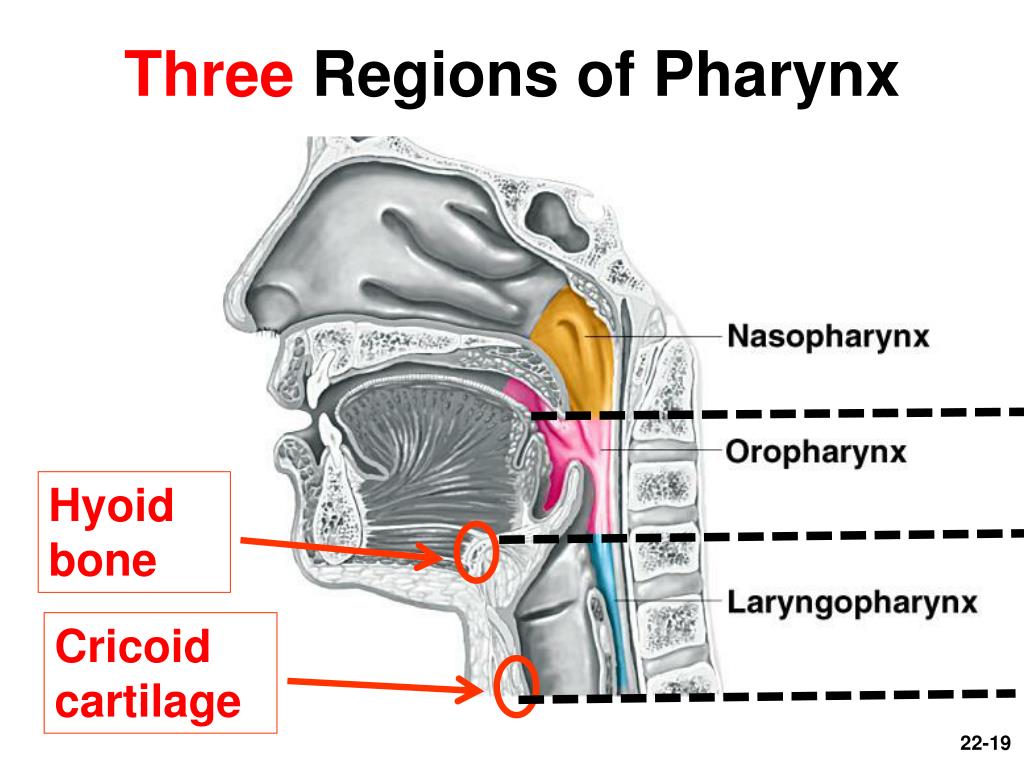

Three Regions of Pharynx

Hyoid bone

Cricoid cartilage

22-19


2 pharynx continued

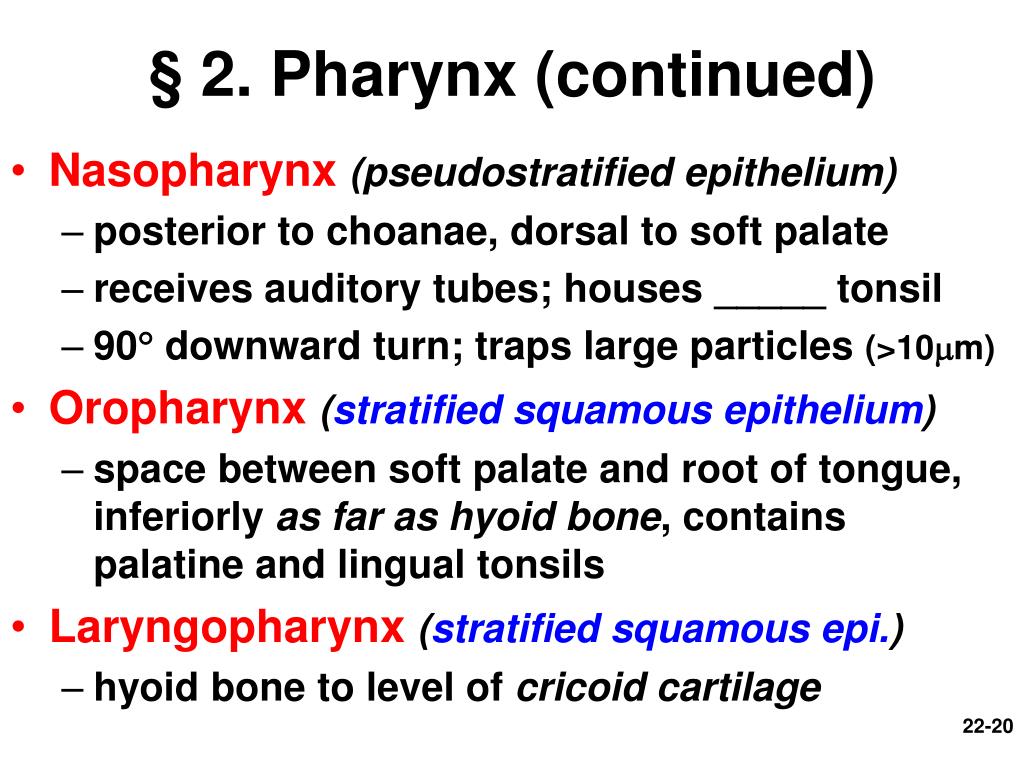

§ 2. Pharynx (continued)

  • Nasopharynx(pseudostratified epithelium)

    • posterior to choanae, dorsal to soft palate

    • receives auditory tubes; houses _____ tonsil

    • 90 downward turn; traps large particles (>10m)

  • Oropharynx(stratified squamous epithelium)

    • space between soft palate and root of tongue, inferiorly as far as hyoid bone, contains palatine and lingual tonsils

  • Laryngopharynx(stratified squamous epi.)

    • hyoid bone to level of cricoid cartilage


3 larynx voice box

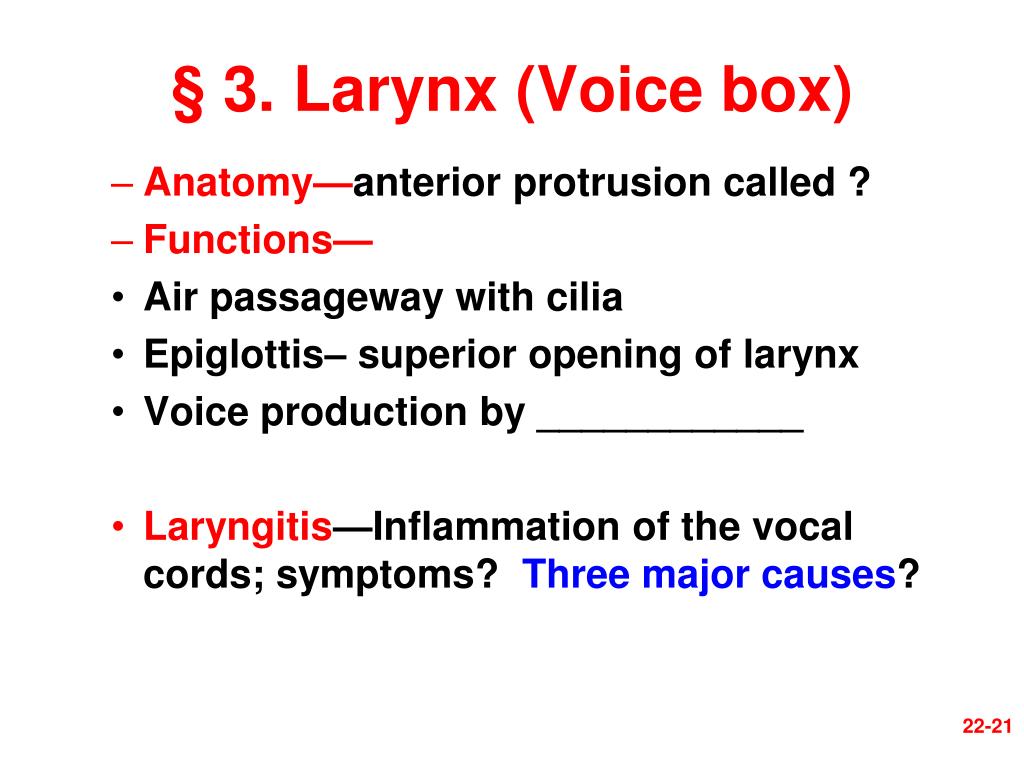

§ 3. Larynx (Voice box)

  • Anatomy—anterior protrusion called ?

  • Functions—

  • Air passageway with cilia

  • Epiglottis– superior opening of larynx

  • Voice production by ____________

  • Laryngitis—Inflammation of the vocal cords; symptoms? Three major causes?

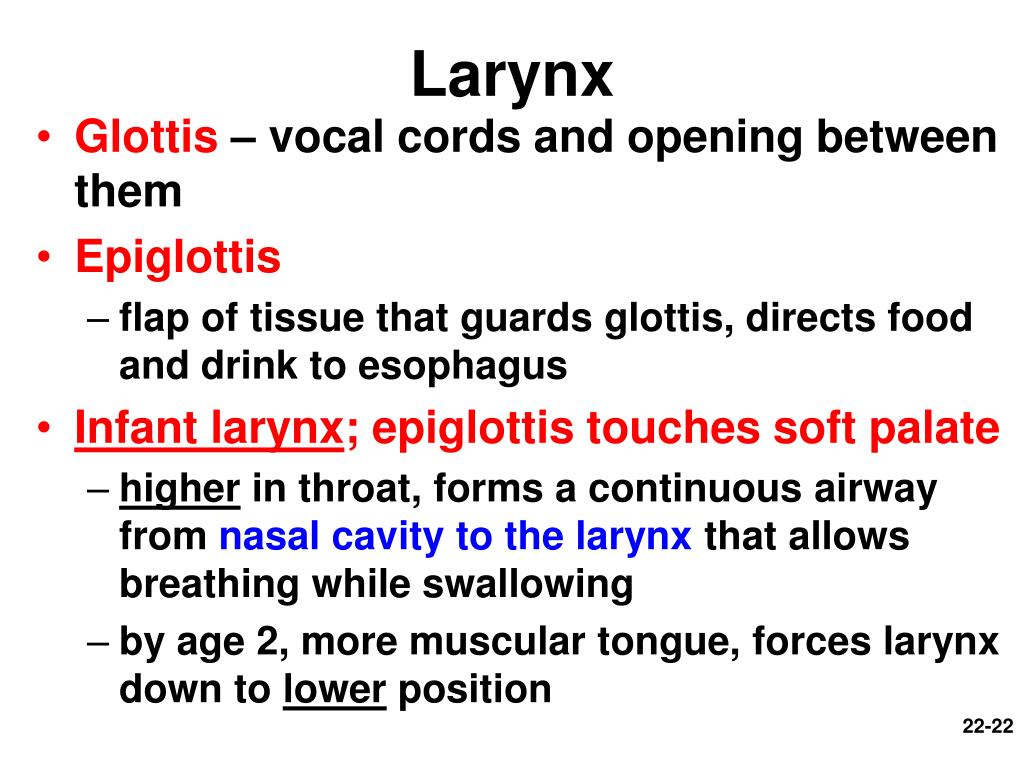

Larynx

Larynx

  • Glottis – vocal cords and opening between them

  • Epiglottis

    • flap of tissue that guards glottis, directs food and drink to esophagus

  • Infant larynx; epiglottis touches soft palate

    • higher in throat, forms a continuous airway from nasal cavity to the larynx that allows breathing while swallowing

    • by age 2, more muscular tongue, forces larynx down to lower position


Nine cartilages of larynx

Nine Cartilages of Larynx

The superior three (large):

  • Epiglottic cartilage (1)- most superior

  • Thyroid cartilage (1)– largest; laryngeal prominence is the Adam’s apple

  • Cricoid cartilage (1)- connects larynx to trachea

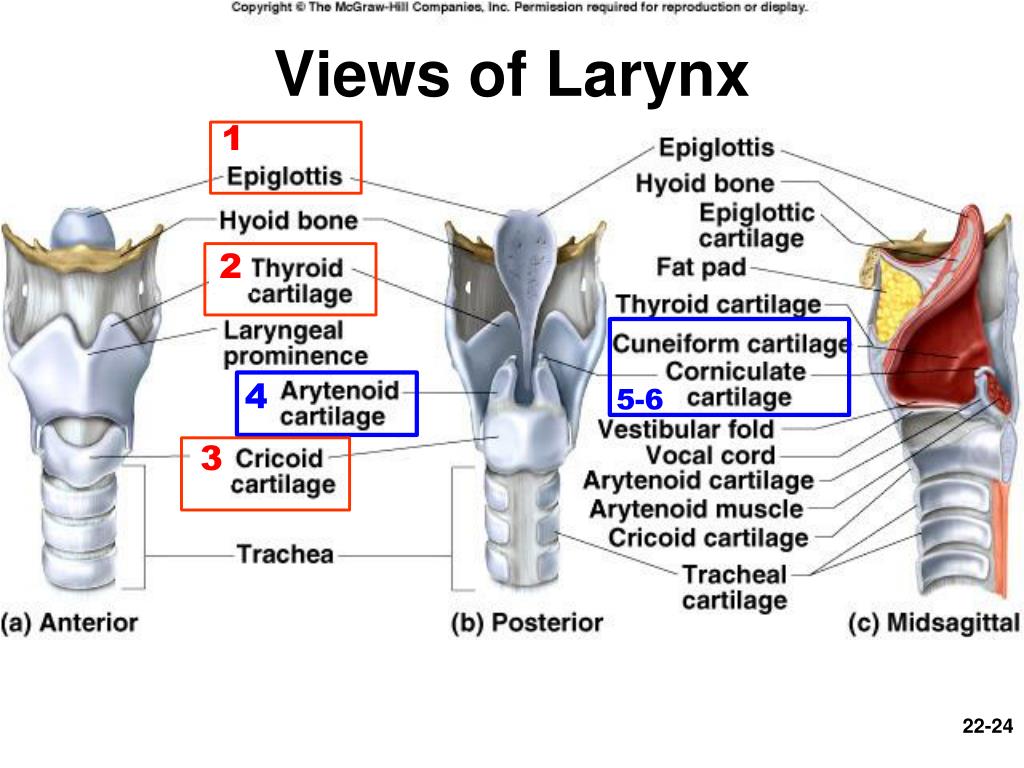

  • Fig. 22.4


Views of larynx

Views of Larynx

1

2

4

5-6

3


Nine cartilages of larynx1

Nine Cartilages of Larynx

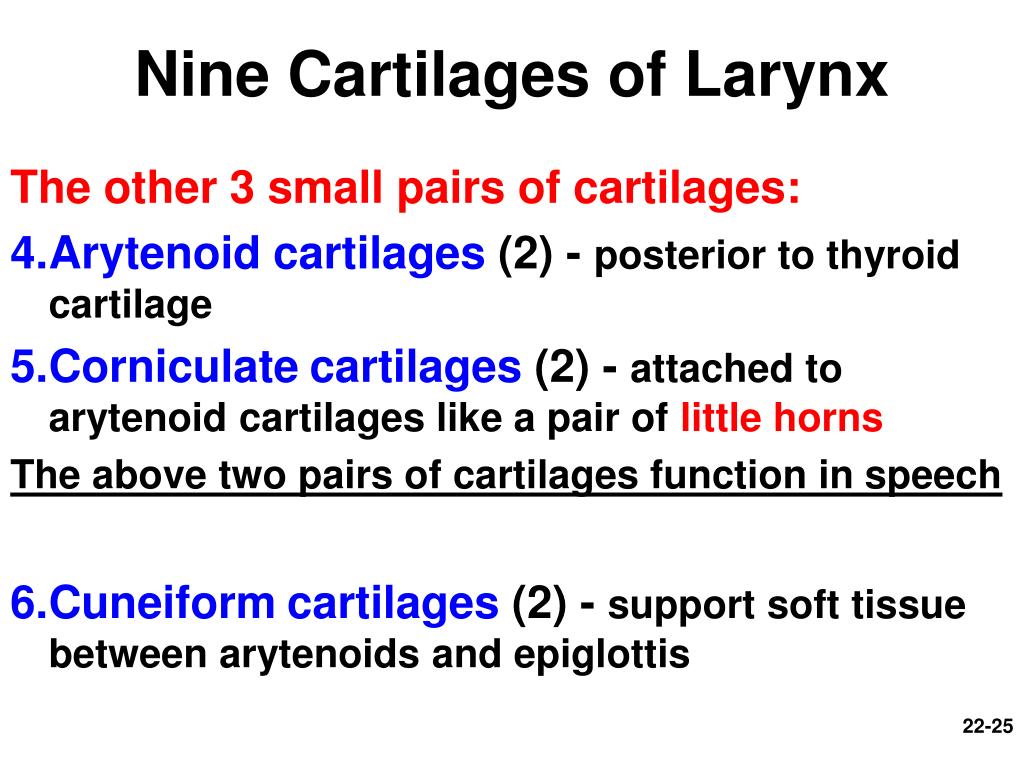

The other 3 small pairs of cartilages:

  • Arytenoid cartilages (2) - posterior to thyroid cartilage

  • Corniculatecartilages (2) - attached to arytenoid cartilages like a pair of little horns

    The above two pairs of cartilages function in speech

  • Cuneiformcartilages (2) - support soft tissue between arytenoids and epiglottis

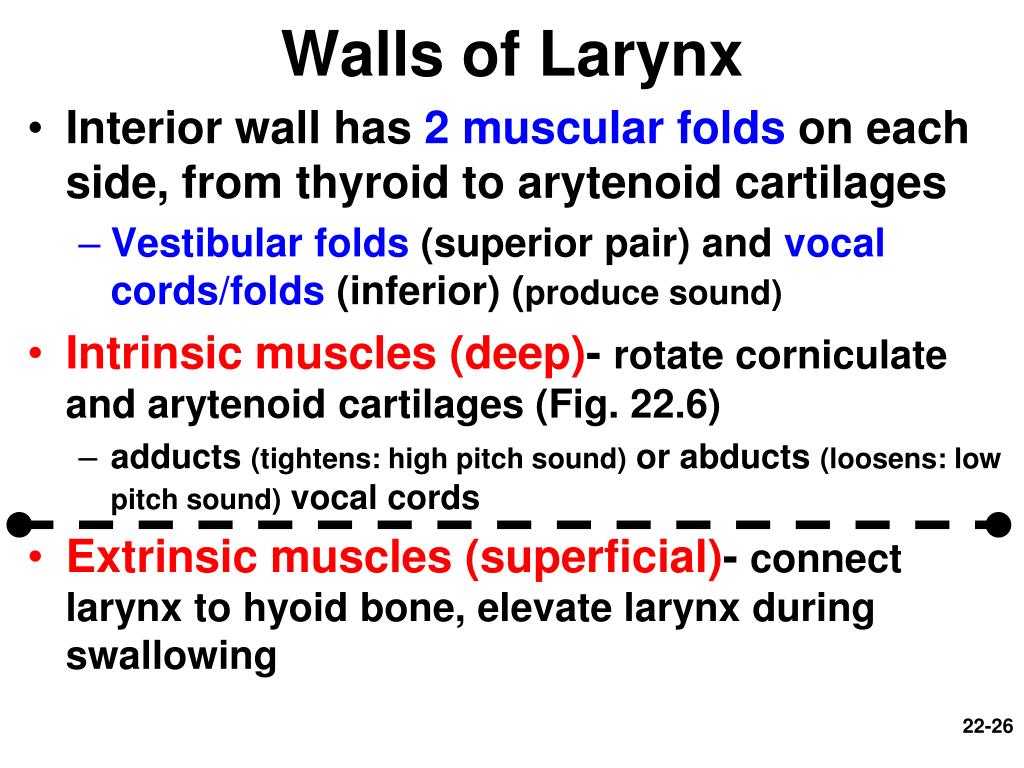

Walls of larynx

Walls of Larynx

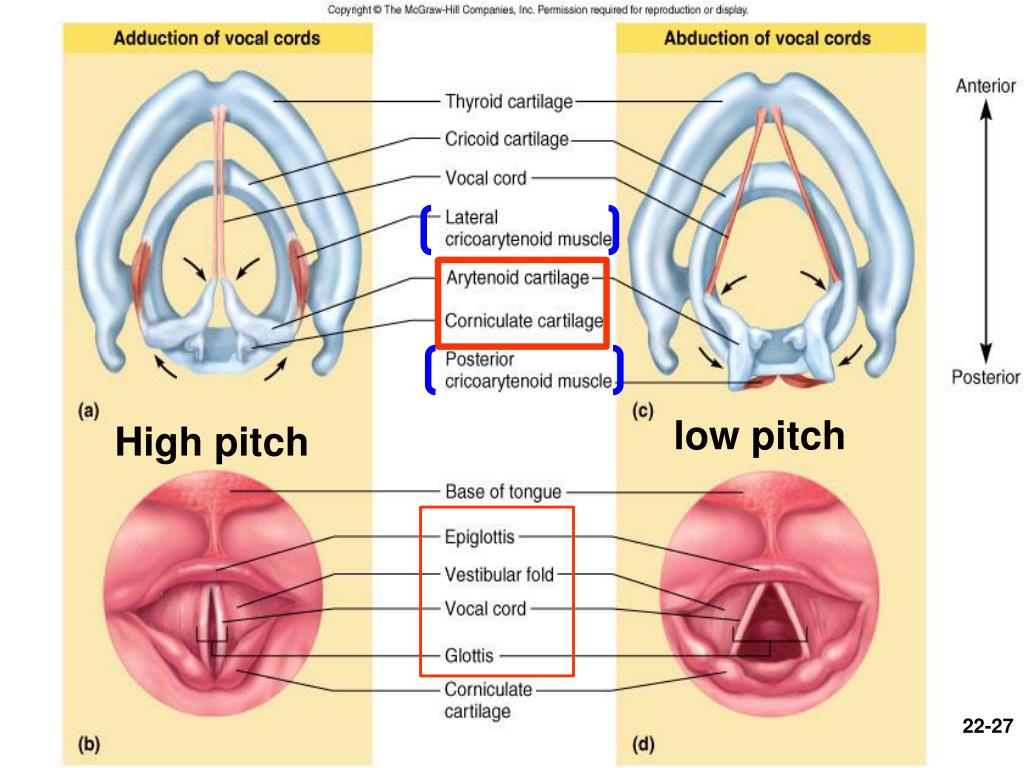

  • Interior wall has 2 muscular folds on each side, from thyroid to arytenoid cartilages

    • Vestibular folds (superior pair) and vocal cords/folds (inferior) (produce sound)

  • Intrinsic muscles (deep)- rotate corniculate and arytenoid cartilages (Fig. 22.6)

    • adducts (tightens: high pitch sound) or abducts (loosens: low pitch sound) vocal cords

  • Extrinsic muscles (superficial)- connect larynx to hyoid bone, elevate larynx during swallowing


Chapter 22 the respiratory system

low pitch

High pitch


4 trachea windpipe

§ 4.Trachea (windpipe)

Anatomy/Histology: Beginning of lower respiratory tract (Fig. 22.7 a-c +x)

  • Rigid tube 5 in. long and 1 in. diameter, anterior/posterior (?) to the esophagus

  • Supported by 16 to 20 C-shaped rings; openings facing anterior/posterior (?)

    • The lowermost cartilage called ________

  • A smooth m. (trachealis) spans opening in rings, adjusts airflow; facing (ant./post.?)

  • (Histology) Larynx and trachea lined with ciliated pseudostratified columnar epi. which functions as mucociliary escalator


Chapter 22 the respiratory system

Larynx

See next three slides

Trachea

Carina


Chapter 22 the respiratory system

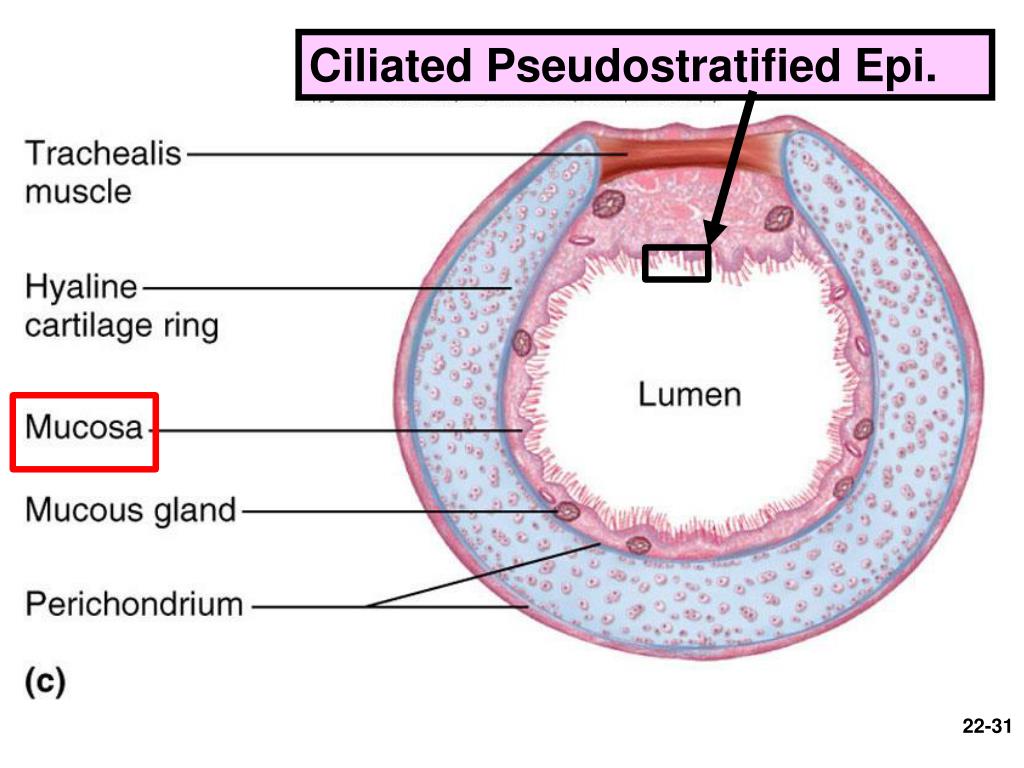

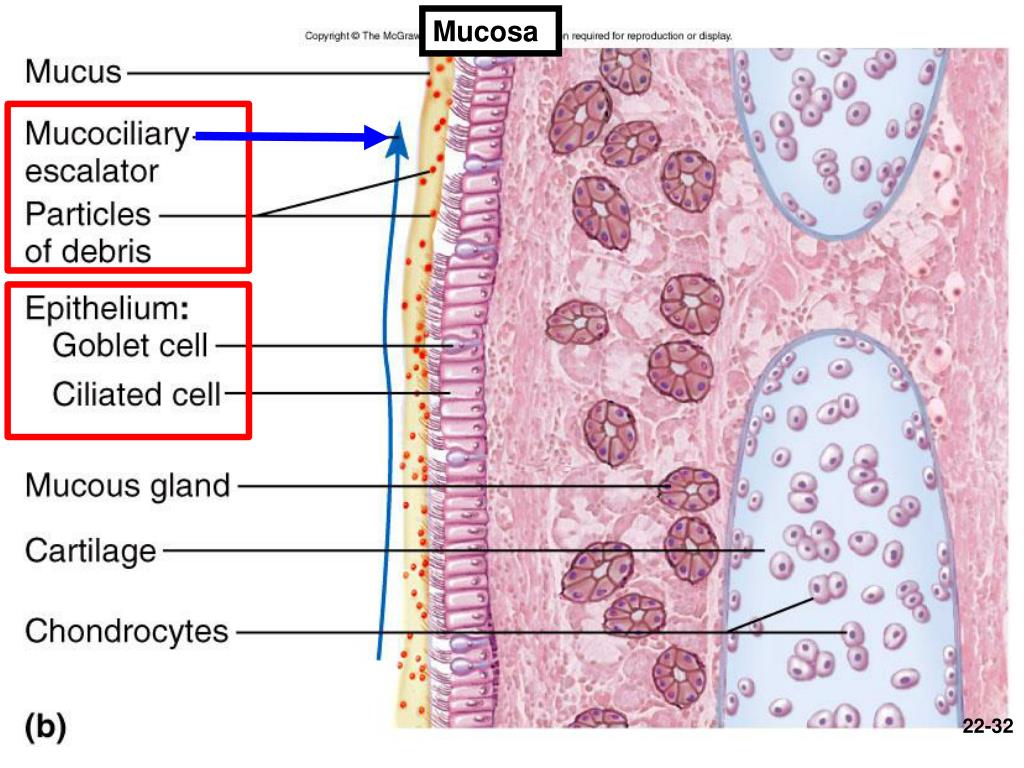

Ciliated Pseudostratified Epi.


Chapter 22 the respiratory system

Mucosa


Id structures practice at home

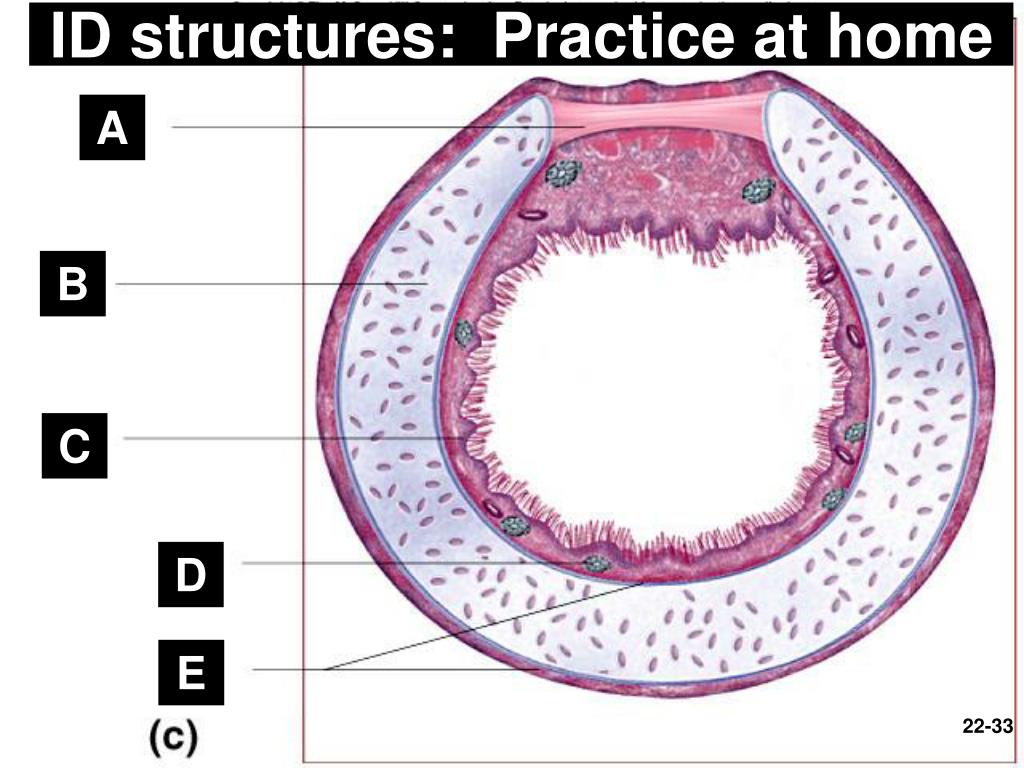

ID structures: Practice at home

A

B

C

D

E


4 trachea continued

§ 4. Trachea (continued)

Functions:

  • Air passageway

  • Warm and moisten air

  • Remove particles & debris

    Clinical applications:

  • Trachea obstruction and Heimlich Maneuver

  • Tracheostomy (Insight 22.1) when the obstruction is superior to the level of the larynx; pitfall?


5 bronchi supported by cartilages

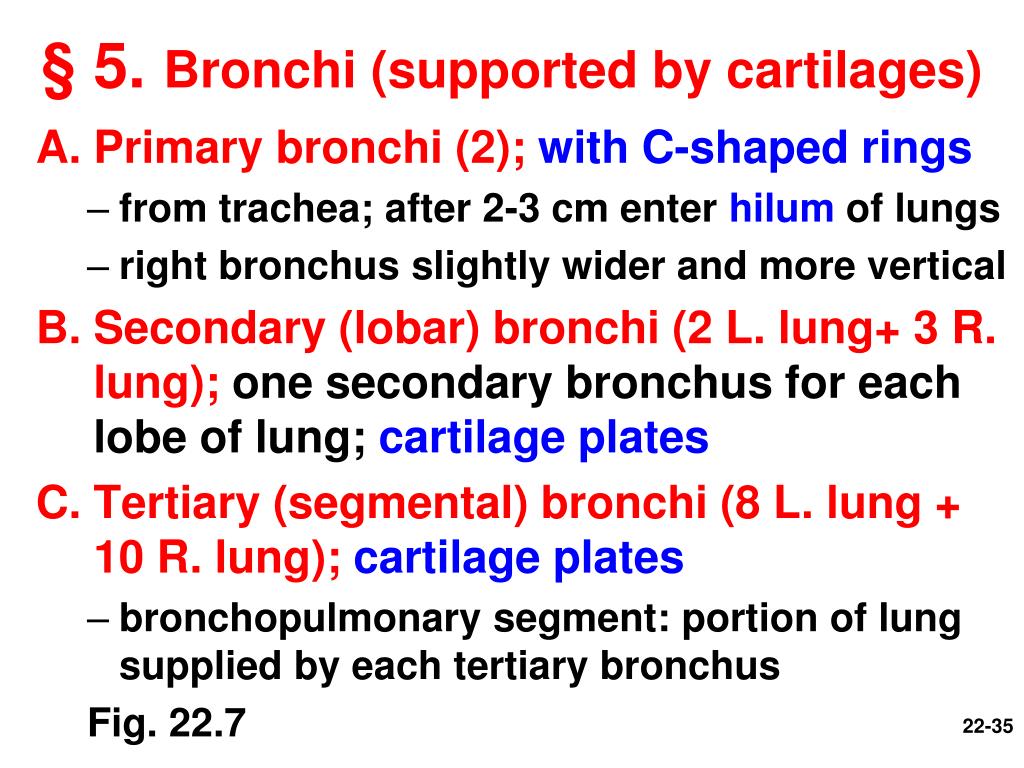

§ 5. Bronchi (supported by cartilages)

  • Primary bronchi (2); with C-shaped rings

    • from trachea; after 2-3 cm enter hilum of lungs

    • right bronchus slightly wider and more vertical

  • Secondary (lobar) bronchi (2 L. lung+ 3 R. lung); one secondary bronchus for each lobe of lung; cartilage plates

  • Tertiary (segmental) bronchi (8 L. lung + 10 R. lung); cartilage plates

    • bronchopulmonary segment: portion of lung supplied by each tertiary bronchus

      Fig. 22.7


Chapter 22 the respiratory system

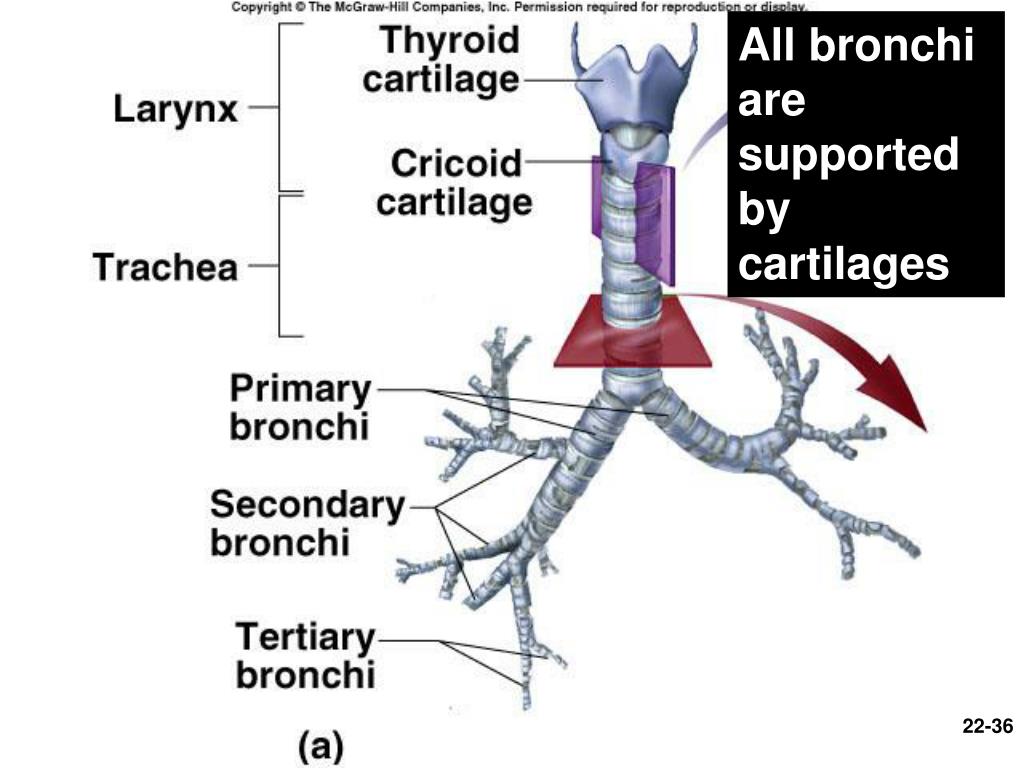

All bronchi are supported by cartilages


6 bronchioles

§ 6. Bronchioles

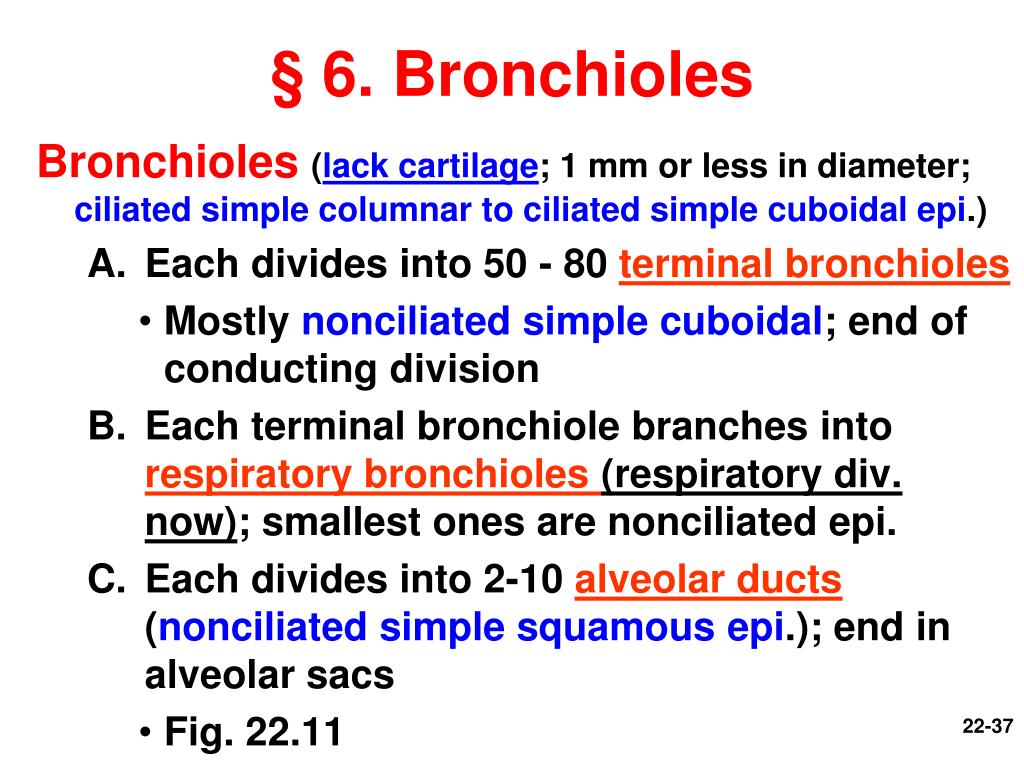

Bronchioles(lack cartilage; 1 mm or less in diameter; ciliated simple columnar to ciliated simple cuboidal epi.)

  • Each divides into 50 - 80 terminal bronchioles

    • Mostly nonciliated simple cuboidal; end of conducting division

  • Each terminal bronchiole branches into respiratory bronchioles (respiratory div. now); smallest ones are nonciliated epi.

  • Each divides into 2-10 alveolar ducts (nonciliated simple squamous epi.); end in alveolar sacs

    • Fig. 22.11


Bronchial tree

§ Bronchial tree

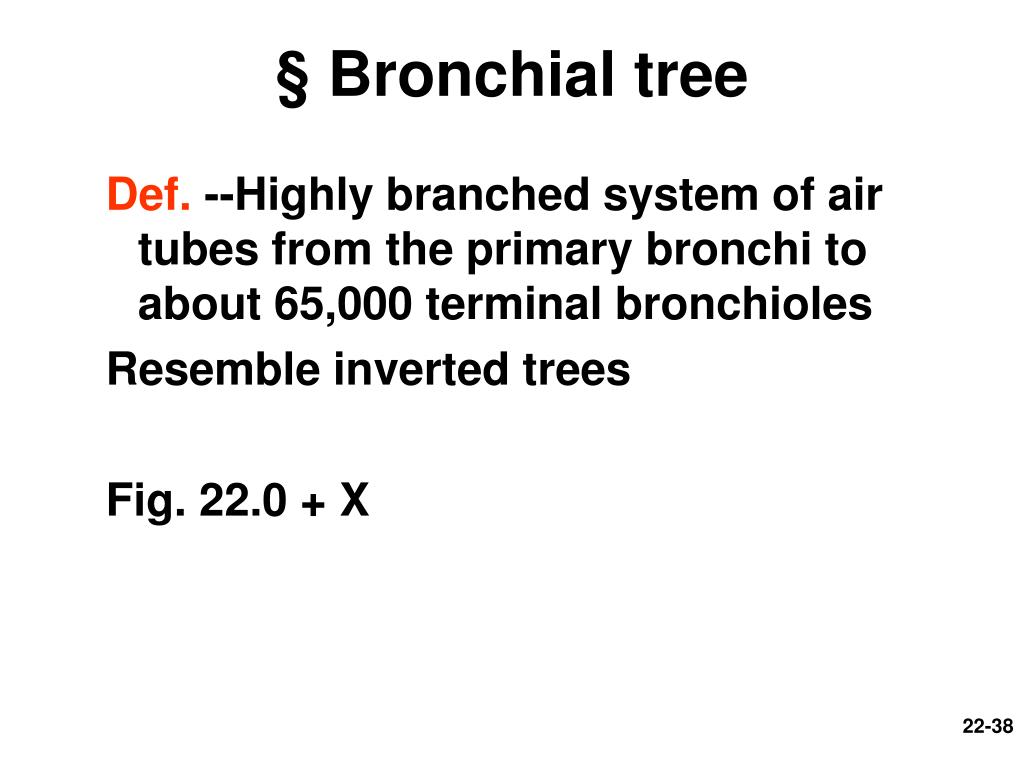

Def. --Highly branched system of air tubes from the primary bronchi to about 65,000 terminal bronchioles

Resemble inverted trees

Fig. 22.0 + X


Co 22

CO 22

Right lung; 10 segments

Left lung; 8 segments

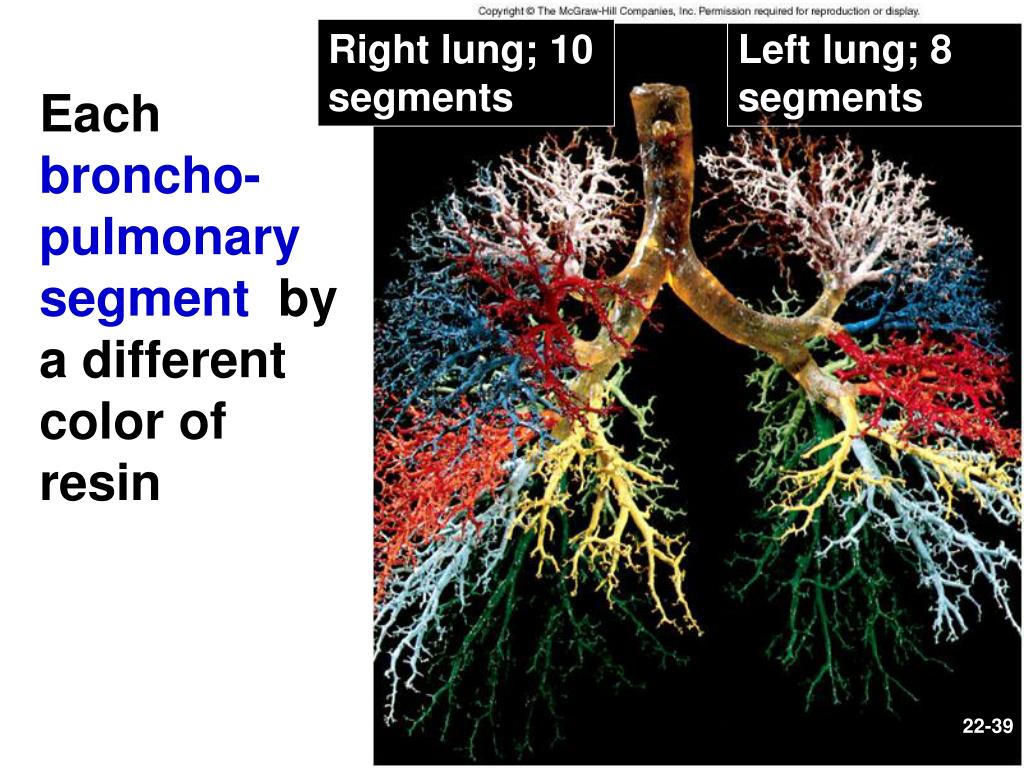

Each broncho-pulmonary segment by a different color of resin


Chapter 22 the respiratory system

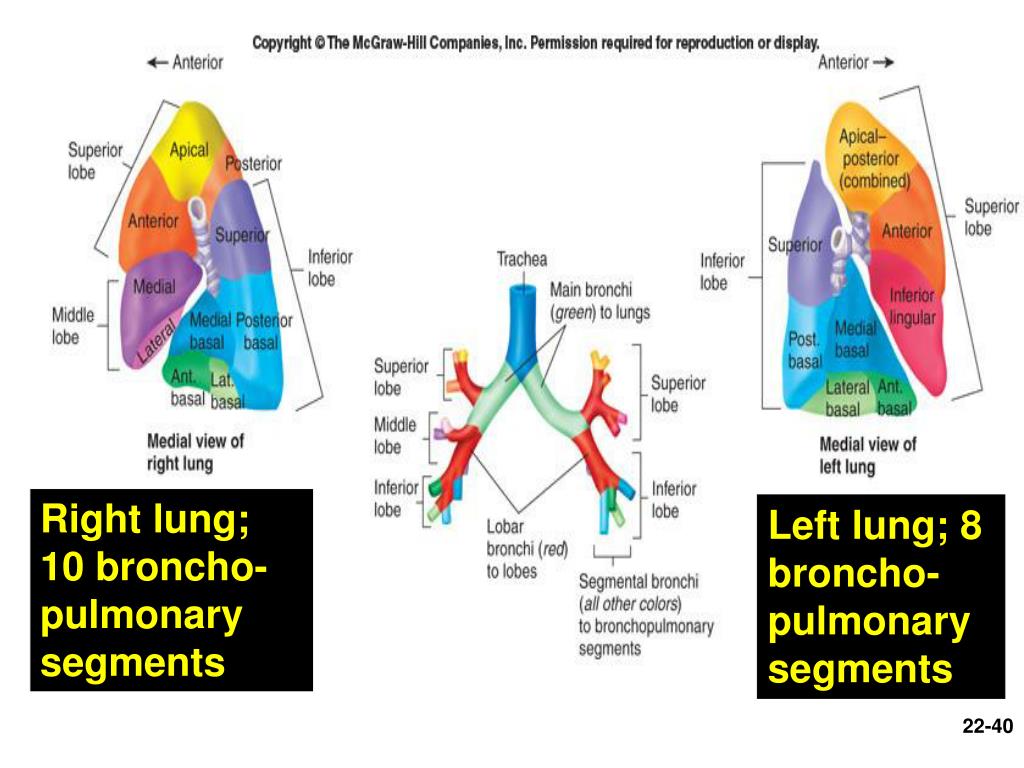

Right lung; 10 broncho-pulmonary segments

Left lung; 8 broncho-pulmonary segments


7 lungs fig 22 9 a b

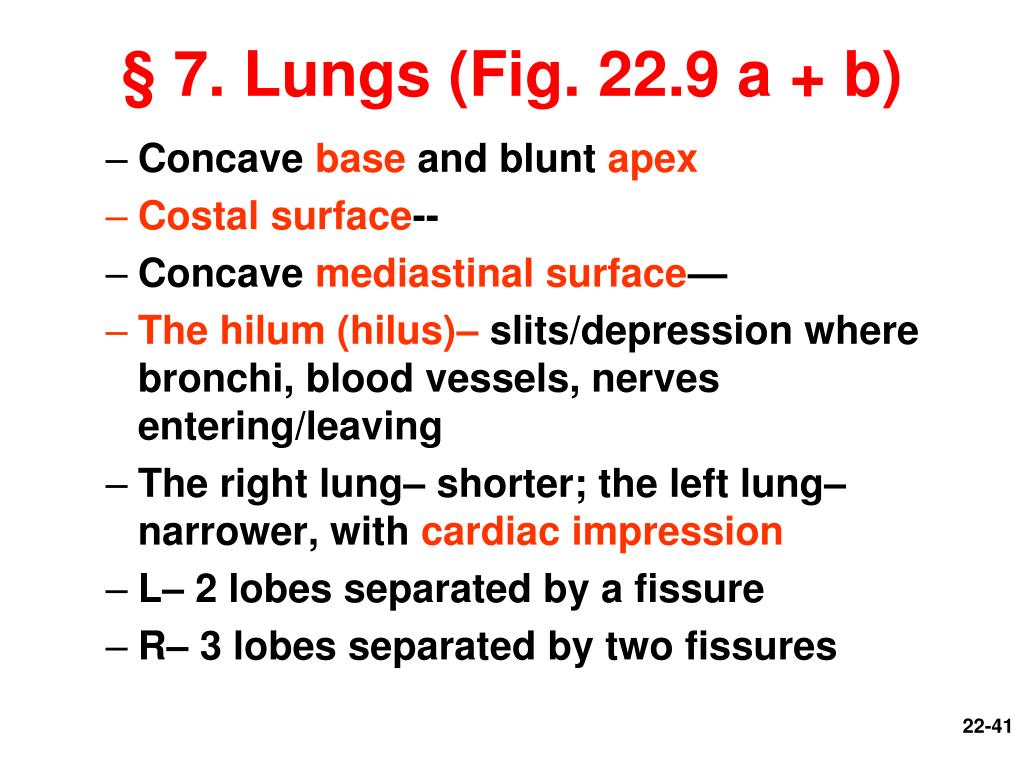

§ 7. Lungs (Fig. 22.9 a + b)

  • Concave base and blunt apex

  • Costal surface--

  • Concave mediastinal surface—

  • The hilum (hilus)– slits/depression where bronchi, blood vessels, nerves entering/leaving

  • The right lung– shorter; the left lung– narrower, with cardiac impression

  • L– 2 lobes separated by a fissure

  • R– 3 lobes separated by two fissures


8 alveoli meaning hollow

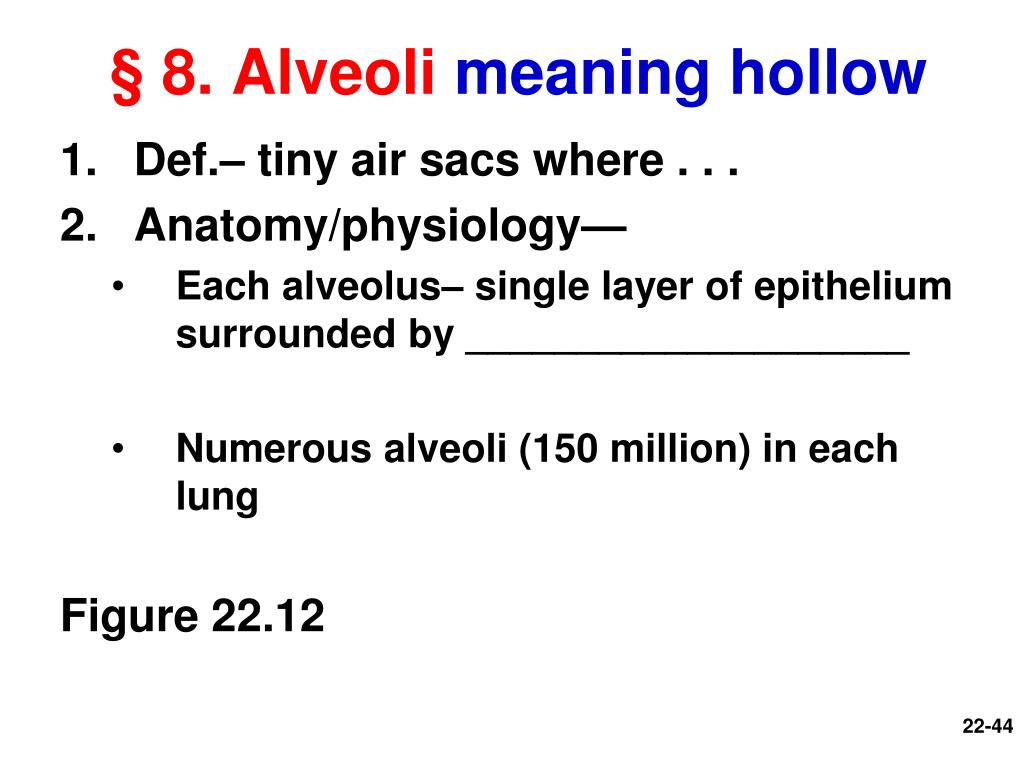

§ 8. Alveoli meaning hollow

  • Def.– tiny air sacs where . . .

  • Anatomy/physiology—

    • Each alveolus– single layer of epithelium surrounded by ____________________

    • Numerous alveoli (150 million) in each lung

      Figure 22.12


Chapter 22 the respiratory system

Alveolar Blood Supply


Alveoli pore of kohn

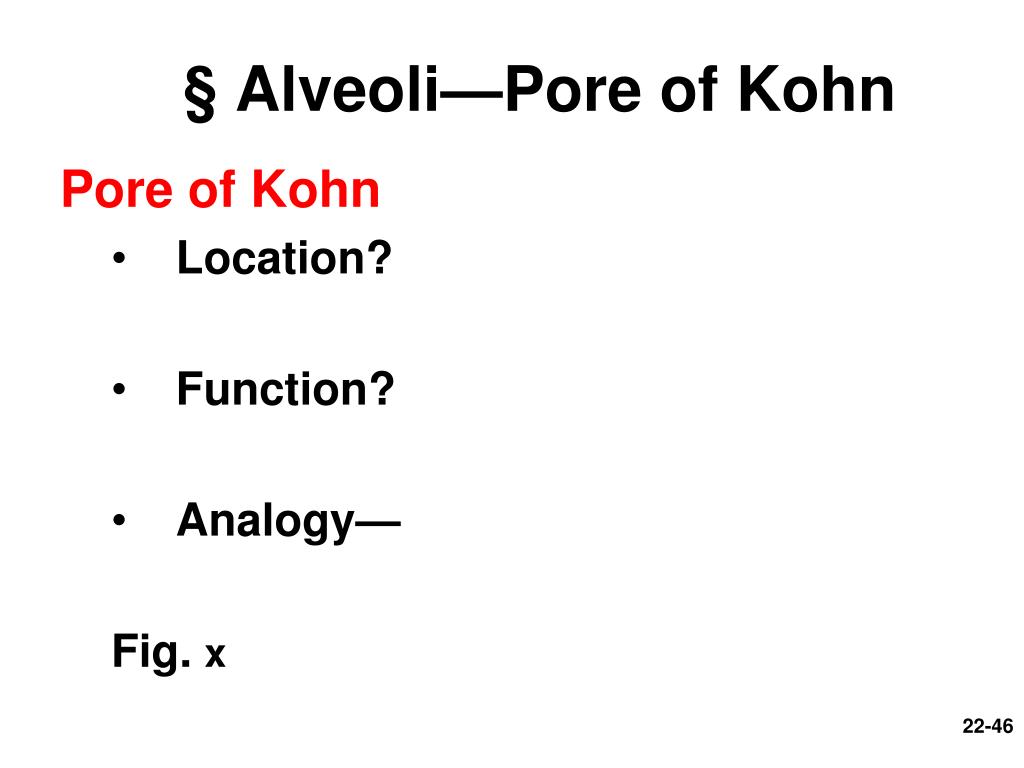

§ Alveoli—Pore of Kohn

Pore of Kohn

  • Location?

  • Function?

  • Analogy—

    Fig. x


Chapter 22 the respiratory system

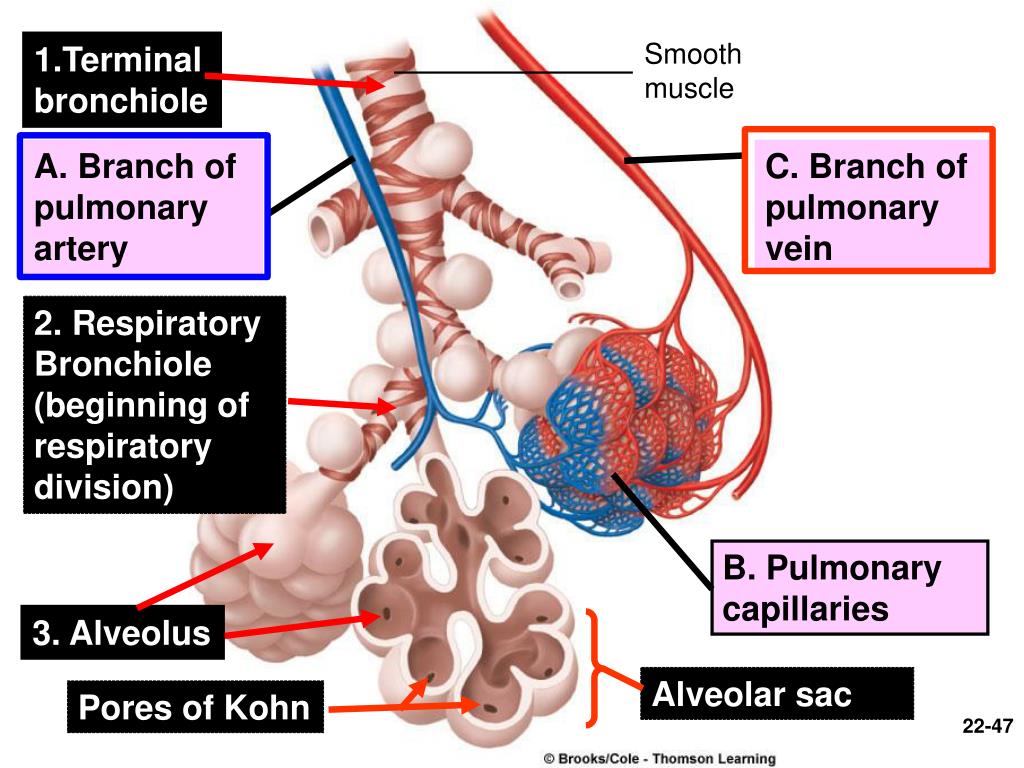

Smooth

muscle

1.Terminal

bronchiole

A. Branch of

pulmonary

artery

C. Branch of

pulmonary

vein

2. Respiratory

Bronchiole

(beginning of respiratory division)

B. Pulmonary

capillaries

3. Alveolus

Alveolar sac

Pores of Kohn


Alveoli three types of cells

§ Alveoli—Three types of cells

  • Squamous (Type I) alveolar cells—

    • Location?

    • Function--Gas exchange through these sites; What type of epi.?

    • Respiratory membrane– 0.5 micrometer; the barrier between alveolar air and _____

  • Great (Type II) alveolar cells—

    • Location? Embed within alveolar walls

    • Functions— secretes surfactant & repairs

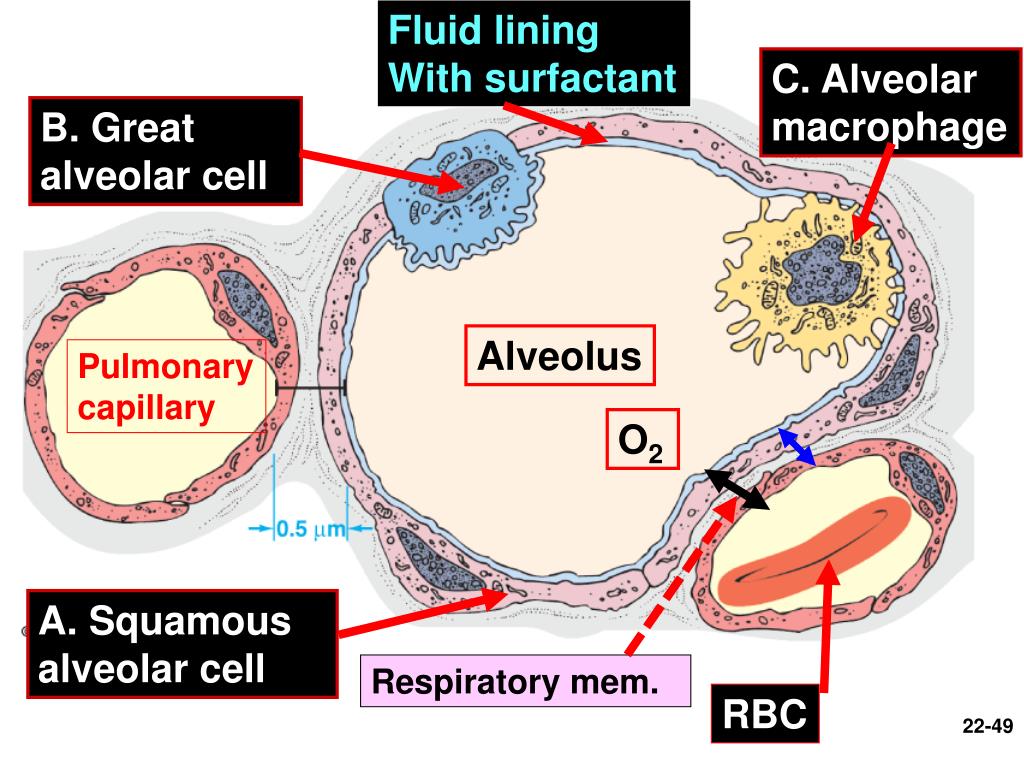

      Figure 22.12


Chapter 22 the respiratory system

Fluid lining

With surfactant

C. Alveolar

macrophage

B. Great alveolar cell

Alveolus

Pulmonary

capillary

O2

A. Squamous alveolar cell

Respiratory mem.

RBC


Alveoli three types of cells1

§ Alveoli—Three types of cells

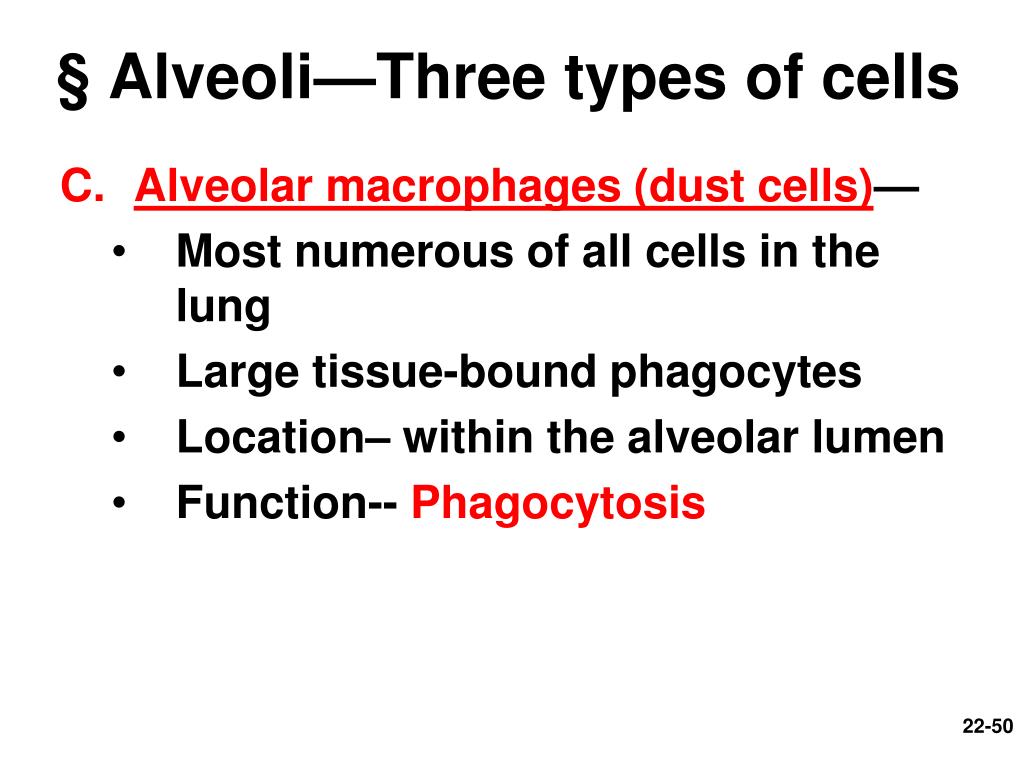

  • Alveolar macrophages (dust cells)—

    • Most numerous of all cells in the lung

    • Large tissue-bound phagocytes

    • Location– within the alveolar lumen

    • Function-- Phagocytosis


Practice at home

Practice at home

D

A

What is respiratory membrane?

C

B.

Fig. 22.11

b and c

Identify A, B, C, and D.

Respiratory mem.


Questions muddiest points

Questions (muddiest points)?


Ii pulmonary ventilation

§ II. Pulmonary Ventilation

  • Respiratory cycle– One complete cycle of inspiration and expiration

    • Breathing (pulmonary ventilation) – repeated cycles above

  • Quiet respiration vs. forced respiration –

  • Basic requirement of respiration:

    • Flow of air in and out of lung requires a ______________ between air pressure within lungs and outside body; why? (next slide)


Breathing mechanical steps

§ Breathing- mechanical steps

  • Why flow of air into and out of the lungs during the breathing?

  • A rule of thumb—

    • PV = K (Boyle’s law) with Temp. is constant

    • For example, during inspiration: lung volume increases lung pressure decreases  therefore, air flow (from where to where? _____________________)

      Figure x (Boyle’s Law explained)


Figure 13 10 page 467

Figure 13.10Page 467

Piston

Each container with the same number of gas molecules

Piston

Piston

Pressure

gauge

A. Volume = 1/2

Pressure = 2

B. Volume = 1

Pressure = 1

C. Volume = 2

Pressure = 1/2

PV = K


Breathing mechanical steps1

§ Breathing- mechanical steps

  • Mechanism of Inspiration (resting)—

    • Diaphragm contracts and move ______?

    • External intercostals muscles contract  the ribs move __________?

    •  Chest volume _________?

    •  Air pressure is _________? (Boyle’s law)

    •  Air flows inward

  • Deeper Inspiration—

    • Neck muscles (among others) are also involved

      5 Figures


Chapter 22 the respiratory system

Diaphragm

A 2-dimentional figure


Chapter 22 the respiratory system

Quiet Inspiration

2. Contraction

of external

intercostal

muscles

1. Contraction

of diaphragm

increases side-to-side

dimension (x)

increases vertical

dimension of (z)

increases front-to-back

Dimension (y)

A 3-dimentional figure


Chapter 22 the respiratory system

Equilibrated;

no net movement of air

Before inspiration

760 mmHg

Preinspiratory

size of thorax

760 mmHg

Preinspiratory

size of lungs


Chapter 22 the respiratory system

760 mm Hg

During inspiration

Size of thorax  on

contraction of

inspiratory muscles

Size of lungs  as they

are stretched to fill

the expanded thorax; pressure 

757-759 mm Hg (from 760)

Demonstration—lung model


Chapter 22 the respiratory system

Muscles

of active/forced

expiration

Muscles of deeper

inspiration

1. Sternocleidomastoid

Internal

intercostal

muscles

2. Scalenus

1. External

intercostal

muscles

2. Diaphragm

Abdominal

muscles

Major

muscles of

inspiration


Breathing mechanical steps students practice on this key on next slide

§ Breathing- mechanical steps (students practice on this; KEY on next slide)

  • Mechanism of Expiration—

    • Diaphragm ________ and becomes ______

    • External intercostal muscles ____  the ribs move ______

    •  Chest volume _________?

    •  Air pressure is _________? (Boyle law)

    •  Air flows outward

  • Forced expiration: abdominal and internal intercostal muscles are involved

    Figures 22.13


Chapter 22 the respiratory system

Relaxation

of external

intercostal

muscles

Contraction

of internal

intercostal

muscles

Contraction of internal intercostal

muscles flattens ribs and

sternum, further reducing

side-to-side and front-to-back

dimensions of thoracic cavity

A review slide on expiration

Contraction

of abdominal muscles

Position of relaxed

abdominal muscles

Relaxation of

diaphragm

Contractions of abdominal

muscles cause diaphragm to

be pushed upward, further

reducing vertical dimension

of thoracic cavity

Passive expiration

Return of diaphragm, ribs, and sternum

to resting position on relaxation of

inspiratory muscles restores thoracic

cavity to preinspiratory size

Active expiration


Chapter 22 the respiratory system

During expiration

760 mm Hg

Size of thorax on

relaxation of

inspiratory muscles

761 mm Hg (from 760)

Size of lungs as

they recoil


Summary of respiratory muscles this slide for review with fig x next

§ Summary of respiratory muscles (This slide for review with Fig. x next)

  • Diaphragm (dome shaped)

    • contraction flattens diaphragm

  • External intercostals

    • increases X&Y diameter; stiffen thoracic cage

  • Scalenes - hold first 2 pair of ribs stationary

  • Pectoralis minor, sternocleidomastoid and erector spinae muscles

    • used in forced inspiration

  • Abdominals, internal intercostals, and latissimus dorsi

    • forced expiration (to sing, cough, sneeze)

    • Valsalva maneuver– raise abdominal pressure . . .


Chapter 22 the respiratory system

Forced Expiration

Forced Inspiration

Quiet Inspiration


Iii neural control of breathing

§ III. Neural Control of Breathing


Neural control of breathing 1

§ Neural Control of Breathing (1)

  • Breathing depends on repetitive stimuli from the brain—controlled at two levels (A & B below):

    • Neurons in medulla oblongata and pons control unconscious breathing

      • Ondine’s curse – brainstem damage

      • Causes– Poliomyelitis etc.

      • Symptoms– disabled automatic respiratory functions

      • Cure--

    • Voluntary control provided by motor cortex is cerebral and consciously controlled


Neural control of breathing 2

§ Neural Control of Breathing (2)

  • Unconscious breathing:

    • Inspiratory neurons: fire during inspiration

    • Expiratory neurons: fire during forced expiration

    • Fibers of phrenic nerve go to diaphragm; intercostal nerves to intercostal muscles


Three respiratory control centers in the brainstem fig 14 4

§ Three Respiratory Control Centersin the brainstem (Fig. 14.4)

  • Ventral respiratory group (VRG) in medulla

    • Primary generator of respiratory rhythm

    • Having both inspiratory and expiratory neurons, taking turns to fire  spinal integrating centers

  • Dorsal respiratory group (DRG) in medulla

    • An integrating center– inputs from . . . (Fig. 22.4)

    • Output to the VRG modifying respiratory rhythm

  • Pontine respiratory group (PRG) in pons

    • Modifies the rhythm of the VRG

    • Making each breath shorter/shallower OR longer/ deeper– during sleep, exercise, etc.


  • Chapter 22 the respiratory system

    Anterior

    1. from higher brain centers

    Pons

    2. PRG

    DRG

    3. Central Chemoreceptors

    Medulla

    4. CN IX and X

    VRG

    Spinal integrating centers

    22-72


    Input to the respiratory centers

    § Input to the respiratory centers

    • Central chemoreceptors (in medulla)

      • primarily monitor pH (and CO2) of CSF

  • Peripheral chemoreceptors (Fig. 22.15)

    • Monitor pH, O2 and CO2 and fibers synapse to the DRG

  • Stretch receptors (bronchi and bronchioles)

    • Excessive inflation triggers inflation reflex and stops inspiration

  • Irritant receptors (epithelial cells of the airway)

    • Respond to particles and trigger coughing etc.


  • Voluntary control of breathing

    § Voluntary Control of breathing

    • Neural pathways

      • motor cortex of frontal lobe of cerebrum sends impulses down corticospinal tracts to respiratory neurons in spinal cord, bypassing brainstem

    • Limitations on voluntary control

      • blood CO2 and O2 limits cause automatic respiration overrides one’s will

    • Voluntary control is important in singing, speaking, breath-holding


    Check point questions

    Check Point Questions

    Q--Where exactly are the medulla oblongata and the pons located, respectively?

    Answer: medulla oblongata is the most caudal part of the brainstem (stalklike lower portion of the brain), immediately superior to the spinal cord

    • The pons is a part of the brainstem located immediately superior to the medulla oblongata and ventral to the cerebellum


    Next section iv pressure resistance and airflow

    § Next section--IV. Pressure, Resistance, and Airflow

    Q-- Is it possible that temperamental children may hold their breath until they die?


    Pressure and airflow 1

    § Pressure and Airflow (1)

    Introduction– (Mostly we have talked about)

    • Atmospheric (barometric) pressure--

      • 1 atmosphere (atm) = 760 mmHg

    • Intrapulmonary pressure and lung volume

      • pressure is inversely proportional to volume

        • for a given amount of gas, as volume , pressure  and as volume , pressure 

    • Pressure gradientsmatters to airflow--

      • difference between atmospheric and intrapulmonary pressure

      • Airflow (F) = ΔP (pressure gradient)


    Pressure and airflow 2

    § Pressure and Airflow (2)

    During inspiration; how lungs are expanded?

    • Ribs swing upward and outward  lungs expand with thoracic cage

      •  intrapulmonary pressure (-3 mm Hg; 3 mm Hg below atmospheric pressure)

      • 500 ml of air flows into the lungs (tidal volume)

    • Another force expands the lungs– warming of the inhaled air. Inhaled air expands, it helps to inflate the lungs. (Charles’s law)

      • Charles’s law– volume of given quantity of gas is directly proportional to its absolute temperature


    Pressure and airflow 3

    § Pressure and Airflow (3)

    Recoiling mechanisms during expiration:

    • During quiet breathing, expiration achieved by elasticity of lungs and thoracic cage etc.

    • As volume of thoracic cavity , intrapulmonary pressure  (+3 mm Hg) and air is expelled

    • Pulmonary elasticity related disorders:

      • Atelectasis– The collapse of a lung

      • Causes– A) Pneumothorax (air in the pleural cavity; see next slide), B) airway obstruction (that part of lung collapses b/c it cannot be reventilated, for example inadequate surfactant, aspirated object etc.


    Pneumothorax

    § Pneumothorax

    • Def.—abnormal condition of air entering the pleural sac

    • Causes— (see fig. x)

    • Consequences— transmural pressure gradient no longer exists and . . .

      Figure x


    Chapter 22 the respiratory system

    760

    Atelectasis (pneumothorax)

    A

    760

    B

    C

    760; intra-pulmonary pressure

    760

    760

    760

    756; intrapleural pressure

    Collapsed lung

    A– Parietal pleura; B—pleural cavity (pleural fluid); C– Visceral pleura


    Pulmonary surfactant 1

    § Pulmonary surfactant (1)

    • A potential problem of breathing

      • In alveoli—tiny sacs . . .; why?

      • b/c surface tension of water— Fig. z

    • Solution-- pulmonary surfactant

      • What is it? Phospholipoproteins

      • Where does it from? By what cell type?

      • Functions?


    Chapter 22 the respiratory system

    Demonstration

    H2O molecules

    An alveolus


    Pulmonary surfactant 2

    § Pulmonary surfactant (2)

    • (Newborn/Infant) respiratory distress syndrome (IRDS)—

      • What is lacking in premature infants?

      • What are the problems?

        • When surfactant is produced?

        • Alveoli collapsed completely —

        • Newborn’s muscles--

      • Cure--


    Check point questions1

    Check Point Questions

    • What types of cells make up the wall of an alveolus? Function?

    • What type of cell in the lungs secrete pulmonary surfactant? Function?


    V alveolar ventilation

    § V. Alveolar Ventilation


    Alveolar ventilation 1

    § Alveolar Ventilation (1)

    Does all inhaled air enter the alveoli?

    • Dead air (150 ml per breath)

      • fills conducting division of airway, cannot exchange gases with the blood

    • Where is the dead air? In anatomic dead space:

      • It exists in conducting division of airway

      • Normally about _______mL

    • Physiological (total) dead space

      • sum of anatomic dead space and any pathological alveolar dead space


    Alveolar ventilation 2

    § Alveolar ventilation (2)

    • Alveolar ventilation rate (AVR): body’s ability to get oxygen to the tissues per minute

      • alveolar ventilation rate (AVR) = (Tidal volume - dead space volume) x respiratory rate

      • AVR = (500-150mL) x 12 breaths/min = 4,200 mL/min


    Measurements of ventilation 1

    § Measurements of Ventilation (1)

    • Spirometer – measures ventilation; specifically respiratory volumes and capacities

      Fig. x


    Chapter 22 the respiratory system

    Floating drum

    Air

    Recording

    paper

    advancing

    with time

    Water

    Expired

    air

    Spirogram

    Inspired air


    Measurements of ventilation 2

    § Measurements of Ventilation (2)

    • Respiratory volumes:

      • Tidal volume (TV) - The air entering or leaving the lungs in a single breath.

      • Inspiratory reserve volume (IRV) - The extra air that can be maximally inspired over the typical resting TV.

      • Expiratory reserve volume (ERV) - The maximal volume of air that can be actively expired beyond a tidal volume.

      • Residual volume (RV) - air remaining in lungs after maximum expiration

        Fig. 22.17


    Chapter 22 the respiratory system

    a capacity is the sum of more than two volumes

    2

    3

    1

    4


    Chapter 22 the respiratory system

    § Measurements of Ventilation (3)

    • Respiratory capacities:

      • Inspiratory capacity (IC)- The maximum volume of air that can be inspired at the end of a normal quiet expiration. = TV + IRV

      • Functional residual capacity (FRC)– Amount of air remaining in the lungs after a normal tidal expiration; = RV + ERV

      • Vital capacity (VC)- The maximum volume of air that can be expired following a maximal inspiration. = TV + IRV + ERV

      • Total lung capacity (TLC)- maximum amount of air lungs can hold; = VC + RV


    Id the following respiratory volumes capacities

    ID the following respiratory volumes/capacities

    D

    A

    F

    H

    G

    B

    E

    C

    Work on this figure at home.


    Check point question

    Check Point Question

    • If you breathe in as deeply as possible and then exhale as much air as you can, which lung volume or capacity have you demonstrated?


    Lung disorders and spirometry

    § Lung disorders and spirometry

    • Restrictive disorders– Those having reduce pulmonary compliance, limiting the amount to which the lungs can be inflated

      • Disorders- black lung disease, tuberculosis

      • Spirometry- reduced IC, VC, TLC

    • Obstructive disorders (COPD; Chronic Obstructive Pulmonary Disease) – those that interfere with airflow by narrowing or blocking the airway

      • Disorders– asthma, emphysema etc.

      • Detection: Forced expiratory volume (FEV)-- % of vital capacity exhaled/time; healthy adult - ___________% of VC in 1 sec(Fig. Y)


    Chapter 22 the respiratory system

    FEV1.0

    1 sec interval


  • Login
