Presentation Transcript

  1. 1/7 Poročilo #4 Tomi FILIPIČ 3.b

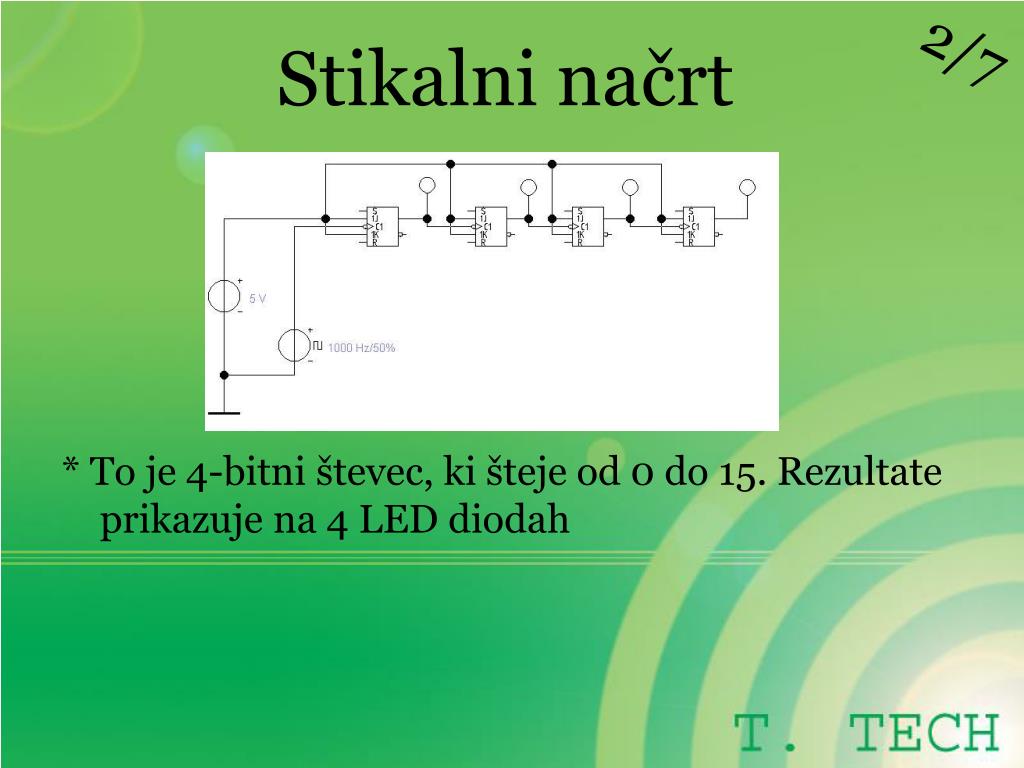

  2. 2/7 Stikalni načrt * To je 4-bitni števec, ki šteje od 0 do 15. Rezultate prikazuje na 4 LED diodah

  3. 3/7 Stikalni načrt * Ta 4-bitni števec rezultate prikazuje na 7 segmentnem LED prikazovalniku (display-u)

  4. 4/7 Stikalni načrt * Kot na sliki kaže, števec pošilja vrednosti na digitalni (logični) analizator.

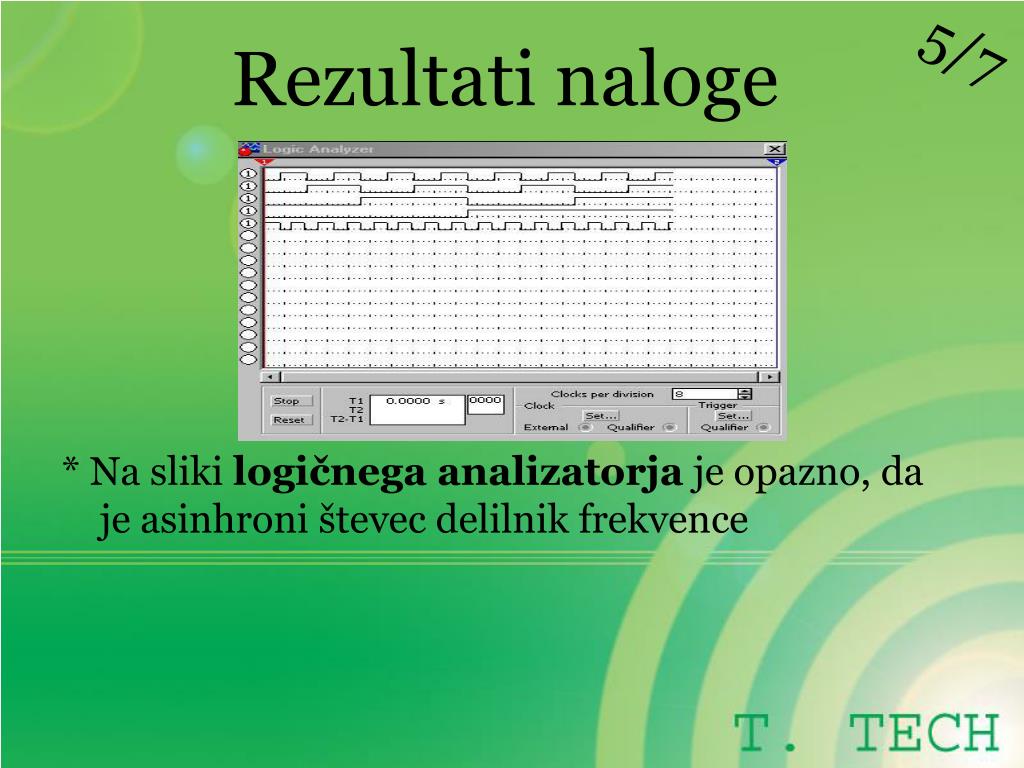

  5. 5/7 Rezultati naloge * Na sliki logičnega analizatorja je opazno, da je asinhroni števec delilnik frekvence

  6. 6/7 Seznam materiala * Ves material je bil virtualen, ker je vaja potekala za PC-jem v programu Wewb32.exe

  7. 7/7 Seznam materiala * Problemov ni bilo. Vezja, prikazana na straneh 2/7, 3/7, 4/7, niso združena zaradi lepšega pregleda
