Essentials of Human Anatomy Nervous System I

Chapter 7

Dr Fadel Naim

Ass. Prof. Faculty of Medicine



  • The function of the nervous system, along with the endocrine system, is to communicate

  • The nervous system is made up of the brain, the spinal cord, and the nerves

Functions of Nervous System

  • Sensory Function

    • sensory receptors gather information

    • information is carried to the CNS

  • Motor Function

    • decisions are acted upon

    • impulses are carried to effectors

  • Integrative Function

    • sensory information used to create

      • sensations

      • memory

      • thoughts

      • decisions

Organization of the Nervous System

  • Organized to detect changes in internal and external environments, evaluate the information, and initiate an appropriate response

  • Subdivided into smaller “systems” by location:

    • Central nervous system (CNS)

      • Structural and functional center of entire nervous system

      • Consists of the brain and the spinal cord

      • Integrates sensory information, evaluates it, and initiates an outgoing response

    • Peripheral nervous system (PNS)

      • Nerves that lie in “outer regions” of nervous system

      • Cranial nerves—originate from brain

      • Spinal nerves—originate from spinal cord

Divisions of Peripheral Nervous System

  • Sensory Division

    • picks up sensory information and delivers it to the CNS

  • Motor Division

    • carries information to muscles and glands

  • Divisions of the Motor Division

    • Somatic – carries information to skeletal muscle

    • Autonomic – carries information to smooth muscle, cardiac muscle, and glands

Divisions Nervous System

Organization of the Nervous System

  • “Systems” according to the types of organs they innervate

    • Somatic nervous system (SNS)

      • Somatic motor division—carries information to the somatic effectors (skeletal muscles)

      • Somatic sensory division—carries feedback information to somatic integration centers in the CNS

Organization of the Nervous System

  • Autonomic nervous system (ANS)

    • Efferent division of ANS—carries information to the autonomic or visceral effectors (smooth and cardiac muscles and glands)

      • Sympathetic division—prepares the body to deal with immediate threats to the internal environment

      • Parasympathetic division—coordinates the body’s normal resting activities

    • Visceral sensory division—carries feedback information to autonomic integrating centers in the CNS

Organization of the Nervous System

  • Afferent and efferent divisions

    • Afferent division—consists of all incoming sensory pathways

    • Efferent division—consists of all outgoing motor pathways

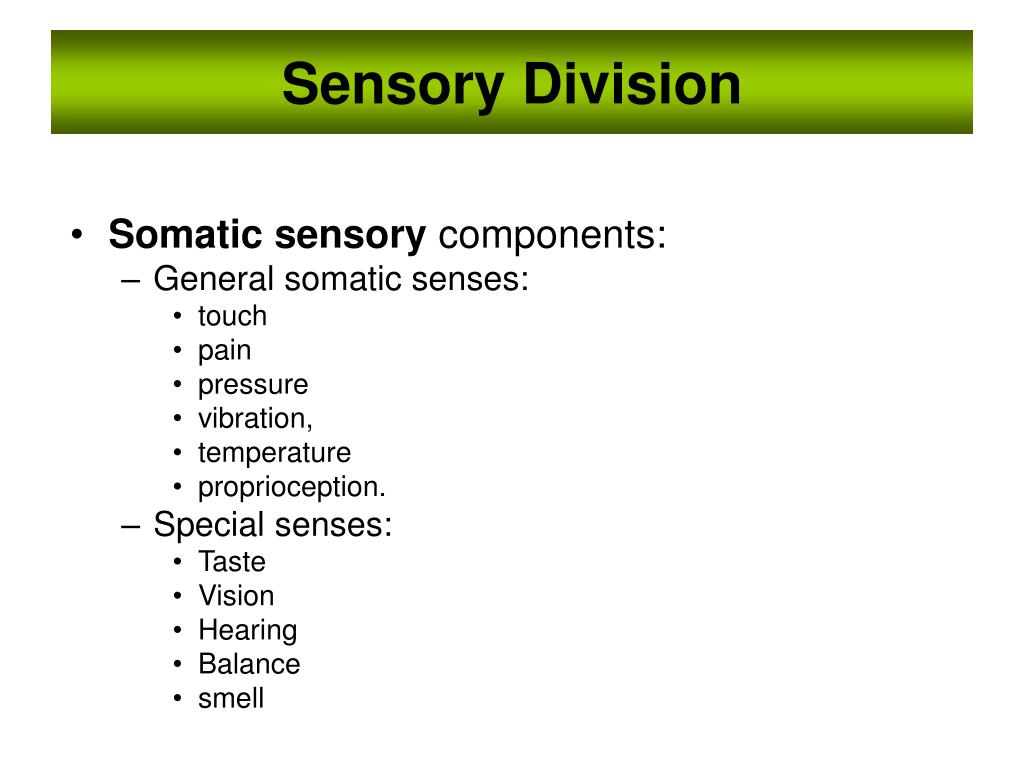

Sensory Division

  • Somatic sensory components:

    • General somatic senses:

      • touch

      • pain

      • pressure

      • vibration,

      • temperature

      • proprioception.

    • Special senses:

      • Taste

      • Vision

      • Hearing

      • Balance

      • smell

Sensory Division

  • Visceral sensorycomponents

    • transmit nerve impulses from blood vessels and viscera to the CNS

    • visceral senses primarily include:

      • temperature

      • stretch (of the organ wall).

Motor Division

  • The somatic motor component (somatic nervous system; SNS):

    • conducts nerve impulses from the CNS to skeletal muscles

    • also known as the voluntary nervous system

  • The autonomic motor component (autonomic nervous system; ANS): internal organs, regulates smooth muscle, cardiac muscle, and glands.

    • Innervates

      • Internal organs

      • Regulates smooth muscle

      • Regulates cardiac muscle

      • Regulates glands

    • also known as the visceral motor system or involuntary nervous system

Nerve Cells

  • Nervous Tissue

    • Two distinct cell types

      • Neurons

        • excitable cells

        • initiate and transmit nerve impulses

      • Glial cells

        • nonexcitable cells

        • support and protect the neurons

Characteristics of Neurons

  • Neurons have a high metabolic rate.

  • Neurons have extreme longevity.

  • Neurons typically are non-mitotic.

Neuron Structure

  • Neurons come in all shapes and sizes

  • All neurons share certain basic structural features.

  • typical neuron:

    • Cell body (soma)

    • Dendrites

    • Axon

Neuron Structure – Cell Body

  • The cell body

    • the neuron’s control center

      • responsible for:

        • receiving

        • integrating

        • sending nerve impulses.

    • Consists of:

      • Plasma membrane

      • Cytoplasm

      • Nucleus with prominent nucleolus

      • Chromatophobic substance (Nissil bodies): RER

      • Free ribosomes

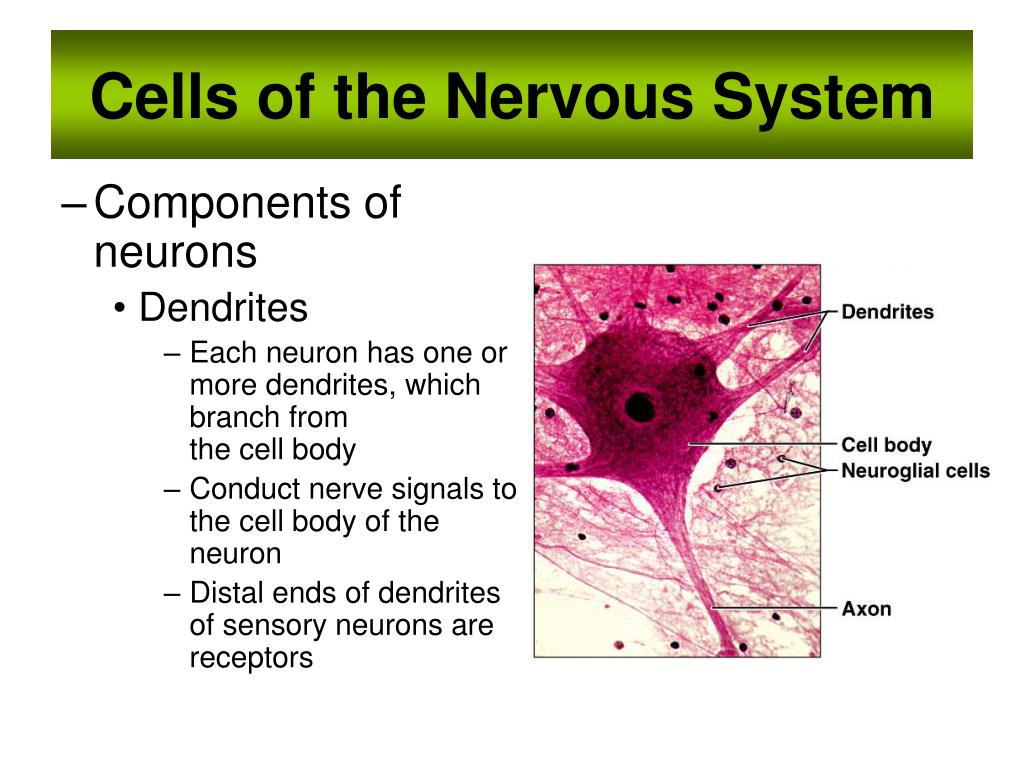

Cells of the Nervous System

  • Components of neurons

    • Dendrites

      • Each neuron has one or more dendrites, which branch from the cell body

      • Conduct nerve signals to the cell body of the neuron

      • Distal ends of dendrites of sensory neurons are receptors

Cells of the Nervous System

  • Components of neurons

    • Axon

      • A single process extending from the axon hillock, sometimes covered by a fatty layer called a myelin sheath

      • Conducts nerve impulses away from the cell body of the neuron

Neuron Structure – Axon

  • Structures

    • Collaterals

    • Telodendria (axon terminals)

    • Synaptic knobs (terminal boutons)

  • The axon transmits a nerve impulse away from the cell body toward another cell.

Classifications of Neurons

  • Neurons vary widely in morphology and location.

    • classified based on

      • structure

      • function.

  • Structural classification: number of processes extending from the cell body.

    • unipolar neuron has a single process

    • bipolar neurons have two processes

    • multipolar neurons have three or more processes

Classification of Neurons – Structural Differences

  • Unipolar

    • one process

    • ganglia

  • Bipolar

    • two processes

    • eyes, ears, nose

  • Multipolar

    • many processes

    • most neurons of CNS

Classification of Neurons – Functional Differences

  • Sensory Neurons

    • afferent

    • carry impulse to CNS

    • most are unipolar

    • some are bipolar

  • Interneurons

    • link neurons

    • multipolar

    • in CNS

  • Motor Neurons

    • multipolar

    • carry impulses away from CNS

    • carry impulses to effectors


  • Nerves are organs of the PNS.

  • Sensory (afferent) nerves convey sensory information to the CNS.

  • Motor (efferent) nerves convey motor impulses from the CNS to the muscles and glands.

  • Mixed nerves: both sensory and motor

  • Axons terminate as they contact other neurons, muscle cells, or gland cells.

  • An axon transmits a nerve impulse at a specialized junction with another neuron called synapse.

Peripheral Nerves

  • Organization – coverings:

    • Epineurium wraps entire nerve

    • Perineurium wraps fascicles of tracts

    • Endoneurium wraps individual axons

Repair of Nerve Fibers

  • Mature neurons are incapable of cell division; therefore, damage to nervous tissue can be permanent

  • Neurons have limited capacity to repair themselves

  • Nerve fibers can be repaired if the damage is not extensive, the cell body and neurilemma are intact, and scarring has not occurred

Regeneration of PNS Axons

  • PNS axons are vulnerable to cuts and trauma.

  • A damaged axon can regenerate

    • if some neurilemma remains.

  • PNS axon regeneration depends upon three factors.

    • amount of damage

    • neurolemmocyte secretion of nerve growth factors

      • stimulates outgrowth of severed axons

    • distance between the site of the damaged axon and the effector organ

Repair of Nerve Fibers

  • Wallerian degeneration:

  • Stages of repair of an axon in a peripheral motor neuron

    • Following injury, distal portion of axon and myelin sheath degenerates

    • Macrophages remove the debris

    • Remaining neurilemma and endoneurium form a tunnel from the point of injury to the effector

    • New Schwann cells grow in the tunnel to maintain a path for regrowth of the axon

    • Cell body reorganizes its Nissl bodies to provide the needed proteins to extend the remaining healthy portion of the axon

    • Axon “sprouts” appear

    • When “sprout” reaches tunnel, its growth rate increases

    • The skeletal muscle cell atrophies until the nervous connection is reestablished

  • In CNS, similar repair of damaged nerve fibers is unlikely
