Mae 1202 aerospace practicum l.jpg

MAE 1202: AEROSPACE PRACTICUM

Lecture 5: Compressible and Isentropic Flow 1

February 11, 2013

Mechanical and Aerospace Engineering Department

Florida Institute of Technology

D. R. Kirk


Reading and homework assignments l.jpg
READING AND HOMEWORK ASSIGNMENTS

  • Reading: Introduction to Flight, by John D. Anderson, Jr.

    • For this week’s lecture: Chapter 4, Sections 4.10 - 4.21, 4.27

    • For next week’s lecture: Chapter 5, Sections 5.1 - 5.13

  • Lecture-Based Homework Assignment:

    • Problems: 4.7, 4.11, 4.18, 4.19, 4.20, 4.23, 4.27

      • DUE: Friday, February 22, 2013 by 5 PM

    • Problems: 5.2, 5.3, 5.4, 5.6

      • DUE: Friday, March 1, 2013 by 5 PM

      • Turn in hard copy of homework

    • Also be sure to review and be familiar with textbook examples in Chapter 5


Answers to lecture homework l.jpg
ANSWERS TO LECTURE HOMEWORK

  • 5.2: L = 23.9 lb, D = 0.25 lb, Mc/4 = -2.68 lb ft

    • Note 1: Two sets of lift and moment coefficient data are given for the NACA 1412 airfoil, with and without flap deflection. Make sure to read axis and legend properly, and use only flap retracted data.

    • Note 2: The scale for cm,c/4 is different than that for cl, so be careful when reading the data

  • 5.3: L = 308 N, D = 2.77 N, Mc/4 = - 0.925 N m

  • 5.4:a = 2°

  • 5.6: (L/D)max ~ 112


Creo design contest l.jpg

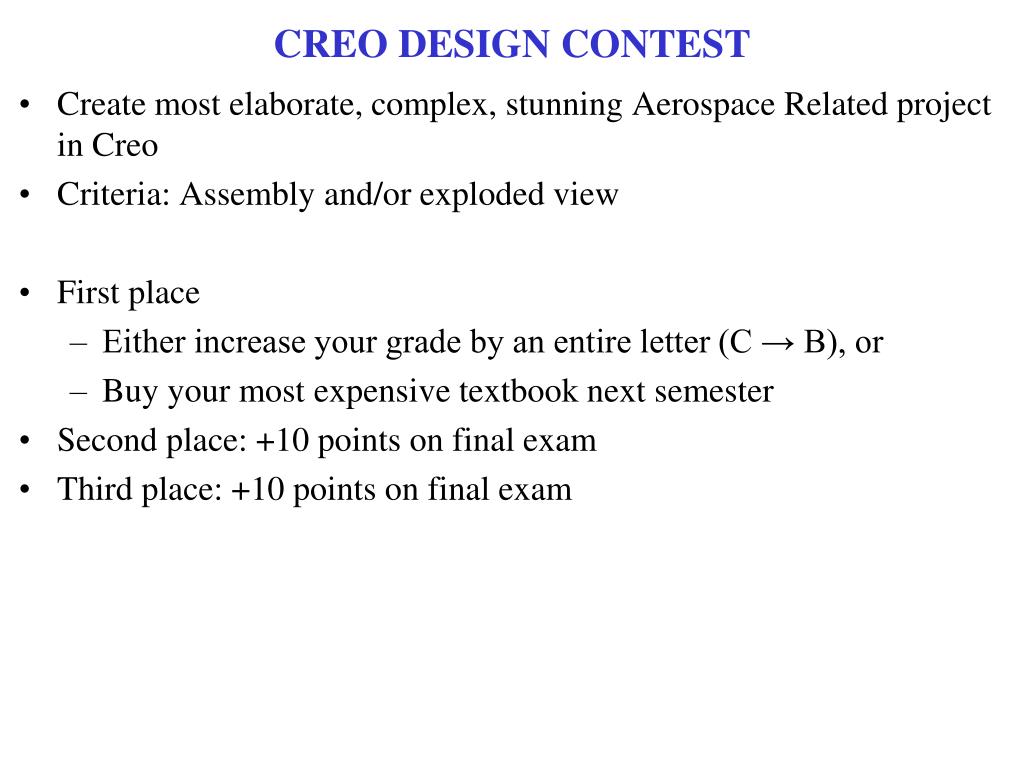

CREO DESIGN CONTEST

  • Create most elaborate, complex, stunning Aerospace Related project in Creo

  • Criteria: Assembly and/or exploded view

  • First place

    • Either increase your grade by an entire letter (C → B), or

    • Buy your most expensive textbook next semester

  • Second place: +10 points on final exam

  • Third place: +10 points on final exam




If you do the pro e challenge do not let it consume you l.jpg

If you do the PRO|E challenge…Do not let it consume you!


Bernoulli s equation l.jpg
BERNOULLI’S EQUATION

Constant along a streamline

  • One of most fundamental and useful equations in aerospace engineering!

  • Remember:

    • Bernoulli’s equation holds only for inviscid (frictionless) and incompressible (r = constant) flows

    • Bernoulli’s equation relates properties between different points along a streamline

    • For a compressible flow Euler’s equation must be used (r is variable)

    • Both Euler’s and Bernoulli’s equations are expressions of F = ma expressed in a useful form for fluid flows and aerodynamics


Example measurement of airspeed 4 11 l.jpg
EXAMPLE: MEASUREMENT OF AIRSPEED (4.11)

How do we measure an airplanes speed in flight?

Pitot tubes are used on aircraft as speedometers (point measurement)

13


Static vs total pressure l.jpg
STATIC VS. TOTAL PRESSURE

In aerodynamics, 2 types of pressure: Static and Total (Stagnation)

Static Pressure, p

Due to random motion of gas molecules

Pressure we would feel if moving along with flow

Strong function of altitude

Total (or Stagnation) Pressure, p0 or pt

Property associated with flow motion

Total pressure at a given point in flow is the pressure that would exist if flow were slowed down isentropically to zero velocity

p0 ≥ p

14


Measurement of airspeed incompressible flow l.jpg

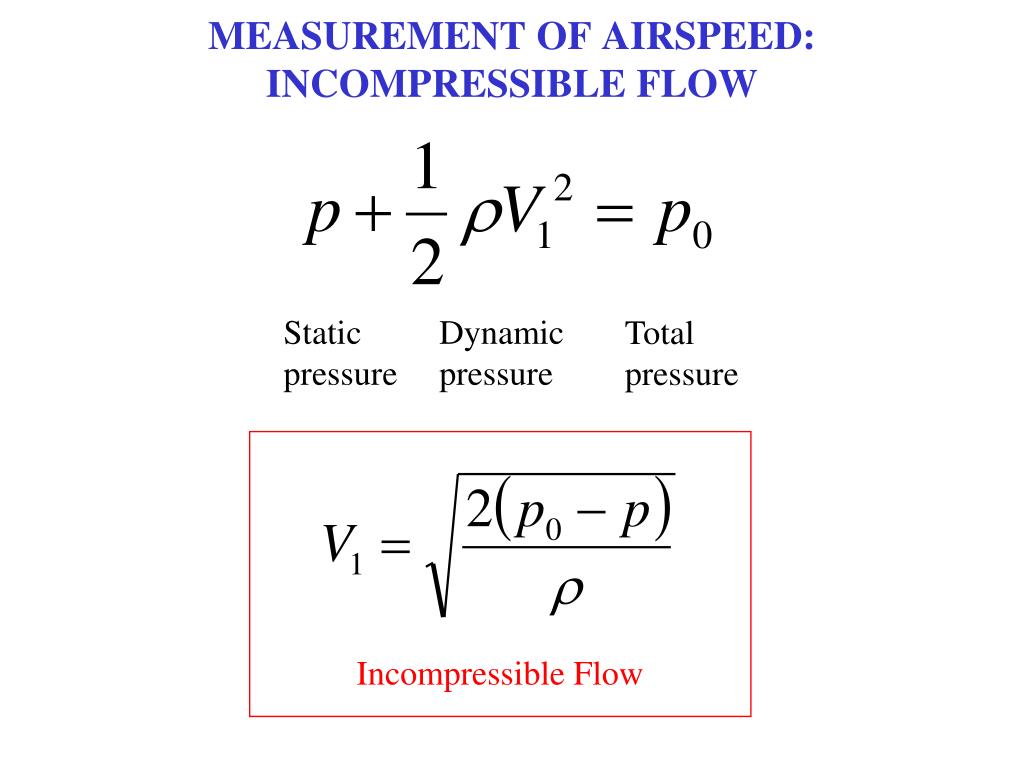

MEASUREMENT OF AIRSPEED: INCOMPRESSIBLE FLOW

Static

pressure

Dynamic

pressure

Total

pressure

Incompressible Flow



Total pressure measurement 4 11 l.jpg

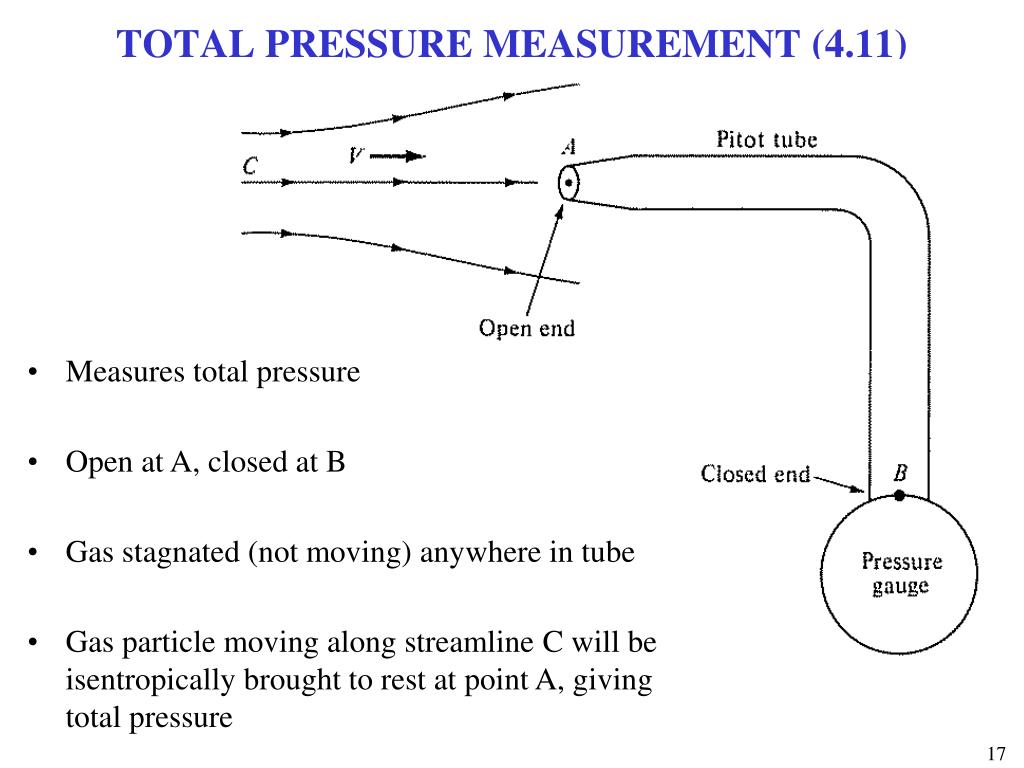

TOTAL PRESSURE MEASUREMENT (4.11)

  • Measures total pressure

  • Open at A, closed at B

  • Gas stagnated (not moving) anywhere in tube

  • Gas particle moving along streamline C will be isentropically brought to rest at point A, giving total pressure

17


Example measurement of airspeed 4 1118 l.jpg
EXAMPLE: MEASUREMENT OF AIRSPEED (4.11)

Point A: Static Pressure, p

Only random motion of gas is measured

Point B: Total Pressure, p0

Flow is isentropically decelerated to zero velocity

A combination of p0 and p allows us to measure V1 at a given point

Instrument is called a Pitot-static probe

p

p0

18


Measurement of airspeed incompressible flow19 l.jpg
MEASUREMENT OF AIRSPEED: INCOMPRESSIBLE FLOW

Static

pressure

Dynamic

pressure

Total

pressure

Incompressible Flow

19


True vs equivalent airspeed l.jpg
TRUE VS. EQUIVALENT AIRSPEED

What is value of r?

If r is measured in actual air around the airplane

Measurement is difficult to do

Practically easier to use value at standard seal-level conditions, rs

This gives an expression called equivalent airspeed

20


Tragic example air france crash l.jpg
TRAGIC EXAMPLE: Air France Crash

  • Aircraft crashed following an aerodynamic stall caused by inconsistent airspeed sensor readings, disengagement of autopilot, and pilot making nose-up inputs despite stall warnings

  • Reason for faulty readings is unknown, but it is assumed by accident investigators to have been caused by formation of ice inside pitot tubes, depriving airspeed sensors of forward-facing air pressure.

  • Pitot tube blockage has contributed to airliner crashes in the past


How does an airfoil generate lift l.jpg
HOW DOES AN AIRFOIL GENERATE LIFT?

  • Lift due to imbalance of pressure distribution over top and bottom surfaces of airfoil (or wing)

    • If pressure on top is lower than pressure on bottom surface, lift is generated

    • Why is pressure lower on top surface?

  • We can understand answer from basic physics:

    • Continuity (Mass Conservation)

    • Newton’s 2nd law (Euler or Bernoulli Equation)

Lift Force = SPA


How does an airfoil generate lift23 l.jpg

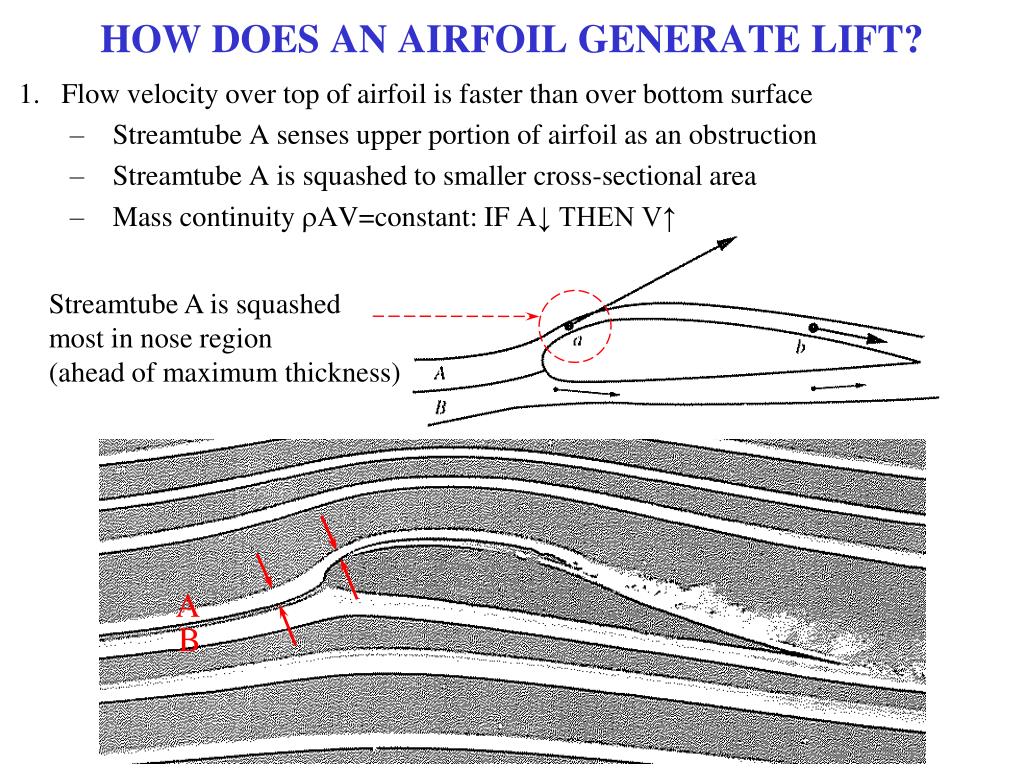

HOW DOES AN AIRFOIL GENERATE LIFT?

  • Flow velocity over top of airfoil is faster than over bottom surface

    • Streamtube A senses upper portion of airfoil as an obstruction

    • Streamtube A is squashed to smaller cross-sectional area

    • Mass continuity rAV=constant: IF A↓ THEN V↑

Streamtube A is squashed

most in nose region

(ahead of maximum thickness)

A

B


How does an airfoil generate lift24 l.jpg
HOW DOES AN AIRFOIL GENERATE LIFT?

  • As V ↑ p↓

    • Incompressible: Bernoulli’s Equation

    • Compressible: Euler’s Equation

    • Called Bernoulli Effect

  • With lower pressure over upper surface and higher pressure over bottom surface, airfoil feels a net force in upward direction → Lift

Most of lift is produced

in first 20-30% of wing

(just downstream of leading edge)

Can you express these ideas in your own words?


Incorrect lift theory l.jpg
Incorrect Lift Theory

  • http://www.grc.nasa.gov/WWW/k-12/airplane/wrong1.html


Summary of governing equations 4 8 l.jpg
SUMMARY OF GOVERNING EQUATIONS (4.8)

  • Steady, incompressible flow of an inviscid (frictionless) fluid along a streamline or in a stream tube of varying area

  • Most important variables: p and V

  • T and r are constants throughout flow

continuity

Bernoulli

What if flow is high speed, M > 0.3?

What if there are temperature effects?

How does density change?


1 st law of thermodynamics 4 5 l.jpg

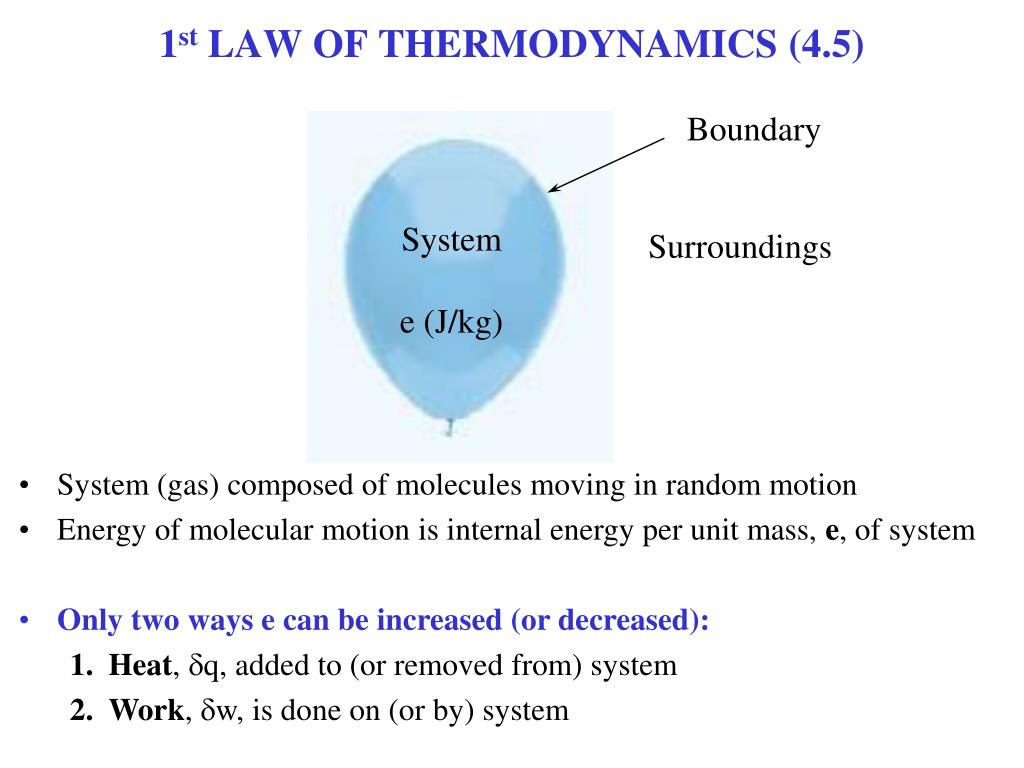

1st LAW OF THERMODYNAMICS (4.5)

Boundary

System

e (J/kg)

Surroundings

  • System (gas) composed of molecules moving in random motion

  • Energy of molecular motion is internal energy per unit mass, e, of system

  • Only two ways e can be increased (or decreased):

    • Heat, dq, added to (or removed from) system

    • Work, dw, is done on (or by) system


Thought experiment 1 l.jpg
THOUGHT EXPERIMENT #1

  • Do not allow size of balloon to change (hold volume constant)

  • Turn on a heat lamp

  • Heat (or q) is added to the system

  • How does e (internal energy per unit mass) inside the balloon change?


Thought experiment 2 l.jpg
THOUGHT EXPERIMENT #2

  • *You* take balloon and squeeze it down to a small size

  • When volume varies work is done

  • Who did the work on the balloon?

  • How does e (internal energy per unit mass) inside the balloon change?

  • Where did this increased energy come from?


1 st law of thermodynamics 4 530 l.jpg

e (J/kg)

1st LAW OF THERMODYNAMICS (4.5)

Boundary

SYSTEM

(unit mass of gas)

SURROUNDINGS

dq

  • System (gas) composed of molecules moving in random motion

  • Energy of all molecular motion is called internal energy per unit mass, e, of system

  • Only two ways e can be increased (or decreased):

    • Heat, dq, added to (or removed from) system

    • Work, dw, is done on (or by) system


1 st law in more useful form 4 5 l.jpg
1st LAW IN MORE USEFUL FORM (4.5)

  • 1st Law: de = dq + dw

    • Find more useful expression for dw, in terms of p and r (or v = 1/r)

  • When volume varies → work is done

  • Work done on balloon, volume ↓

  • Work done by balloon, volume ↑

Change in

Volume (-)


Enthalpy a useful quantity 4 5 l.jpg
ENTHALPY: A USEFUL QUANTITY (4.5)

Define a new quantity

called enthalpy, h:

(recall ideal gas law: pv = RT)

Differentiate

Substitute into 1st law

(from previous slide)

Another version of 1st law

that uses enthalpy, h:


Heat addition and specific heat 4 5 l.jpg
HEAT ADDITION AND SPECIFIC HEAT (4.5)

  • Addition of dq will cause a small change in temperature dT of system

dq

dT

  • Specific heat is heat added per unit change in temperature of system

  • Different materials have different specific heats

    • Balloon filled with He, N2, Ar, water, lead, uranium, etc…

  • ALSO, for a fixed dq, resulting dT depends on type of process…


Specific heat constant pressure l.jpg
SPECIFIC HEAT: CONSTANT PRESSURE

  • Addition of dq will cause a small change in temperature dT of system

  • System pressure remains constant

dq

dT

Extra Credit #1:

Show this step


Specific heat constant volume l.jpg
SPECIFIC HEAT: CONSTANT VOLUME

  • Addition of dq will cause a small change in temperature dT of system

  • System volume remains constant

dq

dT

Extra Credit #2:

Show this step


Heat addition and specific heat 4 536 l.jpg
HEAT ADDITION AND SPECIFIC HEAT (4.5)

  • Addition of dq will cause a small change in temperature dT of system

  • Specific heat is heat added per unit change in temperature of system

  • However, for a fixed dq, resulting dT depends on type of process:

Constant Pressure

Constant Volume

Specific heat ratio

For air, g = 1.4


Isentropic flow 4 6 l.jpg
ISENTROPIC FLOW (4.6)

  • Goal: Relate Thermodynamics to Compressible Flow

  • Adiabatic Process: No heat is added or removed from system

    • dq = 0

    • Note: Temperature can still change because of changing density

  • Reversible Process: No friction (or other dissipative effects)

  • Isentropic Process: (1) Adiabatic + (2) Reversible

    • (1) No heat exchange + (2) no frictional losses

    • Relevant for compressible flows only

    • Provides important relationships among thermodynamic variables at two different points along a streamline

g = ratio of specific heats

g = cp/cv

gair=1.4


Derivation energy equation 4 7 l.jpg
DERIVATION: ENERGY EQUATION (4.7)

Energy can neither be created nor destroyed

Start with 1st law

Adiabatic, dq=0

1st law in terms of enthalpy

Recall Euler’s equation

Combine

Integrate

Result: frictionless + adiabatic flow


Energy equation summary 4 7 l.jpg
ENERGY EQUATION SUMMARY (4.7)

  • Energy can neither be created nor destroyed; can only change physical form

    • Same idea as 1st law of thermodynamics

Energy equation for frictionless,

adiabatic flow (isentropic)

h = enthalpy = e+p/r = e+RT

h = cpT for an ideal gas

Also energy equation for

frictionless, adiabatic flow

Relates T and V at two different points along a streamline


Summary of governing equations 4 8 steady and inviscid flow l.jpg
SUMMARY OF GOVERNING EQUATIONS (4.8)STEADY AND INVISCID FLOW

  • Incompressible flow of fluid along a streamline or in a stream tube of varying area

  • Most important variables: p and V

  • T and r are constants throughout flow

continuity

Bernoulli

continuity

  • Compressible, isentropic (adiabatic and frictionless) flow along a streamline or in a stream tube of varying area

  • T, p, r, and V are all variables

isentropic

energy

equation of state

at any point


Example speed of sound 4 9 l.jpg
EXAMPLE: SPEED OF SOUND (4.9)

  • Sound waves travel through air at a finite speed

  • Sound speed (information speed) has an important role in aerodynamics

  • Combine conservation of mass, Euler’s equation and isentropic relations:

  • Speed of sound, a, in a perfect gas depends only on temperature of gas

  • Mach number = flow velocity normalizes by speed of sound

    • If M < 1 flow is subsonic

    • If M = 1 flow is sonic

    • If M > flow is supersonic

  • If M < 0.3 flow may be considered incompressible


Key terms can you define them l.jpg

Streamline

Stream tube

Steady flow

Unsteady flow

Viscid flow

Inviscid flow

Compressible flow

Incompressible flow

Laminar flow

Turbulent flow

Constant pressure process

Constant volume process

Adiabatic

Reversible

Isentropic

Enthalpy

KEY TERMS: CAN YOU DEFINE THEM?


Measurement of airspeed subsonic comressible flow l.jpg
MEASUREMENT OF AIRSPEED:SUBSONIC COMRESSIBLE FLOW

  • If M > 0.3, flow is compressible (density changes are important)

  • Need to introduce energy equation and isentropic relations

cp: specific heat at constant pressure

M1=V1/a1

gair=1.4


Measurement of airspeed subsonic comressible flow44 l.jpg
MEASUREMENT OF AIRSPEED:SUBSONIC COMRESSIBLE FLOW

  • So, how do we use these results to measure airspeed

p0 and p1 give

Flight Mach number

Mach meter

M1=V1/a1

Actual Flight Speed

Actual Flight Speed

using pressure difference

What is T1 and a1?

Again use sea-level conditions Ts, as, ps (a1=340.3 m/s)


Example total temperature l.jpg
EXAMPLE: TOTAL TEMPERATURE

  • A rocket is flying at Mach 6 through a portion of the atmosphere where the static temperature is 200 K

  • What temperature does the nose of the rocket ‘feel’?

  • T0 = 200(1+ 0.2(36)) = 1,640 K!

Total temperature

Static temperature

Vehicle flight

Mach number


Measurement of airspeed supersonic flow l.jpg
MEASUREMENT OF AIRSPEED:SUPERSONIC FLOW

  • What can happen in supersonic flows?

  • Supersonic flows (M > 1) are qualitatively and quantitatively different from subsonic flows (M < 1)


How and why does a shock wave form l.jpg
HOW AND WHY DOES A SHOCK WAVE FORM?

  • Think of a as ‘information speed’ and M=V/a as ratio of flow speed to information speed

  • If M < 1 information available throughout flow field

  • If M > 1 information confined to some region of flow field


Measurement of airspeed supersonic flow48 l.jpg
MEASUREMENT OF AIRSPEED:SUPERSONIC FLOW

Notice how different this expression is from previous expressions

You will learn a lot more about shock wave in compressible flow course

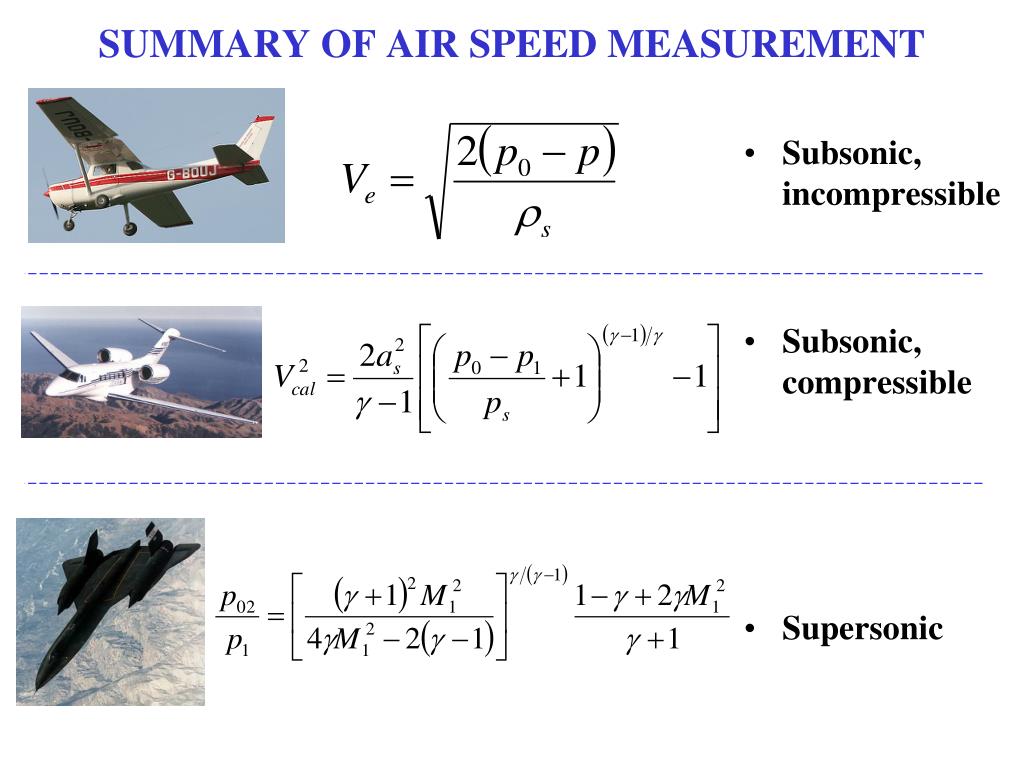

Summary of air speed measurement l.jpg
SUMMARY OF AIR SPEED MEASUREMENT

  • Subsonic, incompressible

  • Subsonic, compressible

  • Supersonic



More on supersonic flows 4 13 l.jpg
MORE ON SUPERSONIC FLOWS (4.13)

Isentropic flow in a streamtube

Differentiate

Euler’s Equation

Since flow is isentropic

a2=dp/dr

Area-Velocity Relation


Consequences of area velocity relation l.jpg
CONSEQUENCES OF AREA-VELOCITY RELATION

  • IF Flow is Subsonic (M < 1)

    • For V to increase (dV positive) area must decrease (dA negative)

    • Note that this is consistent with Euler’s equation for dV and dp

  • IF Flow is Supersonic (M > 1)

    • For V to increase (dV positive) area must increase (dA positive)

  • IF Flow is Sonic (M = 1)

    • M = 1 occurs at a minimum area of cross-section

    • Minimum area is called a throat (dA/A = 0)


Trends contraction l.jpg
TRENDS: CONTRACTION

2: OUTLET

1: INLET

M1 < 1

M1 > 1

V2 > V1

V2 < V1


Trends expansion l.jpg
TRENDS: EXPANSION

2: OUTLET

1: INLET

M1 < 1

M1 > 1

V2 < V1

V2 > V1


Put it together c d nozzle l.jpg
PUT IT TOGETHER: C-D NOZZLE

2: OUTLET

1: INLET


More on supersonic flows 4 1356 l.jpg
MORE ON SUPERSONIC FLOWS (4.13)

  • A converging-diverging, with a minimum area throat, is necessary to produce a supersonic flow from rest

Rocket nozzle

Supersonic wind tunnel section


Summary of governing equations 4 8 steady and inviscid flow57 l.jpg
SUMMARY OF GOVERNING EQUATIONS (4.8)STEADY AND INVISCID FLOW

  • Incompressible flow of fluid along a streamline or in a stream tube of varying area

  • Most important variables: p and V

  • T and r are constants throughout flow

continuity

Bernoulli

continuity

  • Compressible, isentropic (adiabatic and frictionless) flow along a streamline or in a stream tube of varying area

  • T, p, r, and V are all variables

isentropic

energy

equation of state

at any point


ad
