  1. CH14 BIPOLAR DIGITAL CIRCUITS The Ideal BJT Transistor Switch The switch terminals are the collector and emitter. • The transistor switch is: • OFF when VBE is zero or negative RON when VBE is positive (These conditions are approximated with a practical transistor switch.)

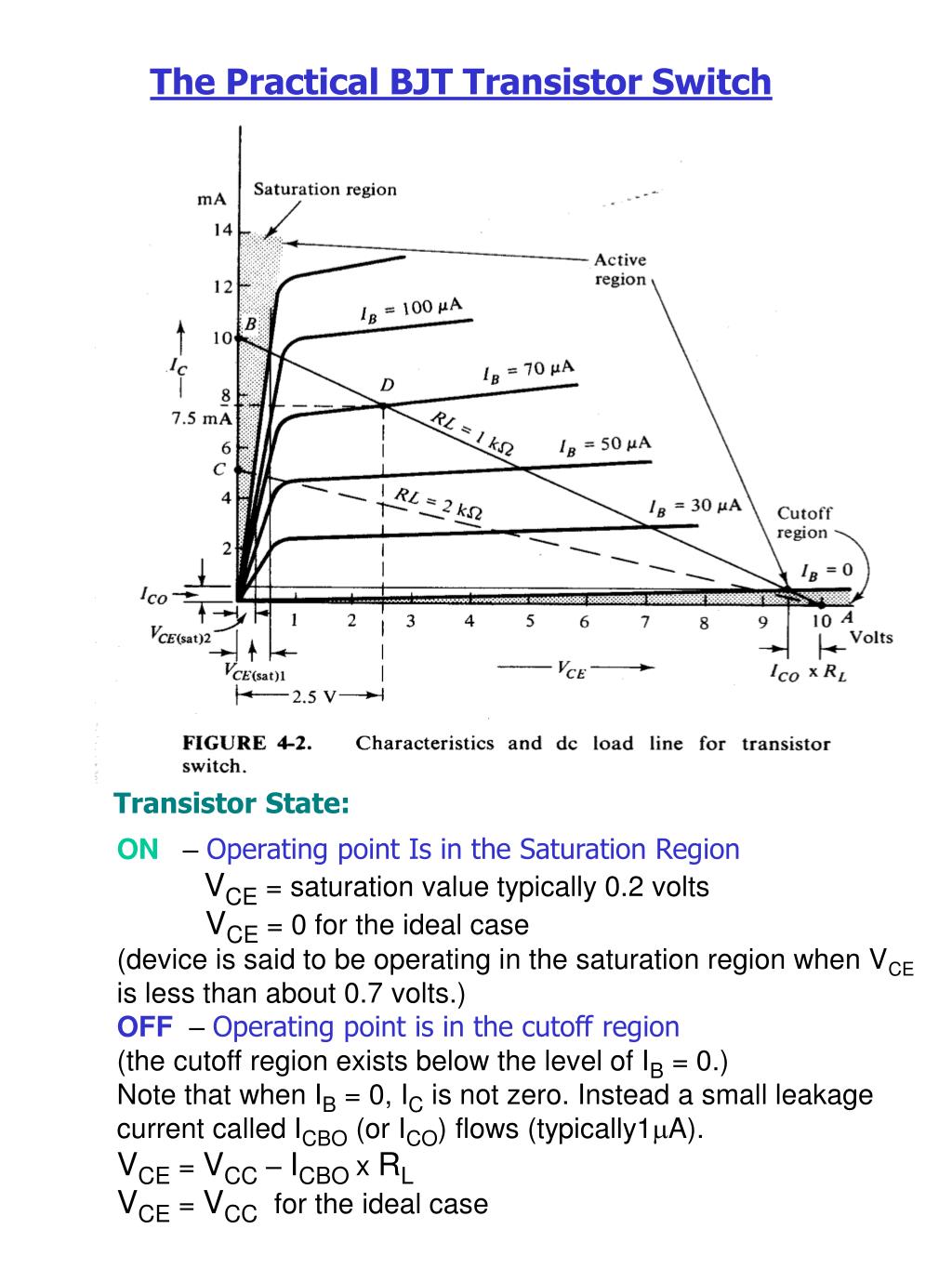

  2. The Practical BJT Transistor Switch Transistor State: ON – Operating point Is in the Saturation Region VCE = saturation value typically 0.2 volts VCE = 0 for the ideal case (device is said to be operating in the saturation region when VCE is less than about 0.7 volts.) OFF – Operating point is in the cutoff region (the cutoff region exists below the level of IB = 0.) Note that when IB = 0, IC is not zero. Instead a small leakage current called ICBO (or ICO) flows (typically1mA). VCE = VCC – ICBO x RL VCE = VCCfor the ideal case

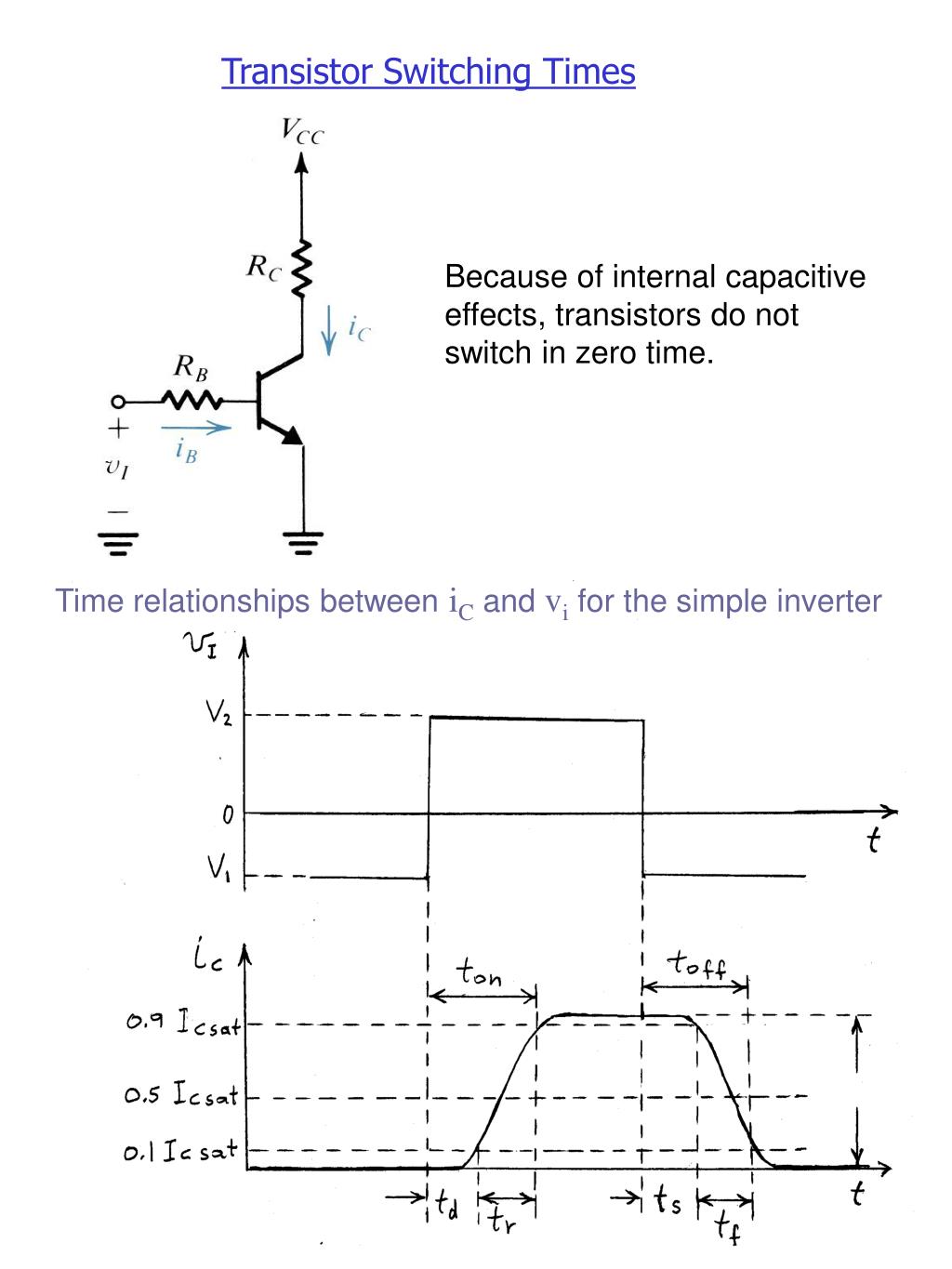

  3. Transistor Switching Times Because of internal capacitive effects, transistors do not switch in zero time. Time relationships between iCand vifor the simple inverter

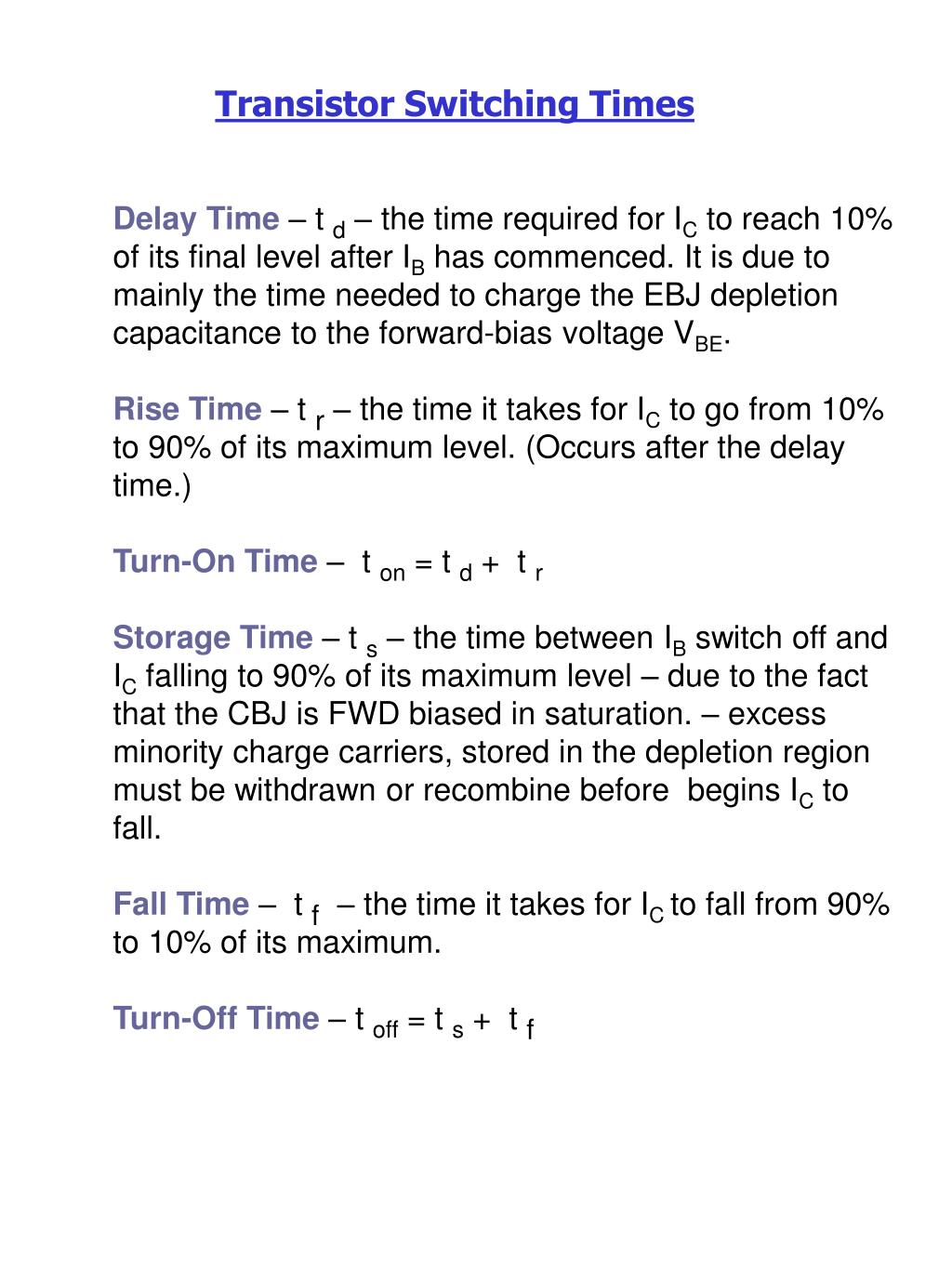

  4. Transistor Switching Times Delay Time – t d – the time required for IC to reach 10% of its final level after IB has commenced. It is due to mainly the time needed to charge the EBJ depletion capacitance to the forward-bias voltage VBE. Rise Time – t r – the time it takes for IC to go from 10% to 90% of its maximum level. (Occurs after the delay time.) Turn-On Time – t on = t d + t r Storage Time – t s – the time between IB switch off and IC falling to 90% of its maximum level – due to the fact that the CBJ is FWD biased in saturation. – excess minority charge carriers, stored in the depletion region must be withdrawn or recombine before begins IC to fall. Fall Time – t f – the time it takes for IC to fall from 90% to 10% of its maximum. Turn-Off Time – t off = t s + t f

  5. CH14 INTRODUCTION TO TTL Conceptual Circuit (Inverter) Analysis for Case: Input = logic HI (e.g. 5volts) In this case Q1 operates in the inverse active mode with a very low bR 0.02 Base-Collector junction of Q1 is forward biased Base-Emitter junction of Q1 is reverse biased (see currents marked on Fig. 14.10) Gate input current = bR I 0.02 I – very small Q3 base current = (bR + 1)II R is chosen so that I is large enough to drive Q3 into saturation with LO output voltage  0.2 volts

  6. CH14 INTRODUCTION TO TTL Conceptual Circuit (Inverter)  5V +0.3V Analysis for Case: Input = logic LO (e.g. 0.2 volts) In this case Q1 operates in the normal active mode with a bF large value Base-Emitter junction of Q1 is forward biased and base voltage = 0.2 + 0.7 = 0.9 volts Collector current of Q1 = bFI (large value) which rapidly discharges the base of Q3 (initially still at 0.7 volts and saturated immediately after switching) rapidly driving it into cutoff with a reduced base voltage  0.3volts. This reduced base voltage is the collector voltage of Q1 so Q1 saturates with VCE sat  0.1v and negligibly small collector current. Its base voltage is then  0.3v  the base voltage of Q3, keeping Q3 in cutoff and output level HI.

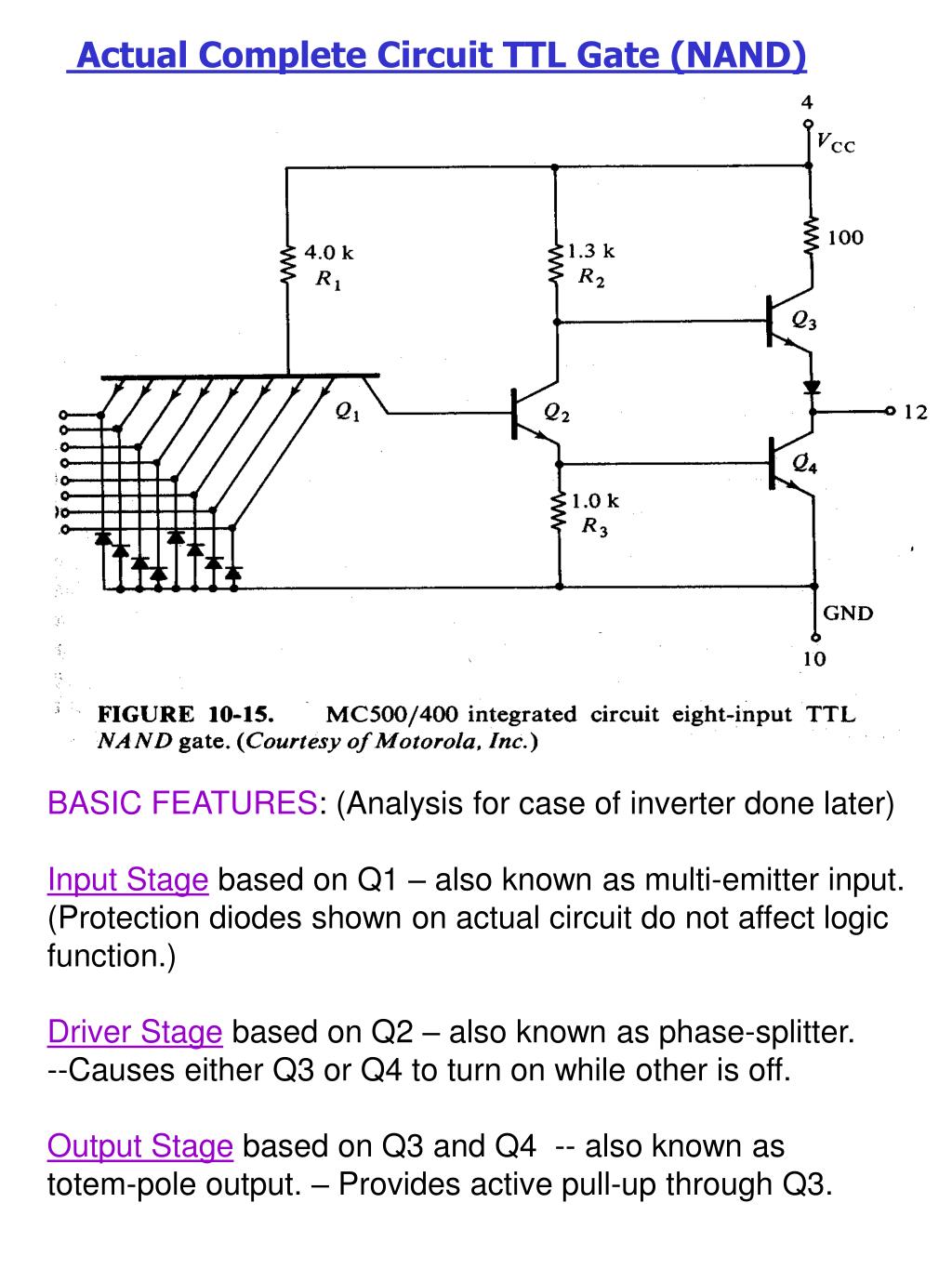

  7. Actual Complete Circuit TTL Gate (NAND) BASIC FEATURES: (Analysis for case of inverter done later) Input Stage based on Q1 – also known as multi-emitter input. (Protection diodes shown on actual circuit do not affect logic function.) Driver Stage based on Q2 – also known as phase-splitter. --Causes either Q3 or Q4 to turn on while other is off. Output Stage based on Q3 and Q4 -- also known as totem-pole output. – Provides active pull-up through Q3.

  8. Analysis when Input is HI Circled numbers in Fig. give order of analysis. (Our analysis relies on prior understanding gained from the conceptual circuit analysis already completed.) 1. Q3 is on and has 0.7v at its base 2. Q2 is on supplying Q3 with sufficient base current to drive it into saturation. 3. Q1 is operating in the inverse active mode with BC junction FWD biased (0.7v), so its base voltage is 1.4 + 0.7 = 2.1v 4. Ohm’s law gives current through 4k resistor. 5. Gate input current IIH = Q1’s inverse mode emitter current =bRI 6. Q2’s base current = Q1’s inverse mode collector current = (bR+1) I  0.73mA 7. Q2’s collector voltage = VBE3 + VCE sat  0.7 + 0.2 = 0.9v 8. Ohm’s law gives current in 1.6k resistor = 2.6 mA. 9. The 0.9v at Q4’s base cannot turn it on due to diode D, so IB4 = 0 10. For Q2, IE = IC + IB = 3.3mA

  9. Analysis when Input is HI 11. Current through 1k resistor by Ohm’s law 12. Current into base of Q3 by KCL 13. Output voltage of gate is VCE SAT of Q3 In the LO output state Q3 can sink a load current I L <= b x 2.6mA If this value is exceeded – no longer in saturation and output logic LO voltage level not maintained within specified limits. (Fig. shows Q3 leaving saturation at higher load current). There is thus a limit on allowable load current that is directly related to the gate’s maximum fan-out. The Fig. is simply the vCE vs. iC characteristic curve of Q3 at the base current it has when output is LO.

  10. Analysis when Input is LO 1. BE junction of Q1 is FWD biased and base voltage  0.2+0.7 = 0.9v 2. Ohm’s law gives current in 4k resistor. 4. 0.9v is insufficient to FWD bias the series combination of CB junction of Q1 and BE junction of Q2, so Q2 is cutoff and Q1 has zero collector current. 3. For Q1, IE = IB + IC = IB + 0 = I  1mA. 5. For Q1, VC = VCE SAT+ VI  0.1 + 0.2 = 0.3v 6. For Q2 (cutoff), VE = IE x 1k = 0 7. Q3 is also cutoff with base current = 0 mA

  11. Analysis when Input is LO • Q4 supplies the load current when input is LO (output HI) • Gate output terminal open: • v0 = 5 – (IB4 X 1.6k) – 0.65 – 0.65 •  5 – 0.65 – 0.65 = 3.7v (since IB4 0) • Q4 supplying load current large enough to cause it to saturate: • v0 = VCC – iL x 130 – VCESAT4 – VD • Q4 supplying load current below value causing saturation while in active mode: • v0 = VCC – iL /(b +1) x 1.6k – VBE4 – VD

  12. Function of 130 Ohm Resistance • Function is to limit the current through the pull-up transistor Q4. • Limit current due to: • Accidental short-circuit to ground. • Current pulse due to Q3 and Q4 briefly on at the • same time during HI to LO transition. • (Q3 needs extra time to turn off (discharging the • base through the 1k) after Q2 has caused • Q4 to turn on.) TTL Supply Bypassing The current pulses due to the brief time when both output transistors of the totem pole turn on, are current spikes which cause corresponding voltage spikes superimposed on VCC that can be coupled to other components of the digital system. Thus bypassing capacitors should be connected between The VCC rail and ground at frequent locations. (Usually at the VCC pins of the IC’s). Check IC manufacturer’s application notes for Recommended practice.
