Presentation Transcript


Mechanical energy work

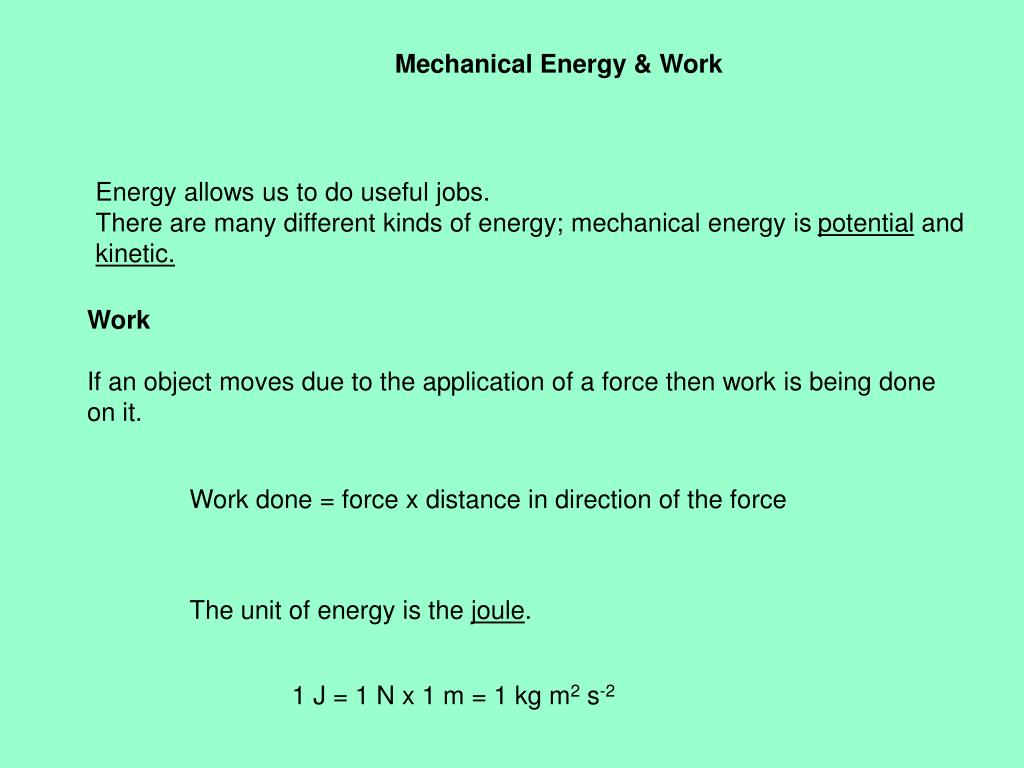

  • Mechanical Energy & Work

Energy allows us to do useful jobs.

There are many different kinds of energy; mechanical energy is potential and kinetic.

Work

If an object moves due to the application of a force then work is being done on it.

Work done = force x distance in direction of the force

The unit of energy is the joule.

1 J = 1 N x 1 m = 1 kg m2 s-2


Mechanical energy work

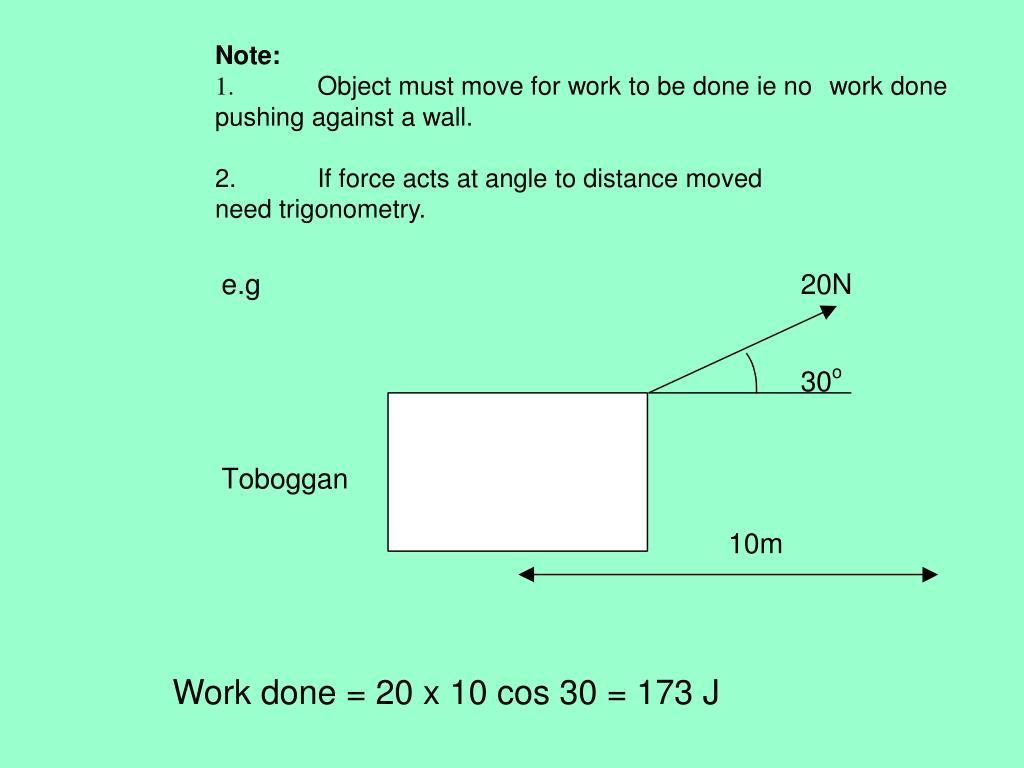

  • Note:

  • 1.Object must move for work to be done ie no work done pushing against a wall.

  • 2.If force acts at angle to distance moved need trigonometry.

  • Work done = 20 x 10 cos 30 = 173 J


    Mechanical energy work

    To lift the book onto the table I need to exert a force equal to its weight for a distance equal to the height of the table.

    Work done = weight x height

    W = mgh

    This is stored as gpe in the book.

    Note: we arbitrarily take the floor as a zero for gpe.

    Strictly,Dgpe = mgDh

    This formula applies only for small changes in height

    i.e g is assumed constant.
