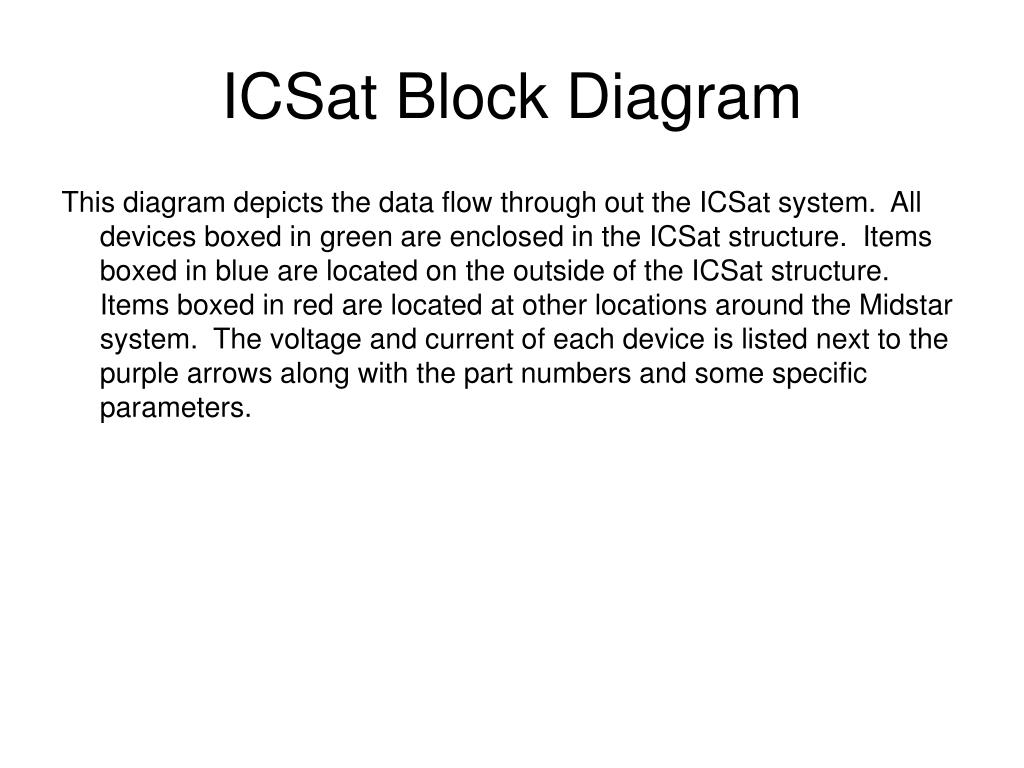

  1. ICSat Block Diagram This diagram depicts the data flow through out the ICSat system. All devices boxed in green are enclosed in the ICSat structure. Items boxed in blue are located on the outside of the ICSat structure. Items boxed in red are located at other locations around the Midstar system. The voltage and current of each device is listed next to the purple arrows along with the part numbers and some specific parameters.

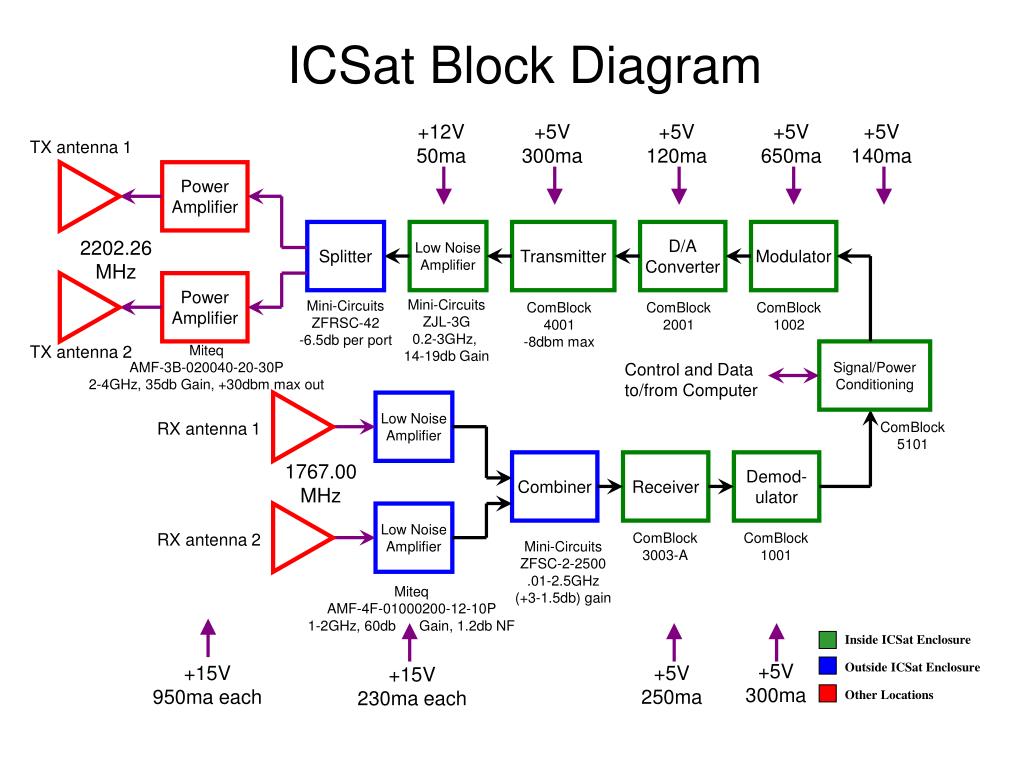

  2. ICSat Block Diagram +12V 50ma +5V 300ma +5V 120ma +5V 650ma +5V 140ma TX antenna 1 Power Amplifier Splitter Low Noise Amplifier Transmitter D/A Converter Modulator 2202.26MHz Power Amplifier Mini-Circuits ZJL-3G 0.2-3GHz, 14-19db Gain Mini-Circuits ZFRSC-42 -6.5db per port ComBlock 4001 -8dbm max ComBlock 2001 ComBlock 1002 TX antenna 2 Miteq AMF-3B-020040-20-30P 2-4GHz, 35db Gain, +30dbm max out Signal/Power Conditioning Control and Data to/from Computer Low Noise Amplifier RX antenna 1 ComBlock 5101 Combiner Receiver Demod-ulator 1767.00 MHz Low Noise Amplifier RX antenna 2 ComBlock 3003-A ComBlock 1001 Mini-Circuits ZFSC-2-2500 .01-2.5GHz (+3-1.5db) gain Miteq AMF-4F-01000200-12-10P 1-2GHz, 60db Gain, 1.2db NF Inside ICSat Enclosure Outside ICSat Enclosure Other Locations +5V 300ma +15V 950ma each +5V 250ma +15V 230ma each
