Linking PEVs with Sustainability & Building Benchmarking Goals

Linking PEVs with Sustainability & Building Benchmarking Goals. Workplace Building-related Emissions = People needing/using power at work Workplace Transportation-related Emissions = People showing up for work. Washington State GHG Emissions by Source in 2010 (million metric tons CO 2 e).

Download Presentation

Linking PEVs with Sustainability & Building Benchmarking Goals

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Linking PEVs with Sustainability & Building Benchmarking Goals

  2. Workplace Building-related Emissions = People needing/using power at work Workplace Transportation-related Emissions = People showing up for work

  3. Washington State GHG Emissions by Source in 2010 (million metric tons CO2e) 23% of total state emissions.

  4. The Big Picture: WA’s Primary Energy Sources & Uses

  5. Workplace-related GHG emissions: kWh vs. Gasoline Based on: 1 million SF office tower, electricity consumption of 17.5 kWh/SF; Seattle City Light emissions of 0.1 lbs CO2/kWh; 990 employee vehicles per day; 251 work days; PSRC 2006 Activity Survey commuter data; and vehicle emissions based on US passenger fleet average of 22 MPG, 4.90 lbs CO2 per gallon for upstream gasoline production, 20% adder due to oil sands content in Washington State refined gasoline, and 19.6 lbs CO2 per gallon tailpipe emissions.

  6. Which conventional passenger vehicle commuters have the greatest impact on workplace-related GHG emissions from gasoline? Source: Puget Sound Regional Council 2006 Activity Survey

  7. Which PEV commuters could benefit from reliable charging at work? * Depending on how it is driven, may use both gas & electricity. ** Not sufficient range to complete trip on electricity alone.

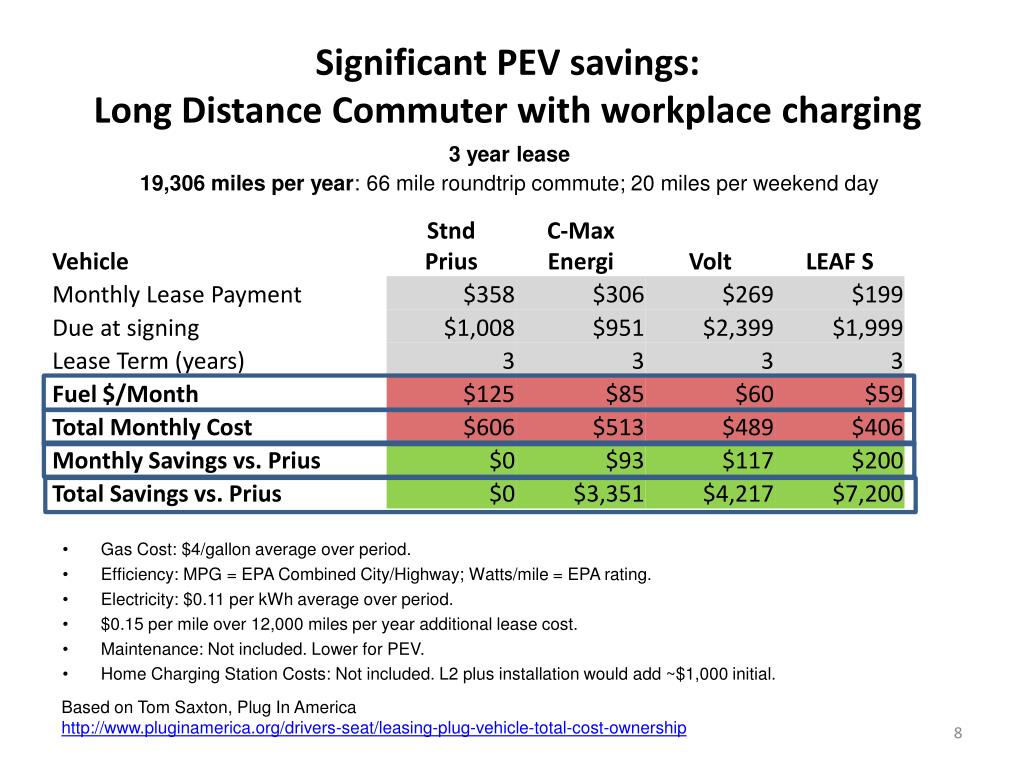

  8. Significant PEV savings: Long Distance Commuter with workplace charging • 3 year lease • 19,306 miles per year: 66 mile roundtrip commute; 20 miles per weekend day • Gas Cost: $4/gallon average over period. • Efficiency: MPG = EPA Combined City/Highway; Watts/mile = EPA rating. • Electricity: $0.11 per kWh average over period. • $0.15 per mile over 12,000 miles per year additional lease cost. • Maintenance: Not included. Lower for PEV. • Home Charging Station Costs: Not included. L2 plus installation would add ~$1,000 initial. Based on Tom Saxton, Plug In America http://www.pluginamerica.org/drivers-seat/leasing-plug-vehicle-total-cost-ownership

  9. Energy efficiency provides benefits by reducing load, while transportation electrification provide benefits by increasing load. Increasing the use of electricity for transportation provides net benefits for both society [petroleum displacement, GHG reduction, PM reduction, NOx+ROG reduction] and utility ratepayers.
