  1. CHANNEL CONCEPTS Creating better quality of life

  2. Channel the New Line Of Light • Channel Interprets light as matter and makes it an indispensable part of the substance. In practice this means: Everything is Possible. • Channel can be set to any Horizontal or Vertical length and is designed for surface mount, recessed or semi-recessed installation. • Ideal for consistent light guidance or as a means of emphasis. This makes Channel the perfect choice for any location where architecture is to be accentuated with new building material light. • A concept which underlines the architecture

  3. CHANNEL DIMENSION Height : 100mm Width : 90 mm Length : 2500mm Or Length : 5000mm

  4. CHANNELINSTALLATION

  5. Single luminaire CHANNEL Single luminaire CHANNEL for 1 fluorescent lamps 54w/ 28W/ 14w/ T5, 230V, direct light emission, support profile in anodised aluminum, pre-wired batten luminaire with rapid connection powder coated white, specular reflector asymmetric in satin aluminum, halogen-free internal wiring, incorporated HF electronic control gear, dimmable digital DALI, suspension to be ordered separately, Protection class I, IP20,

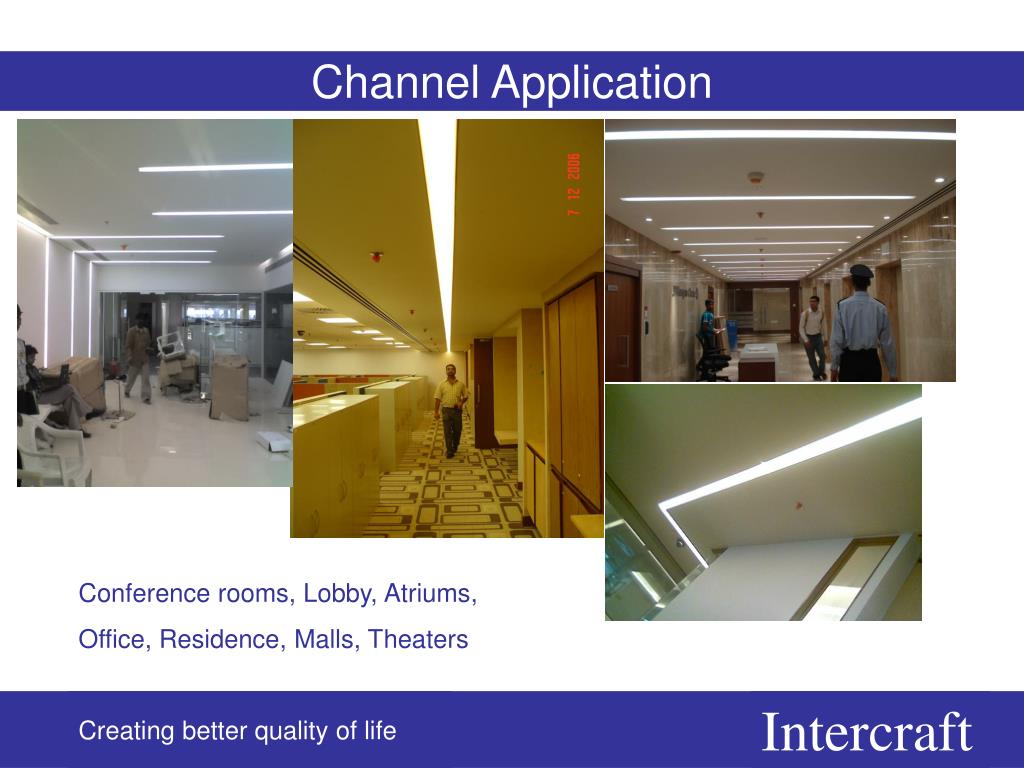

  6. Channel Application Conference rooms, Lobby, Atriums, Office, Residence, Malls, Theaters

  7. One support profile = 8 mounting types

  8. Ideal Application of Channel

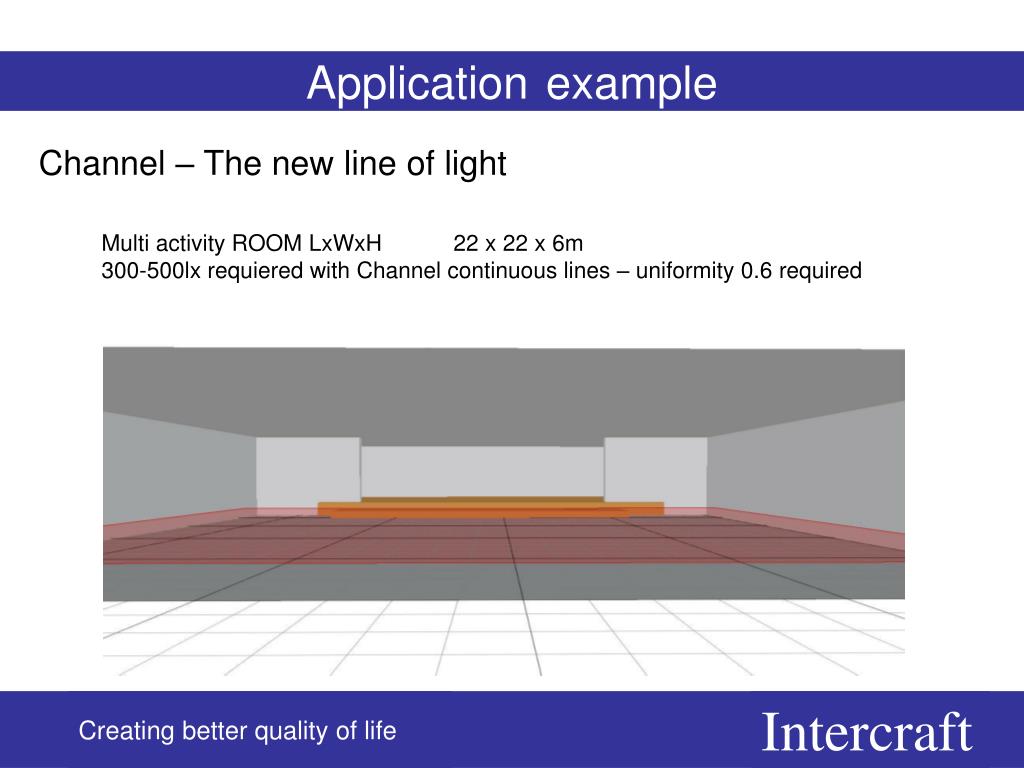

  9. Applicationexample Channel – The new line of light Multi activity ROOM LxWxH 22 x 22 x 6m 300-500lx requiered with Channel continuous lines – uniformity 0.6 required 6m 22m 22m

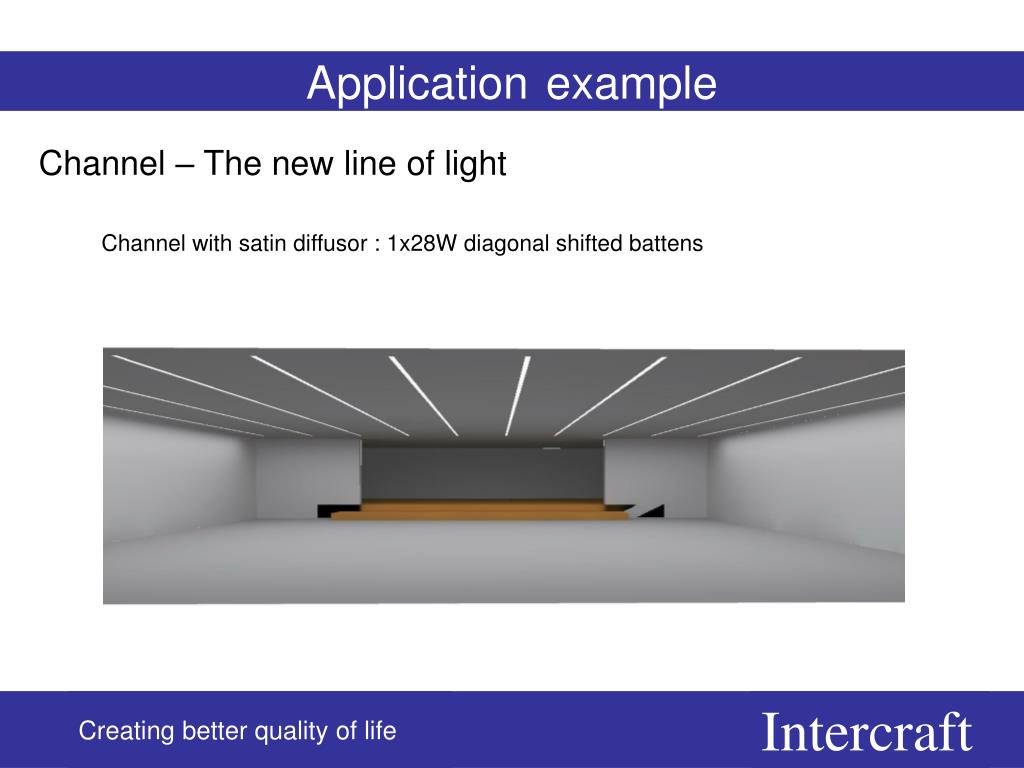

  10. Applicationexample Channel – The new line of light Channel with satin diffusor : 1x28W diagonal shifted battens 2.2m 300-400 lx 200-300 lx

  11. Applicationexample Channel – The new line of light Channel with satin diffusor : 1x28W diagonal shifted battens Conference configuration

  12. Applicationexample Channel – The new line of light Channel with satin diffusor : 1x28W diagonal shifted battens Gala diner configuration

  13. Applicationexample Channel – The new line of light Channel with satin diffusor : 2x28W diagonal shifted battens for reduced number of lines 3.6m 400-450 lx 300-400 lx 200-300 lx

  14. City Point A-201, 2nd Floor, J.B. Nagar, Andheri (E), Mumbai 400059 Intercraft Please feel free to ask Questions www.intercraft.in
