  1. YARN Code Overview Ocular bleeding is no reason to stop programing!

  2. Quick Bio – Joseph Niemiec • Hadoop user for 2+ years • 1 of 5 Author’s for Apache Hadoop YARN (March 2014) • Originally used Hadoop for location based services • Destination Prediction • Traffic Analysis • Effects of weather at client locations on call center call types • Pending Patent in Automotive/Telematics domain • Defensive Paper on M2M Validation • Started on analytics to be better at an MMORPG

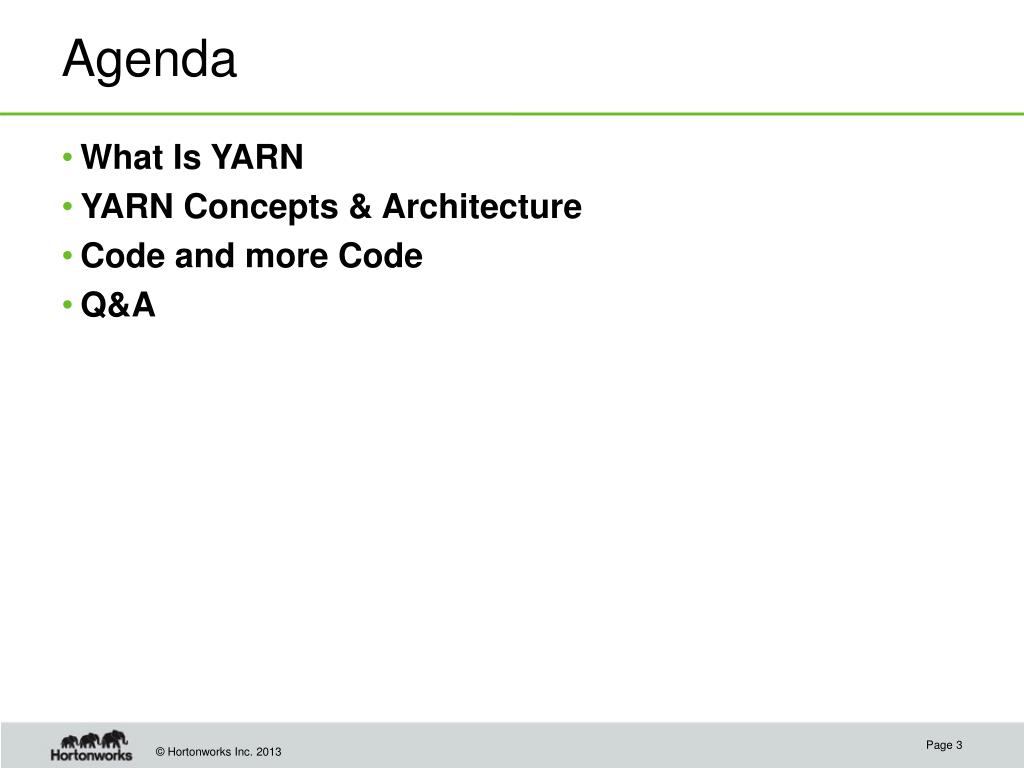

  3. Agenda • What Is YARN • YARN Concepts & Architecture • Code and more Code • Q&A

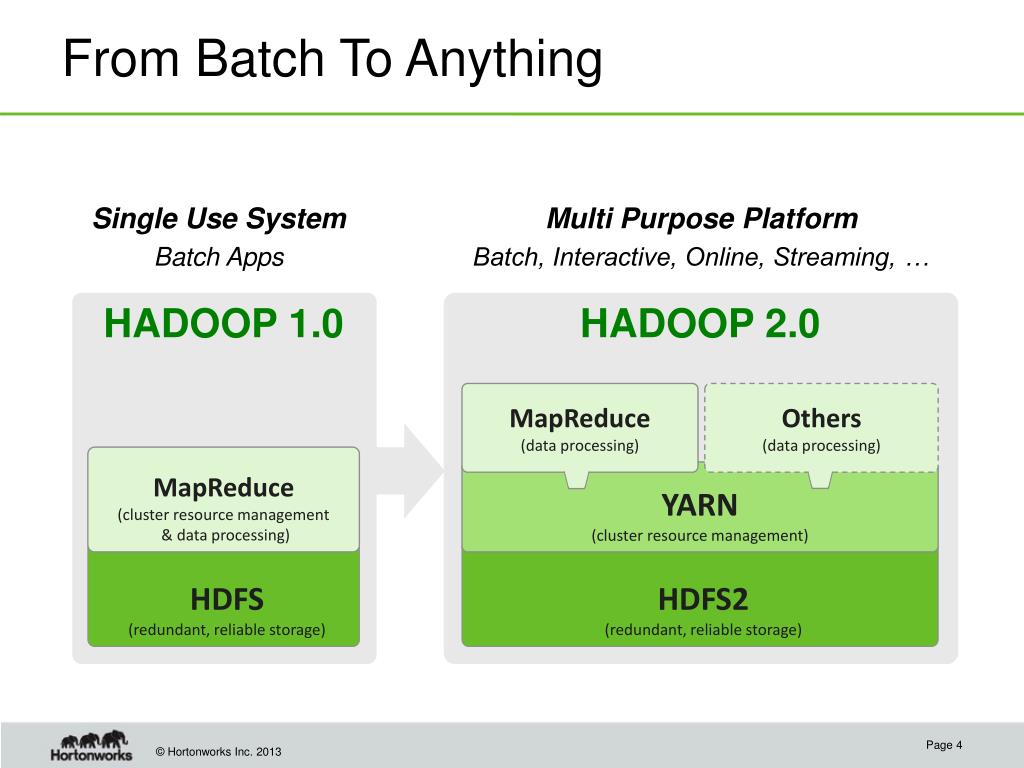

  4. From Batch To Anything Single Use System Batch Apps Multi Purpose Platform Batch, Interactive, Online, Streaming, … HADOOP 1.0 HADOOP 2.0 MapReduce (data processing) Others (data processing) MapReduce (cluster resource management & data processing) YARN (cluster resource management) HDFS (redundant, reliable storage) HDFS2 (redundant, reliable storage)

  5. Concepts • Application • Application is a job submitted to the framework • Examples • Map Reduce Job • MoYaCluster • Container • Basic unit of allocation • Fine-grained resource allocation across multiple resource types (memory, cpu, disk, network, gpu etc.) • container_0 = 2GB, 1CPU • container_1 = 1GB, 6 CPU • Replaces the fixed map/reduce slots

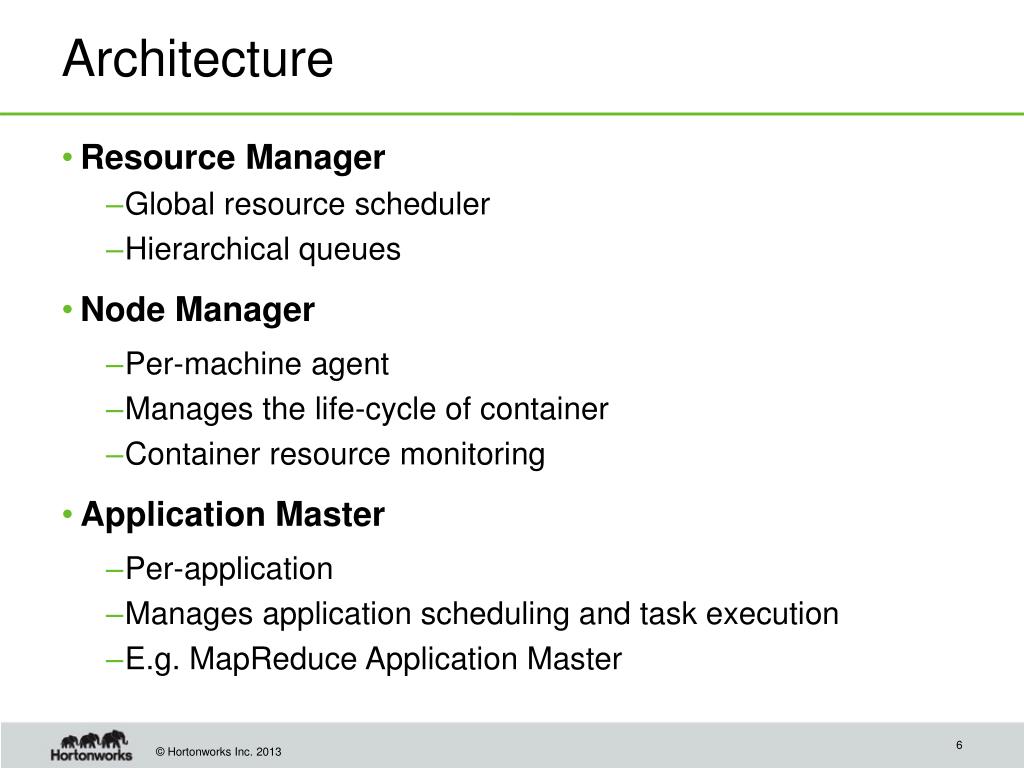

  6. Architecture • Resource Manager • Global resource scheduler • Hierarchical queues • Node Manager • Per-machine agent • Manages the life-cycle of container • Container resource monitoring • Application Master • Per-application • Manages application scheduling and task execution • E.g. MapReduce Application Master

  7. To the code!

  8. Q&A

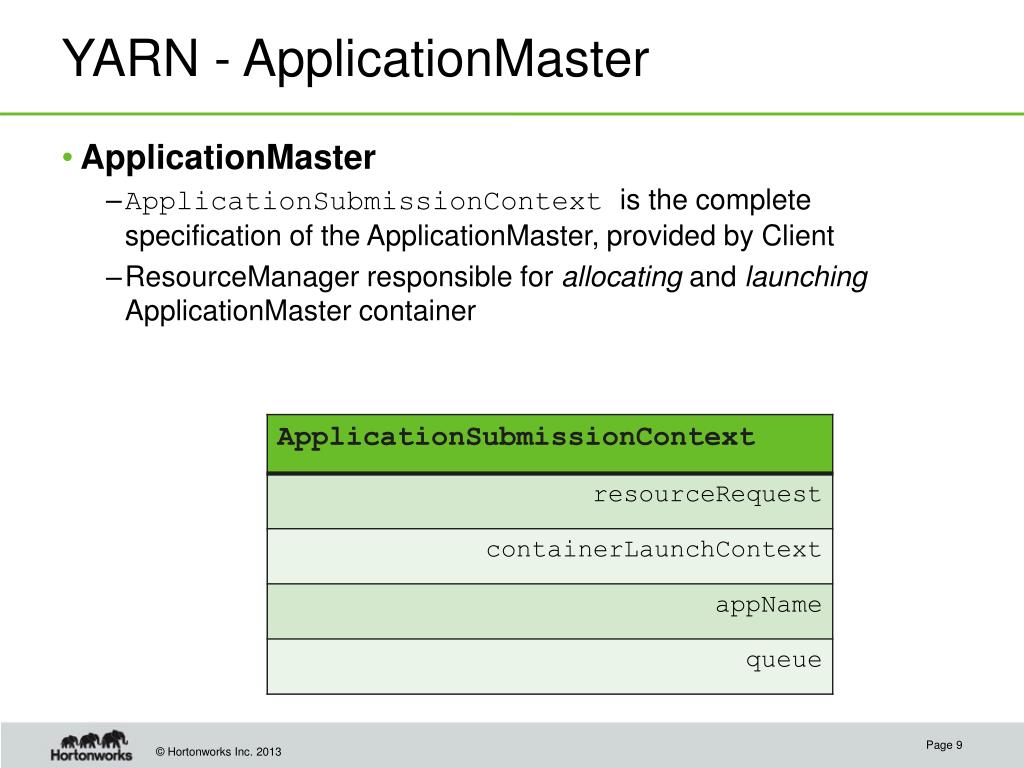

  9. YARN - ApplicationMaster • ApplicationMaster • ApplicationSubmissionContextis the complete specification of the ApplicationMaster, provided by Client • ResourceManager responsible for allocating and launching ApplicationMaster container

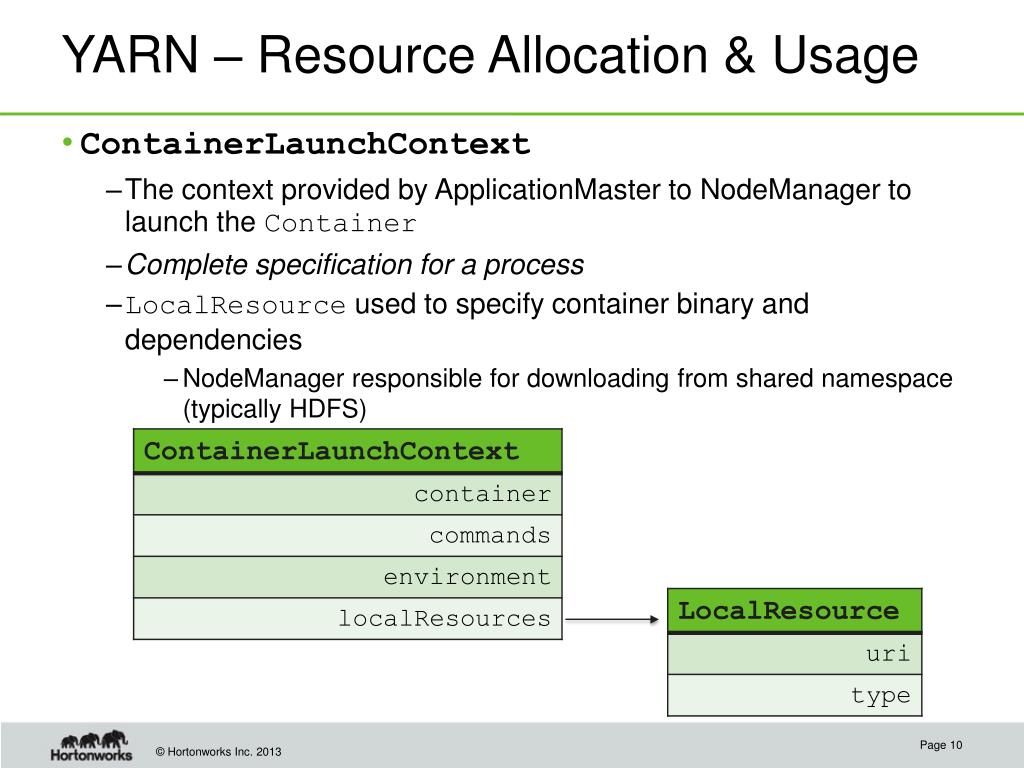

  10. YARN – Resource Allocation & Usage • ContainerLaunchContext • The context provided by ApplicationMaster to NodeManager to launch the Container • Complete specification for a process • LocalResource used to specify container binary and dependencies • NodeManager responsible for downloading from shared namespace (typically HDFS)

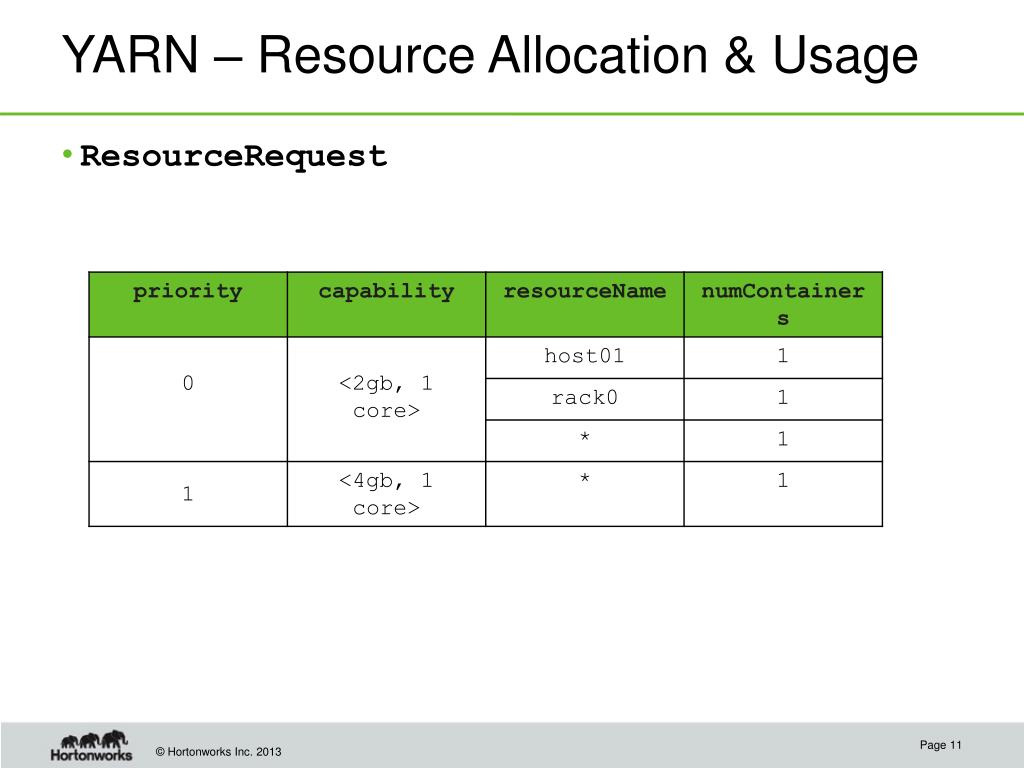

  11. YARN – Resource Allocation & Usage • ResourceRequest

  12. YARN – Resource Allocation & Usage • Container • The basic unit of allocation in YARN • The result of the ResourceRequestprovided by ResourceManager to the ApplicationMaster • A specific amount of resources (cpu, memory etc.) on a specific machine
