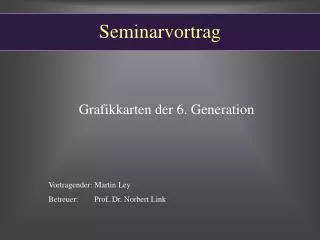

Seminarvortrag

Seminarvortrag. Grafikkarten der 6. Generation Vortragender: Martin Ley Betreuer: Prof. Dr. Norbert Link. Übersicht. Historie Marktanalyse GeForce4 NV25 Vertex Shader Lightspeed Memory Architecture II Engine. Historie. 1982 - Monochrom 1983 - Color Graphics Adapter (CGA)
