The design of the borealis stream processing engine

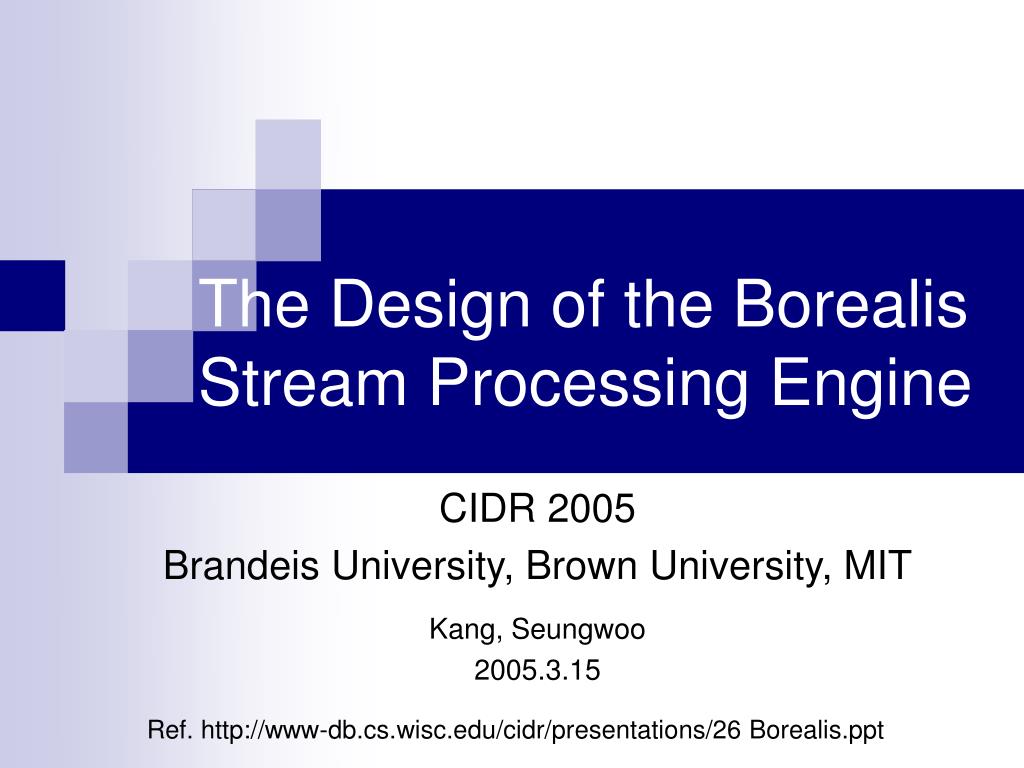

The Design of the Borealis Stream Processing Engine

CIDR 2005

Brandeis University, Brown University, MIT

Kang, Seungwoo

2005.3.15

Ref. http://www-db.cs.wisc.edu/cidr/presentations/26 Borealis.ppt


One line comment

One-line comment

  • This paper presents an overview of the design for Borealis distributed stream processing engine with new features and mechanisms


Outline

Outline

  • Motivation and Goal

  • Requirements

  • Technical issues

    • Dynamic revision of query results

    • Dynamic query modification

    • Flexible and scalable optimization

    • Fault tolerance

  • Conclusion


Motivation and goal

Motivation and Goal

  • Envision the second-generation SPE

    • Fundamental requirements of many streaming applications not supported by first-generation SPE

    • Three fundamental requirements

      • Dynamic revision of query results

      • Dynamic query modification

      • Flexible and scalable optimization

  • Present the functionality and preliminary design of Borealis


Requirements

Requirements

  • Dynamic revision of query results

  • Dynamic query modification

  • Flexible and highly scalable optimization


Changes in the models

Changes in the models

  • Data model

    • Revision support

      • Three types of messages

  • Query model

    • Support revision processing

      • Time travel, CP views

    • Support modification of Op box semantic

      • Control lines

  • QoS model

    • Introduce QoS metrics in tuple basis

      • Each tuple (message) holds VM (Vector of Metrics)

      • Score function


Architecture of borealis

Architecture of Borealis

Modify and extend both systems, Aurora and Medusa, with a set of features and mechanisms


Dynamic revision of query results

Dynamic revision of query results

  • Problem

    • Corrections of previously reported data from data source

    • Highly volatile and unpredictable characteristics of data sources like sensors

      • Late arrival, out-of-order data

    • Just accept approximate or imperfect results

  • Goal

    • Support to process revisions and correct the previous output result


Causes for tuple revisions

(3pm,$11)

(2pm,$12)

(2:25,$9)

(4:15,$10)

(4:05,$11)

(1pm,$10)

Average

price

1 hour

Causes for Tuple Revisions

  • Data sources revise input streams:

    “On occasion, data feeds put out a faulty price [...] and send a correction within a few hours” [MarketBrowser]

  • Temporary overloads cause tuple drops

  • Data arrives late, and miss its processing wnd


New data model for revisions

New Data Model for Revisions

header

data

  • time: tuple timestamp

  • type: tuple type

    • insertion, deletion, replacement

  • id: unique identifier of tuple on stream

(time,type,id,a1,...,an)


Revision processing in borealis

(3pm,$11)

(2pm,$11)

(2pm,$12)

(3pm,$11)

(2:25,$9)

(1pm,$10)

(2pm,$12)

Average

price

Average

price

1 hour

1 hour

Revision Processing in Borealis

  • Closed model: revisions produce revisions


Revision processing in borealis1

Revision Processing in Borealis

  • Connection points (CPs) store history (diagram history with history bound)

  • Operators pull the history they need

Input queue

Operator

Stream

S

CP

Most recent tuple in history

Oldest tuple

in history

Revision


Discussion

Discussion

  • Runtime overhead

    • Assumption

      • Input revision msg < 1%

      • Revision msg processing can be deferred

    • Processing cost

    • Storage cost

  • Application’s needs / requirements

    • Whether it is interested in revision msg or not

    • What to do with revision msg

      • Rollback, compensation ??

    • Application’s QoS requirement

    • Delay bound


Dynamic query modification

Dynamic query modification

  • Problem

    • Change certain attributes of the query at runtime

      • E.g. network monitoring

    • Manual query substitutions – high overhead, slow to take effect (starting with an empty state)

  • Goal

    • Low overhead, fast, and automatic modifications

  • Dynamic query modification

    • Control lines

      • Provided to each operator box

      • Carry messages with revised box parameters (window size, filter predicate) and new box functions

    • Timing problem

      • Specify precisely what data is to be processed according to what control parameters

      • Data is ready for processing too late or too early

        • old data vs. new parameter -> buffered old parameters

        • new data vs. old parameter -> revision message and time travel


Time travel

Time travel

  • Motivation

    • Rewind history and then repeat it

    • Move forward into the future

  • Connection Point (CP)

  • CP View

    • Independent view of CP

    • View range

      • Start_time

      • Max_time

    • Operations

      • Undo: deletion message to roll back the state to time t

      • Replay

    • Prediction function for future travel

1

2

3

4

5

6

2

3

4

3

4

5

6


Discussion1

Discussion

  • How to determine whether timing problem occurs or not

    • Too early: Lookup data buffered in CP

    • Too late: Checking timestamp of the tuple

    • Checking overhead

  • “Performed on a copy of some portion of the running query diagram, so as not to interfere with processing of the running query diagram”

    • Who makes a copy, when, how to make? How to manage?

  • Future time travel

    • When is it useful?

    • E.g alarming ?


Optimization in a distributed spe

Optimization in a Distributed SPE

  • Goal: Optimized resource allocation

  • Challenges:

    • Wide variation in resources

      • High-end servers vs. tiny sensors

    • Multiple resources involved

      • CPU, memory, I/O, bandwidth, power

    • Dynamic environment

      • Changing input load and resource availability

    • Scalability

      • Query network size, number of nodes


Quality of service

Quality of Service

  • A mechanism to drive resource allocation

  • Aurora model

    • QoS functions at query end-points

    • Problem: need to infer QoS at upstream nodes

  • An alternative model

    • Vector of Metrics (VM) carried in tuples

      • Content: tuple’s importance, or its age

      • Performance: arrival time, total resource consumed, ..

    • Operators can change VM

    • A Score Function to rank tuples based on VM

    • Optimizers can keep and use statistics on VM


Example application warfighter physiologic status monitoring wpsm

State

Confidence

Area

Thermal

Hydration

Cognitive

Life Signs

Wound Detection

90%

60%

100%

90%

80%

Physiologic

Models

S

S

S

Example Application: Warfighter Physiologic Status Monitoring (WPSM)


The design of the borealis stream processing engine

VM

([age, confidence], value)

HRate

Model1

RRate

Merge

Model2

Temp

Sensors

Models may change confidence.

SF(VM) = VM.confidence x ADF(VM.age)

Score Function

age decay function


Borealis optimizer hierarchy

Borealis Optimizer Hierarchy

End-point Monitor(s)

Global Optimizer

Neighborhood Optimizer

Local Monitor

Local Optimizer

Borealis Node

statistics

trigger

decision


Optimization tactics

Optimization Tactics

  • Priority scheduling - Local

  • Modification of query plans - Local

    • Changing order of commuting operators

    • Using alternate operator implementations

  • Allocation of query fragments to nodes - Neighborhood, Global

  • Load shedding - Local, Neighborhood, Global


Priority scheduling

Priority scheduling

  • Highest QoS Gradient box

    • Evaluate the predicted-QoS score function on each message with values in VM

    • average QoS Gradient for each box

      • By comparing average QoS-impact scores between the inputs and outputs of each box

  • Highest QoS-impact message from the input queue

    • Out-of-order processing

    • Inherent load shedding behavior


Correlation based load distribution

A

C

B

D

S1

S2

A

B

S1

Connected Plan

Cut Plan

C

D

r

r

S2

2cr

2r

2r

4cr

3cr

3cr

Correlation-based Load Distribution

  • Under the situation that network BW is abundant and network transfer delays are negligible

  • Goal: Minimize end-to-end latency

  • Key ideas:

    • Balance load across nodes to avoid overload

    • Group boxes with small load correlation together

    • Maximize load correlation among nodes


Load shedding

Load Shedding

  • Goal: Remove excess load at all nodes and links

  • Shedding at node A relieves its descendants

  • Distributed load shedding

    • Neighbors exchange load statistics

    • Parent nodes shed load on behalf of children

    • Uniform treatment of CPU and bandwidth problem

  • Load balancing or Load shedding?


Local load shedding

Node A

Node B

4C

C

r1

r2

App1

3C

C

r1

r2

App2

Local Load Shedding

Goal:

Minimize

total loss

r2’

25%

58%

CPU Load = 5Cr1, Cap = 4Cr1

CPU Load = 4Cr2, Cap = 2Cr2

CPU Load = 3.75Cr2, Cap = 2Cr2

No overload

No overload

A must shed 20%

B must shed 50%

A must shed 20%

A must shed 20%

B must shed 47%


The design of the borealis stream processing engine

Node A

Node B

4C

C

r1

r2

App1

3C

C

r1

r2

App2

Distributed Load Shedding

Goal:

Minimize

total loss

r2’

9%

r2’’

64%

CPU Load = 5Cr1, Cap = 4Cr1

CPU Load = 4Cr2, Cap = 2Cr2

No overload

No overload

A must shed 20%

B must shed 50%

A must shed 20%

A must shed 20%

smaller

total loss!


Extending optimization to sensor nets

data

Proxy

control

Sensors

control message from the optimizer

Extending Optimization to Sensor Nets

  • Sensor proxy as an interface

  • Moving operators in and out of the sensor net

  • Adjusting sensor sampling rates


Discussion2

Discussion

  • QoS-based optimization

    • QoS score calculations, statistics maintaining

      • tuple basis

      • Fine-grained but lots of processing

    • Application’s burden

      • QoS specifications

      • How to facilitate the task?


Fault tolerance through replication

Node 3

U

m

U

S

m

Node 3’

Node 1’

Node 2’

U

m

s3’

Fault-Tolerance through Replication

  • Goal: Tolerate node and network failures

s3

Node 1

Node 2

U

S

m

s1

s2

s4


Fault tolerance approach

Fault-Tolerance Approach

  • If an input stream fails, find another replica

  • No replica available, produce tentative tuples

  • Correct tentative results after failures

STABLE

UPSTREAM

FAILURE

Missing or tentative inputs

Failure heals

Another upstream failure in progress

Reconcile state

Corrected output

STABILIZING


Conclusions

Conclusions

  • Next generation streaming applications require a flexible processing model

    • Distributed operation

    • Dynamic result and query modification

    • Dynamic and scalable optimization

    • Server and sensor network integration

    • Tolerance to node and network failures

  • http://nms.lcs.mit.edu/projects/borealis


Discussion3

Discussion

  • Distributed environment

    • Load management

    • Fault tolerance

    • How about data routing / forwarding issue ??

  • Other problems not tackled?


  • Login
