12.15 Multiple Substituent Effects

12.15 Multiple Substituent Effects. O. CH 3. O. O. CH 3 COCCH 3. CH 3. The Simplest Case. all possible EAS sites may be equivalent. CH 3. CCH 3. AlCl 3. +. CH 3. 99%. CH 3. Br 2. Fe. NO 2. Another Straightforward Case. CH 3. Br.

Download Presentation

12.15 Multiple Substituent Effects

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. 12.15Multiple Substituent Effects

  2. O CH3 O O CH3COCCH3 CH3 The Simplest Case all possible EAS sites may be equivalent CH3 CCH3 AlCl3 + CH3 99%

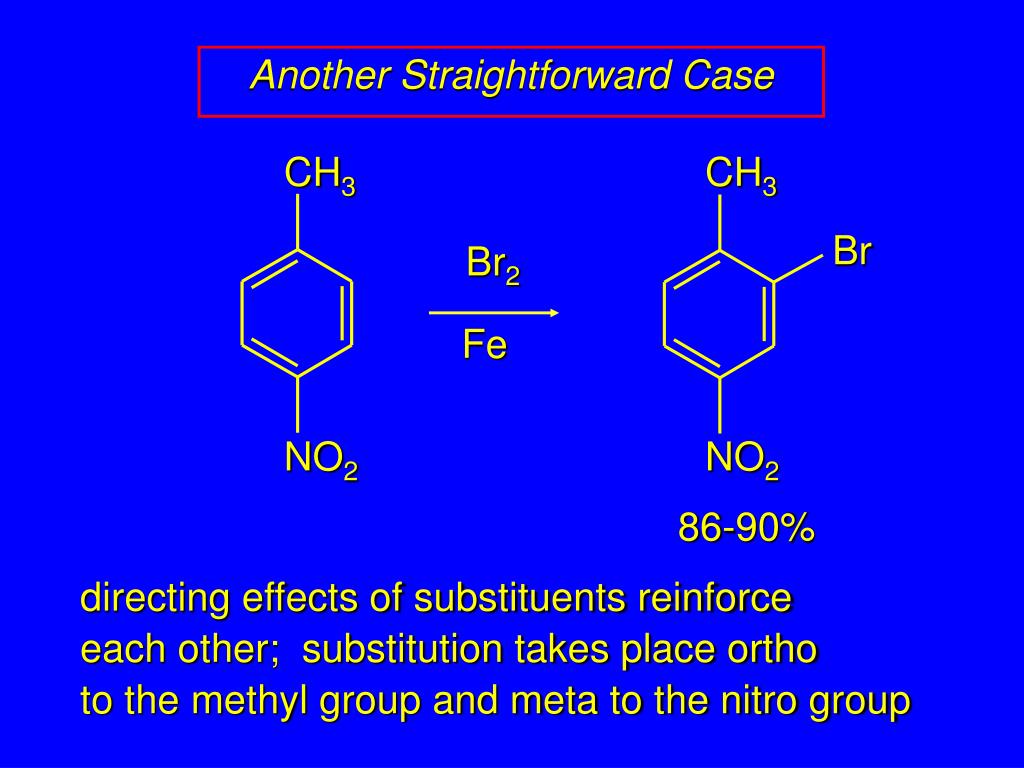

  3. CH3 Br2 Fe NO2 Another Straightforward Case CH3 Br directing effects of substituents reinforceeach other; substitution takes place orthoto the methyl group and meta to the nitro group NO2 86-90%

  4. Generalization regioselectivity is controlled by themost activating substituent

  5. NHCH3 NHCH3 Br Cl Cl The Simplest Case all possible EAS sites may be equivalent strongly activating Br2 aceticacid 87%

  6. CH3 HNO3 H2SO4 C(CH3)3 When activating effects are similar... CH3 substitution occurs ortho to the smaller group NO2 C(CH3)3 88%

  7. CH3 CH3 HNO3 H2SO4 CH3 CH3 NO2 Steric effects control regioselectivity whenelectronic effects are similar position between two substituents is lastposition to be substituted 98%

  8. 12.16Regioselective Synthesis of Disubstituted Aromatic Compounds

  9. Factors to Consider order of introduction of substituents to ensure correct orientation

  10. Br O CCH3 Synthesis of m-Bromoacetophenone Which substituent should be introduced first?

  11. Br O CCH3 Synthesis of m-Bromoacetophenone If bromine is introduced first, p-bromoacetophenone is major product. para meta

  12. Br O CCH3 O O CH3COCCH3 O CCH3 Synthesis of m-Bromoacetophenone Br2 AlCl3 AlCl3

  13. Factors to Consider order of introduction of substituents to ensure correct orientation Friedel-Crafts reactions (alkylation, acylation) cannot be carried out on strongly deactivated aromatics

  14. NO2 O CCH3 Synthesis of m-Nitroacetophenone Which substituent should be introduced first?

  15. NO2 O CCH3 Synthesis of m-Nitroacetophenone If NO2 is introduced first, the next step (Friedel-Crafts acylation) fails.

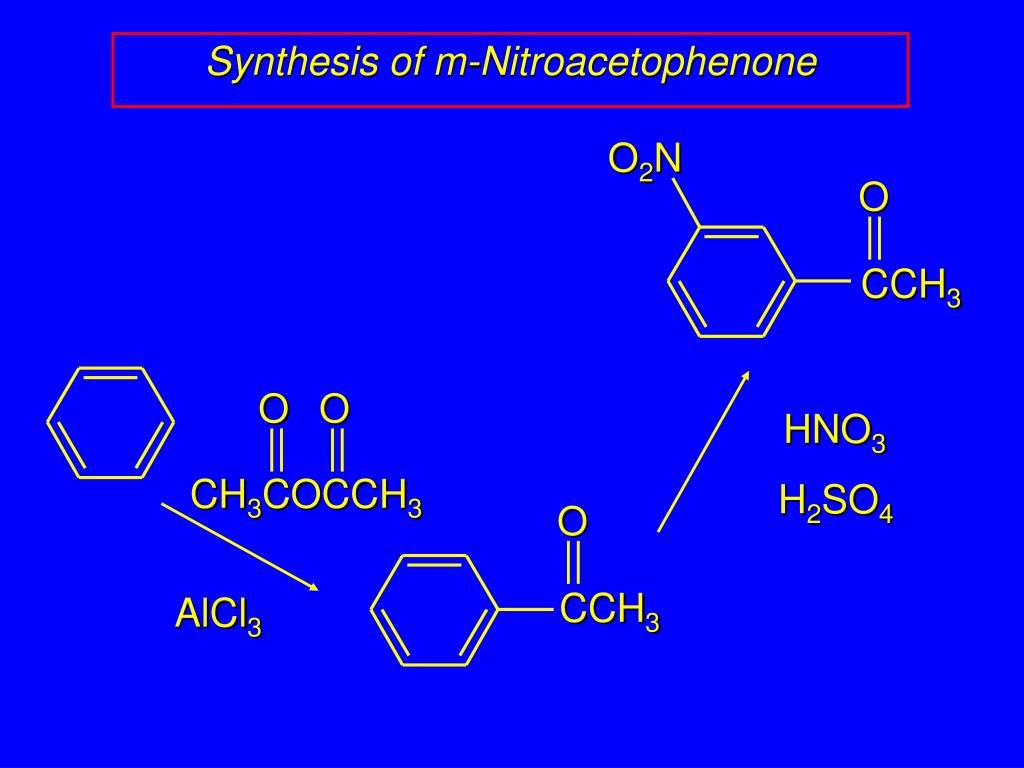

  16. O CCH3 O O CH3COCCH3 O CCH3 Synthesis of m-Nitroacetophenone O2N HNO3 H2SO4 AlCl3

  17. Factors to Consider order of introduction of substituents to ensure correct orientation Friedel-Craftsreactions (alkylation, acylation) cannot be carried out on strongly deactivated aromatics sometimes electrophilic aromatic substitution must be combined with a functional group transformation

  18. CO2H CH3 CH3 NO2 Synthesis of p-Nitrobenzoic Acid from Toluene Which first? (oxidation of methyl group or nitration of ring)

  19. CO2H CH3 CH3 NO2 Synthesis of p-Nitrobenzoic Acid from Toluene nitration givesm-nitrobenzoicacid oxidation givesp-nitrobenzoicacid

  20. CO2H CH3 CH3 NO2 NO2 Synthesis of p-Nitrobenzoic Acid from Toluene HNO3 Na2Cr2O7, H2O H2SO4, heat H2SO4
