  1. Crowded Spectrum in Wireless Sensor Networks Gang Zhou, John A. Stankovic, Sang H. Son Department of Computer Science University of Virginia May, 2006

  2. Spectrum Crisis – Single Network Find objects; The position is (x,y); Persons with guns; What are they talking about? (Audio) What are they doing? (Video) Need Higher Throughput! AA…

  3. Security WSN Other Devices Health Care WSN Spectrum Crisis – Co-existing Co-existing WSNs & Electric Appliances Need Frequency Management

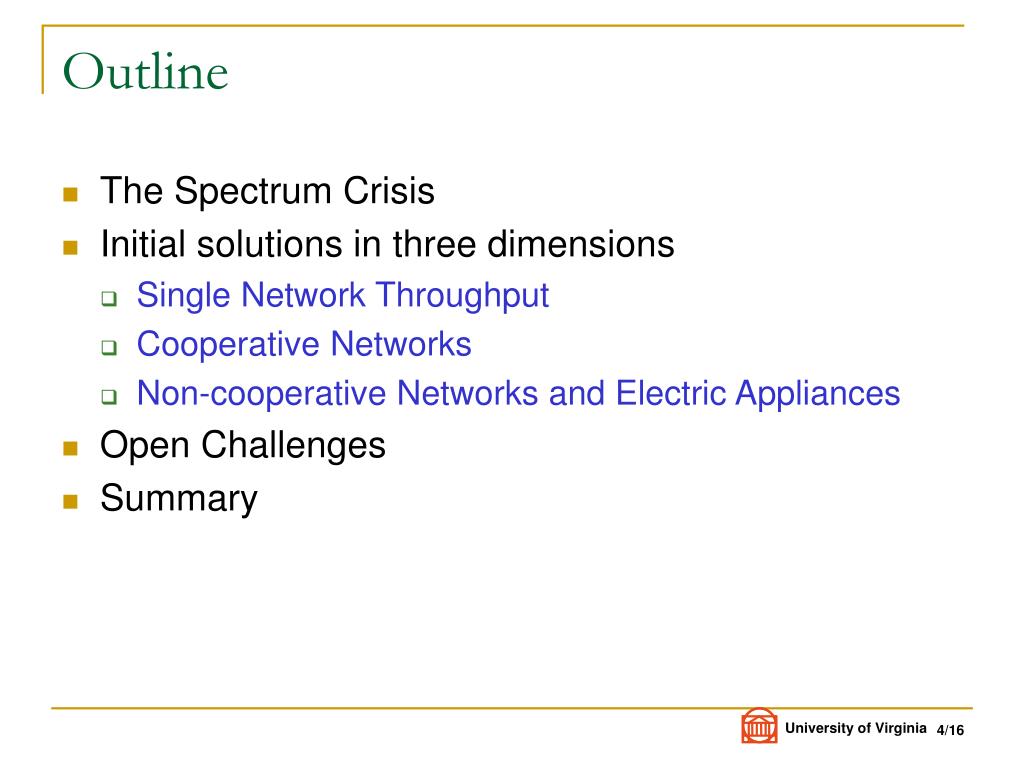

  4. Outline • The Spectrum Crisis • Initial solutions in three dimensions • Single Network Throughput • Cooperative Networks • Non-cooperative Networks and Electric Appliances • Open Challenges • Summary

  5. Multi-channel design needed Hardware appearing Software still lags behind • Multi-channel support in MICAz/Telos • More frequencies available in the future • Collision-based: B-MAC • Scheduling-based: TRAMA • Hybrid: Z-MAC Single Network Throughput • Limited single-channel bandwidth in WSN • 19.2kbps in MICA2, 250kbps in MICAz/Telos • The bandwidth requirement is increasing • Support audio/video streams (assisted living, …)

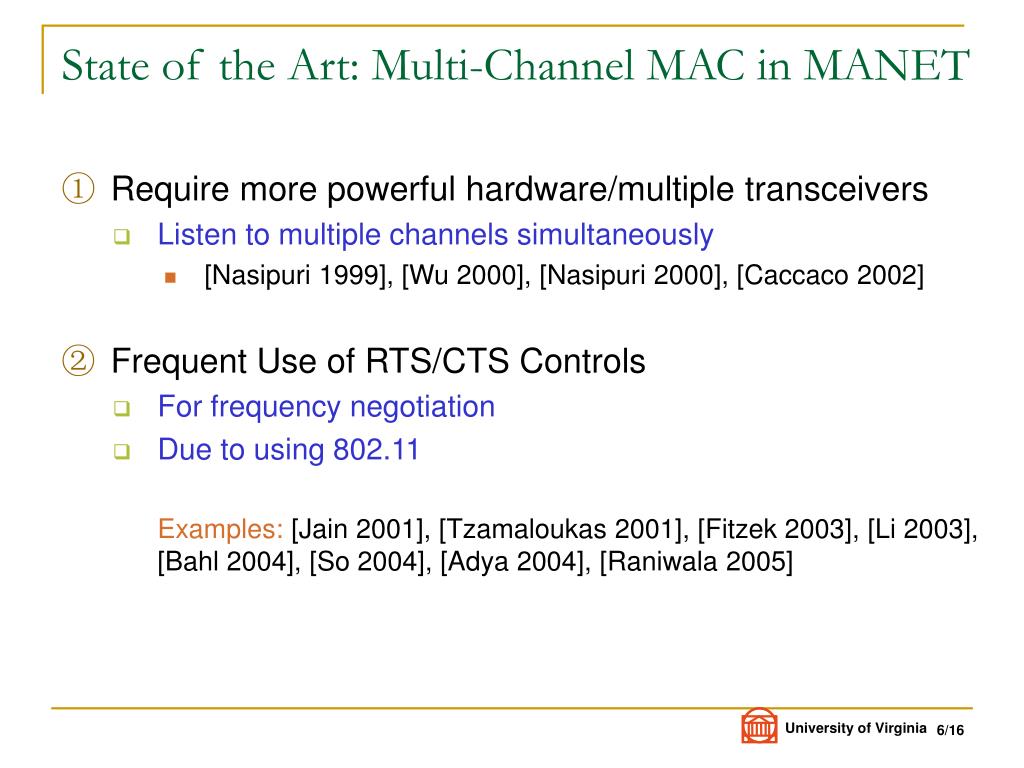

  6. State of the Art: Multi-Channel MAC in MANET • Require more powerful hardware/multiple transceivers • Listen to multiple channels simultaneously • [Nasipuri 1999], [Wu 2000], [Nasipuri 2000], [Caccaco 2002] • Frequent Use of RTS/CTS Controls • For frequency negotiation • Due to using 802.11 Examples: [Jain 2001], [Tzamaloukas 2001], [Fitzek 2003], [Li 2003], [Bahl 2004], [So 2004], [Adya 2004], [Raniwala 2005]

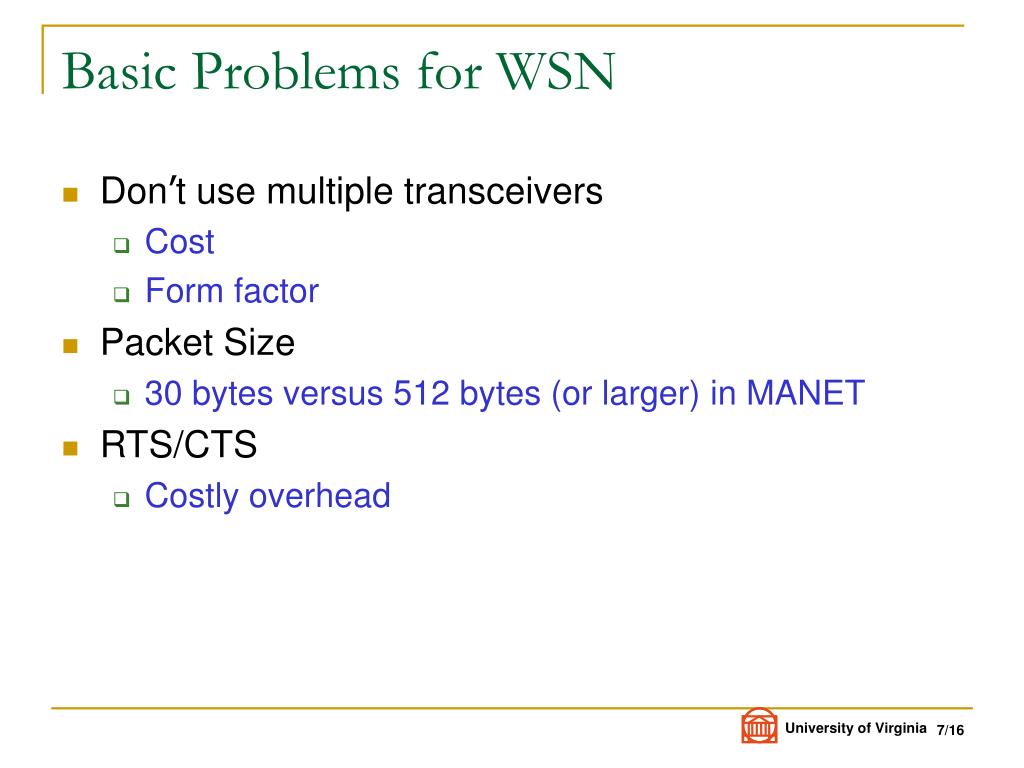

  7. Basic Problems for WSN • Don’t use multiple transceivers • Cost • Form factor • Packet Size • 30 bytes versus 512 bytes (or larger) in MANET • RTS/CTS • Costly overhead

  8. RTS/CTS Overhead Analysis [Zhou INFOCOM’06] • RTS/CTS Controls are too heavyweight for WSN: • Mainly due to small packet size: 30~50 bytes in WSN vs. 512+ bytes in MANET • From 802.11: RTS-CTS-DATA-ACK • From frequency negotiation: case study with MMAC MMAC: • RTS/CTS frequency negotiation • 802.11 for data communication

  9. Design Consideration - Frequency Assignment Reception Frequency F8 F7 • Complications • Not enough frequencies • Broadcast F6 F5 F1 F4 F2 F3

  10. Design Consideration - Media Access • Issues: • Packet to Broadcast • Receive Broadcast • Send Unicast • Receive Unicast • No sending/no receiving See [Zhou,INFOCOM’06] for our solution F8 F7 F6 F5 F1 F4 F2 F3

  11. Co-existing & Cooperative Networks • The Challenges: • QoS Control • Different priorities for different networks, different bandwidths • Map to frequency decision • Space-Dimension Flexibility • Frequency decision depends on node density& network density • Time-Dimension Flexibility • Dynamic frequency adjustment See [Zhou, EmNets’06] for our solution

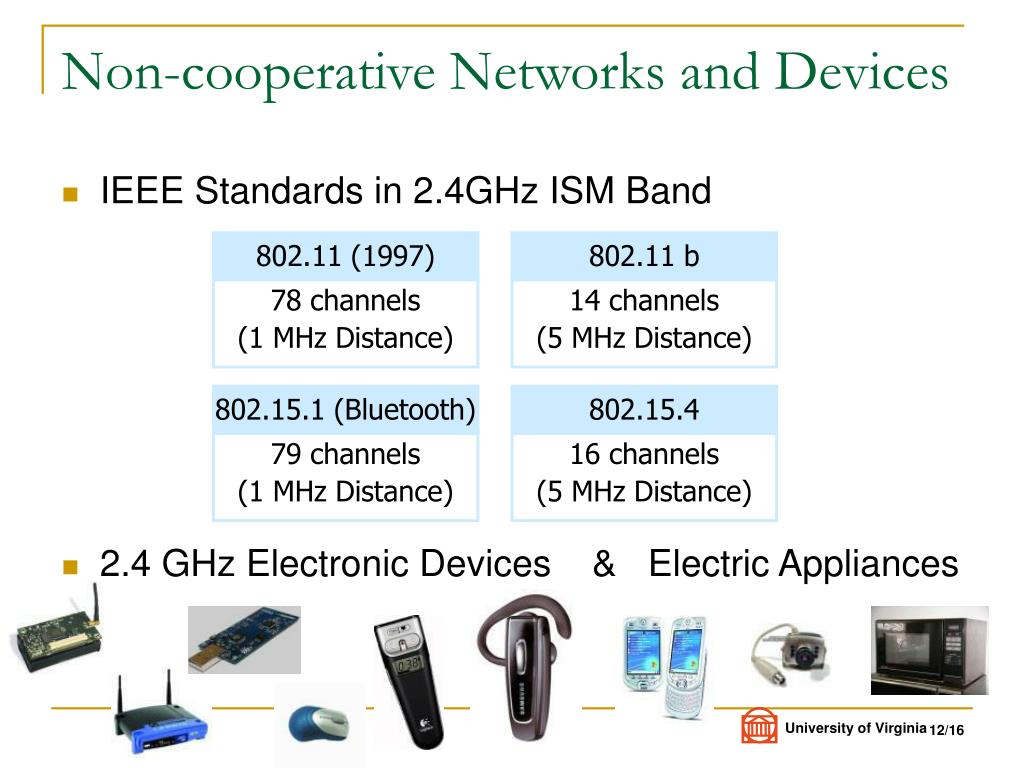

  12. Non-cooperative Networks and Devices • IEEE Standards in 2.4GHz ISM Band • 2.4 GHz Electronic Devices & Electric Appliances 802.11 (1997) 802.11 b 78 channels (1 MHz Distance) 14 channels (5 MHz Distance) 802.15.1 (Bluetooth) 802.15.4 79 channels (1 MHz Distance) 16 channels (5 MHz Distance)

  13. Measurement with Spectrum Analyzer • When MICAz operates on 2.45 GHz, 46%~81% PRR • When MICAz operates on 2.42 GHz, PRR not impacted by presenter

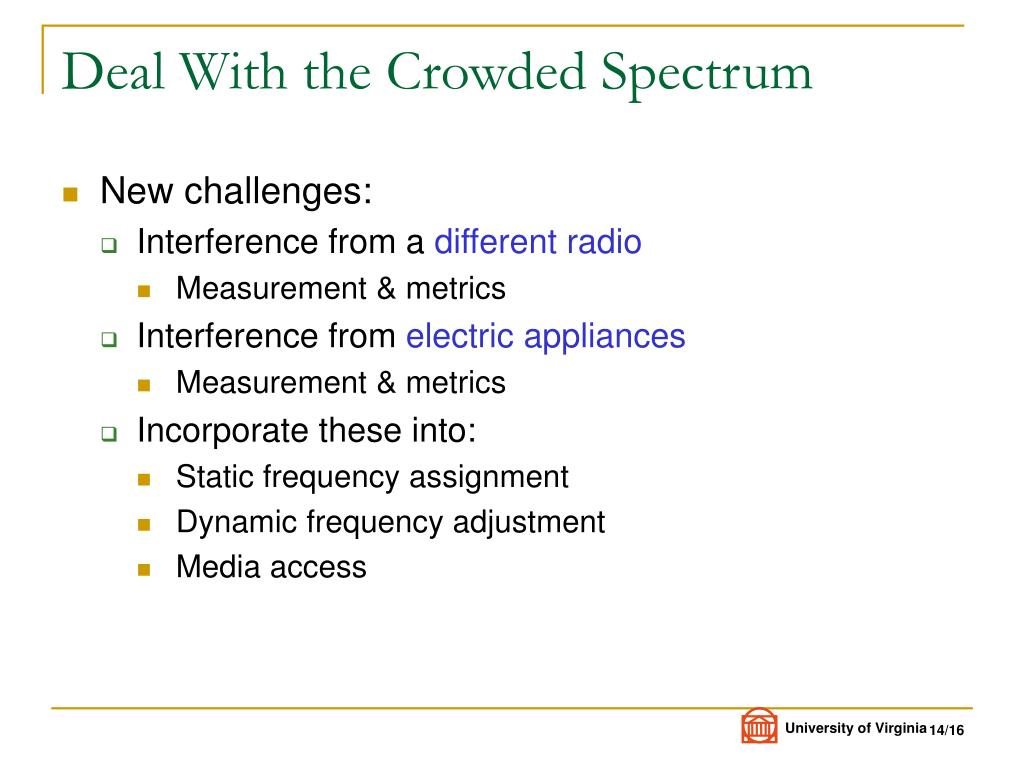

  14. Deal With the Crowded Spectrum • New challenges: • Interference from a different radio • Measurement & metrics • Interference from electric appliances • Measurement & metrics • Incorporate these into: • Static frequency assignment • Dynamic frequency adjustment • Media access

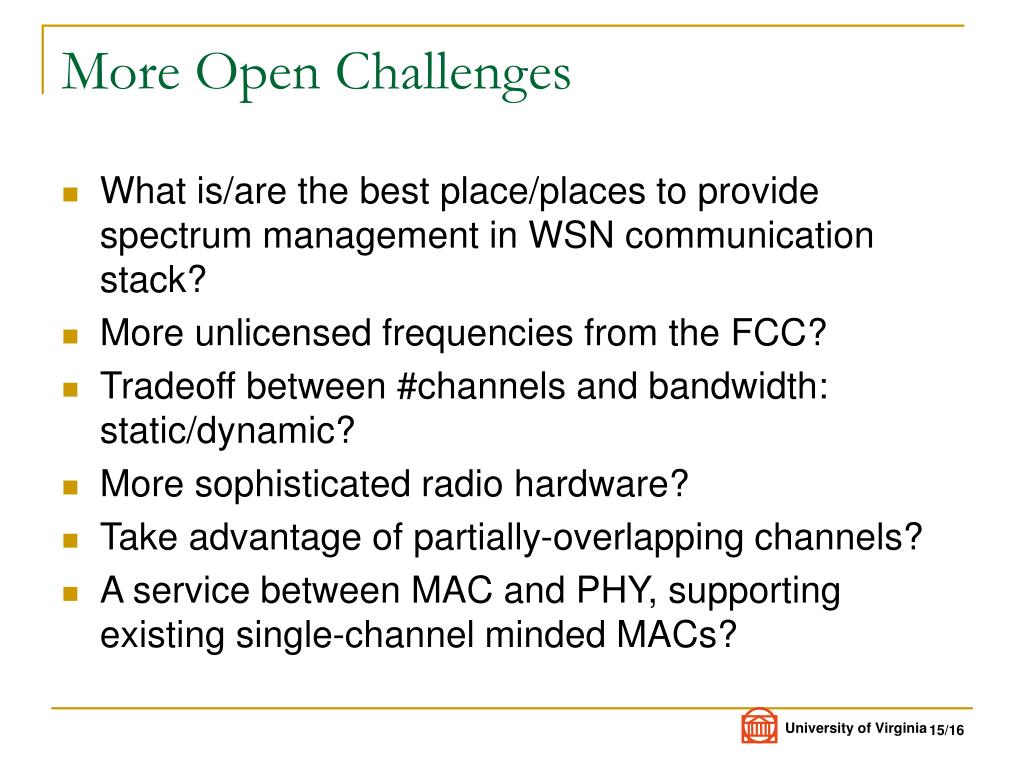

  15. More Open Challenges • What is/are the best place/places to provide spectrum management in WSN communication stack? • More unlicensed frequencies from the FCC? • Tradeoff between #channels and bandwidth: static/dynamic? • More sophisticated radio hardware? • Take advantage of partially-overlapping channels? • A service between MAC and PHY, supporting existing single-channel minded MACs?

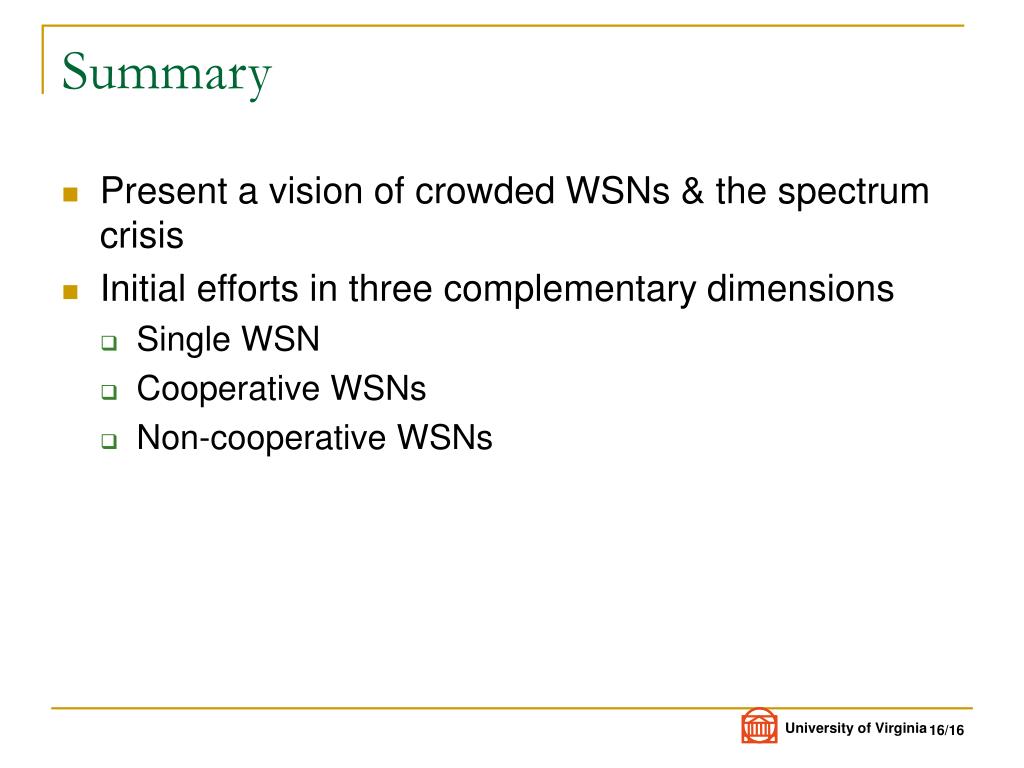

  16. Summary • Present a vision of crowded WSNs & the spectrum crisis • Initial efforts in three complementary dimensions • Single WSN • Cooperative WSNs • Non-cooperative WSNs

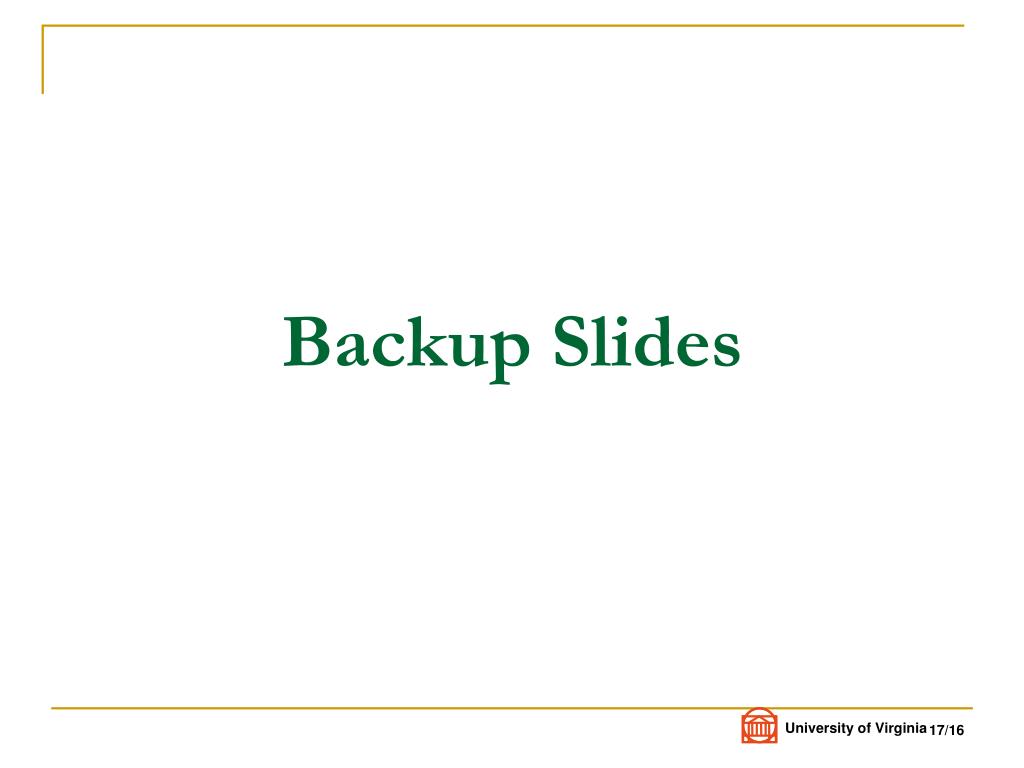

  17. Backup Slides

  18. Frequency Assignment

  19. ... T T T T c b tran b c tran Media Access Design • Different frequencies for unicast reception • The same frequency for broadcast reception • Time is divided into slots, each of which consists of a broadcast contention period and a transmission period.

  20. Media Access Design Case 1: When a node has no packet to transmit

  21. Media Access Design Case 2: When a node has a broadcast packet to transmit

  22. Media Access Design Case 3: When a node has a unicast packet to transmit

  23. Toggle Snooping • During “ “, toggle snooping is used

  24. Toggle Transmission • When a node has unicast packet to send • Transmits a preamble • so that no node sends to me • so that no node compete for the same channel • We let

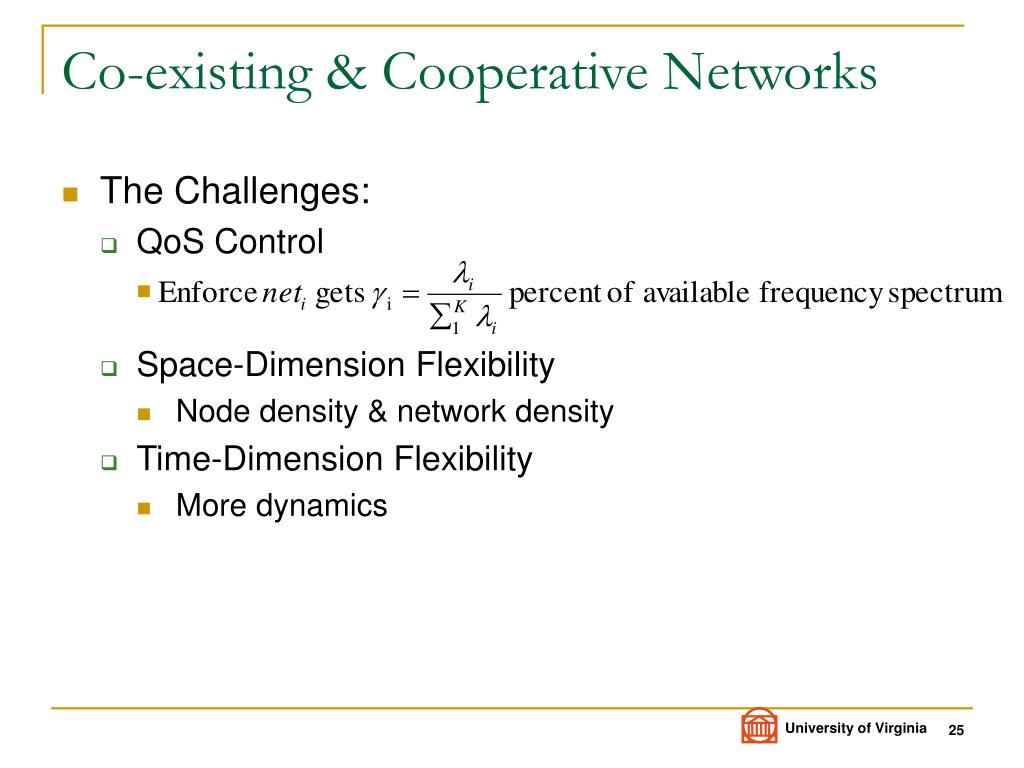

  25. Co-existing & Cooperative Networks • The Challenges: • QoS Control • Space-Dimension Flexibility • Node density & network density • Time-Dimension Flexibility • More dynamics

  26. Co-existing & Cooperative Networks • The Solutions: • Static frequency assignment • Collect (ID, gID, ) from (two-hop) neighbors • Chained frequency decision: (increasing gID & ID) • The candidate frequency range • Randomly choose one of the least chosen frequencies from the range • Dynamic frequency adjustment • Reassign nodes from crowded frequencies to light ones • Avoid pushing around “hot potatoes”
