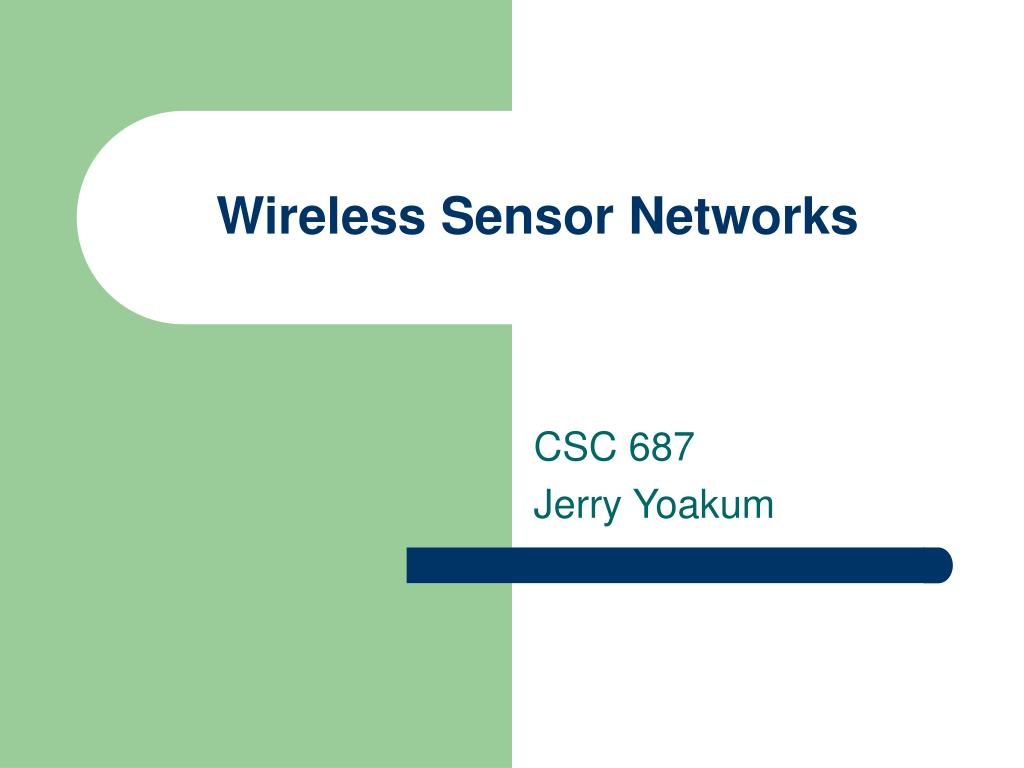

  1. Wireless Sensor Networks CSC 687 Jerry Yoakum

  2. Outline • Overview • Environment Monitoring • Medical application • Data-dissemination schemes • Media access control schemes • Distributed algorithms for collaborative processing • Architecture for a Wireless Sensor Network • Final Remarks

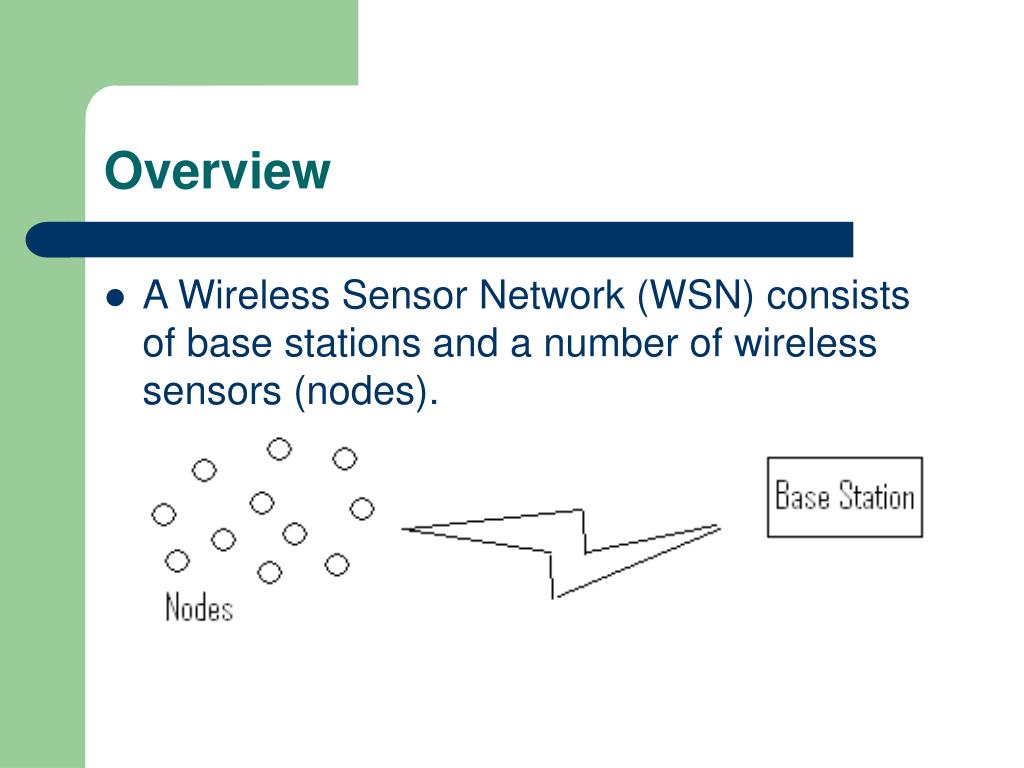

  3. Overview • A Wireless Sensor Network (WSN) consists of base stations and a number of wireless sensors (nodes).

  4. Overview (Cont.) Wireless Sensor Node: Components

  5. Overview (Cont.) Characteristics of Wireless Sensor Networks • Requirements: small size, large number, tether-less, and low cost. Constrained by • Energy, computation, and communication • Small size implies small battery • Low cost & energy implies low power CPU, radio with minimum bandwidth and range • Ad-hoc deployment implies no maintenance or battery replacement • To increase network lifetime, no raw data is transmitted

  6. Overview (Cont.) Ad Hoc Wireless Networks • Large number of self-organizing static or mobile nodes that are possibly randomly deployed • Near(est)-neighbor communication • Wireless connections • Links are fragile, possibly asymmetric • Connectivity depends on power levels and fading • Interference is high for omnidirectional antennas • Sensor Networks and Sensor-Actuator Networks are a prominent example.

  7. Overview (Cont.) Distinguishing Features WSNs are ad hoc networks (wireless nodes that self-organize into an infrastructureless network). BUT, in contrast to other ad hoc networks: • Sensing and data processing are essential • WSNs have many more nodes and are more densely deployed • Hardware must be cheap; nodes are more prone to failures • WSNs operate under very strict energy constraints • WSN nodes are typically static • The communication scheme is many-to-one (data collected at a base station) rather than peer-to-peer

  8. Overview (Cont.) Lifetime • Nodes are battery-powered • Nobody is going to change the batteries. So, each operation brings the node closer to death. "Lifetime is crucial!” To save energy: • Sleep as much as possible. • Acquire data only if indispensable. • Use data fusion and compression. • Transmit and receive only if necessary. Receiving is just as costly as sending.

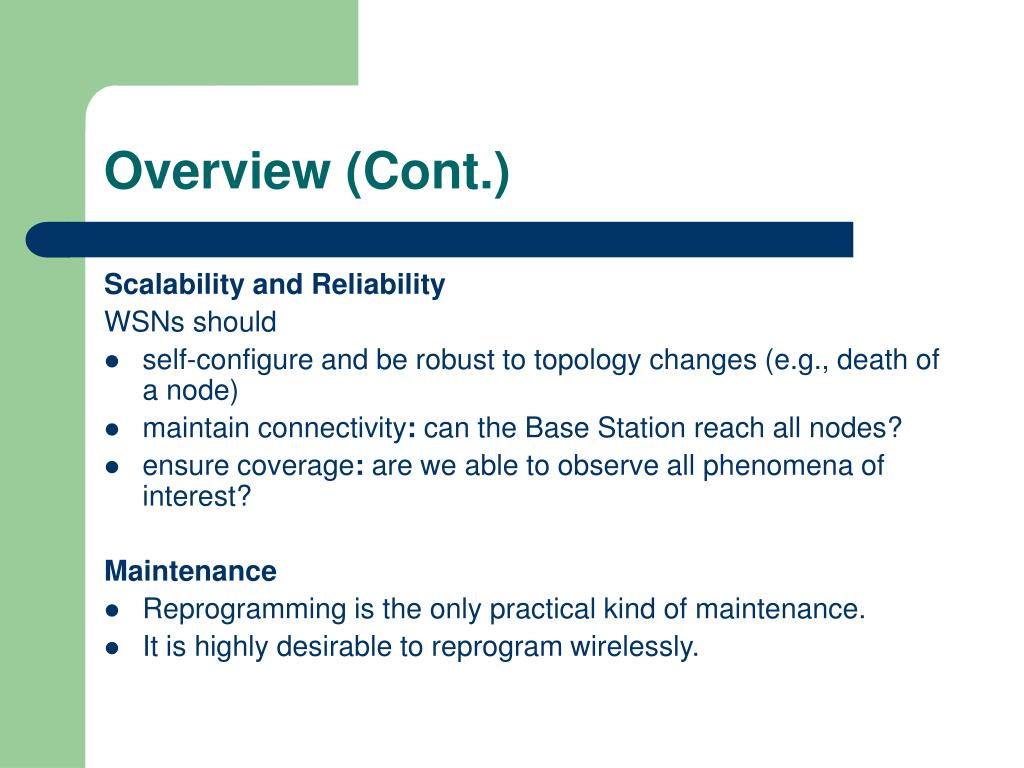

  9. Overview (Cont.) Scalability and Reliability WSNs should • self-configure and be robustto topology changes (e.g., death of a node) • maintain connectivity: can the Base Station reach all nodes? • ensure coverage: are we able to observe all phenomena of interest? Maintenance • Reprogramming is the only practical kind of maintenance. • It is highly desirable to reprogram wirelessly.

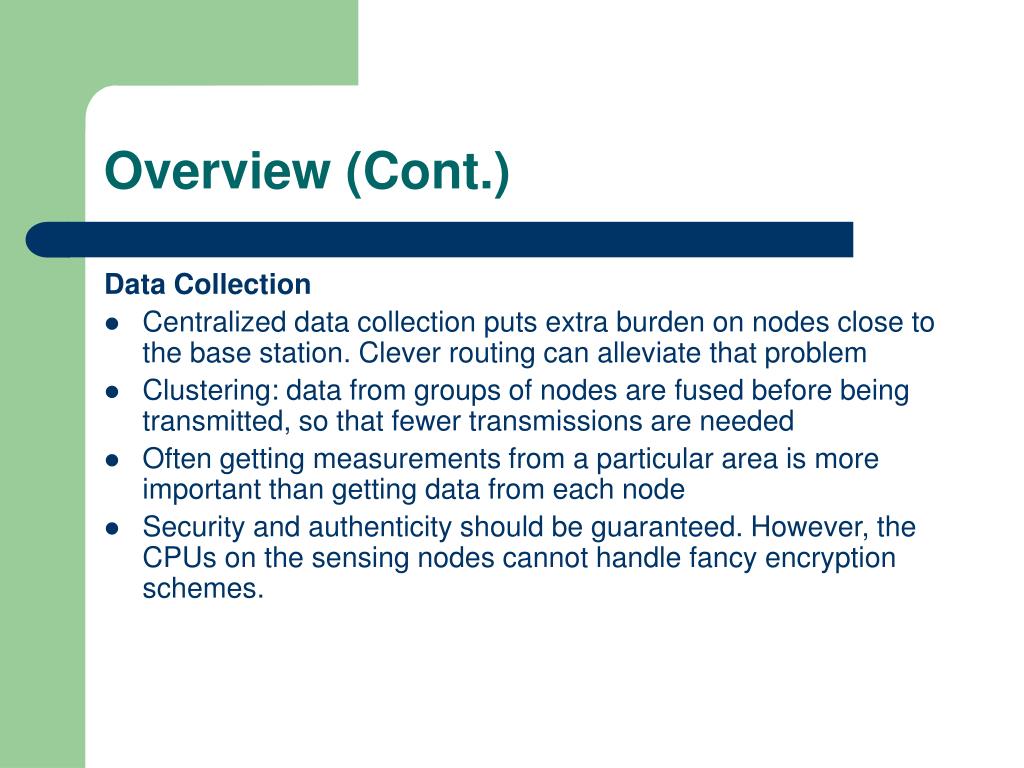

  10. Overview (Cont.) Data Collection • Centralized data collection puts extra burden on nodes close to the base station. Clever routing can alleviate that problem • Clustering: data from groups of nodes are fused before being transmitted, so that fewer transmissions are needed • Often getting measurements from a particular area is more important than getting data from each node • Security and authenticity should be guaranteed. However, the CPUs on the sensing nodes cannot handle fancy encryption schemes.

  11. Overview (Cont.) Power Supply • AA batteries power the vast majority of existing platforms. They dominate the node size. • Alkaline batteries offer a high energy density at a cheap price. The discharge curve is far from flat, though. • Lithium coin cells are more compact and boast a flat discharge curve. • Rechargeable batteries: Who does the recharging? • Solar cells are an option for some applications. • Fuel cells may be an alternative in the future. • Energy scavenging techniques are a hot research topic (mechanical, thermodynamical, electromagnetic).

  12. Overview (Cont.) Radio • Commercially-available chips • Available bands: 433 and 916MHz, 2.4GHz ISM bands • Typical transmit power: 0dBm. Power control • Sensitivity: as low as -110dBm • Narrowband (FSK) or Spread Spectrum communication. DS-SS (e.g., ZigBee) or FH-SS (e.g., Bluetooth) • Relatively low rates (<100 kbps) save power.

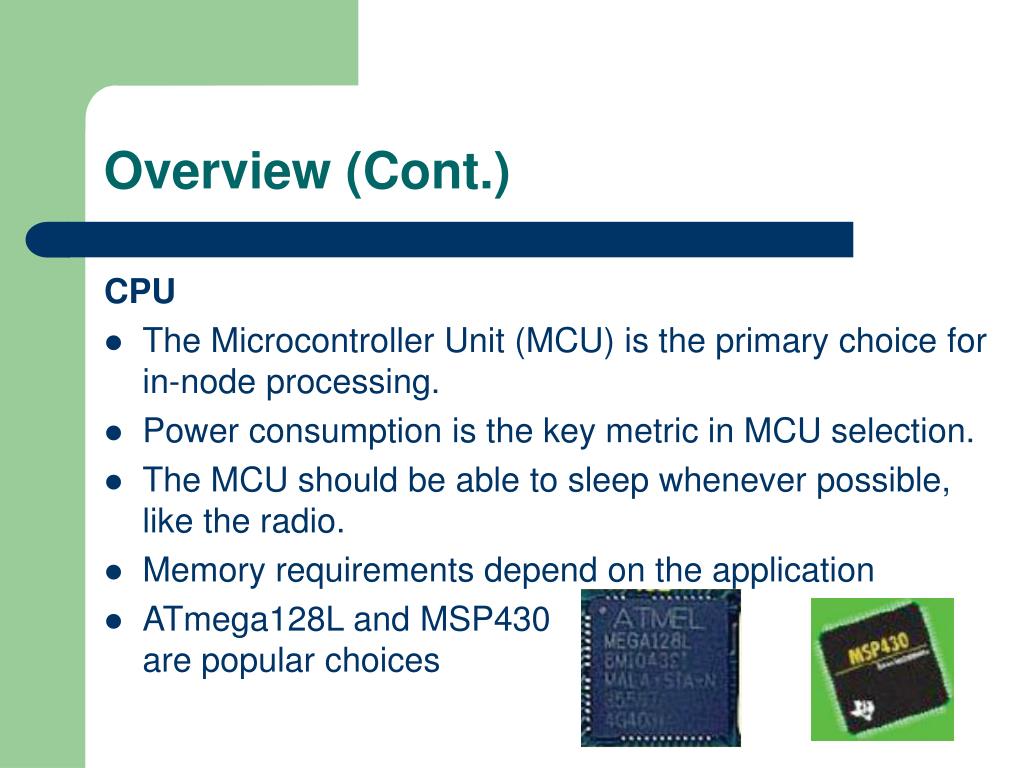

  13. Overview (Cont.) CPU • The Microcontroller Unit (MCU) is the primary choice for in-node processing. • Power consumption is the key metric in MCU selection. • The MCU should be able to sleep whenever possible, like the radio. • Memory requirements depend on the application • ATmega128L and MSP430are popular choices

  14. Overview (Cont.) Sensors • The power efficiency of the sensors is also crucial, as well as their duty cycle. • MEMS techniques allow miniaturization.

  15. Overview (Cont.) Applications of Wireless Sensor Networks • Military and national security application • Environment monitoring (examples coming) • Medical application (example coming) • Nearly anything you can imagine

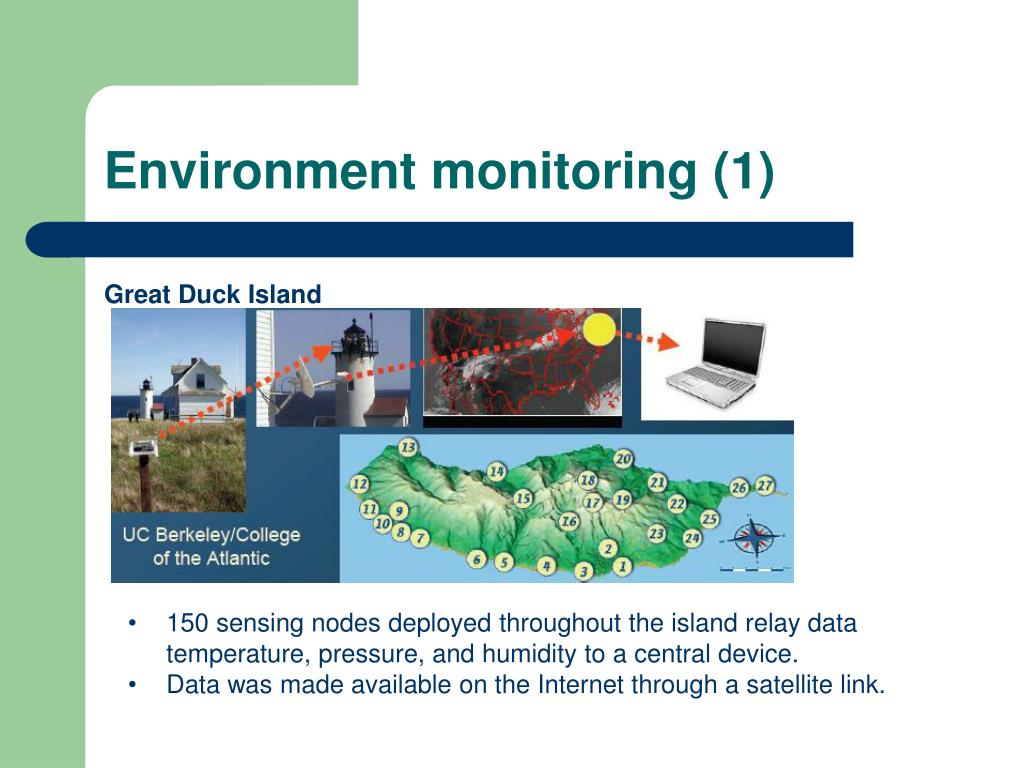

  16. Environment monitoring (1) Great Duck Island • 150 sensing nodes deployed throughout the island relay data temperature, pressure, and humidity to a central device. • Data was made available on the Internet through a satellite link.

  17. Environment monitoring (2) Zebranet: a WSN to study the behavior of zebras • Special GPS-equipped collars were attached to zebras • • Data exchanged with peer-to-peer info swaps • • Coming across a few zebras gives access to the data

  18. Medical application • Vital sign monitoring • Accident recognition • Monitoring the elderly • Intel deployed a 130-node network to monitor the activity of residents in an elder care facility. • Patient data is acquired with wearable sensing nodes (the “watch”)

  19. Data-dissemination Schemes Conventional Methods • Direct communication with the base station • Sensor nodes communicate with the base station directly. • Energy consuming. • Multi-hop Scheme • Transmit through some other intermediate nodes. • Energy consuming.

  20. Data-dissemination Schemes (Cont.) Clustering Hierarchy

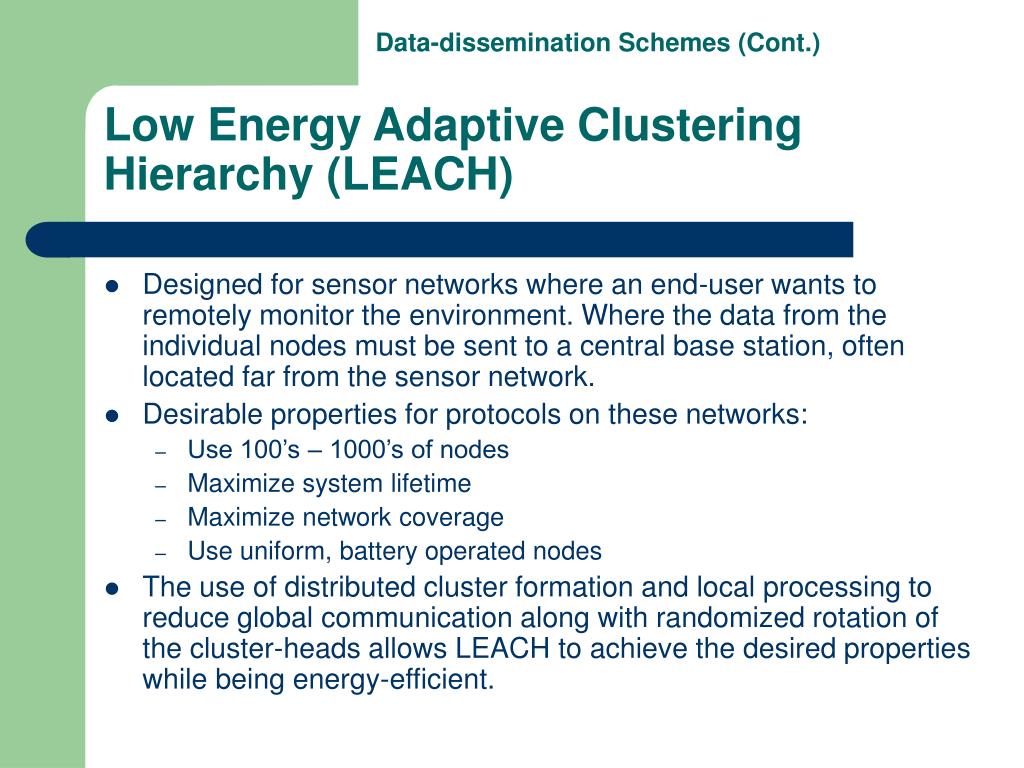

  21. Data-dissemination Schemes (Cont.) Low Energy Adaptive Clustering Hierarchy (LEACH) • Designed for sensor networks where an end-user wants to remotely monitor the environment. Where the data from the individual nodes must be sent to a central base station, often located far from the sensor network. • Desirable properties for protocols on these networks: • Use 100’s – 1000’s of nodes • Maximize system lifetime • Maximize network coverage • Use uniform, battery operated nodes • The use of distributed cluster formation and local processing to reduce global communication along with randomized rotation of the cluster-heads allows LEACH to achieve the desired properties while being energy-efficient.

  22. Media Access Control (MAC) Scheme Two categories of MAC schemes for wireless networks • Contention-based schemes • Designed for minimum delay and maximum throughput. • Require transceivers to monitor the channel at all times. • Reservation-based or schedule-based schemes • Detect the neighboring radios before allocating collision-free channel to a link. • TDMA —a natural choice for sensor networks.

  23. MAC Scheme (Cont.) TDMA-based solutions • The self-organizing “super frame” algorithm • Super frame = TDMA period + BOOTUP period + unused bandwidth • Performs well only under the specific conditions. • Power Aware Clustered TDMA (PACT) • Divide the TDMA structure into control slot and data slot. • Hard to maintain the cluster when there are mobile nodes.

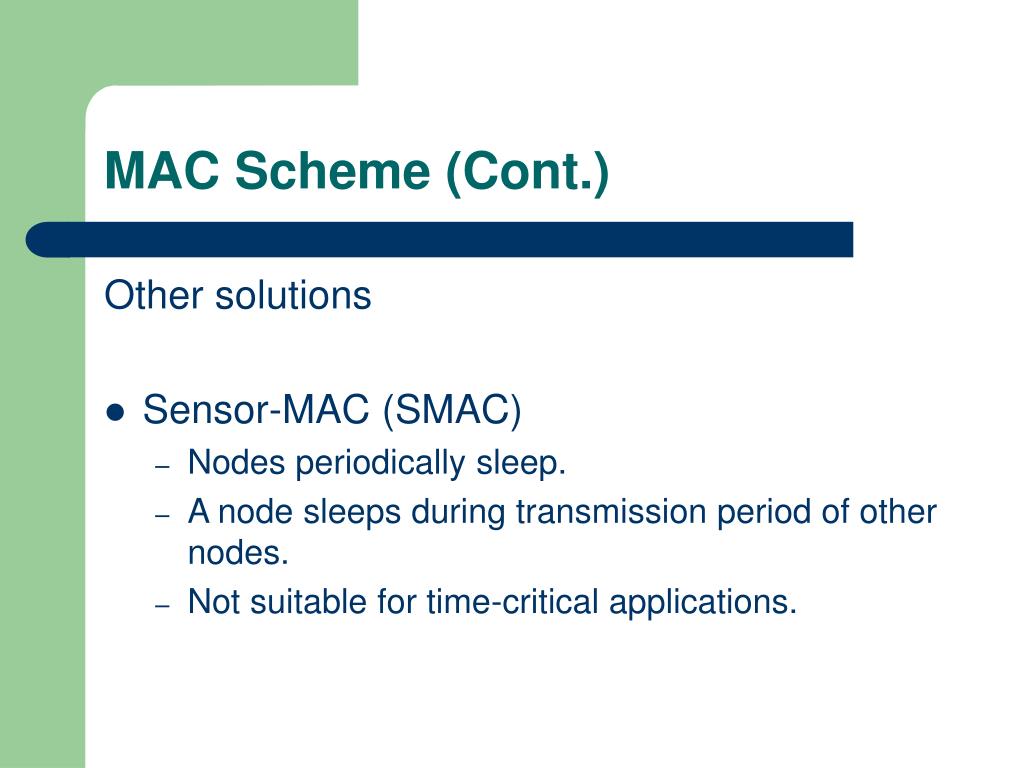

  24. MAC Scheme (Cont.) Other solutions • Sensor-MAC (SMAC) • Nodes periodically sleep. • A node sleeps during transmission period of other nodes. • Not suitable for time-critical applications.

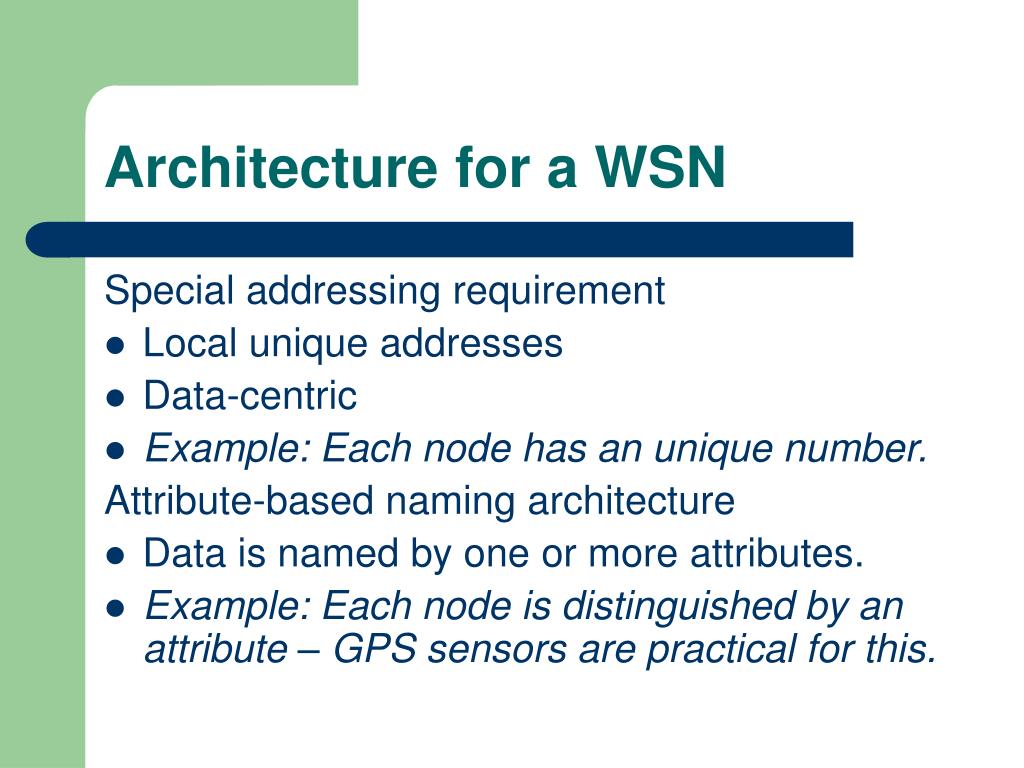

  25. Architecture for a WSN Special addressing requirement • Local unique addresses • Data-centric • Example: Each node has an unique number. Attribute-based naming architecture • Data is named by one or more attributes. • Example: Each node is distinguished by an attribute – GPS sensors are practical for this.

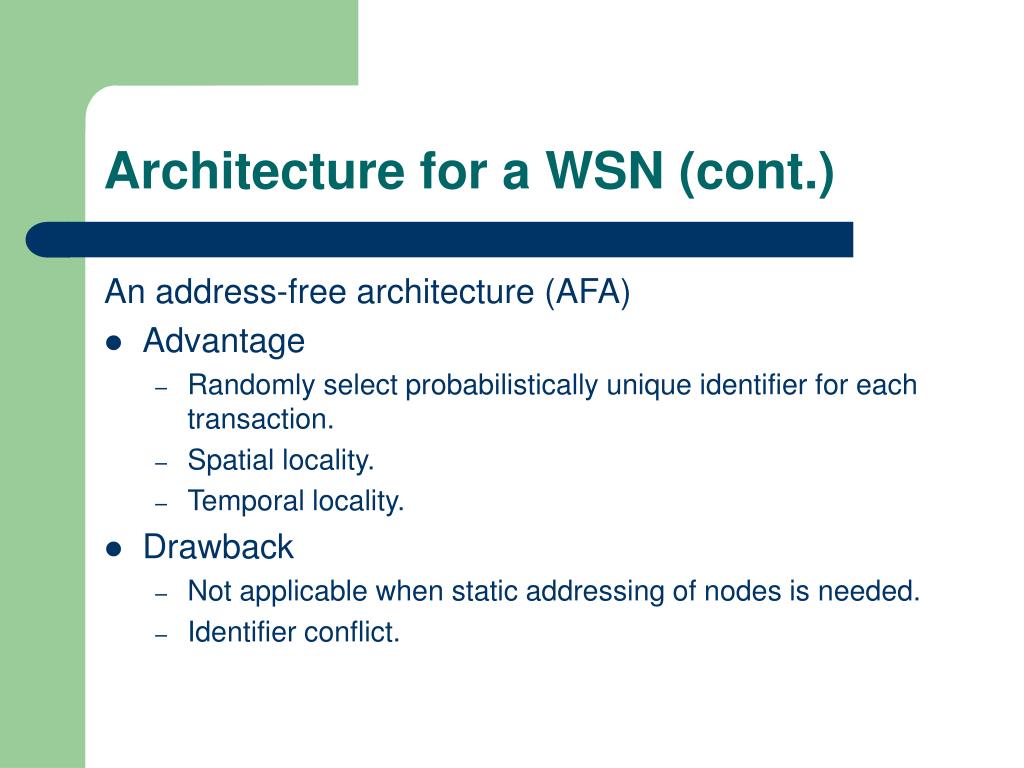

  26. Architecture for a WSN (cont.) An address-free architecture (AFA) • Advantage • Randomly select probabilistically unique identifier for each transaction. • Spatial locality. • Temporal locality. • Drawback • Not applicable when static addressing of nodes is needed. • Identifier conflict.

  27. Final Remarks • Can you think of any applications where a wireless sensor network would be the best solution? • Do you foresee wireless sensor networks becoming ubiquitous within the next ten years? During your lifetime?
