  1. Accelerating Viterbi Algorithm 20120814 Pei-Ching Li

  2. Outline • Introduction of ViterbiAlgorithm • Example • Architecture • Parallel on CUDA • MIDI • hmmtrain • Future Works

  3. Introduction of Viterbi Algorithm • a dynamic programming algorithm for finding the most likely sequence of hidden states called the Viterbi path. • Hidden Markov Model

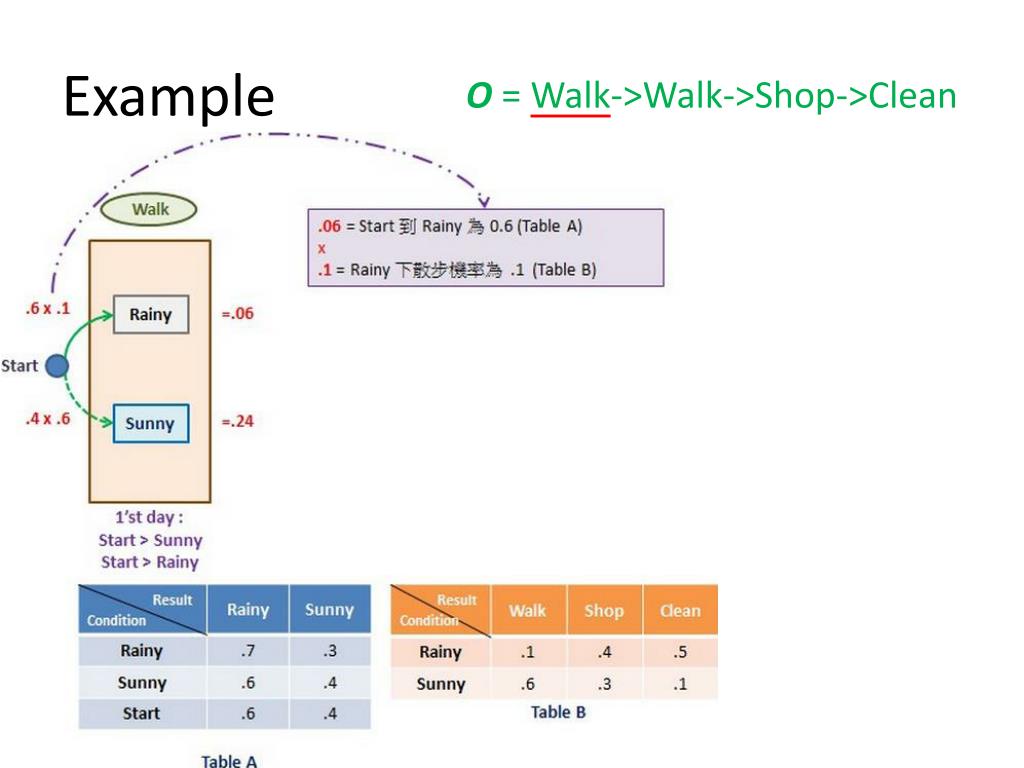

  4. Example O = Walk->Walk->Shop->Clean

  5. Example O = Walk->Walk->Shop->Clean

  6. Example O = Walk->Walk->Shop->Clean

  7. Example O = Walk->Walk->Shop->Clean

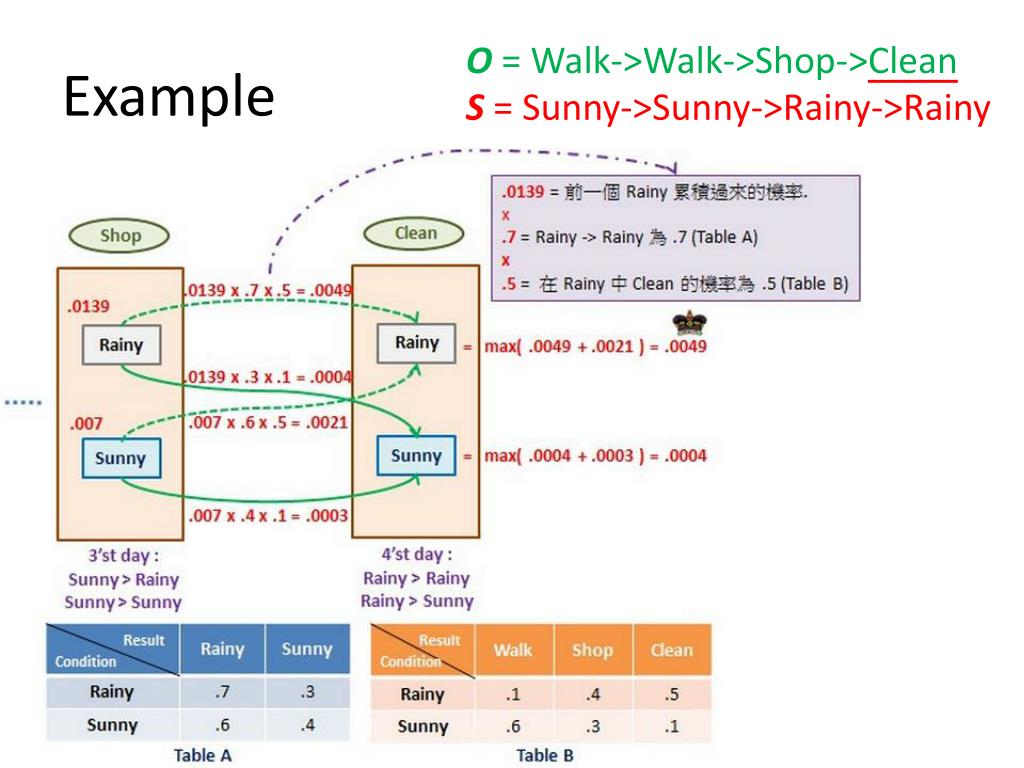

  8. Example O = Walk->Walk->Shop->Clean S = Sunny->Sunny->Rainy->Rainy

  9. Parallel Part • CSE551 Final Project: Parallel Viterbi on a GPU • Authors:Seong Jae Lee, MiroEnev • Provenance:Autumm 2009, University of Washington

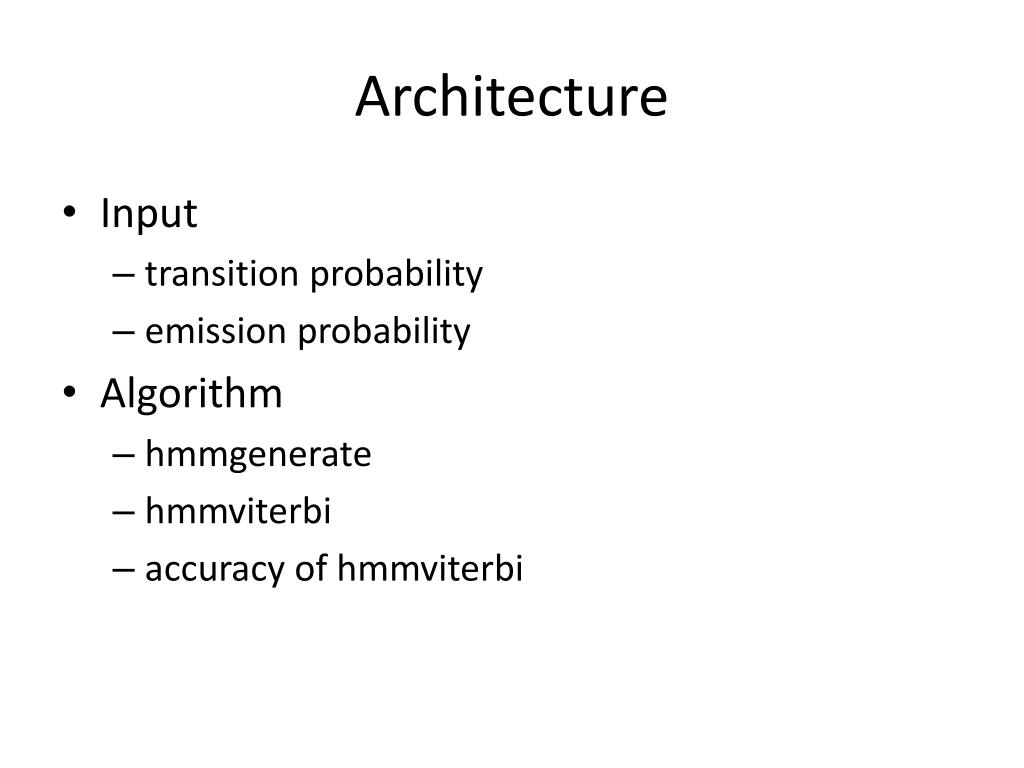

  10. Architecture • Input • transition probability • emission probability • Algorithm • hmmgenerate • hmmviterbi • accuracy of hmmviterbi

  11. Matlab 2011 • [SEQ, STATES] = HMMGENERATE(LEN,TRANSITIONS,EMISSIONS) • STATES = HMMVITERBI(SEQ,TRANSITIONS,EMISSIONS) • Use MATLAB Coder to generate C/C++ code

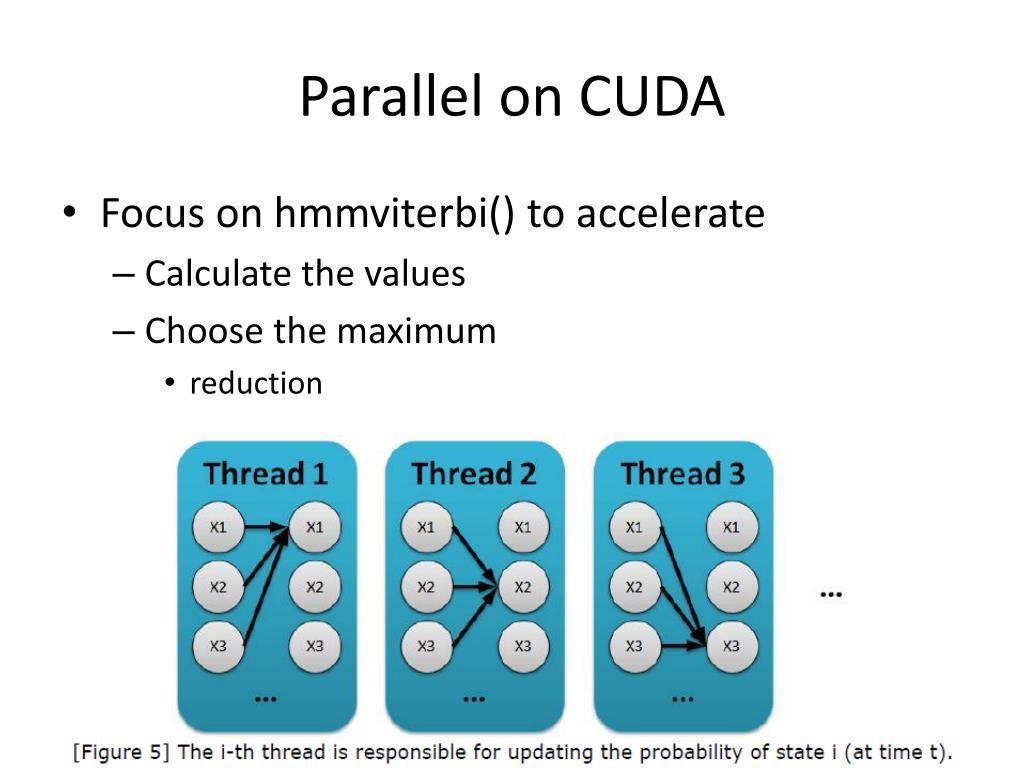

  12. Parallel on CUDA • Focus on hmmviterbi() to accelerate • Calculate the values • Choose the maximum • reduction

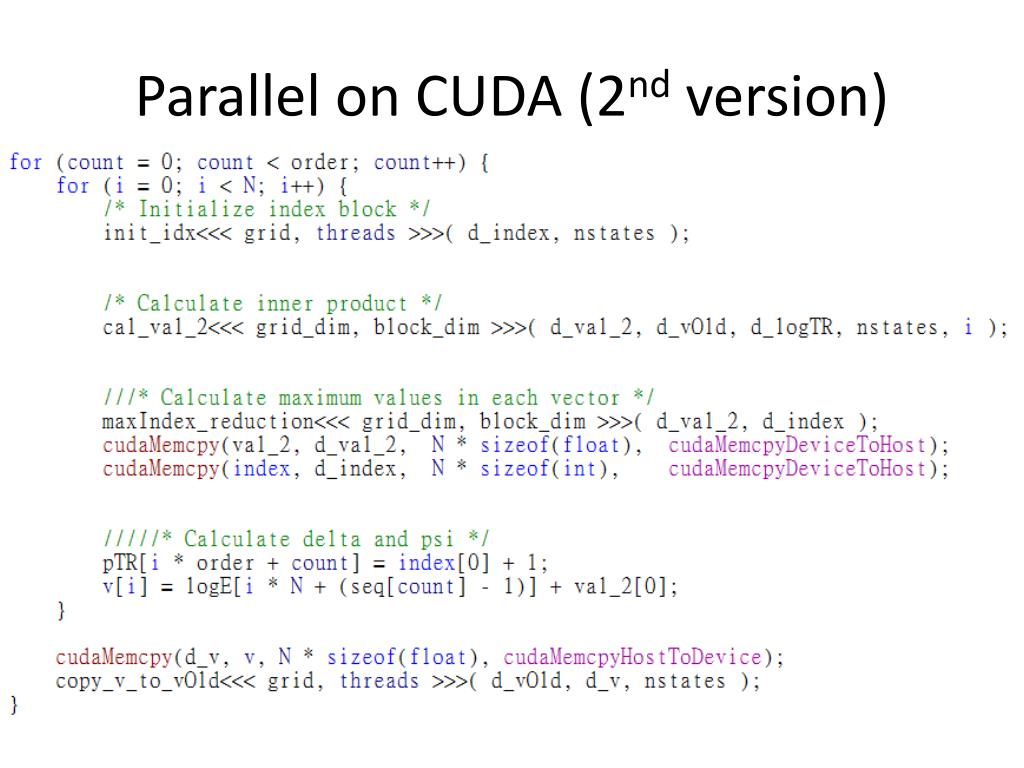

  13. Parallel on CUDA (2nd version)

  14. Parallel on CUDA

  15. MIDI • Score: • Length : 1 second • Hmmtrain :   • unknown states • initial guesses for TRANS and EMIS hmmtrain (seq, TRANS_GUESS, EMIS_GUESS)

  16. hmmtrain(seq, TRANS_GUESS, EMIS_GUESS) • TRANS_GUESS : 12x12 • C → D, D → E, E → F, F → G 0.8 • Others random • EMIS_GUESS : played or not • 0.9 vs. 0.1 • Not accepted

  17. hmmtrain(seq, TRANS_GUESS, EMIS_GUESS) • seq • Source • Output of band-pass filter • Hmmtrain will use algo. • BaumWelch : hmmdecode •  Calculates the posterior state probabilities of a sequence of emissions • Viterbi : hmmviterbi

  18. hmmtrain • The results of models have big difference than the guess! • Can’t use the results to get the great states when running Viterbi algorithm.

  19. Future Works • Finish the 3rd version. • Modify the guess models to get the better result!

  20. Thank you

  21. Appendix 1 : O(nm2) • n stands for the number of observations • m is the number of possible states of an observation

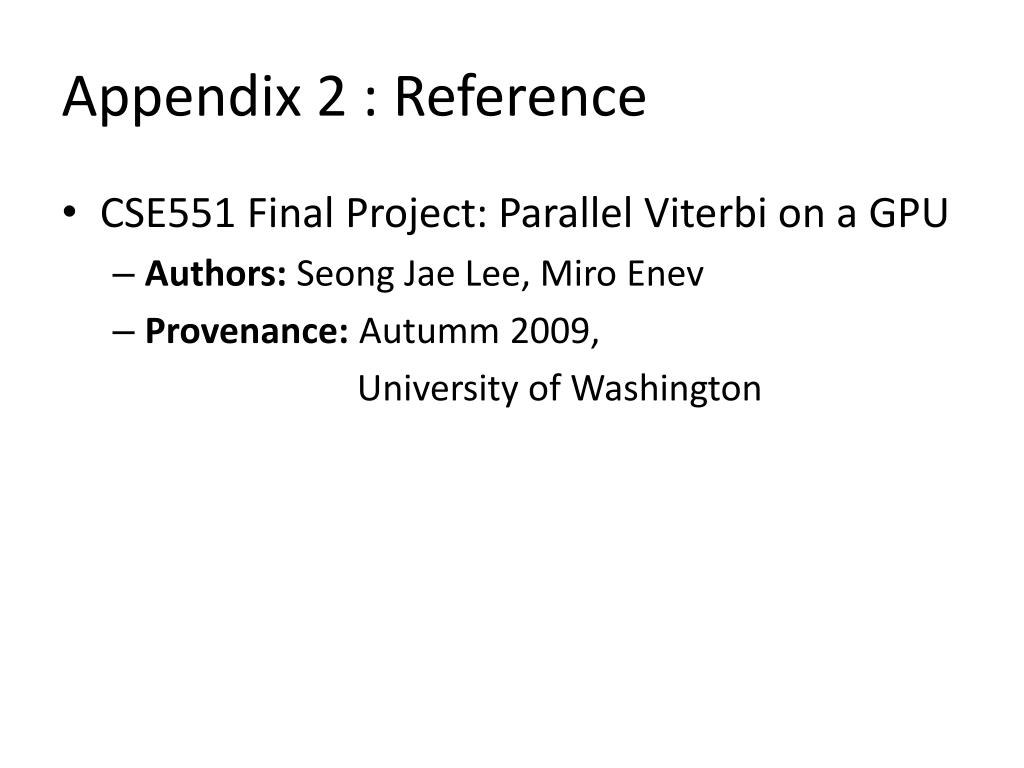

  22. Appendix 2 : Reference • CSE551 Final Project: Parallel Viterbi on a GPU • Authors:Seong Jae Lee, MiroEnev • Provenance:Autumm 2009, University of Washington

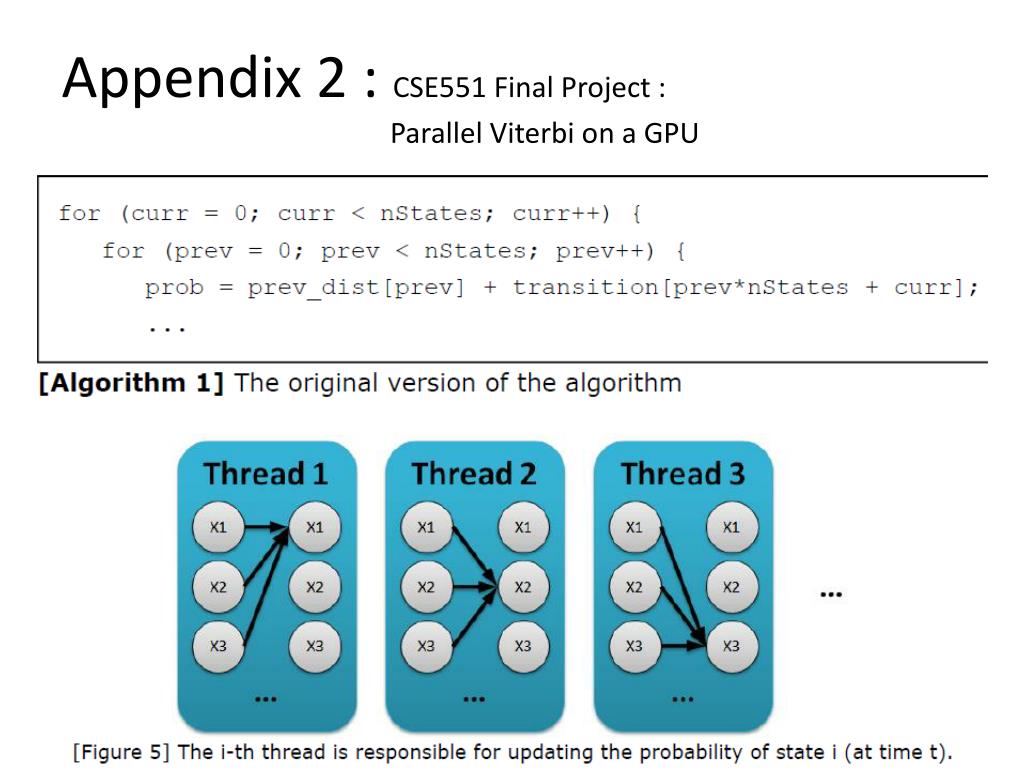

  23. Appendix 2 : CSE551 Final Project : Parallel Viterbi on a GPU

  24. Appendix 2 : CSE551 Final Project : Parallel Viterbi on a GPU

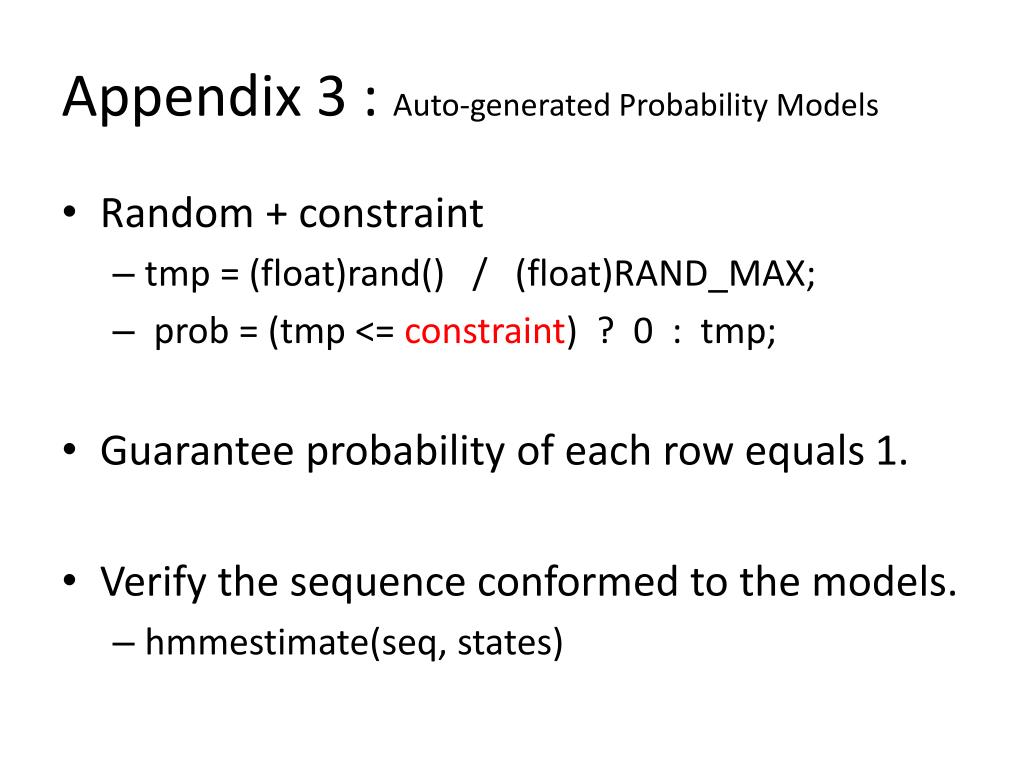

  25. Appendix 3 : Auto-generated Probability Models • Random + constraint • tmp = (float)rand() / (float)RAND_MAX; • prob = (tmp <= constraint) ? 0 : tmp; • Guarantee probability of each row equals 1. • Verify the sequence conformed to the models. • hmmestimate(seq, states)

  26. Appendix 3 : Auto-generated Probability Models • Viterbi algorithm • when back tracing the likely states, avoid to save the 0 state • (rand() % N) + 1
