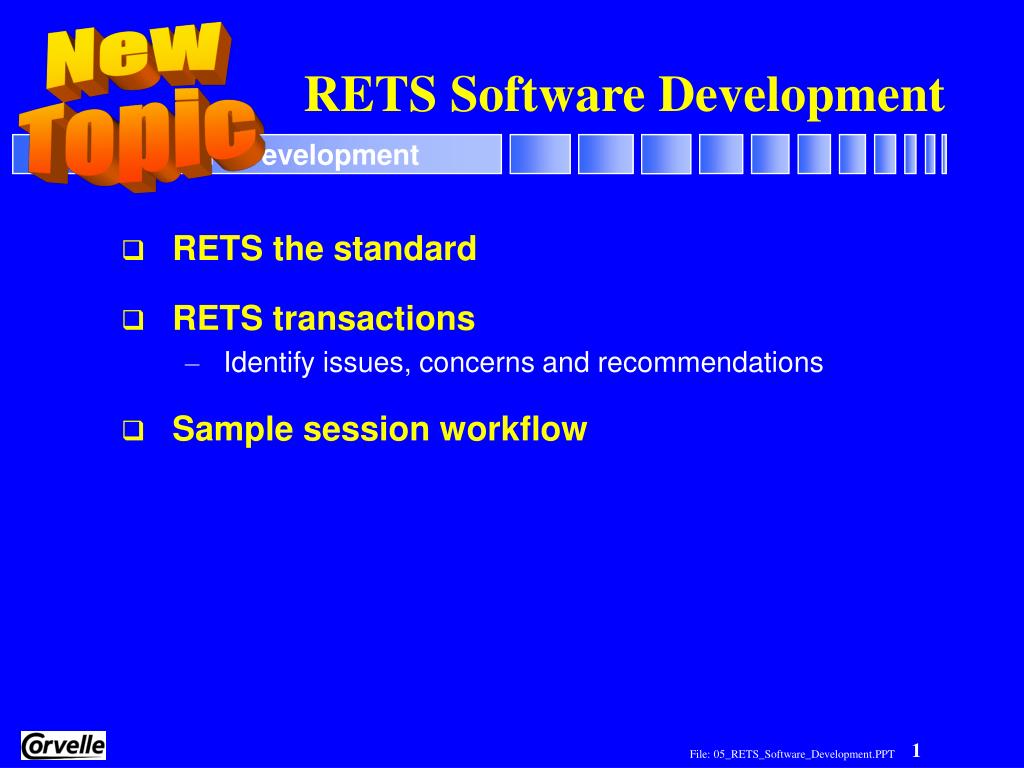

  1. RETS Software Development New Topic • RETS the standard • RETS transactions • Identify issues, concerns and recommendations • Sample session workflow

  2. RETS Software Development Topic Objectives • Improve understanding of the RETS architecture • Build familiarity with the RETS document • Enable more productive RETS software development

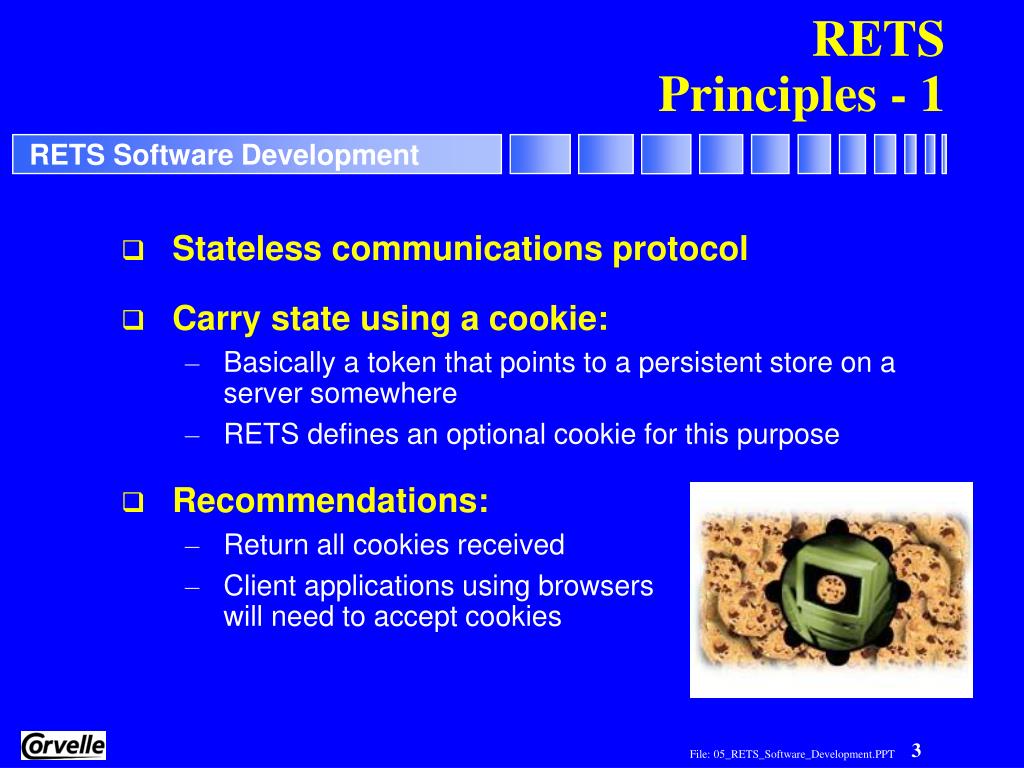

  3. RETSPrinciples - 1 • Stateless communications protocol • Carry state using a cookie: • Basically a token that points to a persistent store on a server somewhere • RETS defines an optional cookie for this purpose • Recommendations: • Return all cookies received • Client applications using browserswill need to accept cookies

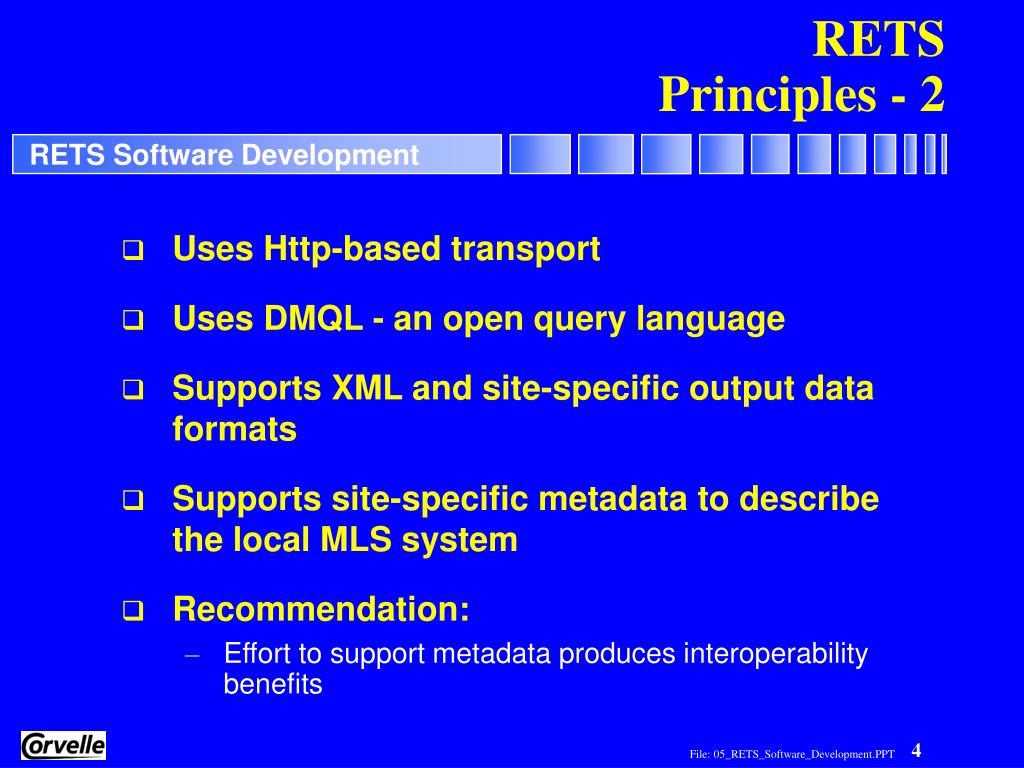

  4. RETSPrinciples - 2 • Uses Http-based transport • Uses DMQL - an open query language • Supports XML and site-specific output data formats • Supports site-specific metadata to describe the local MLS system • Recommendation: • Effort to support metadata produces interoperability benefits

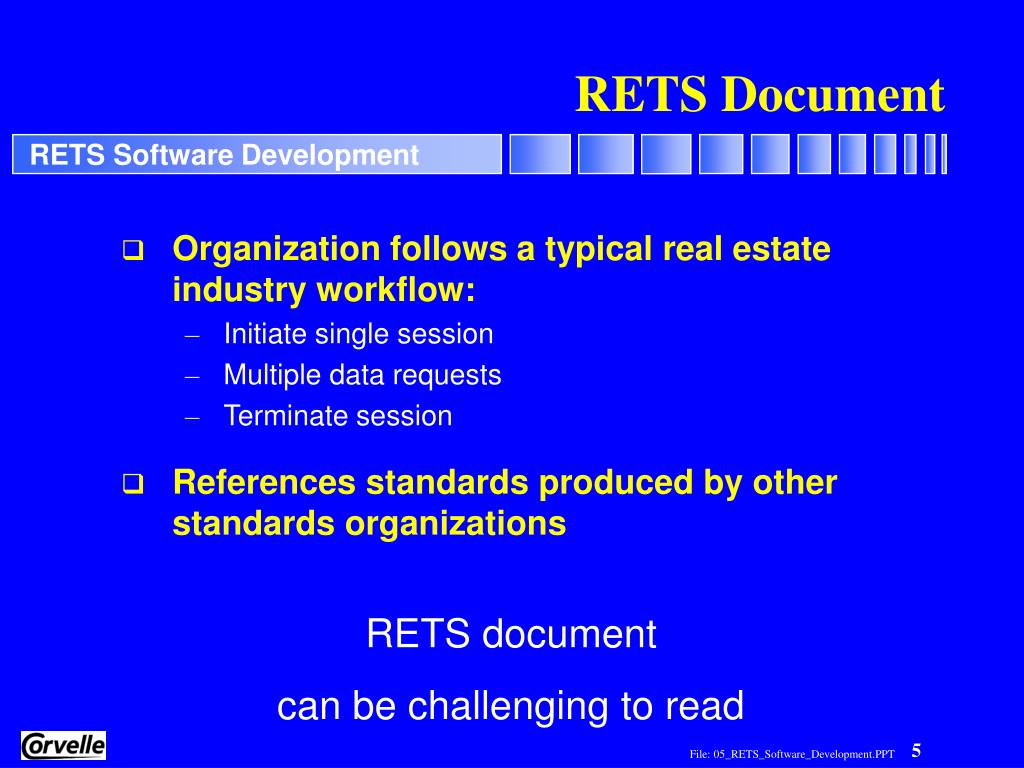

  5. RETS Document • Organization follows a typical real estate industry workflow: • Initiate single session • Multiple data requests • Terminate session • References standards produced by other standards organizations RETS document can be challenging to read

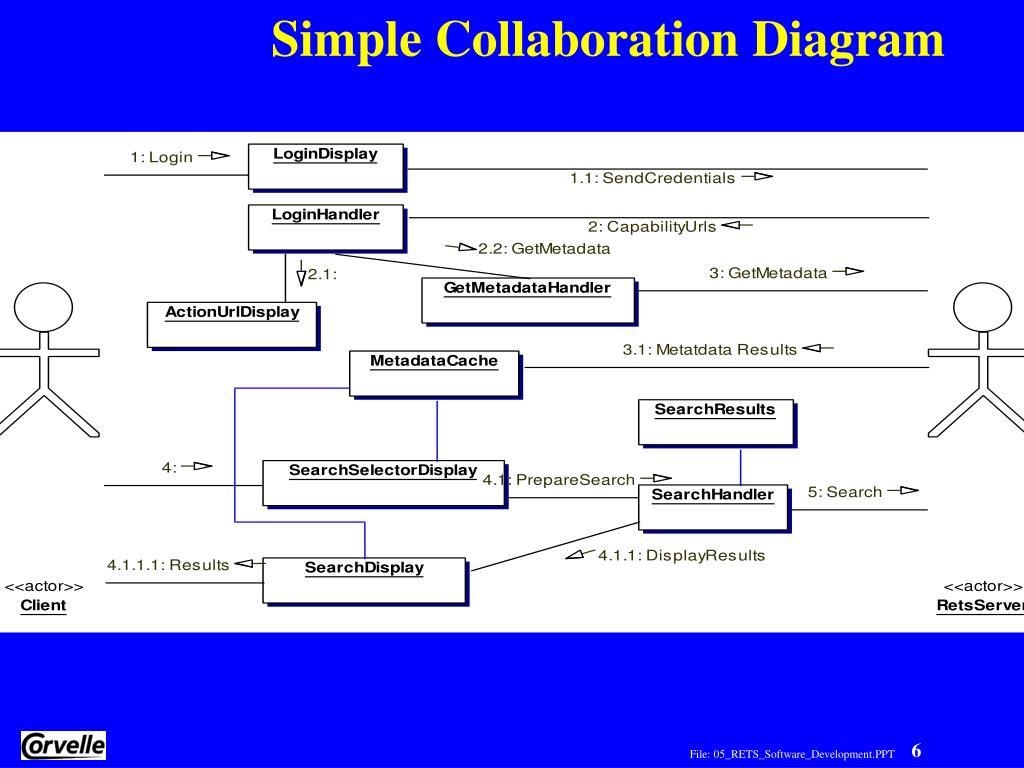

  6. Simple Collaboration Diagram

  7. Login Transaction Making the Initial Connection • Authentication • Response with authorized resources • Types: • Basic • Digest using MD5 or SHA1 • SSL • Recommendations: • Implement Digest using MD5 • SHA1 if you can

  8. Login TransactionAuthentication • Most common authentication type is digest using MD5 • Somewhat tricky to implement algorithm • Easiest to borrow the implementation from one of the open source projects • When in doubt: • Ask the RETS-DEV list • Ask your software vendor

  9. Login Transaction Activity Diagram > <

  10. Login TransactionDigest Authentication • Message Digest algorithms are one-way functions • Easy to perform the calculation • Difficult to reverse the calculation • Both sides calculate the same message digest • Transmit only the digest • Compare your calculated digest with the received digest

  11. Login TransactionUserAgent • Application name accessing the MLS server • All client requests MUST include this field • This is a standard HTTP header field as defined in RFC 2616 • MLS server should validate application name presented against list of allowable applications maintained on a table • Application name and userid is a useful key to a table that tracks MLS server usage

  12. Login TransactionGotchas • Using operating system libraries for MD5 can cause authentication failure • Proxies and tunnels can be a problem • Re-authenticate is part of the RFC but few vendors enforce it • Case may matter

  13. Sample LoginChallenge Response Header 1 HTTP/1.1 401 Unauthorized xxx Date: Mon, 02 Aug 2004 05:23:54 GMT Server: WebLogic XMLX Module 8.1 SP1 Fri Jun 20 23:06:40 PDT 2003 271009 with WWW-Authenticate: Digest realm="users@ftc2.com", nonce="313035", opaque="6e"

  14. Sample LoginChallenge Response Header 1 cont. Content-Length: 0 Content-Type: text/html RETS-Version: RETS/1.0 Cache-Control: private

  15. Sample LoginNonce nonce= "313035393731353435373630342058dd631265e3360724c45d15f23aec7a"

  16. Sample LoginOpaque opaque="6e6f742075736564"

  17. Sample LoginChallenge Response Header 2 HTTP/1.1 200 OK Date: Mon, 02 Aug 2004 05:31:03 GMT Server: WebLogic XMLX Module 8.1 SP1 Fri Jun 20 23:06:40 PDT 2003 271009 with Content-Type: text/plain

  18. Sample LoginChallenge Response Header 2 cont. Set-Cookie: RETS-Session-ID=20000439936 RETS-Version: RETS/1.0 Transfer-Encoding: Chunked Cache-Control: private 0230

  19. Sample LoginChallenge Response Body 2 <RETS ReplyCode="0" ReplyText="Success"> MemberName=Mark Crawford User=632344, NULL, NULL, 632344 Broker=National,1 MetadataVersion=1.2.0 MinMetadataVersion=1.1.7 OfficeList=National;1 TimeoutSeconds=900

  20. Sample LoginChallenge Response Body 2 cont. Search=http://rets.ftc2.com:6103/search GetObject=http://rets.ftc2.com:6103/get object Login=http://rets.ftc2.com:6103/login GetMetadata=http://rets.ftc2.com:6103/getmetadata Logout=http://rets.ftc2.com:6103/logout </RETS> 0000

  21. Login Transaction Capability URL List • Response from the Login transaction includes a list of known resources on the server • Each URL points to a RETS transaction type • Capability URL list may be different based on the user and their authorization level • Required that the server return a list containing at least Search • The URL references are not permanent locations • the standard allows the location to change

  22. Action-URL and Get Transaction • Included in the Capability URL List is an Action-URL • Points to a human readable message • Most useful if changed regularly; perhaps daily • Immediately following successful login, may need to do a Get on the Action-URL • Get Transaction is a file retrieval from the server

  23. Metadata • Description of the structure of the data on a specific server • Unique to each site • There will be common elements • Most powerful feature of the RETS specification Perhaps the most challenging part of the RETS specification

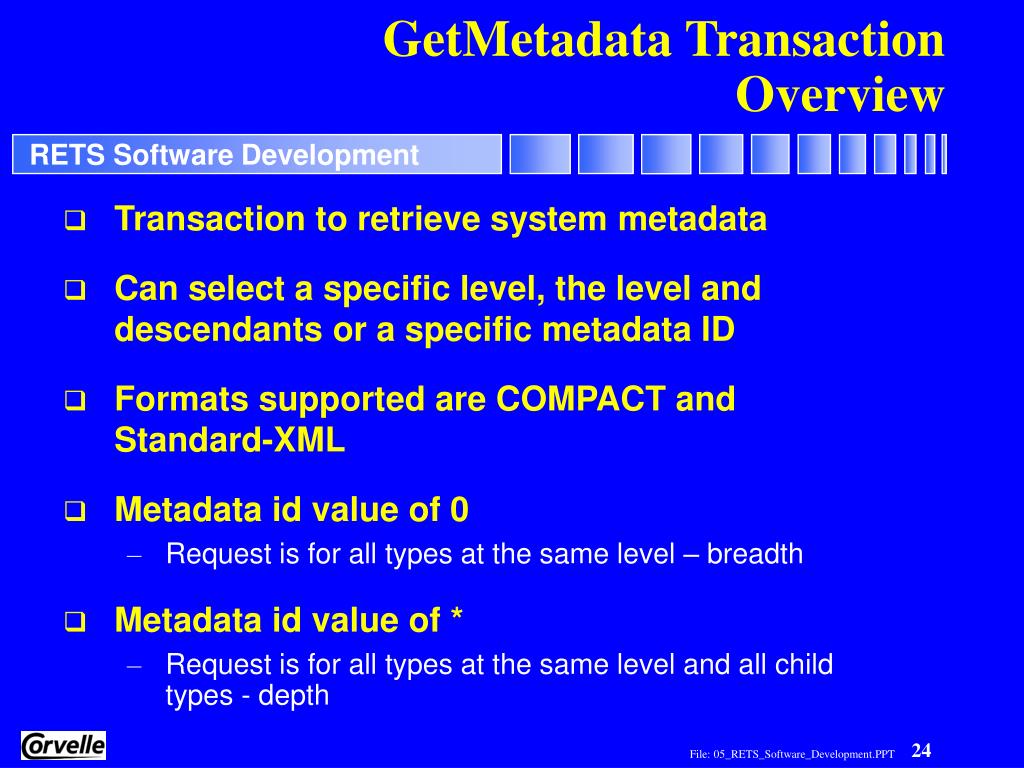

  24. GetMetadata Transaction Overview • Transaction to retrieve system metadata • Can select a specific level, the level and descendants or a specific metadata ID • Formats supported are COMPACT and Standard-XML • Metadata id value of 0 • Request is for all types at the same level – breadth • Metadata id value of * • Request is for all types at the same level and all child types - depth

  25. Metadata FormatID • Hierarchy of types of metadata • See Figure 11.1 on page 11-2of the RETS specification • When referencing hierarchy as ID • Parent: Child is the form • Example: • Type: METADATA-UPDATE_TYPE • ID: Property: RES: Add

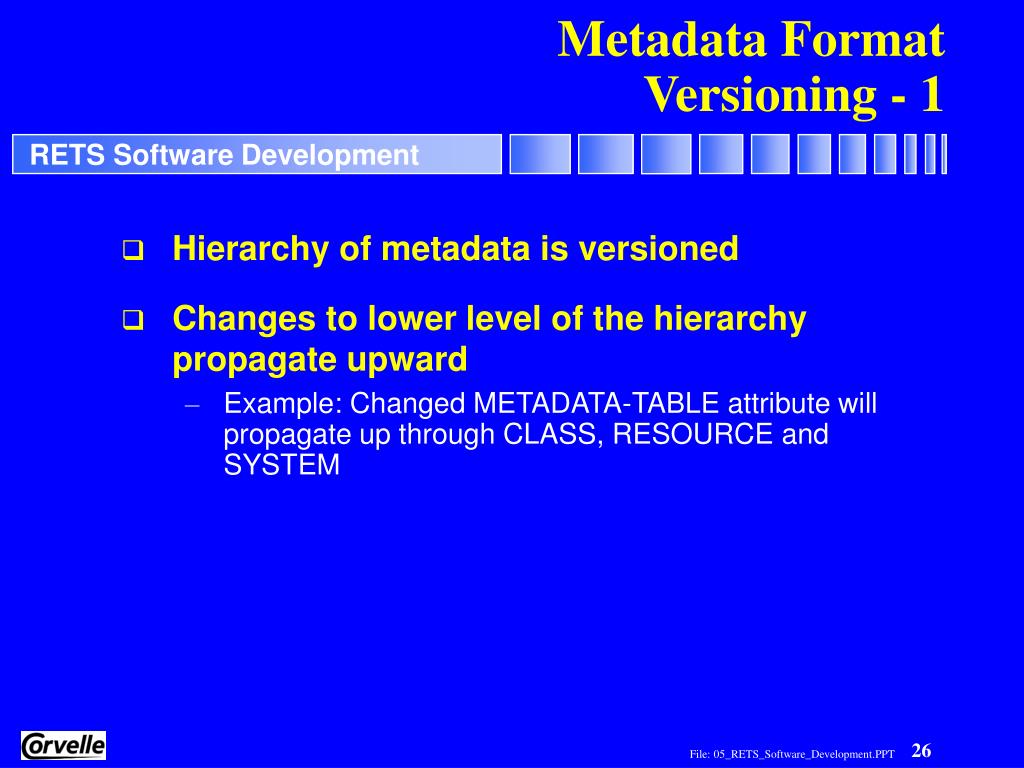

  26. Metadata FormatVersioning - 1 • Hierarchy of metadata is versioned • Changes to lower level of the hierarchy propagate upward • Example: Changed METADATA-TABLE attribute will propagate up through CLASS, RESOURCE and SYSTEM

  27. Metadata FormatVersioning - 2 • Caching of metadata is permitted • Use the login information to determine metadata changes • Recommendation: • If possible, get all the metadata on a change instead of attempting to get a specific type

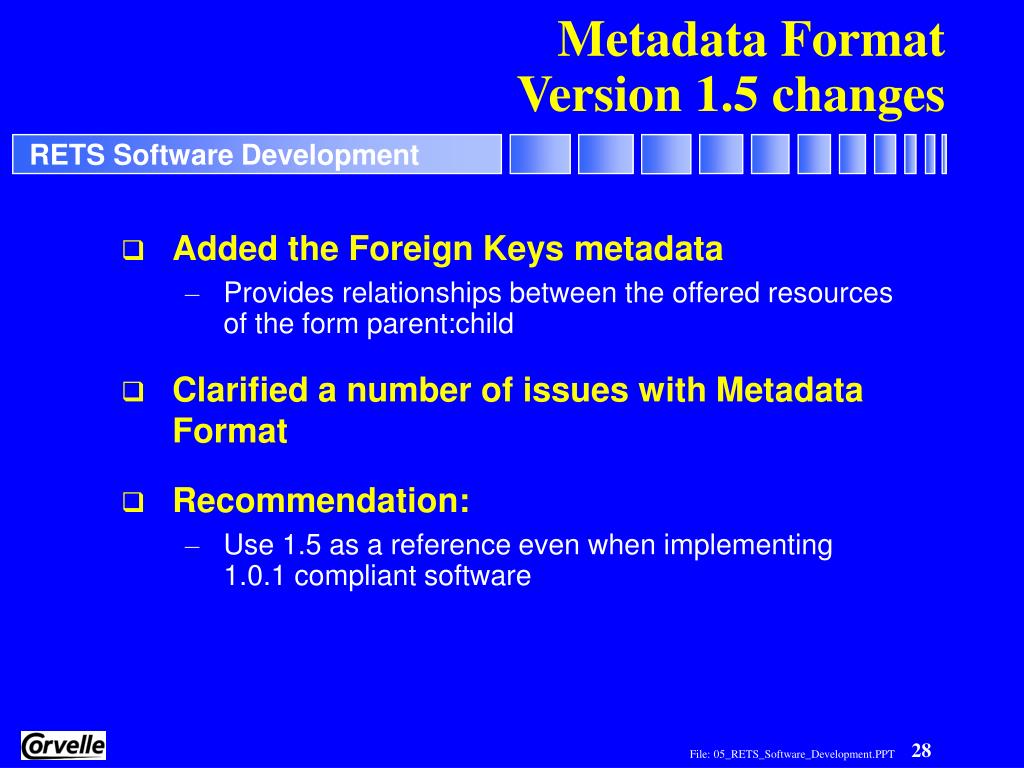

  28. Metadata FormatVersion 1.5 changes • Added the Foreign Keys metadata • Provides relationships between the offered resources of the form parent:child • Clarified a number of issues with Metadata Format • Recommendation: • Use 1.5 as a reference even when implementing 1.0.1 compliant software

  29. Application Responses to Metadata Changes • Ignore metadata • Change breaks the application, intervention required to fix • Static metadata • Change is invisible, applications keep working, intervention to required view change • Dynamic metadata • Change is visible to applications without intervention

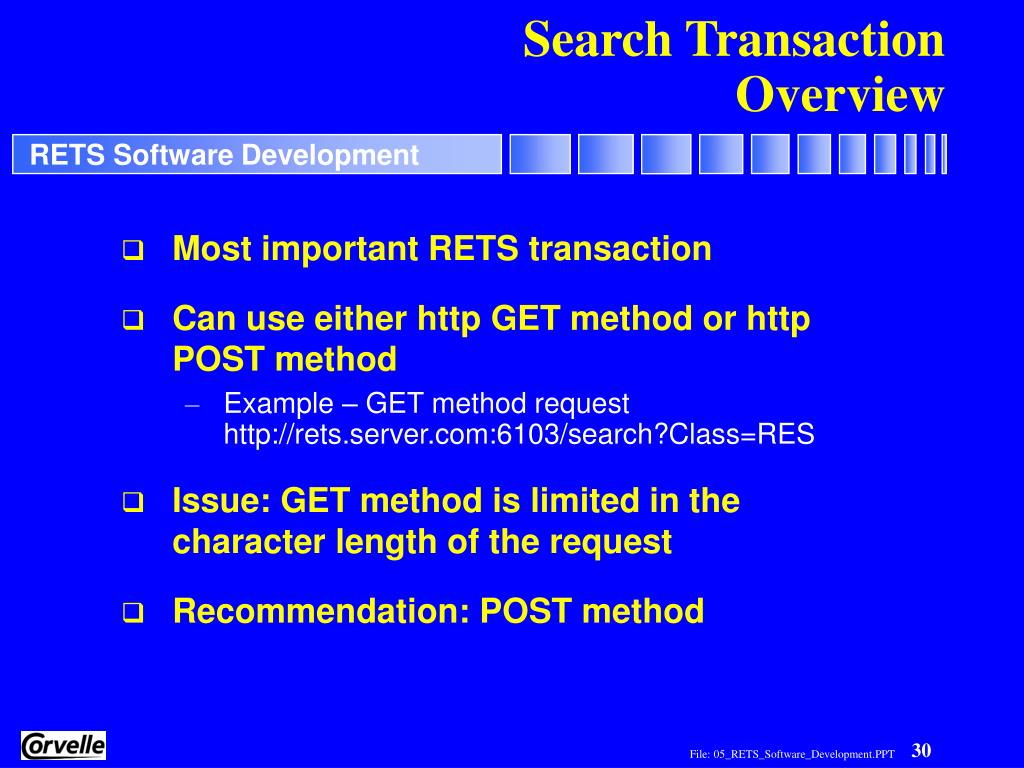

  30. Search Transaction Overview • Most important RETS transaction • Can use either http GET method or http POST method • Example – GET method requesthttp://rets.server.com:6103/search?Class=RES • Issue: GET method is limited in the character length of the request • Recommendation: POST method

  31. Search TransactionClient Diagram

  32. Search TransactionServer Diagram

  33. Sample SearchSearch Request Header HTTP/1.1 200 OK Date: Fri, 31 Jul 2004 23:22:43 GMT Server: WebLogic XMLX Module 8.1 SP1 Fri Jun 20 23:06:40 PDT 2003 271009 with Content-Type: text/xml

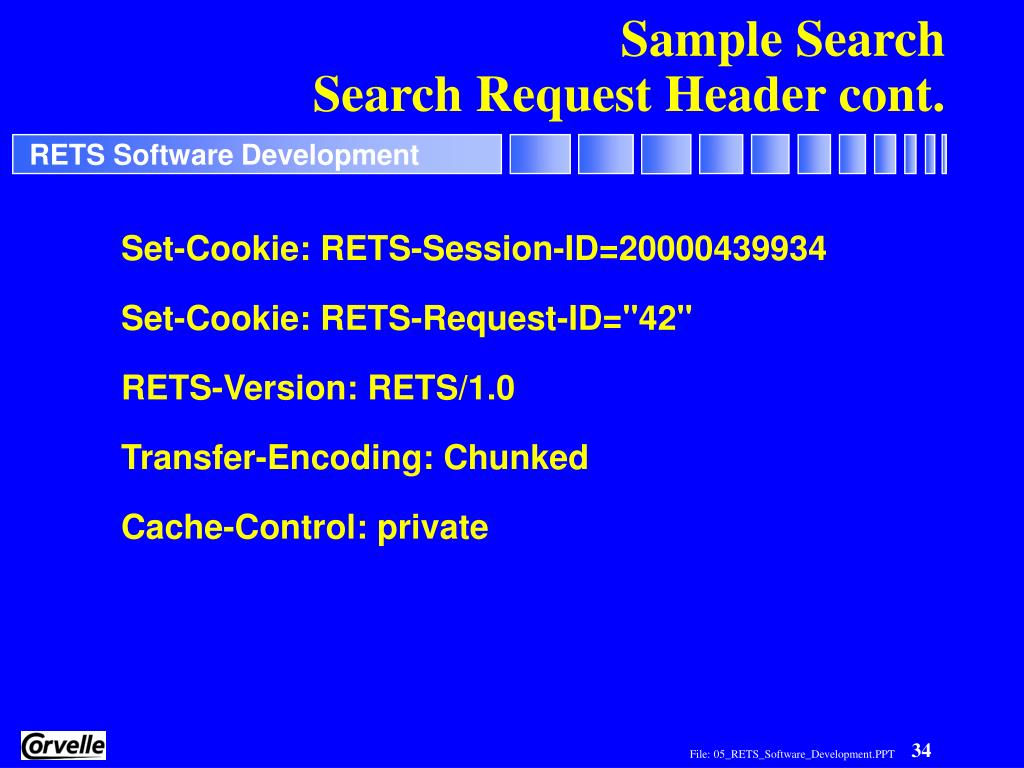

  34. Sample SearchSearch Request Header cont. Set-Cookie: RETS-Session-ID=20000439934 Set-Cookie: RETS-Request-ID="42" RETS-Version: RETS/1.0 Transfer-Encoding: Chunked Cache-Control: private

  35. Sample SearchSearch Response Body 0fe8 <?xml version="1.0" ?> <!DOCTYPE RETS SYSTEM "http://www.ftc2.com/rets/dtd/RETS-20010812.dtd"> <RETS ReplyCode="0" ReplyText="Success"> <COUNT Records="2507" />

  36. Sample SearchSearch Response Body cont. <REData> <Properties> <ResidentialProperty> <Building> <BuildingDescription> <Stories>1</Stories> <PropertyCondition>Shows Well</PropertyCondition> RETS Software Development

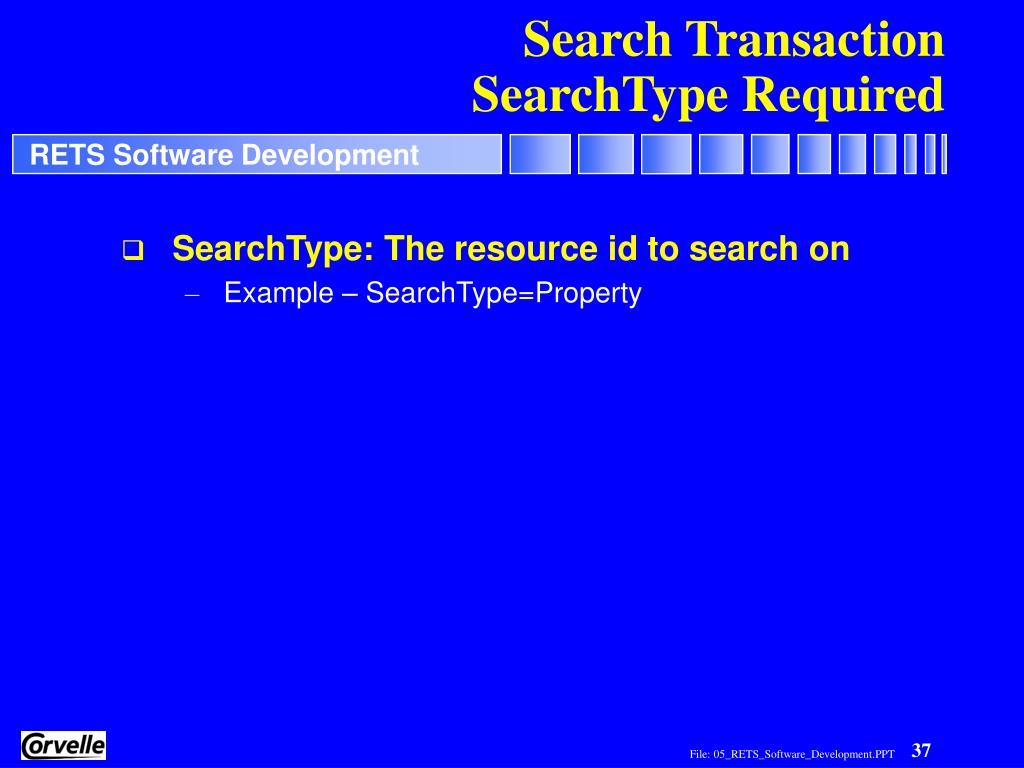

  37. Search TransactionSearchType Required • SearchType: The resource id to search on • Example – SearchType=Property

  38. Search TransactionClass Required • The class of data within the resource to search against • Example – Class=RES • Issues: • Some of the data may be in system specific Class names rather than the Class name that represents an XML Standard Name

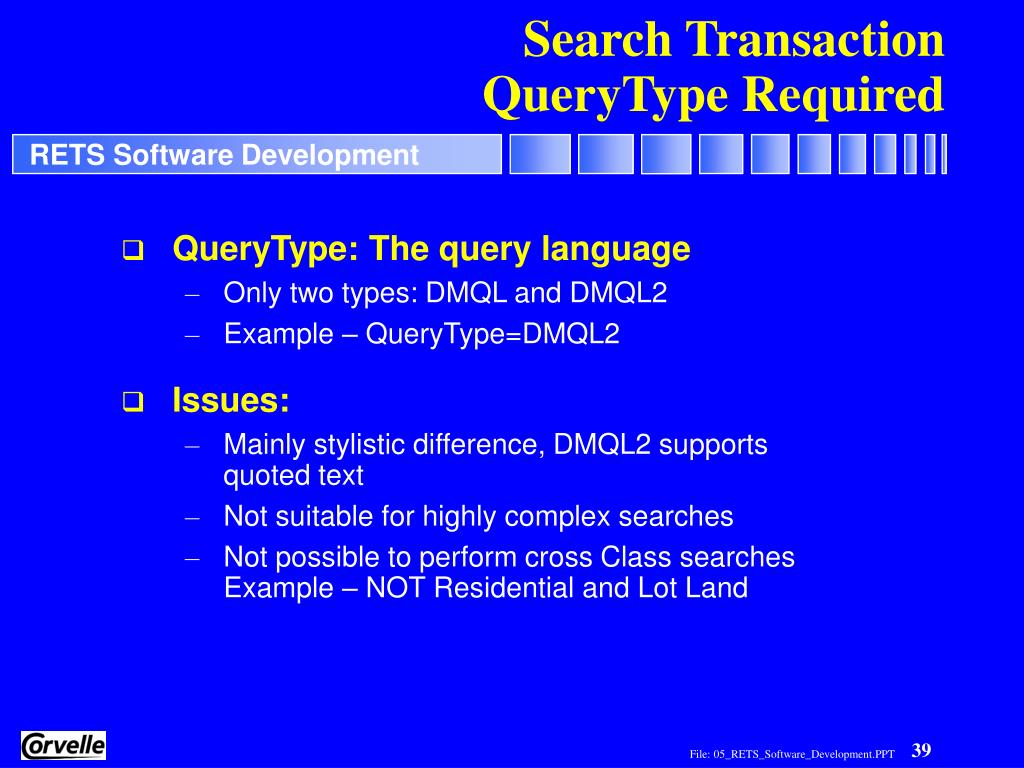

  39. Search TransactionQueryType Required • QueryType: The query language • Only two types: DMQL and DMQL2 • Example – QueryType=DMQL2 • Issues: • Mainly stylistic difference, DMQL2 supports quoted text • Not suitable for highly complex searches • Not possible to perform cross Class searchesExample – NOT Residential and Lot Land

  40. Search TransactionQuery Required • Query: • Key – value pairs • Uses field name based on metadata or on standard names • Example • Query=(ListPrice=200000-300000),(Status=|A) • Issues: • Lookup type queries can execute for a long time

  41. Search TransactionOptional Arguments • Optional argument are just that • A vendor MAY choose to implement none, one or more • Software is RETS compliant without any of the optional arguments implemented • Issue: • Mismatch between client & server feature sets • Recommendation: • Do NOT assume, verify the feature set

  42. Search TransactionCount • Default is no count • Behavior outside of given three values not defined

  43. Search TransactionFormat • Return records in XML or column header/row values format • XML is more verbose, but contains structure information • Some issues with site specific XML – clarification in RETS needed • Default is Standard-XML • Issue: • Site specific XML is not defined in the current standard

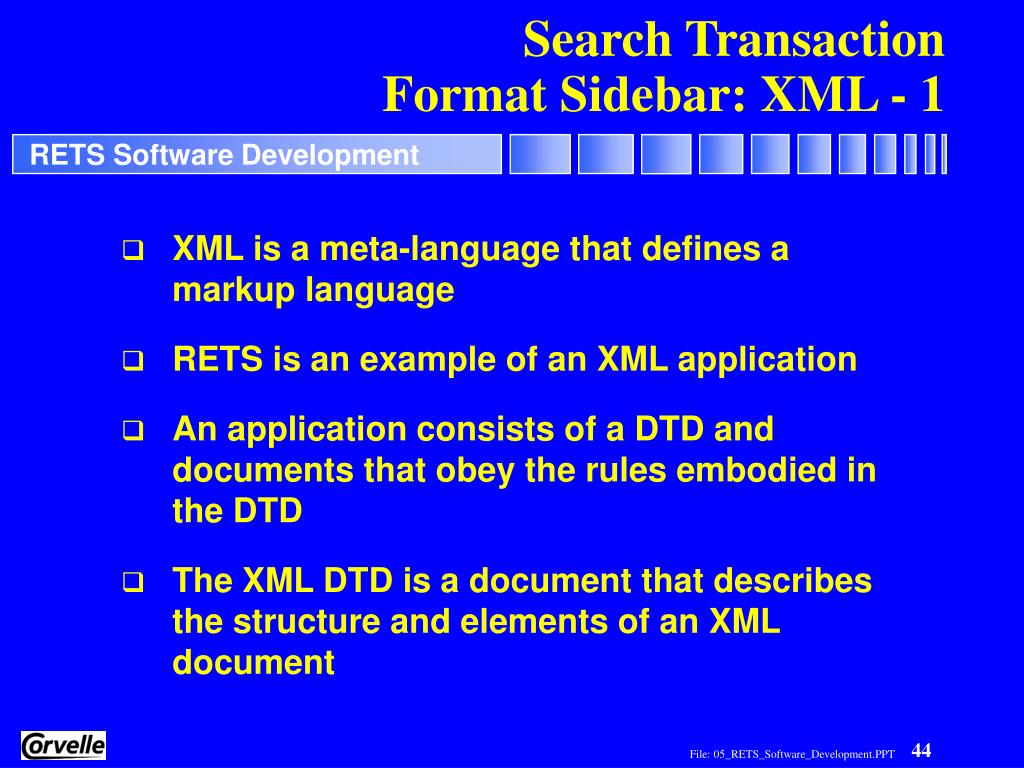

  44. Search TransactionFormat Sidebar: XML - 1 • XML is a meta-language that defines a markup language • RETS is an example of an XML application • An application consists of a DTD and documents that obey the rules embodied in the DTD • The XML DTD is a document that describes the structure and elements of an XML document

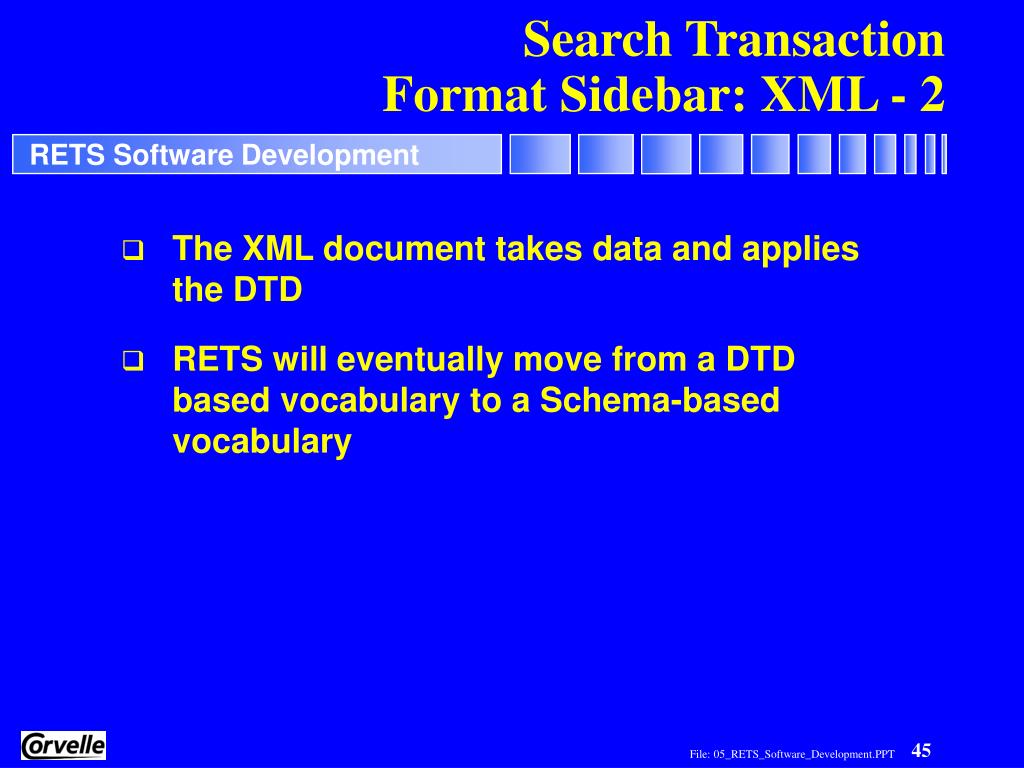

  45. Search TransactionFormat Sidebar: XML - 2 • The XML document takes data and applies the DTD • RETS will eventually move from a DTD based vocabulary to a Schema-based vocabulary

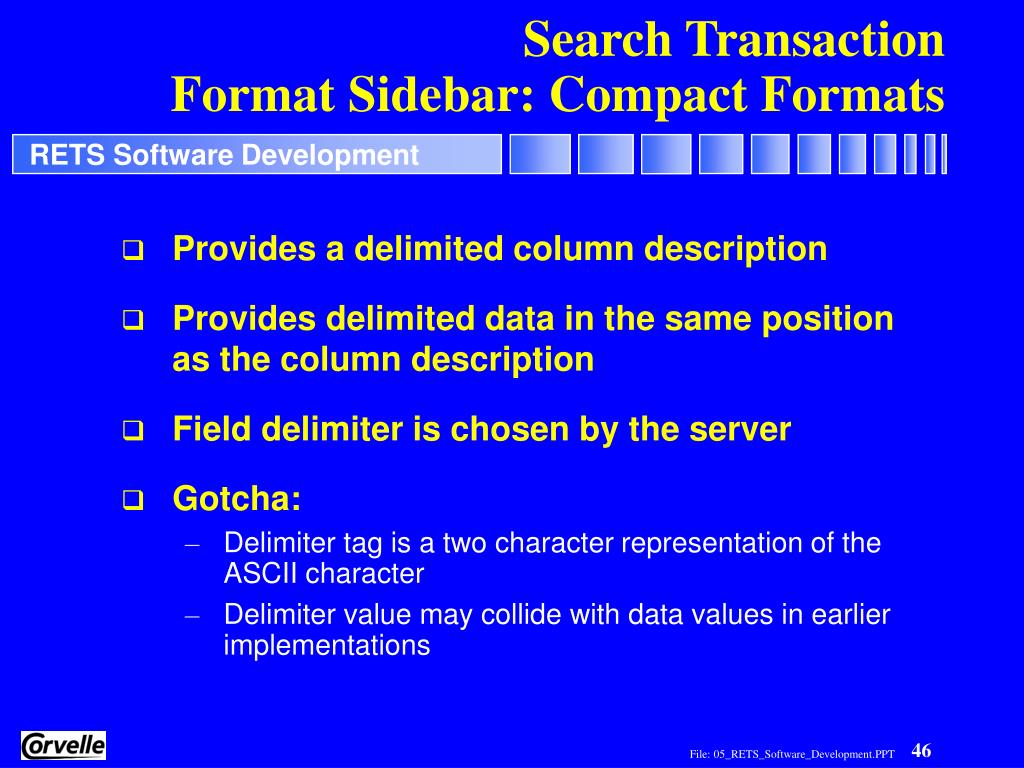

  46. Search TransactionFormat Sidebar: Compact Formats • Provides a delimited column description • Provides delimited data in the same position as the column description • Field delimiter is chosen by the server • Gotcha: • Delimiter tag is a two character representation of the ASCII character • Delimiter value may collide with data values in earlier implementations

  47. Search TransactionLimit • Limits the number of records returned: • The NONE well known name requests a suspension of limit • Behavior is implementation dependent • Requesting a Limit should make the query faster • May still search for all records but only transmit records to a Limit

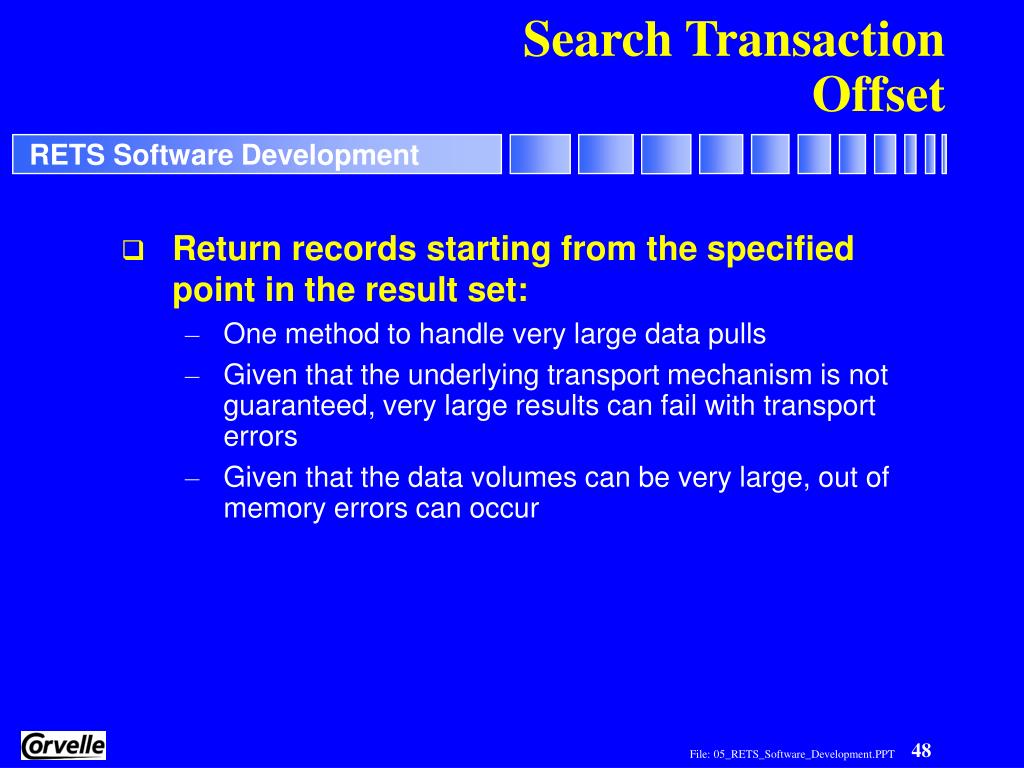

  48. Search TransactionOffset • Return records starting from the specified point in the result set: • One method to handle very large data pulls • Given that the underlying transport mechanism is not guaranteed, very large results can fail with transport errors • Given that the data volumes can be very large, out of memory errors can occur

  49. Search Transaction StandardNames • Indicates that the query uses the standard names or the system names: • Servers are not required to implement standard names to meet RETS compliance criteria • Standard Names are intended to be common across all RETS systems Refining the list of Standard Names is an ongoing process

  50. Search TransactionRestricted Indicator • Certain fields may have restricted visibility: • Client may request fields that are restricted be replaced by a specific character string • Example - compensation amount field • Client may request that this amount be masked by ### • Server default is to return a null value
