  1. HOSS Horizontal Pumps LLC. Providing Solutions Through Innovative Technology.

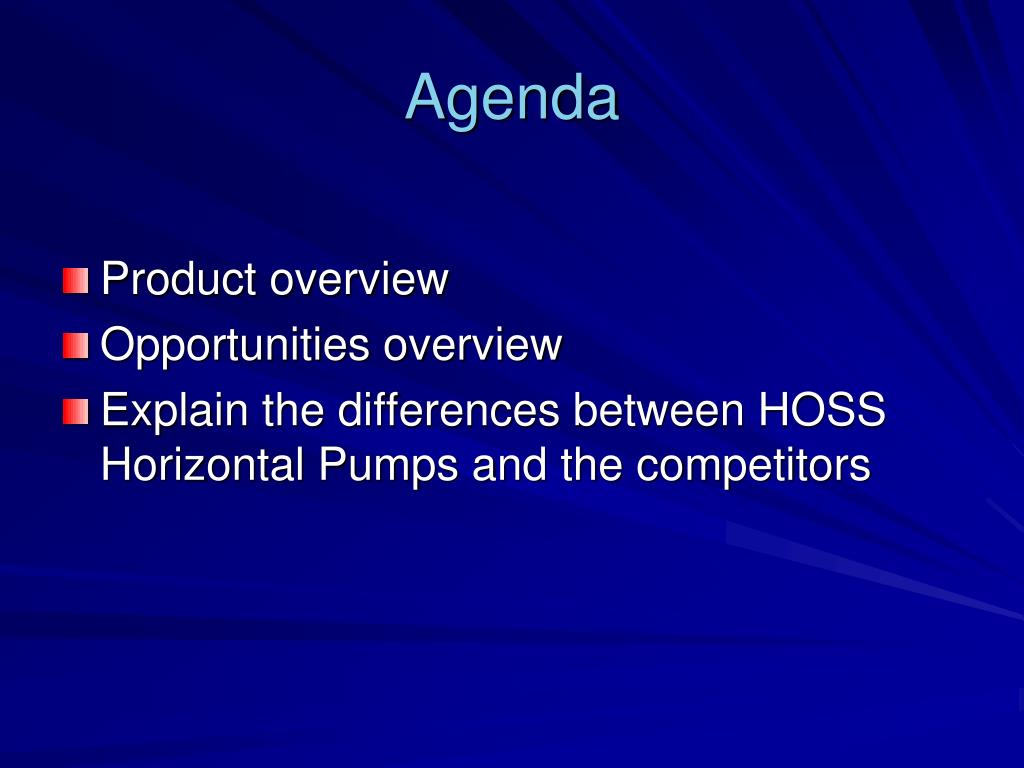

  2. Agenda • Product overview • Opportunities overview • Explain the differences between HOSS Horizontal Pumps and the competitors

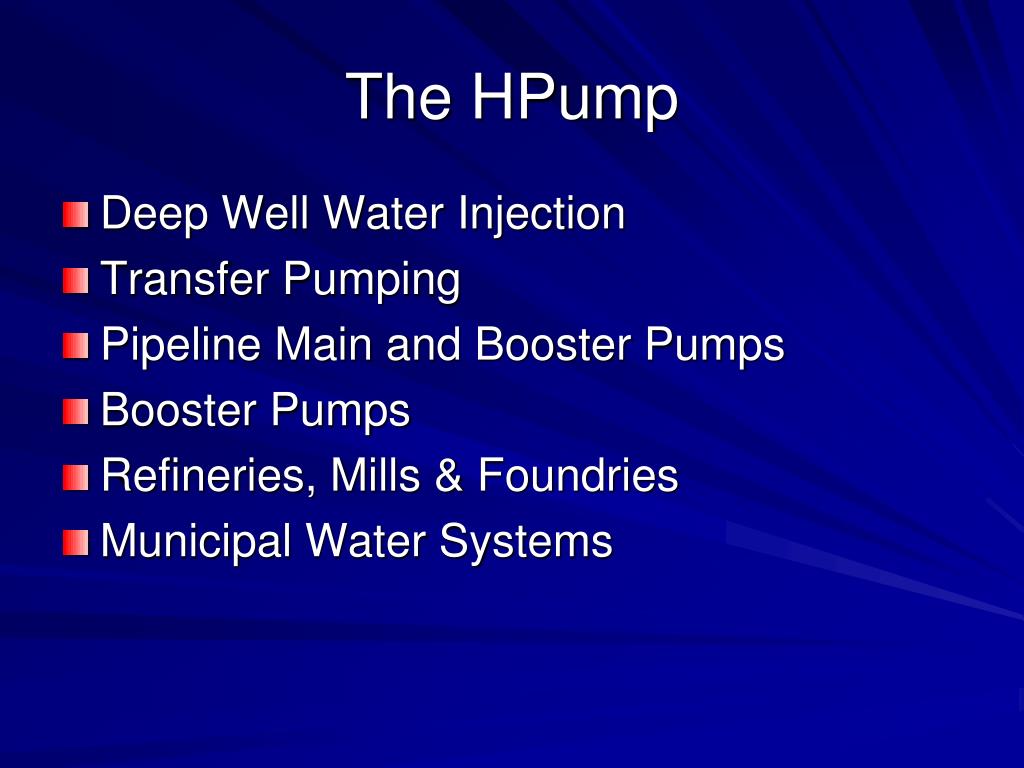

  3. The HPump • Deep Well Water Injection • Transfer Pumping • Pipeline Main and Booster Pumps • Booster Pumps • Refineries, Mills & Foundries • Municipal Water Systems

  4. Product Strategy • Centrifugal Types • Target areas: • 5 of 25 categories • Reciprocating Types • Target area: • 2 of 4 categories

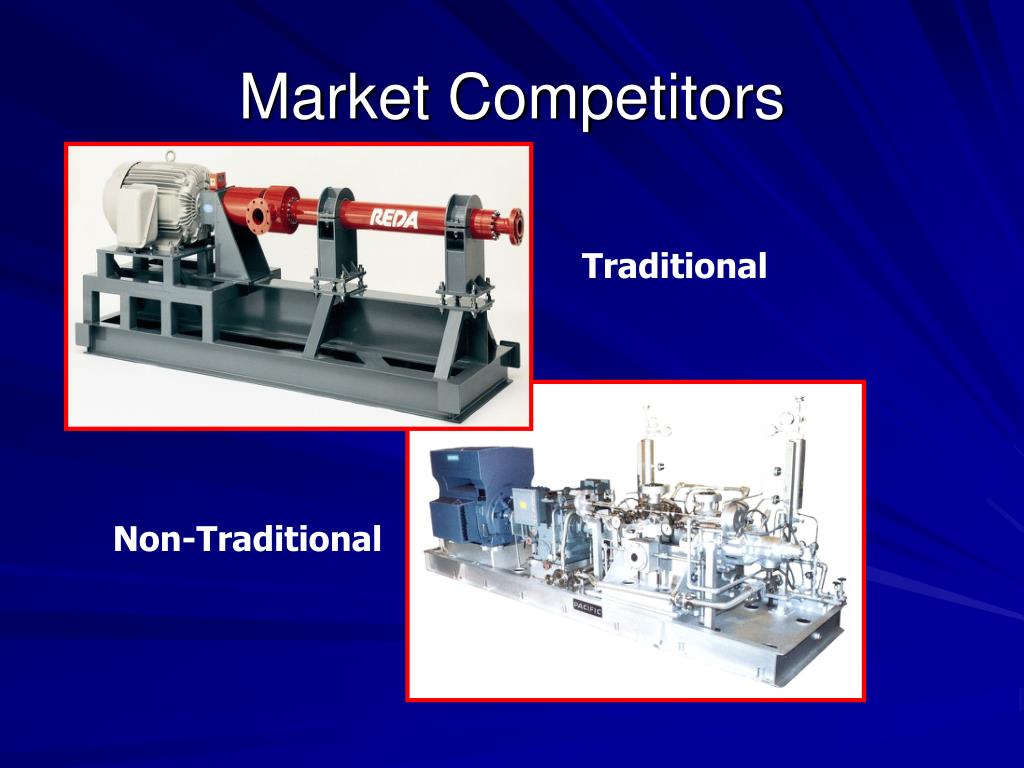

  5. Market Competitors Traditional Non-Traditional

  6. OpportunitiesAre attributable to the limited support and presence of larger companies, as well as a lesser quality product. AndLead TimeAreas of focus • Permian Basin Area Midland / Odessa TX. • Southern Louisiana • Wyoming • South America • The Pipeline between Oklahoma and Kansas • Refineries • Steel Mill (Nucor) • CO2 Pipeline in West Texas • NGL Applications

  7. The HOSS Horizontal Pumping System

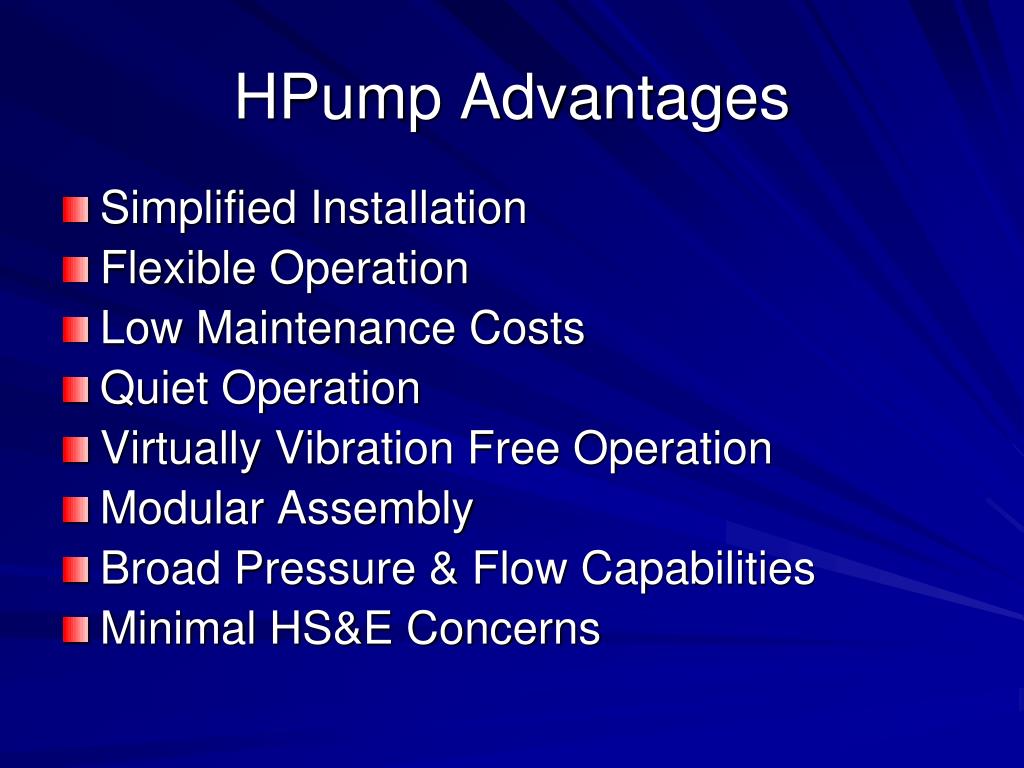

  8. HPump Advantages • Simplified Installation • Flexible Operation • Low Maintenance Costs • Quiet Operation • Virtually Vibration Free Operation • Modular Assembly • Broad Pressure & Flow Capabilities • Minimal HS&E Concerns

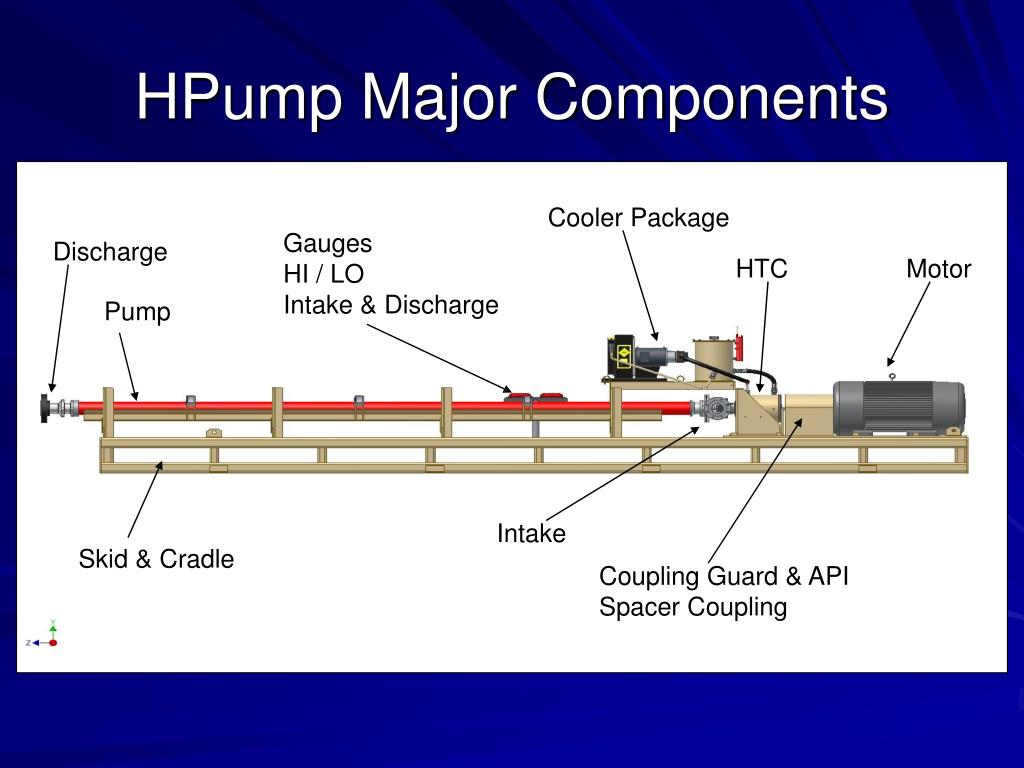

  9. HPump Major Components Cooler Package Gauges HI / LO Intake & Discharge Discharge HTC Motor Pump Intake Skid & Cradle Coupling Guard & API Spacer Coupling

  10. Movie Removing HTC Click on Picture to start Movie

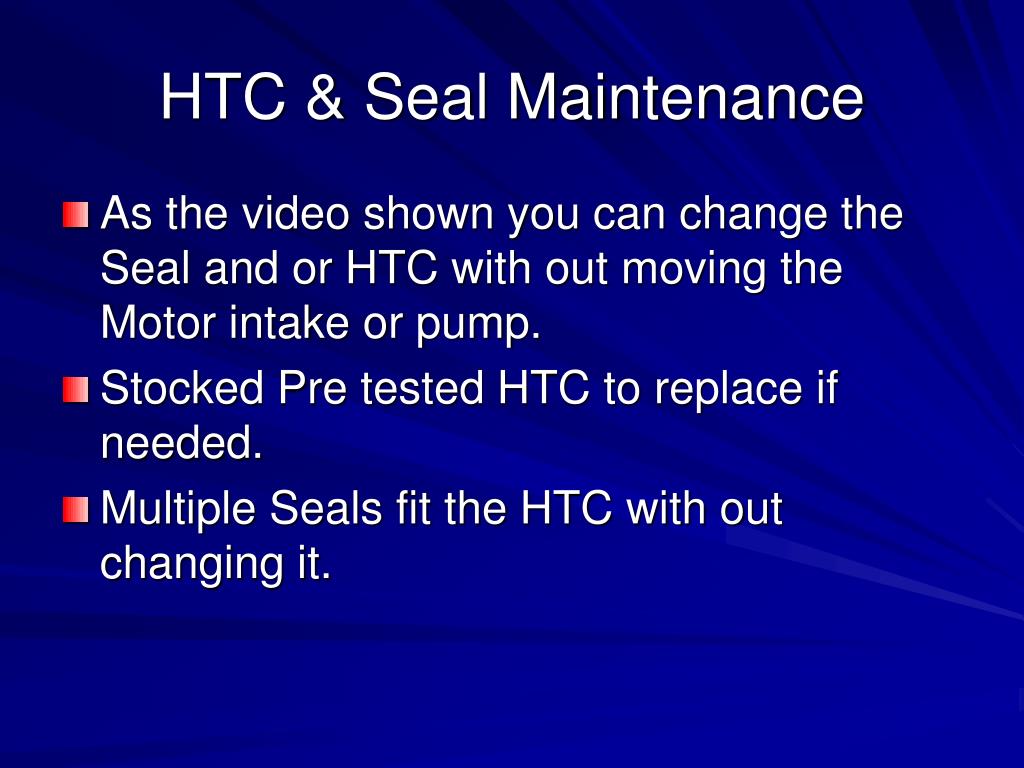

  11. HTC & Seal Maintenance • As the video shown you can change the Seal and or HTC with out moving the Motor intake or pump. • Stocked Pre tested HTC to replace if needed. • Multiple Seals fit the HTC with out changing it.

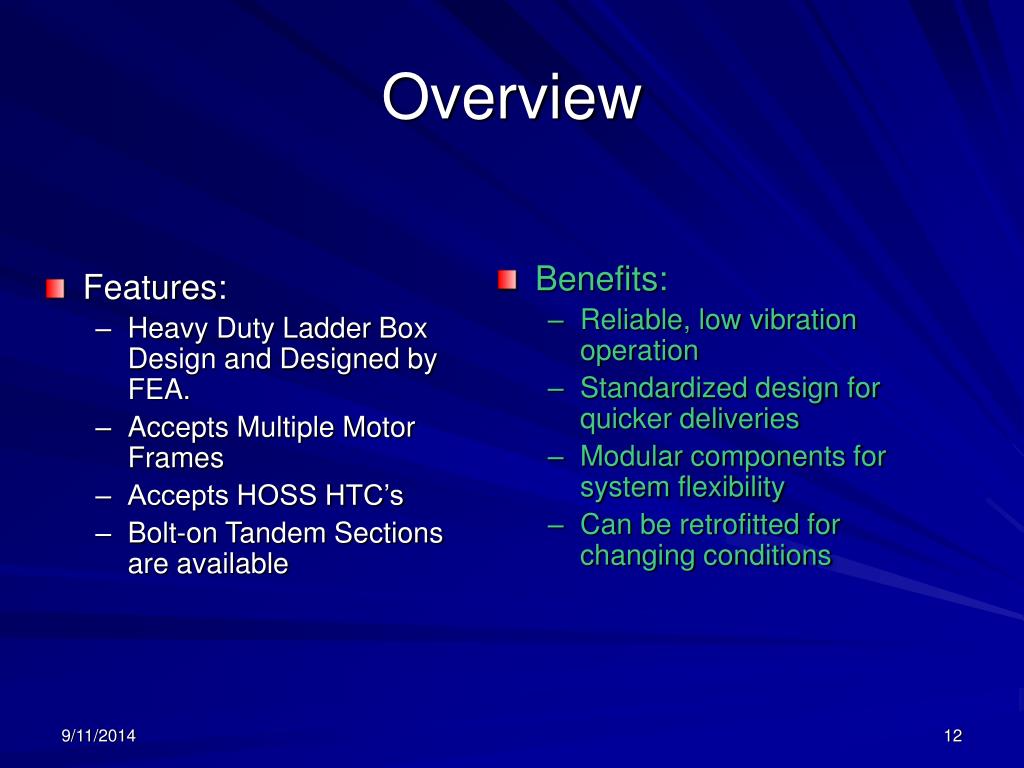

  12. Overview • Benefits: • Reliable, low vibration operation • Standardized design for quicker deliveries • Modular components for system flexibility • Can be retrofitted for changing conditions • Features: • Heavy Duty Ladder Box Design and Designed by FEA. • Accepts Multiple Motor Frames • Accepts HOSS HTC’s • Bolt-on Tandem Sections are available

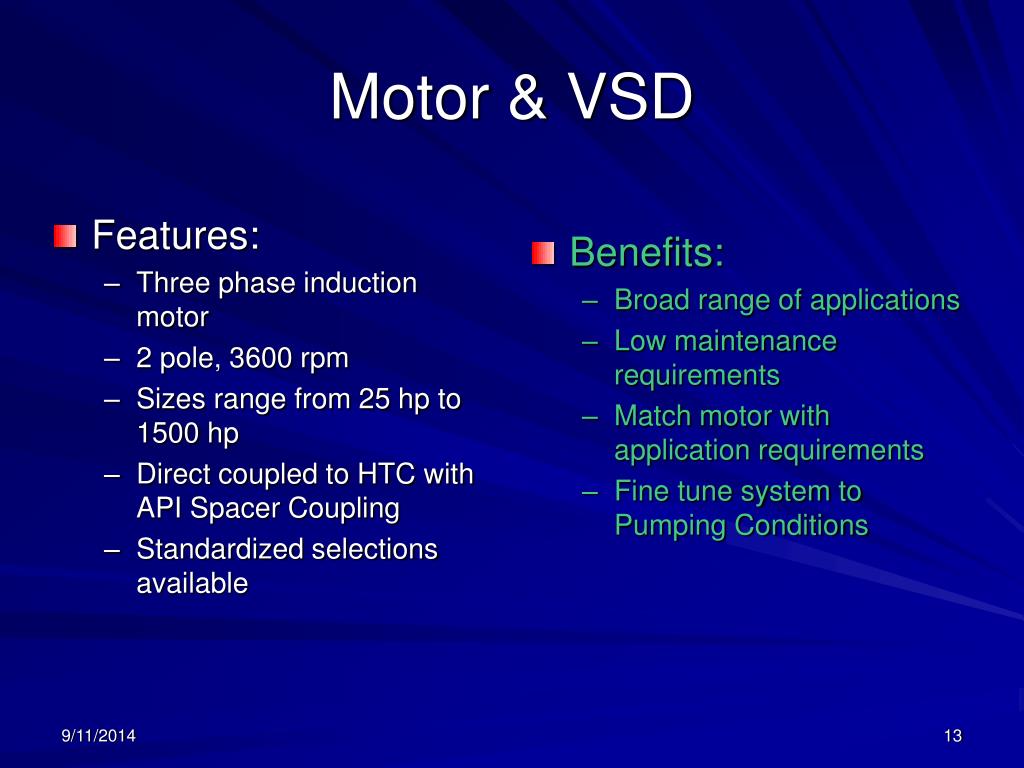

  13. Motor & VSD • Features: • Three phase induction motor • 2 pole, 3600 rpm • Sizes range from 25 hp to 1500 hp • Direct coupled to HTC with API Spacer Coupling • Standardized selections available • Benefits: • Broad range of applications • Low maintenance requirements • Match motor with application requirements • Fine tune system to Pumping Conditions

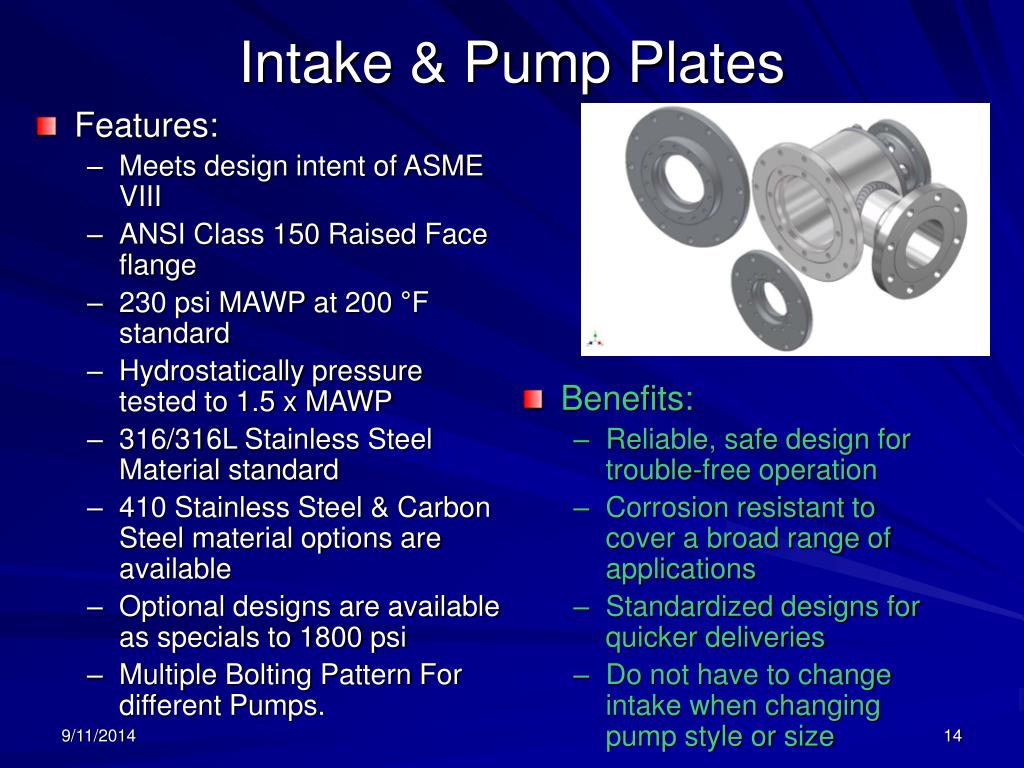

  14. Intake & Pump Plates • Features: • Meets design intent of ASME VIII • ANSI Class 150 Raised Face flange • 230 psi MAWP at 200 °F standard • Hydrostatically pressure tested to 1.5 x MAWP • 316/316L Stainless Steel Material standard • 410 Stainless Steel & Carbon Steel material options are available • Optional designs are available as specials to 1800 psi • Multiple Bolting Pattern For different Pumps. • Benefits: • Reliable, safe design for trouble-free operation • Corrosion resistant to cover a broad range of applications • Standardized designs for quicker deliveries • Do not have to change intake when changing pump style or size

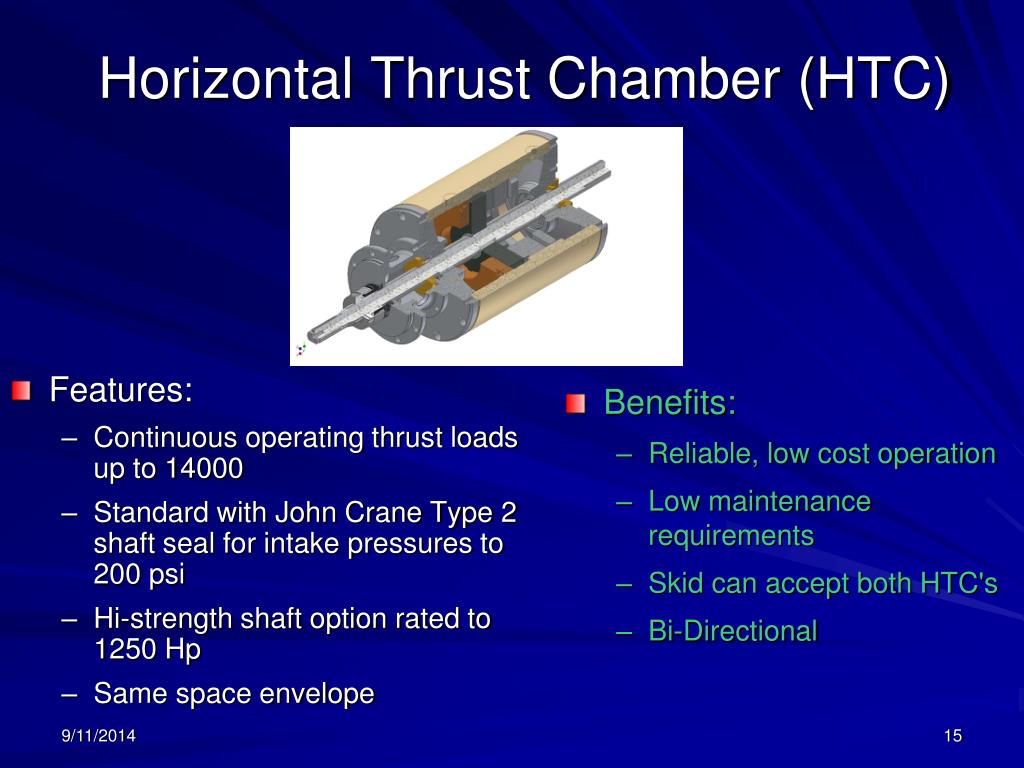

  15. Horizontal Thrust Chamber (HTC) • Features: • Continuous operating thrust loads up to 14000 • Standard with John Crane Type 2 shaft seal for intake pressures to 200 psi • Hi-strength shaft option rated to 1250 Hp • Same space envelope • Benefits: • Reliable, low cost operation • Low maintenance requirements • Skid can accept both HTC's • Bi-Directional

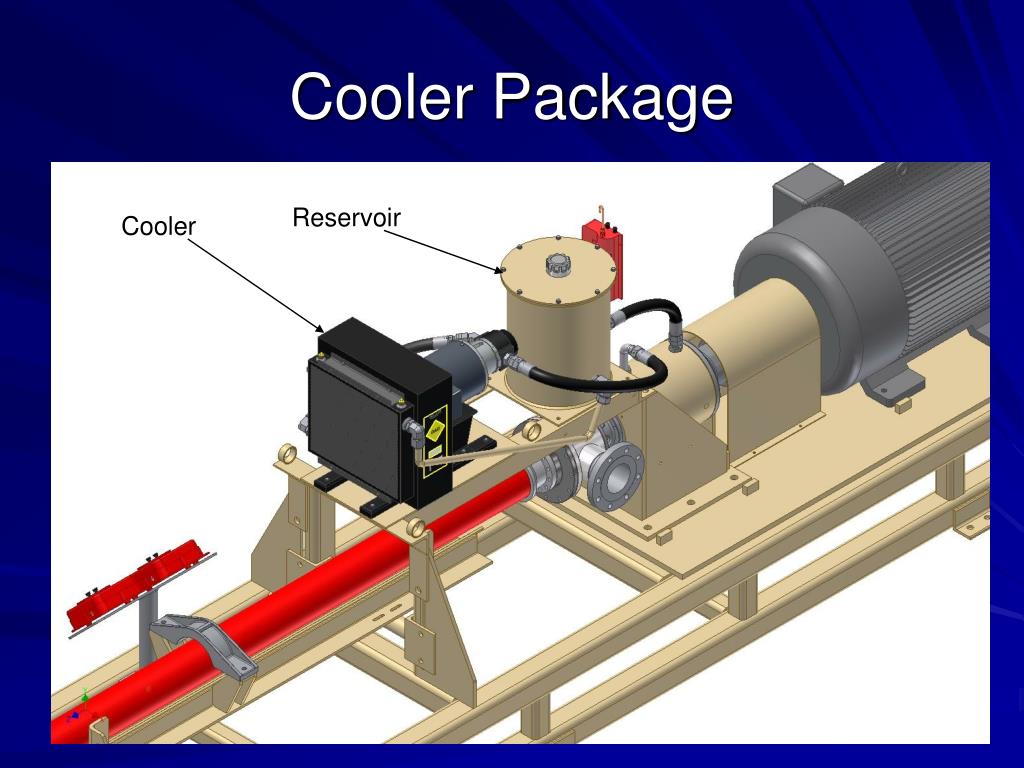

  16. Cooler Package Reservoir Cooler

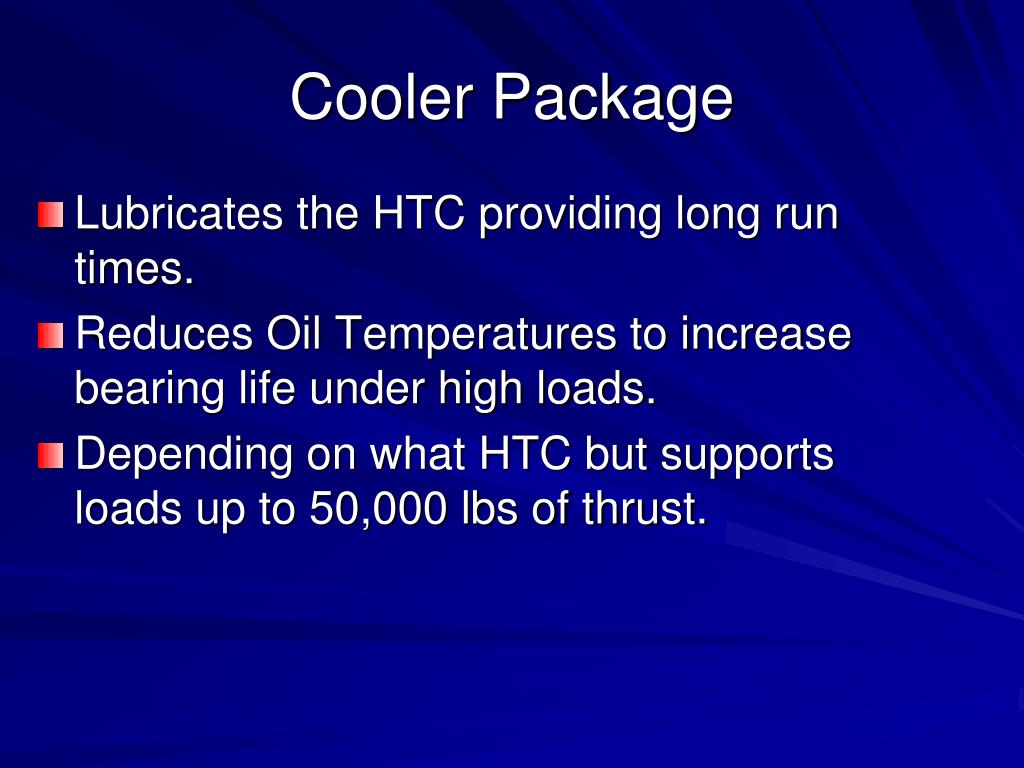

  17. Cooler Package • Lubricates the HTC providing long run times. • Reduces Oil Temperatures to increase bearing life under high loads. • Depending on what HTC but supports loads up to 50,000 lbs of thrust.

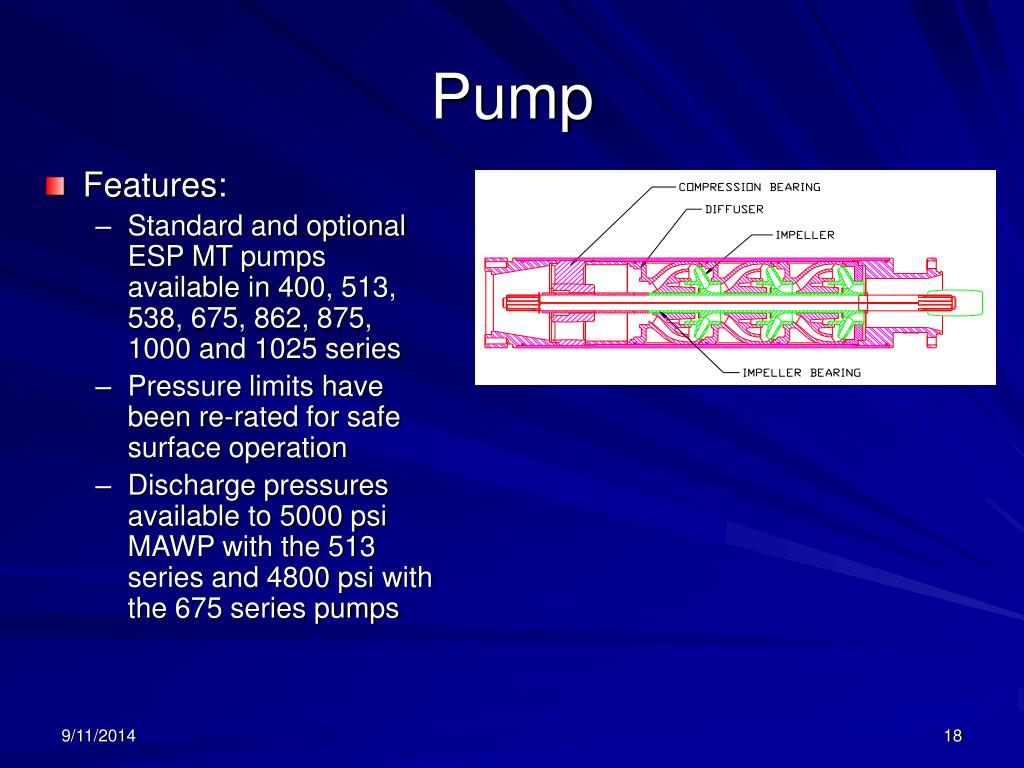

  18. Pump • Features: • Standard and optional ESP MT pumps available in 400, 513, 538, 675, 862, 875, 1000 and 1025 series • Pressure limits have been re-rated for safe surface operation • Discharge pressures available to 5000 psi MAWP with the 513 series and 4800 psi with the 675 series pumps

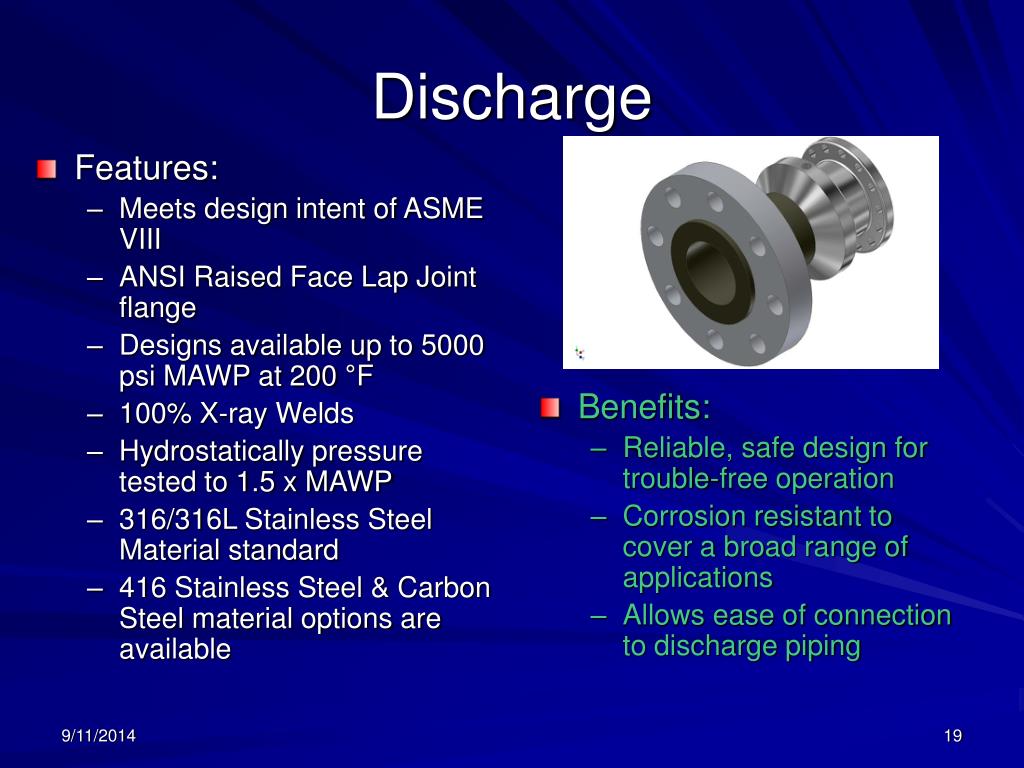

  19. Discharge • Features: • Meets design intent of ASME VIII • ANSI Raised Face Lap Joint flange • Designs available up to 5000 psi MAWP at 200 °F • 100% X-ray Welds • Hydrostatically pressure tested to 1.5 x MAWP • 316/316L Stainless Steel Material standard • 416 Stainless Steel & Carbon Steel material options are available • Benefits: • Reliable, safe design for trouble-free operation • Corrosion resistant to cover a broad range of applications • Allows ease of connection to discharge piping

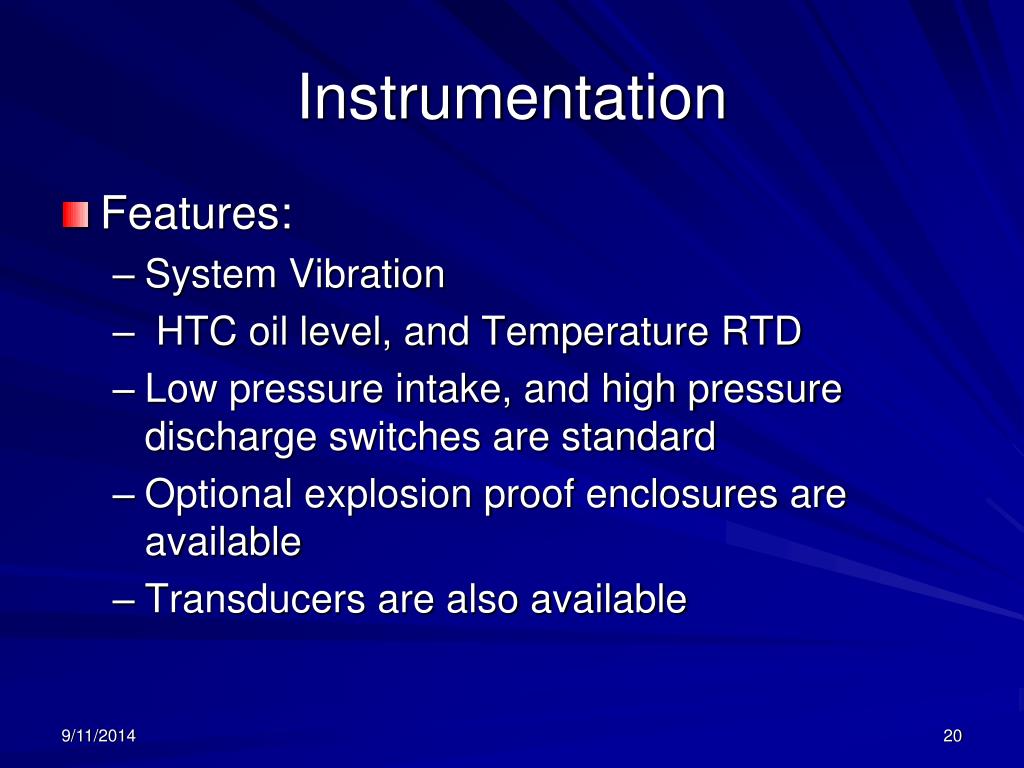

  20. Instrumentation • Features: • System Vibration • HTC oil level, and Temperature RTD • Low pressure intake, and high pressure discharge switches are standard • Optional explosion proof enclosures are available • Transducers are also available

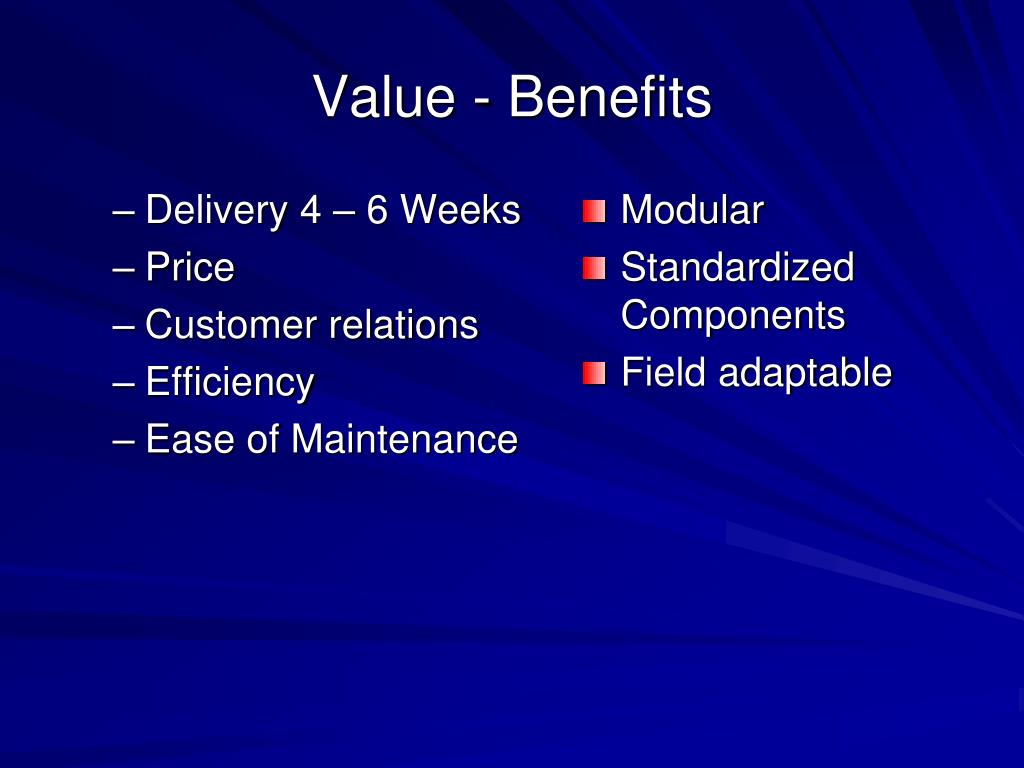

  21. Delivery 4 – 6 Weeks Price Customer relations Efficiency Ease of Maintenance Modular Standardized Components Field adaptable Value - Benefits

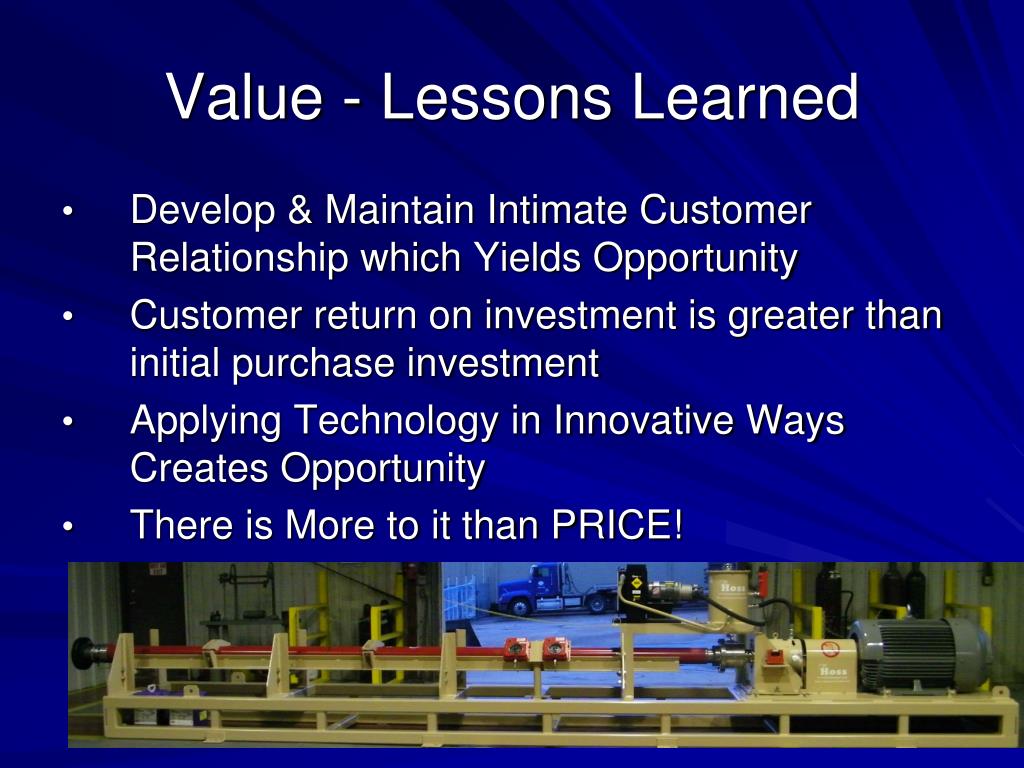

  22. Value - Lessons Learned • Develop & Maintain Intimate Customer Relationship which Yields Opportunity • Customer return on investment is greater than initial purchase investment • Applying Technology in Innovative Ways Creates Opportunity • There is More to it than PRICE!

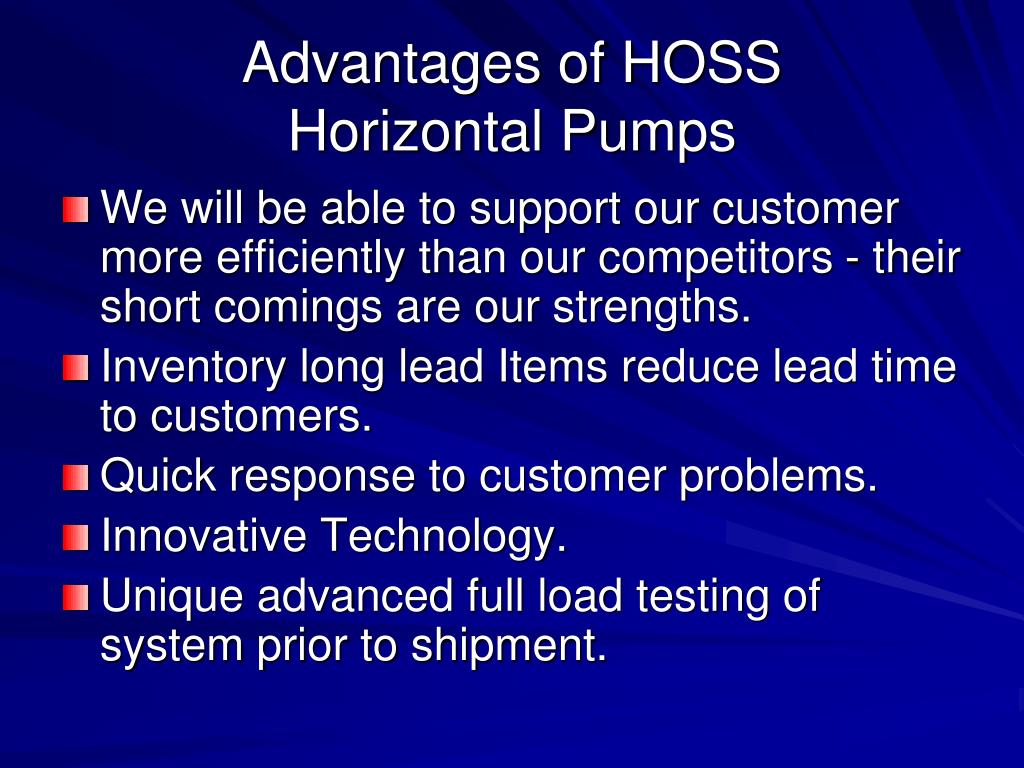

  23. Advantages of HOSS Horizontal Pumps • We will be able to support our customer more efficiently than our competitors - their short comings are our strengths. • Inventory long lead Items reduce lead time to customers. • Quick response to customer problems. • Innovative Technology. • Unique advanced full load testing of system prior to shipment.

  24. Value - Proposition Problem: Rate and Pressure - Delivery • Consequence • Initial Delivery Lead Time • See Graph • Shut Down / Repair Time • 6-8 Weeks • Cost to Maintain • $1,000 Month • Efficiency of Operation • $.05 / kWhr • Profit • Shorter Lead Time = • $1,200,000 in Profit Creation! • Short Repair / Replace Cycle Time = • $50,000 Profit Increase! • Reduction in Maintenance Expense = • $6,000 / year Profit Generation! • Power Consumption = • $2,000/year! =

  25. Thank You Any Questions at this time?
