  1. Analysis of Virtual Tape Subsystems Ned DiehlThe Information Systems Manager, Inc.ned.diehl@perfman.comwww.perfman.com610-865-0300NCACMGVienna, Virginia5 June 2002

  2. ISM PerfMan IBM Parallel Sysplex RMF OS/390 z/OS Magstar VSM StorageTek HSC Nearline Trademarks (Omissions are unintentional)

  3. Objectives • Discuss sources of performance analysis and capacity planning data for virtual tape subsystems (VT) in an OS/390 environment • Primary focus on hardware implementations • IBM VTS • StorageTek VSM • Present graphical examples • System rather than application focus

  4. Contents • Introduction • Virtual Tape Structure • Data Sources • Key Performance Metrics • Recommendations • Summary • References

  5. Introduction • Solves many traditional tape problems • Small data sets • Low activity open data sets • Allocation wait for tape drives • Weakest with “good” tape activity • Full volumes • High transfer rates • Exploits high capacity tapes • VT helps remove implementation impediments

  6. Introduction • Consider disaster recovery • VTS Peer-to-Peer • Clustered VTSS Configuration • Mount management considerations • Deferred mount should generally be avoided • Premount can be desirable • Not yet everything for everyone – but getting there • Fewer problem datasets with current implementations

  7. VT StructureGeneral • Looks (almost) like 3490E to host • Combination of hardware and software • RISC processor • Library of high capacity tapes • RAID DASD buffer or CACHE • Tape drives • Amount of host software varies with implementation

  8. VT StructureLogical Components

  9. VT StructureVTS - Physical Components

  10. MVC VTV MVC VTV MVC VTV VTV VTV VT StructureVSM - Physical Architecture HSC VTCS VSM Control & Data Path Control Path CDS Migrate/ Recall VTSS • Physical tape drives • Physical tape volumes • Physical Libraries & slots • Virtual tape drives • Virtual tape volumes

  11. Data Sources • Application • SMF 30, 72, 14, & 15 • Hardware • SMF 94 - tape library statistics • STK user SMF record • SMF 14 & 15 – data set activity • SMF 21 – error statistics by volume • RMF 73 - channel path activity • RMF 74-1 - device activity • RMF 78-3 - I/O queuing • Real time controller interface

  12. Data SourcesSMF 94 • Easy to work with though not flexible • Hourly summary from VTS or Library • Difficult to synchronize (do not use SMF94HHI) • Identical data to all attached recording images • Base segments reflect all library statistics • ATL, mount, dismount, eject, & insert • Native and VTS activity • Identical data in multiple records with a different serial number if VTS and native drives attached • VTS segments reflect single VTS • VTS, import / export, enhanced statistics

  13. Data SourcesSMF 94 • One record produced for each • Library with native drives, identified by ATL serial (SMF94SNO). Contains base segments. • VTS, identified by VTS serial (SMF94SNO & SMF94VLS). Contains base and VTS segments. • With peer-to-peer, three (local) or four (remote) VTSs involved • Only two have physical tape • No easy way to associate them • Generally consistent with RMF • RMF allows finer detail of comparable metrics

  14. Data SourcesSMF 94 Data Issues • Hour index (SMF94HHI) is interval end • Drives available (SMF94VTA) not always reset after service • Drives used (SMF94VTV, VTN, & VTX) can be greater than available • Alignment problem with early Import/Export statistics (SMF94ACA & SMF94ACB) • Duplicate library data with a different serial number if VTS and native drives attached • Average age in cache (SMF94VCA) has had changed definitions

  15. Data SourcesSMF 94 Data Issues • Tape data transfer (SMF94VTR & SMF94VTW) reported as zero in some recent samples • Max cache volume age (S94MTVCA) recorded as seconds, documented as minutes • Backstore compression ratio (S94BSRAT) sometimes reported as less than one • Recall throttle percent (S94RCPRT) sometimes greater than 100

  16. Data SourcesSMF 94 Data Issues • Reference Flash 10124 dated 20 November 2001. Recalls might be recorded as hits. Effected metrics: • S94MAXCH Maximum Cache Hit Mount Time • S94AVGCH Average Cache Hit Mount Time • SMF94VMH Number of Cache Hit Mounts • S94MAXRM Maximum Recall Mount Time • S94AVGRM Average Recall Mount Time • SMF94VMS Number of Recall Mounts • SMF94VPS Number of Physical Mounts for Recall

  17. Data SourcesSTK User Record • Complex to work with • Many subtypes • Repeating segments • Allows detail analysis • Configuration info • CU and device busy • Volume level data • VTSS interval of 15 minutes • Grouping and summarization required • Some logical metrics require multiple subtypes

  18. Data SourcesSTK User Record • Interval metrics by VTSS (not image) to each recording OS/390 • Subsystem, channel interface, and RTD performance • Values vary with OS/390 recording time • Logically identically but physically different • Event metrics recorded once • VTV mount, dismount, delete, migrate, recall, movement, replicate • RTD mount, dismount, vary • MVC status

  19. Data SourcesSTK Data Issues • Must process event records from all recording images • Mount events not necessarily recorded to original requesting image • Dismount events not necessarily recorded to same image as mount • Might be extra mounts or dismounts • Calculated times might be very large or negative • Some time values in complex formats

  20. Data SourcesSTK Data Issues • RMF consistency varies • Most metrics close across multiple samples • I/O Rates • Connect time • Allocated time • Total mount time • Significant variation with mount counts and thus average mount time • Probably a code level issue

  21. Key Performance Metrics • Application • Service levels • Hardware • Data transfer • Device usage • Virtual mount time • Mount miss (recall) rate • Storage usage • Tape volume age (in DASD buffer or cache)

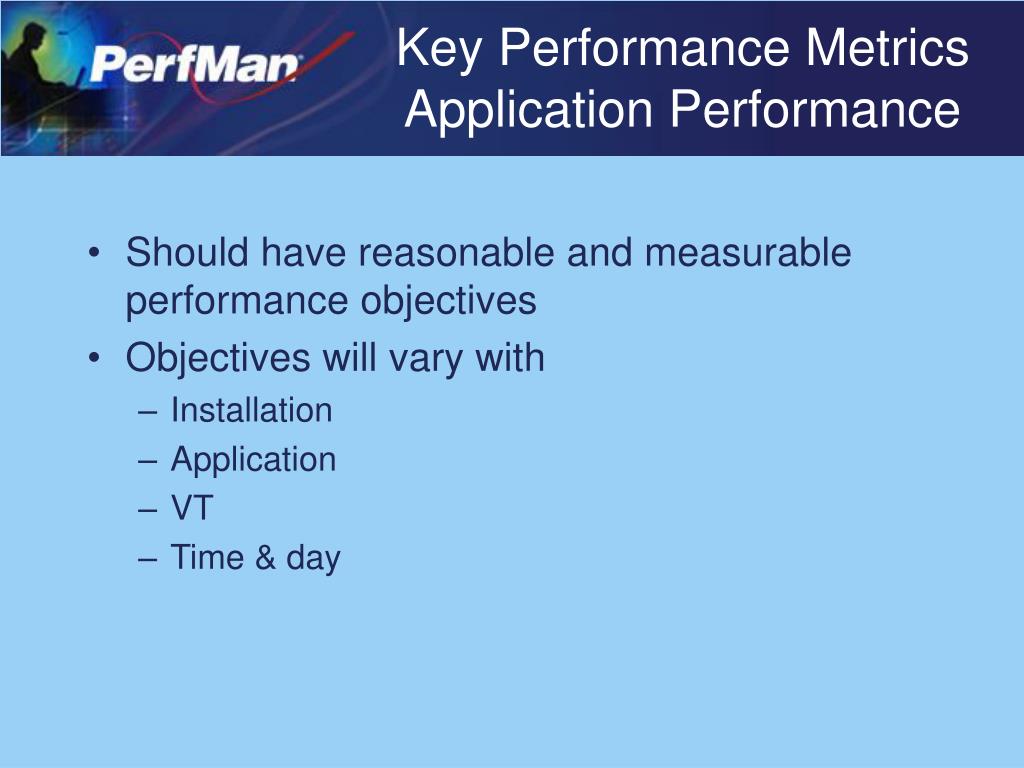

  22. Key Performance Metrics Application Performance • Should have reasonable and measurable performance objectives • Objectives will vary with • Installation • Application • VT • Time & day

  23. Key Performance Metrics Data Transfer • Good for reporting work performed • Mounts and I/O rates also options • Saturation varies with environment • SMF 14, 15, and 21 provide read and write • RMF 73 provides read and write for FICON. • VTS provides data transfer • Host read (SMF94VBR) and write (SMF94VBW) are good throughput indicators • Read (SMF94VTR) and write (SMF94VTW) between cache and real tapes

  24. Key Performance Metrics Data Transfer • VTSS provides many data transfer metrics but assumptions are required • RTD bytes read (SMF20BTR) and written (SMF20BTW) • RTD connect (SMF20DCT) and utilization (SMF20DUT) • Host and RTD channel interface busy (SMF11CUB) • VTV dismount has VTV size (SMF14VSZ) • Probably best throughput indicator

  25. Key Performance Metrics Data Transfer

  26. Key Performance Metrics Data Transfer

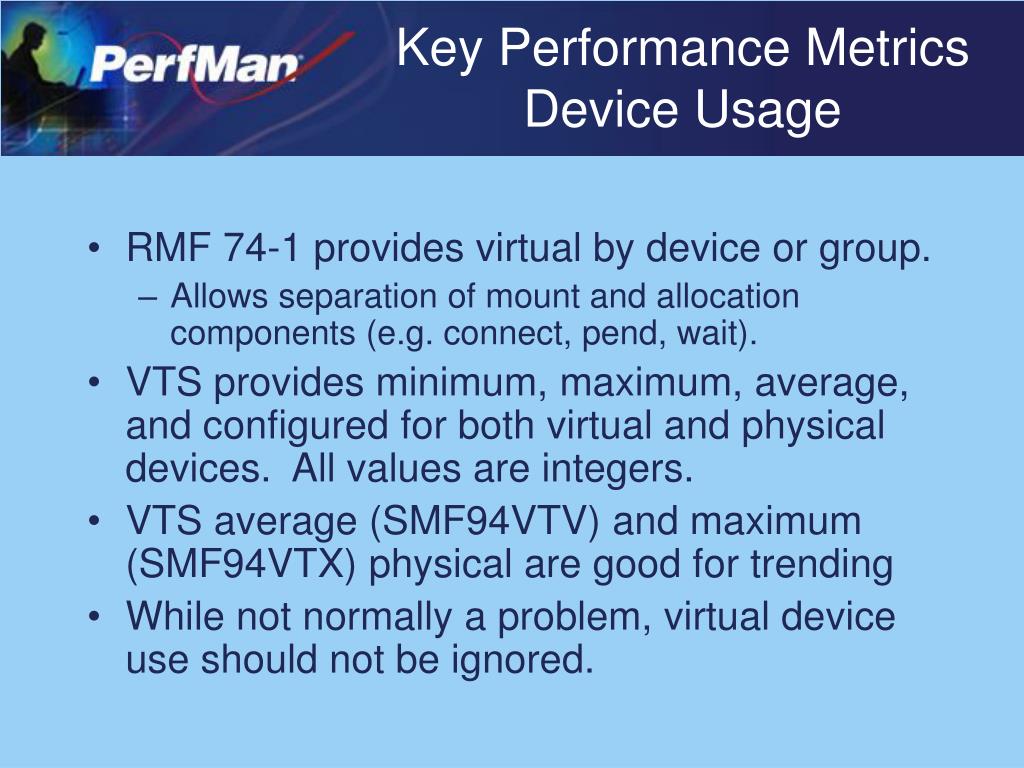

  27. Key Performance Metrics Device Usage • RMF 74-1 provides virtual by device or group. • Allows separation of mount and allocation components (e.g. connect, pend, wait). • VTS provides minimum, maximum, average, and configured for both virtual and physical devices. All values are integers. • VTS average (SMF94VTV) and maximum (SMF94VTX) physical are good for trending • While not normally a problem, virtual device use should not be ignored.

  28. Key Performance Metrics Device Usage • Difficult to calculate VTSS minimum, maximum, average, and available for either virtual or physical devices • Mount, dismount, and vary subtypes must be grouped and summarized • RTDs can be statically shared (operator command) by multiple VTSSs and OS/390 • VTSS RTD connect and utilization, which were previously discussed, are useful

  29. Key Performance Metrics Device Usage

  30. Key Performance Metrics Device Usage

  31. Key Performance Metrics Device Usage

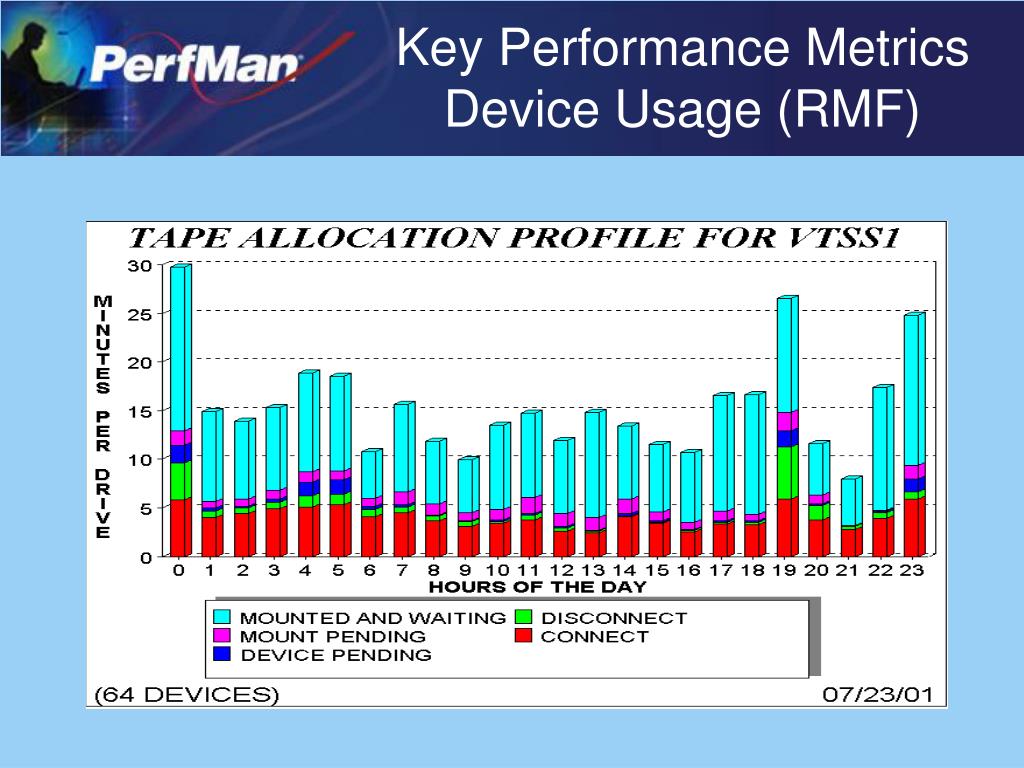

  32. Key Performance Metrics Device Usage (RMF)

  33. Key Performance Metrics Virtual Mount Time • RMF 74-1 provides average mount time by device or group • VTS provides minimum, maximum, and average virtual and physical mount times • Average virtual (SMF94VRA) is good for trending • High maximum virtual (SMF94VRX) often correlates with problems

  34. Key Performance Metrics Virtual Mount Time • VTSS mount time calculated from mount event records (SMF13MET - SMF13MST) • Min, max, average and counts require grouping and summarization • Average might be distorted by extra mounts • VTSS provides several potentially interesting identifiers • Job, step, DSN, VTV management class • Scratch, existing

  35. Key Performance Metrics Virtual Mount Time • Mount times tend to increase with: • Reduced tape volume age on DASD (SMF94VCA) • Increased mount miss rate (SMF94VMS) • Increased average real drives mounted (SMF94VTV) • Published targets: • Daily average less than 30 seconds • Hourly average less than 300 seconds • Maximum less than 900 seconds

  36. Key Performance Metrics Virtual Mount Time (RMF)

  37. Key Performance Metrics Virtual Mount Time

  38. Key Performance Metrics Max Virtual Mount Time

  39. Key Performance Metrics Average Virtual Mount Time

  40. Key Performance Metrics Mount Miss Rate • VTS provides mounts by type • Fast ready (SMF94VFR) • Specific mount hits (SMF94VMH) • Specific mount misses (SMF94VMS) • Related to average time on DASD (SMF94VCA) and application cycles • Published target of miss percentage less than 20% • Miss % = 100 * Misses / Total Virtual Mounts • Miss % = 100 * VMS / (VFR + VMH + VMS)

  41. Key Performance Metrics Mount Miss Rate • VTSS mount hit indicator added in recent update (SMF13RCI) • Scratch mounts indicated (SMF13VMT) • If older data, could assume a hit if calculated mount time less than a threshold

  42. Key Performance Metrics Mount Miss Rate

  43. Key Performance Metrics Specific Mount Miss Rate

  44. Key Performance Metrics Mount Miss Rate

  45. Key Performance Metrics Storage Usage • VTS provides estimate of data on stacked volumes (SMF94VBA) and available capacity on empty cartridges (SMF94VEC) • Reconciliation will probably free space • High recalls (SMF94VMS) and low tape volume age on DASD (SMF94VCA) indicate need for more DASD • More DASD can relieve saturated physical tape drives

  46. Key Performance Metrics Storage Usage

  47. Key Performance Metrics Storage Usage • VTSS provides cache and DASD metrics • Configuration info • DASD capacity (SMF10TCP), cache & NVS size, channels • Used (SMF10FCP) and contiguous (SMF10CFP) free DASD space • No easy way to report VTSS MVC metrics • Must produce & process MVC status records

  48. Key Performance Metrics Storage Usage

  49. Key Performance Metrics Tape Volume Age • VTSS delete reference age can sometimes be related to application cycles • SMF delete time stamp – SMF15LTR • Consider selective summarization • Separate migrate immediate delete • Subtype 18 with SMF18MTI set, closely followed by related Subtype 15 (same virtual VOLSER) • Occasionally very high values

  50. Key Performance Metrics Tape Volume Age
