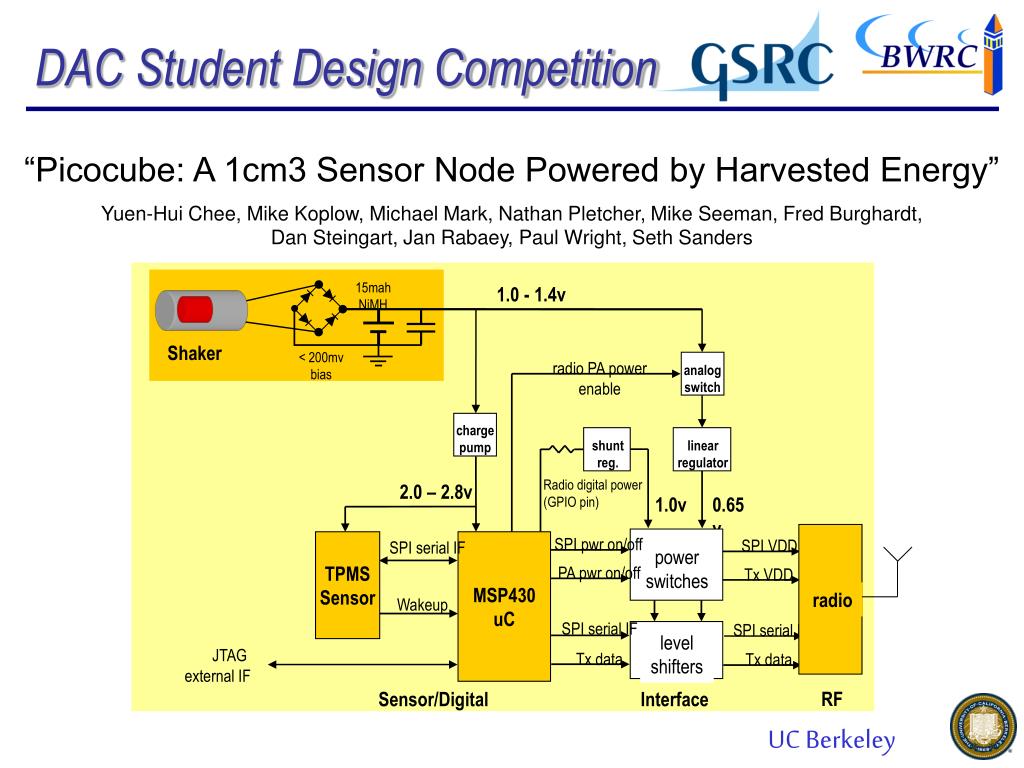

15mah NiMH. 1.0 - 1.4v. charge pump. Shaker. < 200mv bias. radio PA power enable. analog switch. power switches. linear regulator. shunt reg. Radio digital power (GPIO pin). 2.0 – 2.8v. 1.0v. 0.65v. SPI pwr on/off. SPI VDD. TPMS Sensor. SPI serial IF. MSP430 uC. level

Download Presentation

DAC Student Design Competition

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


Dac student design competition

15mah

NiMH

1.0 - 1.4v

charge

pump

Shaker

< 200mv

bias

radio PA power enable

analog switch

power

switches

linear

regulator

shunt reg.

Radio digital power

(GPIO pin)

2.0 – 2.8v

1.0v

0.65v

SPI pwr on/off

SPI VDD

TPMS

Sensor

SPI serial IF

MSP430

uC

level

shifters

PA pwr on/off

Tx VDD

radio

Wakeup

SPI serial IF

SPI serial IF

JTAG

external IF

Tx data

Tx data

RF

Sensor/Digital

Interface

DAC Student Design Competition

“Picocube: A 1cm3 Sensor Node Powered by Harvested Energy”

Yuen-Hui Chee, Mike Koplow, Michael Mark, Nathan Pletcher, Mike Seeman, Fred Burghardt,

Dan Steingart, Jan Rabaey, Paul Wright, Seth Sanders


Dac student design competition

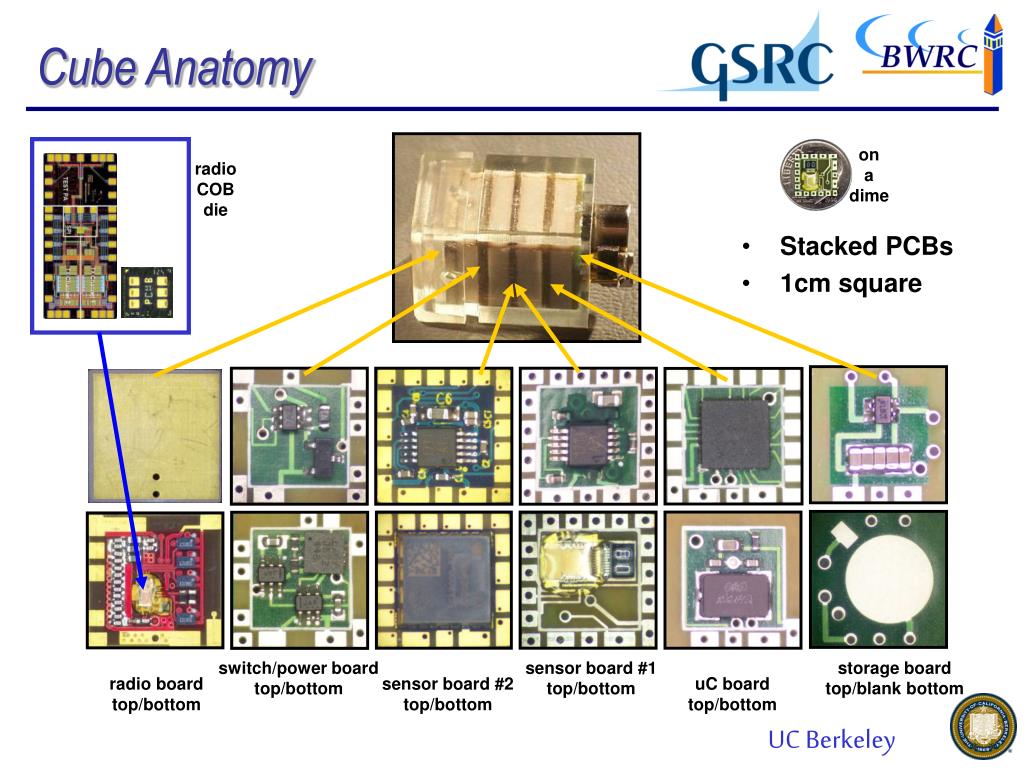

Cube Anatomy

on

a

dime

radio COB die

  • Stacked PCBs

  • 1cm square

switch/power board

top/bottom

sensor board #1

top/bottom

storage board

top/blank bottom

radio board

top/bottom

sensor board #2

top/bottom

uC board

top/bottom

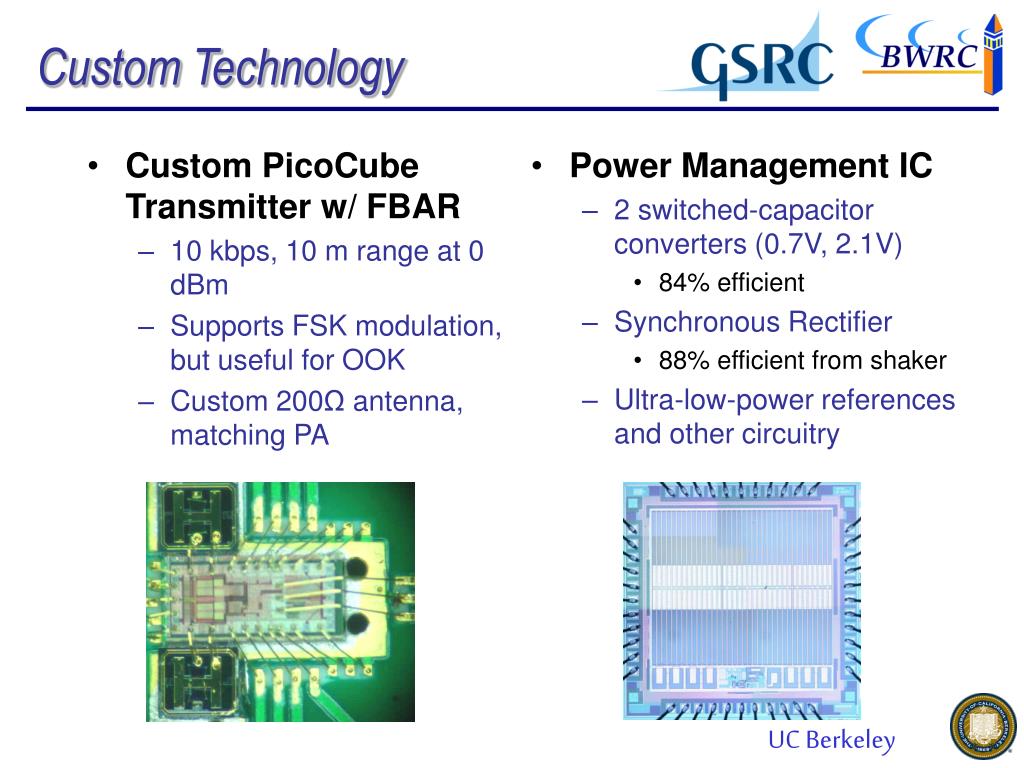

Custom technology

Custom PicoCube Transmitter w/ FBAR

10 kbps, 10 m range at 0 dBm

Supports FSK modulation, but useful for OOK

Custom 200Ω antenna, matching PA

Power Management IC

2 switched-capacitor converters (0.7V, 2.1V)

84% efficient

Synchronous Rectifier

88% efficient from shaker

Ultra-low-power references and other circuitry

Custom Technology
