Compressed Air Foam Systems (CAFS)

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


Compressed air foam systems cafs

Compressed Air Foam Systems (CAFS)


Compressed air foam system

Compressed Air Foam System

Air Metering

Valves

Compressed Air

Screw

Air

Compressor

Gauges

Check Valve

Water Valve

Foam

Tank

Pressure

Water

Tank

Foam Proportioner

Water

Pump


Cafs components

CAFS Components

Water pump

Compressor

Proportioner


Complete systems

Complete Systems

  • Fire pump manufacturers offer full CAFS packages. Components are assembled, tested and calibrated as a complete system.

Darley “AutoCAFS”


Compressed air foam systems

Compressed Air Foam Systems

  • Capabilities

    • Superior absorption of heat

    • Quick knockdown

    • Light hose lines: (per 100’ length)

      • 1-1/2” Hose: Water - 103 lbs. CAFS - 35 lbs

      • 2-1/2” Hose: Water - 271 lbs. CAFS - 84 lbs

    • Extended stream reach

    • Ability to make wet or dry foam

  • Limitations

    • Tradition and knowledge base


Cafs is a versatile tool

CAFS Is A Versatile Tool

  • Limited only by the user’s imagination

    • Think outside of the box

    • Be progressive

    • Be safe


Nozzles for cafs

Nozzles For CAFS

  • Straight bore – CAFS bubble

  • Variable pattern nozzle – foam solution


Cafs characteristics

CAFS Characteristics

  • High energy system

    • Can be pumped higher and further than water at same psi due to lack of head pressure

  • Lower foam concentrate % required

    • 0.2% - 0.3% vs. 0.5%


Cafs characteristics1

CAFS Characteristics

  • Small strong uniform bubbles

  • Greater foam durability

  • Low expansion system

  • User can easily adjust

    • Expansion ratio

    • Drain time

    • Foam type


Cafs safety characteristics

CAFS Safety Characteristics

  • Light weight hose

    • Less strain on firefighters

  • Effect on hose

    • No water hammer

    • Reduced friction loss

  • Hose kinks

    • Effective hose stream with kink


Additional cafs benefits

Additional CAFS Benefits

  • High volume air compressor

    • Air tools

    • Air bags

    • Tires

    • Drain hose


Aerial cafs discharge

Aerial CAFS Discharge

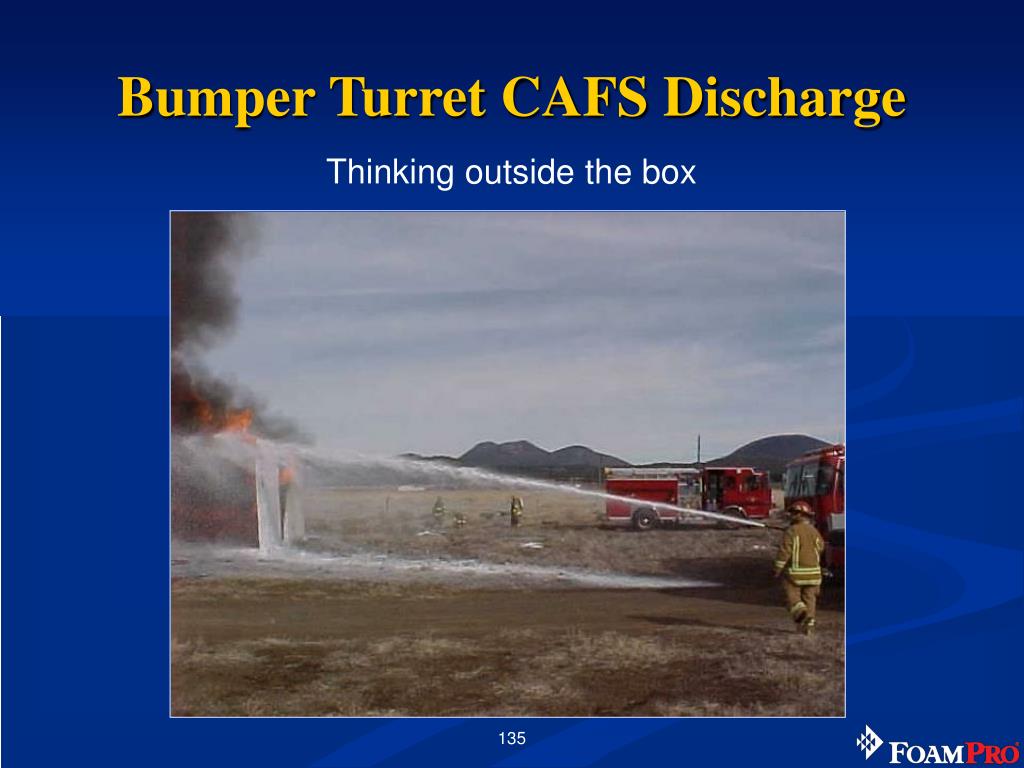

Bumper turret cafs discharge

Bumper Turret CAFS Discharge

Thinking outside the box


Cafs 5 handline

CAFS 5" Handline

Way outside the box


Concentrate delivery systems

Concentrate Delivery Systems

  • Many different levels of technology are used to deliver today’s water additives

  • Fully understand the capabilities and limitations of each before deciding on a system
