  1. Lecture 5 COMSATS Islamabad Enterprise Systems Development ( CSC447) Muhammad Usman, Assistant Professor

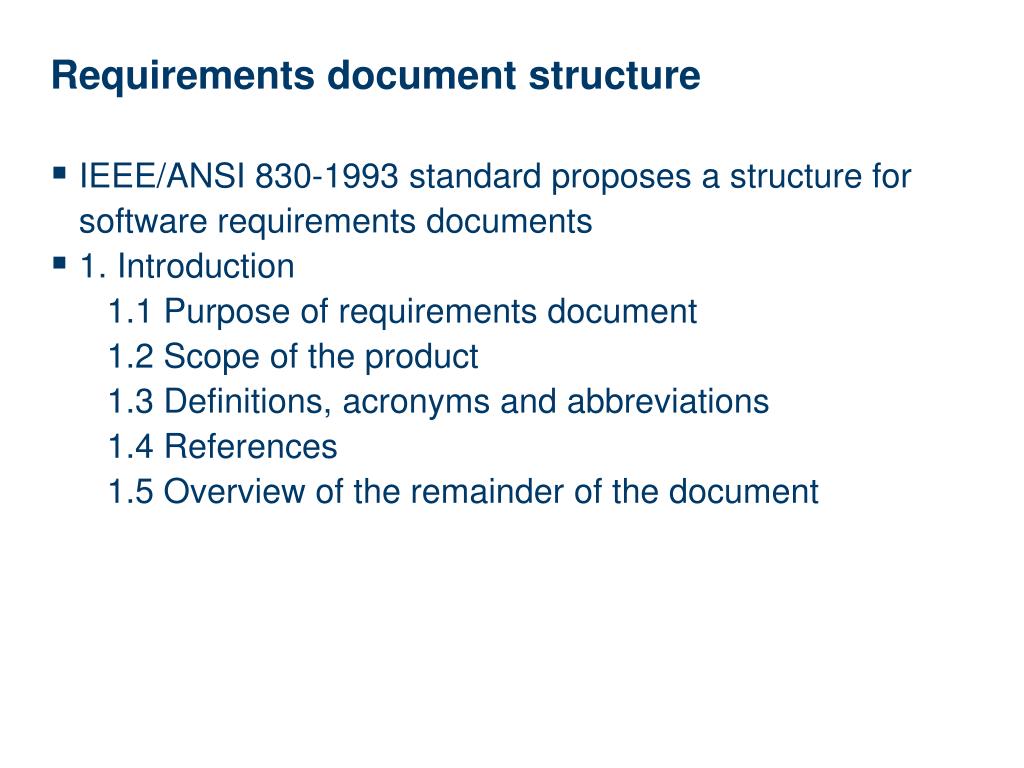

  2. Requirements document structure • IEEE/ANSI 830-1993 standard proposes a structure for software requirements documents • 1. Introduction 1.1 Purpose of requirements document 1.2 Scope of the product 1.3 Definitions, acronyms and abbreviations 1.4 References 1.5 Overview of the remainder of the document

  3. Requirements document structure • 2. General description 2.1 Product perspective 2.2 Product functions 2.3 User characteristics 2.4 General constraints 2.5 Assumptions and dependencies • 3. Specific requirements Covering functional, non-functional and interface requirements. • 4. Appendices • Index

  4. Adapting the standard • The IEEE standard is a generic standard which is intended apply to a wide range of requirements documents. • In general, not all parts of the standard are required for all requirements documents • Each organisation should adapt the standard depending on the type of systems it develops • Consider a company (XYZ) that develops scientific instruments

  5. Organisation XYZ standard • Preface • This should define the expected readership of the document and describe its version history including a rationale for the creation of a new version and a summary of the changes made in each version. • Introduction • This should define the product in which the software is embedded, its expected usage and present and overview of the functionality of the control software. • Glossary • This should define all technical terms and abbreviations used in the document.

  6. Organisation XYZ standard • General user requirements • This should define the system requirements from the perspective of the user of the system. These should be presented using a mixture of natural language and diagrams. • System architecture • This chapter should present a high-level overview of the anticipated system architecture showing the distribution of functions across system modules. Architectural components which are to be reused should be highlighted. • Hardware specification • This is an optional chapter specifying the hardware that the software is expected to control. It may be omitted if the standard instrument platform is used.

  7. Organisation XYZ standard • Detailed software specification • This is a detailed description of the functionality expected of the software of the system. It may include details of specific algorithms which should be used for computation. If a prototyping approach is to be used for development on the standard instrument platform, this chapter may be omitted. • Reliability and performance requirements • This chapter should describe the reliability and performance requirements which are expected of the system.

  8. Organisation XYZ standard • The following appendices may be included where appropriate: • Hardware interface specification • Software components which must be reused in the system implementation • Data structure specification • Data-flow models of the software system • Detailed object models of the software system • Index

  9. Writing requirements • Requirements are usually written as paragraphs of natural language text supplemented by diagrams and equations • Problems with requirements • use of complex conditional clauses which are confusing • sloppy and inconsistent terminology • writers assume readers have domain knowledge

  10. Writing essentials • Requirements are read more often than they are written. You should invest time to write readable and understandable requirements • Do not assume that all readers of the requirements have the same background and use the same terminology as you • Allow time for review, revision and re-drafting of the requirements document

  11. Writing guidelines • Define standard templates for describing requirements • Use language simply consistently and concisely • Use diagrams appropriately • Supplement natural language with other description of requirements • Specify requirements quantitatively

  12. Requirements Engineering Processes

  13. Processes • A process is an organised set of activities which transforms inputs to outputs • Process descriptions encapsulate knowledge and allow it to be reused • Examples of process descriptions • Instruction manual for a dishwasher • Cookery book • Procedures manual for a bank • Quality manual for software development

  14. Design processes • Processes which involve creativity, interactions between a wide range of different people, engineering judgement and background knowledge and experience • Examples of design processes • Writing a book • Organising a conference • Designing a processor chip • Requirements engineering

  15. RE process - inputs and outputs

  16. Input/output description

  17. RE process variability • RE processes vary radically from one organisation to another • Factors contributing to this variability include • Technical maturity • Disciplinary involvement • Organisational culture • Application domain • There is therefore no ‘ideal’ requirements engineering process

  18. Process models • A process model is a simplified description of a process presented from a particular perspective • Types of process model include: • Coarse-grain activity models • Fine-grain activity models • Role-action models • Entity-relation models

  19. Coarse-grain activity model of RE

  20. RE process activities • Requirements elicitation • Requirements discovered through consultation with stakeholders • Requirements analysis and negotiation • Requirements are analysed and conflicts resolved through negotiation • Requirements documentation • A requirements document is produced • Requirements validation • The requirements document is checked for consistency and completeness

  21. Waterfall model of the software process

  22. Context of the RE process

  23. Spiral model of the RE process

  24. Actors in the RE process • Actors in a process are the people involved in the execution of that process • Actors are normally identified by their roles rather than individually • Requirements engineering involves actors who are primarily interested in the problem to be solved (end-users, etc) as well actors interested in the solution (system designers, etc.) • Role-action diagrams document which actors are involved in different activities

  25. RAD for software prototyping

  26. Role descriptions

  27. Human and social factors • Requirements engineering processes are dominated by human, social and organisational factors because they always involve a range of stakeholders from different backgrounds and with different individual and organisational goals. • System stakeholders may come from a range of technical and non-technical background and from different disciplines

  28. Types of stakeholder • Software engineers responsible for system development • System end-users who will use the system after it has been delivered • Managers of system end-users who are responsible for their work • External regulators who check that the system meets its legal requirements • Domain experts who give essential background information about the system application domain

  29. Factors influencing requirements • Personality and status of stakeholders • The personal goals of individuals within an organisation • The degree of political influence of stakeholders within an organisation

  30. Process support • CASE tools provide automated support for software engineering processes • The most mature CASE tools support well-understood activities such as programming and testing and the use of structured methods • Support for requirements engineering is still limited because of the informality and the variability of the process

  31. CASE tools for RE • Modelling and validation tools support the development of system models which can be used to specify the system and the checking of these models for completeness and consistency. • Management tools help manage a database of requirements and support the management of changes to these requirements.

  32. RE/RM tools • TelelogicDOORS • Rational Suite AnalystStudio(Rational Requisite Pro Component) • RDT 3.0 • Starbase Caliber-RM • Omni Vista OnYourMarkPro

  33. A requirements management system

  34. Requirements management tools • Requirements browser • Requirements query system • Traceability support system • Report generator • Requirements converter and word processor linker • Change control system

  35. Process improvement • Process improvement is concerned with modifying processes in order to meet some improvement objectives • Improvement objectives • Quality improvement • Schedule reduction • Resource reduction

  36. Planning process improvement • What are the problems with current processes? • What are the improvement goals? • How can process improvement be introduced to achieve these goals? • How should process improvements be controlled and managed?

  37. RE process problems • Lack of stakeholder involvement • Business needs not considered • Lack of requirements management • Lack of defined responsibilities • Stakeholder communication problems • Over-long schedules and poor quality requirements documents

  38. Process maturity • Process maturity can be thought of as the extent that an organisation has defined its processes, actively controls these processes and provides systematic human and computer-based support for them. • The SEI’s Capability Maturity Model is a framework for assessing software process maturity in development organisations

  39. Capability maturity model

  40. Maturity levels • Initial level • Organisations have an undisciplined process and it is left to individuals how to manage the process and which development techniques to use. • Repeatable level • Organisations have basic cost and schedule management procedures in place. They are likely to be able to make consistent budget and schedule predictions for projects in the same application area. • Defined level • The software process for both management and engineering activities is documented, standardized and integrated into a standard software process for the organisation.

  41. Maturity levels • Managed level • Detailed measurements of both process and product quality are collected and used to control the process. • Optimizing level • The organisation has a continuous process improvement strategy, based on objective measurements, in place.

  42. RE process maturity model

  43. RE process maturity levels • Initial level • No defined RE process. Suffer from requirements problems such as requirements volatility, unsatisfied stakeholders and high rework costs. Dependent on individual skills and experience. • Repeatable level • Defined standards for requirements documents and policies and procedures for requirements management. • Defined level • Defined RE process based on good practices and techniques. Active process improvement process in place.

  44. Good practice for RE process improvement • RE processes can be improved by the systematic introduction of good requirements engineering practice • Each improvement cycle identifies good practice guidelines and works to introduce them in an organisation

  45. Examples of good practice guidelines • Define a standard document structure • Uniquely identify each requirement • Define policies for requirements management • Use checklists for requirements analysis • Use scenarios to elicit requirements • Specify requirements quantitatively • Use prototyping to animate requirements • Reuse requirements

  46. Key points • The requirements engineering process is a structured set of activities which lead to the production of a requirements document. • Inputs to the requirements engineering process are information about existing systems, stakeholder needs, organisational standards, regulations and domain information. • Requirements engineering processes vary radically from one organisation to another. Most processes include requirements elicitation, requirements analysis and negotiation and requirements validation.

  47. Key points • Requirements engineering process models are simplified process description which are presented from a particular perspective. • Human, social and organisational factors are important influences on requirements engineering processes. • Requirements engineering process improvement is difficult and is best tackled in an incremental way. • Requirements engineering processes can be classified according to their degree of maturity.

  48. Reference • Gerald Kotonya and Ian Sommerville, REQUIREMENTS Engineering PROCESSES AND TECHNIQUES by Wiley Publishers
