  1. Mfg. Bearings Rollers Survey No 22/1, Plot No 1, Shapar Village Rd, Opp: Best Agro Pvt. Ltd. SHAPAR (Veraval)360 024 Tal: Kotadasangani, Dist: Rajkot, Stat: Gujarat. Country: India Phone No: +91 2827 - 252273, 252414 Fax: +91 2827 - 253087 Web: www.vishalbearings.com Email:info@vishalbearings.com, vishalbearings@rediffmail.com

  2. Valuable Customers • NRB BEARINGS LTD. • SKF INDIA LTD. • TURBO BEARINGS PVT. LTD. • TEXSPIN BEARINGS LTD. • DJR DELUX BEARINGS LTD. • ABC BEARINGS LTD.

  3. Business Plan

  4. Machinery List For Bearings Roller Process • 1. HEADING (FORGING) DEPT.: Fully Automatically Header Machines • MAKECAPACITYSPEED/MIN • K B 8 MM 94 Pcs • Devendra 8 MM 112 Pcs • National 10MM 110 Pcs • National 10MM 110 Pcs • Metalfolds 10 MM 84 Pcs • K B 12 MM 68 Pcs • Metalfolds 16 MM 55 Pcs • K B 20 MM 48 Pcs • K B 20 MM 54 Pcs • K B 25 MM 51 Pcs • Hard Grip (India) 30 MM 38 Pcs

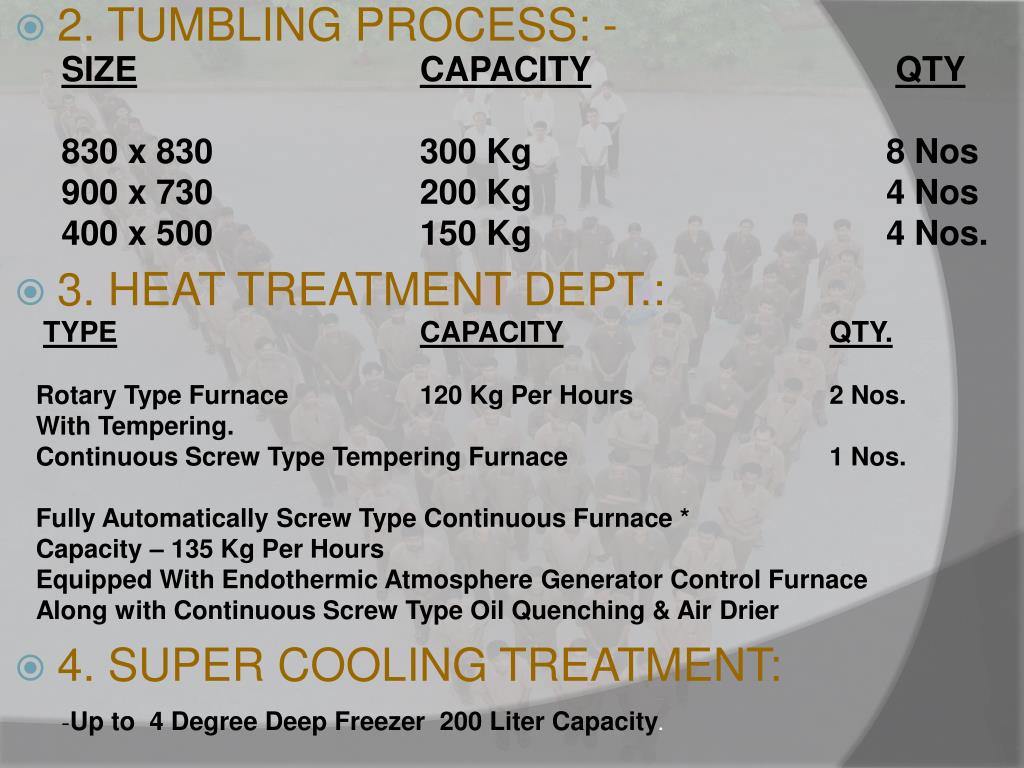

  5. SIZECAPACITYQTY • 830 x 830 300 Kg 8 Nos • 900 x 730 200 Kg 4 Nos • 400 x 500 150 Kg 4 Nos. • 2. TUMBLING PROCESS: - • 3. HEAT TREATMENT DEPT.: TYPECAPACITYQTY. Rotary Type Furnace 120 Kg Per Hours 2 Nos. With Tempering. Continuous Screw Type Tempering Furnace 1 Nos. Fully Automatically Screw Type Continuous Furnace * Capacity – 135 Kg Per Hours Equipped With Endothermic Atmosphere Generator Control Furnace Along with Continuous Screw Type Oil Quenching & Air Drier • 4. SUPER COOLING TREATMENT: • Up to 4 Degree Deep Freezer 200 Liter Capacity.

  6. 5. GRINDING DEPT: • A. CYLINDRICAL & NEDDLE ROLLER PROCESS:- - WMW Centreless Grinder - 2 Nos Grinding Wheel Size - 500 x 200 x 304.8 MM Control Wheel Size - 300 x 200 x 127 MM Least Count - 0.001 MM - WMW MIKROSA Centreless Grinder - 4 Nos Grinding Wheel Size - 600 x 250 x 305 MM Drum Wheel Size - 352 x 275 x 200 MM Least Count - 0.001 MM - CINCINATE Centreless Grinder - 2 Nos Grinding Wheel Size - 500 x 200 x 304.8 MM Control Wheel Size - 300 x 200 x 127 MM Least Count - 0.001 MM - JOUTE MALKAS Centreless Grinder - 1 Nos Grinding Wheel Size - 500 x 200 x 304.8 MM Control Wheel Size - 279.4 x 200 x 150 MM Least Count - 0.001 MM

  7. - RADOMAK-350 Duplex Grinding Machine - 1 Nos Vertical Head Type Grinding Wheel Size - 355 x 50 x 110 MM Capacity - Up to 30mm Dia & 40 mm Length - RAJAN-350 Duplex Grinding Machine- - 3 Nos Vertical Head Type Grinding Wheel Size - 355 x 50 x 110 MM Capacity - Up to 30mm Dia & 40 mm Length - TASKA – 400 Vibrating Machine - 1 Nos Capacity - 400 Kg Per batch - SUPERFINISH MACHINE - 4 Nos 6 Stage Cylinder along with Crowning & End Drop attachment. Feed Roll Size - 840 mm - WASHING Machine - 1 Nos Continuous Washing follows 1ST Stage – MTO, 2nd Stage – Drier, 3rd Stage - Packing Oil.

  8. B. TAPER ROLLER PROCESS: - WMW MIKROSA Centreless Grinder - 1 Nos Grinding Wheel Size - 600 x 250 x 305 MM Drum Wheel Size - 352 x 275 x 200 MM Least Count - 0.001 MM - SCARLO Centreless Grinder - 2 Nos Grinding Wheel Size - 600 x 250 x 305 MM Drum Wheel Size - 352 x 275 x 200 MM Least Count - 0.001 MM - MICROMEAT Centreless Grinder - 4 Nos Grinding Wheel Size - 500 x 200 x 304.8 MM Drum Wheel Size - 300 x 310 x 220 MM Least Count - 0.001 MM - CINCINATE Centreless Grinder - 2 Nos Grinding Wheel Size - 500 x 200 x 304.8 MM Drum Wheel Size - 270 x 270 x 200 MM Least Count - 0.001 MM

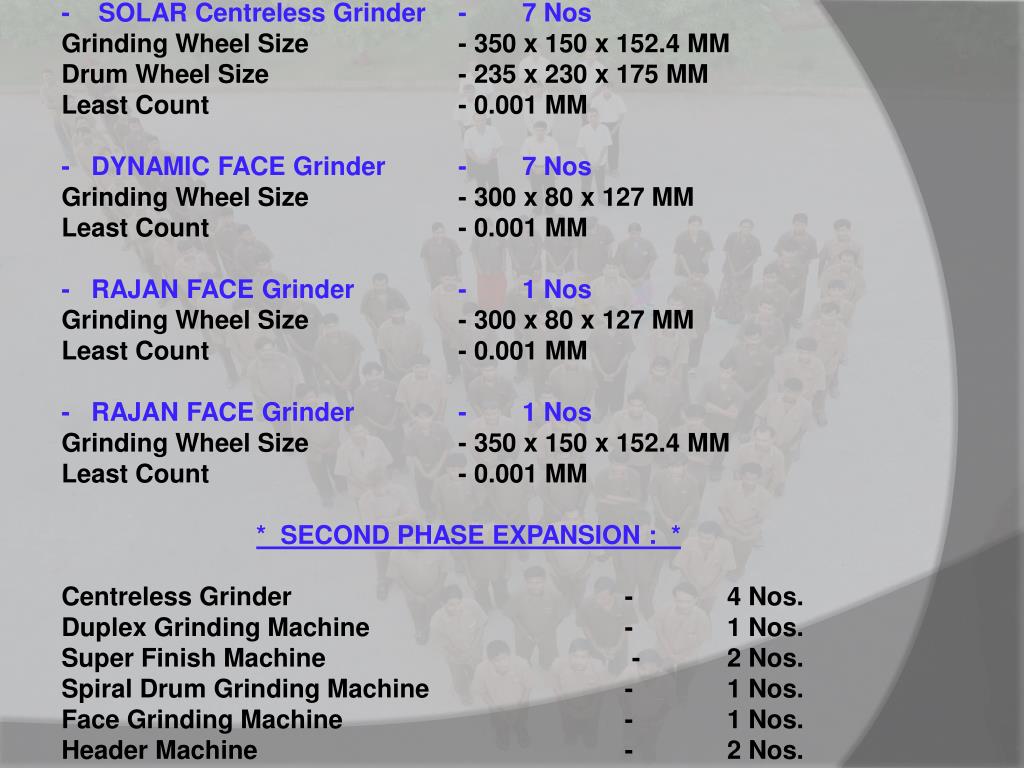

  9. - SOLAR Centreless Grinder - 7 Nos Grinding Wheel Size - 350 x 150 x 152.4 MM Drum Wheel Size - 235 x 230 x 175 MM Least Count - 0.001 MM - DYNAMIC FACE Grinder - 7 Nos Grinding Wheel Size - 300 x 80 x 127 MM Least Count - 0.001 MM - RAJAN FACE Grinder - 1 Nos Grinding Wheel Size - 300 x 80 x 127 MM Least Count - 0.001 MM - RAJAN FACE Grinder - 1 Nos Grinding Wheel Size - 350 x 150 x 152.4 MM Least Count - 0.001 MM * SECOND PHASE EXPANSION : * Centreless Grinder - 4 Nos. Duplex Grinding Machine - 1 Nos. Super Finish Machine - 2 Nos. Spiral Drum Grinding Machine - 1 Nos. Face Grinding Machine - 1 Nos. Header Machine - 2 Nos.

  10. Tool Room

  11. List of Measuring & Testing Instruments

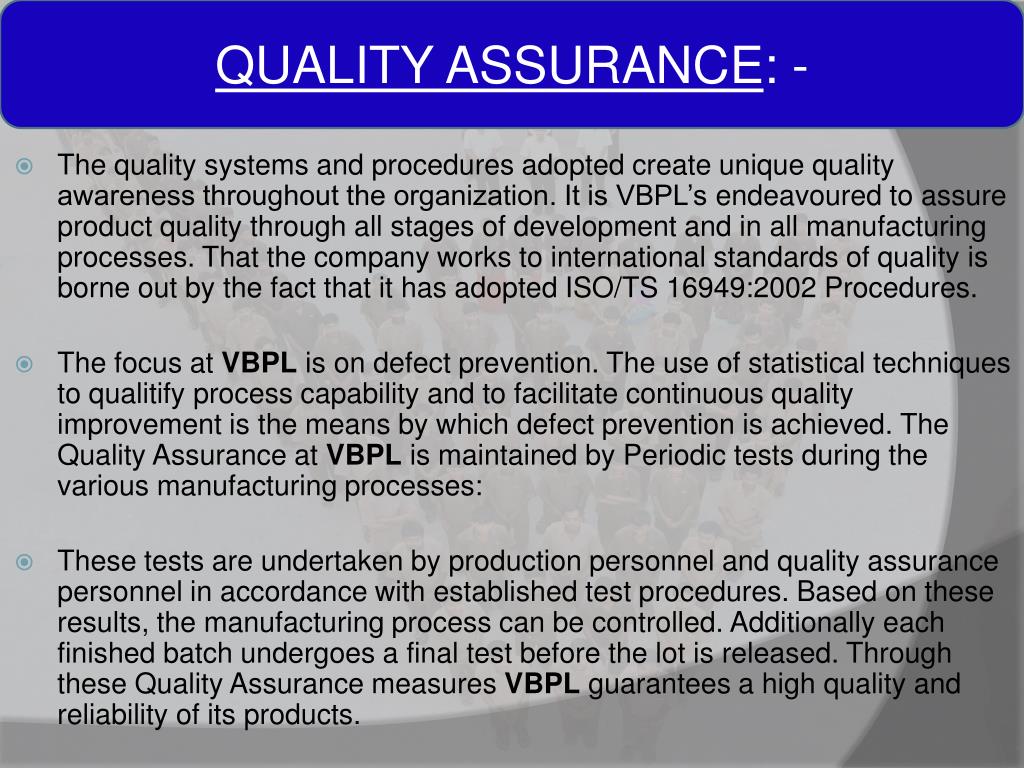

  12. QUALITY ASSURANCE: - • The quality systems and procedures adopted create unique quality awareness throughout the organization. It is VBPL’s endeavoured to assure product quality through all stages of development and in all manufacturing processes. That the company works to international standards of quality is borne out by the fact that it has adopted ISO/TS 16949:2002 Procedures. • The focus at VBPL is on defect prevention. The use of statistical techniques to qualitify process capability and to facilitate continuous quality improvement is the means by which defect prevention is achieved. The Quality Assurance at VBPL is maintained by Periodic tests during the various manufacturing processes: • These tests are undertaken by production personnel and quality assurance personnel in accordance with established test procedures. Based on these results, the manufacturing process can be controlled. Additionally each finished batch undergoes a final test before the lot is released. Through these Quality Assurance measures VBPL guarantees a high quality and reliability of its products.

  13. QUALITY MISSION: - • It is the mission of VISHAL BEARINGS PVT LTD, SHAPAR (RAJKOT) to increase business and maximize customer satisfaction by understanding customer’s expectations and providing good quality products and services consistently and maintain the quality system in the line with ISO/TS 16949:2002 • OBJECTIVES: To achieve the mission we will • Strive to get more business by directing efforts at building strong customer relationships ensuring thereby not only customer retention and order repetition but also new addition to the customer base. • Closely interact with the customer to understand and anticipate the needs and thereby improve and upgrade the satisfaction of the customer • Implement a quality management system through adequate training to personnel at all levels that will effectively match the needs desired by the customer by means of regular audits and reviews. • Monitor and control customer complaints & Vendor Ratings and increasing productivity through: 1. Reduced Process Rejection. 2. Reduced Machine down time.

  14. Thank you . . . .
