WESTERN CAREER COLLEGE

SACRAMENTO CALIFORNIA

Dental

Charting

You Can Do It!

www.WesternCollege.edu


What is dental charting for
What is Dental Charting for?

  • Dental Charting is a task that Dental Assistants will do for the dentist on a daily basis. You will need to become familiar with surfaces of a tooth, existing conditions, and restorations.


Terminology

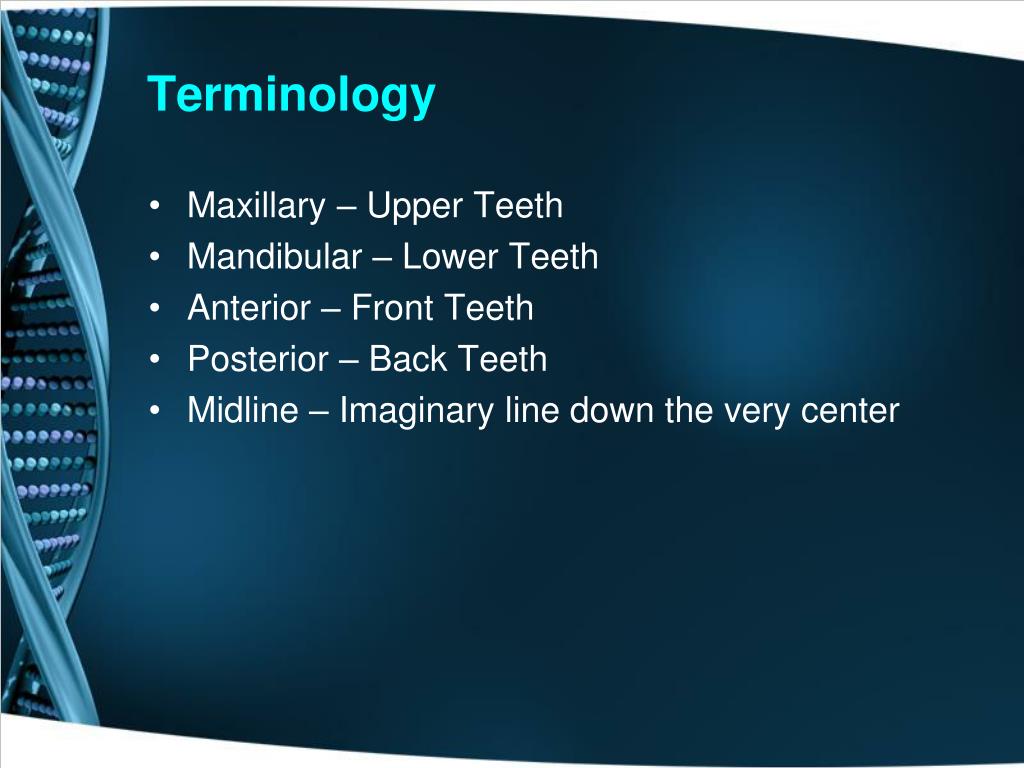

Terminology

  • Maxillary – Upper Teeth

  • Mandibular – Lower Teeth

  • Anterior – Front Teeth

  • Posterior – Back Teeth

  • Midline – Imaginary line down the very center


Surfaces

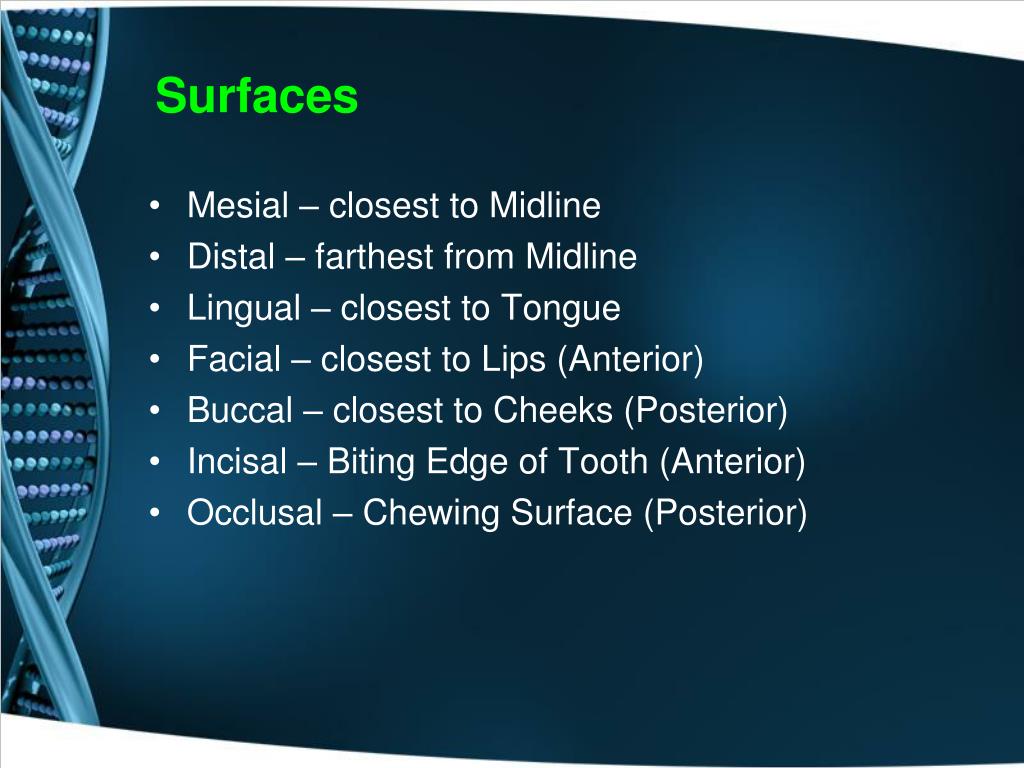

Surfaces

  • Mesial – closest to Midline

  • Distal – farthest from Midline

  • Lingual – closest to Tongue

  • Facial – closest to Lips (Anterior)

  • Buccal – closest to Cheeks (Posterior)

  • Incisal – Biting Edge of Tooth (Anterior)

  • Occlusal – Chewing Surface (Posterior)

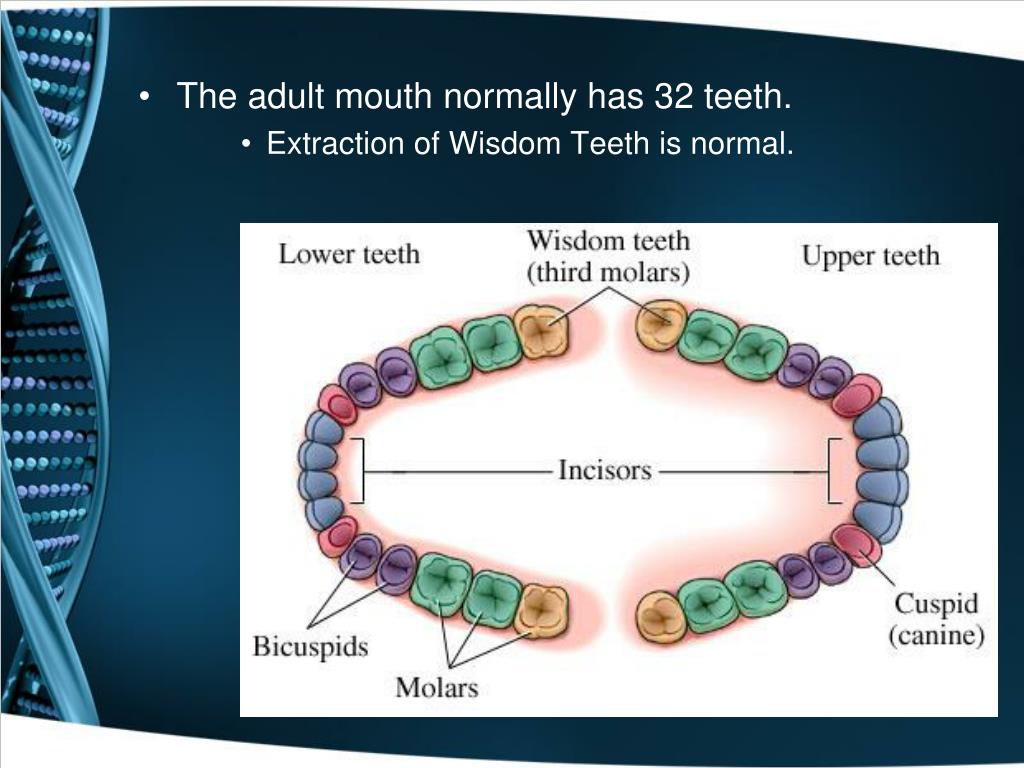

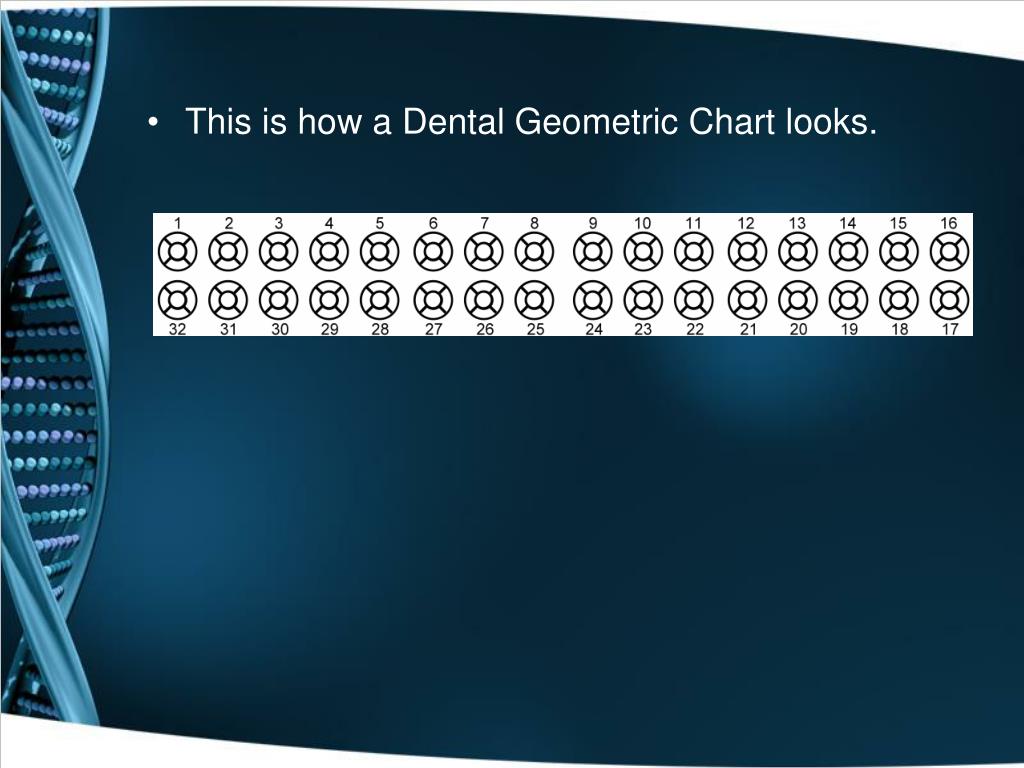

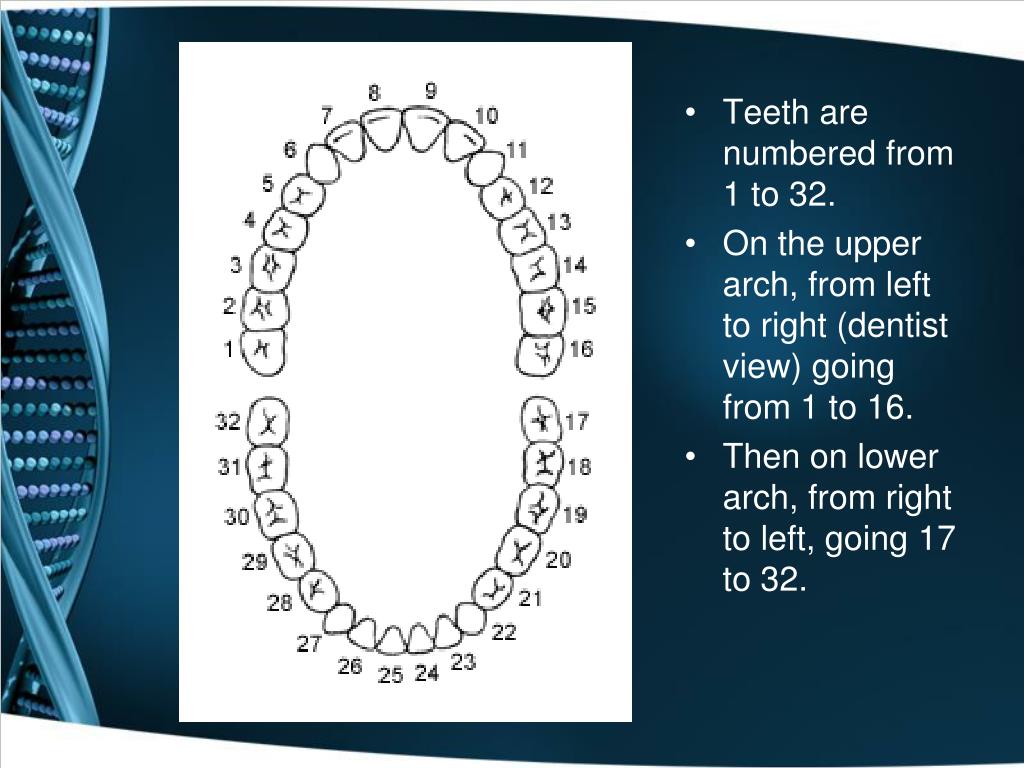

  • Teeth are numbered from 1 to 32.

  • On the upper arch, from left to right (dentist view) going from 1 to 16.

  • Then on lower arch, from right to left, going 17 to 32.




Mesial center, as illustrated by the

  • Surface Closest to the Midline

  • on All Teeth

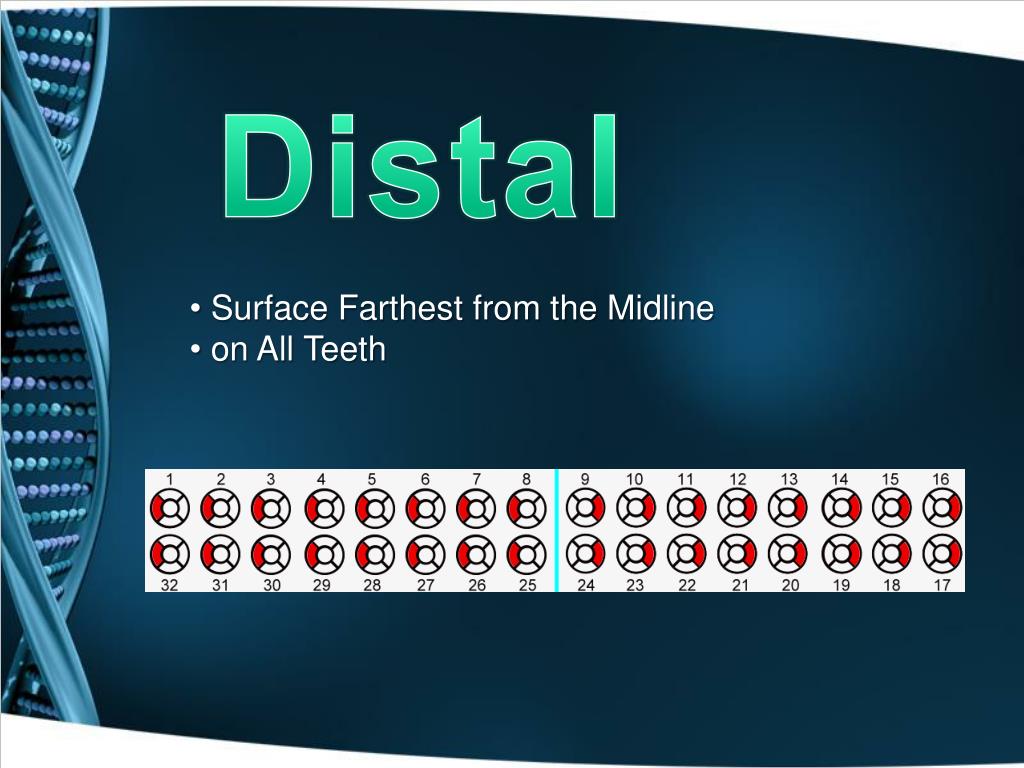

Distal center, as illustrated by the

  • Surface Farthest from the Midline

  • on All Teeth


Lingual center, as illustrated by the

  • Surface Closest to the Tongue

  • on All Teeth

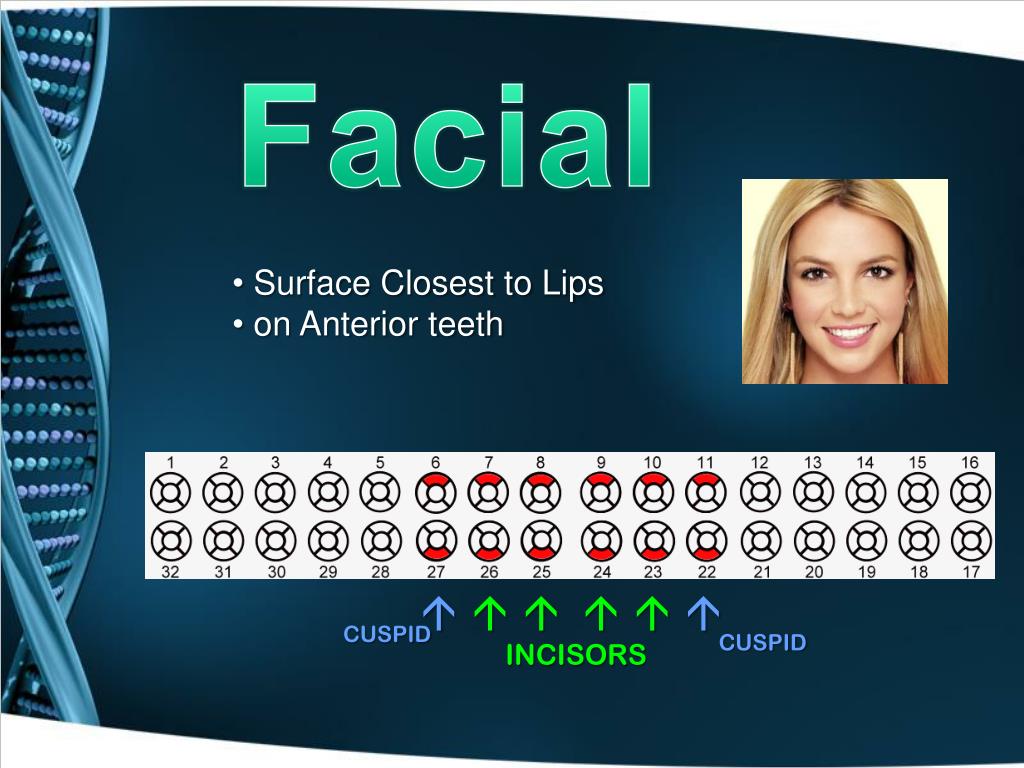

Facial center, as illustrated by the

  • Surface Closest to Lips

  • on Anterior teeth

á

á

á

á

á

á

cuspid

cuspid

incisors

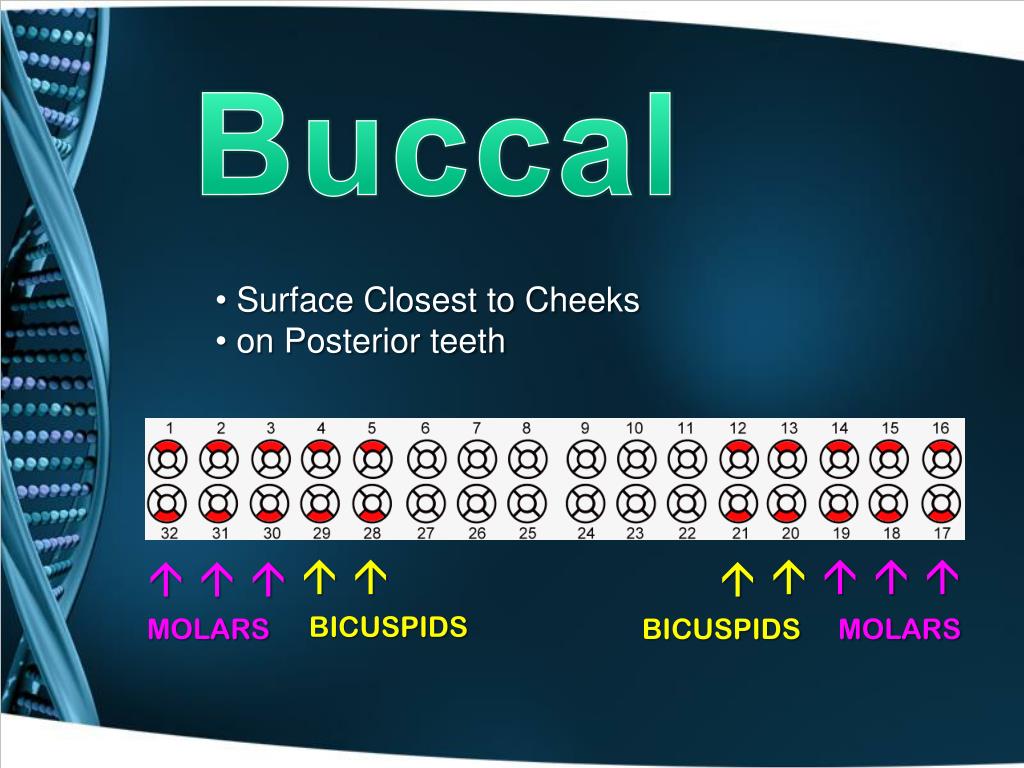

Buccal center, as illustrated by the

  • Surface Closest to Cheeks

  • on Posterior teeth

á

á

á

á

á

á

á

á

á

á

Bicuspids

molars

Bicuspids

molars

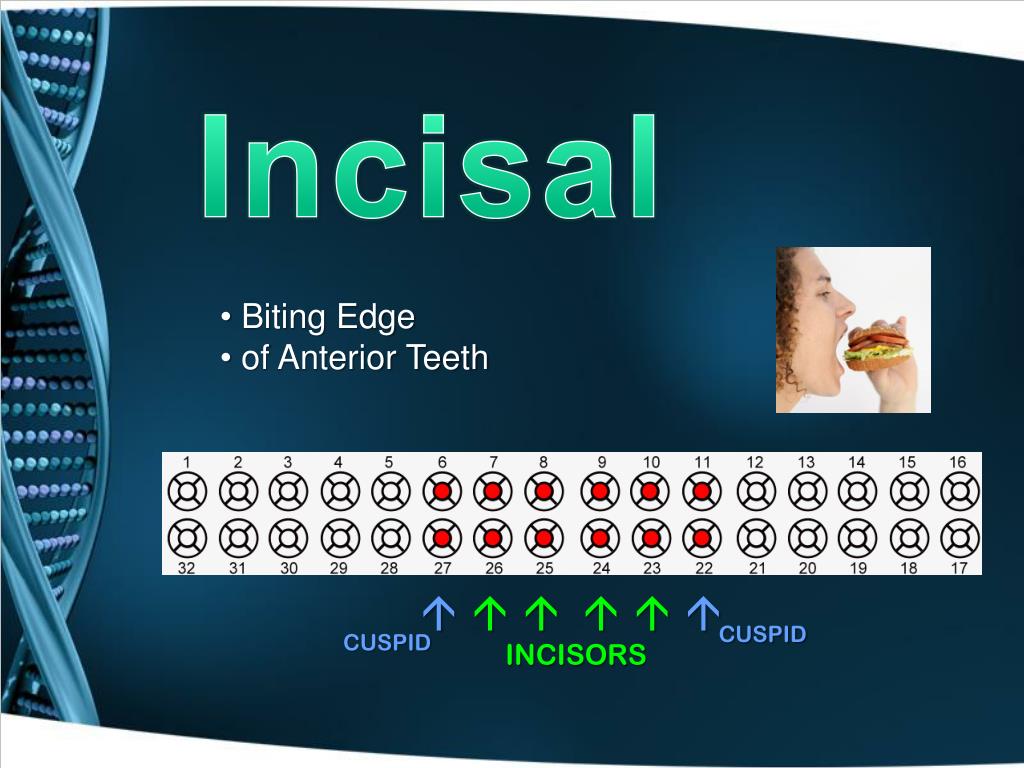

Incisal center, as illustrated by the

  • Biting Edge

  • of Anterior Teeth

á

á

á

á

á

á

cuspid

cuspid

incisors

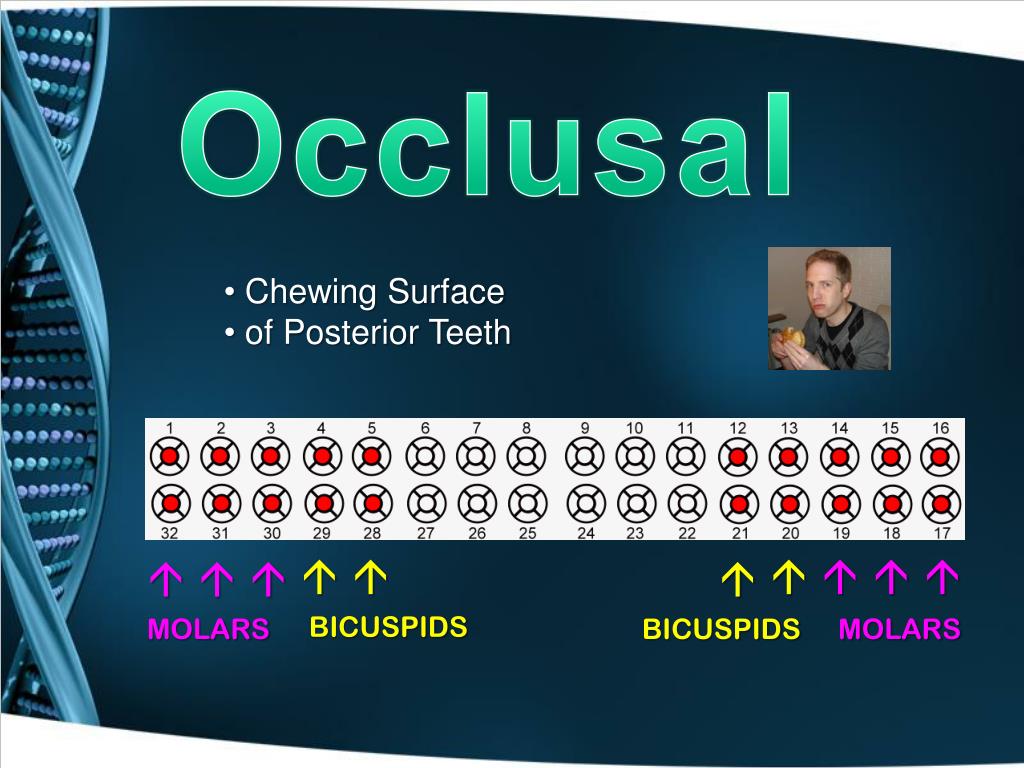

Occlusal center, as illustrated by the

  • Chewing Surface

  • of Posterior Teeth

á

á

á

á

á

á

á

á

á

á

Bicuspids

molars

Bicuspids

molars

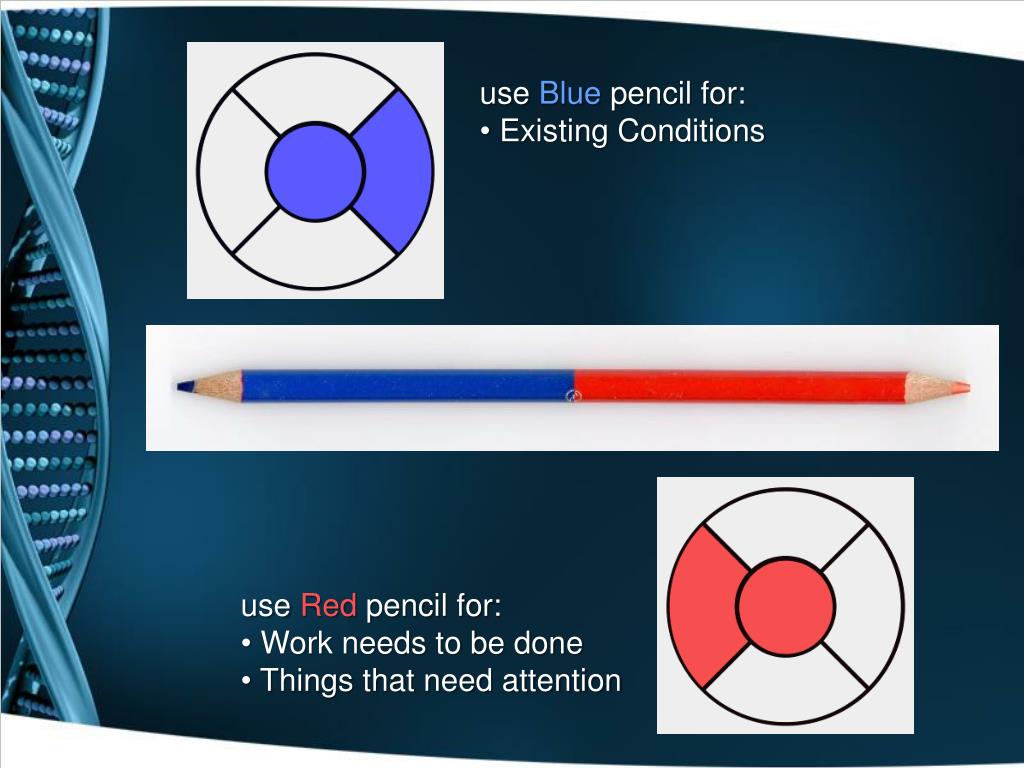

  • use center, as illustrated by the Blue pencil for:

  • Existing Conditions

  • use Red pencil for:

  • Work needs to be done

  • Things that need attention

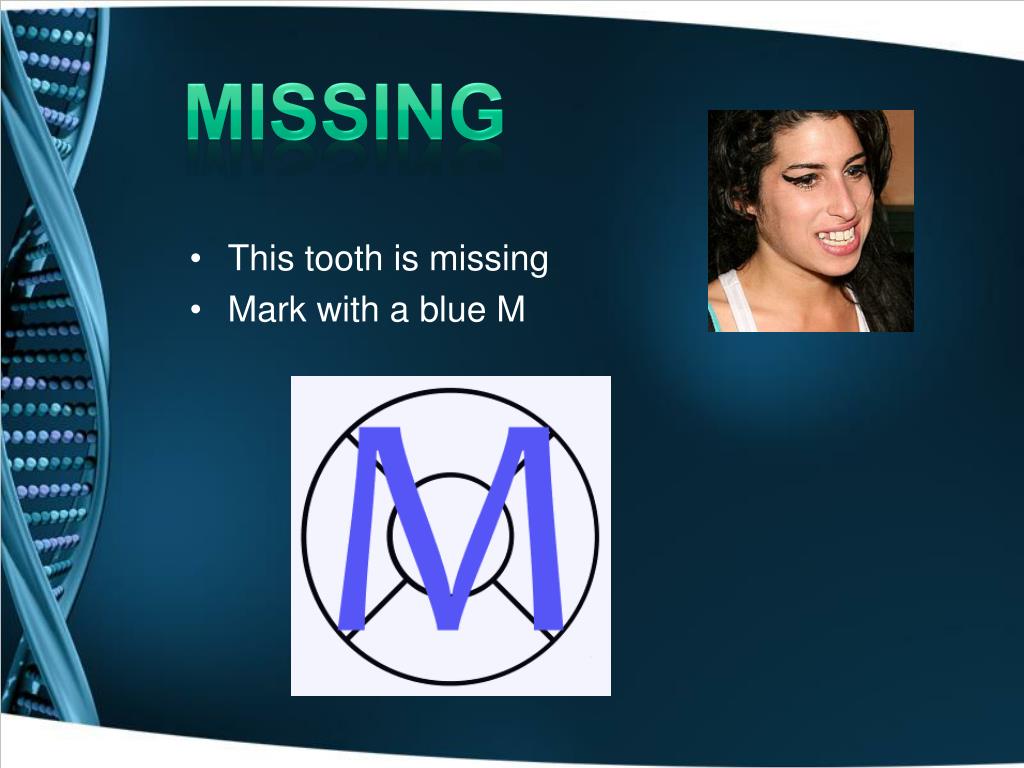

missing center, as illustrated by the

  • This tooth is missing

  • Mark with a blue M

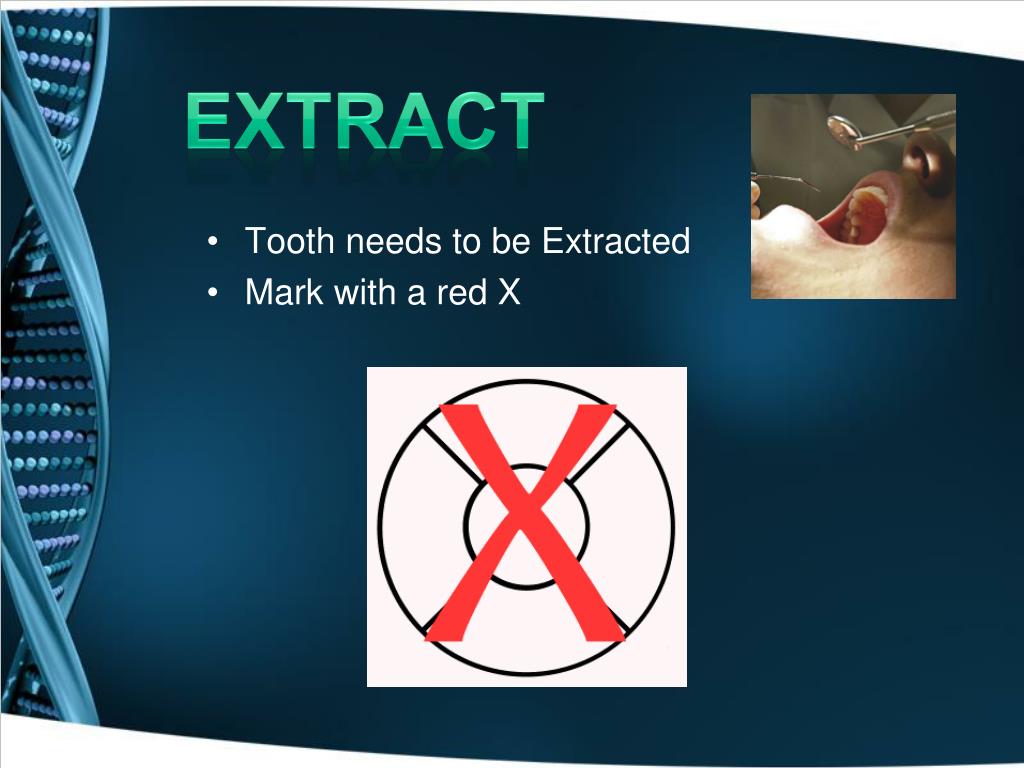

extract center, as illustrated by the

  • Tooth needs to be Extracted

  • Mark with a red X


impacted center, as illustrated by the

  • Permanent Tooth has not Erupted

  • Circle around the outside in red

  • write IMP

ATTENTION WORTHY! MARK IN RED!

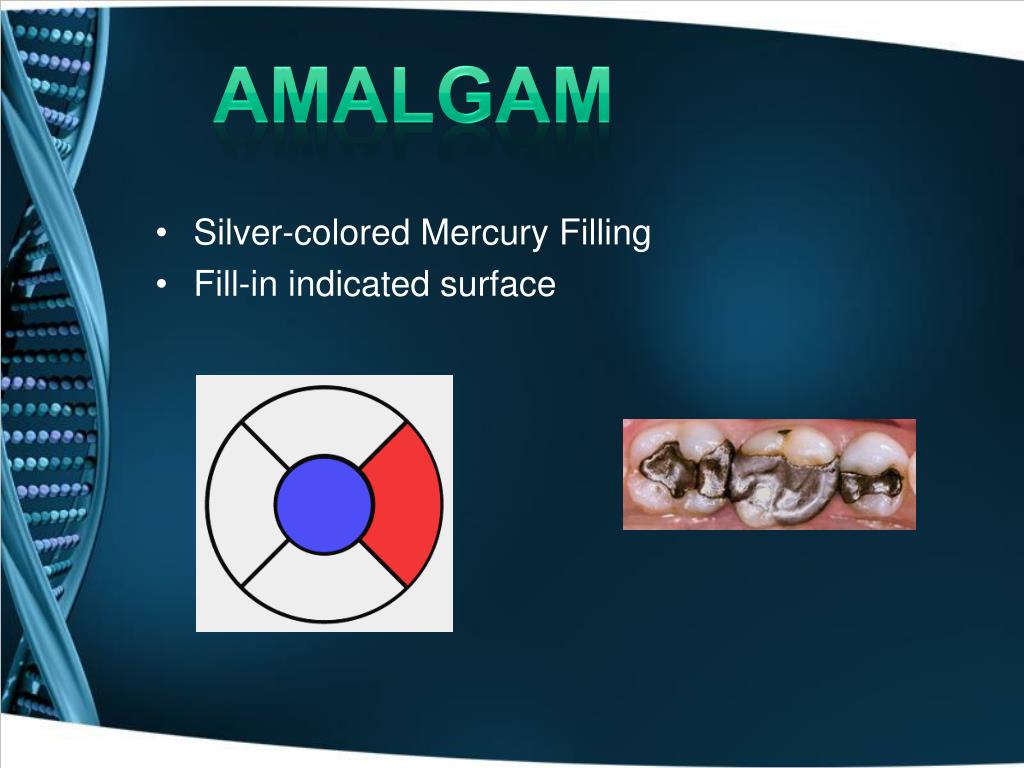

Amalgam center, as illustrated by the

  • Silver-colored Mercury Filling

  • Fill-in indicated surface

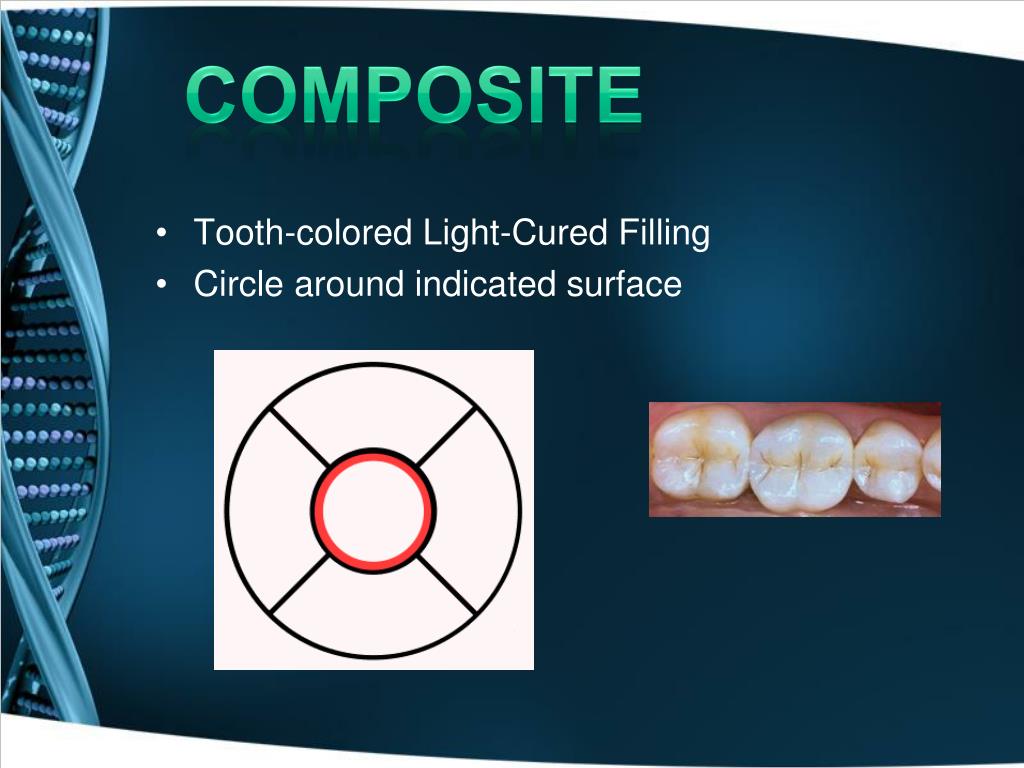

Composite center, as illustrated by the

  • Tooth-colored Light-Cured Filling

  • Circle around indicated surface

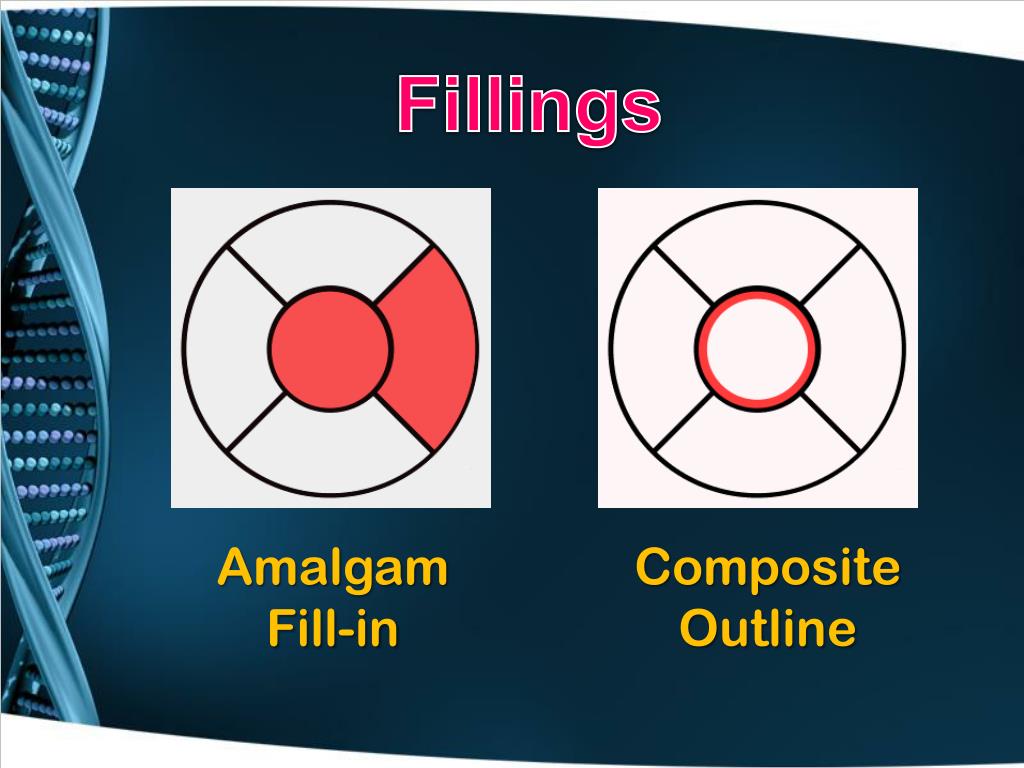

Fillings center, as illustrated by the

Amalgam

Fill-in

Composite

Outline


gold foil center, as illustrated by the

  • Outline surfaces

  • plus Diagonal lines on surfaces

  • write GF

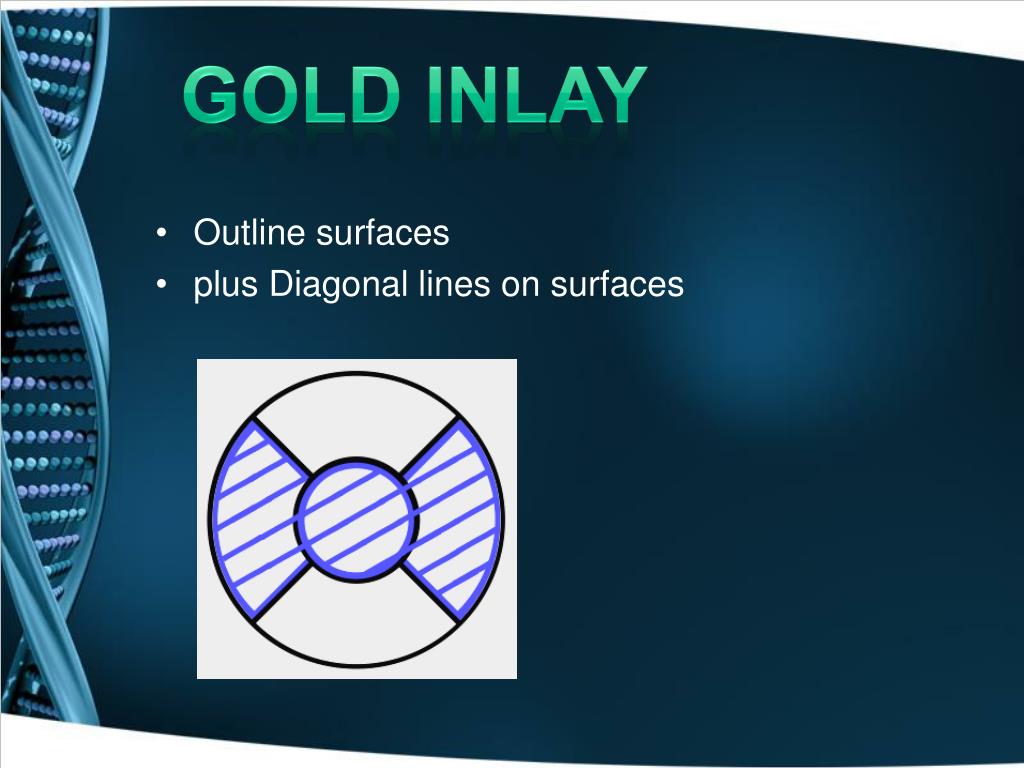

gold inlay center, as illustrated by the

  • Outline surfaces

  • plus Diagonal lines on surfaces


full gold crown center, as illustrated by the

  • Diagonal lines on entire tooth

  • write FGC

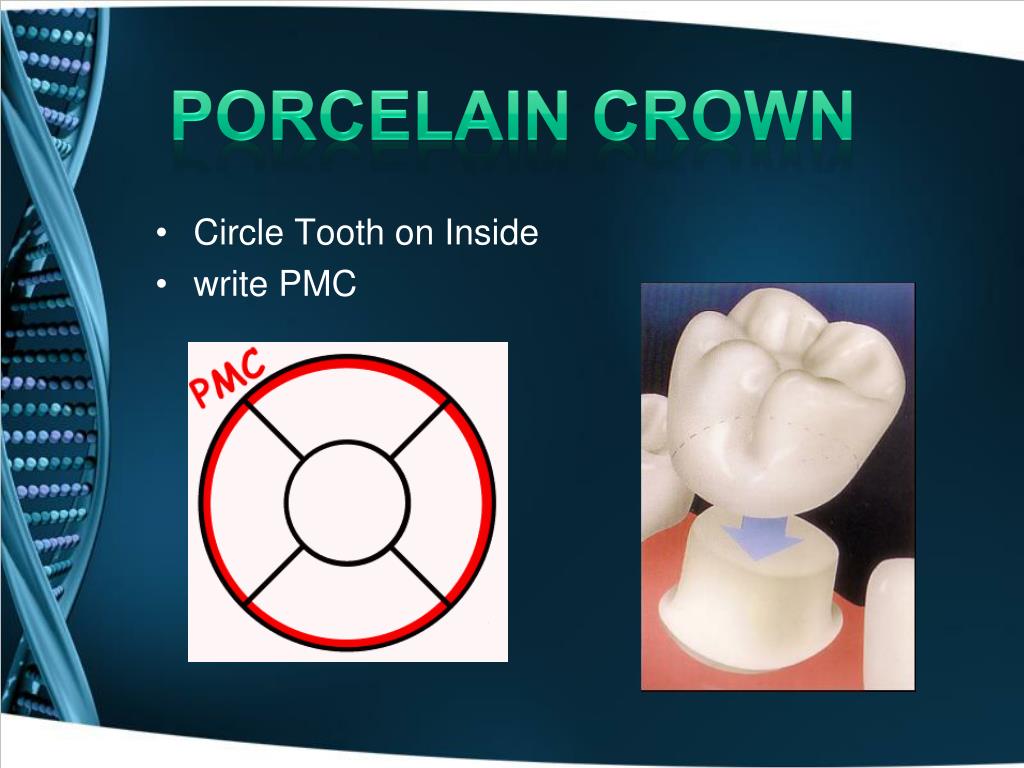

porcelain crown center, as illustrated by the

  • Circle Tooth on Inside

  • write PMC


super center, as illustrated by the numerary

  • Extra Tooth

  • red dot and S

ATTENTION WORTHY! MARK IN RED!

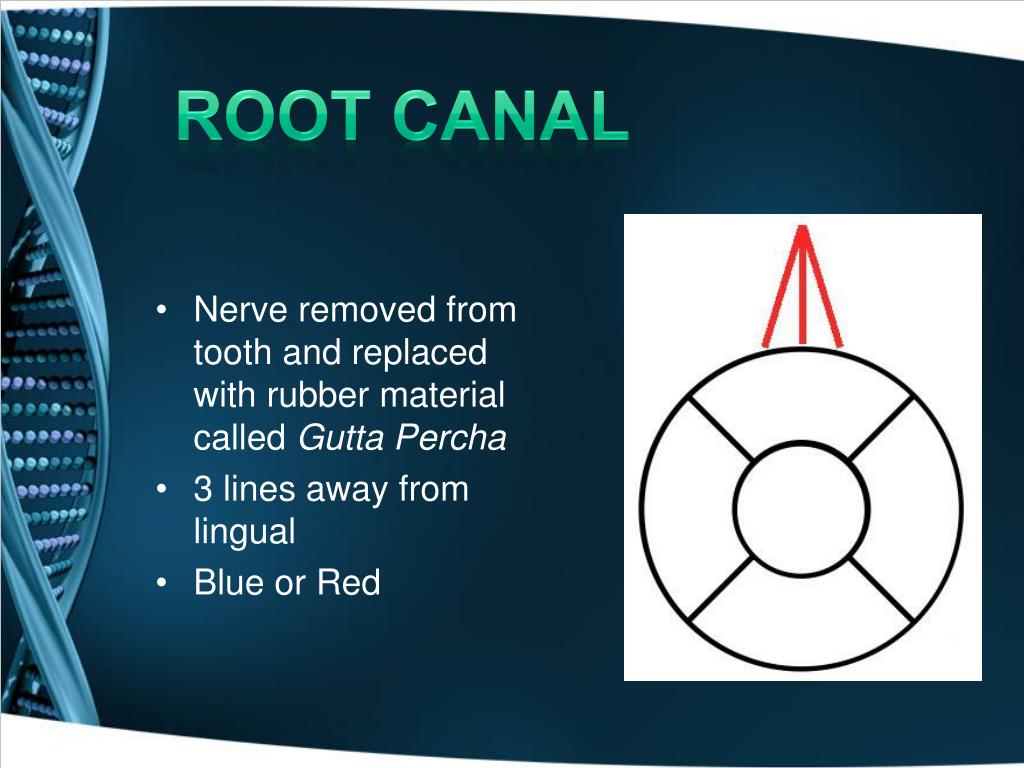

root canal center, as illustrated by the

  • Nerve removed from tooth and replaced with rubber material called Gutta Percha

  • 3 lines away from lingual

  • Blue or Red

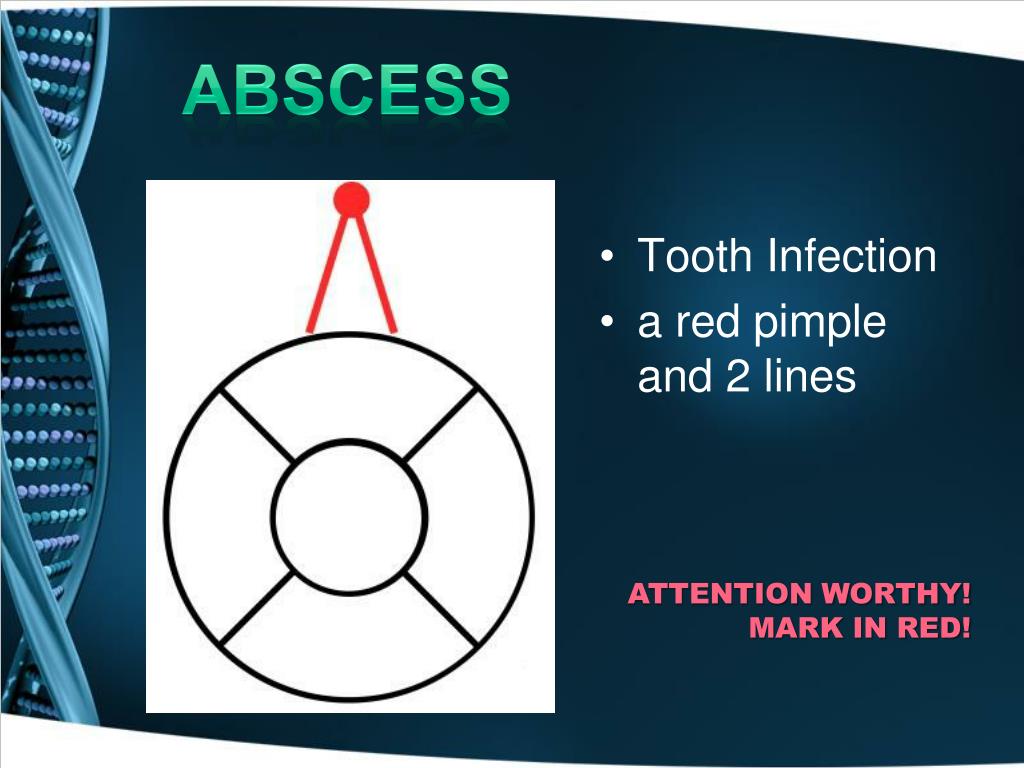

abscess center, as illustrated by the

  • Tooth Infection

  • a red pimple and 2 lines

ATTENTION WORTHY!

MARK IN RED!


apicoectomy center, as illustrated by the

  • Root Slice

  • line thru the root

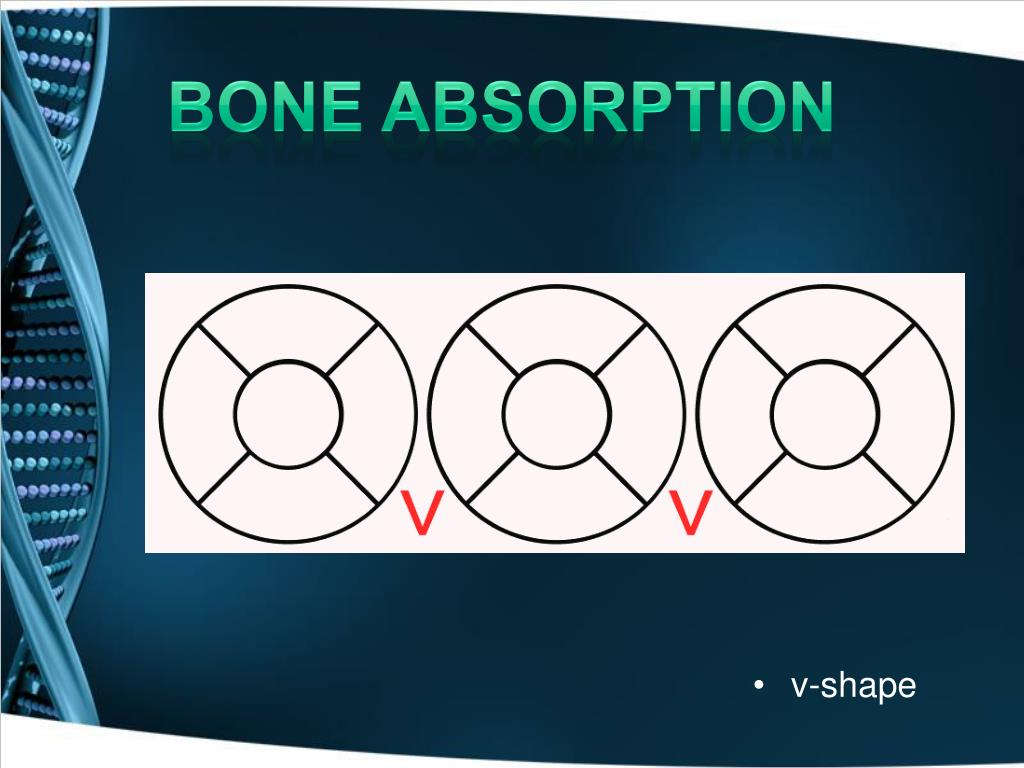

bone absorption center, as illustrated by the

  • v-shape

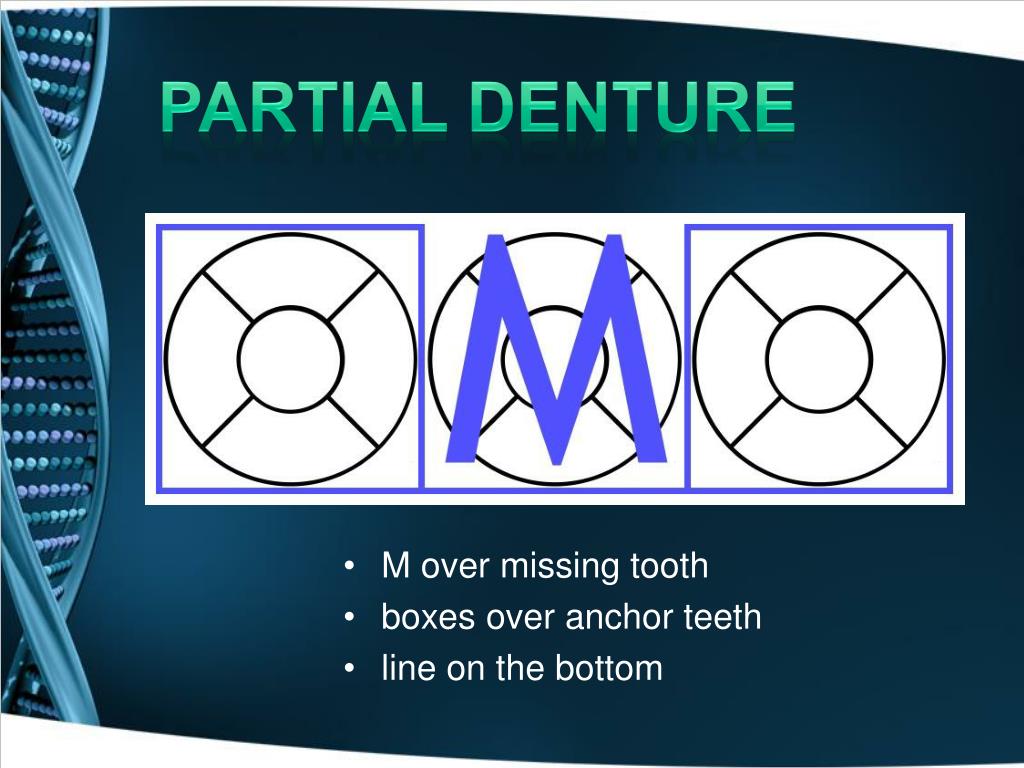

partial denture center, as illustrated by the

  • M over missing tooth

  • boxes over anchor teeth

  • line on the bottom

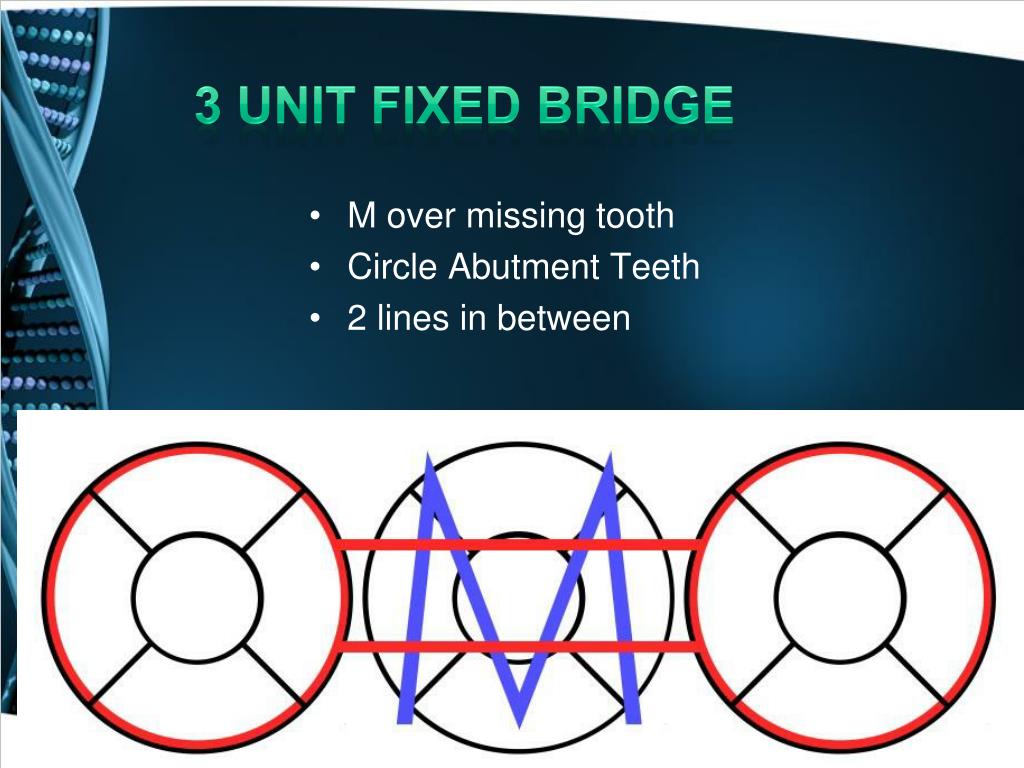

3 unit fixed bridge center, as illustrated by the

  • M over missing tooth

  • Circle Abutment Teeth

  • 2 lines in between


Let’s Review! center, as illustrated by the


32

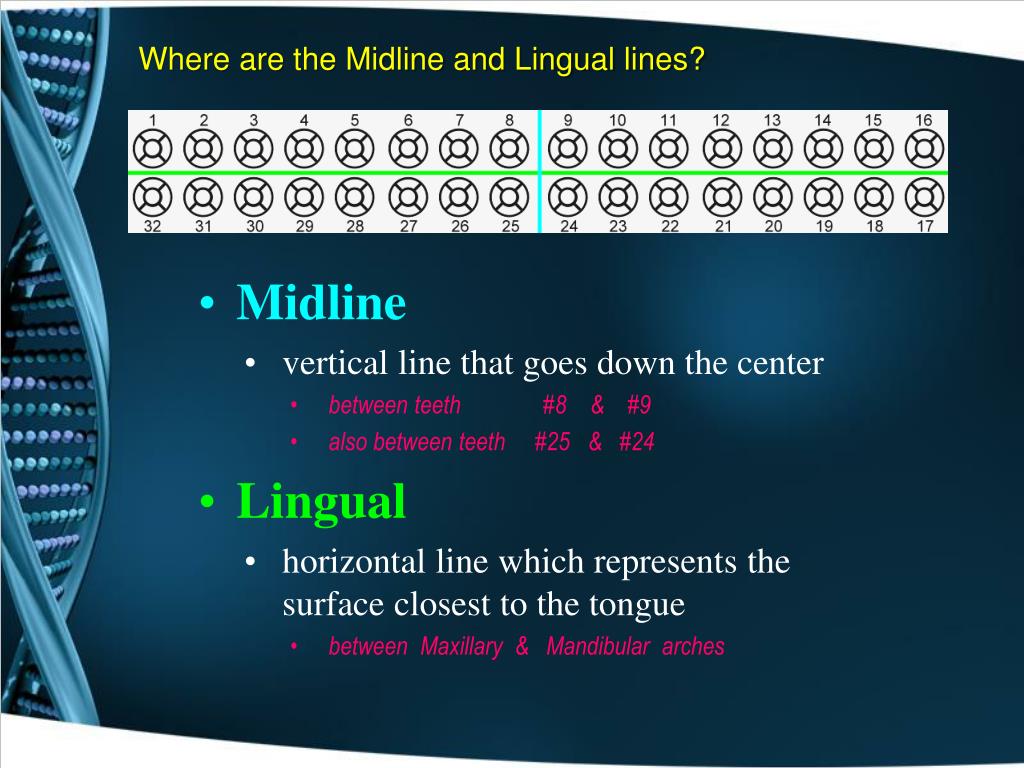

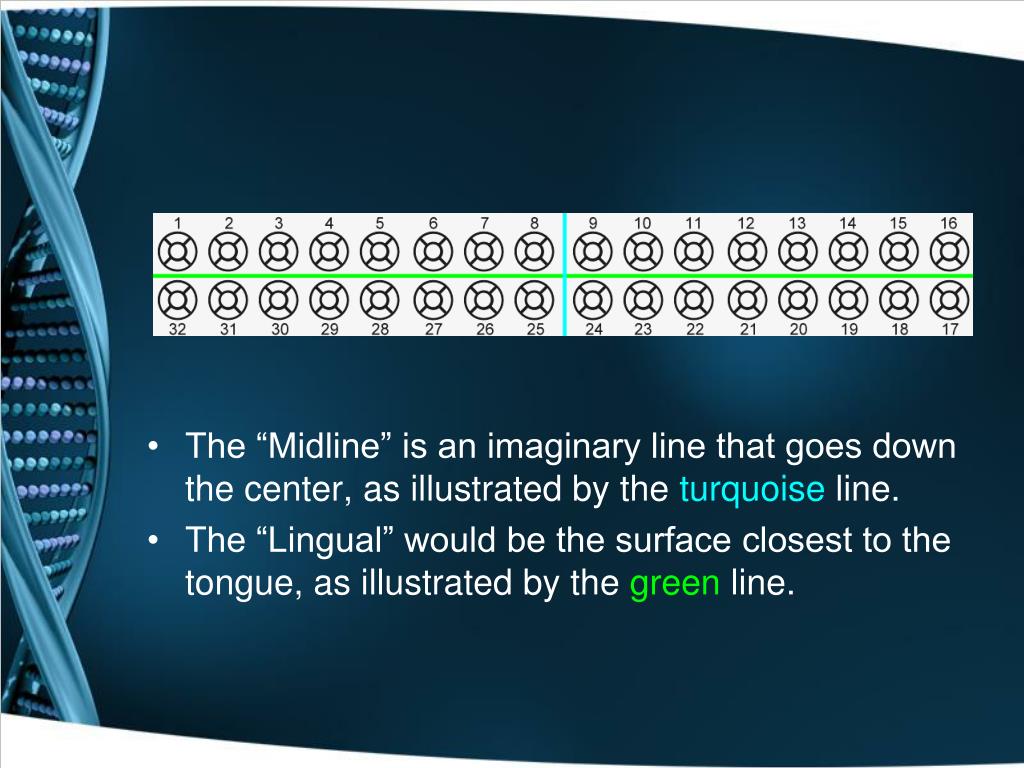

Where are the Midline and Lingual lines? center, as illustrated by the

  • Midline

    • vertical line that goes down the center

      • between teeth #8 & #9

      • also between teeth #25 & #24

  • Lingual

    • horizontal line which represents the surface closest to the tongue

      • between Maxillary & Mandibular arches

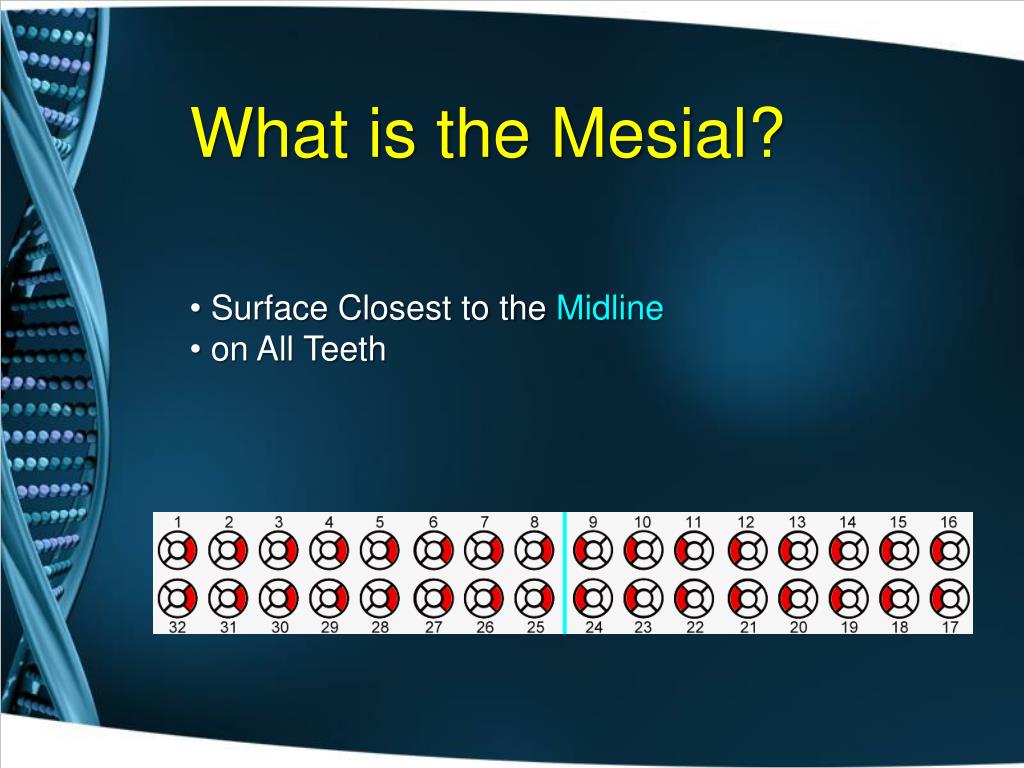

What is the center, as illustrated by the Mesial?

  • Surface Closest to the Midline

  • on All Teeth


What is the Distal? center, as illustrated by the

  • Surface Farthest from the Midline

  • on All Teeth

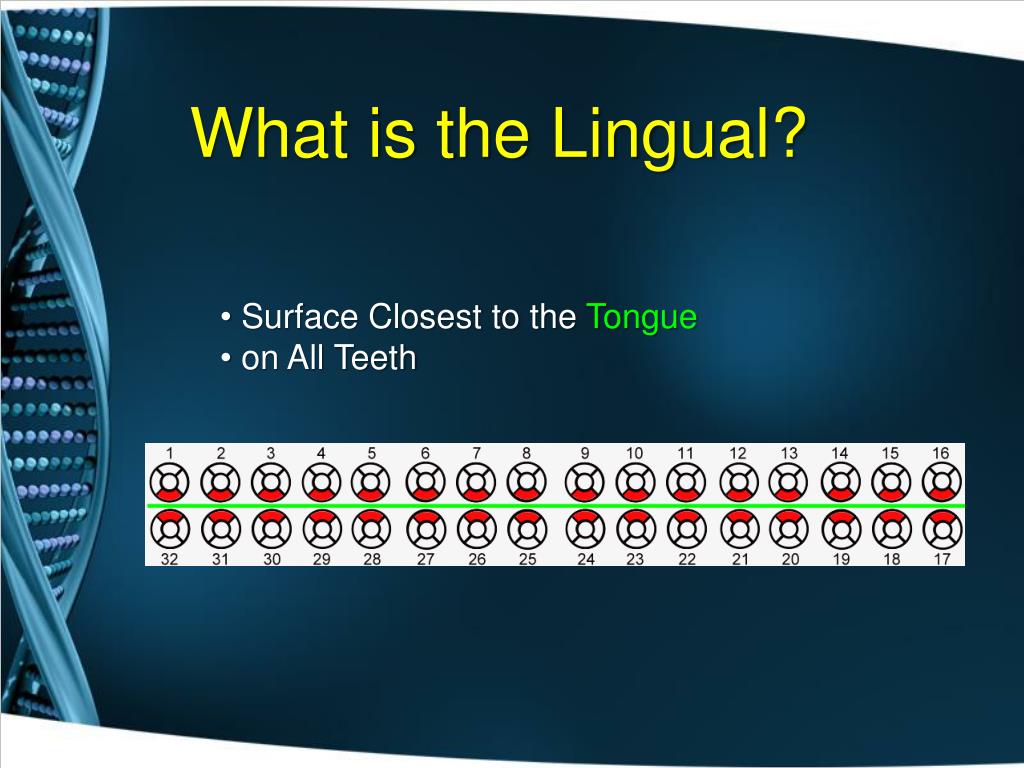

What is the Lingual? center, as illustrated by the

  • Surface Closest to the Tongue

  • on All Teeth

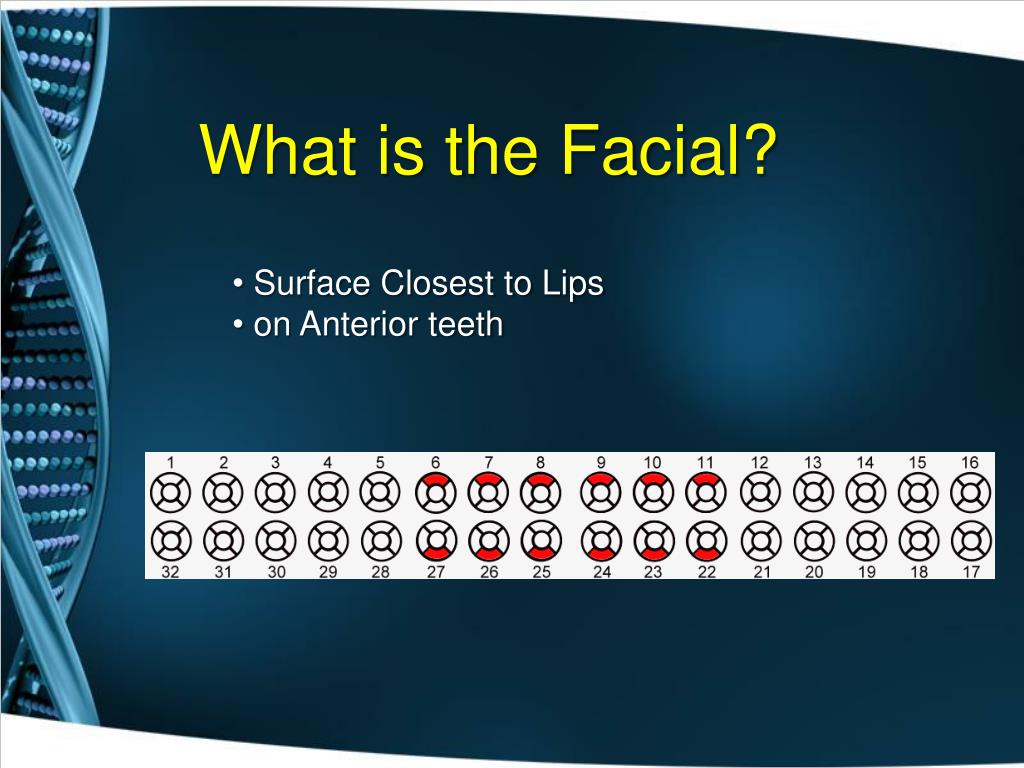

What is the Facial? center, as illustrated by the

  • Surface Closest to Lips

  • on Anterior teeth

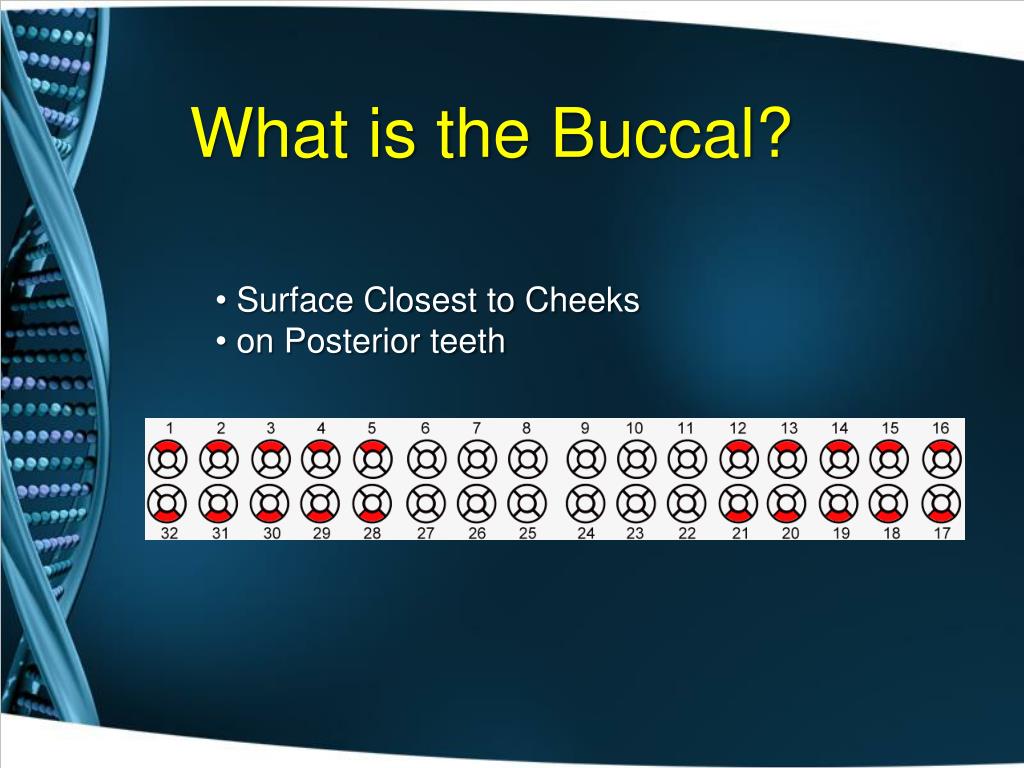

What is the center, as illustrated by the Buccal?

  • Surface Closest to Cheeks

  • on Posterior teeth

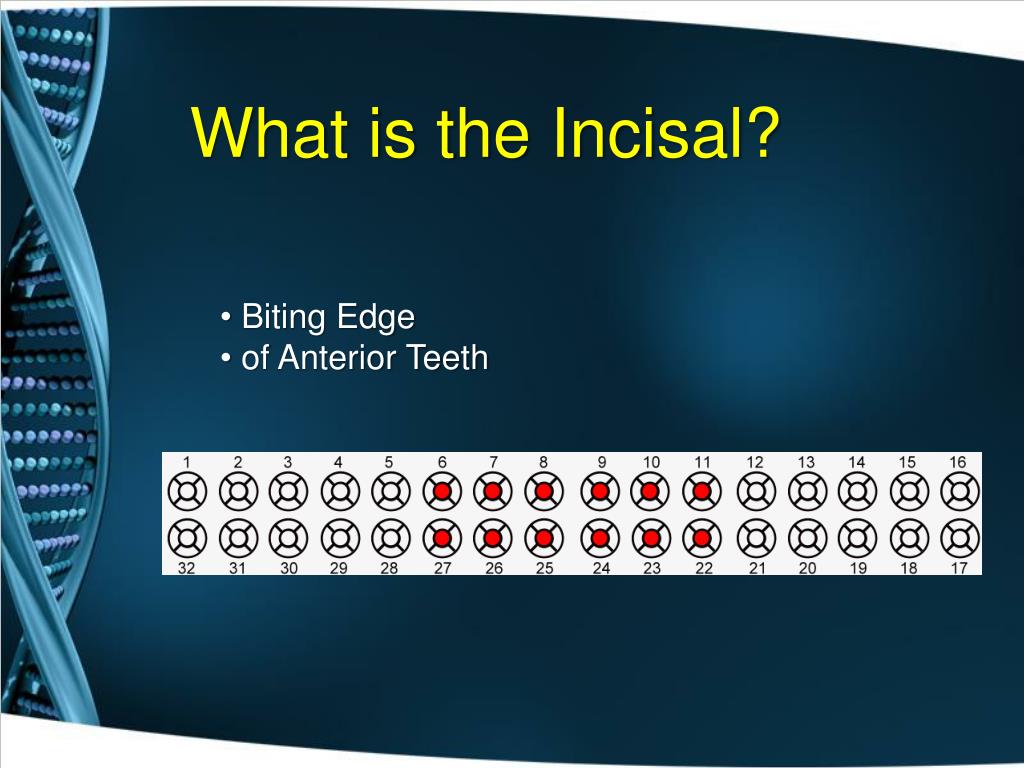

What is the center, as illustrated by the Incisal?

  • Biting Edge

  • of Anterior Teeth

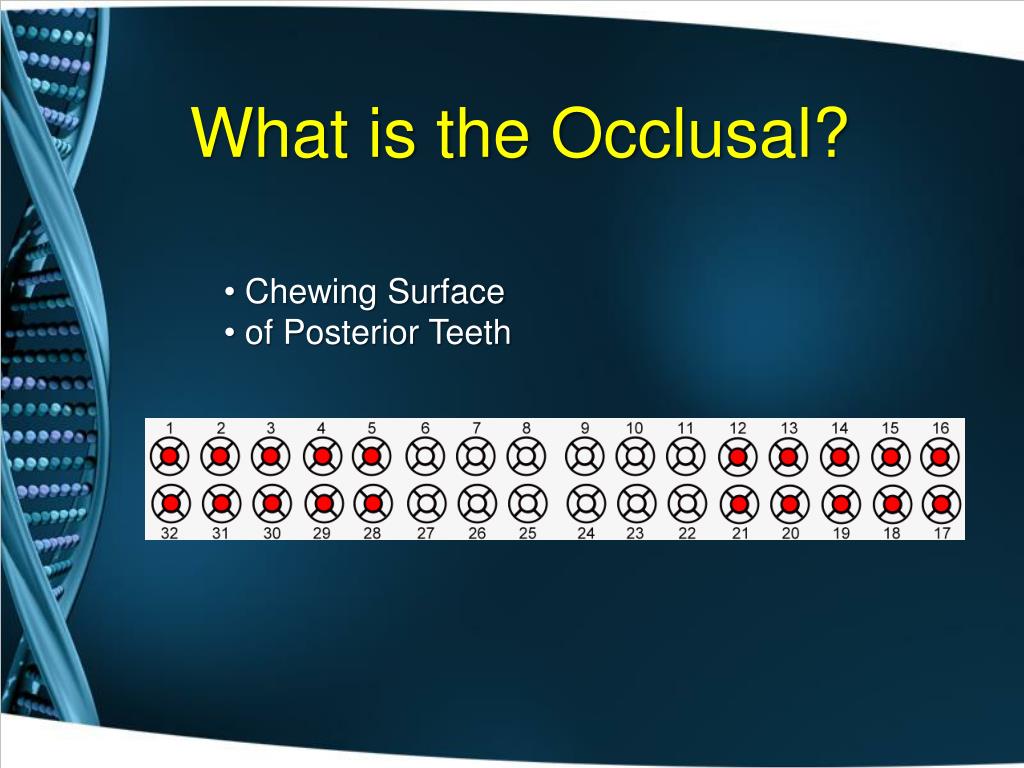

What is the center, as illustrated by the Occlusal?

  • Chewing Surface

  • of Posterior Teeth

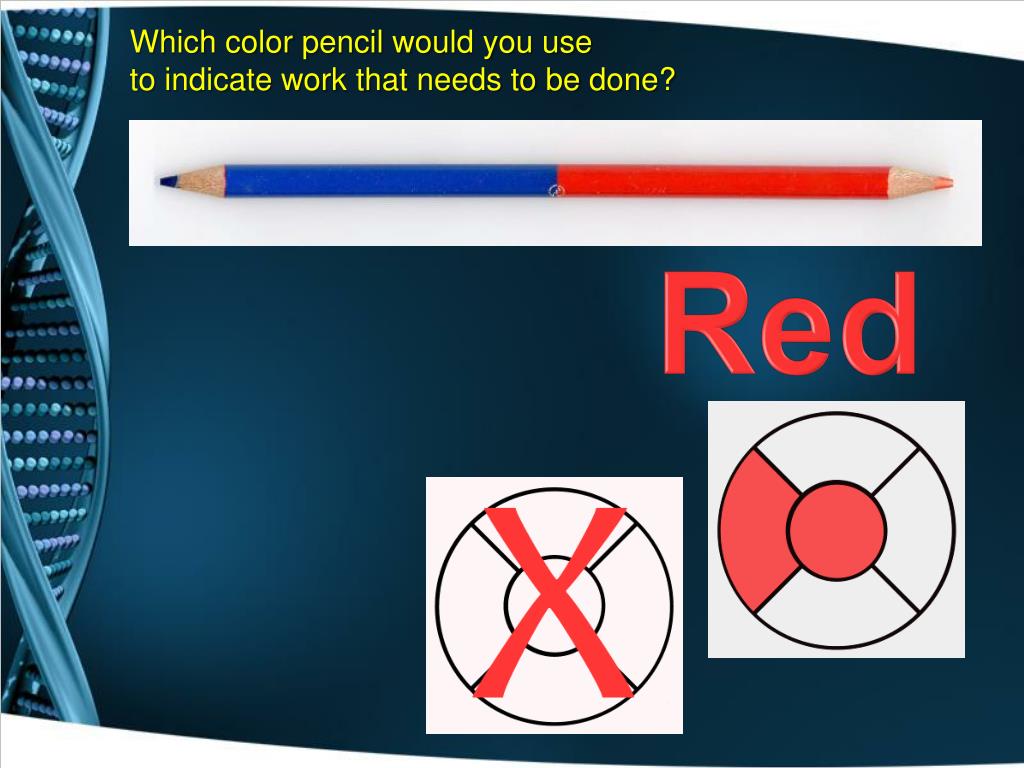

Which color pencil would you use center, as illustrated by the

to indicate work that needs to be done?

Red

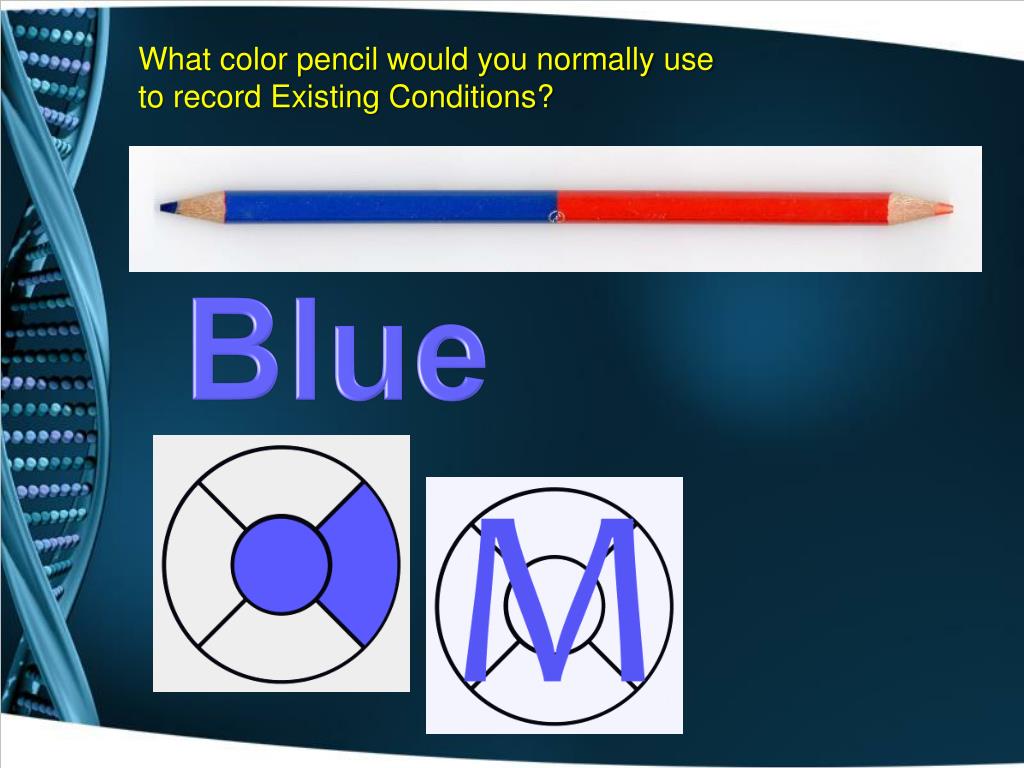

What color pencil would you normally use center, as illustrated by the

to record Existing Conditions?

Blue

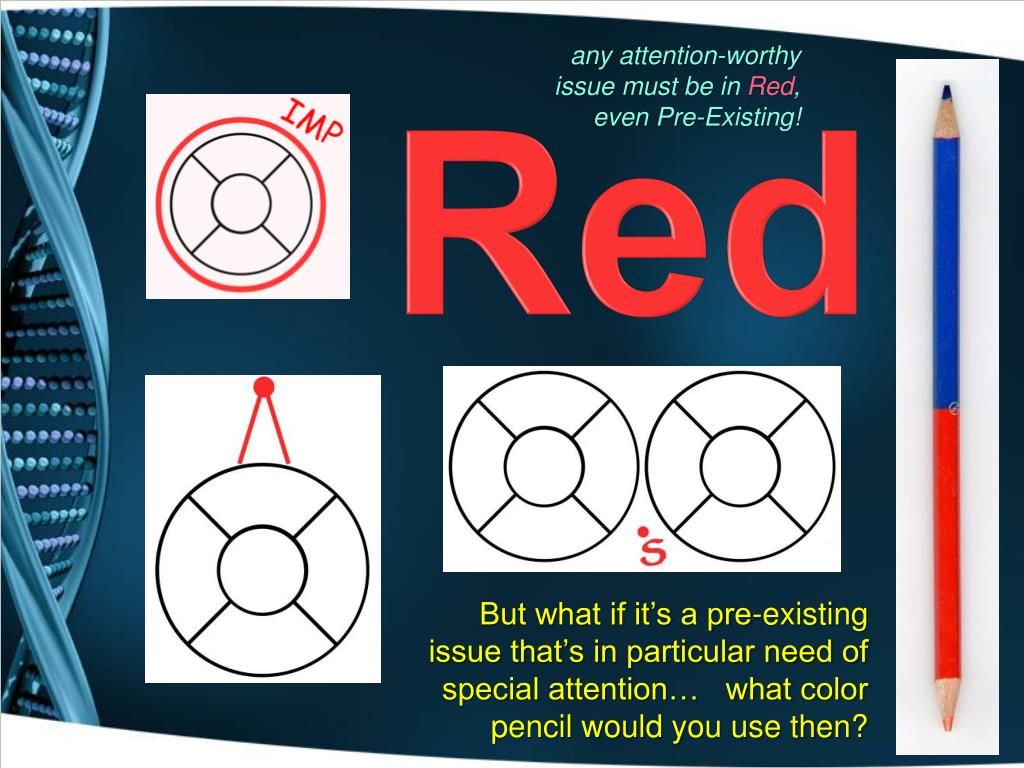

any attention-worthy center, as illustrated by the

issue must be in Red,

even Pre-Existing!

Red

But what if it’s a pre-existing issue that’s in particular need of

special attention… what color

pencil would you use then?


If a Tooth is Missing, how do you write it? center, as illustrated by the

  • mark with a blue M


How do you mark a tooth that needs to be Extracted? center, as illustrated by the

  • Mark with a red X


How do you mark down an Impacted tooth? center, as illustrated by the

  • Circle around the outside in red

  • and write IMP

ATTENTION WORTHY! MARK IN RED!

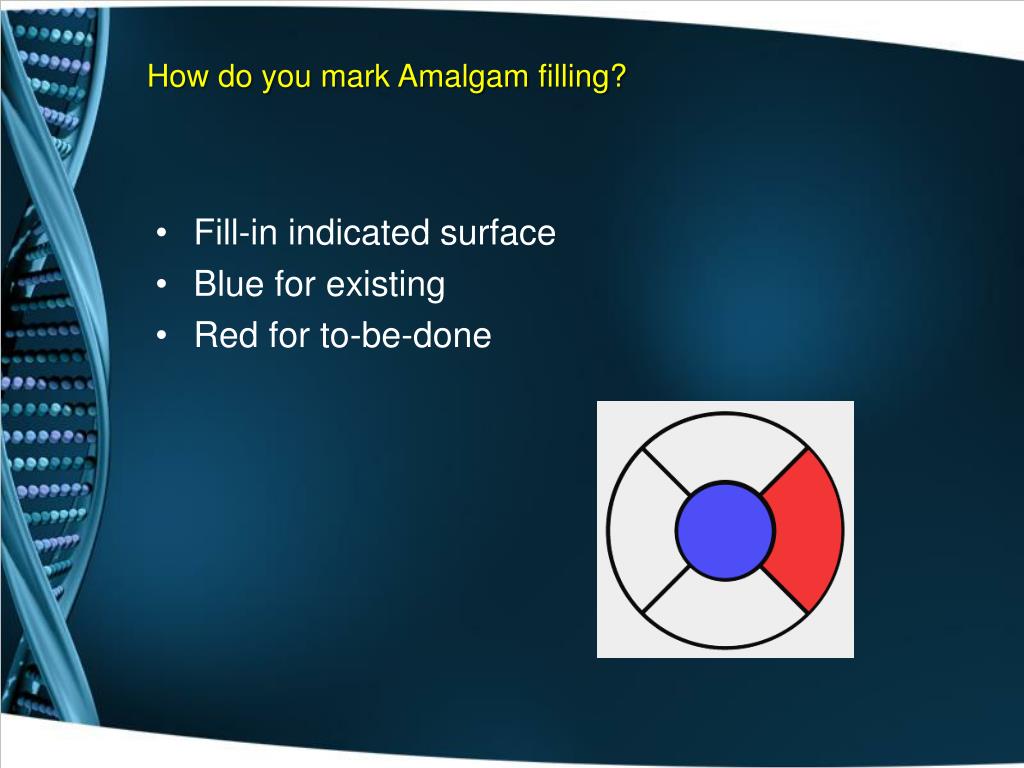

How do you mark Amalgam filling? center, as illustrated by the

  • Fill-in indicated surface

  • Blue for existing

  • Red for to-be-done


How do you mark Composite filling? center, as illustrated by the

  • Circle around indicated surface


How do you mark Gold Foil? center, as illustrated by the

  • Outline surfaces

  • plus Diagonal lines on surfaces

  • write GF


How do you mark Gold Inlay? center, as illustrated by the

  • Outline surfaces

  • plus Diagonal lines on surfaces


How do you mark a Full Gold Crown? center, as illustrated by the

  • Diagonal lines on entire tooth

  • write FGC


How do you mark Porcelain Crown? center, as illustrated by the

  • Circle Tooth on Inside

  • write PMC


How do you mark center, as illustrated by the SuperNumerary?

  • red dot and S

  • DDS will indicate between which two teeth

ATTENTION WORTHY! MARK IN RED!


How do you mark center, as illustrated by the

“Root Canal Treatment”?

  • 3 lines away from lingual

  • Blue or Red


How is an Abscess indicated? center, as illustrated by the

  • a red pimple and 2 lines

ATTENTION WORTHY!

MARK IN RED!


How do you indicate center, as illustrated by the Apicoectomy?

  • line thru the root


How do you mark-down Bone Absorption? center, as illustrated by the

  • v-shape


How do you record a Partial Denture? center, as illustrated by the

  • M over missing tooth

  • boxes over anchor teeth

  • line on the bottom


How about a “3 unit Fixed Bridge” ? center, as illustrated by the

  • M over missing tooth

  • Circle Abutment Teeth

  • 2 lines in between


Other methods of charting
Other Methods of Charting center, as illustrated by the

  • Anatomical

  • Computer


The center, as illustrated by the

End

created by Jeff Reyes – class of ‘09
