  1. Why revolutionary concept? • It is a totally new concept in the dental market • Planmeca Sovereign has robotic movements • Unit, chair, cuspidor and bowl turn • Patient chair with motorized features • The movements are not limited mechanically, but controlled by information technology

  2. Why revolutionary concept? • Graphic user interface and wireless foot control • 100% hands-free operation – to avoid cross contamination • The goal was easy usability, and yet functional • Features adapt to users and clinical needs

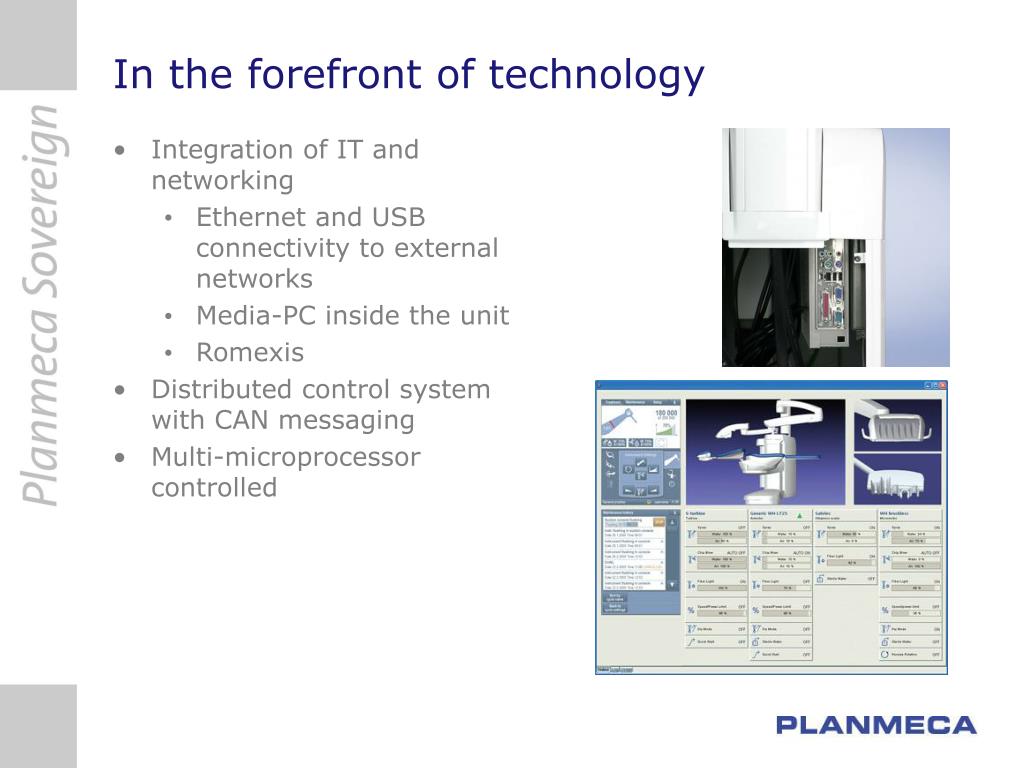

  3. In the forefront of technology • Integration of IT and networking • Ethernet and USB connectivity to external networks • Media-PC inside the unit • Romexis • Distributed control system with CAN messaging • Multi-microprocessor controlled

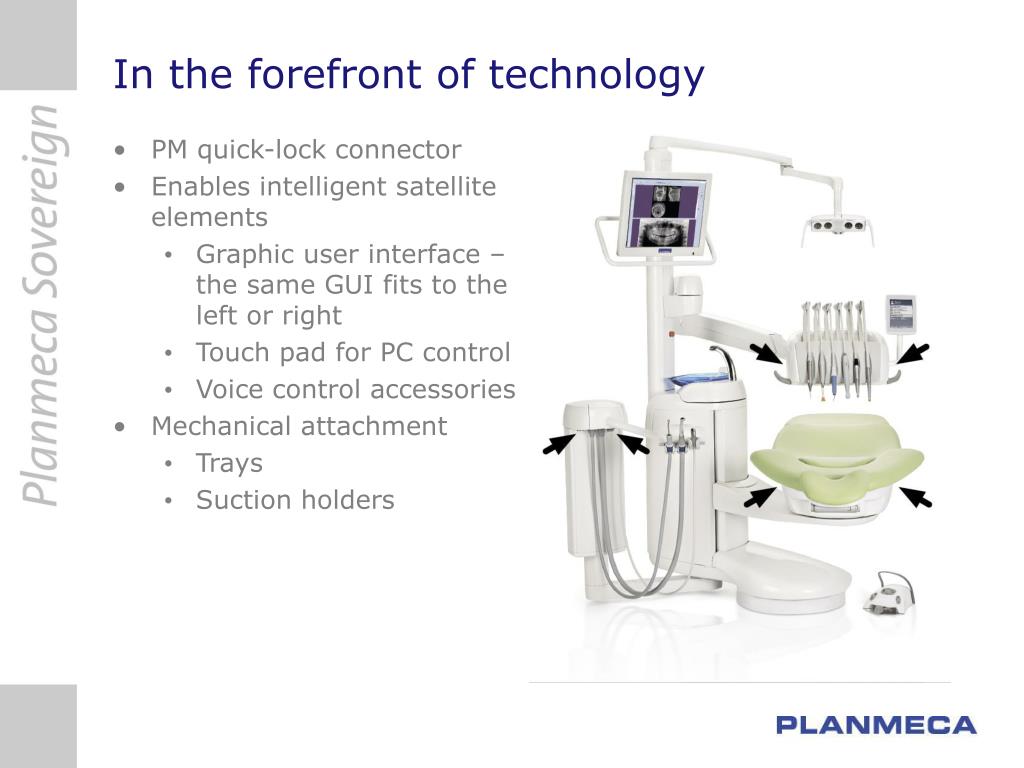

  4. In the forefront of technology • PM quick-lock connector • Enables intelligent satellite elements • Graphic user interface – the same GUI fits to the left or right • Touch pad for PC control • Voice control accessories • Mechanical attachment • Trays • Suction holders

  5. Unique concept • Symmetrical functions • Motorized conversion from right-handed to left-handed use • Natural consultation position

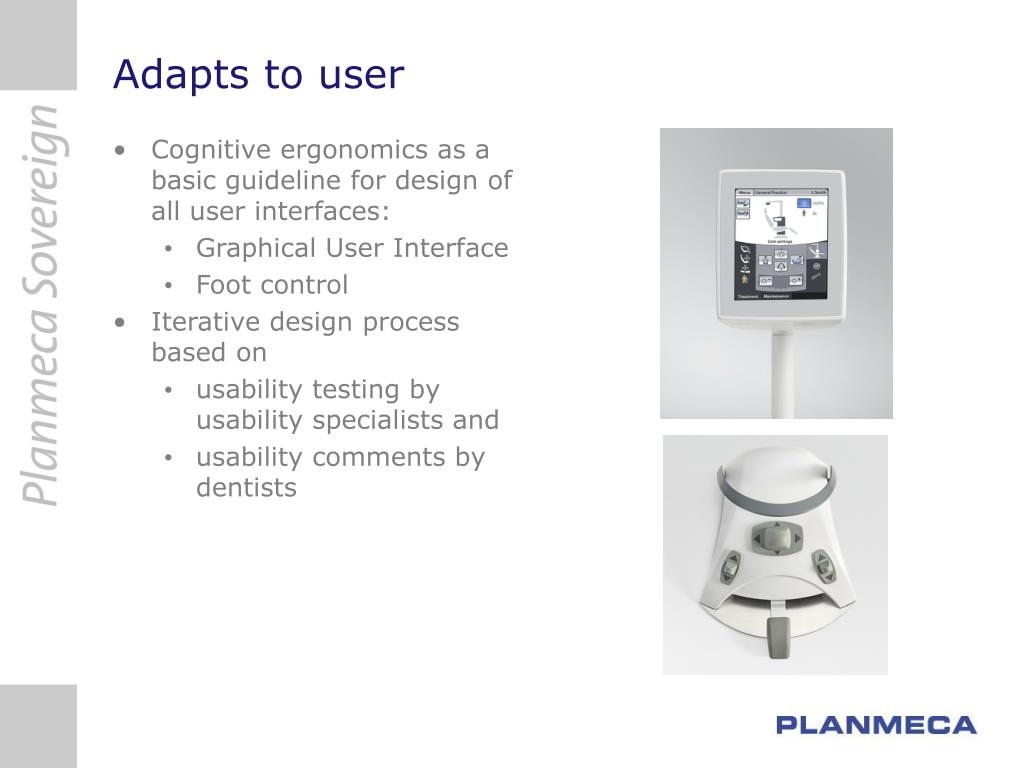

  6. Adapts to user • Cognitive ergonomics as a basic guideline for design of all user interfaces: • Graphical User Interface • Foot control • Iterative design process based on • usability testing by usability specialists and • usability comments by dentists

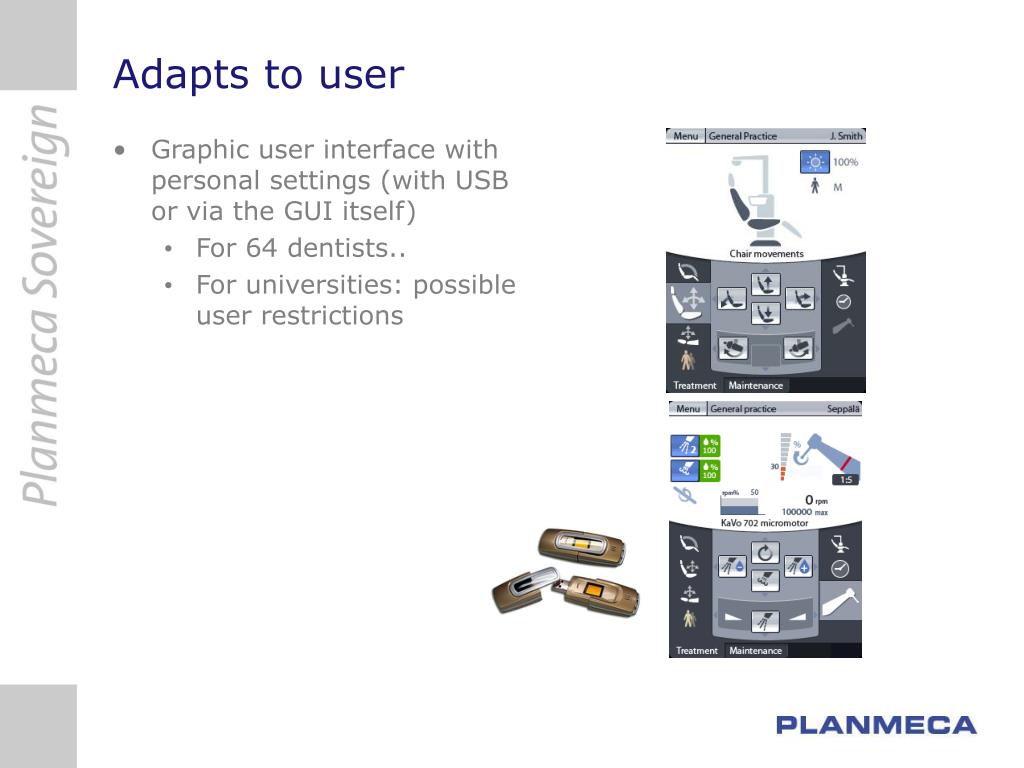

  7. Adapts to user • Graphic user interface with personal settings (with USB or via the GUI itself) • For 64 dentists.. • For universities: possible user restrictions

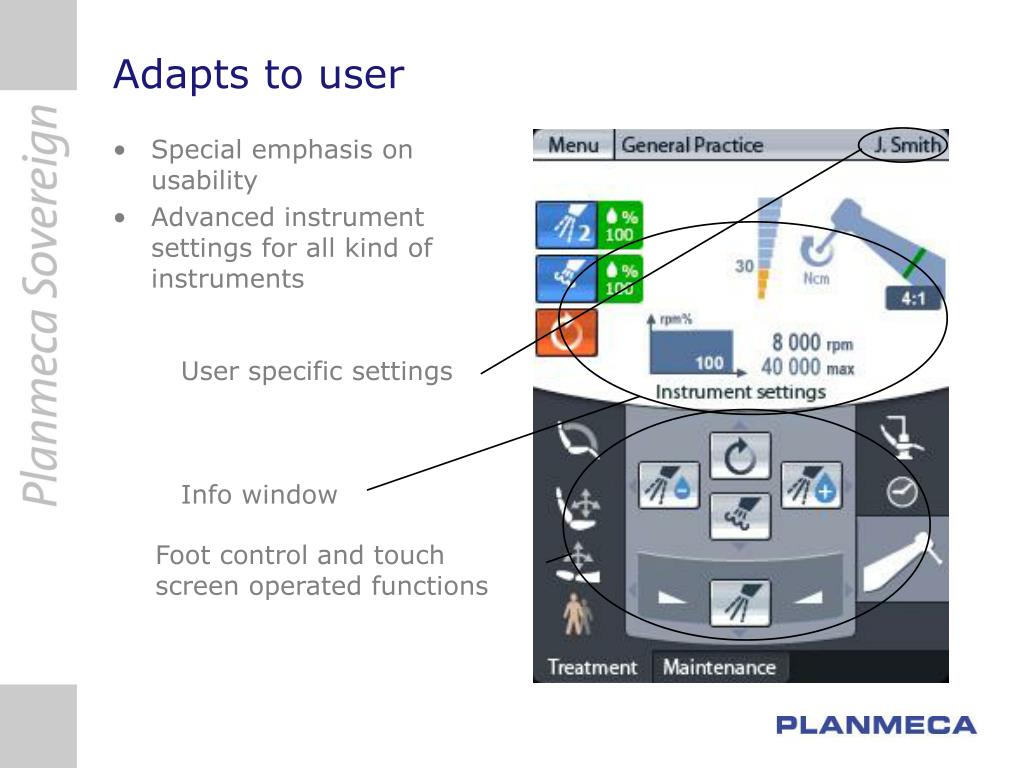

  8. Userspecificsettings Info window Foot control and touch screen operated functions Adapts to user • Special emphasis on usability • Advanced instrument settings for all kind of instruments

  9. Adapts to user • Exceptionally sturdy foot control • Equipped with 3 multidirectional control knobs and dual functional lever • Provides 100% hands-free access to all GUI controls • Optional cordless foot control

  10. Adapts to user • Dynamic instrument console • Up to six instruments – in which ever order • New instrument quick connector with USB connection • Instrument console can adapt special instruments • Space for extra modules for existing and new special instruments

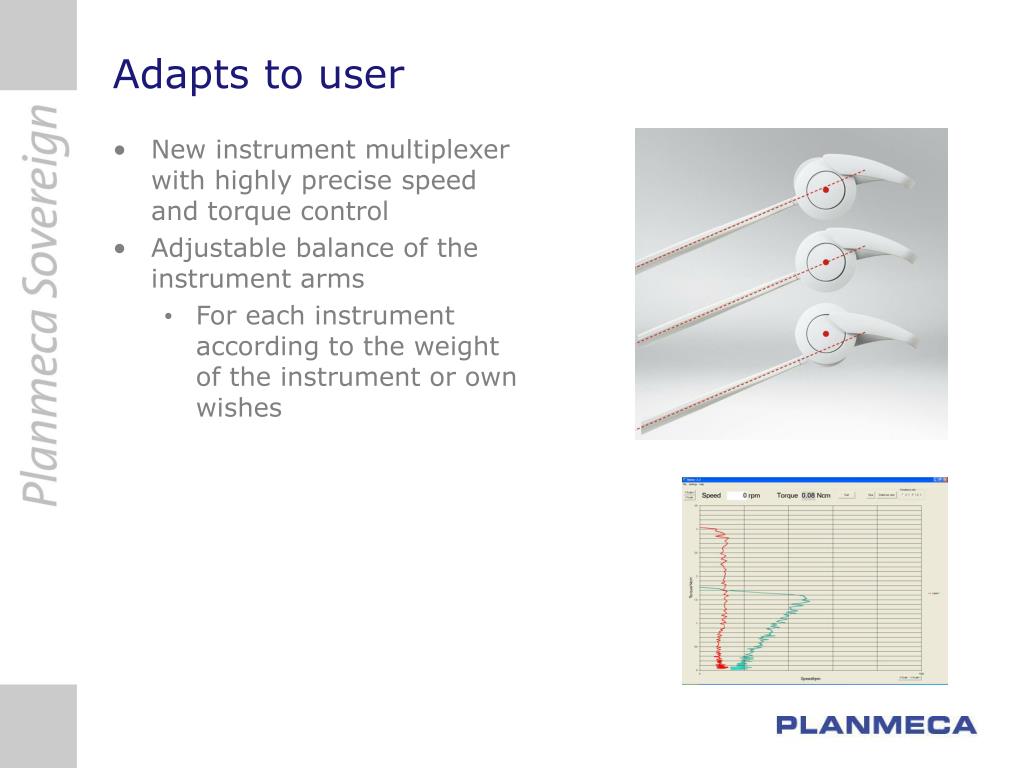

  11. Adapts to user • New instrument multiplexer with highly precise speed and torque control • Adjustable balance of the instrument arms • For each instrument according to the weight of the instrument or own wishes

  12. Adapts to user • Static postures are not ergonomic • Changing the posture during the day improves ergonomics • Unit adapts to different postures keeping the workplace optimal

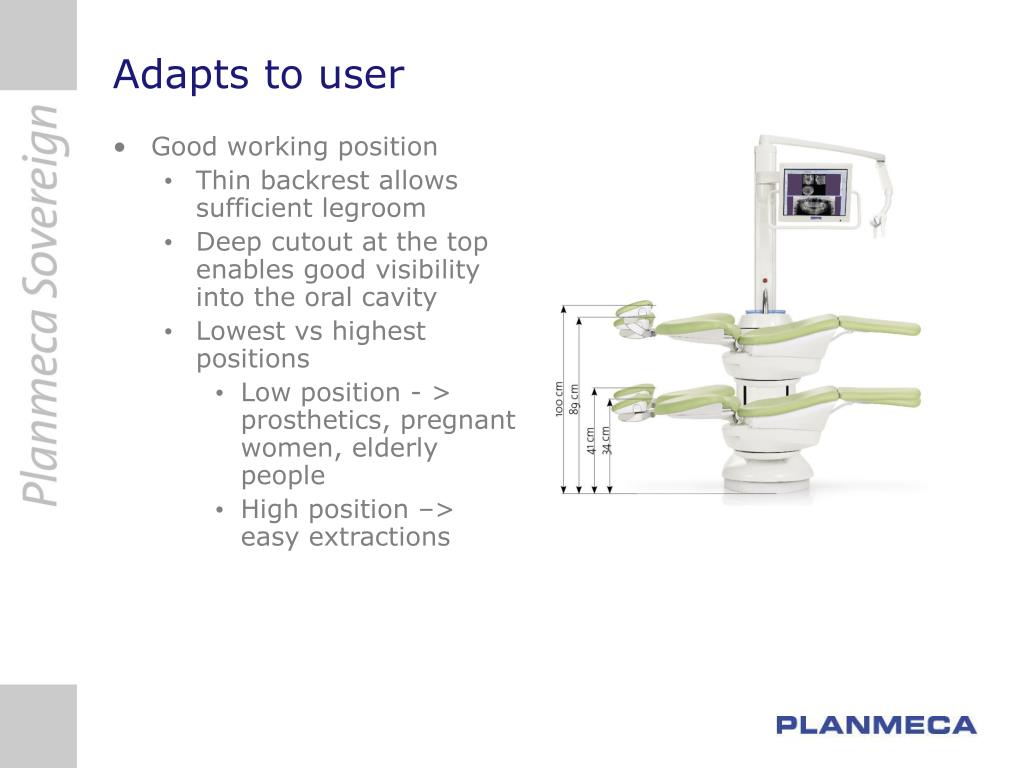

  13. Adapts to user • Good working position • Thin backrest allows sufficient legroom • Deep cutout at the top enables good visibility into the oral cavity • Lowest vs highest positions • Low position - > prosthetics, pregnant women, elderly people • High position –> easy extractions

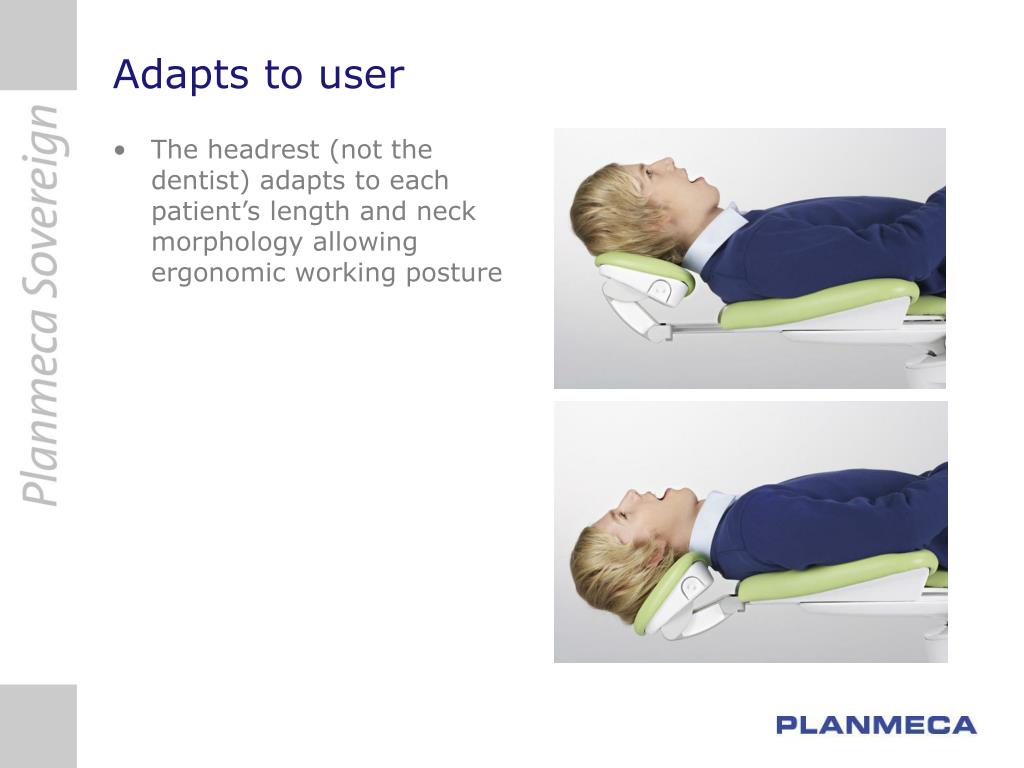

  14. Adapts to user • The headrest (not the dentist) adapts to each patient’s length and neck morphology allowing ergonomic working posture

  15. Adapts to user • Symmetrical dental unit • Motorized cuspidor turn • Equal working comfort for left-handed and right-handed users

  16. Meets clinical requirements • GUI can be adapted to specific operation modes • General practice • Endodontics • Parodontology • Surgery • Prosthetics

  17. Meets clinical requirements • Assistant element swivels through approximately 230 ° optimizing the working area for the specific operation to be performed

  18. Meets clinical requirements • Assistant element with 3 positions • Connection for syringe or curing light • Assistant element with 5 positions • Connection for 2 – 3 instruments incl. rotating instruments

  19. Meets clinical requirements • Modular Pylon concept • 2 function (540 mm) / 5 function pylon (1113 mm) • Easy installation • PYLON support column gives the dentist the possibility to add extra brackets when needed • Easy service, cable replacements

  20. Meets clinical requirements • The delivery arm has exceptional load balancing capacity • Instruments • GUI • Trays • Monitors • Gas burner • More than 10 kg adjustment range

  21. Meets clinical requirements • 3 different instrument water supply options: • Clean water • Sterile water • Special fluid supply • Independent supply for each instrument • Changing the supply depending on the operation mode

  22. Meets clinical requirements • The Planmeca LED operating light provides optimized illumination with four large, powerful LEDs • They allow viewing all the areas of the oral cavity with extreme accuracy • LEDs also ensure constant power and colour temperature and, with a lifespan of over 50 000 hours, are virtually maintenance-free

  23. Meets clinical requirements • The infrared sensors of the Planmeca LED enable the on/off switch and the light intensity change simply by waving the hand in front of them • Waving the hand shortly in front of these sensors switches the operating light on or off • To adjust light intensity, the hand is to be kept longer in front of the sensors • The light intensity adjustment ranges from 50 % to 100 %

  24. Adapts to patient • Nowadays dental treatment sessions take increasingly longer. That is why on Planmeca Soverign, we have paid careful attention to the design and movements of the various patient supports • Adjustable length of the backrest adapts to every patient

  25. Adapts to patient • Seat inclination allows the seat to be lowered or raised in conformity with the backrest movement • Synchronised backrest and legrest movements • Ultra upholstery provides extra comfort

  26. Adapts to patient • Bowl • The motorised cuspidor bowl movement brings the bowl very close to the patient, letting them rinse their mouth more hygienically • Intelligent glass fill system • Removable glass bowl and cup holder

  27. Adapts to treatment environment • Unit and chair swivel (270 degrees) allows free positioning of the patient’s head with respect to cabinetry • 2- or 4 –handed dentistry • Free entry / exit position • Free space for prosthetics • More space for the assistant • For special operations such as oral surgery with a mobile cabinet

  28. Adapts to treatment environment • Installation possibilities

  29. Meets the strictest hygiene requirements • Comprehensive Water Management System • Isolation from city water • Waterline Cleaning System • Clean water system • Smart flushing cycles • Reminders

  30. Meets the strictest hygiene requirements • Sophisticated assistant element • Suction cleaning • Suction agent dosage • Assistant instrument flushing

  31. Meets the strictest hygiene requirements • Smooth surfaces • Removable glass bowl and cup holder
